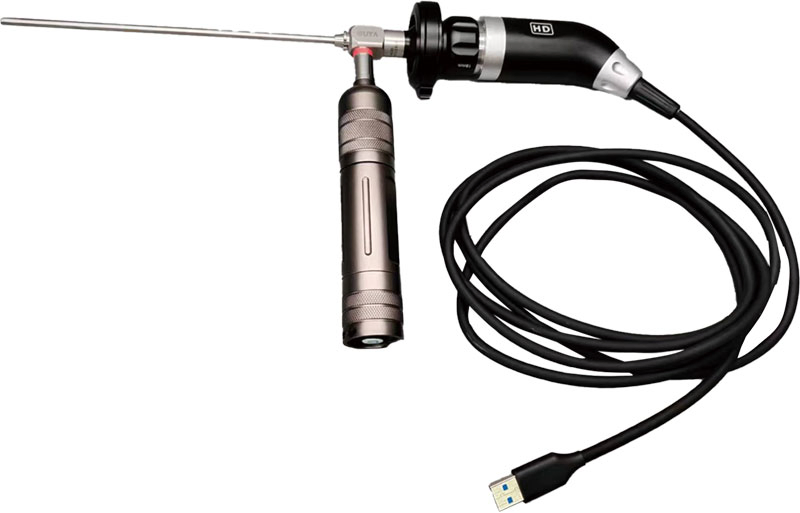

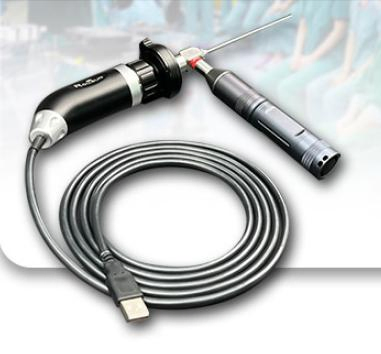

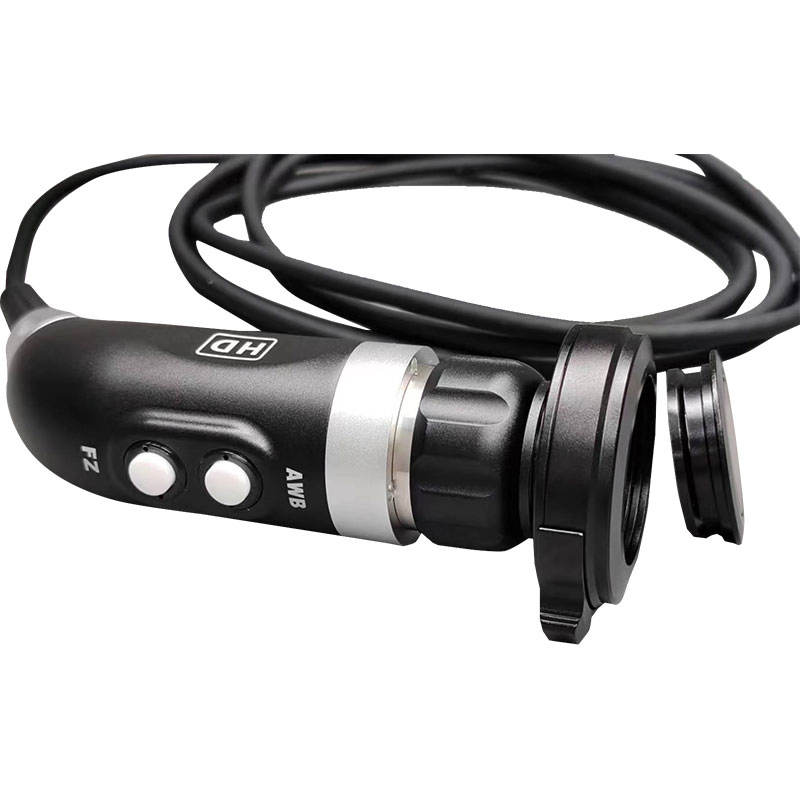

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

1 / 5

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

3.0USB 1080P Endoscope Camera System E10u with Optical Coupler

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.E10U

CertificationCE, ISO13485

ResolutionFull HD 1080P Sony CMOS

WaterproofIPX7 Whole Machine Disinfection

Optical LenStandard Configuration

CableFlexible 2.5m Medical Silicone

ConnectorStandard C-Mounted

InterfaceUSB3.0 High-Speed

OriginChina

Capacity50,000 Units Per Year

Product Description

Professional USB3.0 Endoscope Camera System

The E10U delivers excellent performance with Full HD 1080P Sony CMOS technology. Designed for professional medical use, it features fine workmanship and easy plug-and-play operation across multiple platforms.

📸 Image Quality

Full HD 1080P Sony CMOS sensor
One-click White Balance & Freeze
60fps Maximum Frame Rate

🛠️ Durability

IPX7 Waterproof rating
Full machine disinfection support
Medical grade silicone flexible cable

💻 Compatibility

Windows 7 / 8 / 10 / 11
MAC OS 10.1 or above
Android 9.0+ (App required)

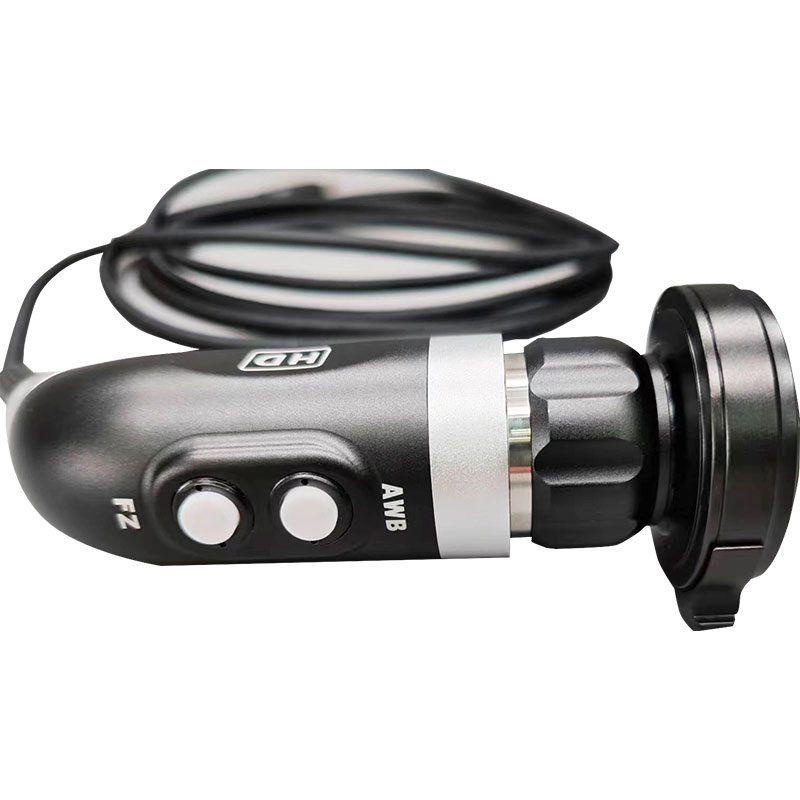

Endoscope Camera E10u View 1

Endoscope Camera E10u View 2

Detailed Specifications

Product Name	USB 3.0 Portable Endoscope Camera System
Output Resolution	1920*1080 (Full HD)
Frame Rate	60fps
Image Sensor	Sony 1/2.8" CMOS
Housing Material	Medical Grade Metal
Functions	White Balance / Freezing Control
Coupler Type	Standard C-type Mount
Wire Length	2.5 Meters
Net Weight	230g Ultra-lightweight

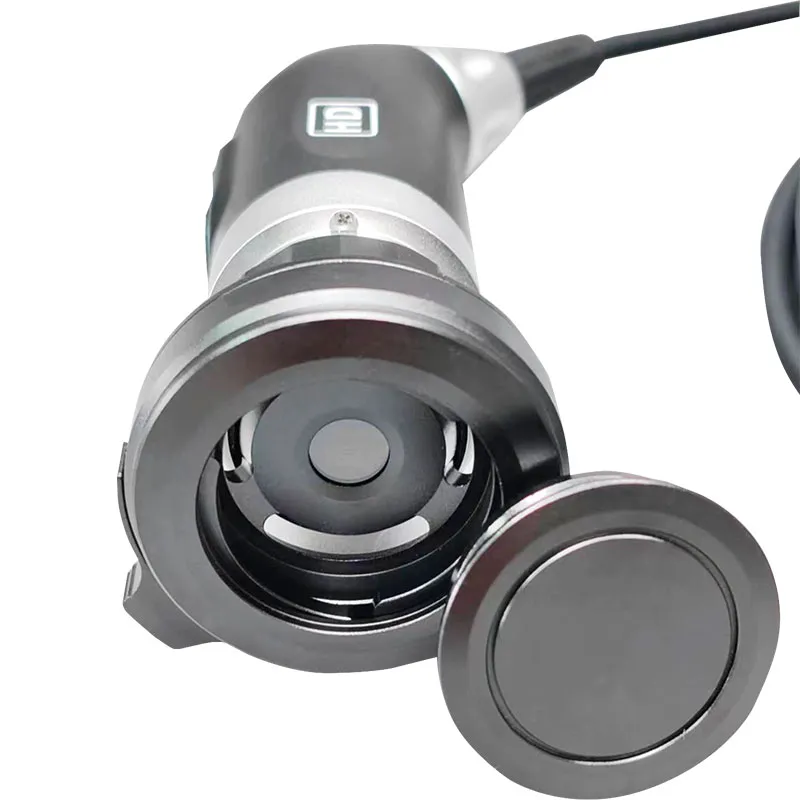

Detailed Features

Combination with Portable Light Source

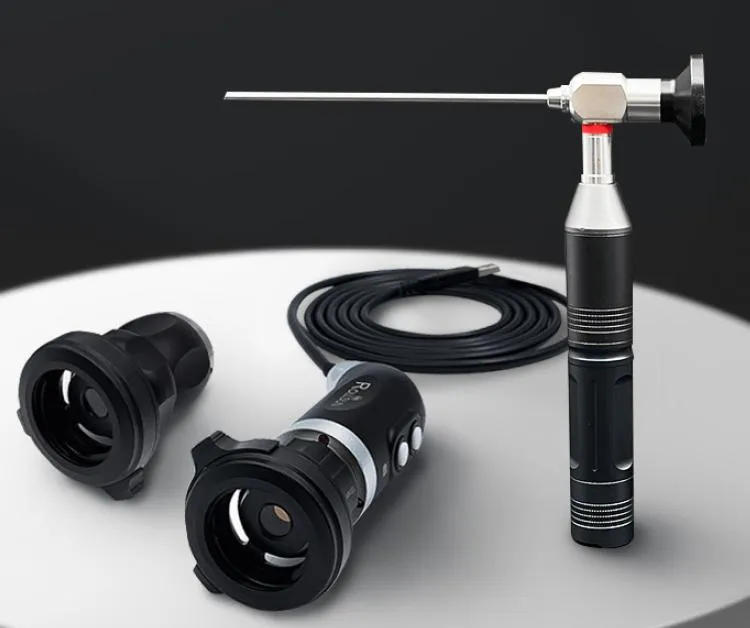

Light Source Combination 1

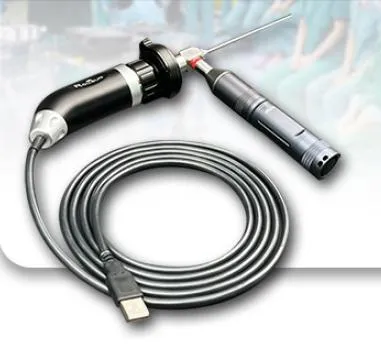

Light Source Combination 2

Packaging & Shipping Details

Standard Packing List:

USB Endoscope Camera System *1
C-Mount Coupler *1
Type-C Adaptor *1
User Manual *1
Portable Protective Case *1

Package View 1

Package View 2

Quality Certification

Quality Certificate

Manufacturer Certificate

Frequently Asked Questions

What is the image resolution of the E10U camera?

The E10U provides Full HD 1080P (1920*1080) resolution using a high-quality Sony 1/2.8" CMOS sensor, ensuring clear and detailed medical imaging.

Is this endoscope camera waterproof?

Yes, it has an IPX7 waterproof rating, which supports whole-machine disinfection, making it suitable for strict medical hygiene standards.

Which devices and operating systems are compatible?

It features a USB 3.0 interface and supports Windows 7 or above, MAC OS 10.1 or above, and Android 9.0 or above (via a dedicated App).

What are the main functions on the camera head?

The camera head is equipped with one-click buttons for White Balance and Image Freezing, allowing for quick adjustments during procedures.

What type of coupler does it use?

It uses a standard C-mount coupler, making it compatible with most standard rigid and flexible medical endoscopes.

What is the length and material of the connection cable?

The device comes with a 2.5-meter flexible cable made of medical-grade silicone, designed for durability and safety in clinical environments.
