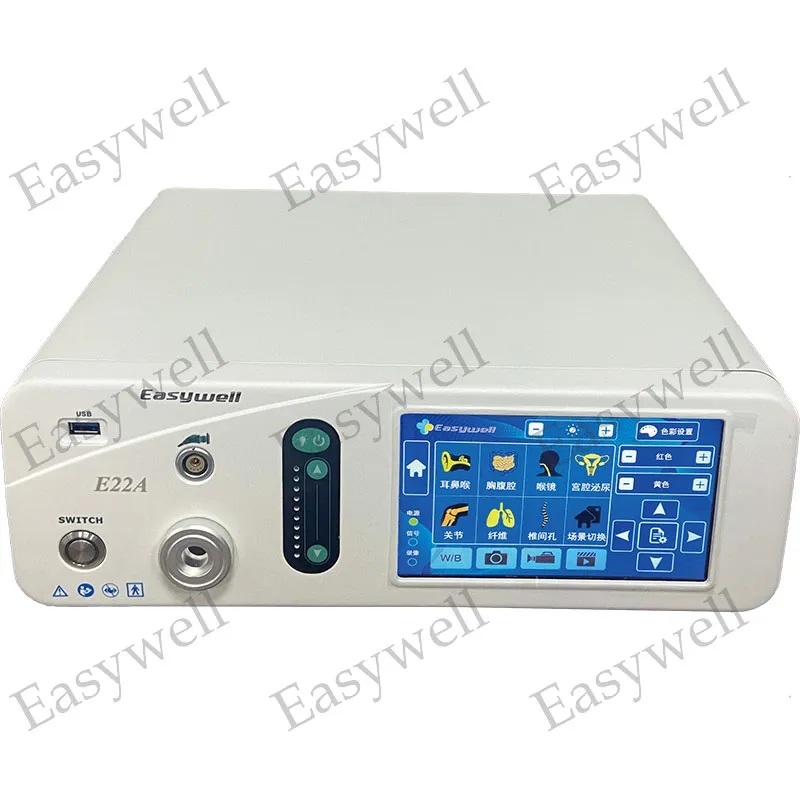

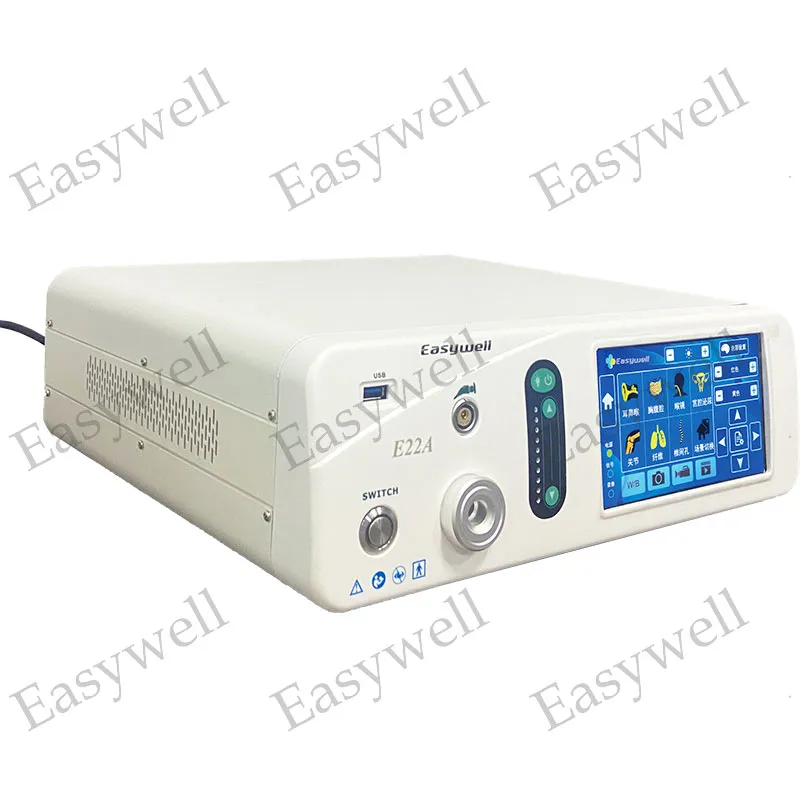

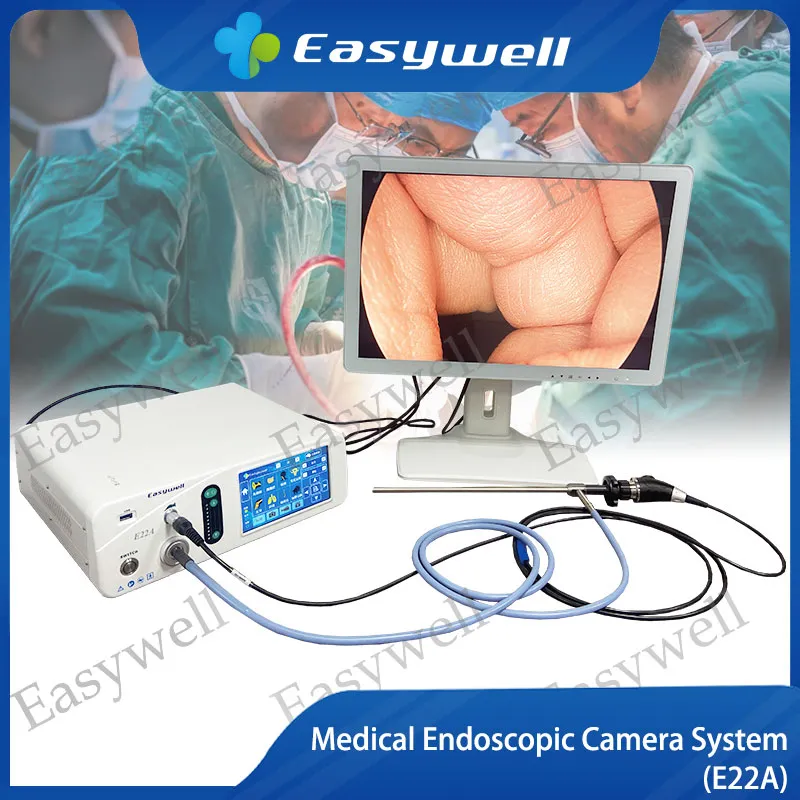

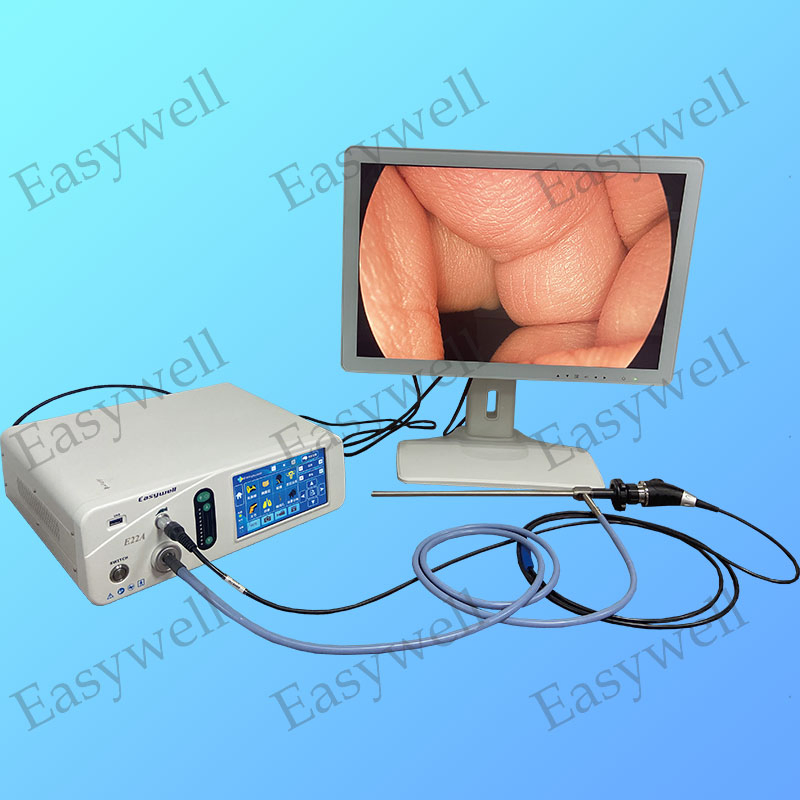

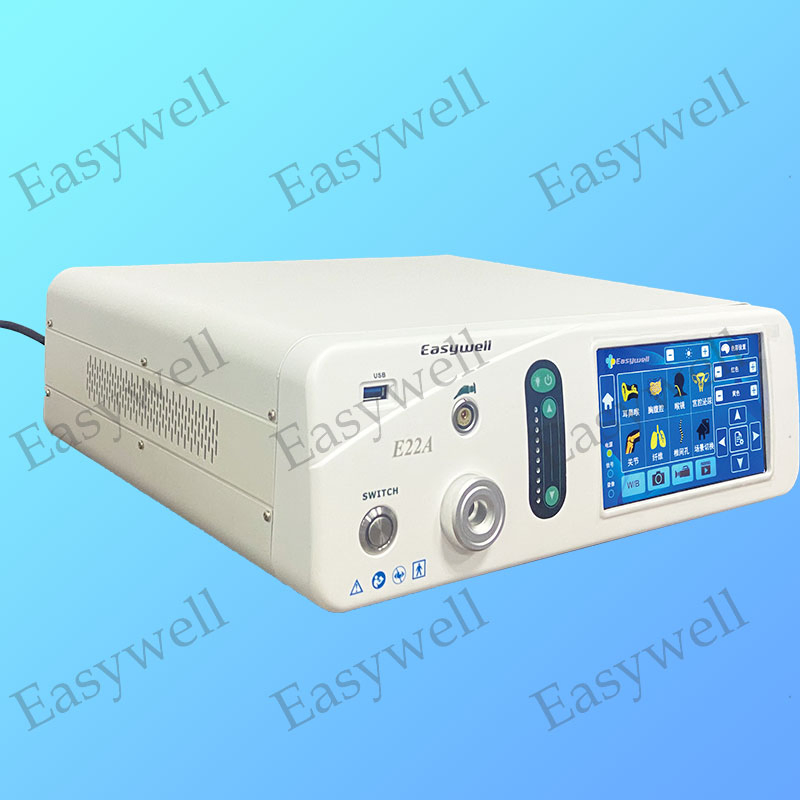

E22A 2 IN 1 FHD Endoscopic Image System with LED Cold Light Source
The 1080P Full HD Endoscope Camera is designed for use with Medical Light sources and Medical Trolleys for endoscope inspection and surgery. The 1920 x 1080 resolution presents delicate images with superior noise reduction, sharpening, brightness, and contrast extinction functions, perfectly meeting the requirements for complex surgical treatments and accurate diagnosis.
| Feature | Specification | Feature | Specification |
| Models | E22A / E22B | Touch Screen | 7 inch, E22B (Display Function) |
| Image Sensor | 1/2'' CMOS | Storage | U disk or Hard disk |
| Resolution | 1920x1080p | C Type Coupler | F=25mm (Standard), F=18/35mm (Option) |
| Color Temp | 3500k / 6500k / 7500k | Photograph | 2 Megapixel JPG |
| Recording | 1920x1080p | Video Output | HD-SDI, HDMI, USB, DVI, CVBS |
| LED Lifespan | 50,000 Hours | Illumination | > 2,000,000 Lux |
| Net Weight | 5.8kg | Dimensions | 38mm x 12mm x 32mm |

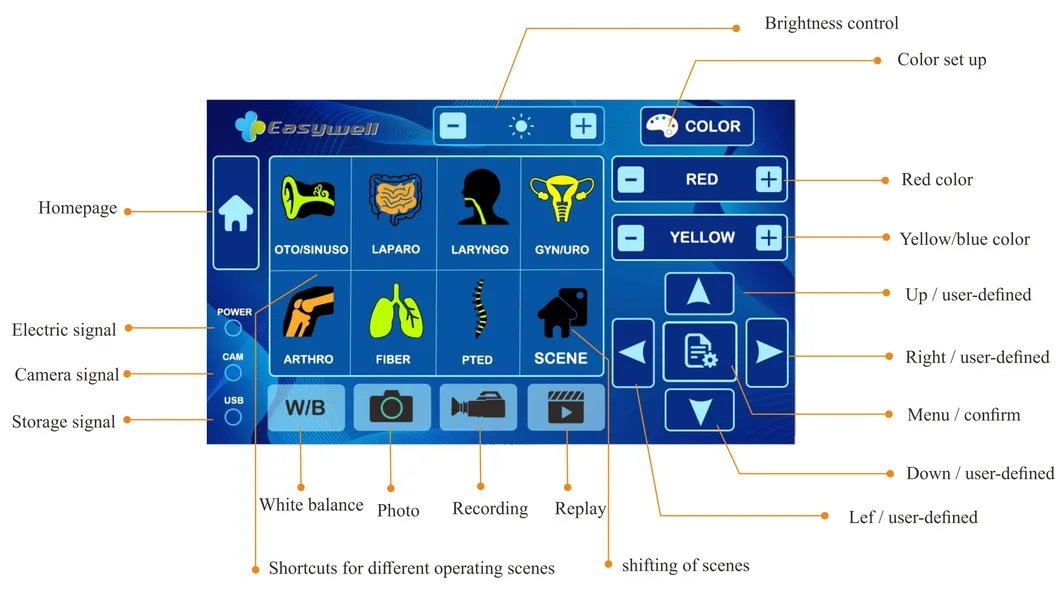

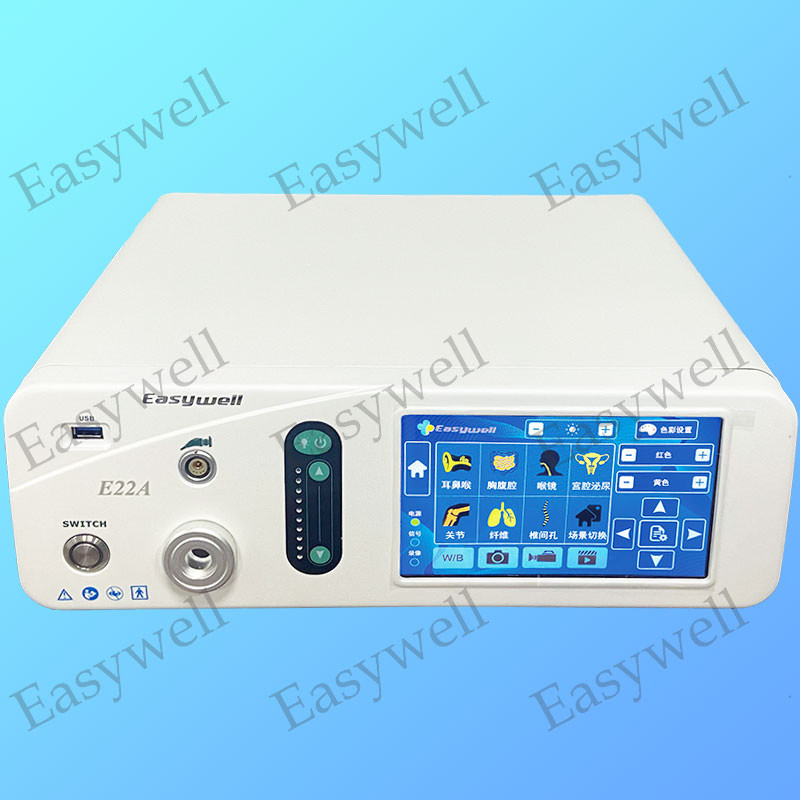

Integrated Control Panel Screen

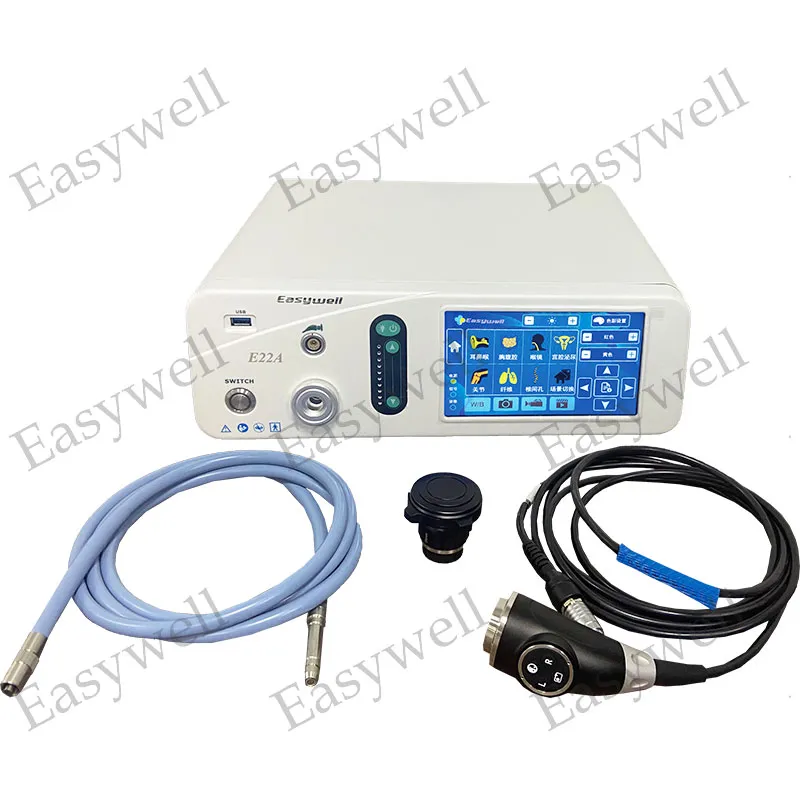

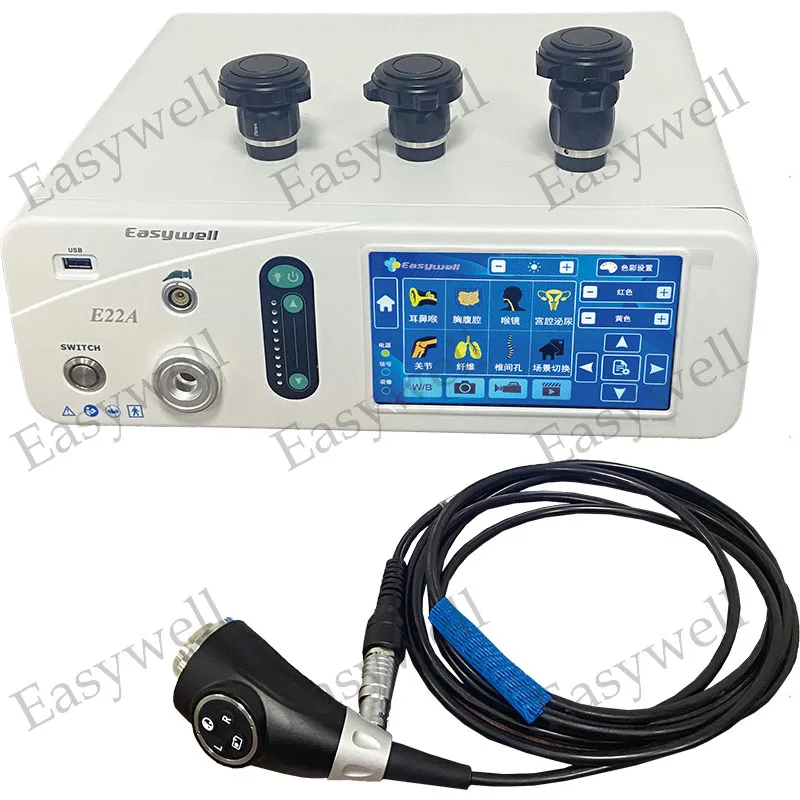

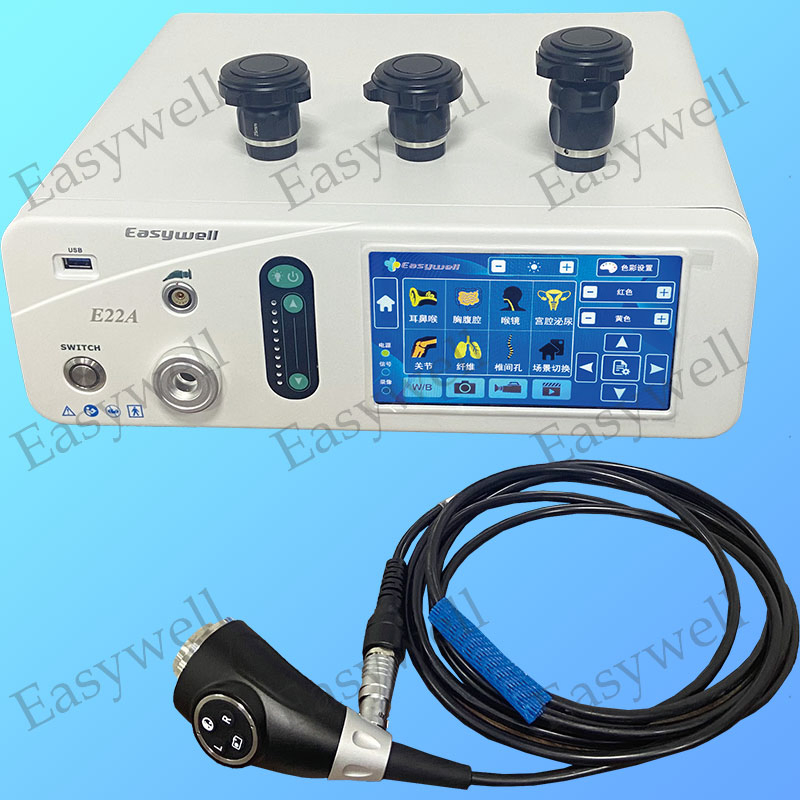

System Combinations
