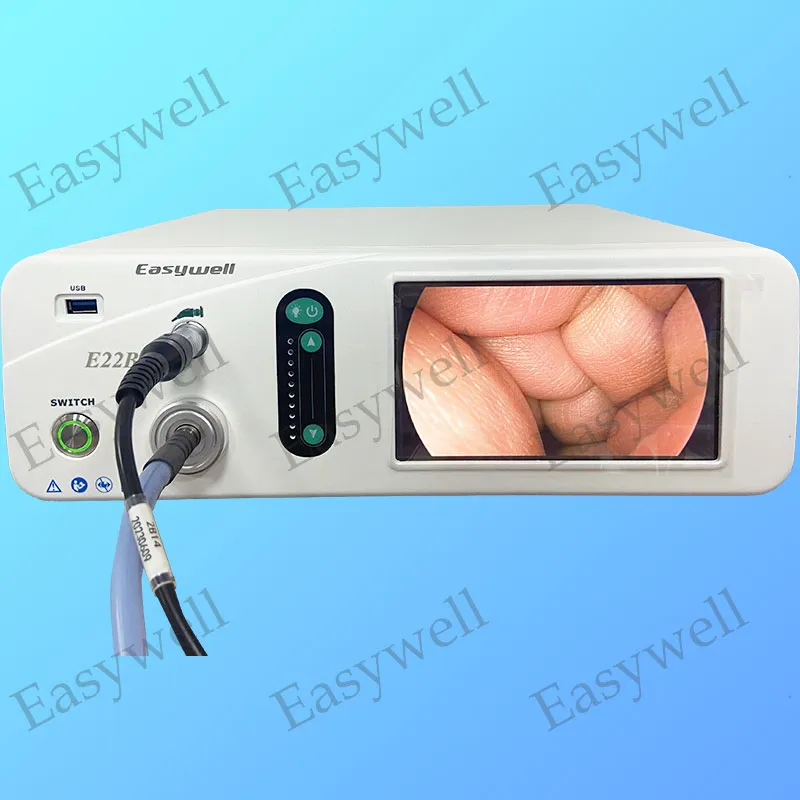

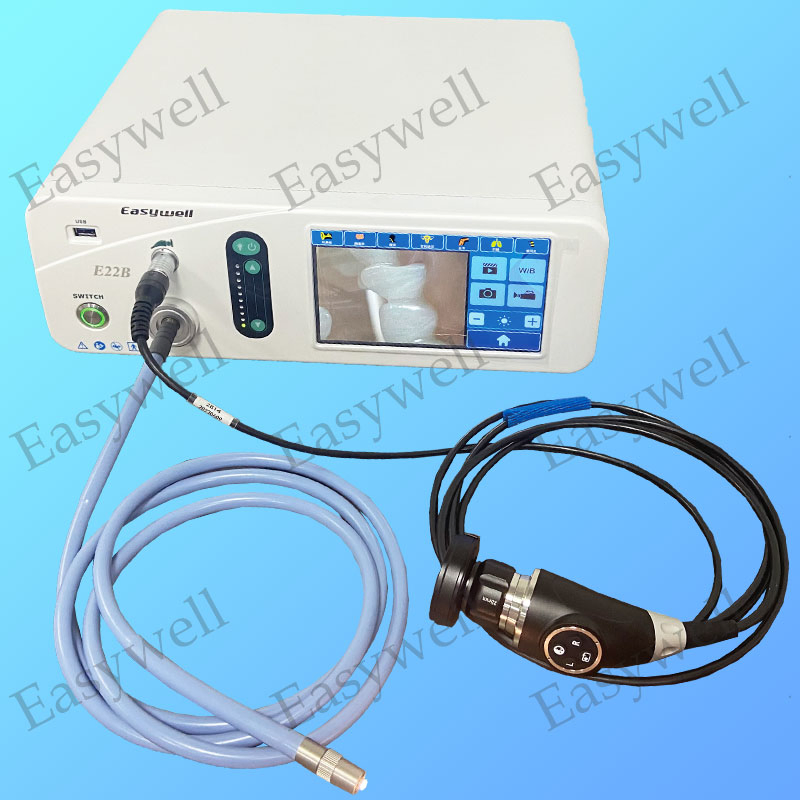

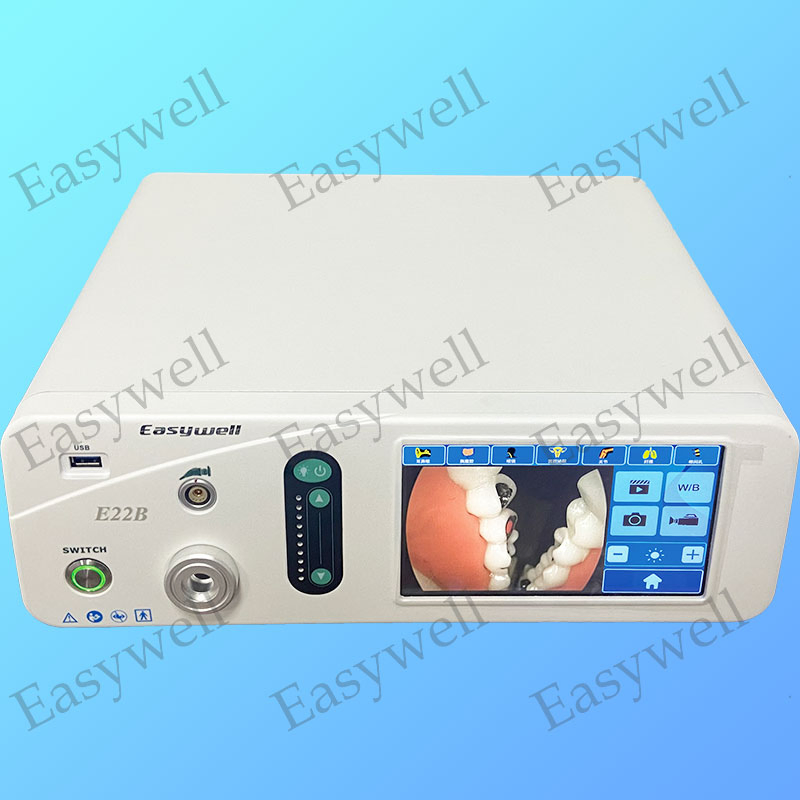

1080P Endoscopic Image System E22b with LED Cold Light Source

1 / 5

1080P Endoscopic Image System E22b with LED Cold Light Source

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

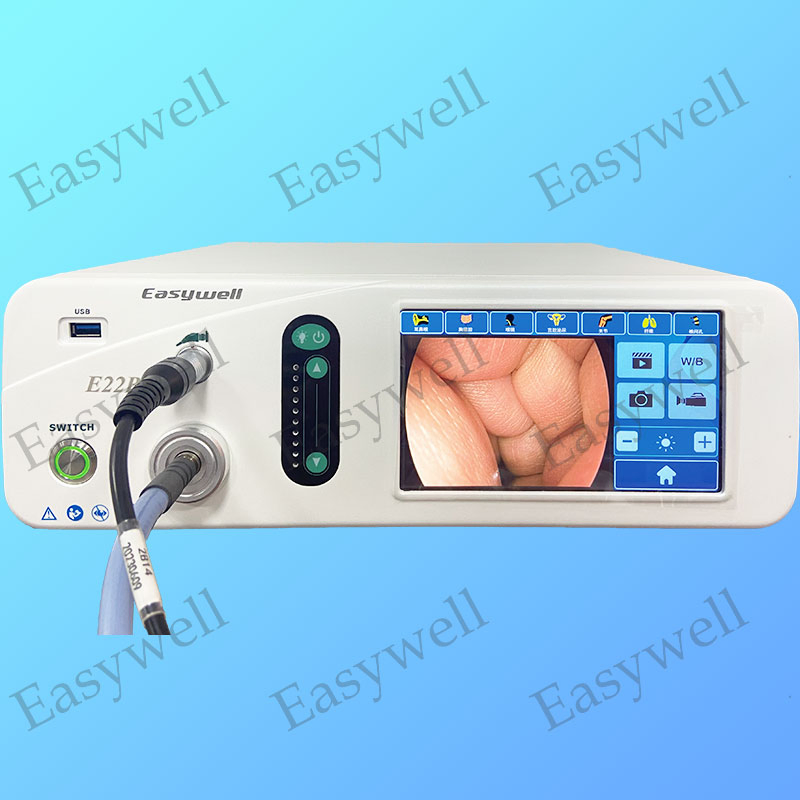

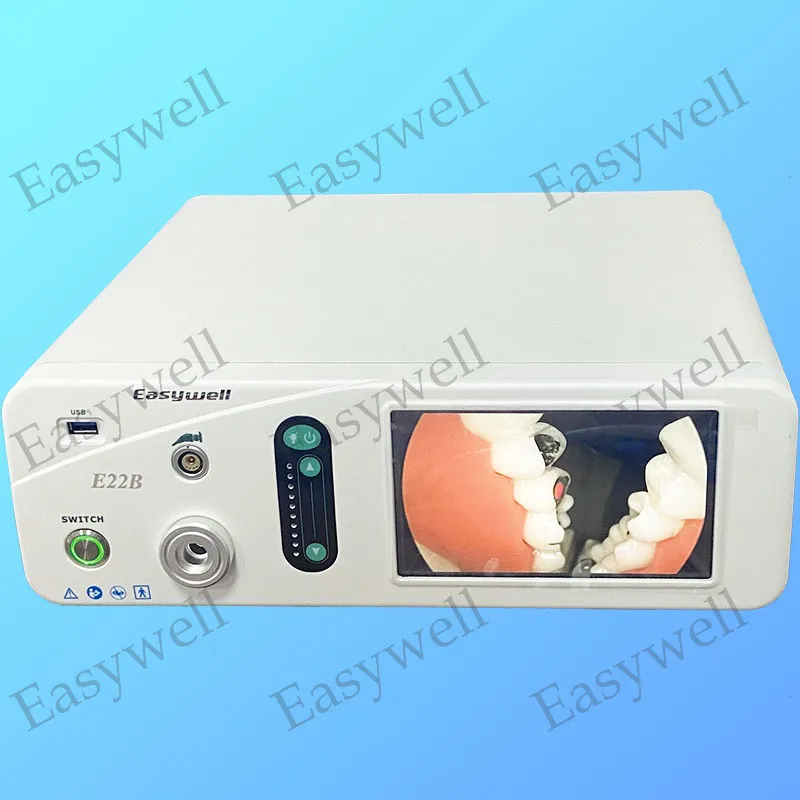

1080P 7 inch Touch Screen Endoscopic Image System E22B

The 1080P Full HD Endoscope Camera is designed for professional surgical inspection. With a resolution of 1920 x 1080, it presents delicate images with superior noise reduction, sharpening, and contrast functions, meeting the complex needs of modern surgical diagnosis.

Basic Specifications

Model NO.	E22B	Certification	CE, ISO13485
Image Sensor	1/2'' COMS	Resolution	1920X1080p (IPX8 Waterproof)
Screen Size	7 inch Touch Display	Storage	U Disk or Hard Disk
Video Output	USB 2.0x2, HDMI, DVI, CVBS, SDI	Scanning System	Progressive Scanning

Technical Parameters

Imaging & Display		Light & Physical
Models	E22A / E22B	LED Life Span	50,000 Hours
Touch Screen	7 inch (E22B Display)	Color Temp	5000-7000K
Photograph	2-8 Megapixel JPG	CRI	>90
Recording	1920x1080p MP4	Illumination	> 2,000,000 Lux
Coupler	F=25mm (Std), F=18/35 (Opt)	Net Weight	5.8 kgs

Product Gallery

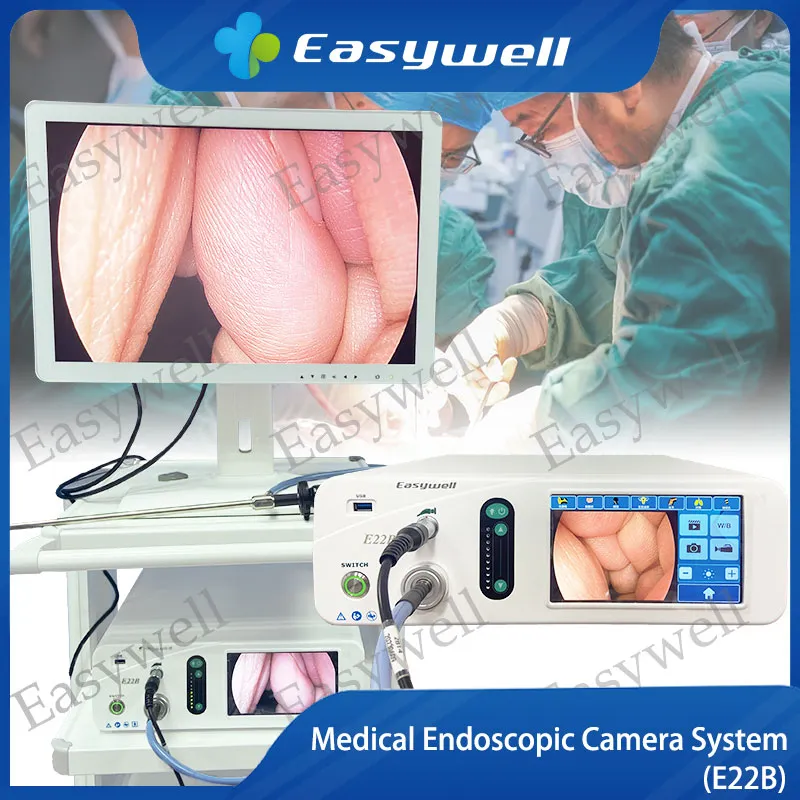

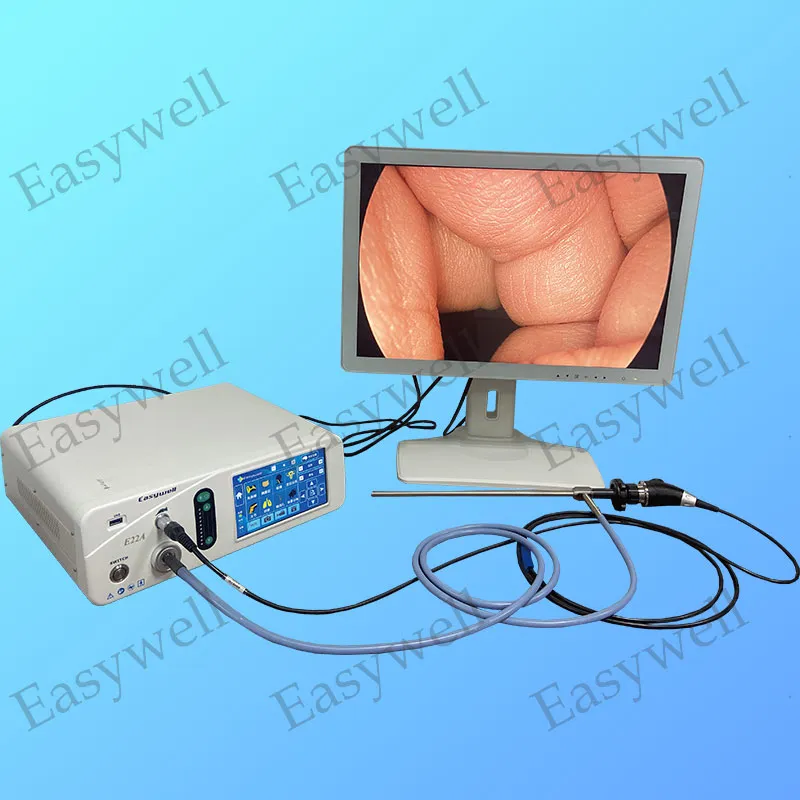

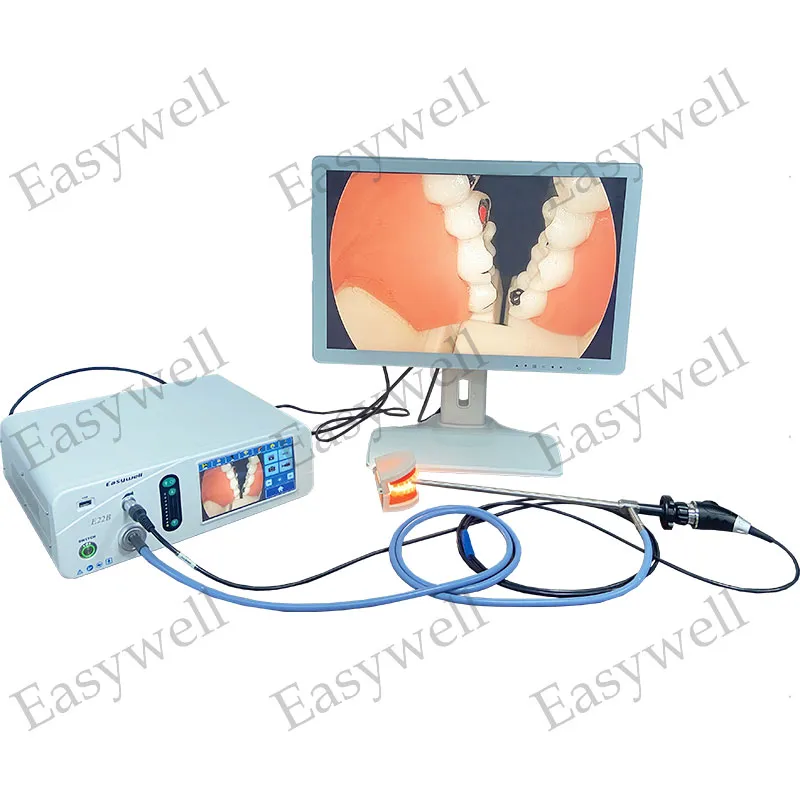

Unit with Monitor Configuration

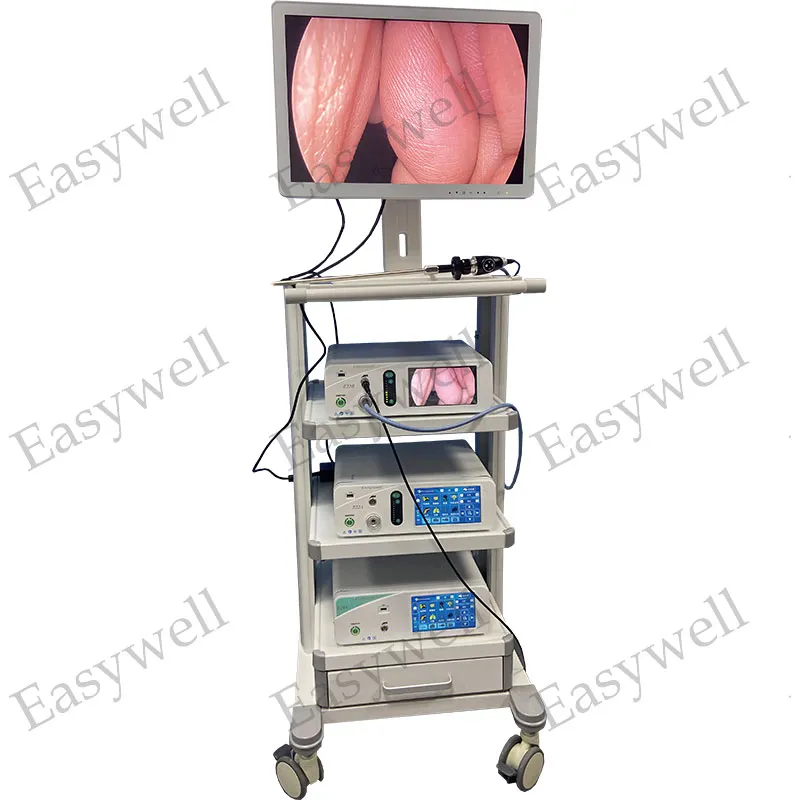

Mobile Trolley Solution

Certifications & Quality

Exhibition Presence

Frequently Asked Questions

Q: What is the maximum resolution for video recording? A: The E22B system supports Full HD 1920x1080p recording in MP4 format for high-quality surgical documentation.

Q: Does the system include a built-in light source? A: Yes, it features a built-in LED cold light source with over 2,000,000 Lux illumination intensity and a 50,000-hour lifespan.

Q: Can I save images and videos directly to an external drive? A: Yes, the system supports storage via U Disk or external Hard Disk through USB interfaces.

Q: Is the camera head waterproof? A: The camera system is rated IPX8 waterproof, making it suitable for rigorous medical environments and sterilization processes.

Q: What types of video output signals are available? A: It provides versatile connectivity including HD-SDI, HDMI, USB, DVI, and CVBS to connect with various medical monitors.

Q: What is the size of the built-in touch screen? A: The E22B model comes with an integrated 7-inch touch screen for both control and image display functions.
