Product Description

i

Basic Information

Model NO.:E20B
Certification:CE, ISO13485
Image Sensor:1/2'' CMOS
Resolution:1920X1080p
Color Temp:3500K/6500K/7500K
Storage:U Disk or Hard Disk
Brightness:0-100% Adjustment
Signal Output:HD-SDI, HDMI, USB, DVI, CVBS
Net Weight:5.2kgs
Dimensions:38 x 12 x 32 mm
D

Product Description

FHD Camera Systems E20B 1920x1080p Endoscopic Camera Imaging System

The 1080P Full HD Endoscope Camera is designed for use with Medical Light sources and Medical Trolleys for comprehensive endoscope inspection and surgery. The 1920 x 1080 resolution delivers delicate images with superior noise reduction, sharpening, brightness, and contrast functions, perfectly meeting the needs of medical professionals in complex surgical treatments.

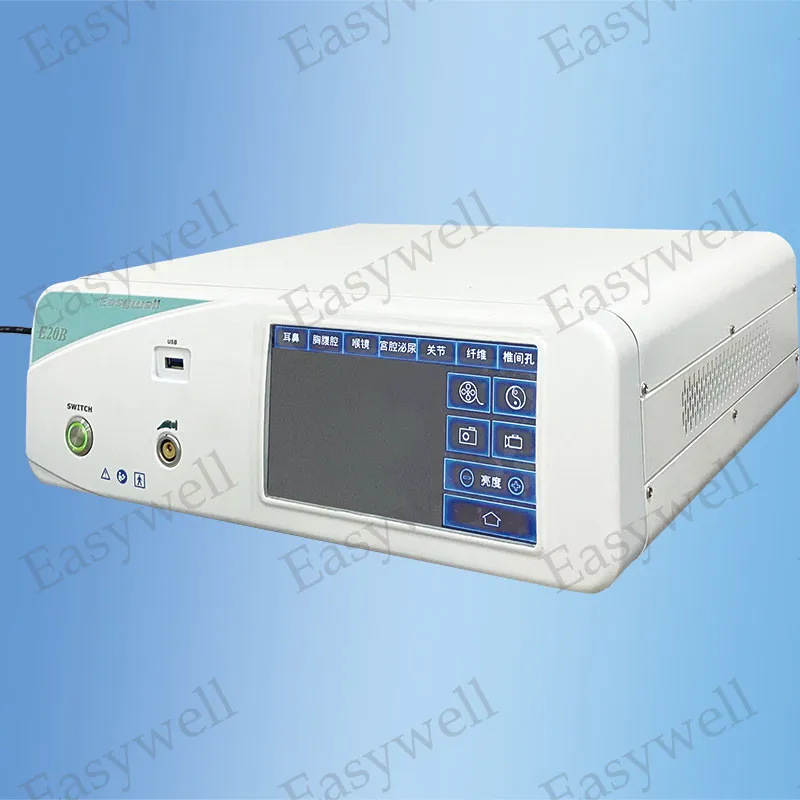

FHD Camera System View 1

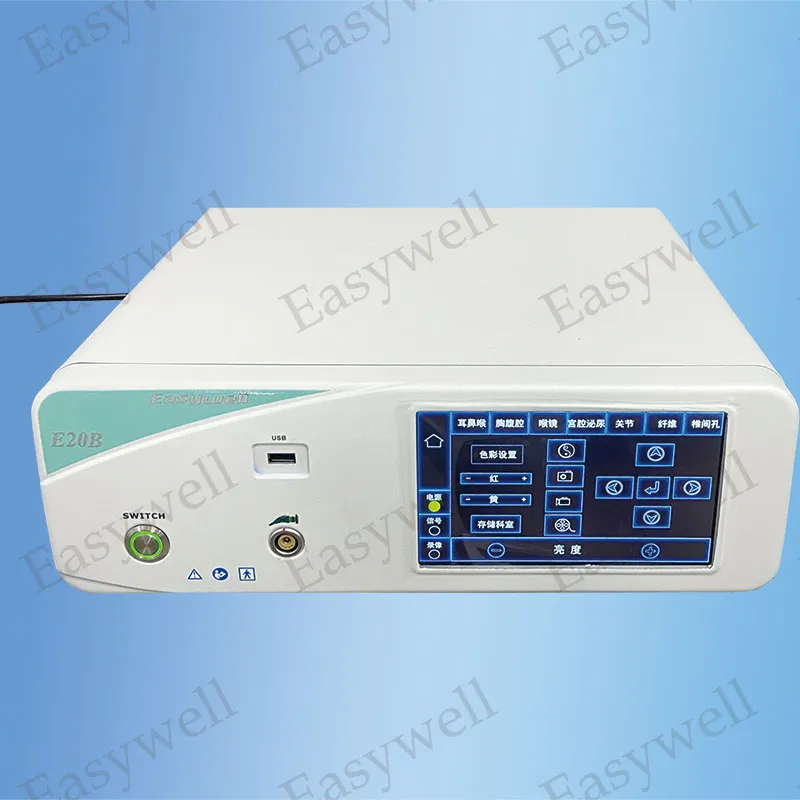

FHD Camera System View 2
P

Technical Parameters

Feature Specification Feature Specification
Image Sensor 1/2'' CMOS Touch Screen 7 inch (E20B Display)
Resolution 1920x1080p Storage U disk or Hard disk
Color Settings 3500k/6500k/7500k Coupler F=25mm Standard
Replay Video and Picture Photograph 2 megapixel JPG
Recording 1920x1080p Video Output HD-SDI, HDMI, USB, DVI, CVBS
V

Product Visuals

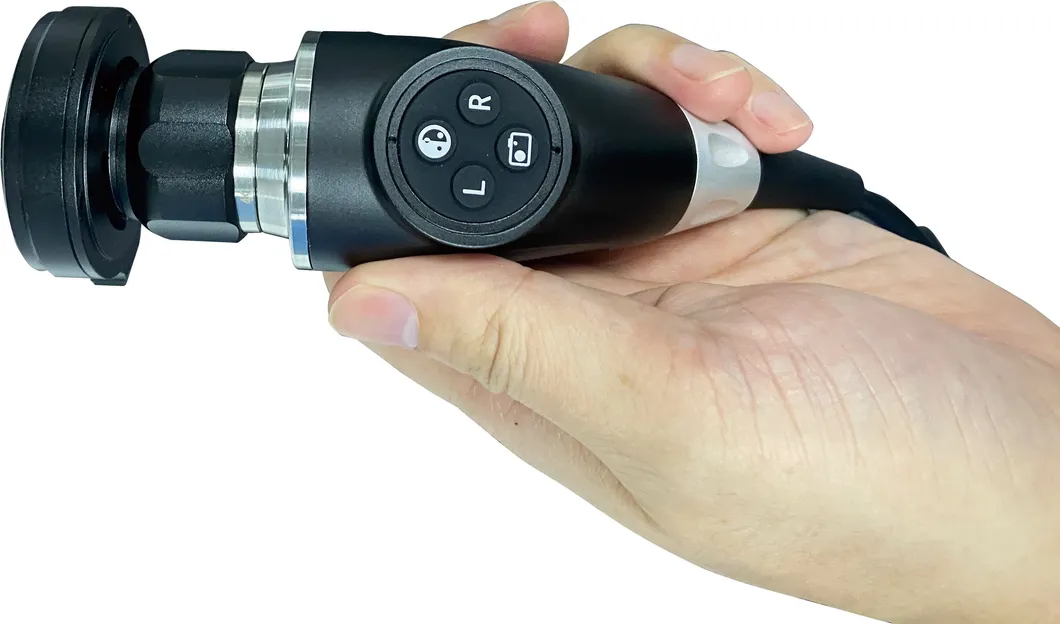

Full System Layout
B

Brochure & Exhibition

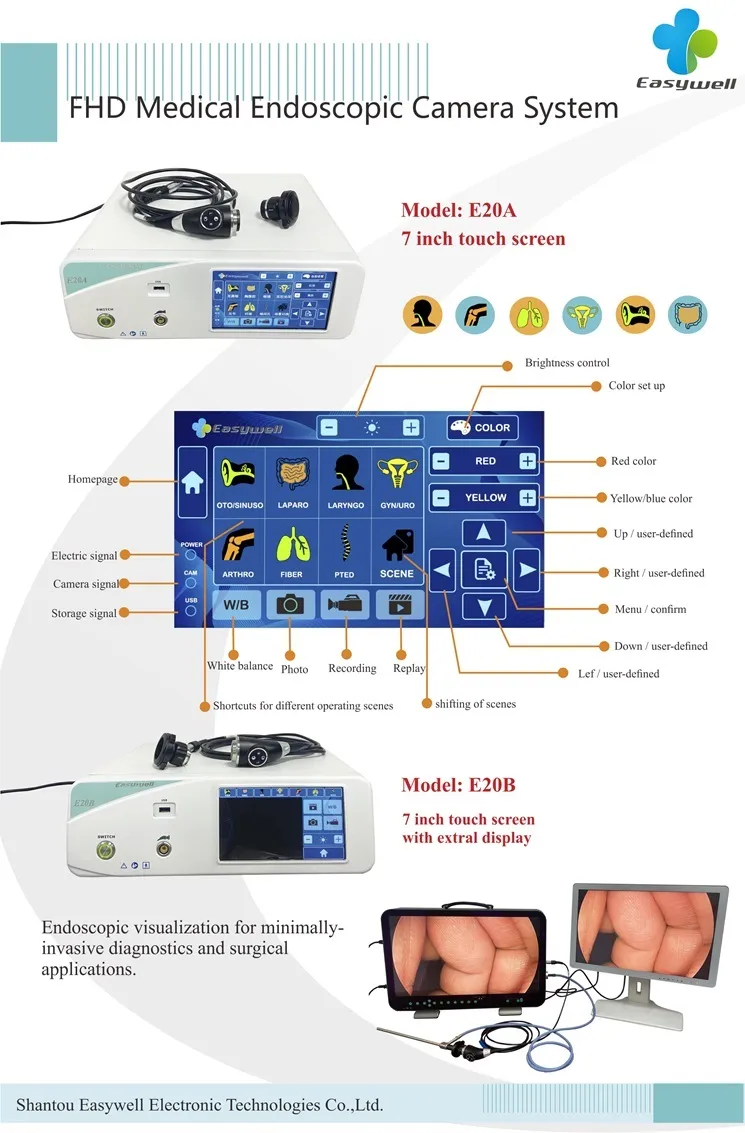

Product Brochure
Exhibition Display
?

Frequently Asked Questions

Q: What is the primary resolution of this camera system? A: The system provides Full HD resolution at 1920x1080p for crisp medical imaging.
Q: Does it support real-time recording? A: Yes, it supports video recording at 1920x1080p directly to a U Disk or Hard Disk.
Q: What types of video outputs are available? A: The device is equipped with multiple outputs including HD-SDI, HDMI, USB, DVI, and CVBS.
Q: How can I adjust the brightness of the light source? A: Brightness can be adjusted from 0-100% using the integrated touch screen interface.
Q: What image sensor is integrated into the E20B model? A: It utilizes a high-sensitivity 1/2'' CMOS image sensor.
Q: Is the system compatible with different couplers? A: Standard configuration is F=25mm, but it also supports F=18mm and F=18-35mm options.
