FHD Endoscopic Camera System E20A 1920X1080p Ipx8 Waterproof for Endoscopy

Overview

Model NO.

E20A

Certification

CE, ISO13485

Image Sensor

1/2" CMOS

Resolution

1920X1080p

Waterproof

IPX8

Horizontal Res.

1200tvl

Screen Size

Touch 7"

Video Format

MP4 (1920X1080p)

FHD Endoscopic Camera System E20A 1920X1080p Ipx8 Waterproof for Endoscopy

The 1080P Full HD Endoscope Camera is designed for use with medical light sources and medical trolleys for endoscope inspection and surgery. The resolution of 1920 x 1080 presents delicate images with enhanced noise reduction, sharpening, brightness, and contrast functions to meet the needs of doctors in complex surgical treatments.

Product Parameters

Parameter	Specification	Feature	Details
Models	E20A / E20B	Image Sensor	1/2'' CMOS
Resolution	1920x1080p	Touch Screen	7 inch (E20B display)
Color Temp	3500k/6500k/7500k	Storage	U disk or Hard disk
Replay	Video and Picture	Coupler Style	F=25mm Std (F=18/35mm opt)
Recording	1920x1080p MP4	Photograph	2 megapixel JPG
Video Output	HD-SDI, HDMI, USB, DVI, CVBS	Net Weight	5.2 kgs

Detailed Photos

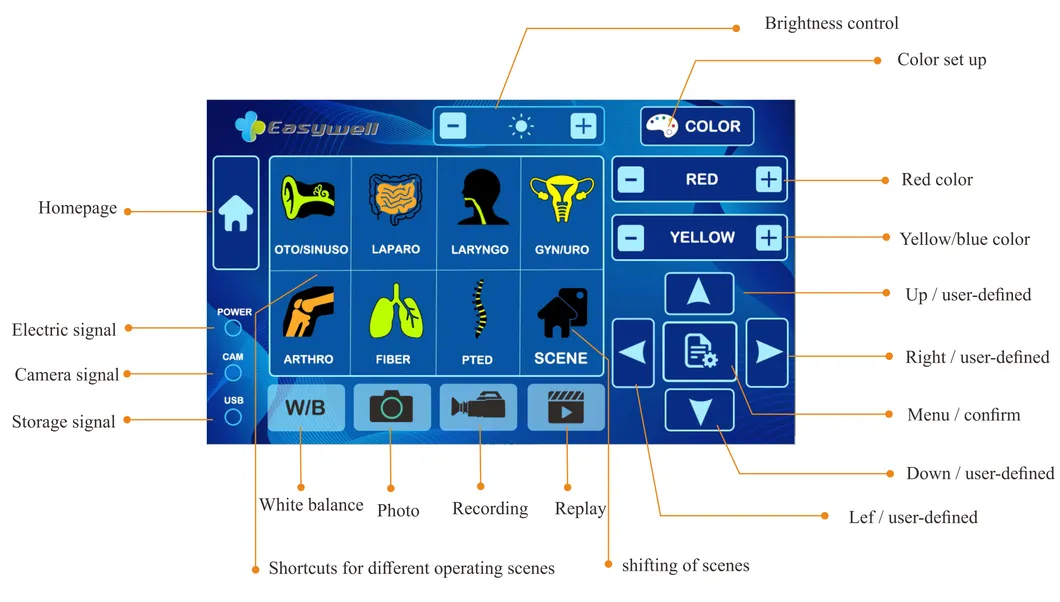

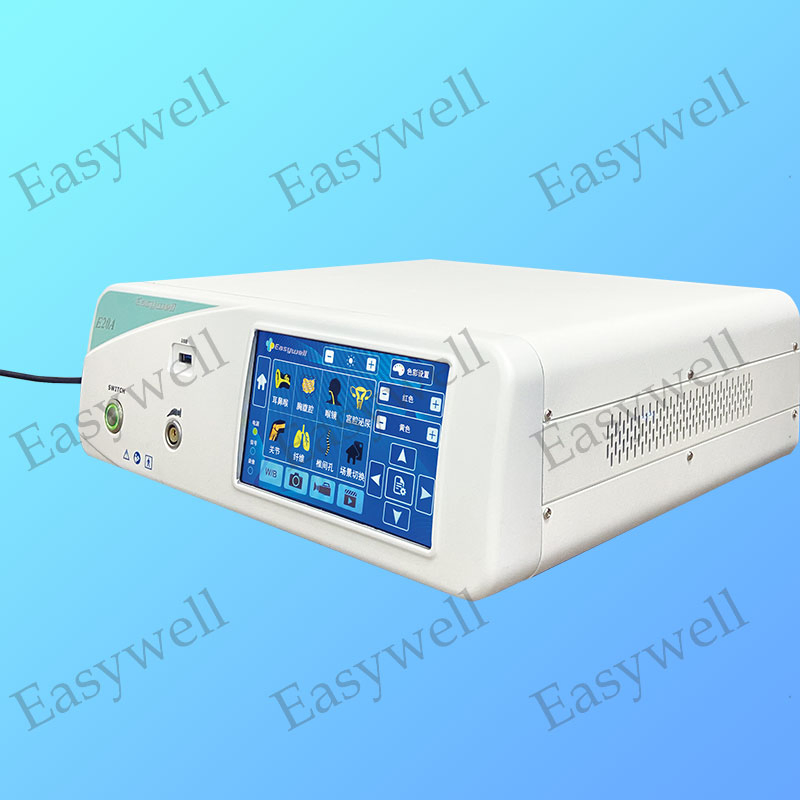

Control Panel Screen

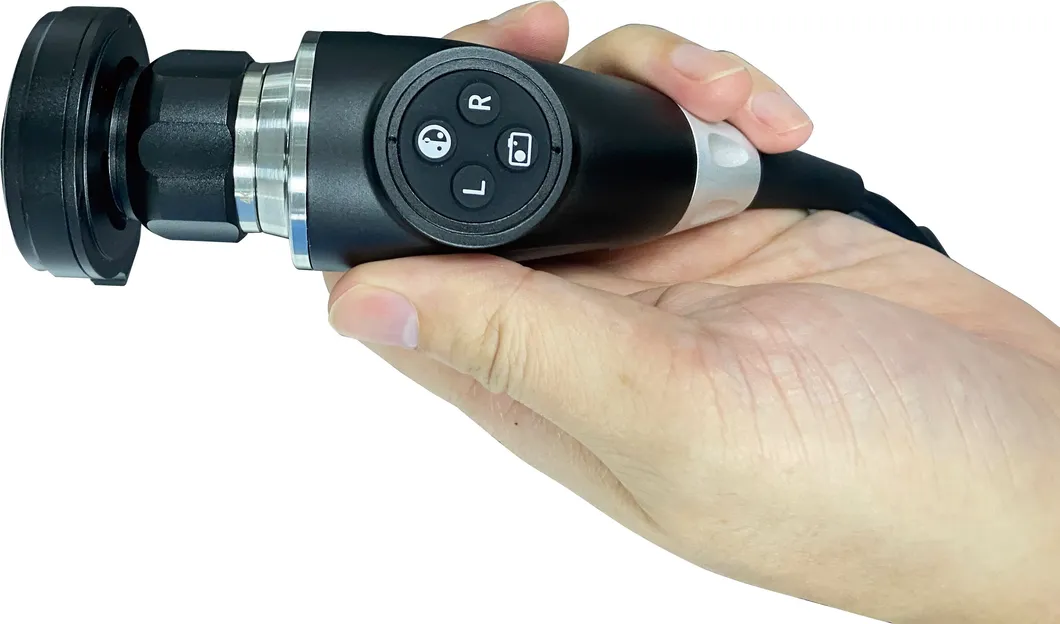

Image System

Certifications

Exhibition

Frequently Asked Questions

What is the image resolution of the E20A system?

The system provides Full HD resolution at 1920x1080p, delivering high-definition medical imaging for surgical precision.

Is the camera head waterproof?

Yes, the camera head features an IPX8 waterproof rating, making it suitable for standard medical disinfection and surgical environments.

What types of video outputs are supported?

The E20A system supports multiple video signals including HD-SDI, HDMI, USB, DVI, and CVBS for maximum compatibility with medical monitors.

Does the system support recording and storage?

Yes, it supports video recording in MP4 format and still photography in JPG format, with storage options via U Disk, Hard Disk, or SD Card.

What are the key imaging features for surgeons?

The system includes specialized functions for noise reduction, sharpening, brightness adjustment, and contrast extinction to assist in complex diagnosis.

Is there a touch screen interface?

Yes, the system is equipped with a 7-inch touch screen for intuitive control and setting adjustments.
