Easywell FHD Image System with Light Source for Endoscope 2-1 E22b

1 / 5

Easywell FHD Image System with Light Source for Endoscope 2-1 E22b

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

E22B

Certification

CE, ISO13485

Image Sensor

1/2'' CMOS

Resolution

1920X1080p IPX8 Waterproof

Horizontal Res.

1200TVL

Screen Size

7" with Output Display

Video Recording

1920X1080p, MP4 Format

Photograph

8 Megapixel JPG

Signal Output

USB 2.0x2, HDMI 1.4, DVI, CVBS, SDI

Origin

China

★

Product Description

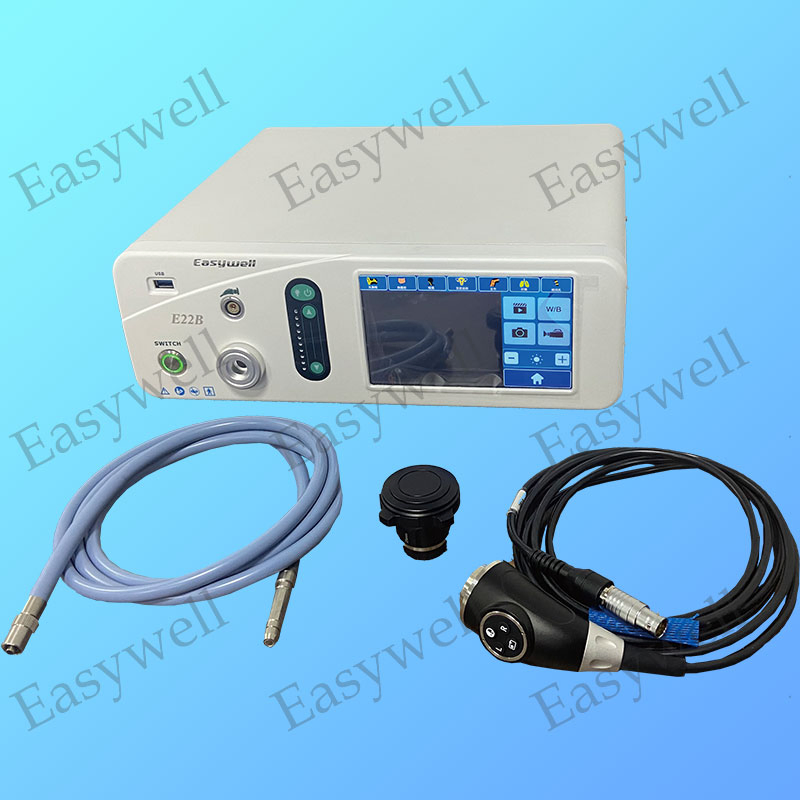

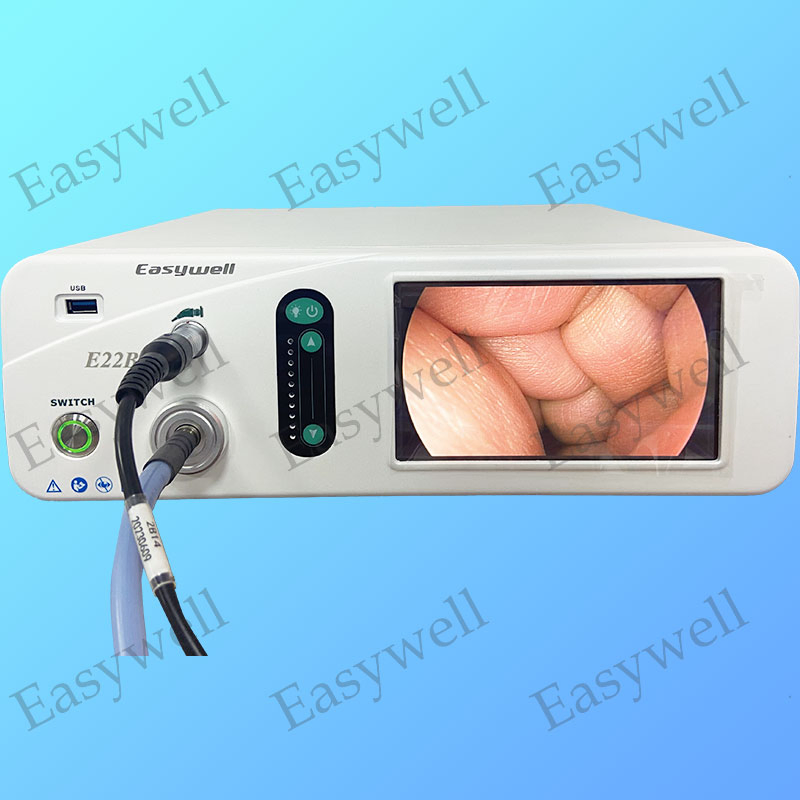

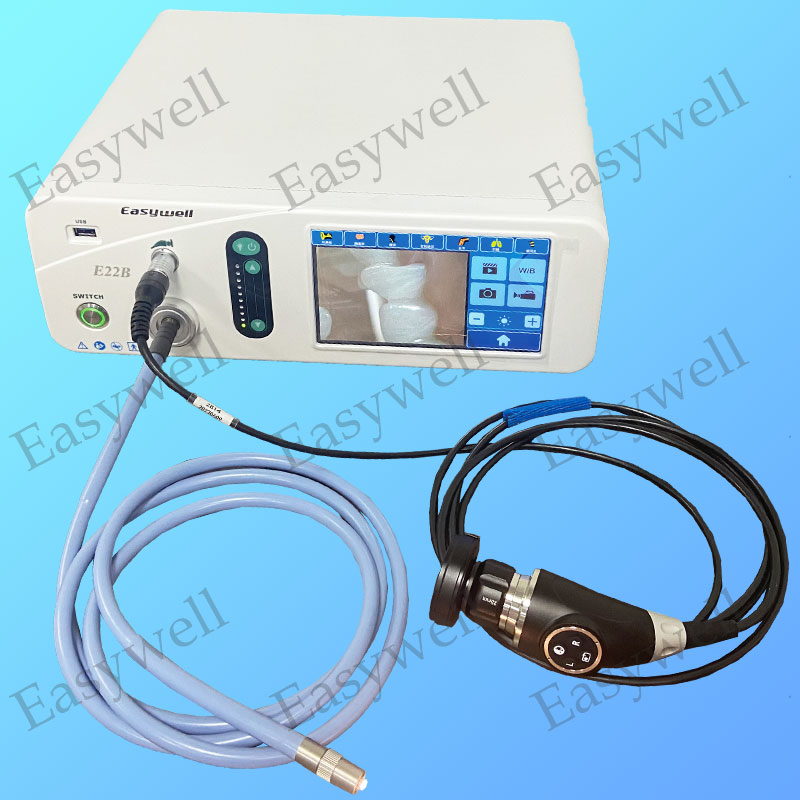

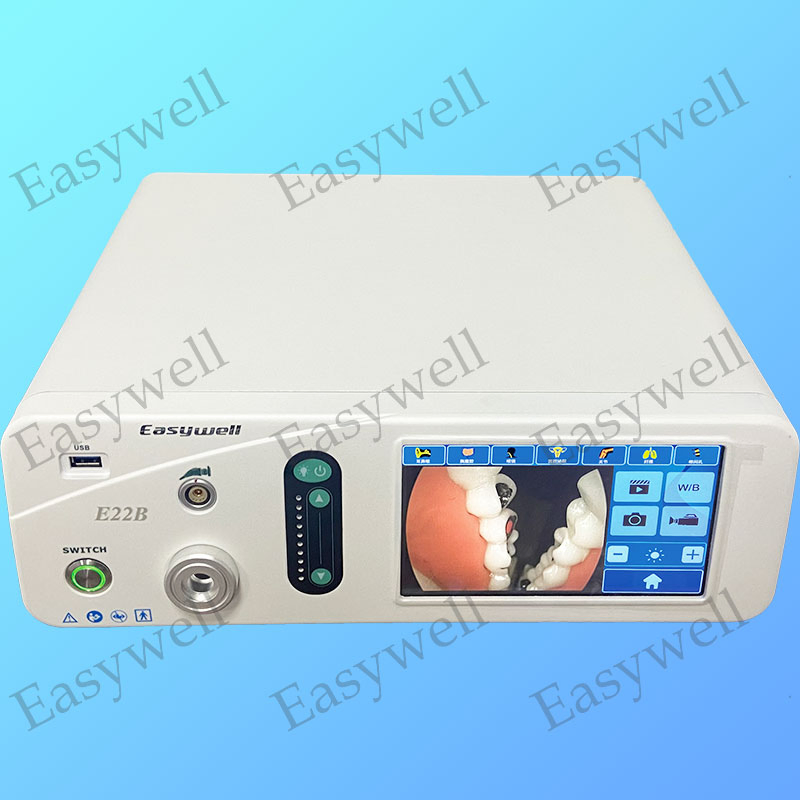

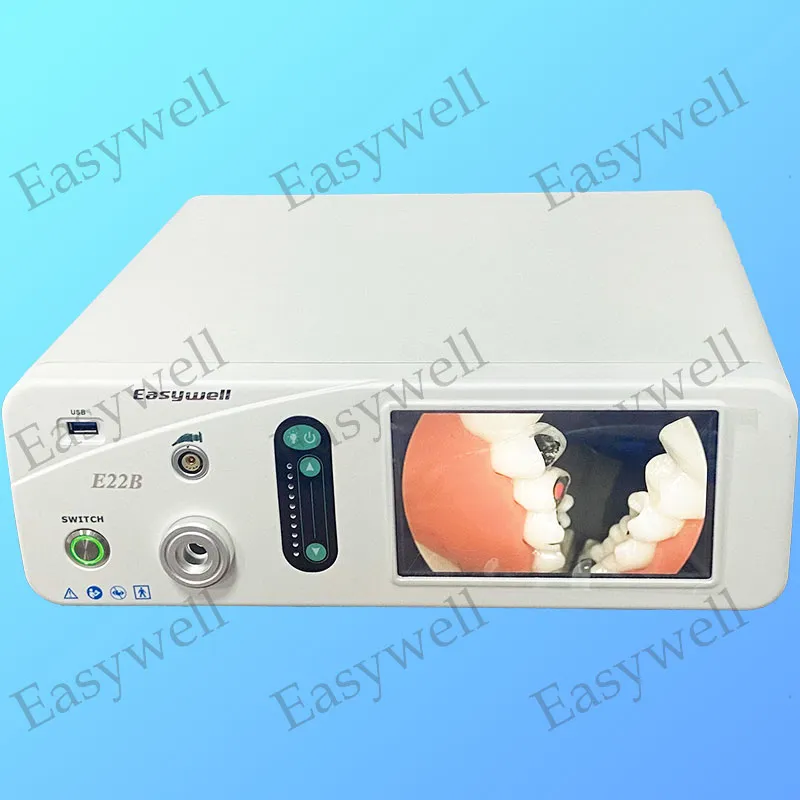

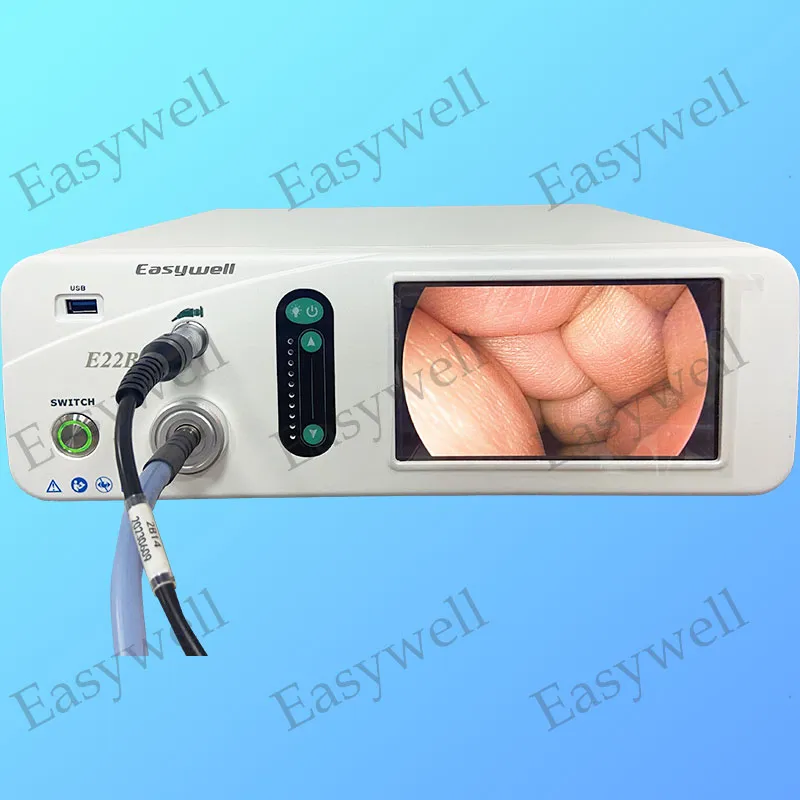

FHD Image System with Light Source for Endoscope E22B with Output Display

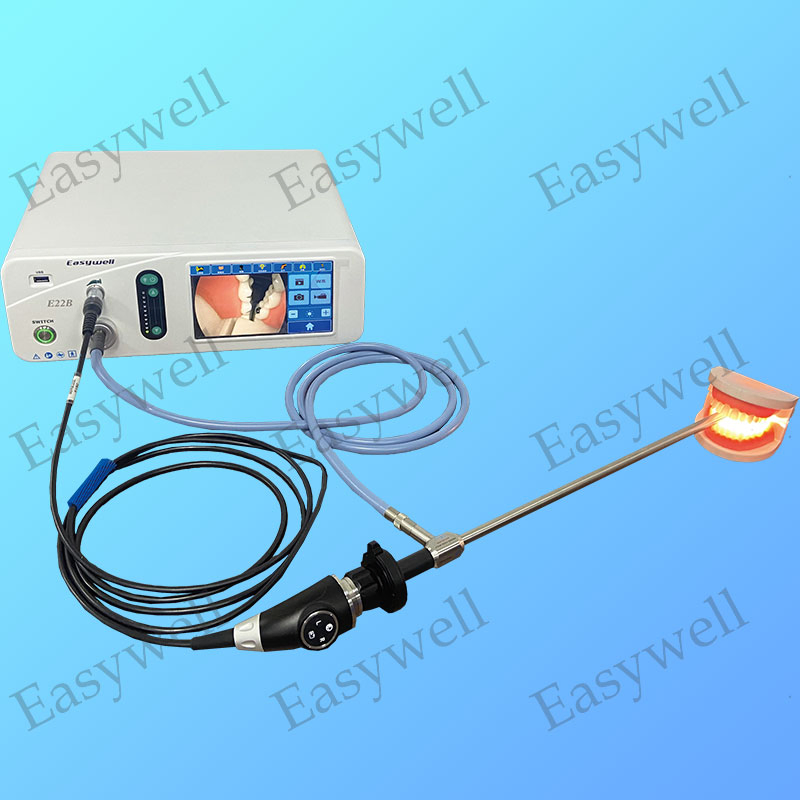

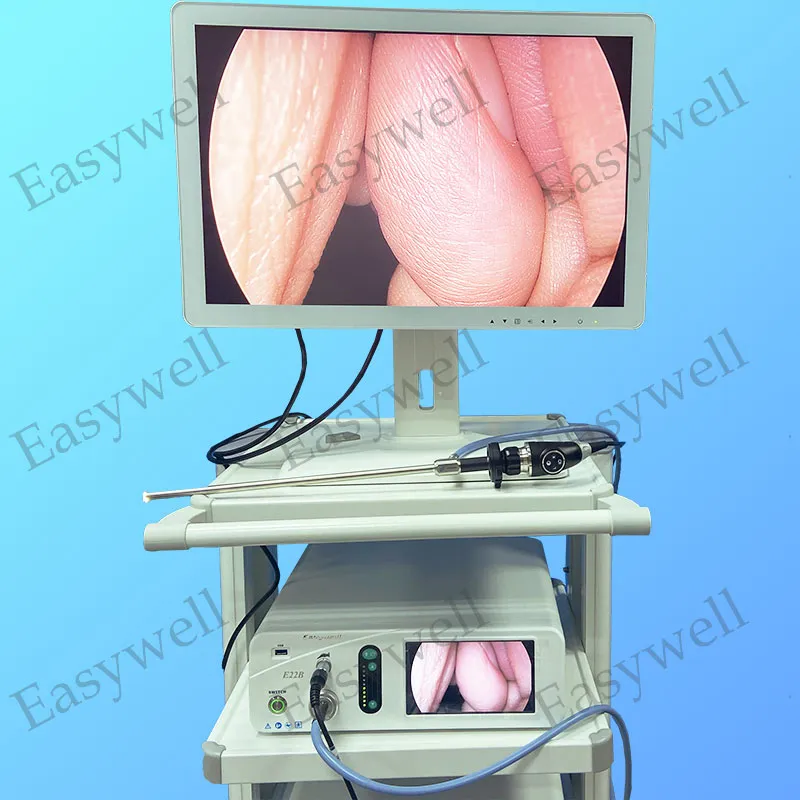

The 1080P Full HD Endoscope Camera is designed for use with medical light sources and trolleys for endoscope inspection and surgery. The 1920 x 1080 resolution presents delicate images with superior noise reduction, sharpening, brightness, contrast, and extinction functions, catering to complex surgical diagnostic needs.

⚙

Product Parameters

Parameter	Specification	Parameter	Specification
Image Sensor	1/2'' CMOS	Touch Screen	7 inch Display
Resolution	1920x1080p	Storage	U disk or Hard disk
Color Temp	3500k/6500k/7500k	C-Type Coupler	F=25mm (Standard)
Photograph	2 Megapixel JPG	Video Output	HD-SDI, HDMI, USB, DVI, CVBS
LED Lifespan	50,000 Hours	Illumination	> 2,000,000 Lux
Net Weight	5.8kgs	Dimensions	380mm x 120mm x 320mm

PDF

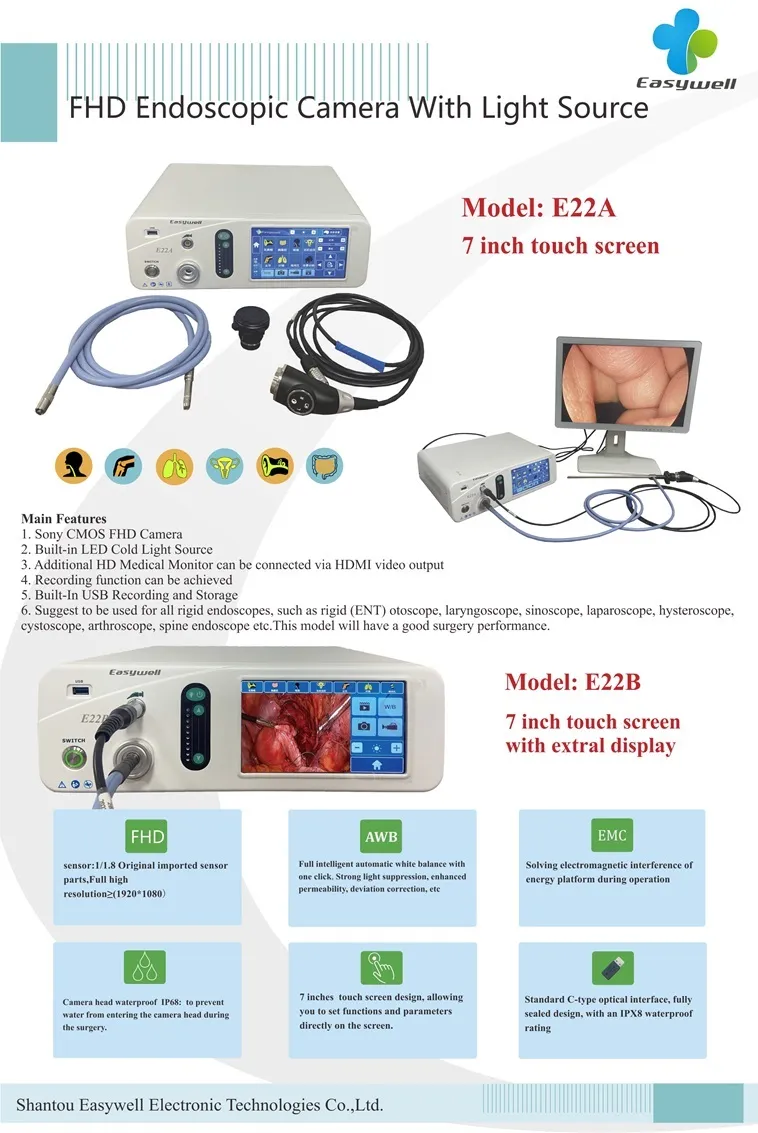

Product Brochure

✔

Certifications

✈

Exhibition

Frequently Asked Questions

What is the maximum resolution of the imaging system?

The system supports Full HD resolution of 1920 x 1080p, providing high-definition clarity for surgical and diagnostic procedures.

Does the camera come with its own display?

Yes, the E22B model features a built-in 7-inch touch screen output display for immediate viewing and control.

What is the lifespan of the integrated LED light source?

The medical-grade LED light source is designed for long-term durability with a lifespan of approximately 50,000 hours.

Is the camera head waterproof for sterilization?

Yes, the camera head is rated IPX8 waterproof, making it suitable for standard medical cleaning and sterilization protocols.

Can I record videos and take photos directly?

Absolutely. The system supports 1080p video recording in MP4 format and 8-megapixel photography in JPG format, saving directly to a U-disk or Hard disk.

What types of video outputs are supported?

The system is highly compatible, offering HDMI 1.4, DVI, CVBS, USB 2.0, and HD-SDI signal outputs for various external monitors.
