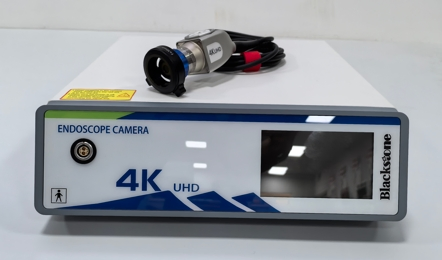

4K UHD Endoscopic Camera System for Minimally Invasive Surgery

1 / 5

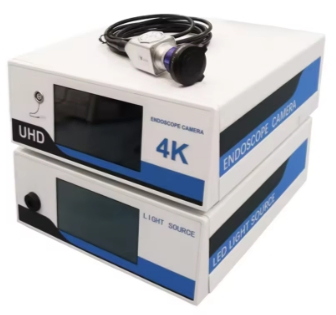

4K UHD Endoscopic Camera System for Minimally Invasive Surgery

Customization:	Available
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Gynecology Surgery
Material:	Metal + Medical Grade Plastic

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZJBS-4KUHD

Feature

Reusable

Certification

CE, FDA, ISO13485, FSC

Resolution

3840×2160 (4K UHD)

Monitor Size

32" UHD Medical Monitor

Light Source

LED Cold Light Source

Waterproof

Camera Head IPX8

Capacity

10,000 pieces/Month

✓

Product Description

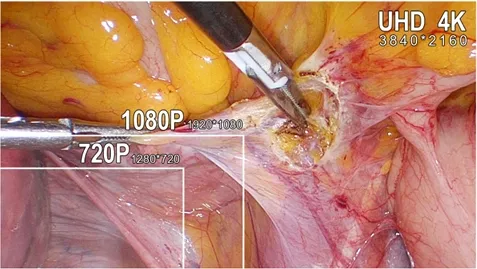

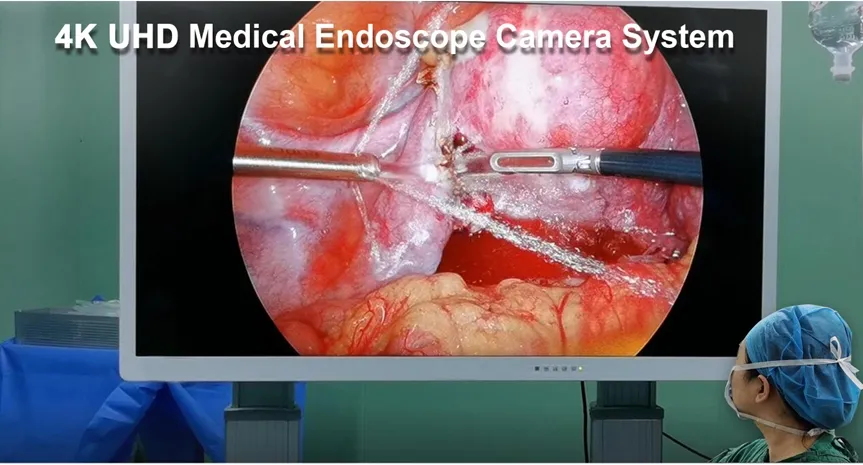

The 4K UHD endoscopic camera system captures images at a resolution of 3840×2160 pixels, four times higher than standard 1080p high-definition. This advanced technology provides exceptional clarity and detail, vital for complex minimally invasive surgical procedures.

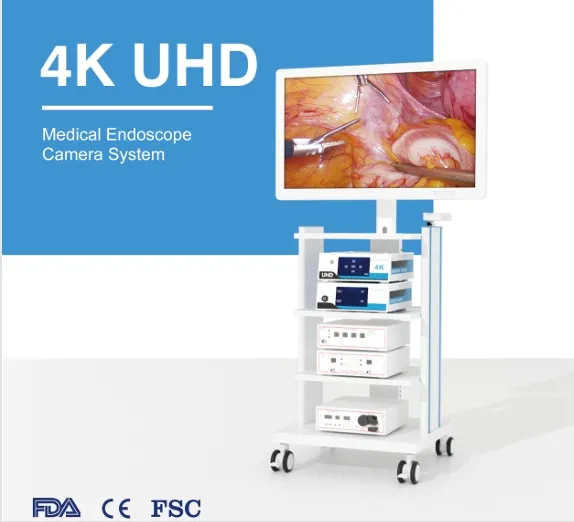

Our 4K UHD Medical Endoscope Camera provides high-quality imaging to support the diagnosis and treatment of various conditions in departments such as Laparoscopy, ENT, Urology, Gynecology, and Orthopedics.

⚙

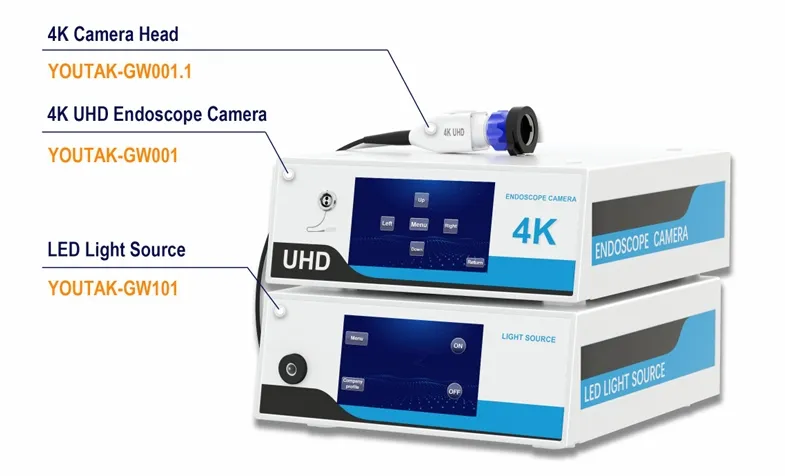

Technical Specification

Category	Key Specifications

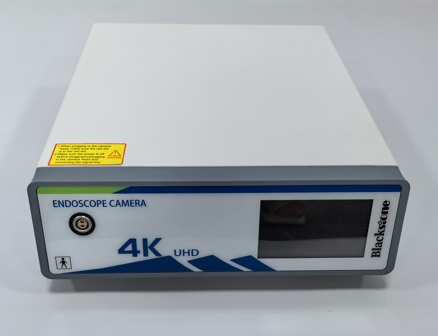

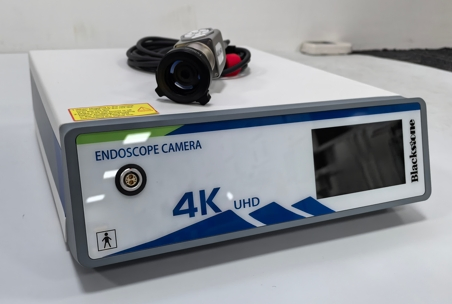

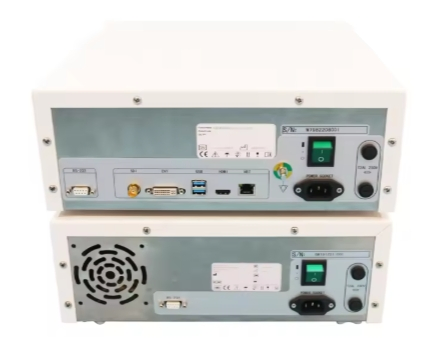

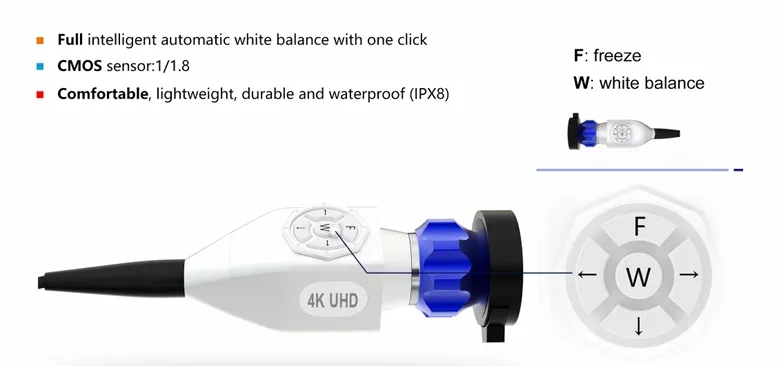

4K UHD Endoscopy Camera	Image Sensor: 1/1.8 CMOS Resolution: 3840×2160 (≥1600 TVL) Waterproof: IPX8 camera head Output Ports: HDMI 2.0, DVI, SDI, USB×2
LED Light Source	Power: 120W CRI: ≥90 CCT: 4400K–6500K Luminous Flux: ≥100 lm

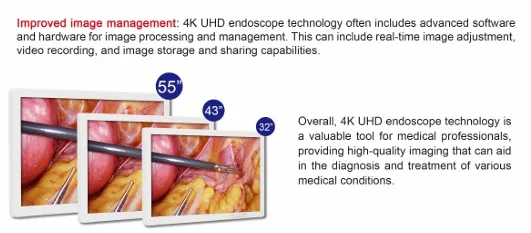

4K UHD Monitor (32")	Resolution: 3840×2160 UHD Display Color: 10-bit Contrast: 1400:1 Brightness: 700 cd/m²
Video Recorder	Format: MP4 Quality: Max 18 Mb @ 1080P 30fps Storage: USB, Removable HDD (Max 2TB)

✈

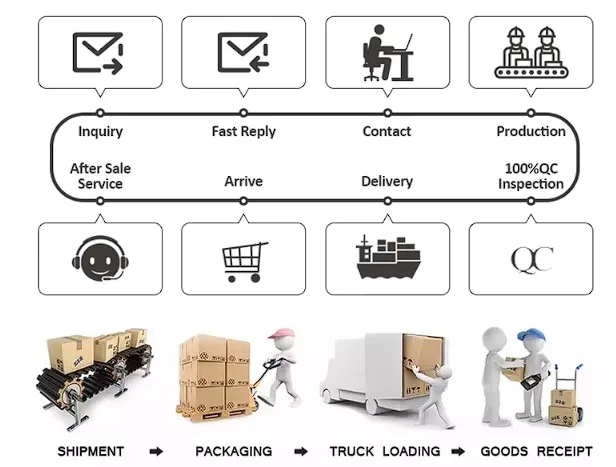

Packaging & Shipping

Frequently Asked Questions

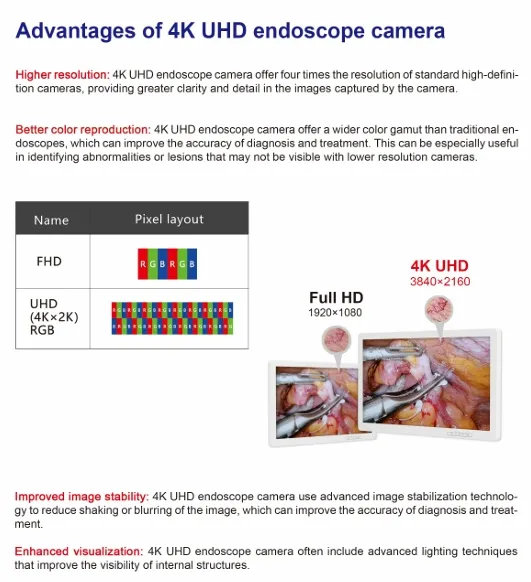

What are the advantages of 4K resolution in endoscopy?

4K resolution provides four times the detail of standard HD, allowing surgeons to see fine anatomical structures and blood vessels with superior clarity, which enhances surgical precision and safety.

Is the camera head waterproof?

Yes, the camera head features an IPX8 waterproof rating, ensuring it can be safely disinfected and used in demanding surgical environments.

How is the quality of the products guaranteed?

We maintain strict quality control protocols, including pre-production sample evaluations and a rigorous final inspection before every shipment to ensure compliance with international medical standards.

Which medical departments can use this system?

The system is versatile and designed for use in Laparoscopy, ENT (Ear, Nose, and Throat), Urology, Gynecology, and Orthopedics.

What video recording formats are supported?

The built-in video recorder supports MP4 format at 1080P/30fps, with storage options including USB and removable HDDs up to 2TB.

Do you provide international shipping?

Yes, we provide secure packaging in wooden cases and offer global shipping services to over 130 countries, ensuring the equipment arrives safely and ready for use.
