| Technical Specifications | |||
|---|---|---|---|

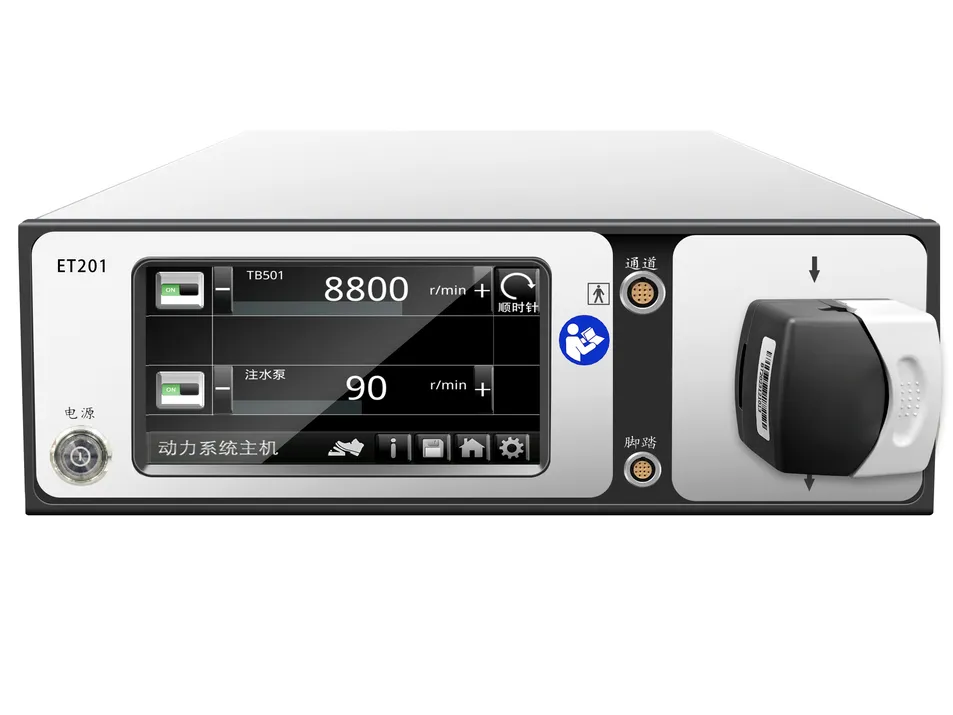

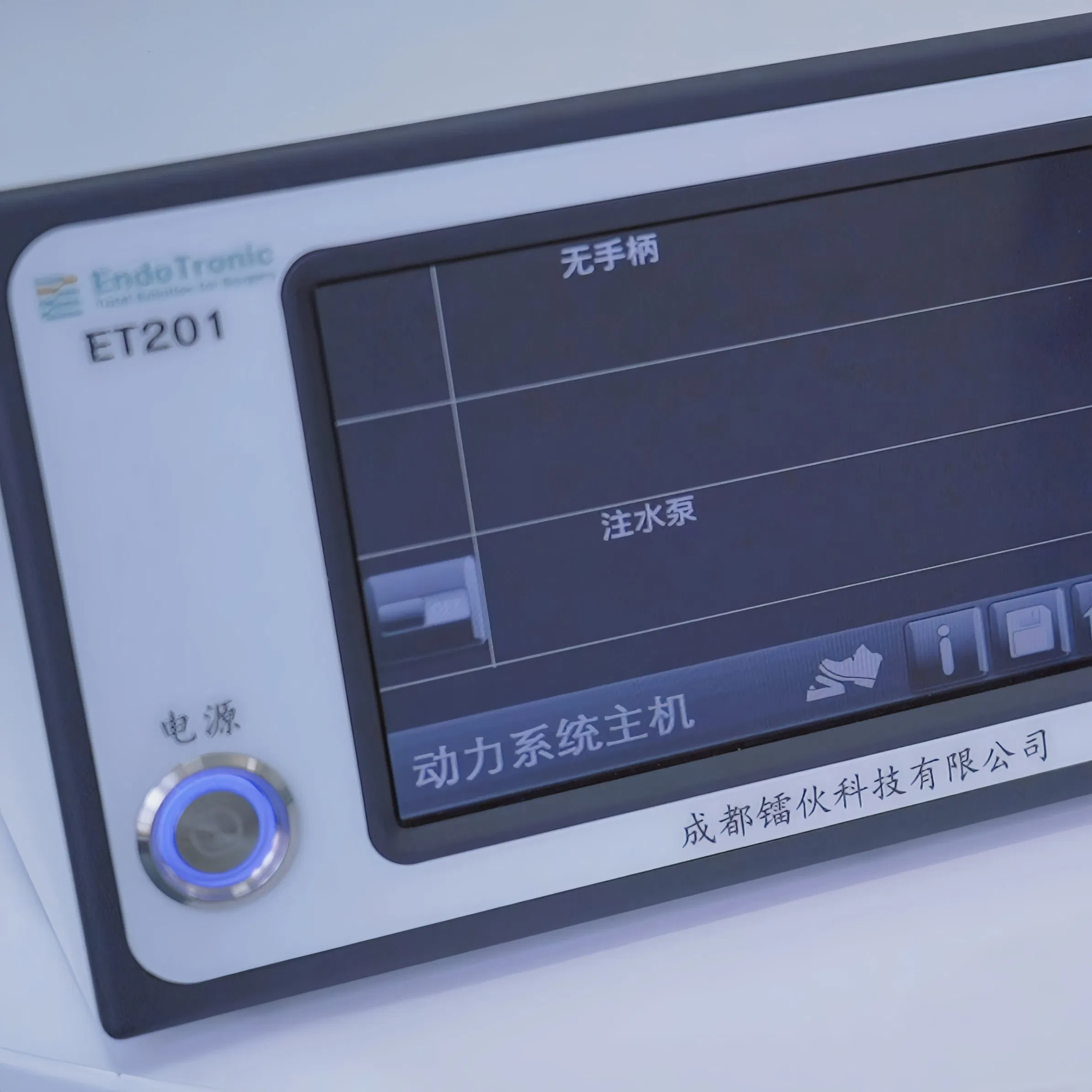

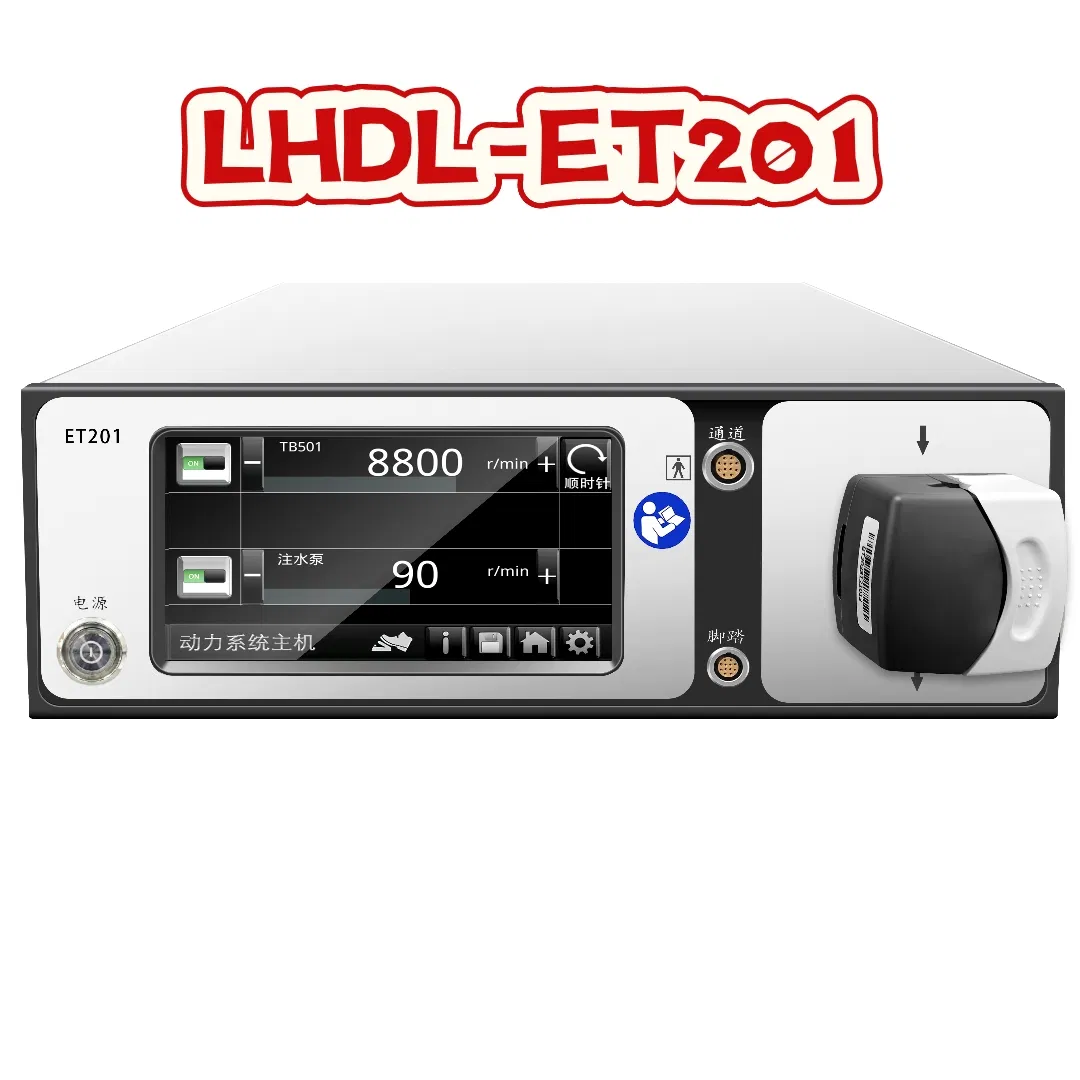

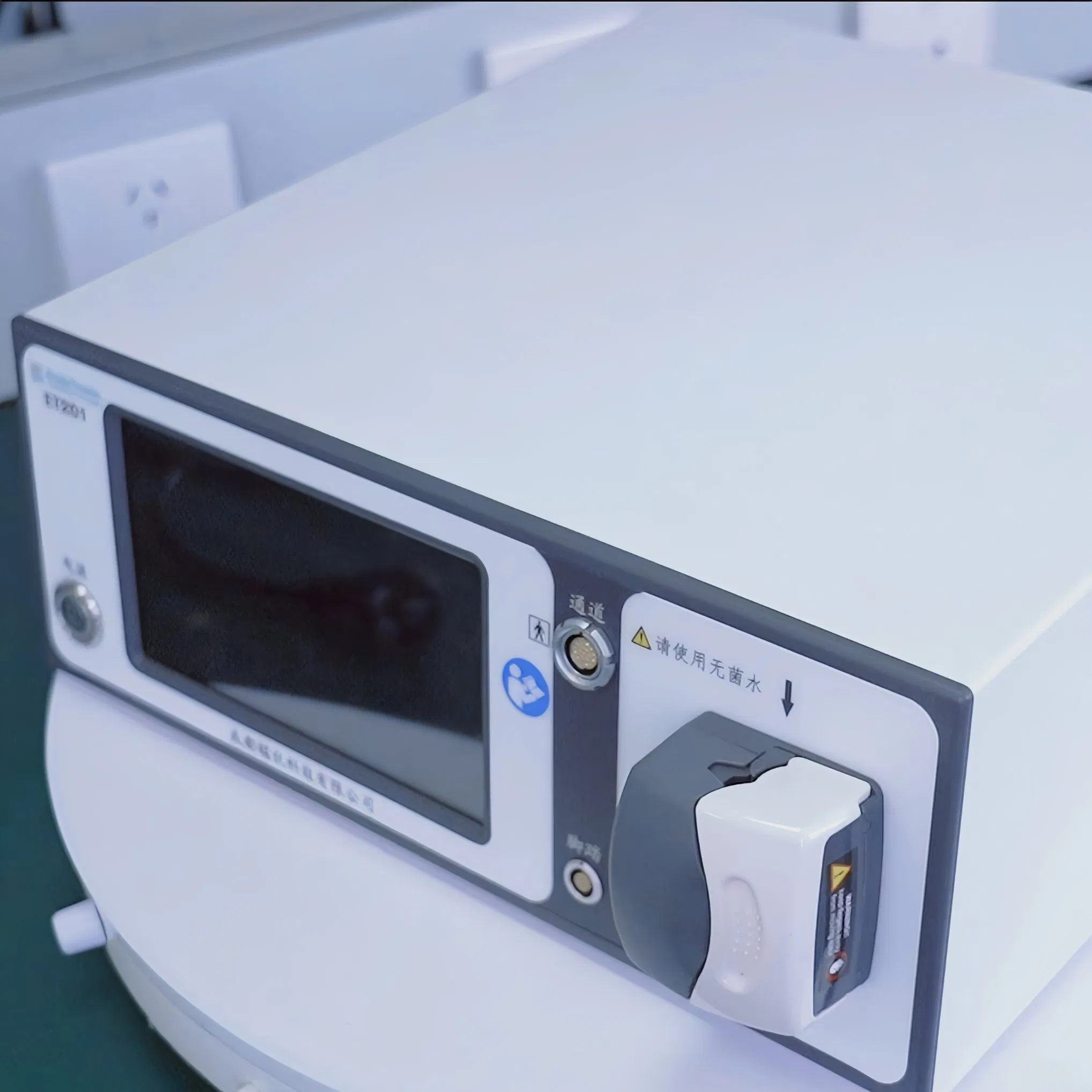

| Product Model | LHDL-ET201 | Environment Temperature | 5℃~28℃ |
| Group | Medical Endoscope Surgery | Relative Humidity | 30%Rh~85%Rh |
| Power Source | Electric | Atmospheric Pressure | 700hPa~1060hPa |
| Instrument Class | Class II | Voltage | AC 220V/50Hz |

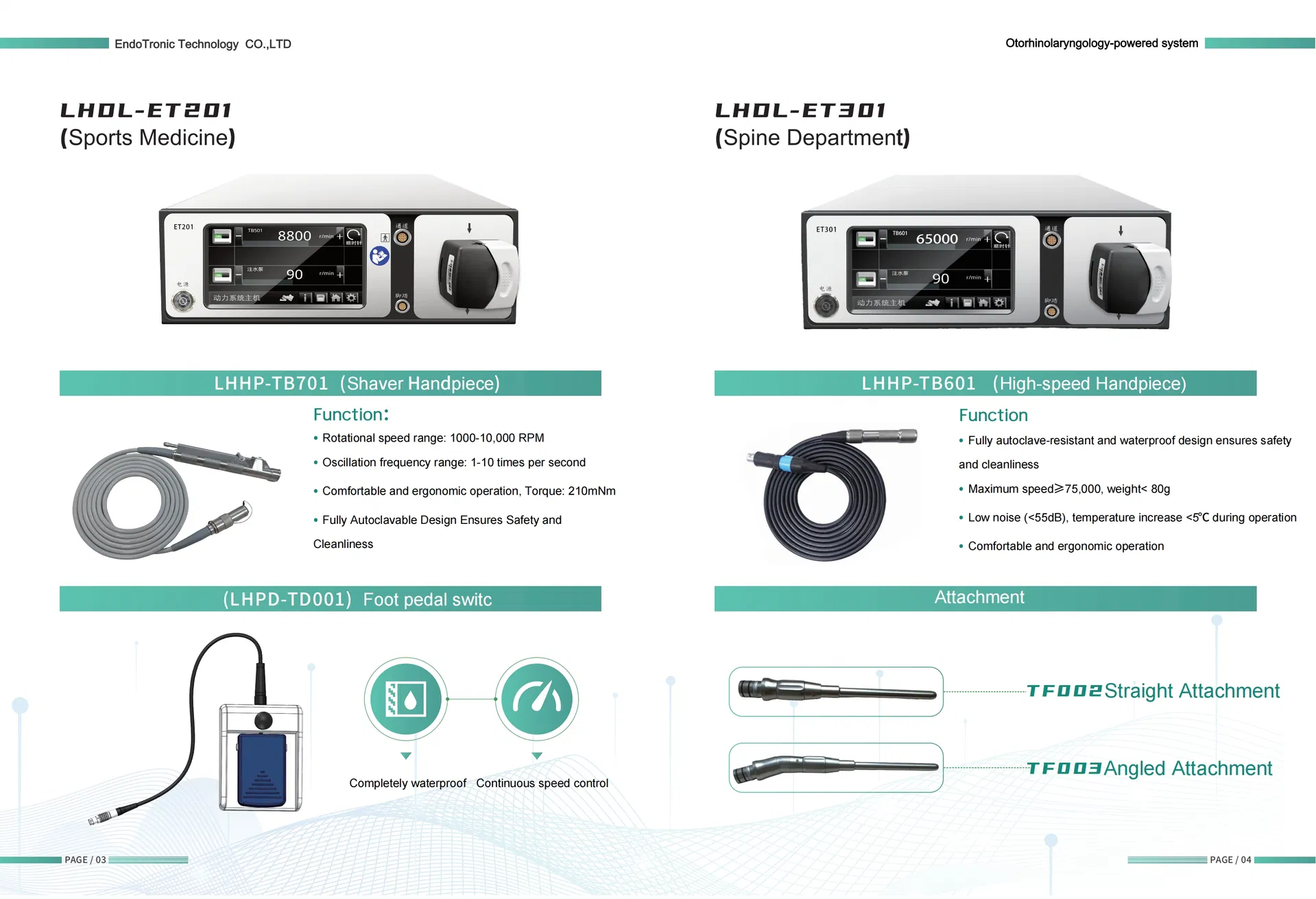

| Console Model | FWD (r/min) | REV (r/min) | Handpiece |
|---|---|---|---|
| LHDL-ET201 | 1000~12000 | 1000~12000 | LHHP-TB501 |
| LHDL-ET301 | 1000~75000 | 1000~75000 | LHHP-TB601 |
| LHDL-ET401 | 1000~12000 | 1000~12000 | LHHP-TB501 |
| LHDL-ET501 | 500~3000 | 500~3000 | LHHP-TB501 |
Product Parameters:
1. The console supports three rotation modes: forward, reverse, and reciprocating (for specific models).
2. Reciprocating frequency range: 60 - 600 times/min.
3. Flushing function: Integrated pump head with adjustable speed (20 - 100 r/min).

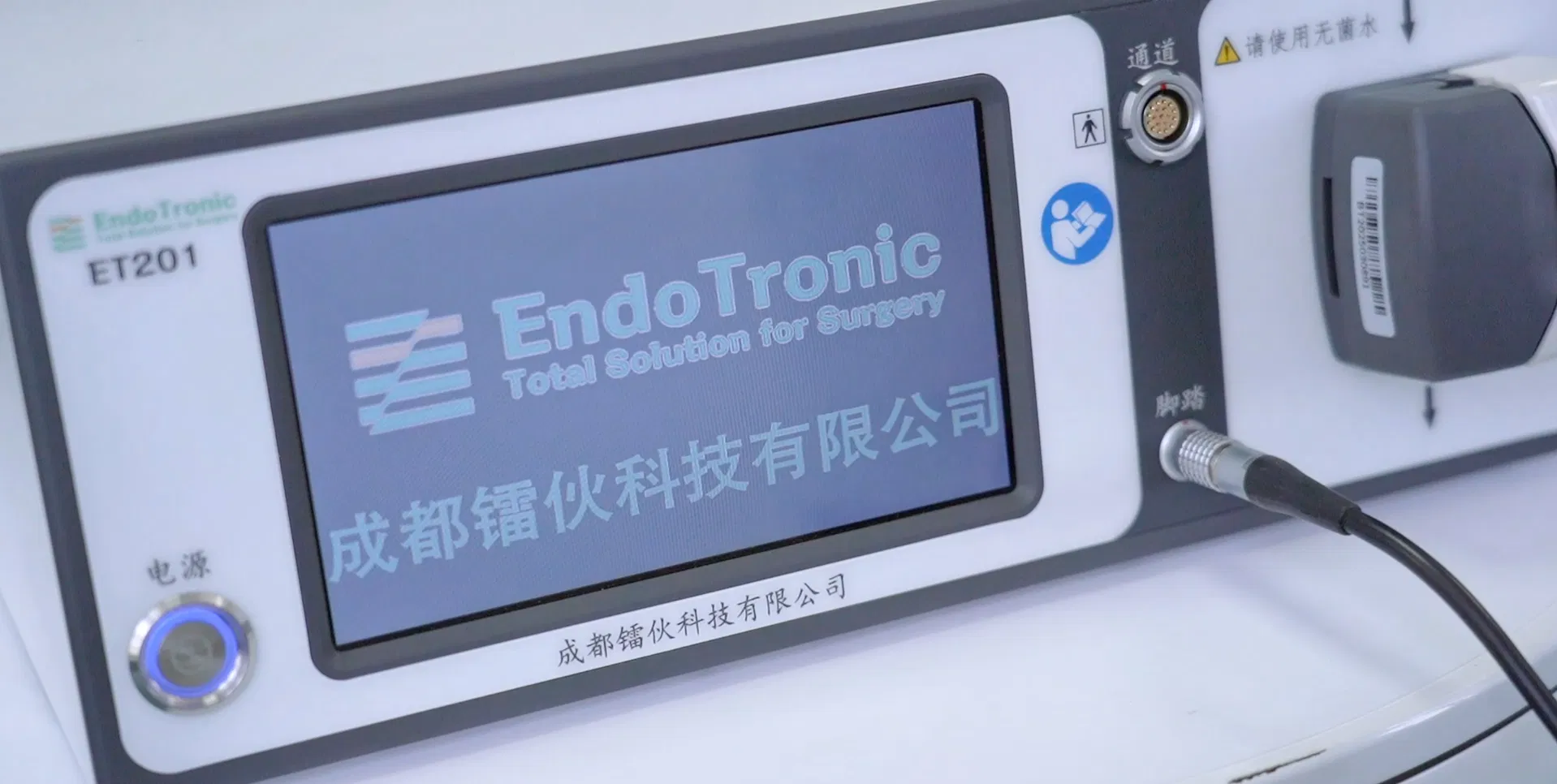

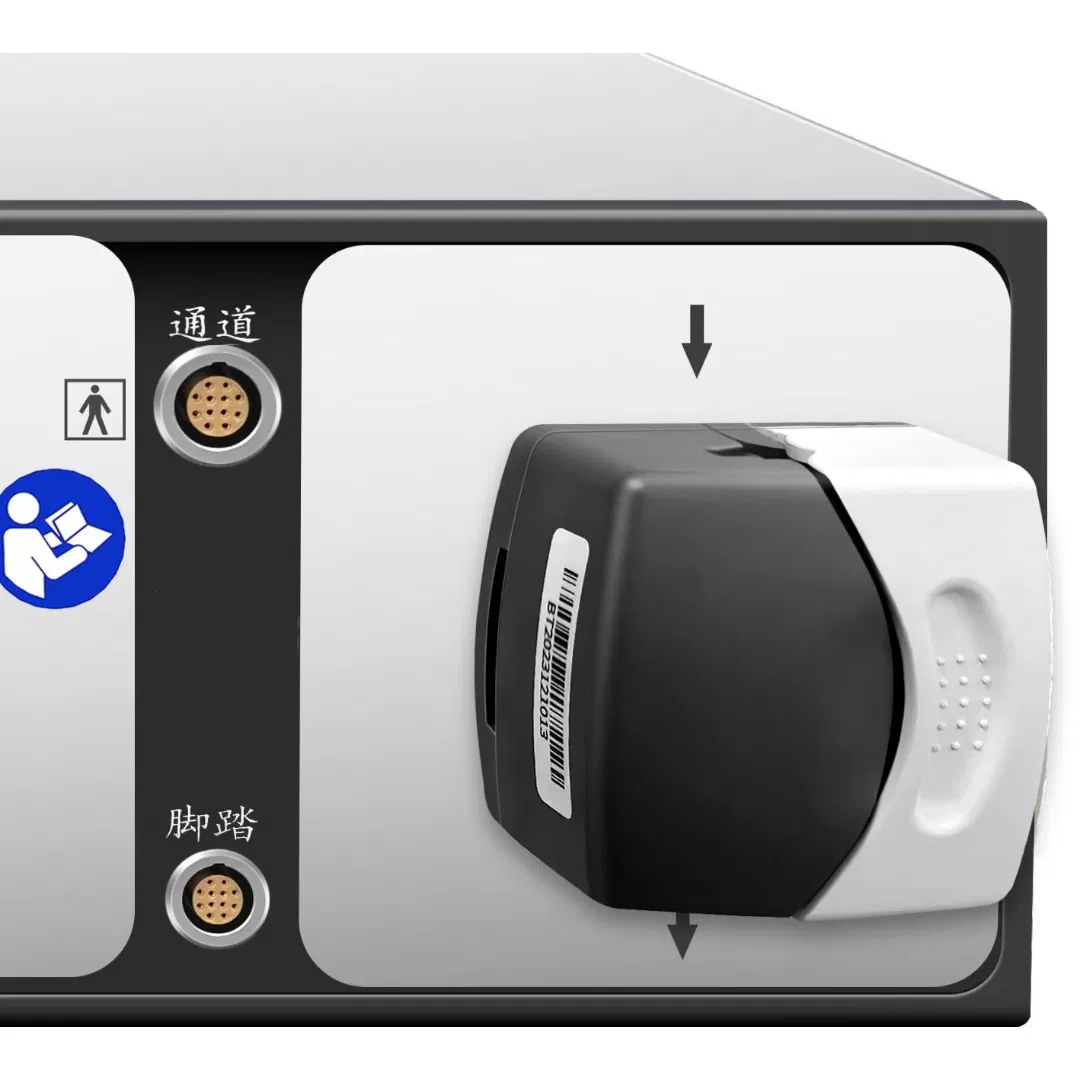

4. Interface: Multiple handpiece and foot switch interfaces available based on console model.



We are a high-tech medical enterprise focusing on endoscopic surgery. Integrating R&D, production, sales and service, we are committed to providing innovative endoscopic surgical equipment solutions and excellent technical services for global medical institutions.
Our core product—the endoscopic surgical power system—meets stringent medical standards. We offer segmented solutions covering high-precision surgical fields such as orthopedic spine surgery, otolaryngology, sports medicine, neurosurgery, gynecology, and urology.
