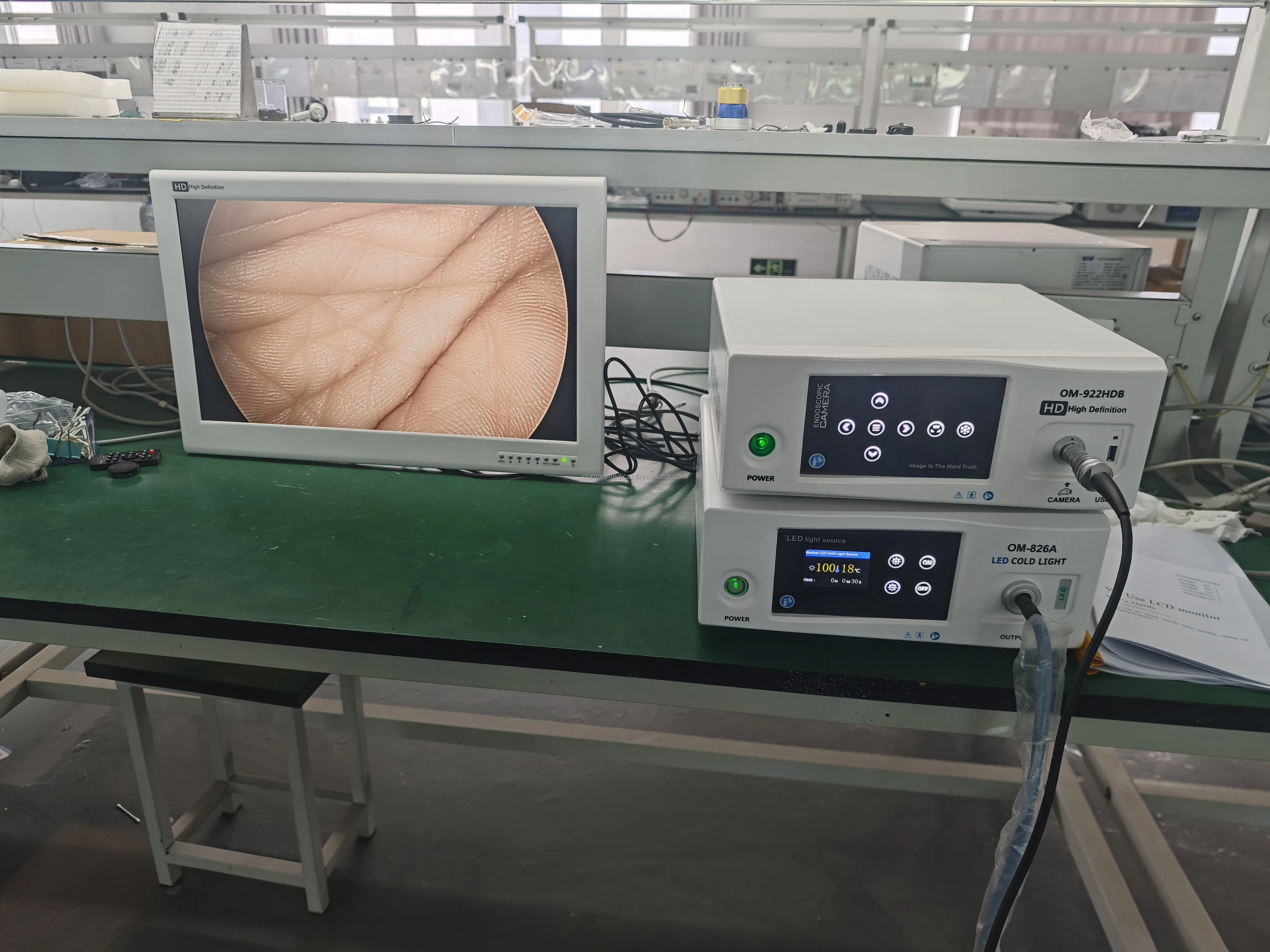

Ouman Arthroscopy Endoscope Camera System with Sheath for Surgery

1 / 5

Ouman Arthroscopy Endoscope Camera System with Sheath for Surgery

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Digital Imaging System

Send Inquiry

Product Description

Basic Information

Model NO.

OM-922HDB

Certification

CE, ISO13485

Warranty

1 Year

After-Sale Service

Online Technical Support

Classification

Class II

Origin

Jiangsu China

Product Description

Medical Devices Supplier Arthroscopy Sheath Arthroscopy Endoscope Camera System

High-performance imaging solution designed for precision minimally invasive surgery.

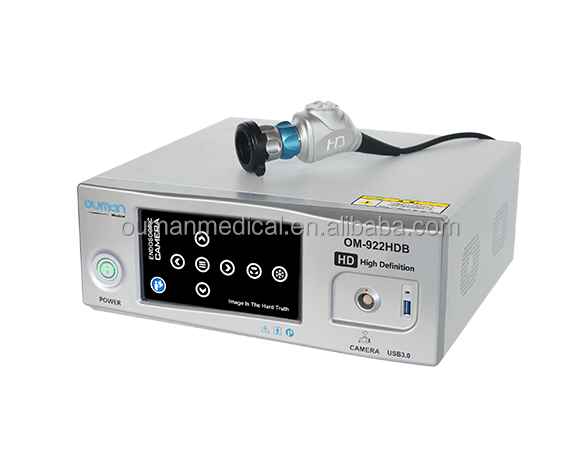

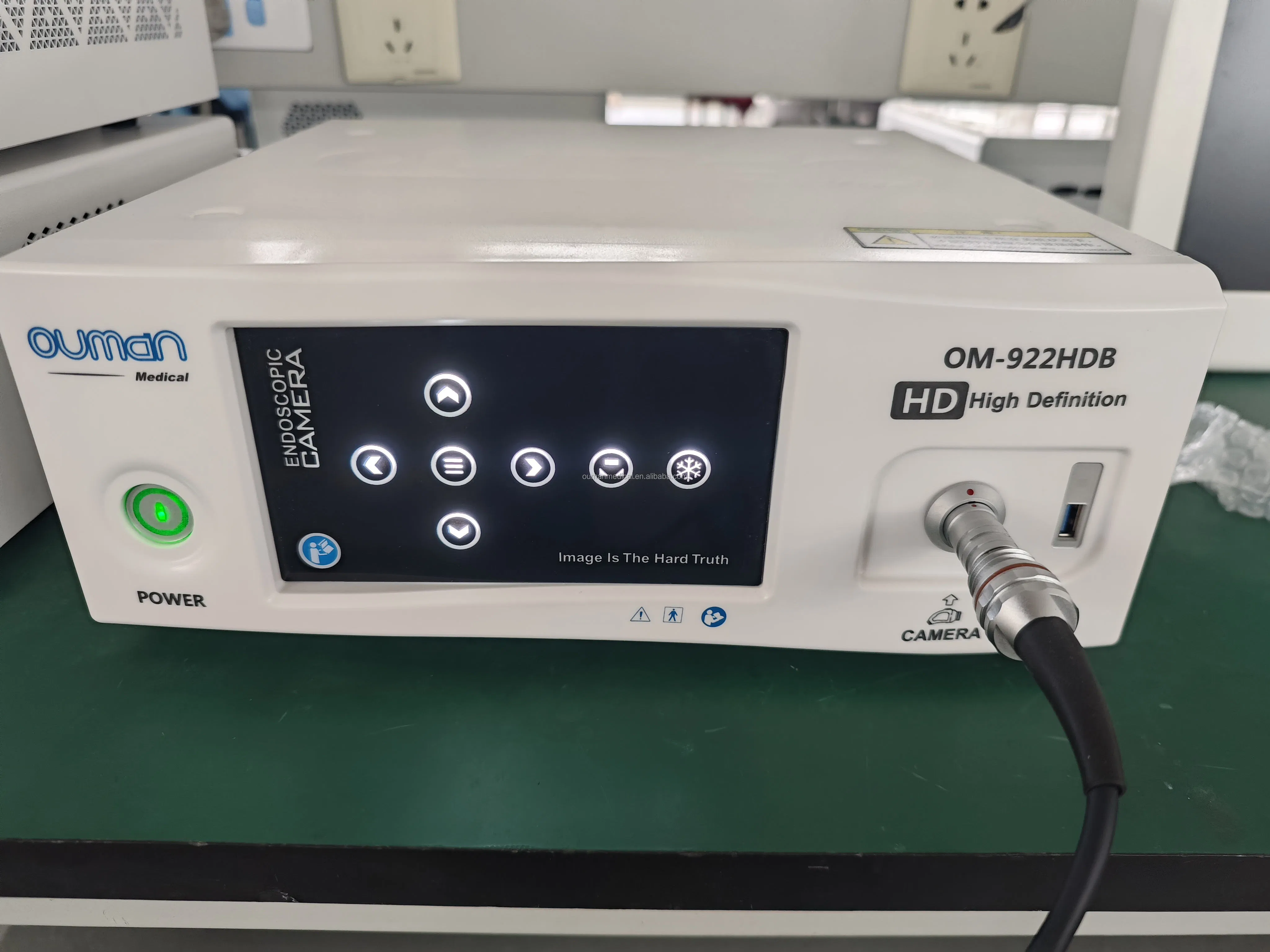

Endoscope Camera System Features

The OSD menu features multiple function settings, including proprietary microscope scene mode, dark area improvement, moiré removal, image flipping, and custom camera button settings.

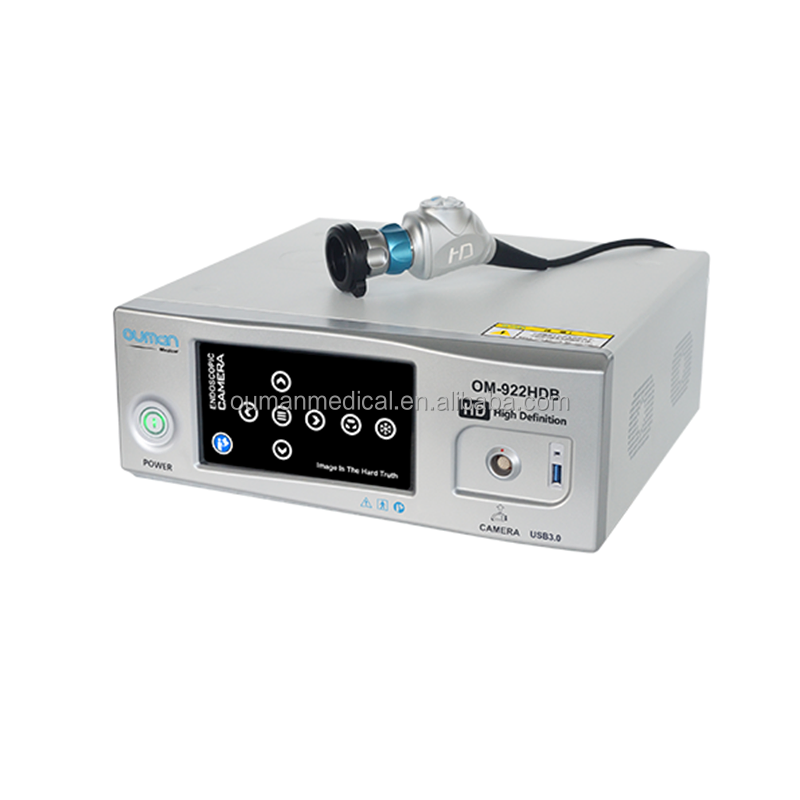

Camera Head Parameter	OM-922HDB (1CMOS Full HD)
Resolution	1920×1080P 60 frames
Horizontal Resolution	Up to 1600 lines
Video Recording	USB storage interface, 1080P 60Hz high-quality photo/video (BMP/AVI)
Camera Head Buttons	4 Self-define control buttons
Optical Coupler	Parfocal zoom coupler

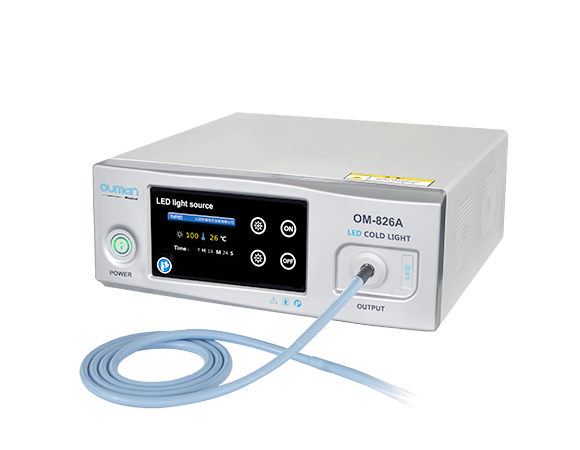

LED Cold Light Source

Adopted high efficiency, low noise, long life high-tech LED source. Unlike traditional halogen sources, it eliminates defects such as filament firing, heat deposition, and light decay.

Input Power	≥100W
Index of Coupling	70
LED Lamp Life	30,000 - 50,000 hours
Illumination	≥ 1,400,000 lux
Color Temperature	3000k - 7000k

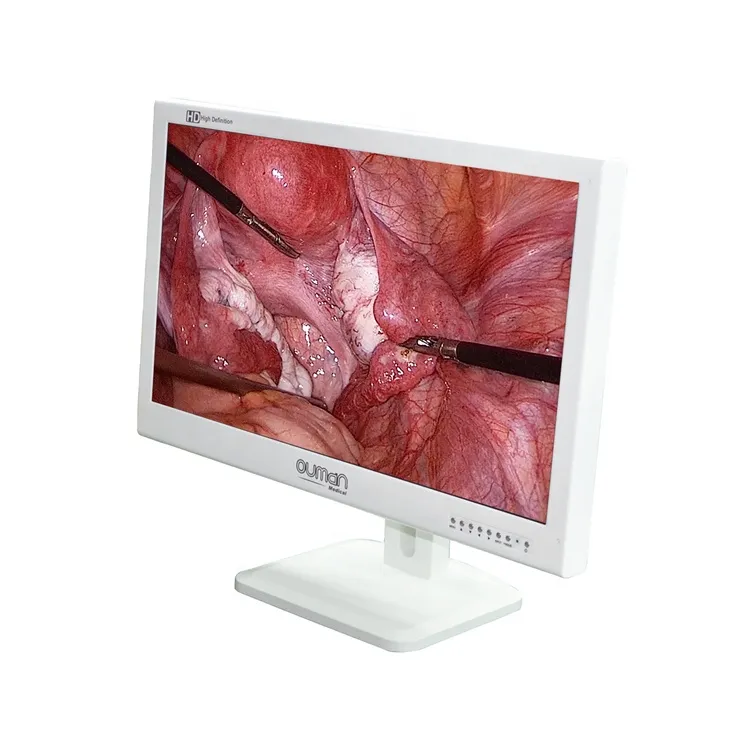

Medical Grade Monitor

Full HD/UHD options available in 22, 24, 27, 32, and 55 inches to suit various surgical needs.

Screen Size	24 inch LCD
Resolution	1920*1080
Contrast Ratio	1500:1
Brightness	400 cd/m2
Input Signal	DVI-D / HDMI / VGA / CVBS

Technical Specifications

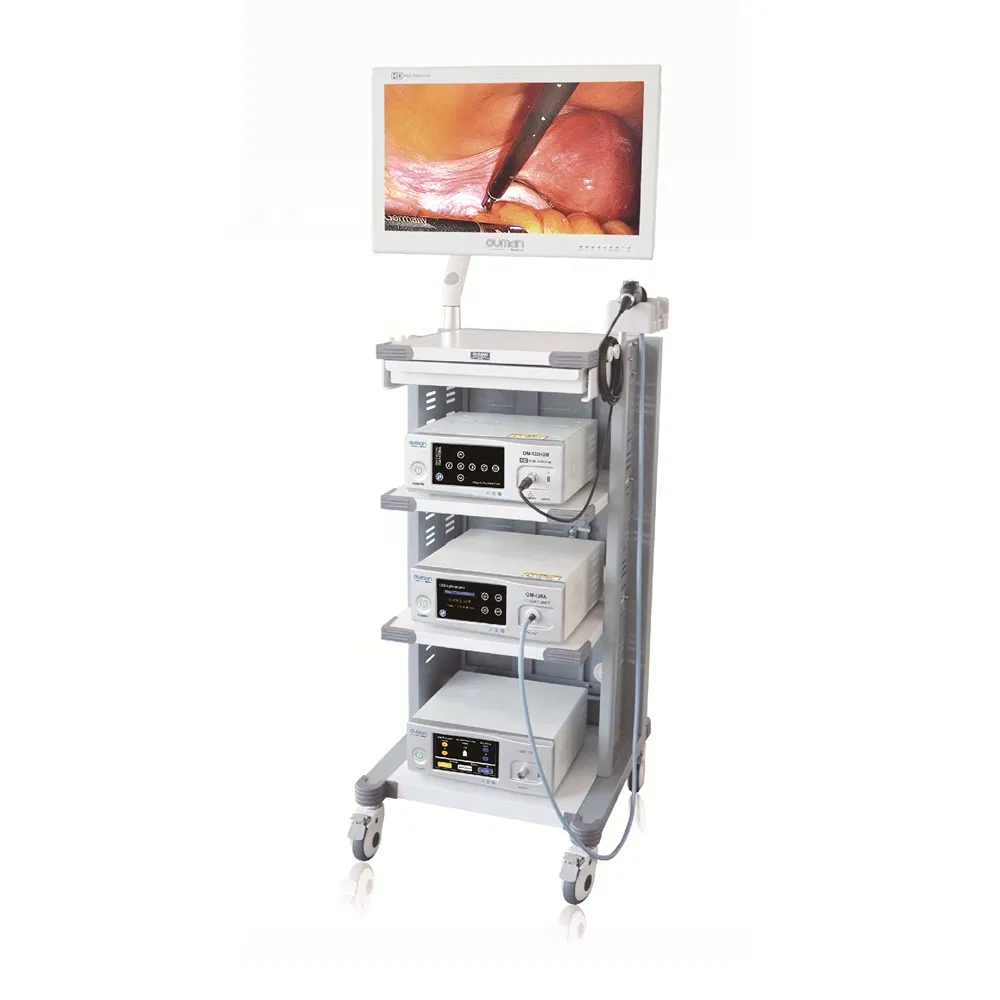

Product Name	Full HD Portable Endoscopic Camera System
Application	All Endoscopic Surgical Procedures (ENT, Laparoscopy, etc.)
OEM Service	Available
Camera Quality	Full HD or 4K UHD
Trolley Cart	4 or 5 Layers Optional

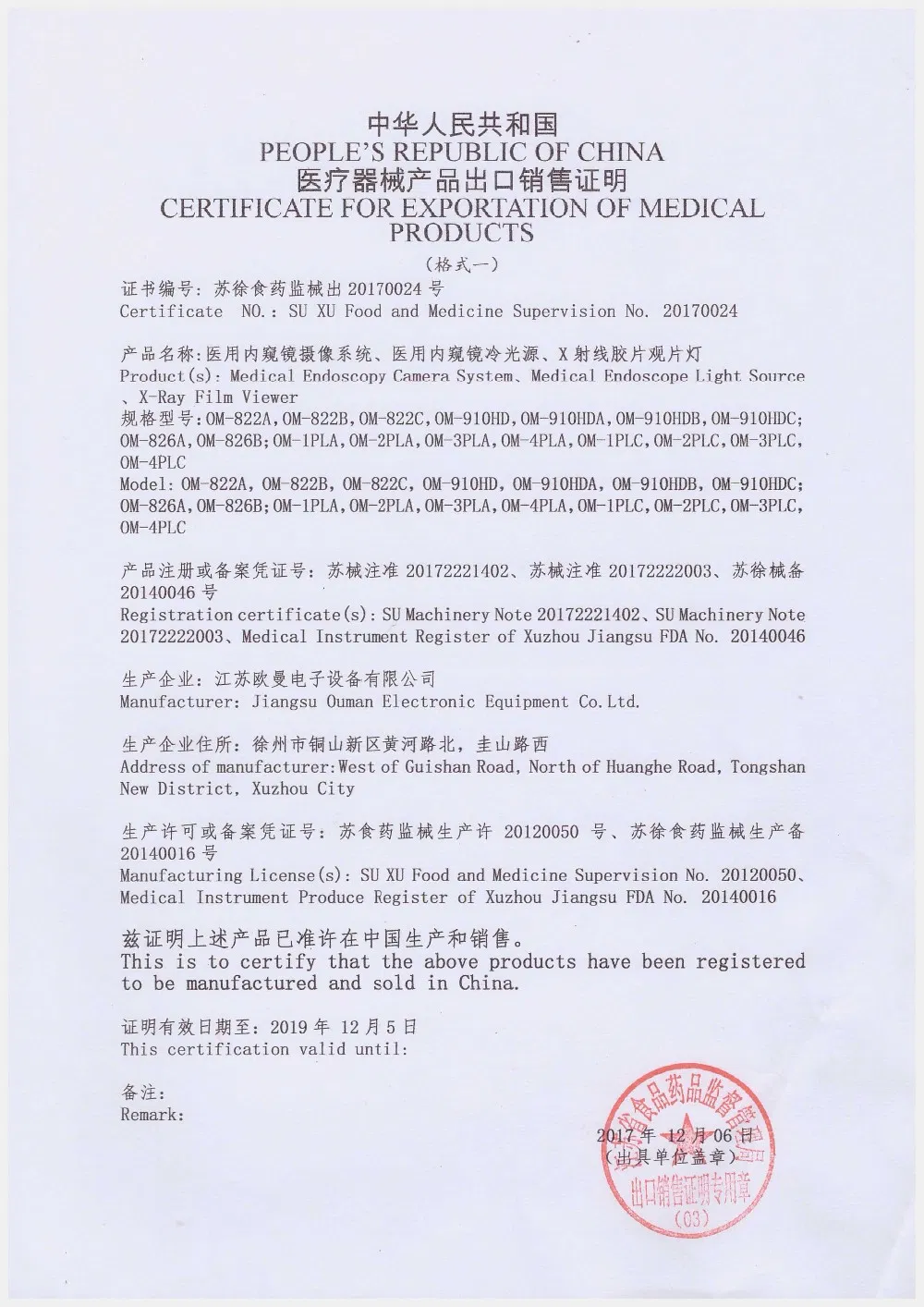

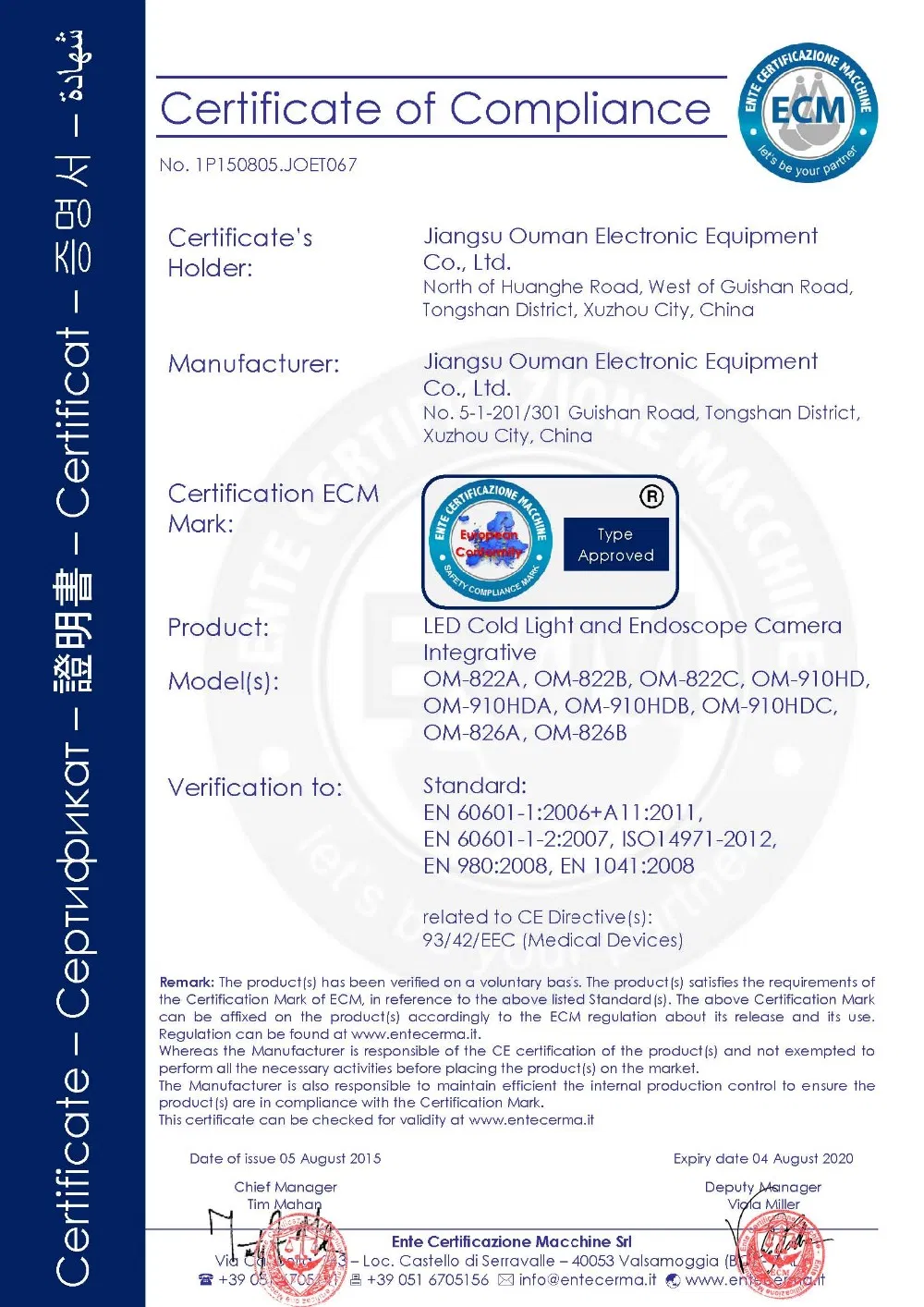

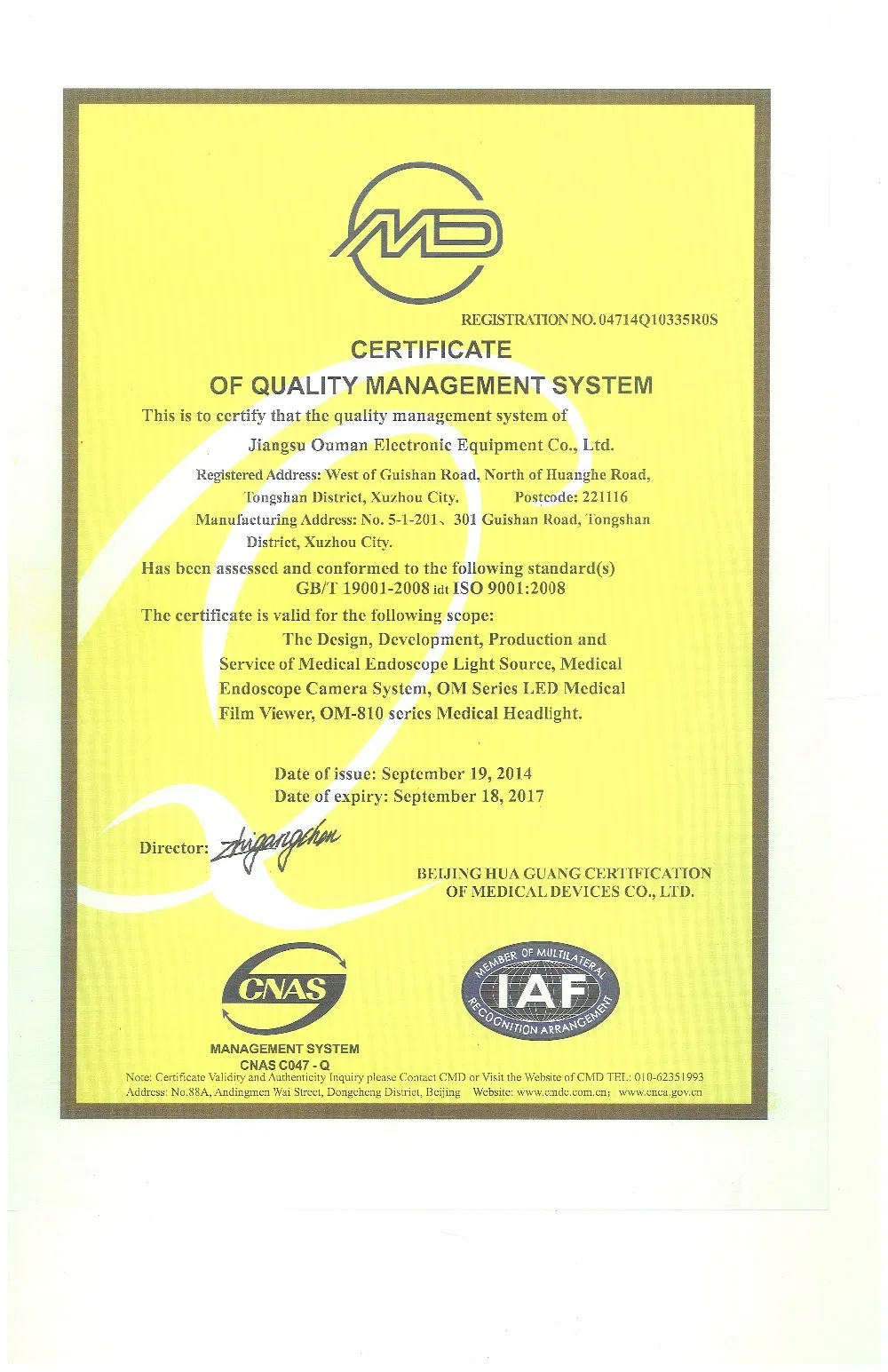

Our Certifications

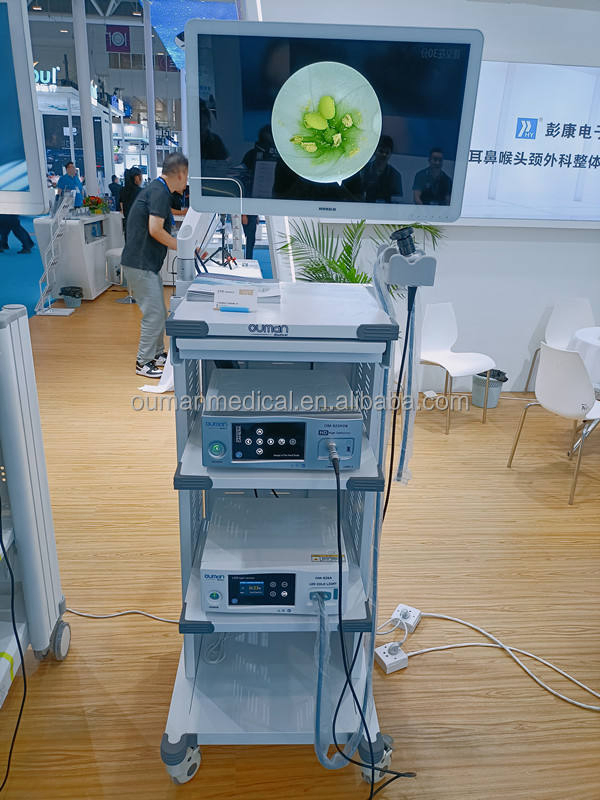

Exhibitions

Frequently Asked Questions

What is the resolution of the OM-922HDB camera system?

The system provides Full HD resolution of 1920×1080P at 60 frames per second, with a horizontal resolution of up to 1600 lines.

Does the system support video and photo capture?

Yes, it features a built-in USB storage interface that supports high-quality photo capture in BMP format and video recording in AVI format.

What are the advantages of the LED cold light source?

The LED light source offers a long lifespan of 30,000 to 50,000 hours, high illumination (≥ 1,400,000 lux), and low noise without the heat issues of traditional halogen lamps.

What monitor sizes are compatible with this system?

We offer medical-grade monitors in various sizes including 22, 24, 27, 32, and 55 inches to fit different clinical environments.

Is the equipment certified for medical use?

Yes, the system is Class II instrument classified and holds both CE and ISO13485 certifications.

What applications is this endoscope system suitable for?

It is designed for all endoscopic surgical procedures, including ENT, Laparoscopy, Arthroscopy, and Intervertebral Foramen surgery.
