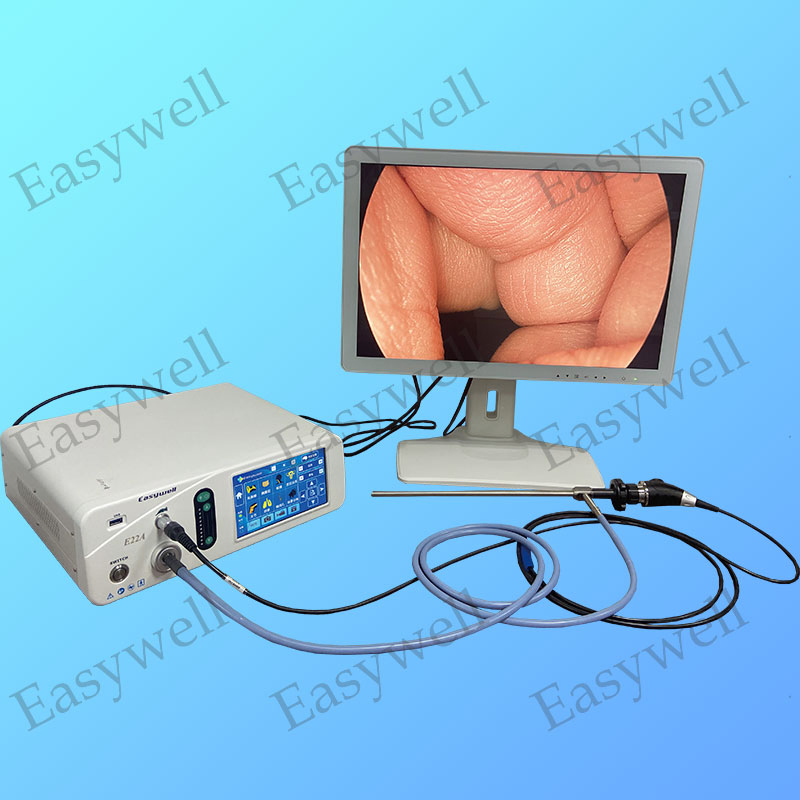

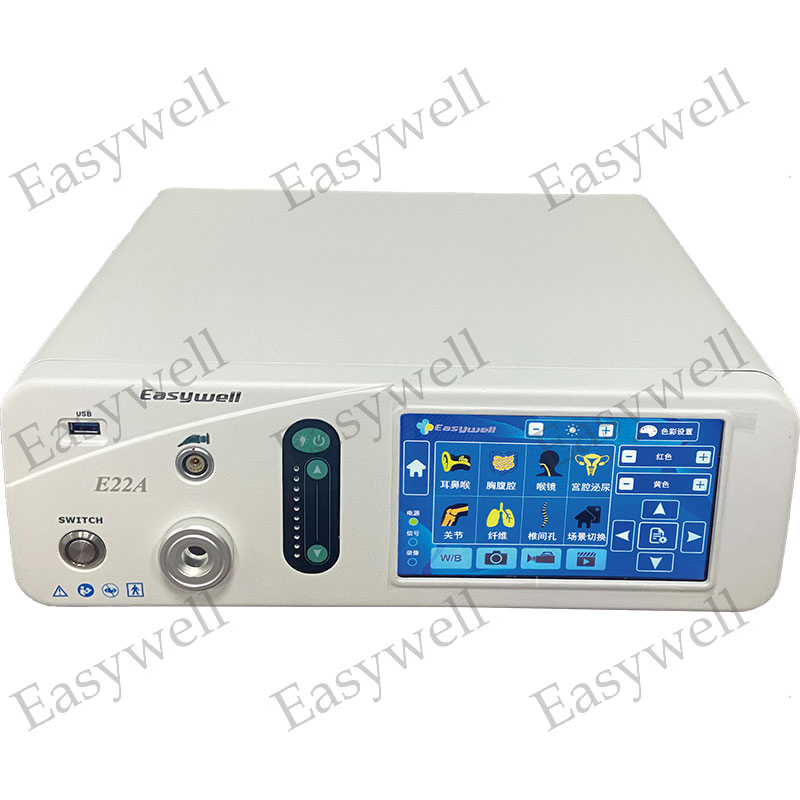

FHD Endoscope Camera System E22A

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
E22A
Certification
CE, ISO13485
Image Sensor
1/2.8” 1/1.8'' Coms
Resolution
1920X1080p
Color
3500K/6500K/7500K
Recording
1920X1080p
LED Lifespan
50,000 hours
CRI
Up to 90
Touch Screen
7 Inch
Storage
U Disk or Hard Disk
Video Output
HD-SDI, HDMI, USB, DVI, CVBS
Illumination
Up to 2,000,000 lux
Product Description
2 in 1 FHD Imaging System with Light Source for Endoscope

The 1080P Full HD Endoscope Camera is integrated with a medical light source, suitable for endoscopic inspection and surgery. The 1920 x 1080 resolution presents delicate images with superior noise reduction, sharpening, and contrast functions, meeting the complex needs of modern surgical treatments.

Applications: Arthroscopy, ENT, PTED, Cystoscopy, Hysteroscopy, Laparoscopy, Thoracoscopy, Ureteroscopy, and various minimally invasive surgeries.

FHD Endoscope Camera System E22A FHD Endoscope Camera System E22A
Detailed Photos

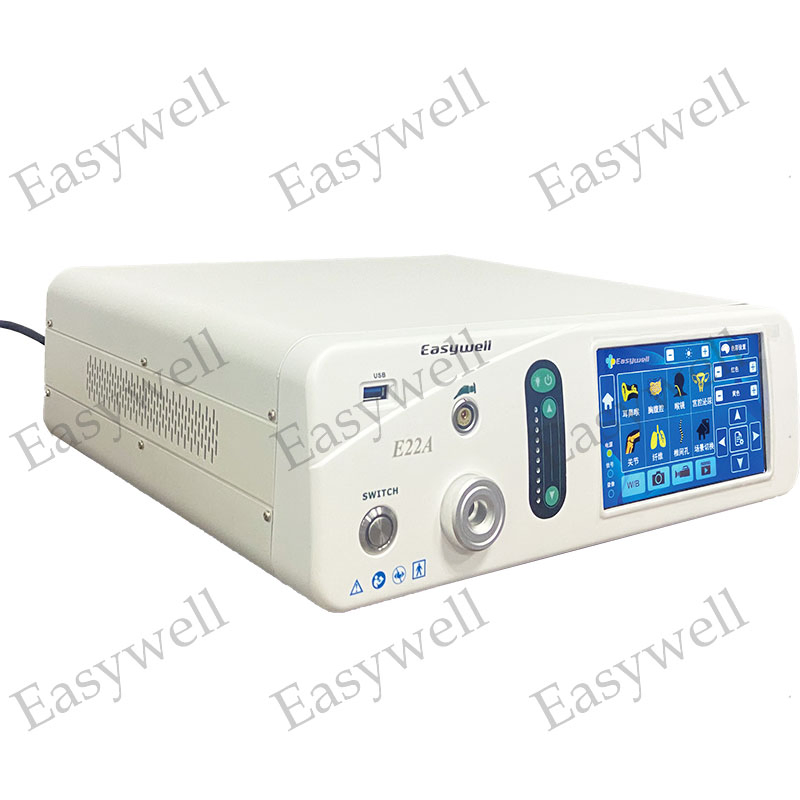

Detailed System View

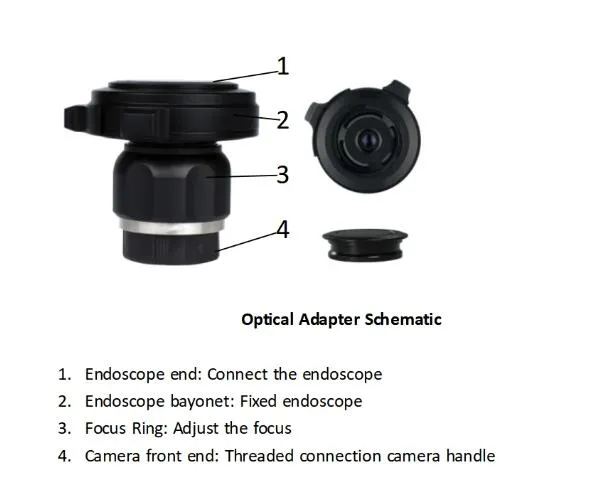

Optical Adaptor:

Optical Adaptor
Product Parameters
Feature Specification Feature Specification
Models E22A / E22B Touch Screen 7 inch
Image Sensor 1/2.8" 1/1.8'' COMS Storage U disk or Hard disk
Resolution 1920x1080p Coupler F=25mm (Standard)
LED Life 50,000 Hours Video Output SDI, HDMI, USB, DVI
CRI >90 Intensity > 2,000,000 Lux
Weight 5.8kgs Size 38mm x 12mm x 32mm

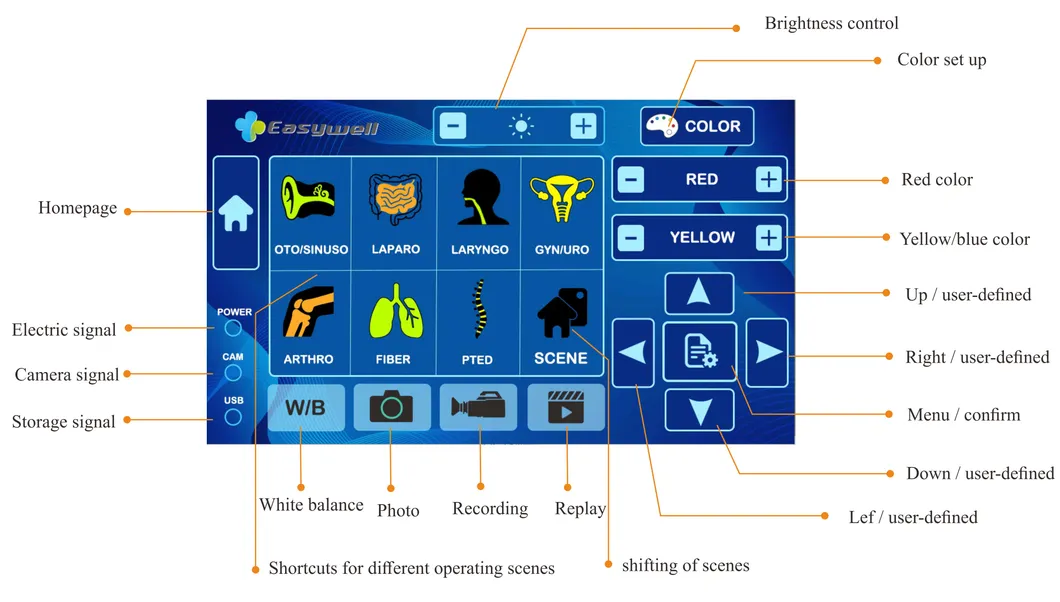

Control Panel Screen

Control Panel
Combination 1 Combination 2
Certifications
Certificate of Quality Manufacturer Certificate
About the Manufacturer

Our facility integrates research, development, production, and service, focusing on providing comprehensive medical operating room solutions. With over 20 years of experience in the medical product market, our independent design team prioritizes user convenience and multifunctional capability, holding numerous patents for diversified development.

Our product range includes medical diagnostic lighting, surgical lighting, and minimally invasive endoscope imaging systems utilizing imported high-performance components for real-time true color transmission. We also expand into neonatal healthcare equipment, recognized globally for clinical excellence.

We maintain a robust production management system and a professional R&D network. All products comply with 93/42/EEC, IEC 60601 safety standards, and hold certifications including ISO13485, ISO9001, CE, MDR, FDA, and RoHS. Our promotion and service network covers more than 120 countries, supporting doctors and medical facilities worldwide.

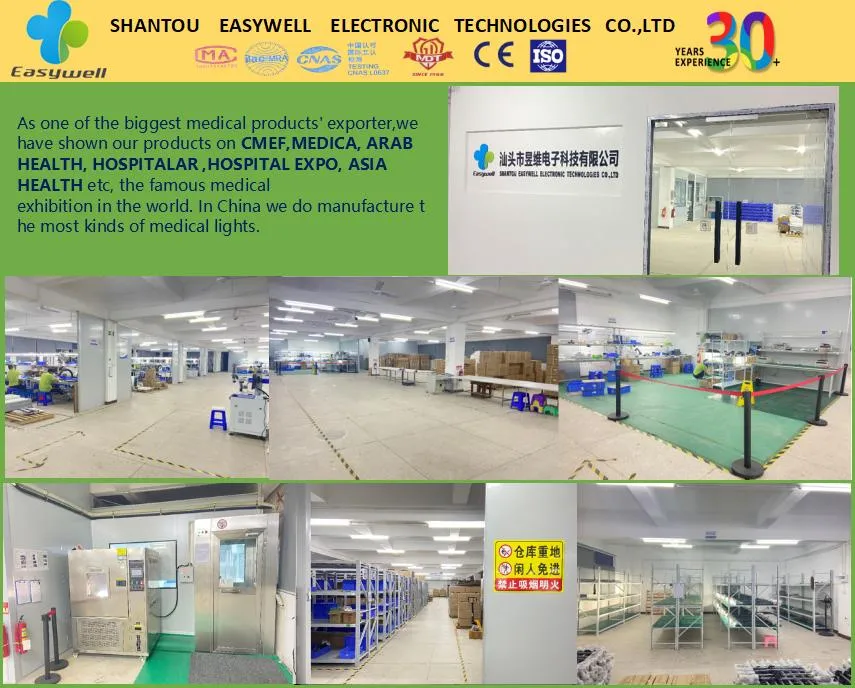

Manufacturing Facility
Frequently Asked Questions
What is the imaging resolution of the E22A system?
The system provides Full HD 1080P resolution (1920x1080p), ensuring crystal clear image quality for complex surgical procedures.
What types of video outputs are supported?
The device supports multiple video signal outputs including HD-SDI, HDMI, USB, DVI, and CVBS, making it compatible with various medical monitors and recording devices.
How long does the LED light source last?
The integrated LED light source has a long lifespan of up to 50,000 hours, significantly reducing maintenance costs and downtime.
Can the system record video and take photos?
Yes, the system can record 1080P video and capture 2-megapixel JPG photographs directly to a U Disk or an external Hard Disk.
Which clinical departments can use this imaging system?
It is highly versatile and can be used in ENT, Arthroscopy, Laparoscopy, Hysteroscopy, Urology, and other minimally invasive surgical departments.
Does the system feature a touch interface?
Yes, the E22A model is equipped with a 7-inch touch screen control panel for intuitive and easy operation during medical procedures.
