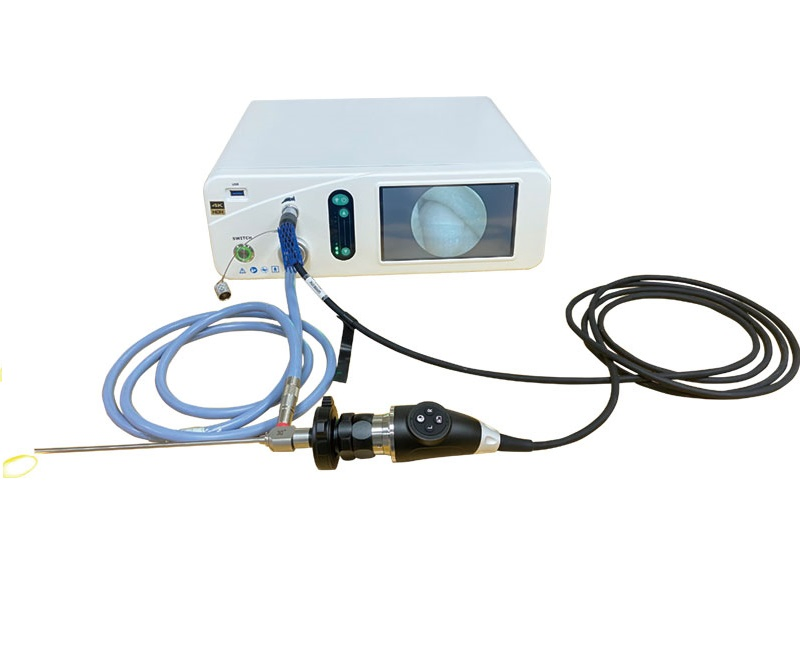

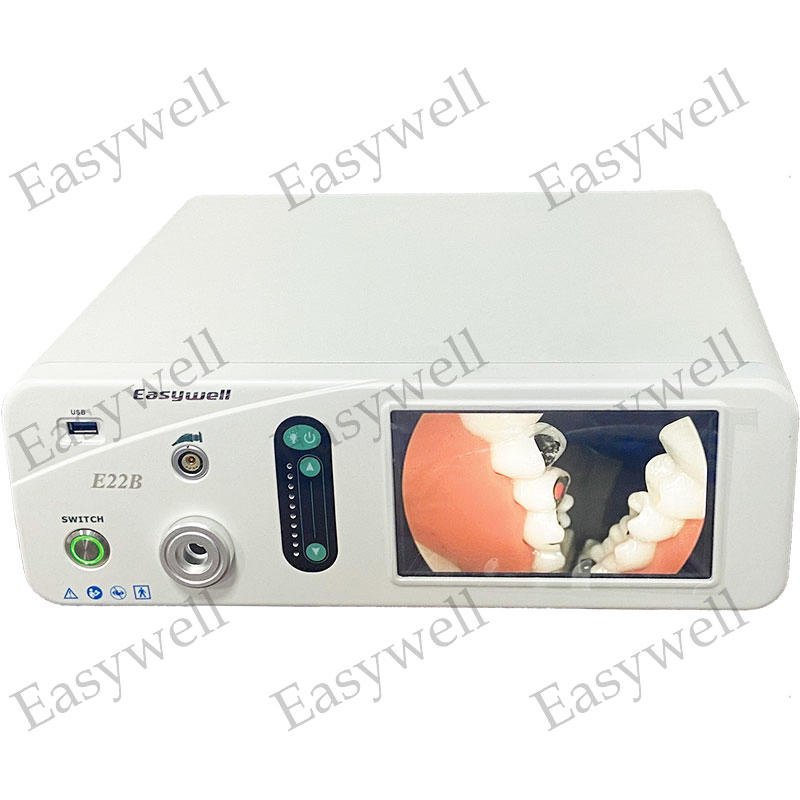

Endoscope Camera System with Light Source E22b with 7 Inch Display

Overview & Basic Info

Model NO.

E22B

Certification

CE, ISO13485

Image Sensor

1/2.8” 1/1.8'' Coms

Resolution

1920X1080p

Touch Screen

7 Inch

LED Life Span

50,000 hours

Intensity

Up to 2,000,000 lux

CRI

Up to 90

Storage

U Disk / Hard Disk

Output

HD-SDI, HDMI, USB, DVI, CVBS

Product Description

2-in-1 FHD Imaging System with Light Source
The 1080P Full HD Endoscope Camera integrated with a Medical Light Source and 7-inch display. Designed for delicate surgical imaging with superior noise reduction, brightness control, and extinction functions.

Clinical Applications: Suitable for Arthroscopy, ENT, PTED, Cystoscopy, Hysteroscopy, Laparoscopy, Thoracoscopy, Ureteroscopy, and various minimally invasive surgeries.

Detailed Visuals

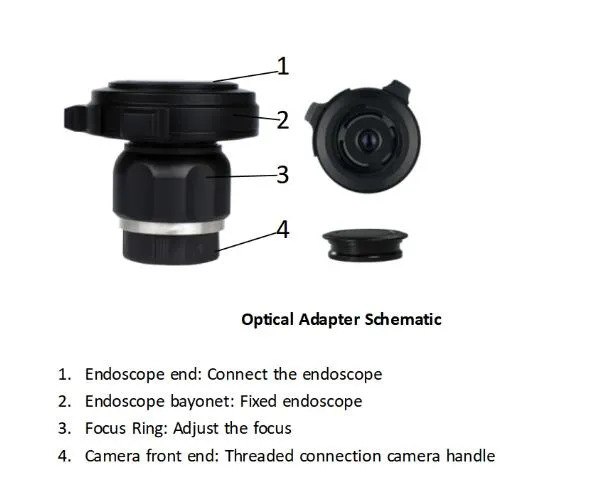

Optical Adaptor:

Technical Specifications

Parameter		Specification
Image Sensor	1/2.8" 1/1.8'' COMS	Touch Screen	7 inch Display
Resolution	1920x1080p	Storage	U disk or Hard disk
LED Life	50,000 Hours	Video Output	SDI, HDMI, USB, DVI, CVBS
Intensity	> 2,000,000 Lux	C-Type Coupler	F=25mm standard
Net Weight	5.8 kgs	Size	38mm x 12mm x 32mm

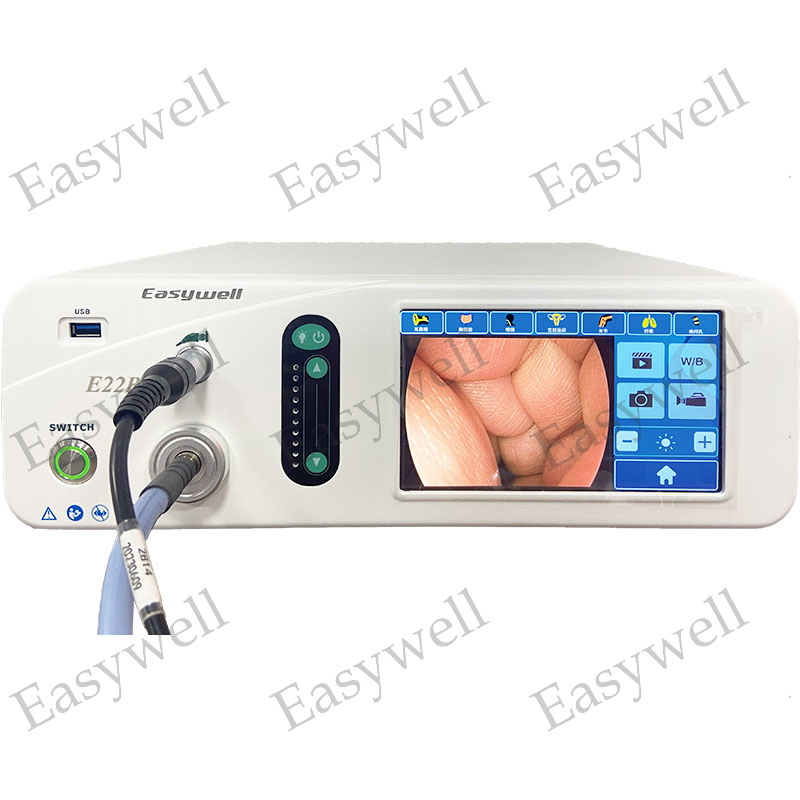

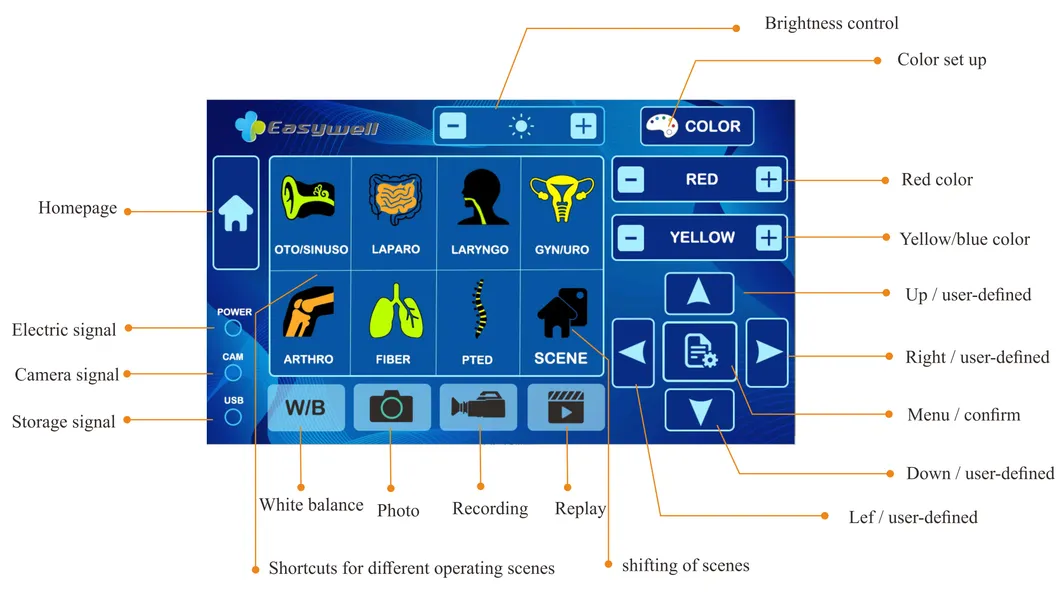

Control Panel Interface:

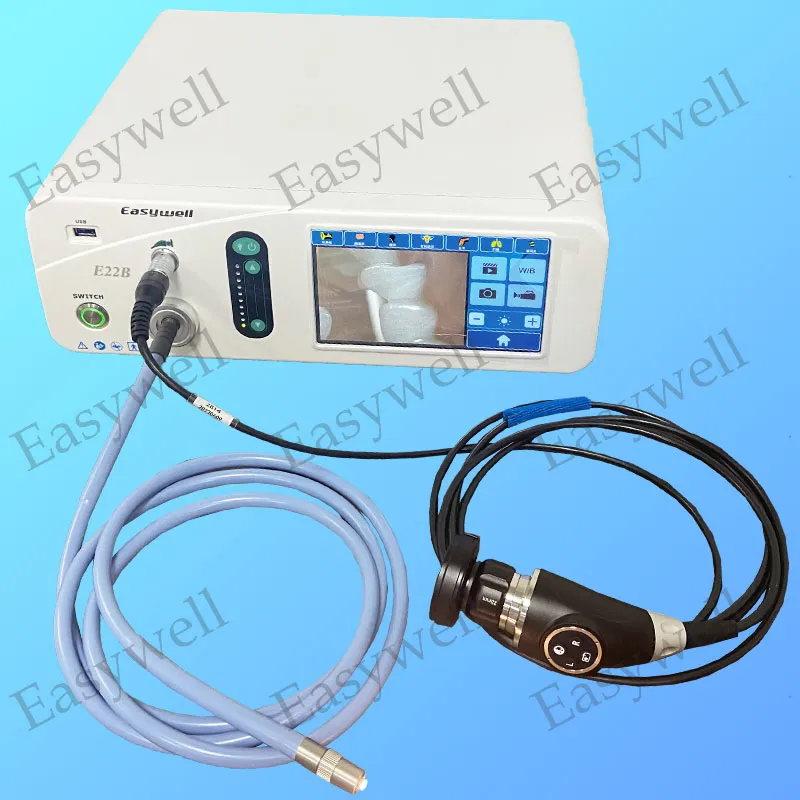

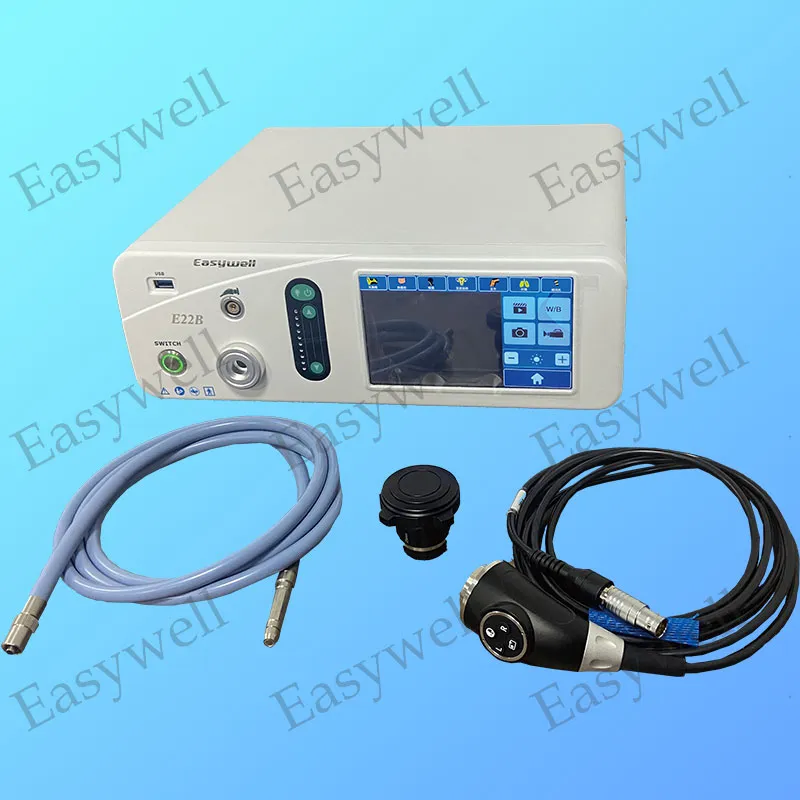

System Combinations

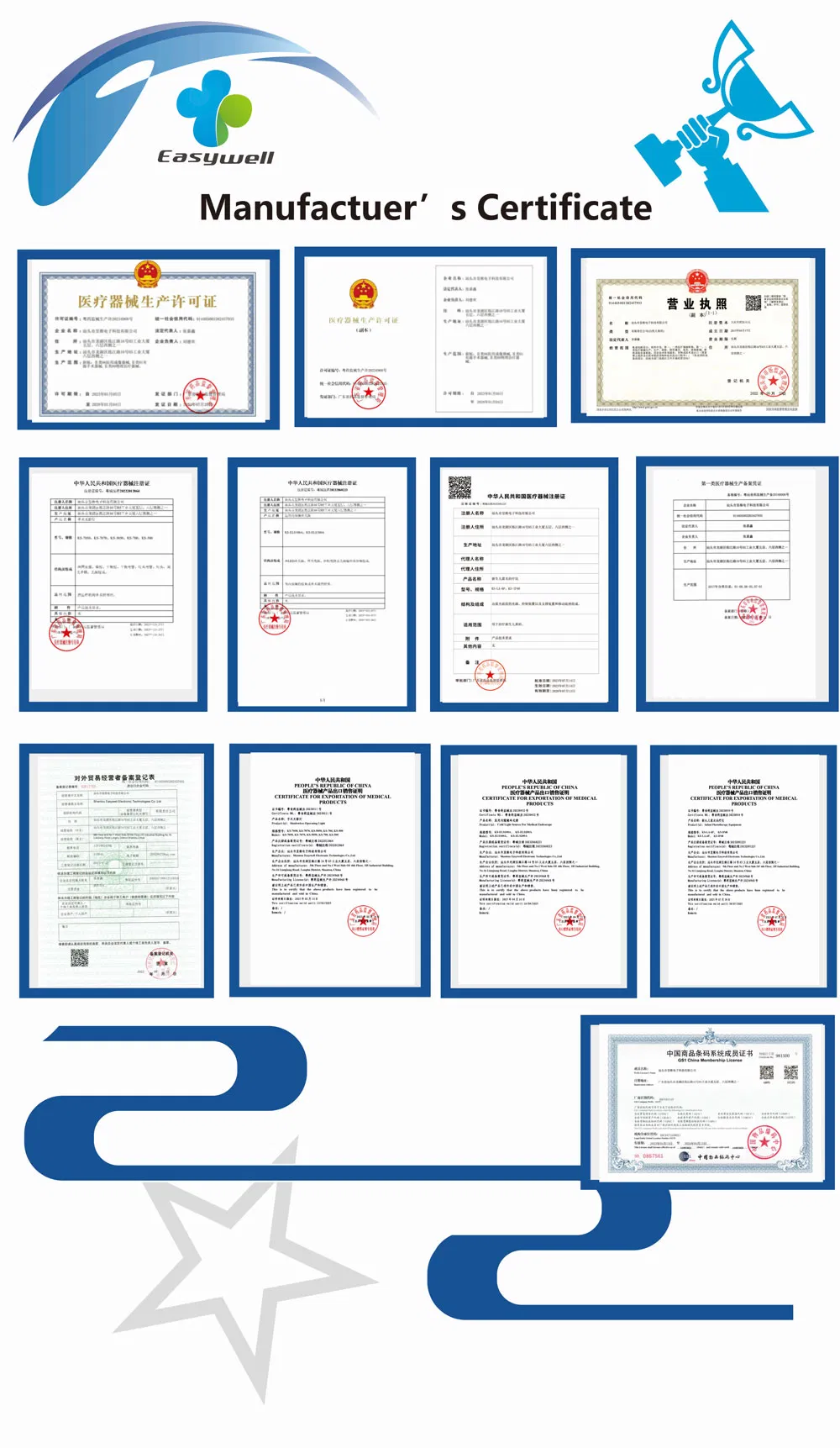

Quality Certifications

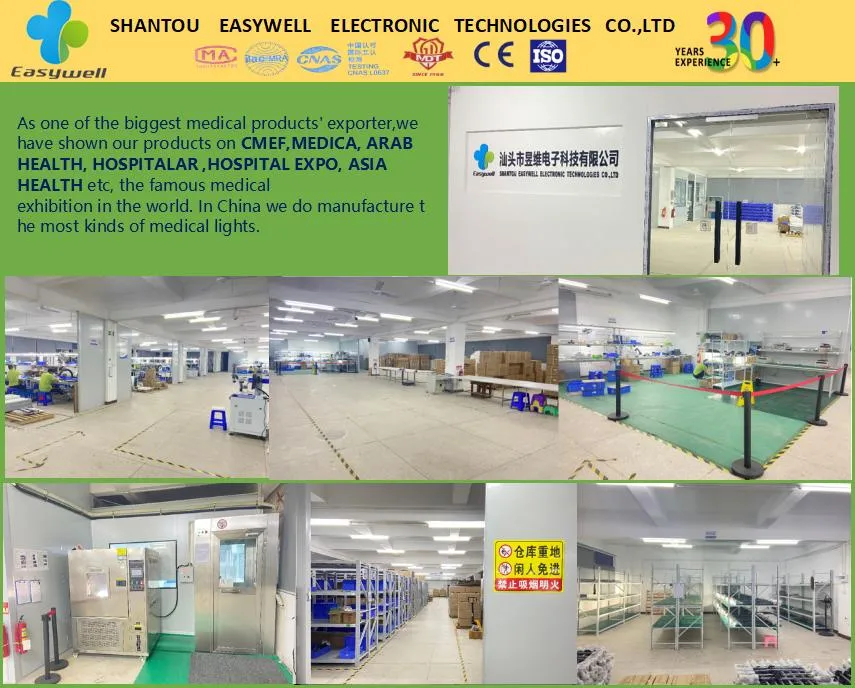

About The Manufacturer

The company integrates research, development, production, and service, focusing on providing high-quality medical operating room solutions. With over 20 years of experience, our team specializes in medical diagnostic lighting, surgical lighting, and minimally invasive endoscope imaging systems.

Our products comply with international safety standards including 93/42/EEC and IEC 60601. We maintain a global presence, exporting to more than 120 countries and participating in major medical exhibitions like MEDICA and Arab Health. Our mission is to assist in patient recovery through innovative medical technology.
