Easywell 3 in 1 4K Endoscopic Imaging System E43 for Medical Endoscope

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

System Overview

27 Inch All in One 4k UHD Imaging System E43 for Medical Endoscope

The E43 system is engineered for professional medical applications including arthroscopy, ENT, PTED (percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery, laparoscope, thoracoscopy, and various fiber-optic endoscopic procedures.

🔹

Basic Information

Model NO.

E43

Certification

CE, ISO13485, ISO 9001, EMC/LVD, RoHS

Light Source

LED

LED Life Span

50,000 hours

Resolution

3840X2160p (4K)

Monitor

27 Inch

CRI

>90

Illumination

> 2,000,000 Lux

📊

Technical Parameters

Specifications		E43 Details
Imaging	Image Sensor	1/1.8 inch CMOS SONY
	Effective Pixels	8,290,000 pixels
	Scanning Mode	Progressive Scanning
	Aspect Ratio	16:9
Camera Head	Waterproof Grade	IPX8
Camera Head	Cable Length	2.9m
Display	Screen	27 inch anti-splash/glare glass
Display	Screen Resolution	3840x2160
Output & Storage	Video Output	SDI, HDMI, USB 3.0, DVI, RJ45
Output & Storage	Storage	USB disk or Hard disk

🖼️

Product Gallery

🔍

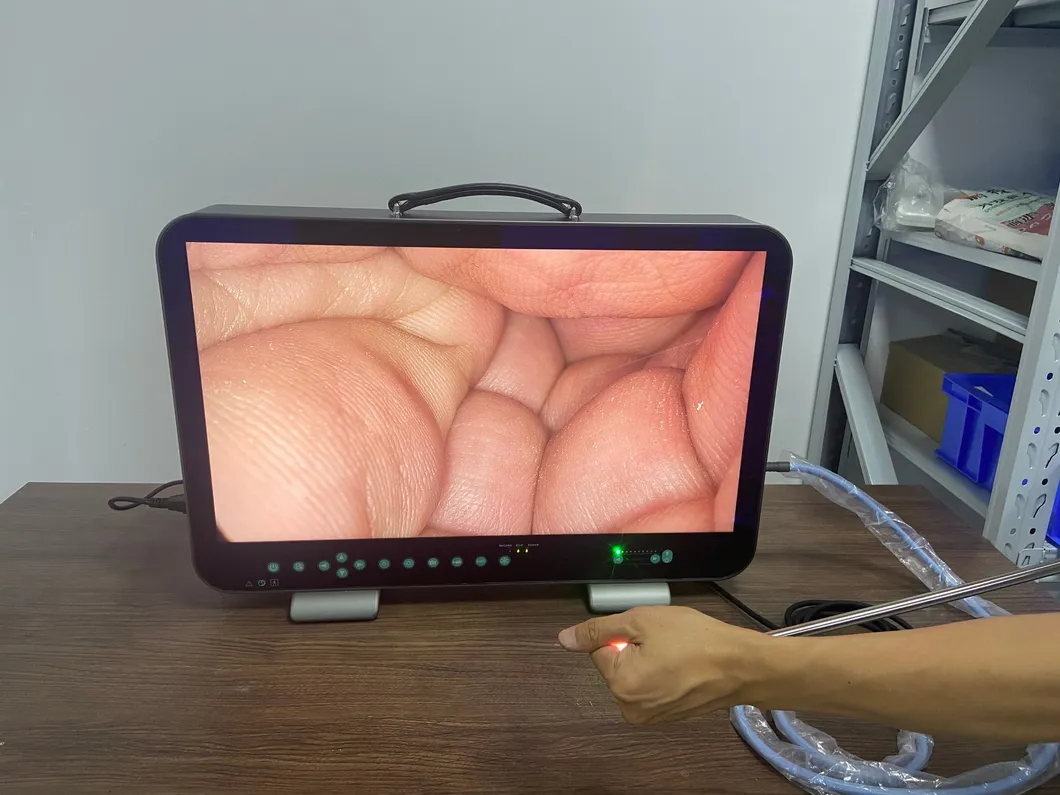

Detailed Photos

📄

Documentation & Certifications

🌍

Global Exhibition

Frequently Asked Questions

What is the display resolution of the E43 system?

The E43 system provides a true 4K UHD experience with a resolution of 3840x2160 pixels, utilizing a SONY 1/1.8 inch CMOS sensor for crystal clear medical imaging.

Is the camera head waterproof?

Yes, the camera head is rated IPX8 waterproof, making it suitable for rigorous clinical environments and standard sterilization protocols.

What is the lifespan of the integrated light source?

The high-intensity LED light source is designed for long-term use, offering a lifespan of approximately 50,000 hours.

What types of video outputs are supported?

The system supports multiple video signal outputs including USB 3.0 (x3), 3G-SDI, HDMI 1.4, DVI, and RJ45 for versatile connectivity.

Can the system record and store surgical procedures?

Yes, the system features built-in capture and video recording capabilities. Files can be saved directly to a USB disk, hard disk, or transferred via W-LAN.

What certifications does the E43 imaging system hold?

The system is fully certified with CE, ISO13485, ISO 9001, EMC/LVD, and RoHS standards, ensuring safety and quality for medical use.
