2 in 1 E22A FHD Imaging System with Light Source for Endoscope

1 / 5

2 in 1 E22A FHD Imaging System with Light Source for Endoscope

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

E22A

Certification

CE, ISO13485

Image Sensor

1/2' Coms

Resolution

1920X1080p

LED Life Span

50,000 Hours

Illumination

Up to 2,000,000 lux

Touch Screen

7 Inch

Storage

USB Disk or Hard Disk

Video Output

HD-SDI, HDMI, USB, DVI, CVBS

Origin

China

🔍 Product Overview

2 in 1 FHD Imaging System with Light Source for Endoscope

The 1080P Full HD Endoscope Camera is used with Medical Light source, Medical Trolley for endoscope inspection and surgery. The resolution 1080P (1920 x 1080) can present delicate images, stronger noise reduction, sharpening, brightness, contrast and extinction functions and better meet the needs of doctors in the diagnosis of complex surgical treatment.

✨ Technical Features & Comparison

Models	E22A / E22B

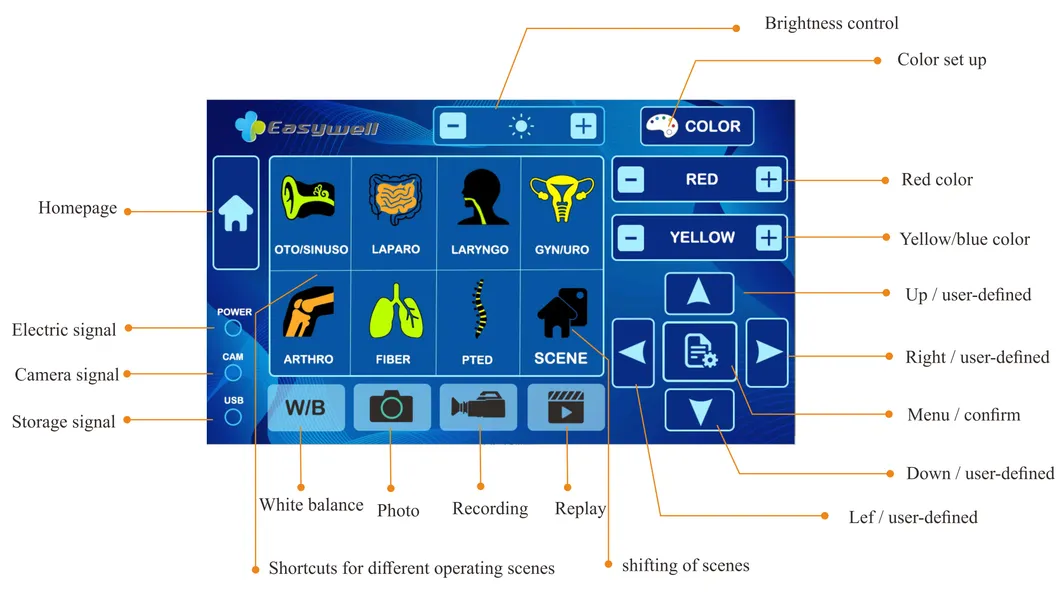

Image sensor	1/2'' COMS	Touch Screen	7 inch, E22B(display function)
Resolution	1920x1080p	Storage	USB disk or Hard disk
Color Temperature	3500k/6500k/7500k	C type coupler	F=25mm standard (F=18/35mm optional)
Replay	Video and Picture	Photograph	2 megapixel JPG
Recording	1920x1080p	Video output	HD-SDI, HDMI, USB, DVI, CVBS
LED Life	50,000 Hours	Color Temp	5000-7000K
Color Rendering	>90	Illumination	> 2,000,000 Lux
Net Weight	5.8kgs	Dimensions	W 38mm x H 12mm x L 32mm
