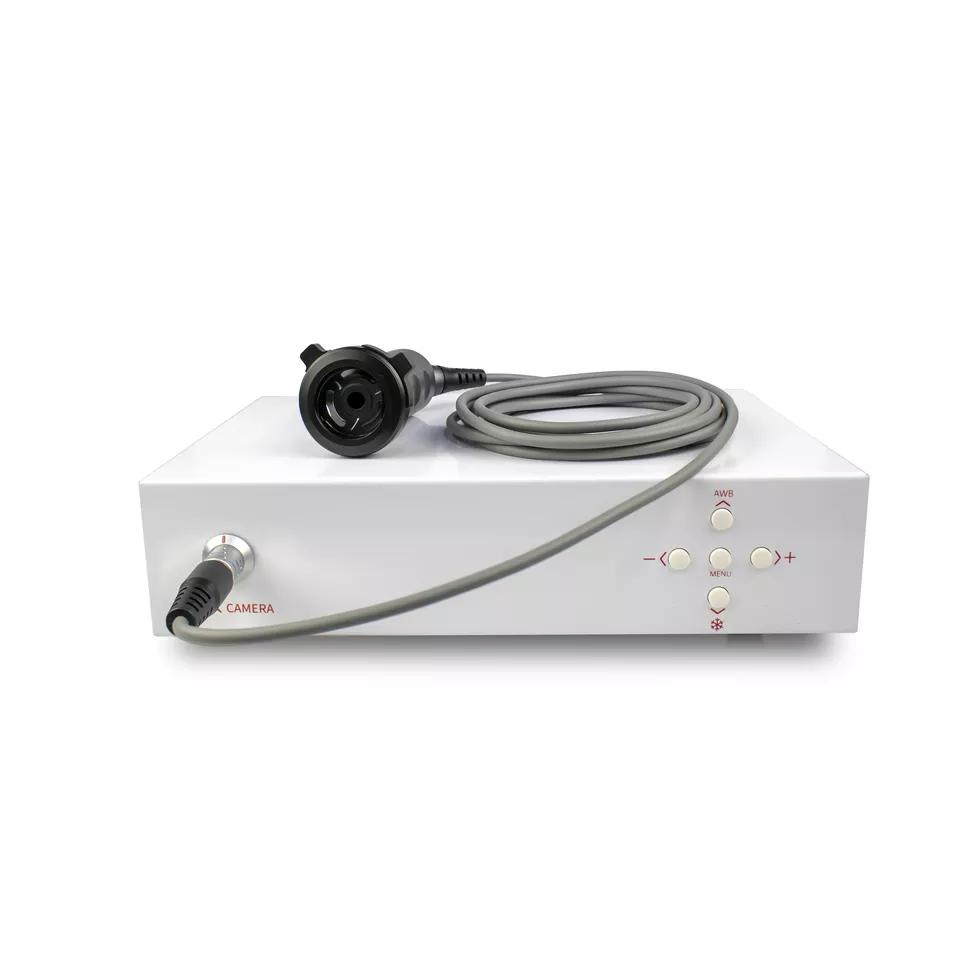

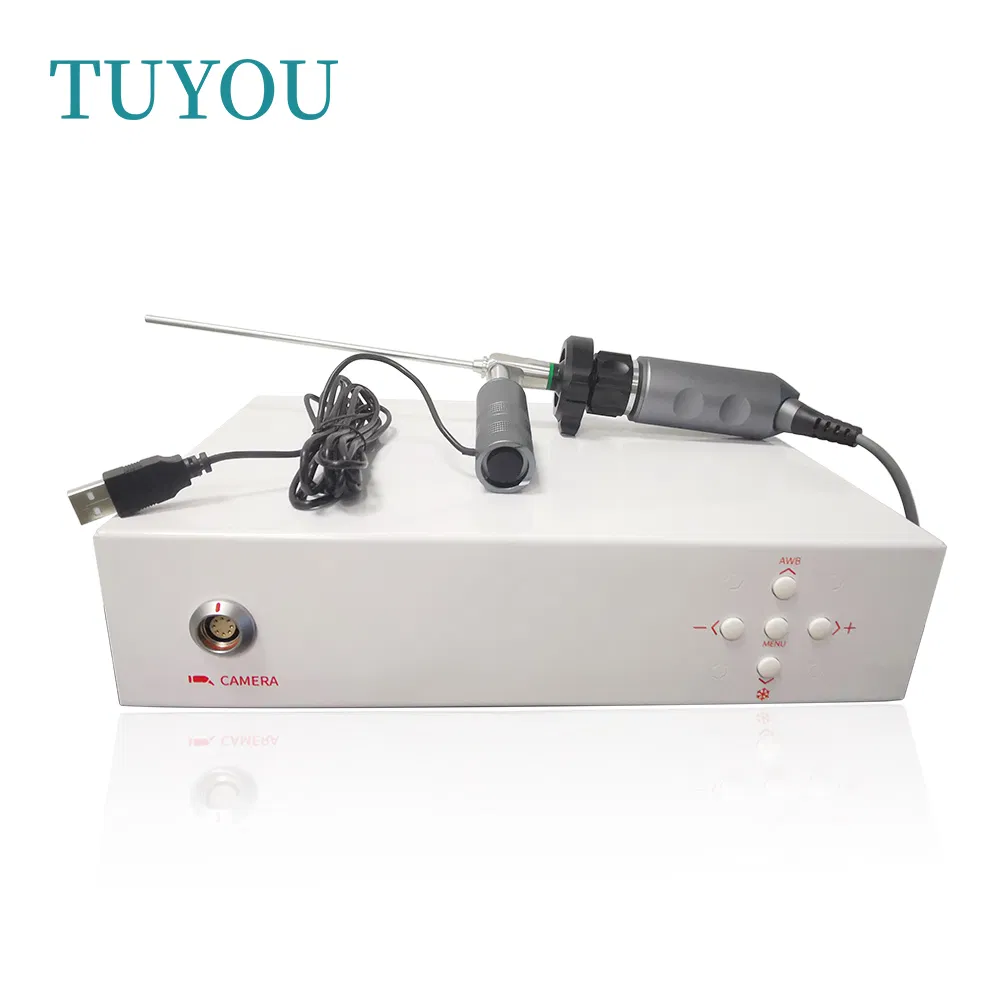

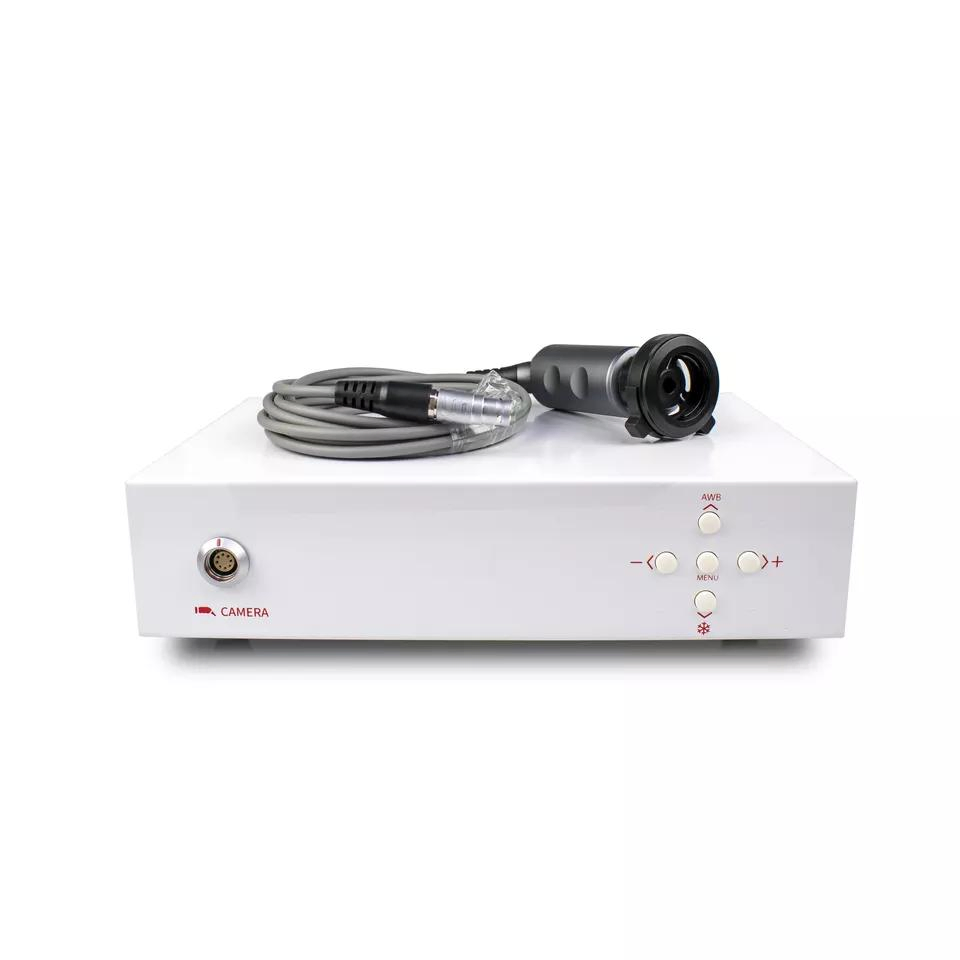

Cheap Medical Ent Vet Endoscope Camera Imaging System with Video Processor

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Digital Imaging System

📋 Basic Info.

Model NO.

TU-VC01A

Certification

CE, ISO13485, FCC

Resolution

720p 60fps

Output Interface

VGA+CVBS

Power

AC110V~240V

Image Sensor

1/2.8" CMOS

🔍 Product Description

Product Composition:

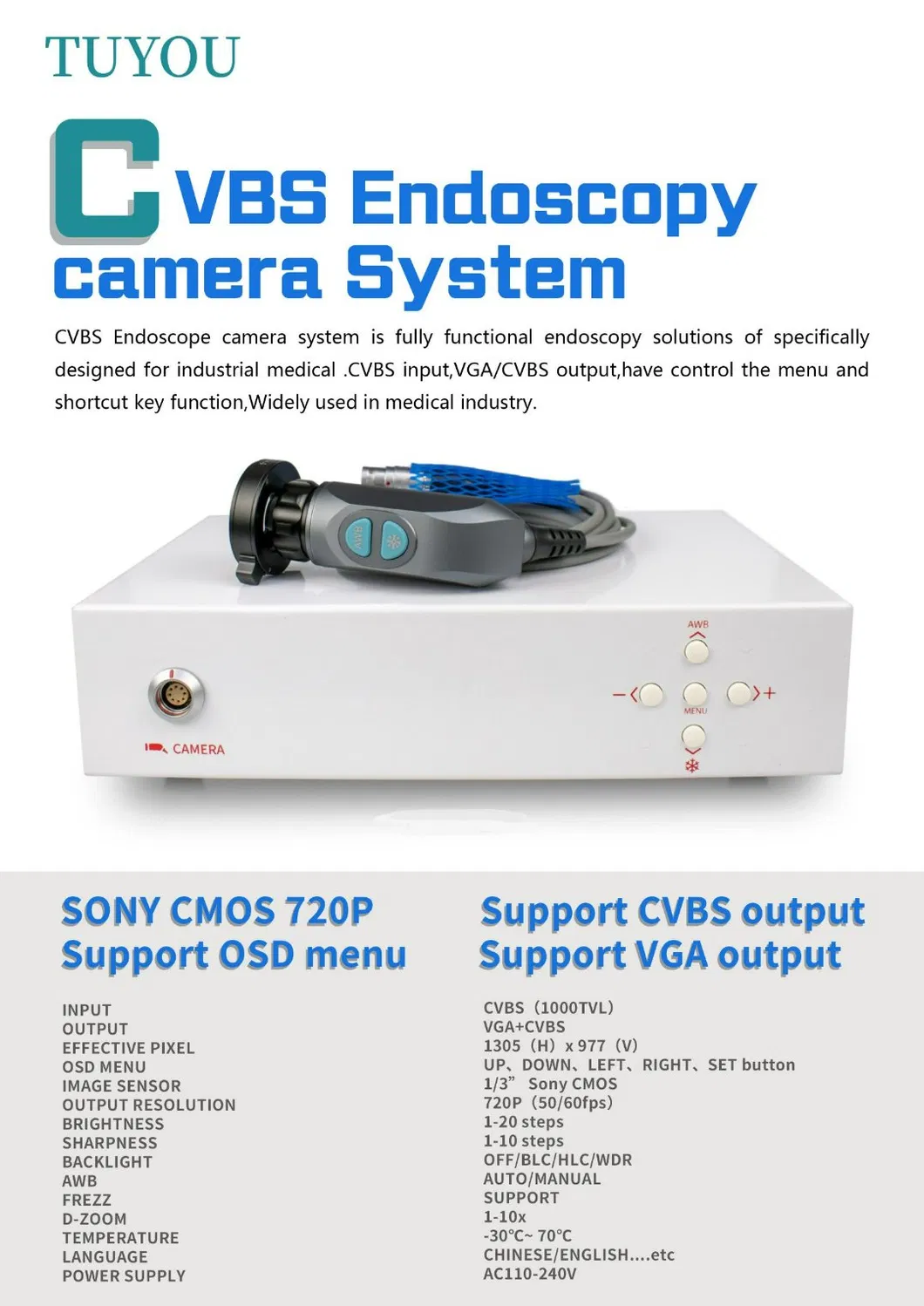

The CVBS endoscope camera system is a fully functional endoscopy solution specifically designed for industrial and medical applications. It features CVBS input, VGA/CVBA output, a control menu, and shortcut key functions. It is widely used across the medical industry.

Key Features:

1/2.8" SONY CMOS with 720p resolution
1-20 steps brightness adjustment
1-10 steps sharpness adjustment
1-10x Digital Zoom
FREEZE, AWB, and Multi-language support

📊 Product Parameters

Endoscope Video Processor Parameters
Input	CVBS (1000TVL)

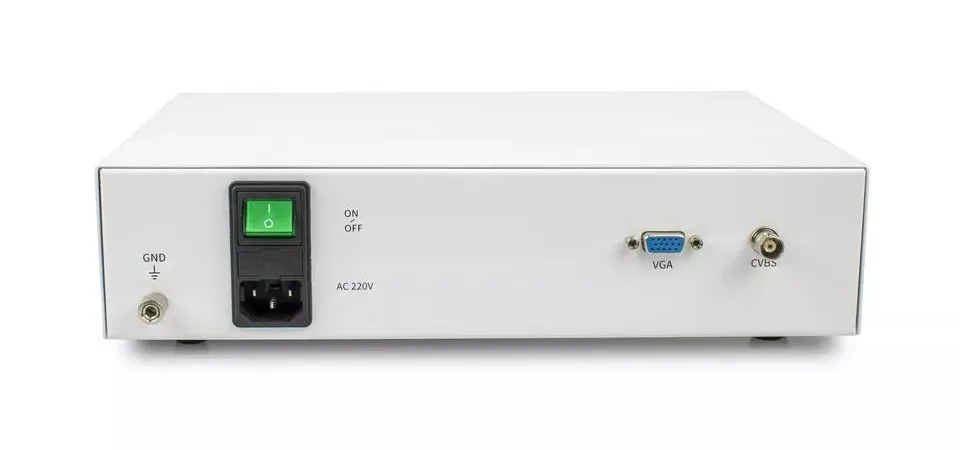

Output	VGA+CVBS
Resolution	720P 60fps
OSD MENU	UP, DOWN, LEFT, RIGHT, MENU buttons
Brightness	1-20 steps
Sharpness	1-10 steps
Backlight	OFF/BLC/HLC/WDR
AWB	AUTO/MANUAL
D-Zoom	1-10x
Endoscope Modes	Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Laparoscope/E.N.T
Processor Size	30020085mm

⌨️ Control & Functions

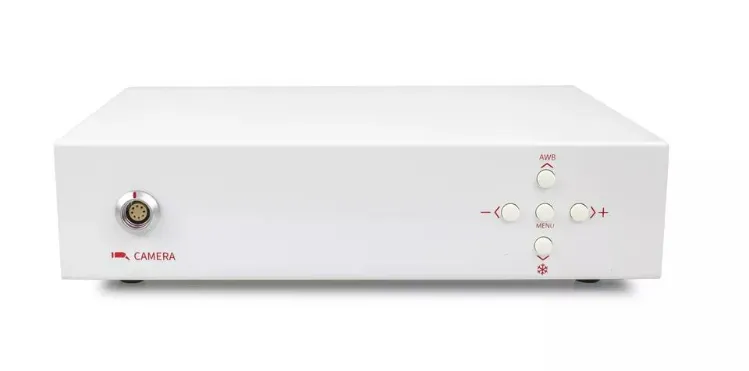

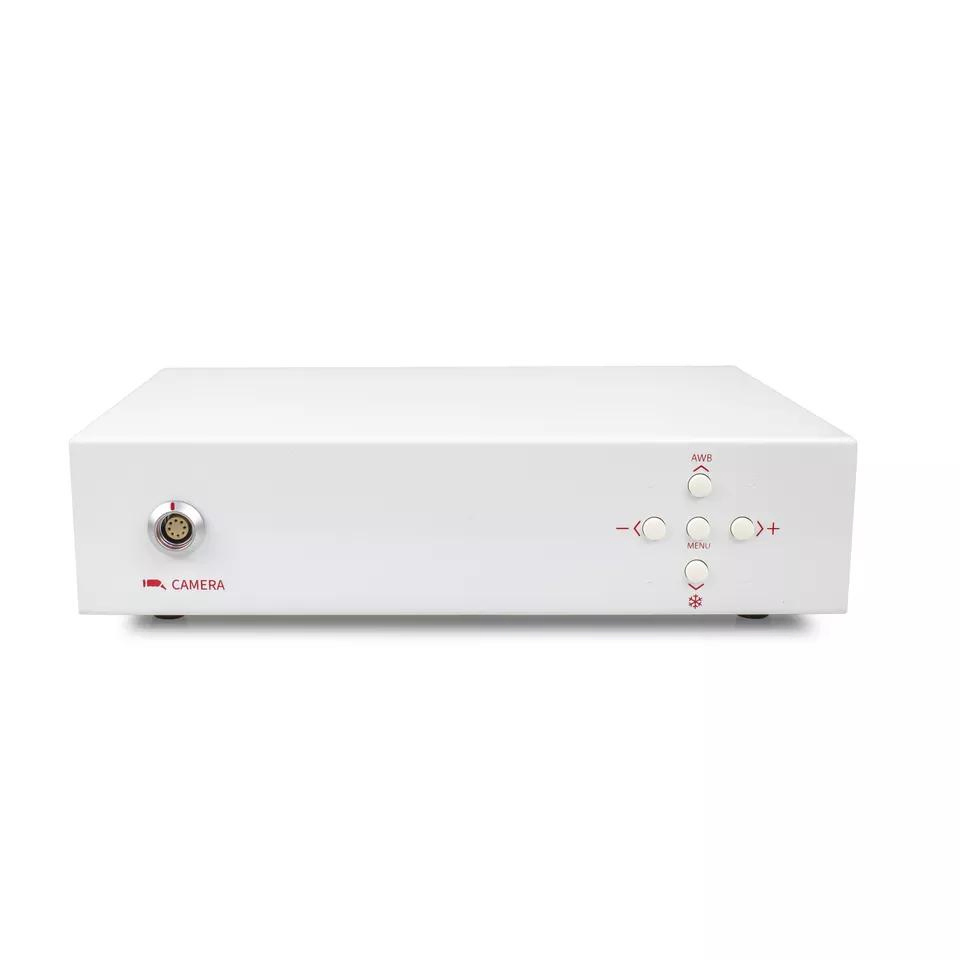

Image Processor Box Controls:

1. SET/MENU: Enter and confirm functions. Press MENU to access the camera menu and confirm parameter changes.

2. Navigation: Left, right, up, and down buttons for menu navigation.

3. Hot Keys: UP for AWB, DOWN for Freeze, LEFT for zoom in, RIGHT for zoom out.

Shortcut Functions:

AWB: Point the lens at white paper and press the button to adjust.
FREEZE: Instantly freeze the live image.

📸 Detailed Photos

📦 Packing List & Support

Standard Package Includes:

Image Processor Box
Power Cord
VGA Cord

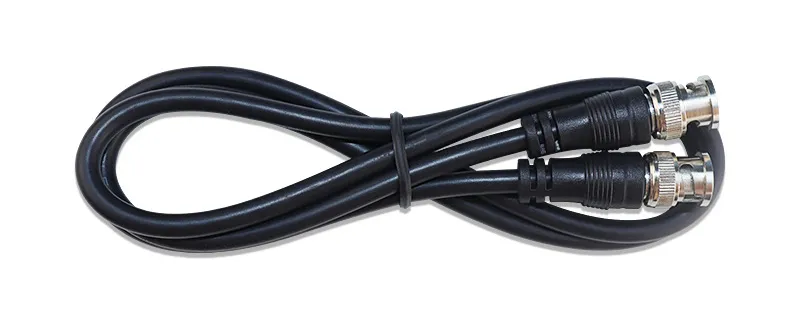

CVBS Cord

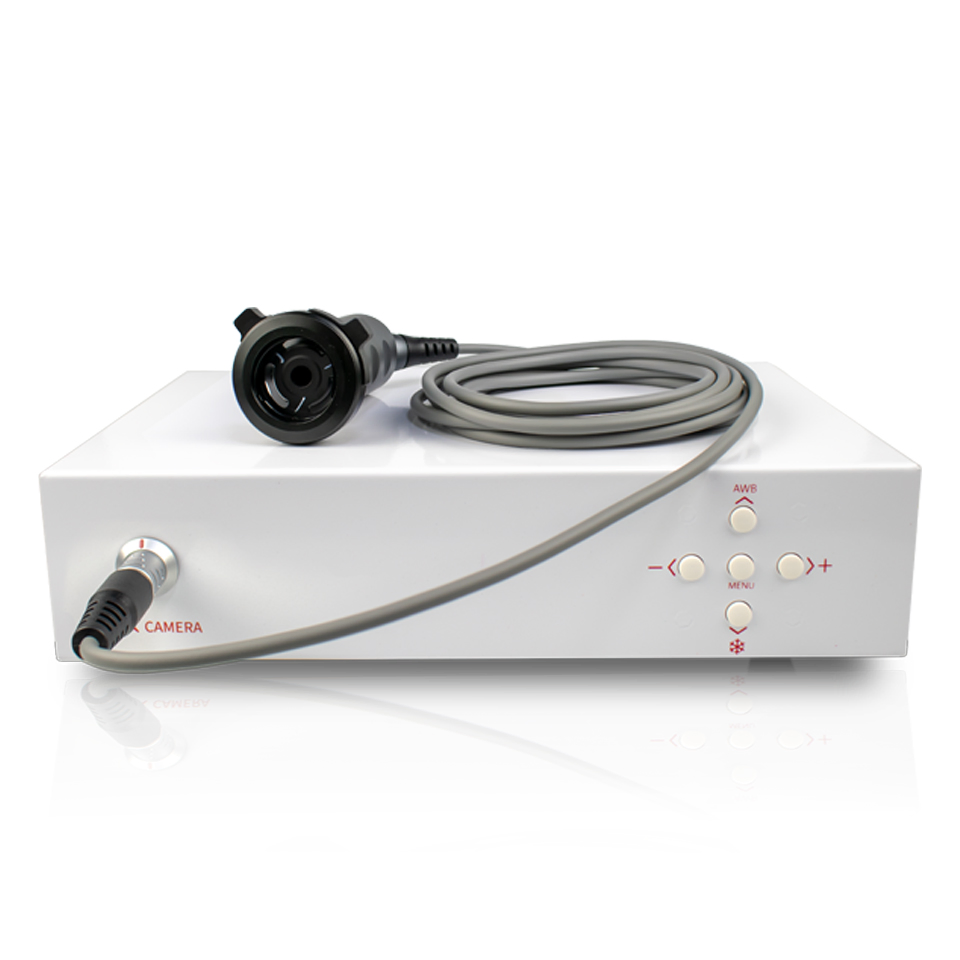

Note: The camera handle is an optional part.

❓ FAQ

Are you a factory or a trading company?

We are a Chinese medical imaging instruments manufacturer. All products are manufactured by our skilled workforce.

Where is your facility located?

Our manufacturing facility is located in Shenzhen City, Guangdong Province, China. We welcome visitors to our factory.

Do you accept OEM orders?

Yes, while we offer our own brand, we also provide comprehensive OEM services to meet your specific requirements.

What is the estimated delivery time?

Orders are typically delivered within 7 working days upon payment. Samples are usually ready-made for immediate dispatch.

What is the warranty period?

We provide a two-year free warranty. If any fault occurs within this period, we will repair the product or replace the faulty assembly free of charge.

What are the available payment terms?

We accept various payment methods including T/T Bank Transfer, Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, and Cash.
