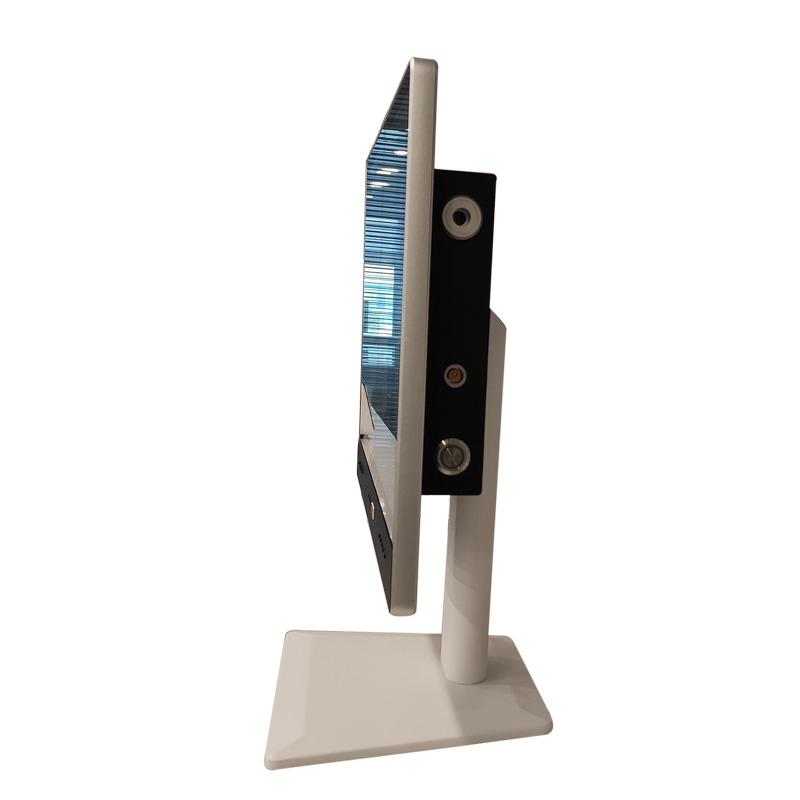

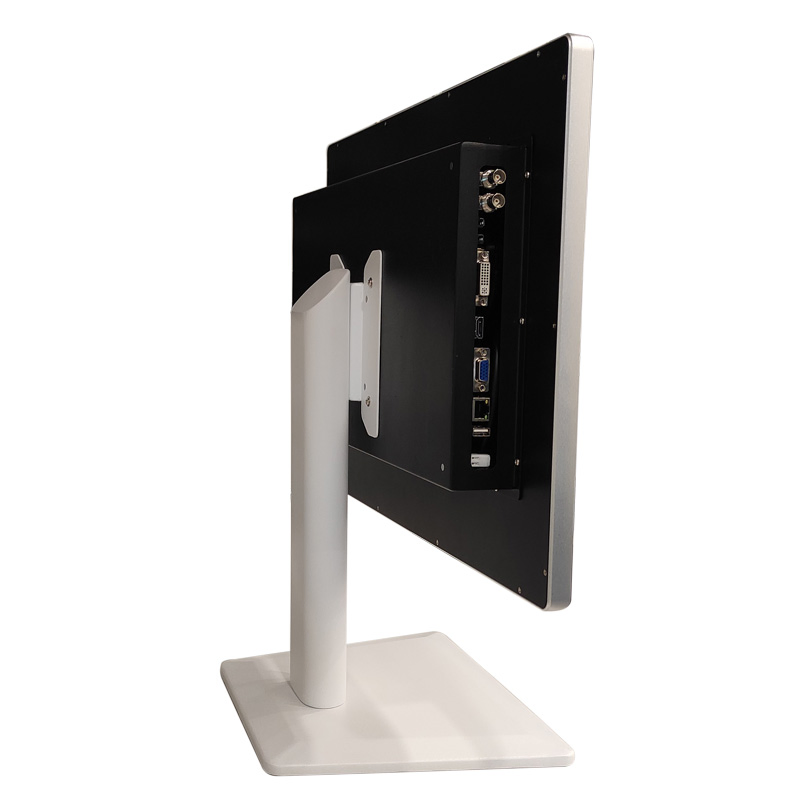

24inch Endoscope Camera System with Medical Grade Monitor

1 / 5

24inch Endoscope Camera System with Medical Grade Monitor

Customization:	Available
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns
Certification:	ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.Celestia

Instrument ClassificationClass I

Warranty2 Years

Selling UnitsSingle Item

Power SourceElectric

Quality CertificationISO

After-Sale ServiceFree Spare Parts

TrademarkOEM Available

Product Description

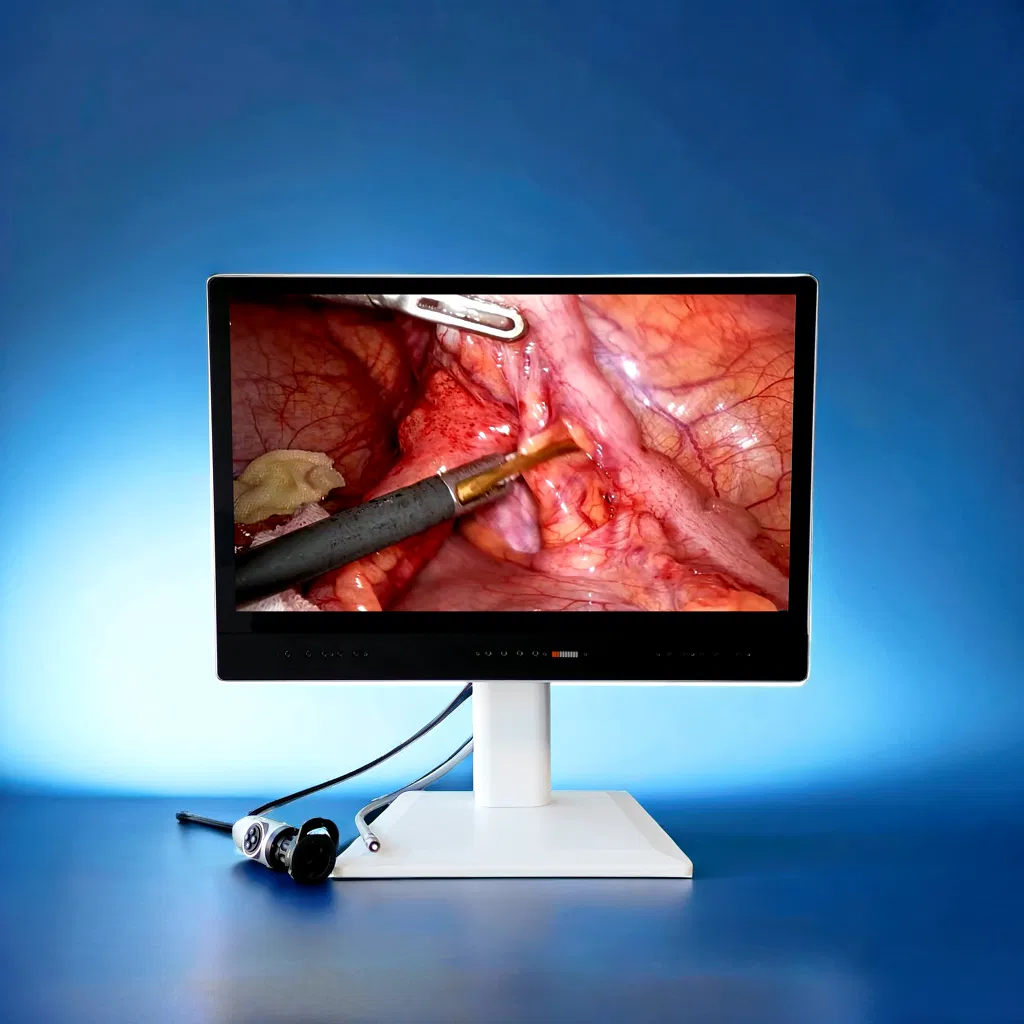

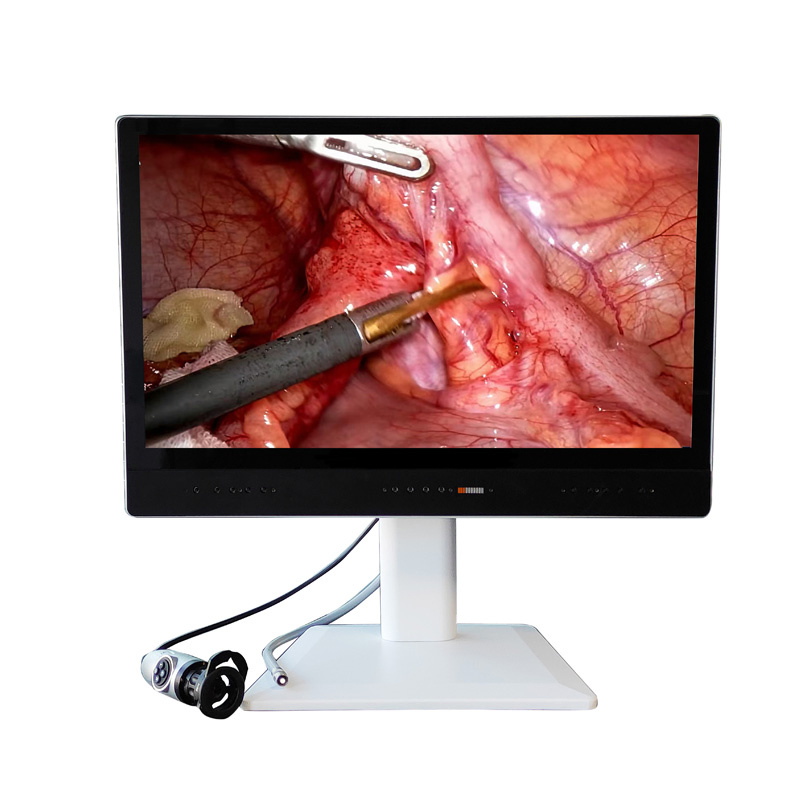

📺 Celestia 1920*1080P Full HD Portable Endoscope Camera

Revolutionary 2-in-1 Endoscopic Camera System with Integrated Monitor - Smart Switching for Maximum Flexibility

Experience the next generation of endoscopy with our Innovative 2-in-1 Endoscopic Camera System, uniquely designed to combine a complete imaging solution and a standalone medical-grade display in a single, intelligent unit.

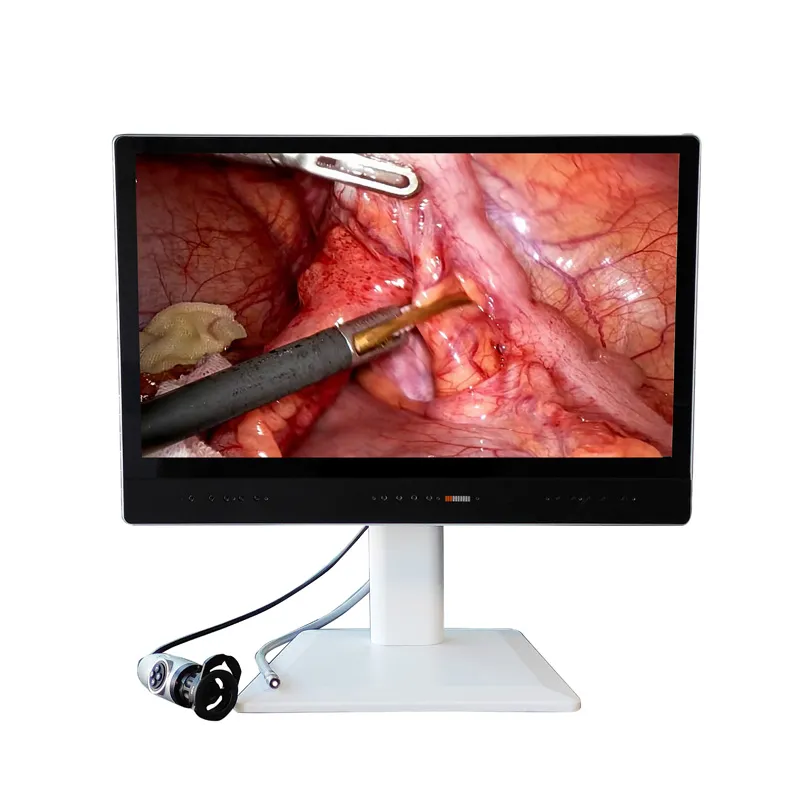

Endoscope Camera System with Medical Grade Monitor

Core Innovation - Dual Mode Switching

🔄

One-Click Smart Switch

Switch instantly between the internal endoscopy camera and an external imaging system. Use it as a complete endoscopic unit or simply as a high-performance display.

📦

All-in-One Design

Endoscopic Camera System
HD Video Recorder
High-Intensity LED Light Source

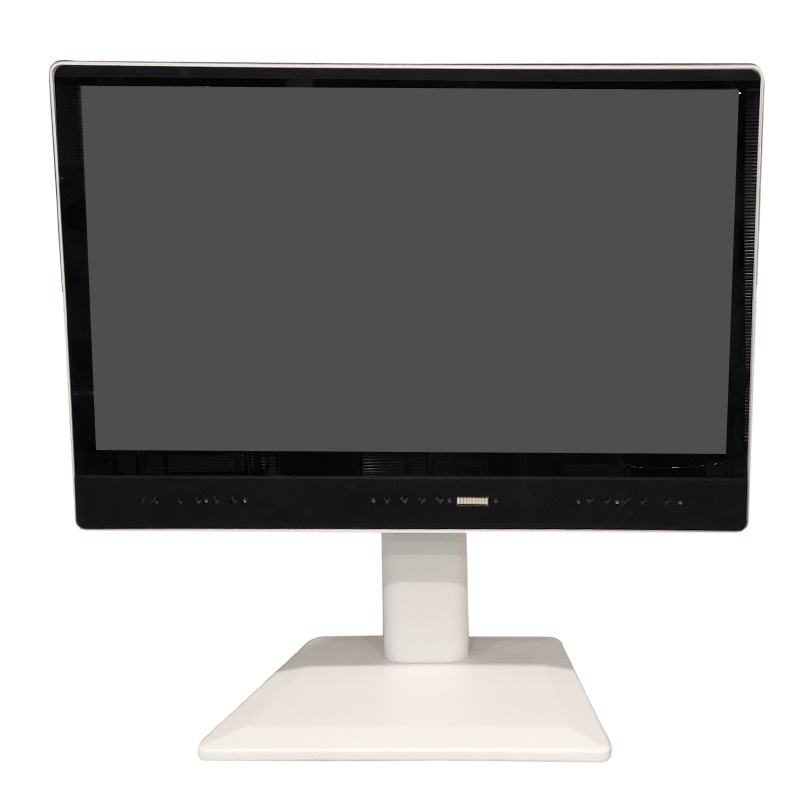

24-Inch Medical-Grade Monitor

Technical Specifications

Image Sensor	1/1.8" Sony CMOS
Resolution	1920×1080 @ 60FPS (2.1 Megapixels)
Scanning Mode	Progressive
Vertical Resolution	>1100 TVL
Low Light Sensitivity	0.3 LUX
Signal-to-Noise Ratio	>50dB
Camera Head Protection	IPX8 Waterproof
Screen Size Options	19 / 24 Inch
Light Source	Integrated LED
Functions	AWB, Freeze, Capture, Record, Zoom

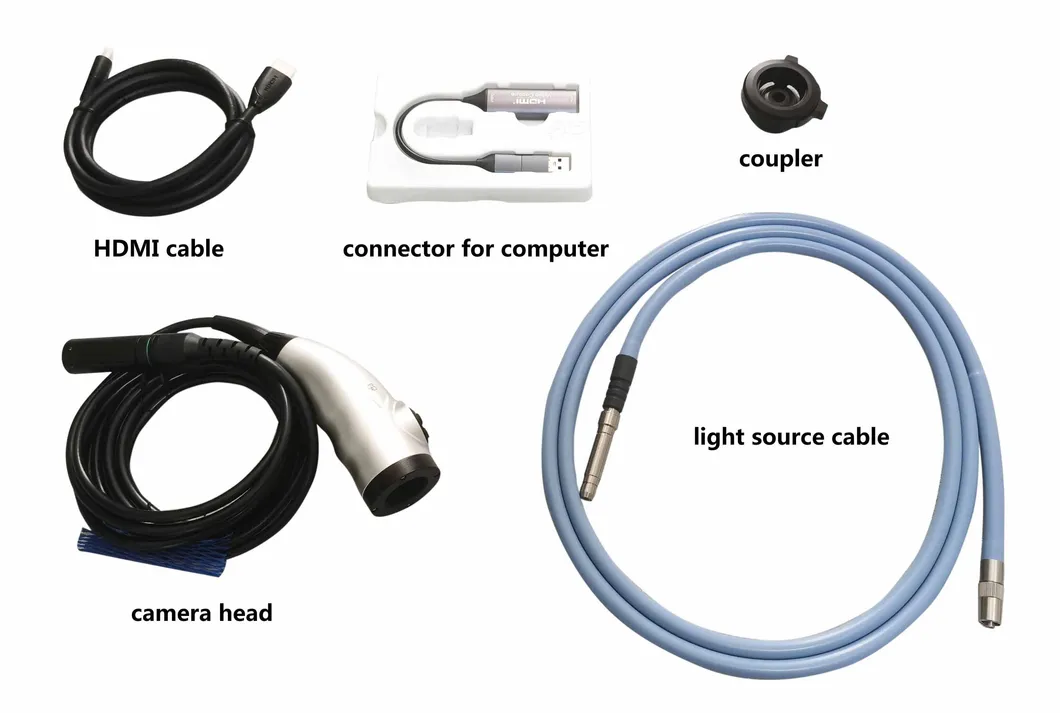

Standard Package

Main Camera Machine
Camera Head
Coupler F22
HDMI Cable
32G USB Storage
Light Source Cable
Capture Software for PC
Zoom Coupler (Optional)

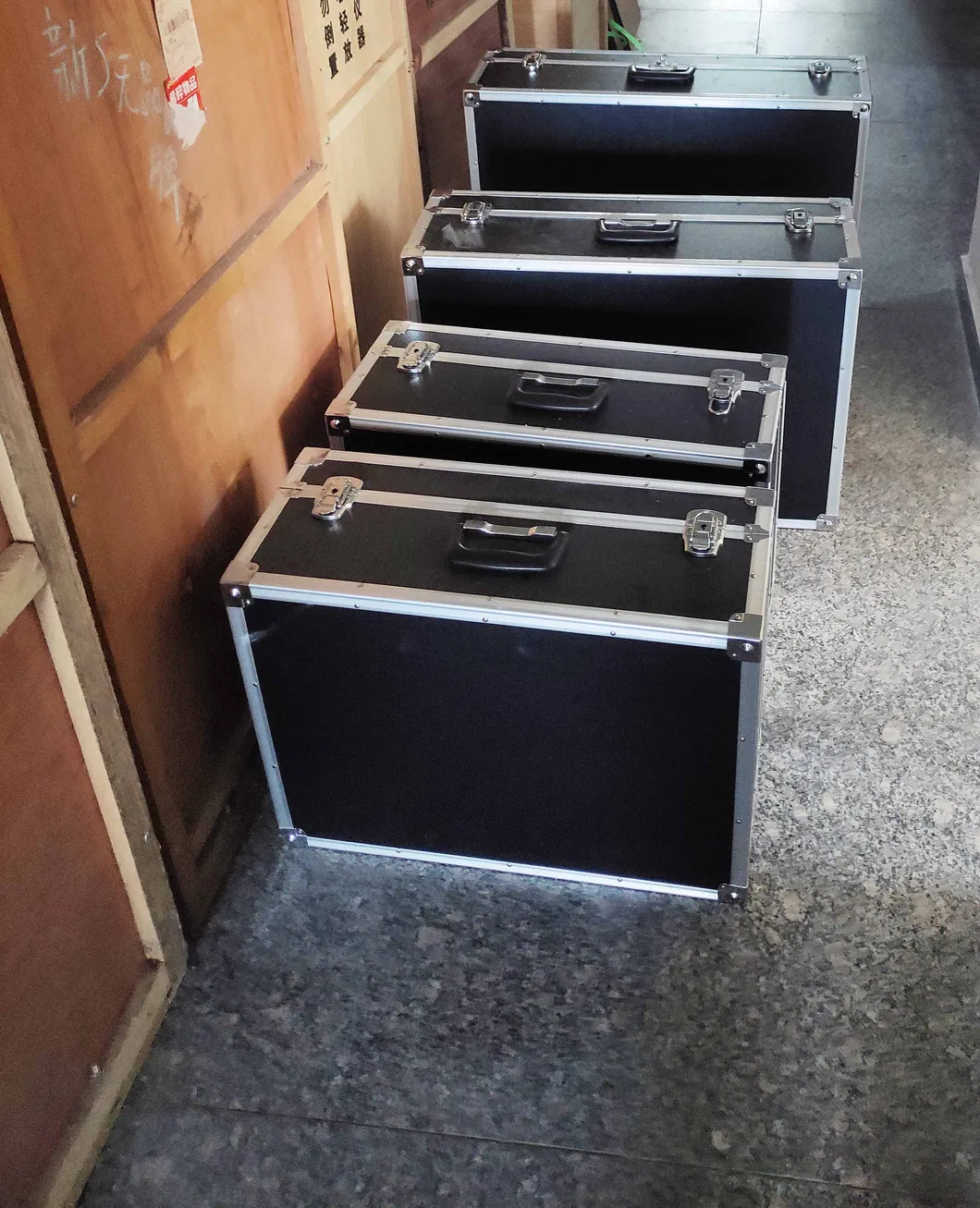

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

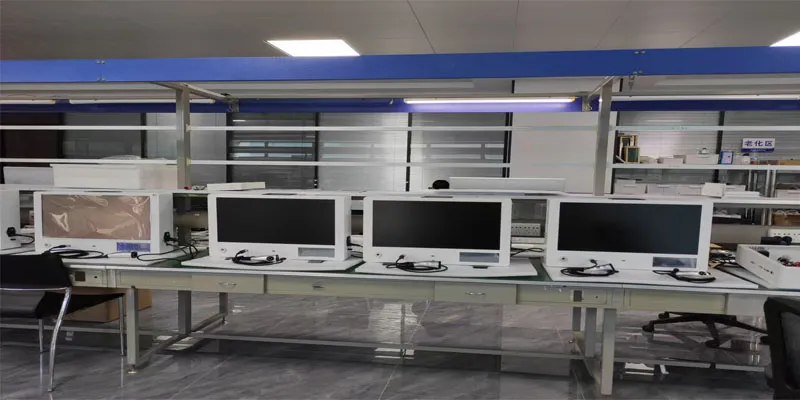

Professional Manufacturing & Support

As a leading manufacturer of medical devices, we provide specialized R&D and production for endoscopy, camera, and ultrasound systems. We support customers globally through diverse distribution channels.

Frequently Asked Questions

What imaging quality can I expect from this system?

The system provides Full HD resolution (1920x1080P) at 60FPS using a high-performance 1/1.8" Sony CMOS sensor, ensuring sharp, real-time medical imaging.

How does the "2-in-1" smart switching work?

The device features a one-click switch that allows you to toggle between the built-in camera system and an external video input, effectively functioning as both a complete workstation and a standalone medical monitor.

Is the camera head waterproof for sterilization?

Yes, the camera head is rated IPX8 waterproof, making it suitable for standard medical disinfection and cleaning procedures.

Can I record procedure videos directly?

Yes, the system has a built-in HD video recorder that allows you to capture and save procedure videos and images directly to a USB drive.

What medical departments can use this system?

This versatile system is optimized for surgery and diagnosis in ENT, Urology, Gynecology, Hysteroscopy, Laparoscopy, Arthroscopy, and Veterinary applications.

Does the system support OEM branding?

Yes, we support OEM services, allowing you to place your logo on the system interface or the machine's physical appearance.
