Product Description

Basic Specifications

Model NO.ON-7232P

Driving TypeHydraulic

CertificationCE, ISO

DesignTwo Post

ConditionNew

Specification3855mm*1000mm*600mm

OriginChina

HS Code842542

Packaging & Delivery

Package Size:386.00cm * 100.00cm * 59.00cm

Gross Weight:1162.000kg

Technical Data

Model	Lifting Capacity	Lifting Time	Lifting Height	Car board Length	Overall Width	Motor	Car board Width	Gross Weight
ON-7227P	2,700kgs (5,952LBS)	≤55S	2100mm (82 43/64")	4166mm (164 1/64")	2566mm (101 1/64")	2.2KW	2100mm (82 43/64")	1116kg (2460LBS)
ON-7232P	3,500kgs (7,716LBS)	≤55S	2100mm (82 43/64")	4166mm (164 1/64")	2766mm (108 57/64")	2.2KW	3200mm (90 35/64")	1162kg (2561LBS)

Product Introduction

3,500Kg (7,716LBS.) lifting capacity.

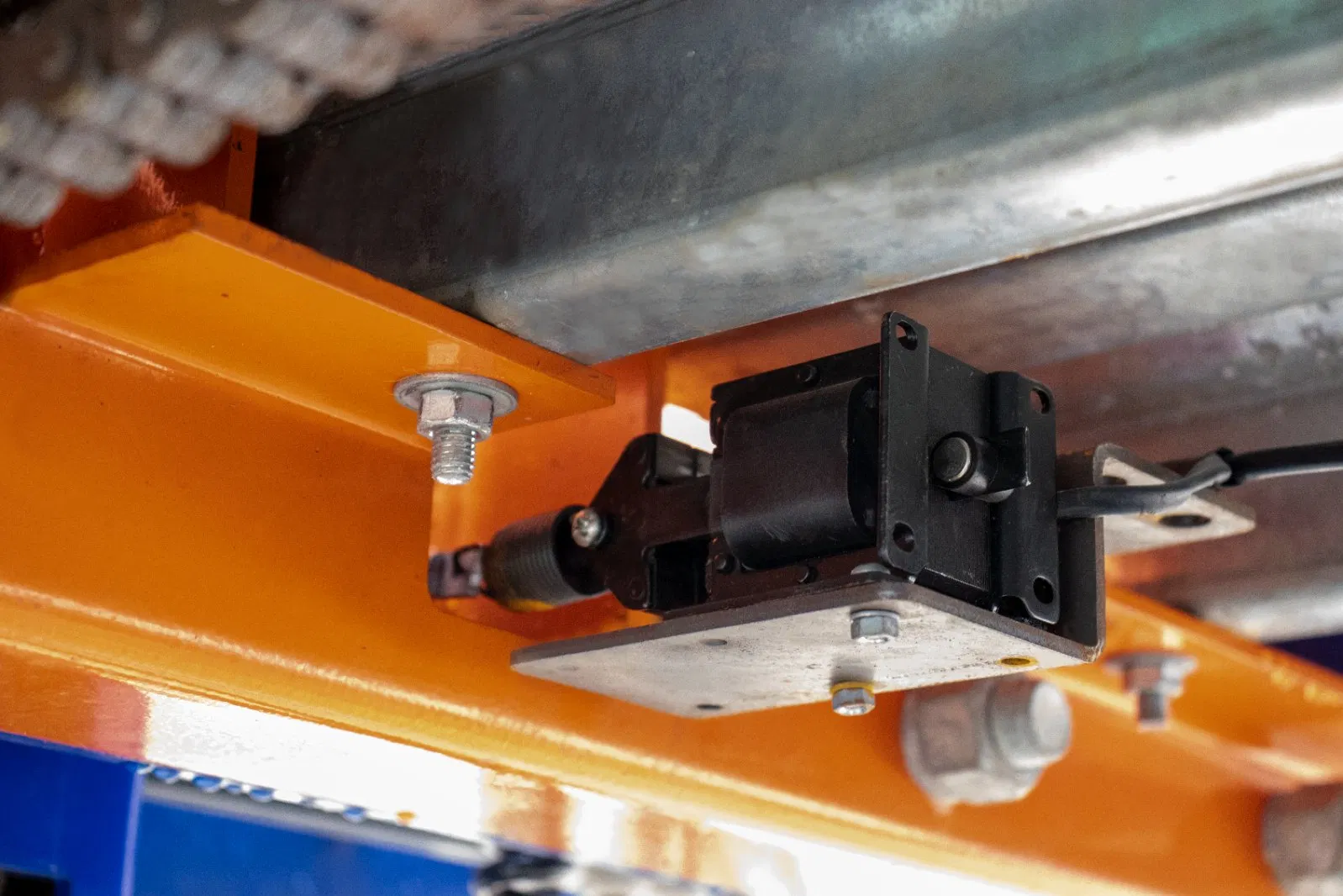

Reliable mechanical self-lock safety locking system.
Max height limit switch to ensure the cylinders work within the stroke.
Skid proof diamond and low-profile platforms.
Dual safety device: Automatic locking even if primary locks are out of operation.

Main Manufacturing Features

Structural parts welded by robot for consistency, high strength, and aesthetic seams.
Parts treated with high-temperature curing powder coating for strong adhesion and durability.

Product Display & Factory

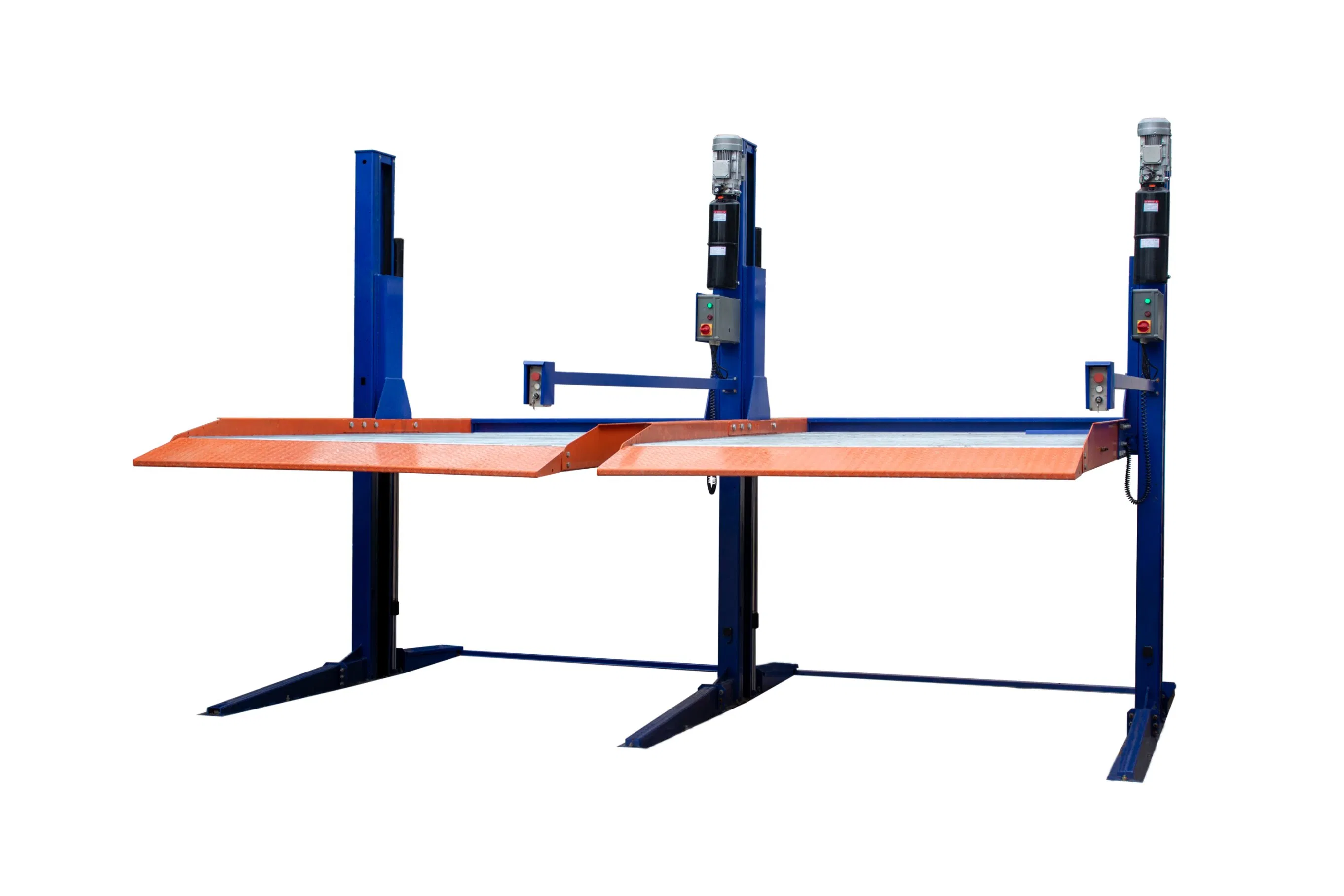

Car Parking System

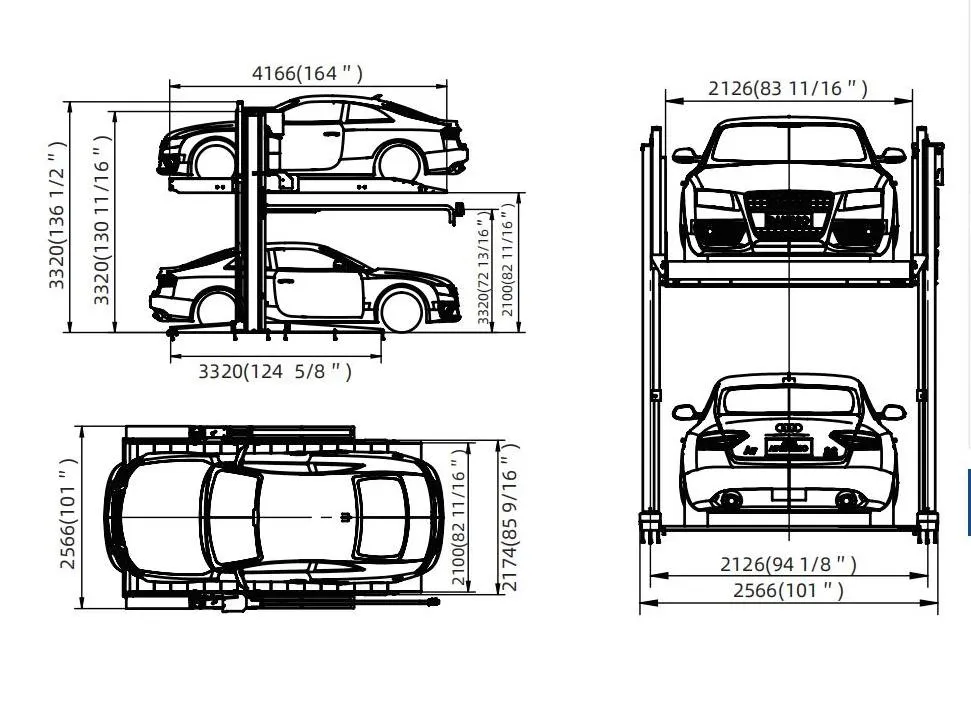

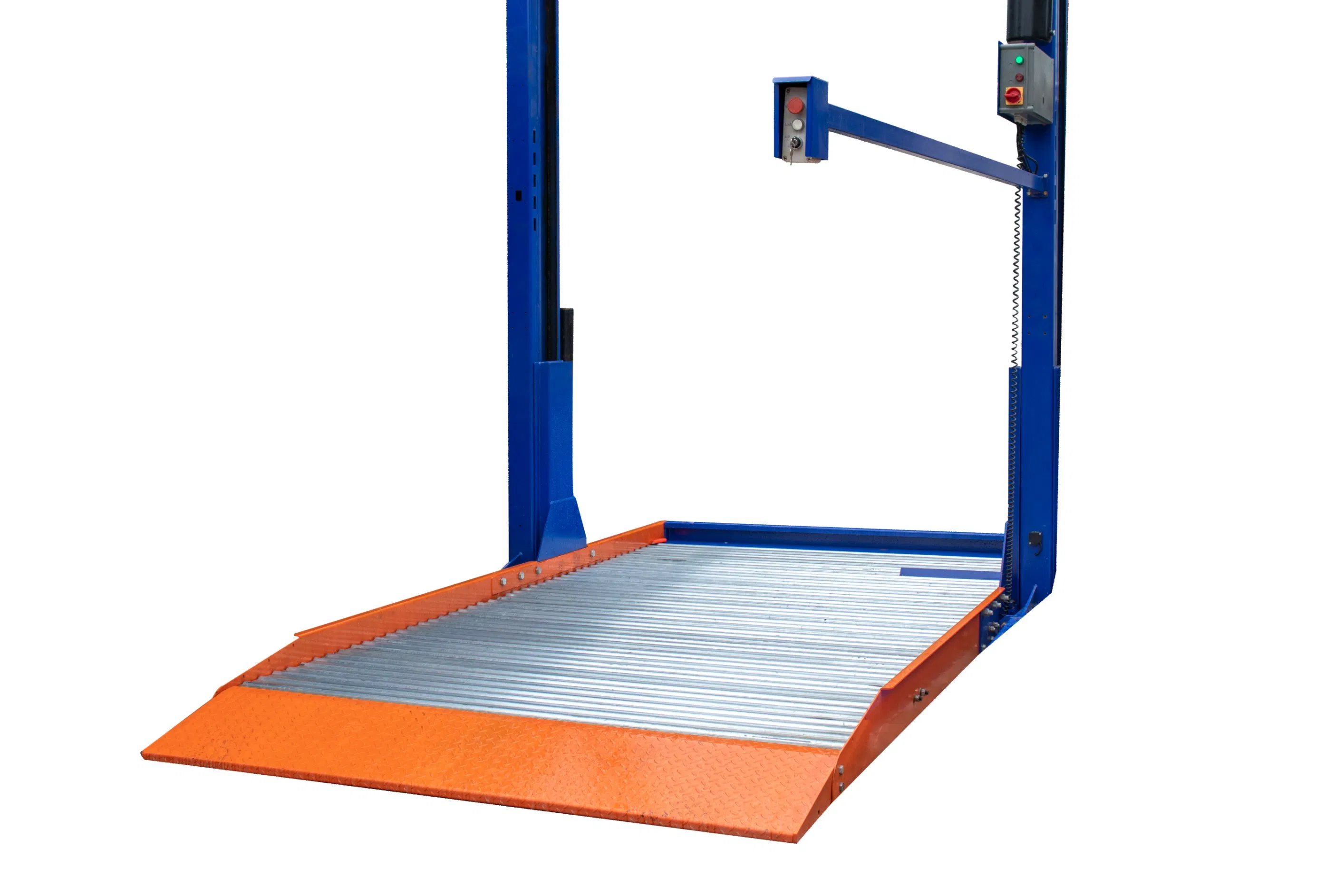

2 Post Lift

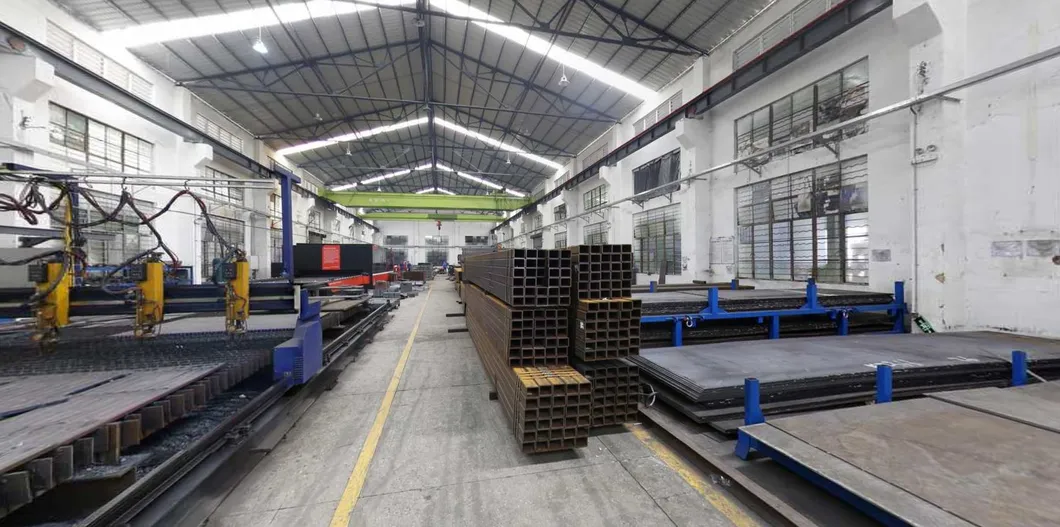

Factory Overview

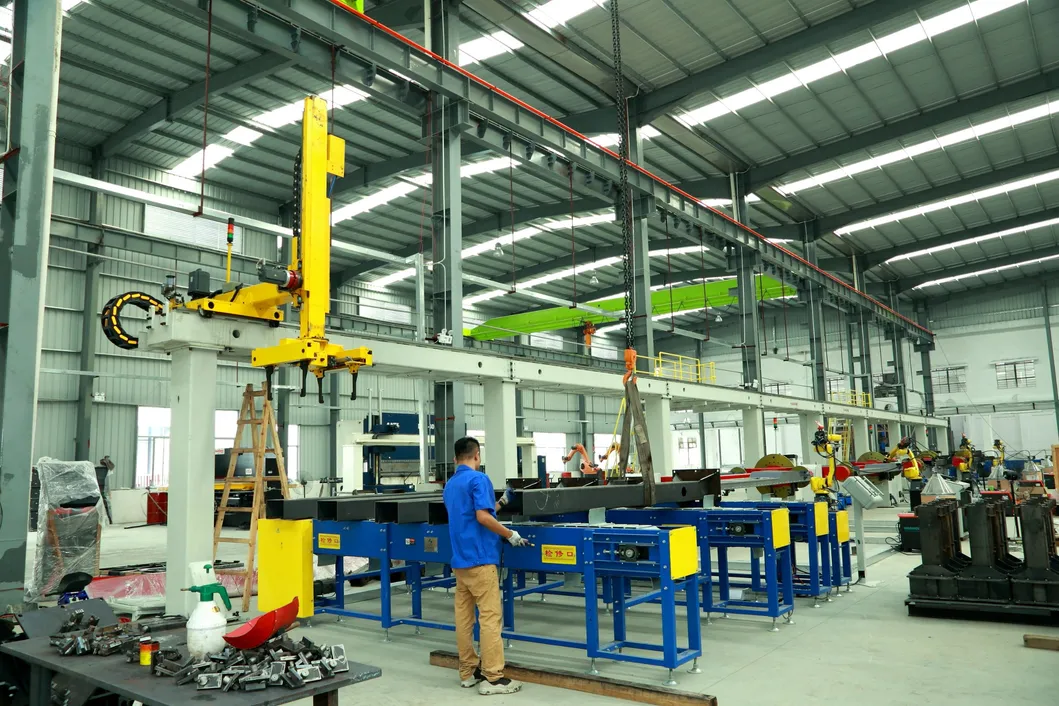

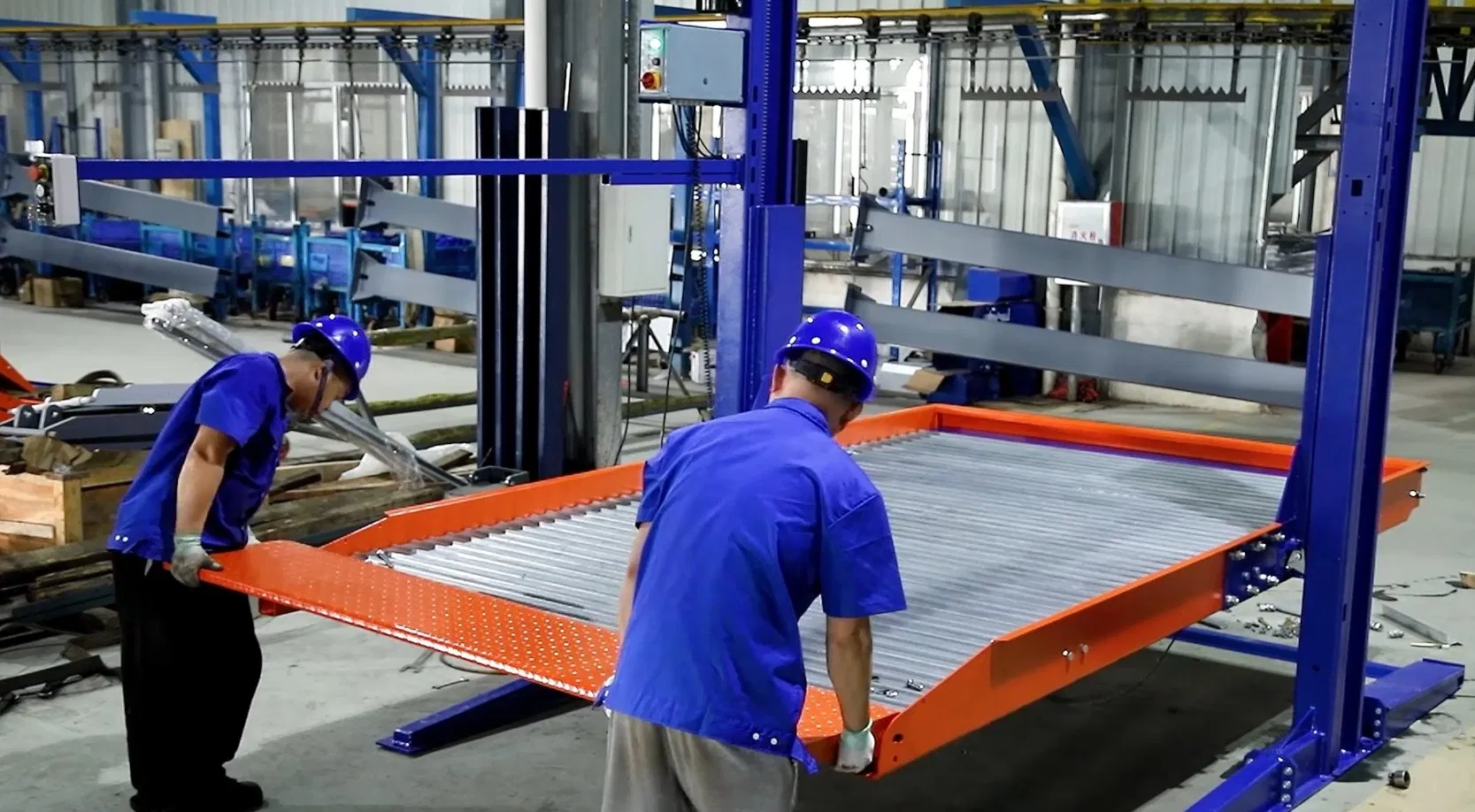

Production Line

Facility

Advanced Technology

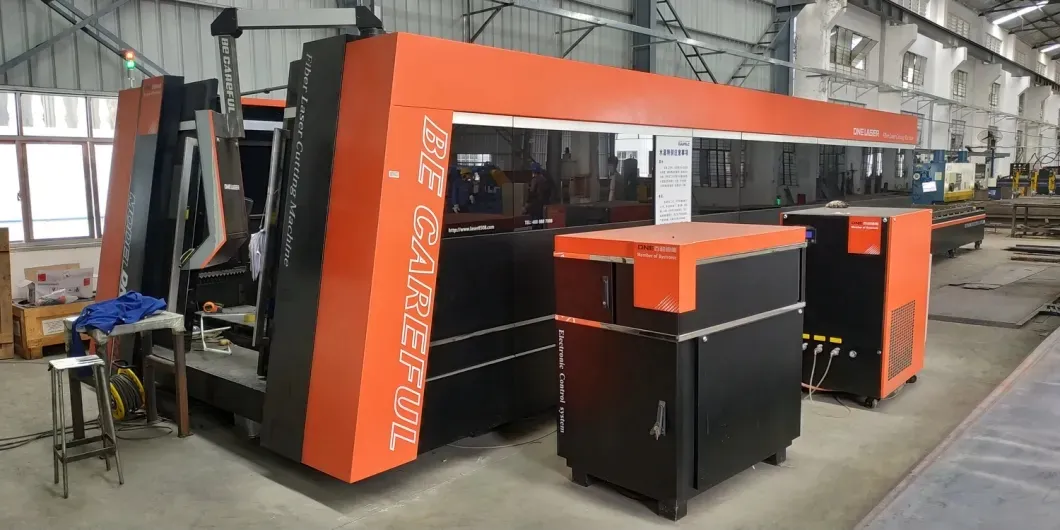

Seamless Laser Cutting: High precision cuts, no warping, lower waste.

Laser Cutting

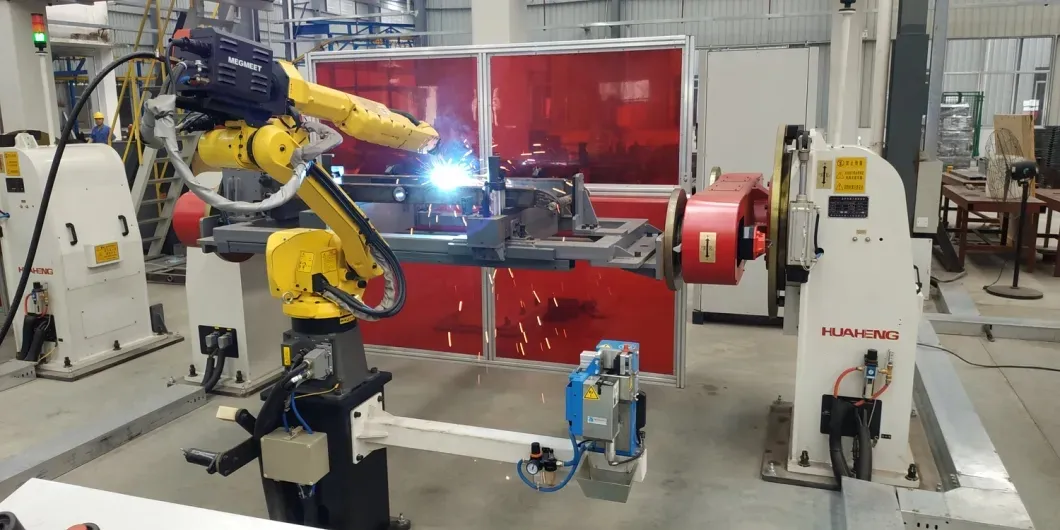

Robotic Welding Technology: Provides high strength and seamless appearance.

Robotic Welding

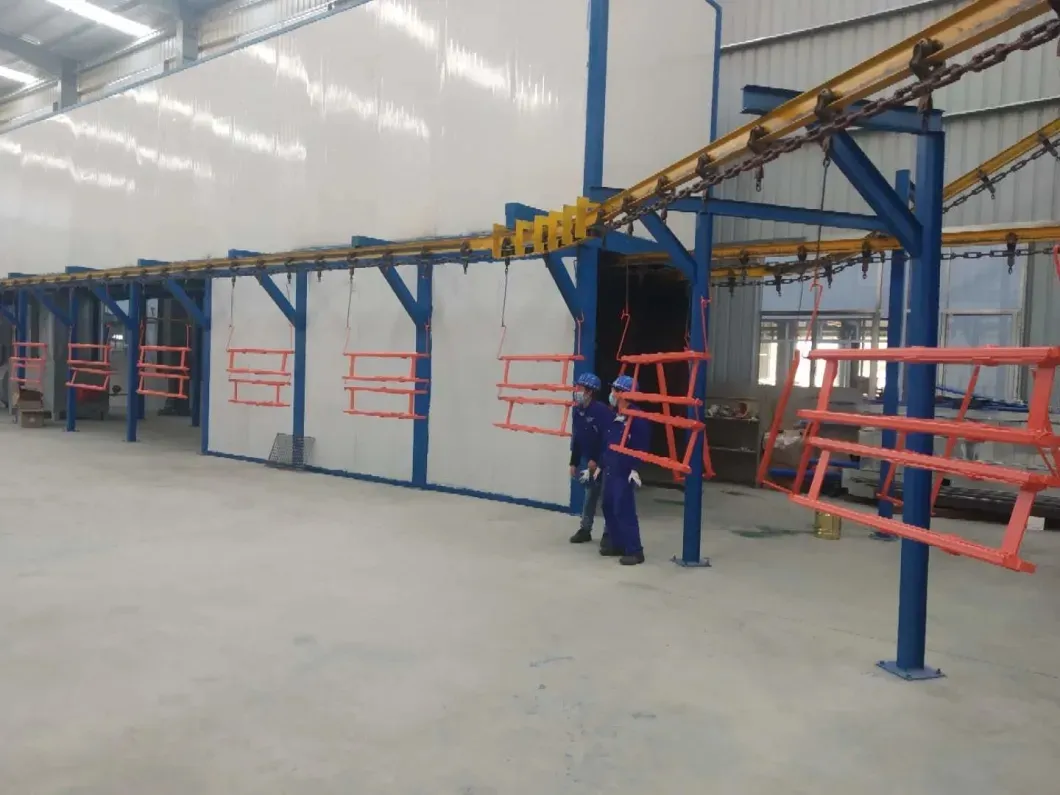

Powder Coating: Clear effects and aesthetically smooth finish with imported sprayers.

Powder Coating

Packing & Shipping Examples

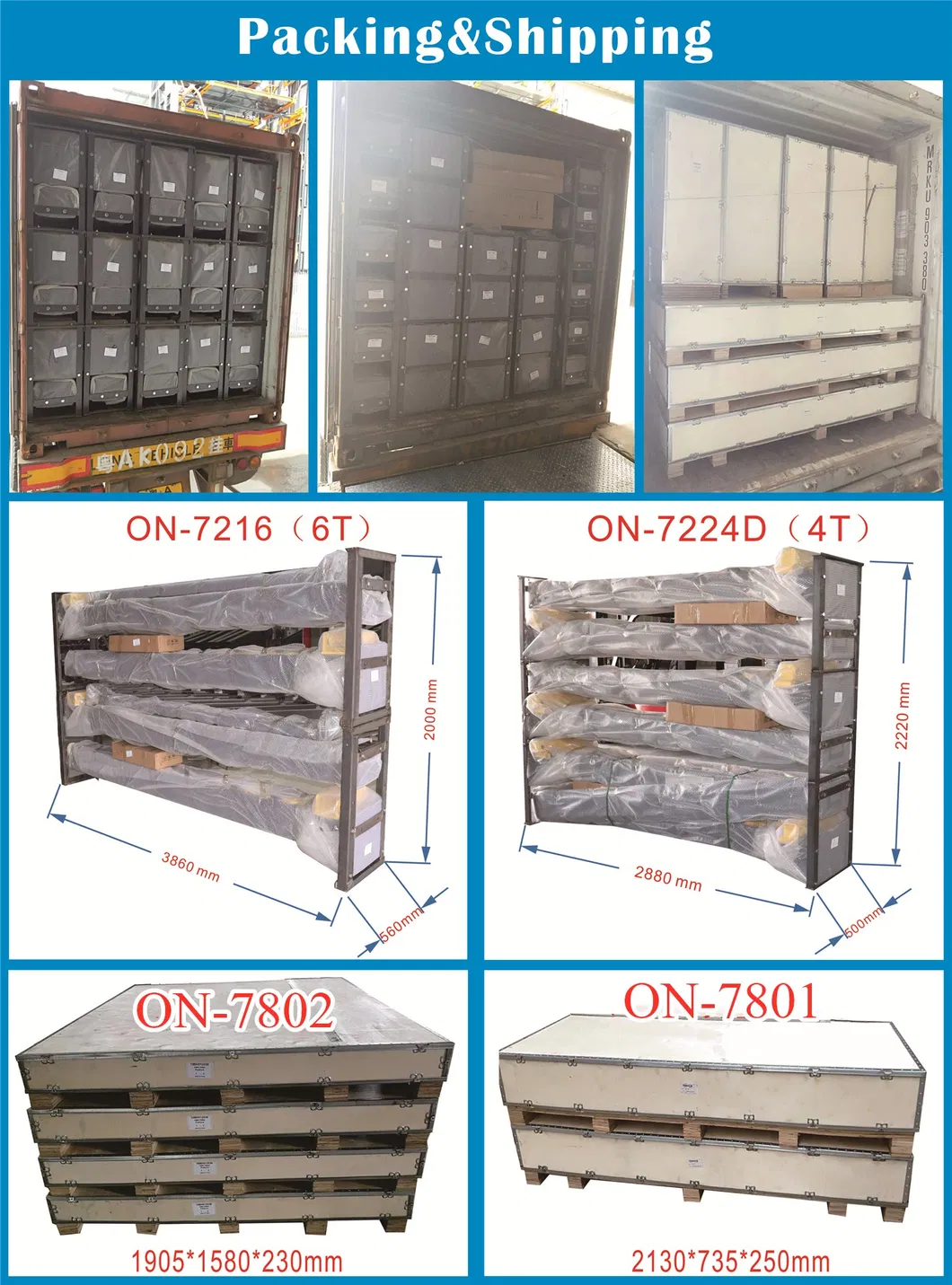

Lifts are steel frame packed with control consoles in ply-wood boxes to guarantee delivery in perfect condition.

Shipping Examples

Certifications & Standards

Certifications

Standards

Frequently Asked Questions

How safe are the 2-post car lifts?

The car lifts have been tested and CE certified for safety. They also meet the American and Australian Standards for overhead lifting equipment.

Are these car lifts designed for commercial use?

Yes, all of our lifts are engineered to be used in commercial applications and professional workshops without any problems.

Do you offer any custom designs or OEM services?

Sure, we provide OEM/ODM services. We can build molds and fixtures to produce according to your specific samples or technical drawings.

What is the typical delivery time?

Generally, it will take 10 to 20 days after receiving your advance payment. The specific time depends on the items and the quantity of your order.

Does the lift come with necessary mounting hardware?

Yes, all lifts are shipped with the necessary anchor bolts and hardware required for mounting the unit securely to your floor.

Do car lifts require regular maintenance?

A simple monthly checklist is recommended, including visual inspections of cables and hydraulic systems to ensure long-term performance and safety.
