Model NO.
ON-7227p
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
2700kg
Driving Type
Hydraulic
Certification
CE, ISO
Design
Two Post
Condition
New
HS Code
8425429000
2700kg load capacity, passing 120% dynamic and 150% static load tests.

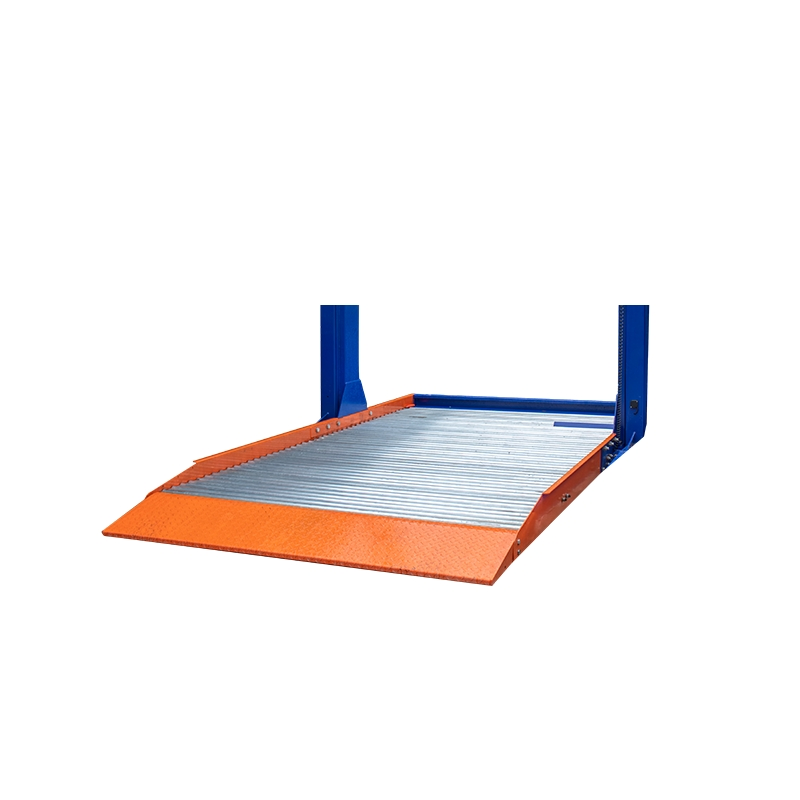

2100mm wide car board, suitable for most modern vehicles.

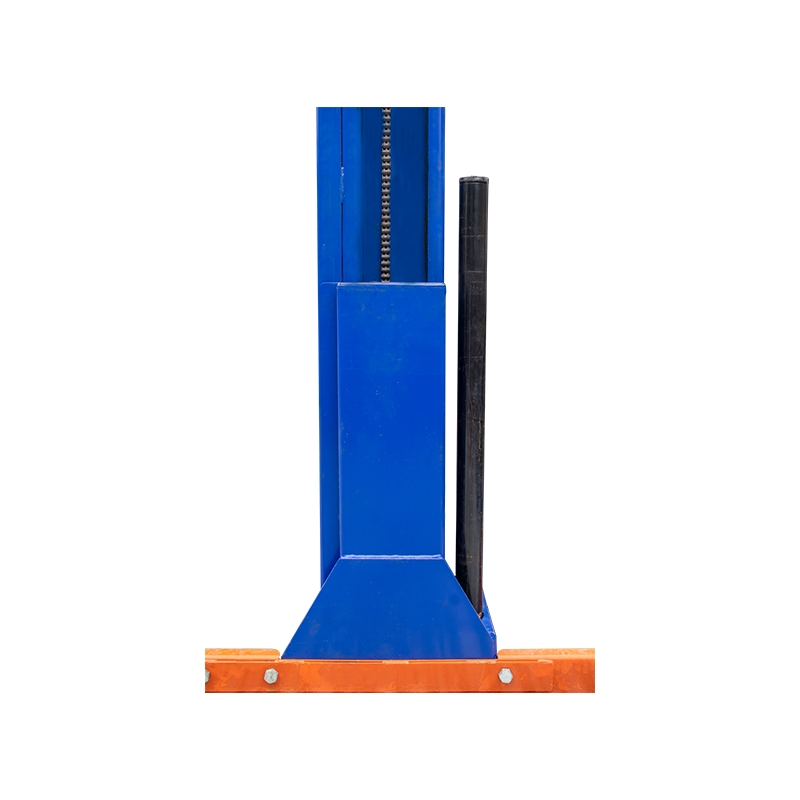

Stable column base (3165mm) for enhanced ground contact and reliability.

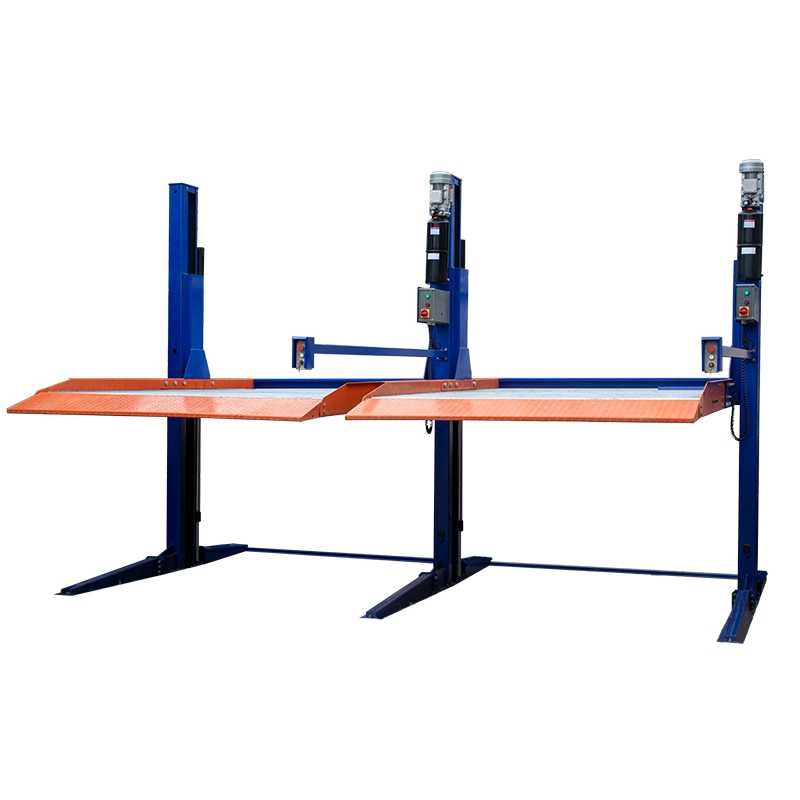

Series-connectable design to save budget and space.

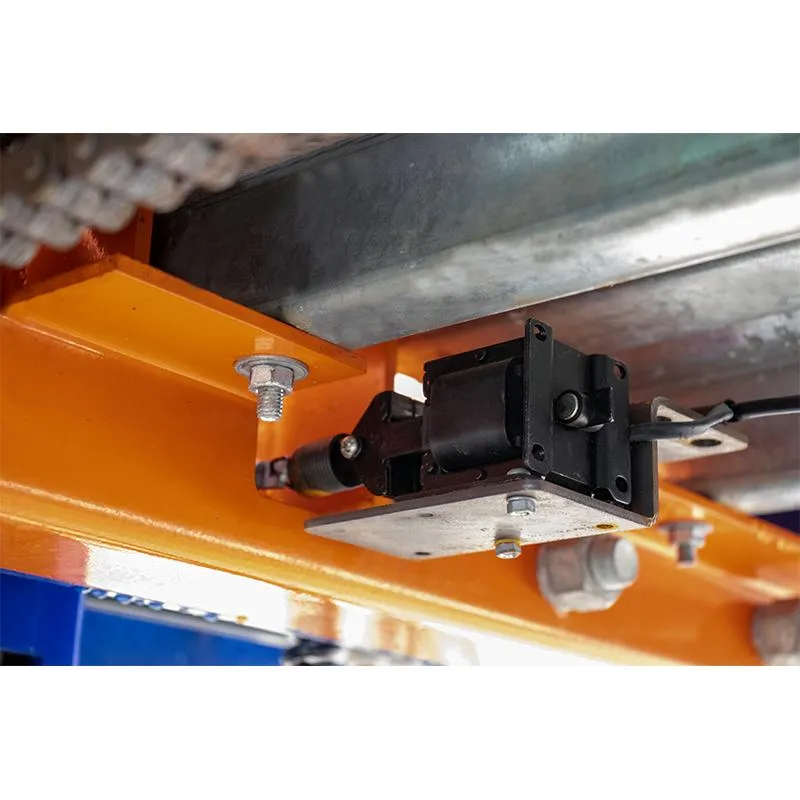

Mechanical anti-fall lock system for maximum safety.

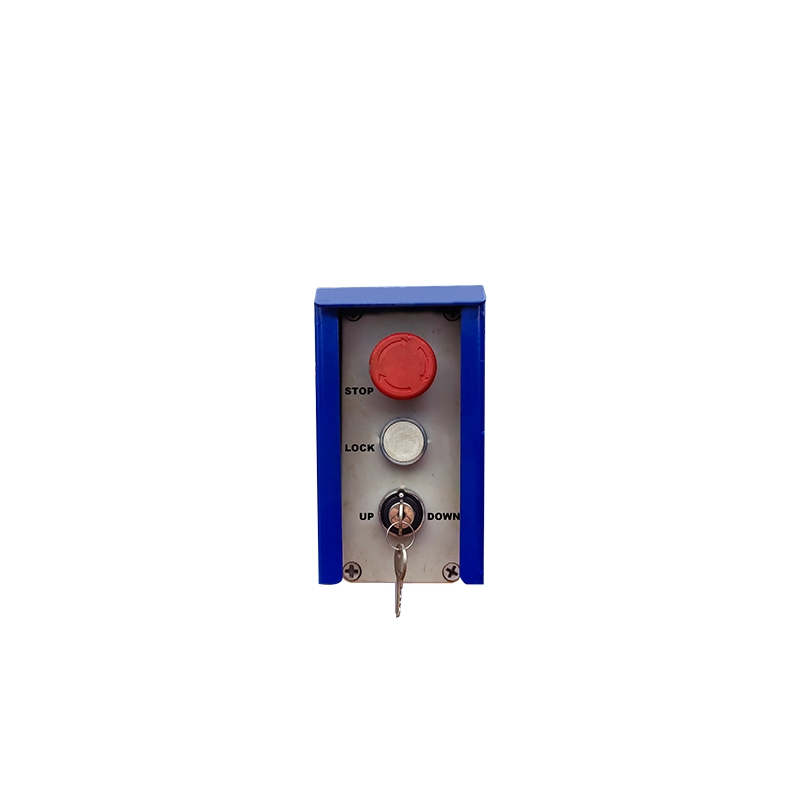

Upgraded 24V low voltage control box for simple, safe operation.

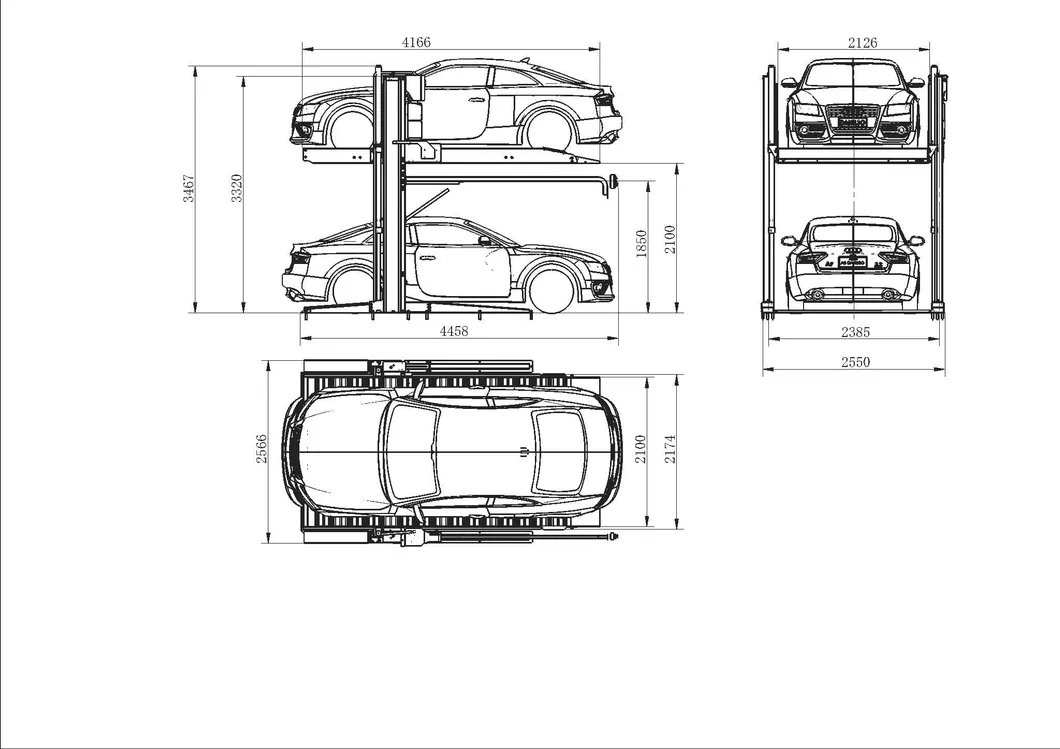

| Model |
Lifting Capacity |
Lifting Time |
Lifting Height |
Board Width |
Board Length |
Total Width |
Gross Weight |
Motor Power |
| ON-7227p |
2700kg (6000LBS) |
≤55S |
2100mm |
2100mm |
4166mm |
3410mm |
1050kgs |
2.2KW (3HP) |

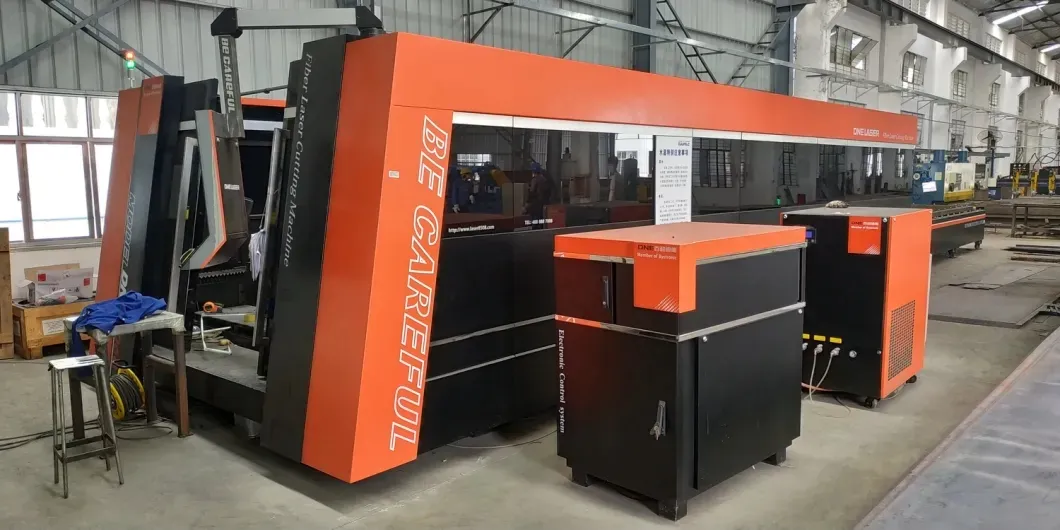

Seamless Laser Cutting Technology
- High accuracy and precision cuts for superior structural integrity.
- Zero warping or damage, even on thin premium materials.
- Maximum sheet utilization with minimal environmental waste.

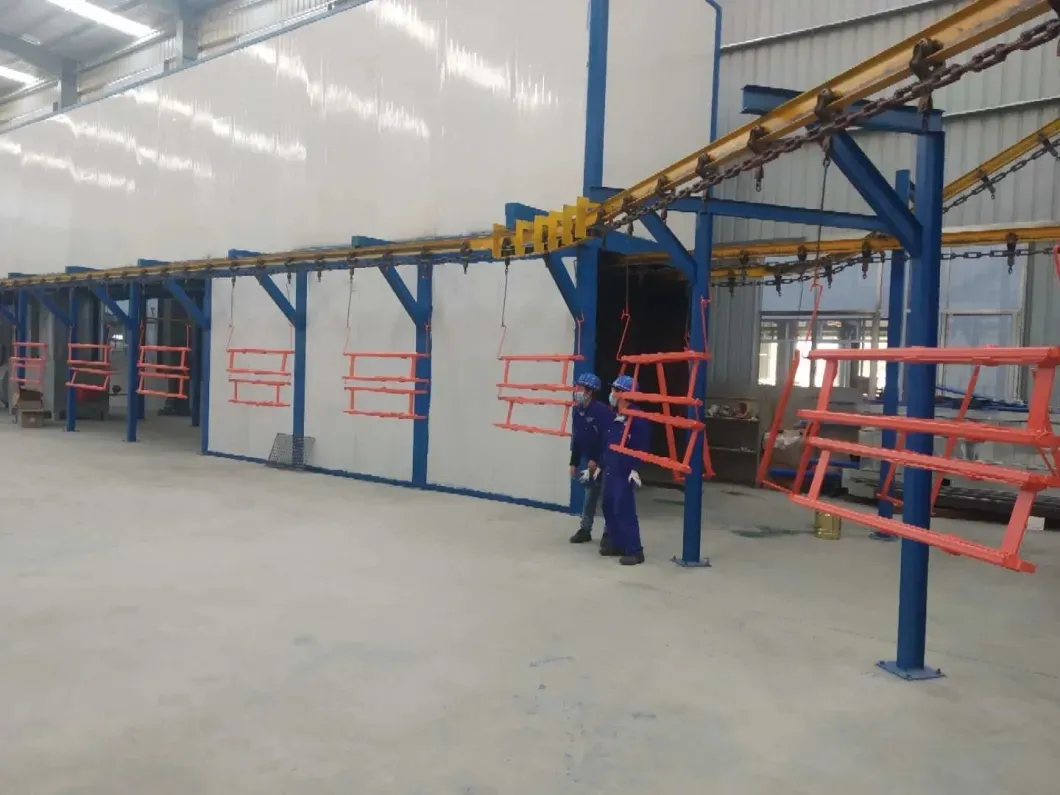

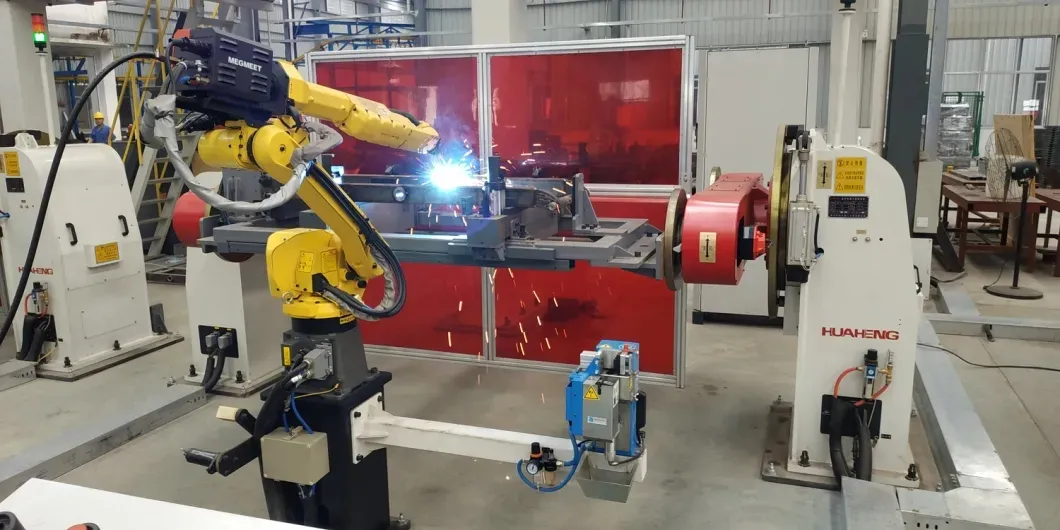

Robotic Welding & Powder Coating
- Robotic welding ensures seamless appearance and high joint strength.
- Premium imported powder coating for high adhesion and weather resistance.
- Aesthetically smooth finish with long-lasting anti-corrosion properties.

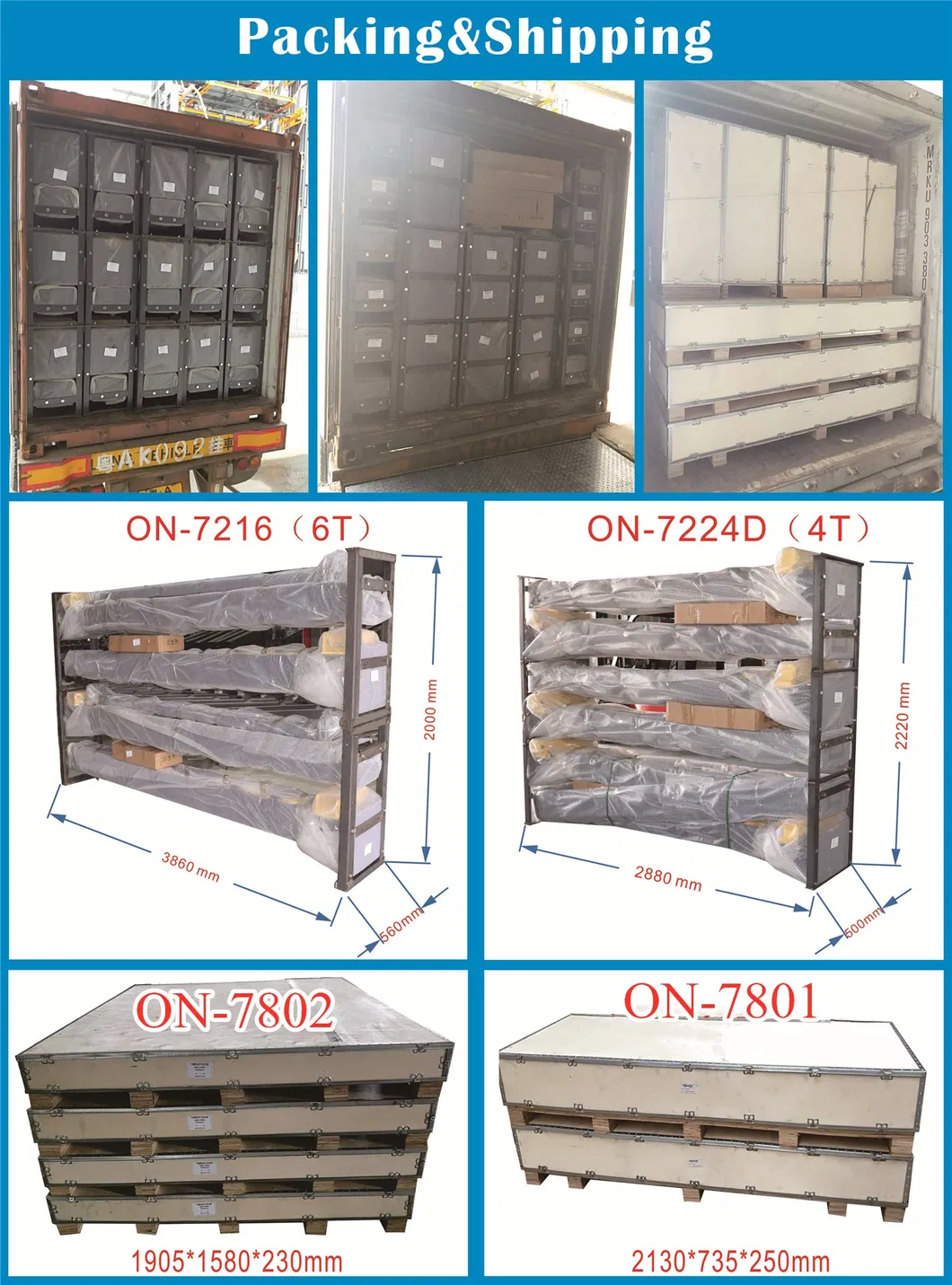

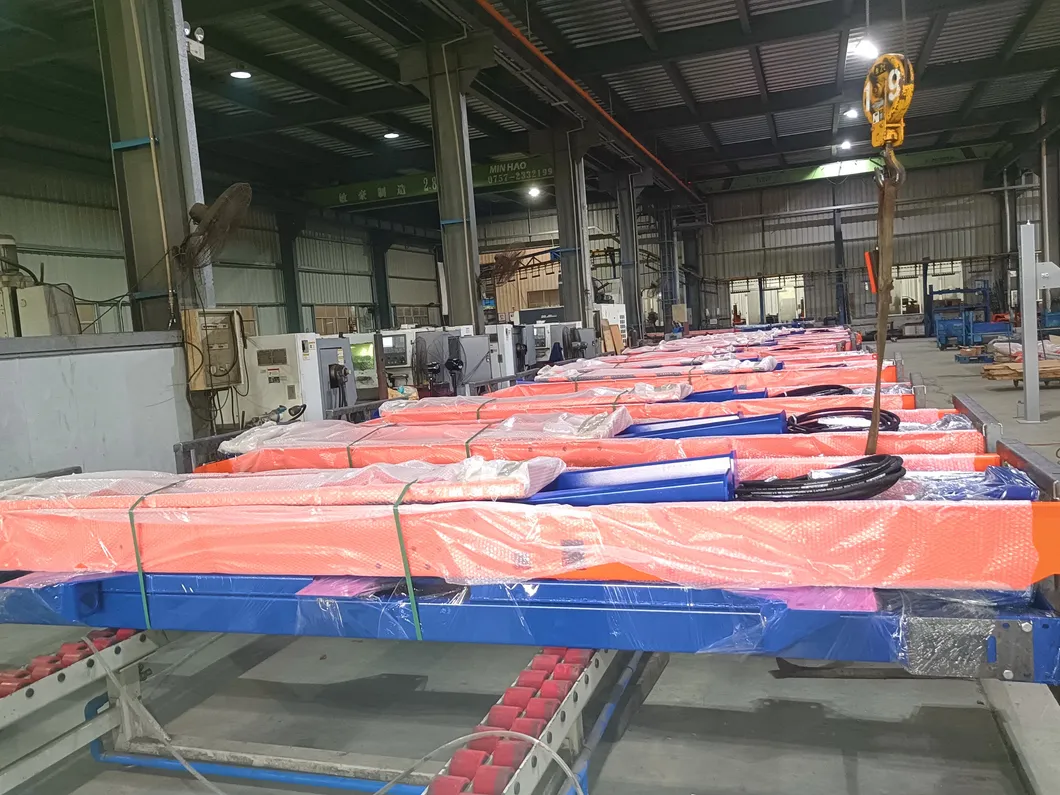

Professional packing involves steel frames for post lifts and plywood boxes for control consoles, ensuring your equipment arrives in perfect condition.
Frequently Asked Questions
Is the car lift designed for commercial use?
Yes, all our lifts are engineered to withstand the demands of commercial applications and heavy-duty daily use without problems.
How safe are these post car lifts?
The lifts are CE certified and have undergone rigorous safety testing. They meet international standards, including those required in America and Australia.
What is the typical delivery time?
Generally, it takes 10 to 20 days after receiving your advance payment. The specific timeframe depends on the model and order quantity.
Are mounting hardware and anchor bolts included?
Yes, the units are shipped with all necessary anchors required for mounting the lift securely to your floor.
What ceiling height is required?
Required height depends on the specific lift model and the height of the vehicle you intend to park. Please refer to the technical data for height specifications.
Do these lifts require regular maintenance?
A simple monthly visual inspection of cables and hydraulic systems is recommended to ensure long-term reliability and safety.
