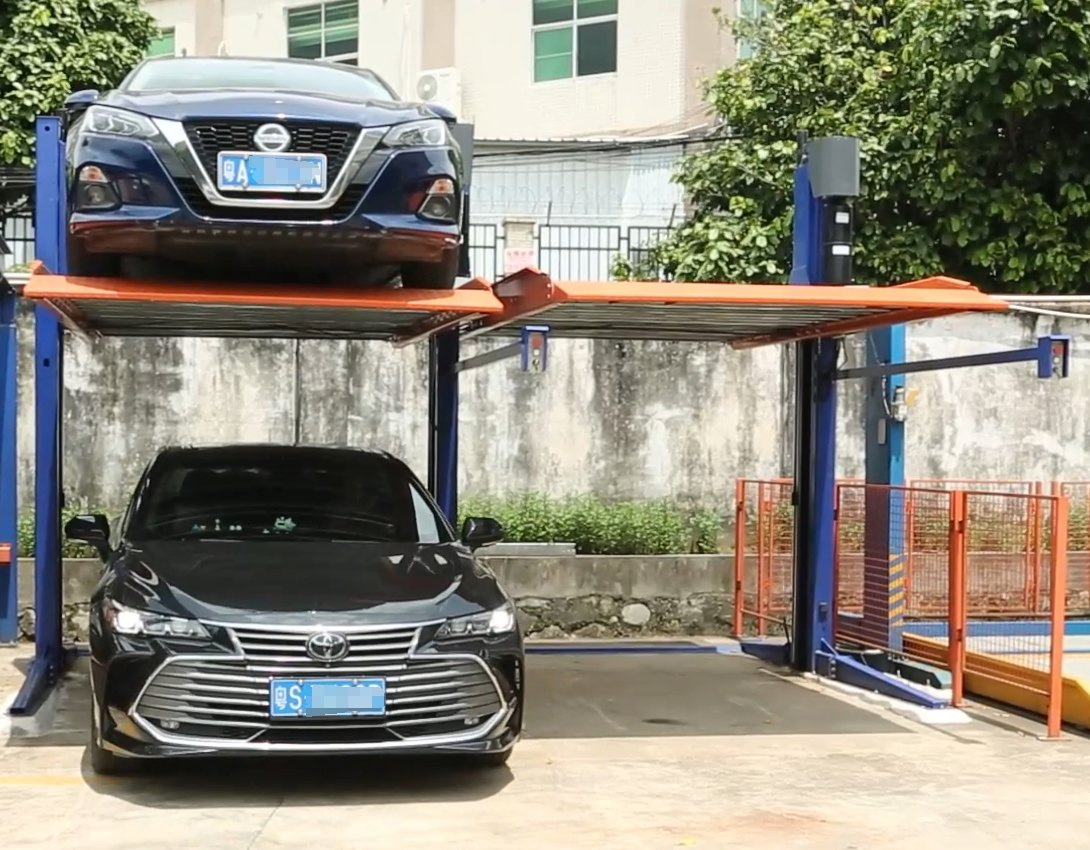

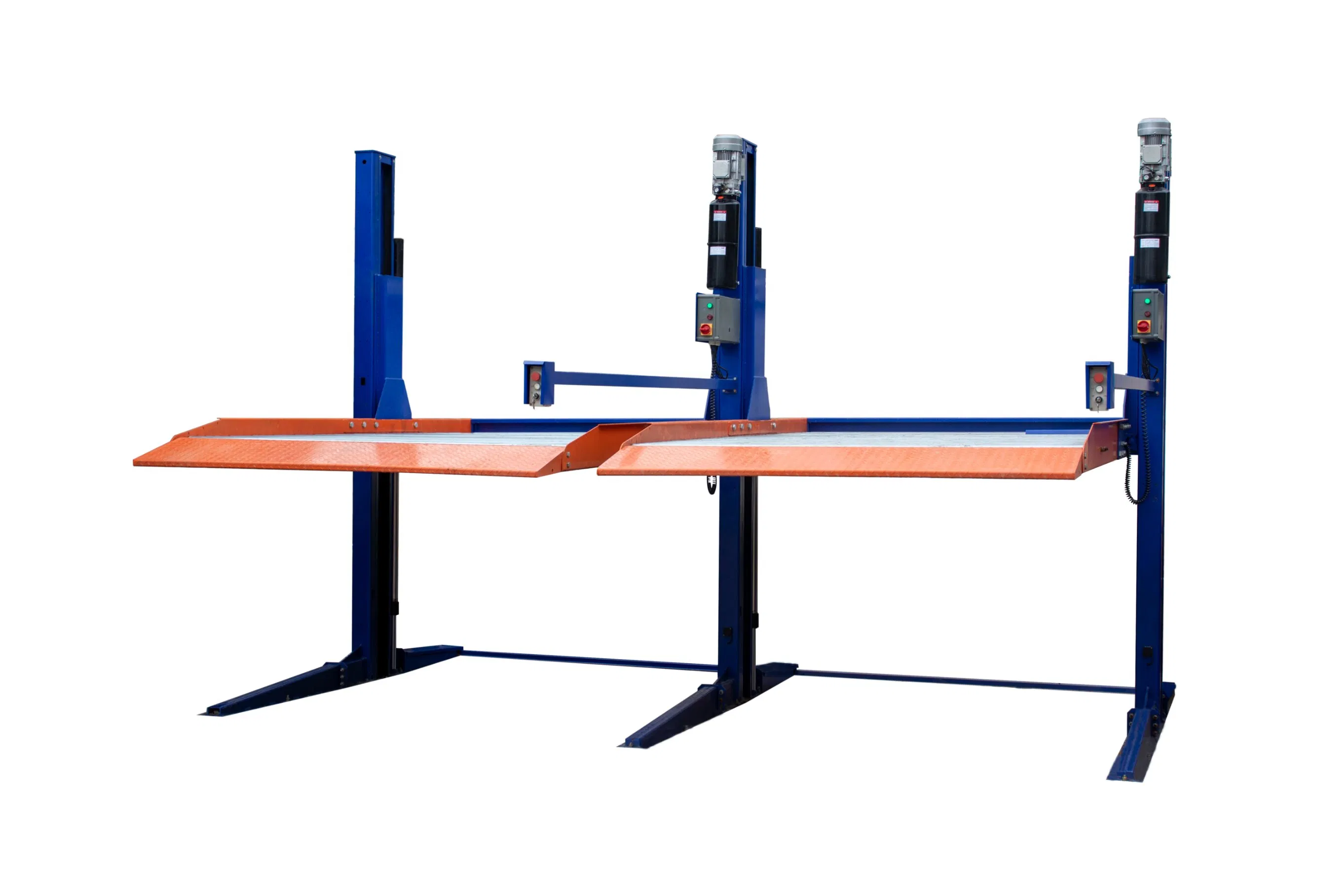

Hydraulic Car Parking System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

ON-7227P

Driving Type

Hydraulic

Certification

CE, ISO

Driving Motor

Lift Type

Two Post Planer-type

Condition

New

Design

Two Post

Transport Package

Steel Shelf

Specification

3950mm*1000mm*700mm

HS Code

842542

Package Size

386.00cm * 100.00cm * 59.00cm

Gross Weight

1116.000kg

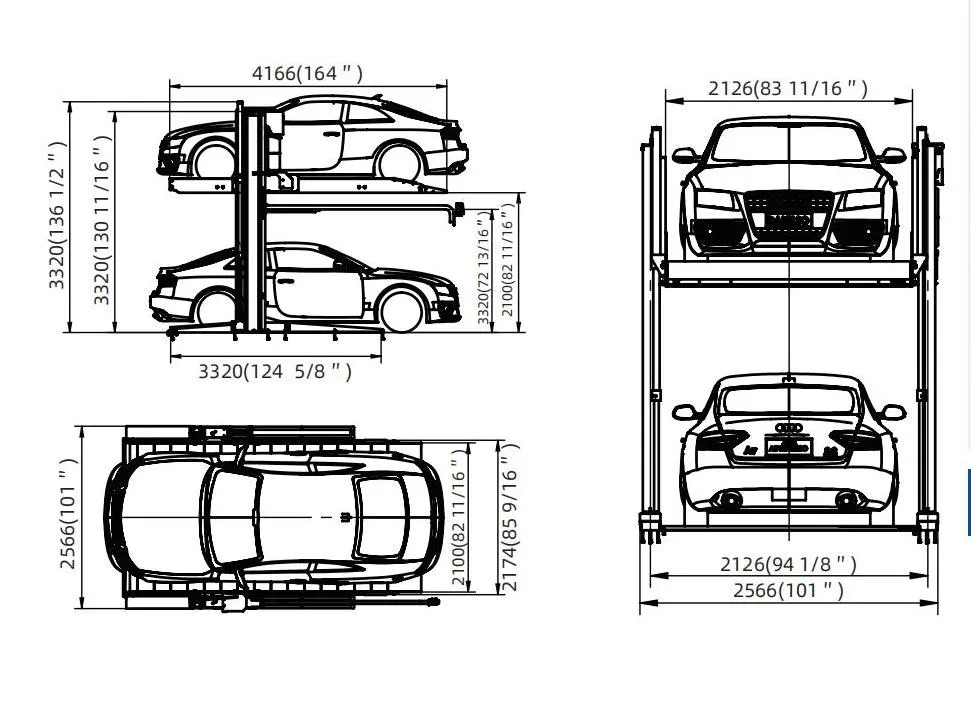

Technical Data

Model	Lifting Capacity	Lifting Time	Lifting Height	Car board Length	Overall Width	Motor	Car board Width	Gross Weight
ON-7227P	2,700kgs (5,952LBS)	≤55S	2100mm (82 43/64")	4166mm (164 1/64")	2566mm (101 1/64")	2.2KW	2100mm (82 43/64")	1116kg (2460LBS)
ON-7232P	3,500kgs (7,716LBS)	≤55S	2100mm (82 43/64")	4166mm (164 1/64")	2766mm (108 57/64")	2.2KW	3200mm (90 35/64")	1162kg (2561LBS)

Product Introduction

2,700Kg (5,952LBS.) lifting capacity.

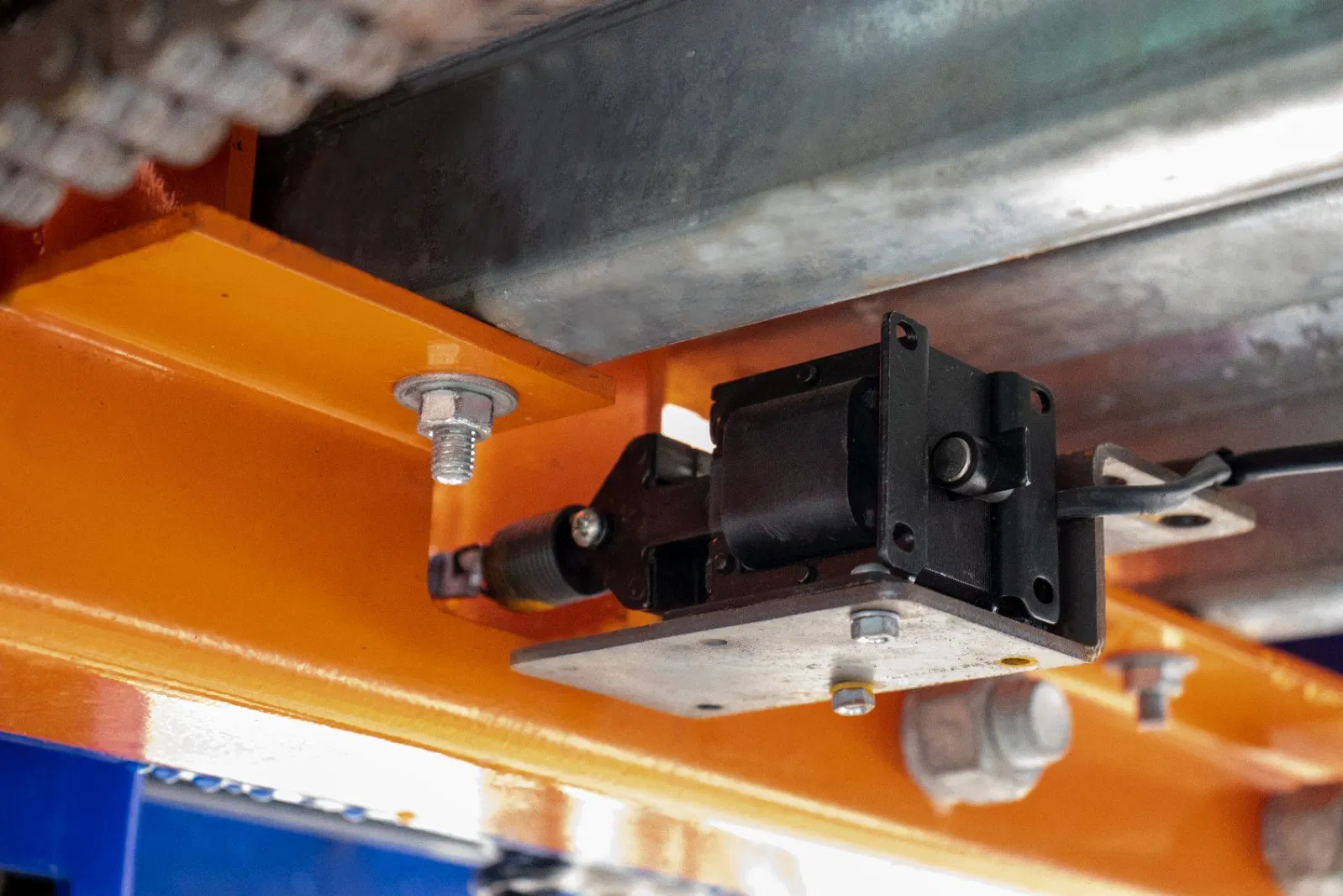

Reliable mechanical self-lock safety locking system.
Max height limit switch to ensure cylinders work within stroke.

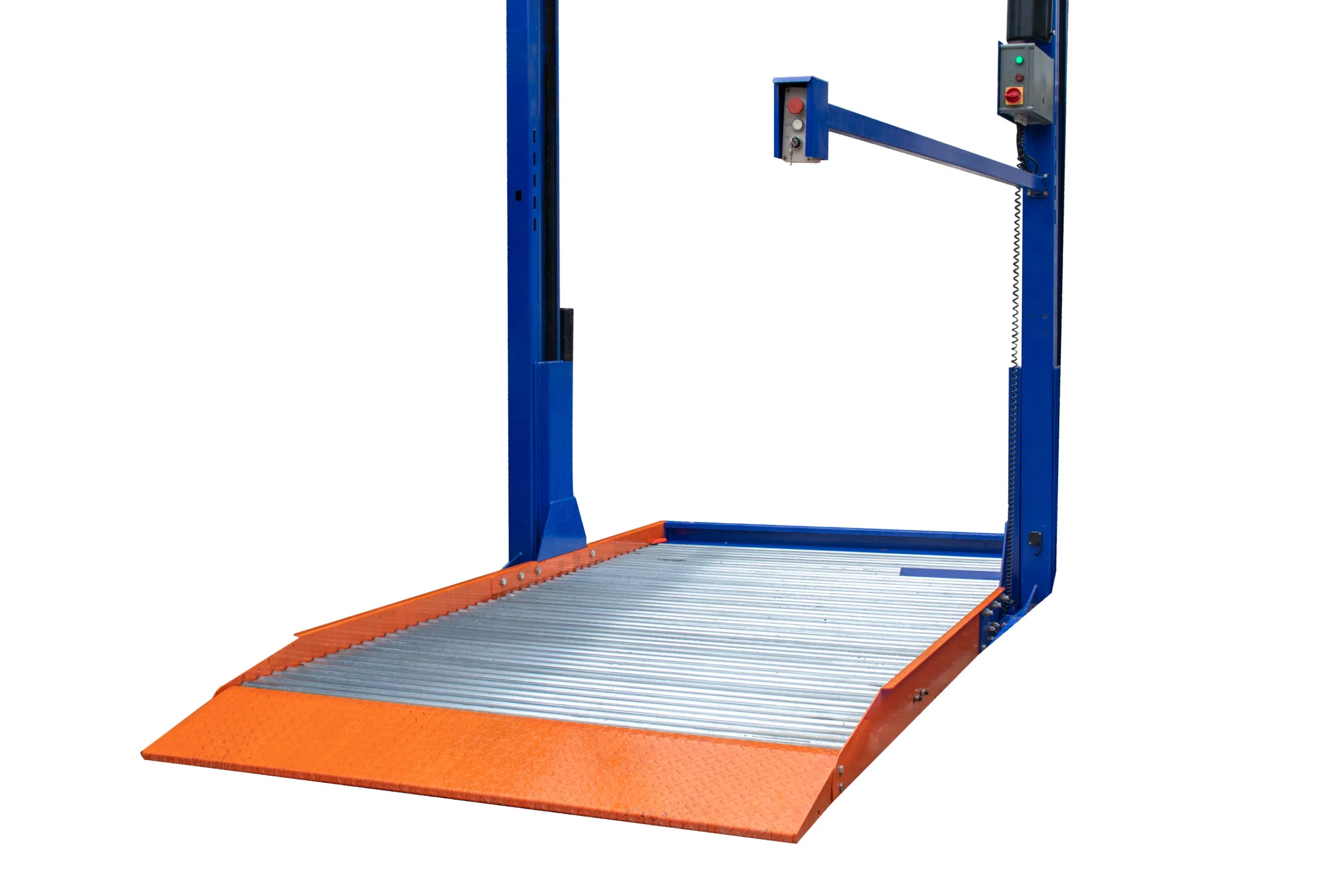

Skid proof diamond and low-profile platforms.
Dual safety device: Automatic secondary locking for enhanced safety.

Main Manufacturing Features

Precision Welding: Main structural parts are welded by robots for consistency, high strength, and aesthetic seam quality.

Advanced Coating: Structural parts are treated with imported powder and high-temperature curing to ensure strong adhesion and bright, durable finish.

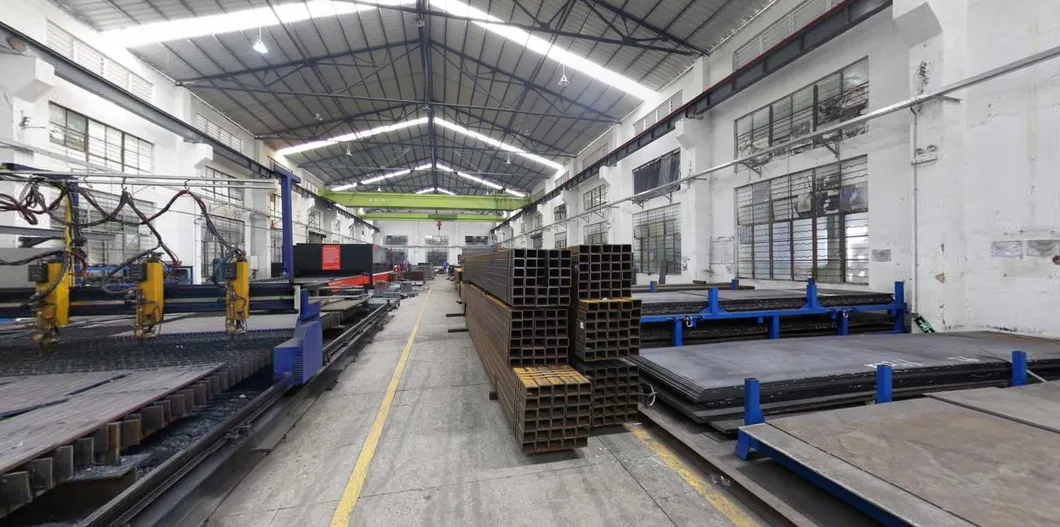

Our Factory & Technology

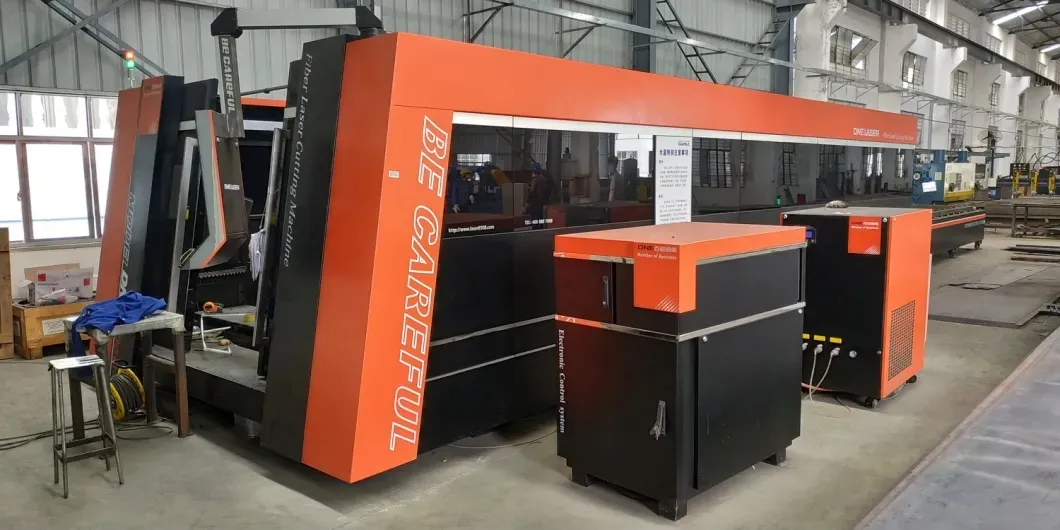

Seamless Laser Cutting

High Accuracy and Precision Cuts.
No Damage or Warping to Thin Materials.
High Sheet Utilization with Low Waste.

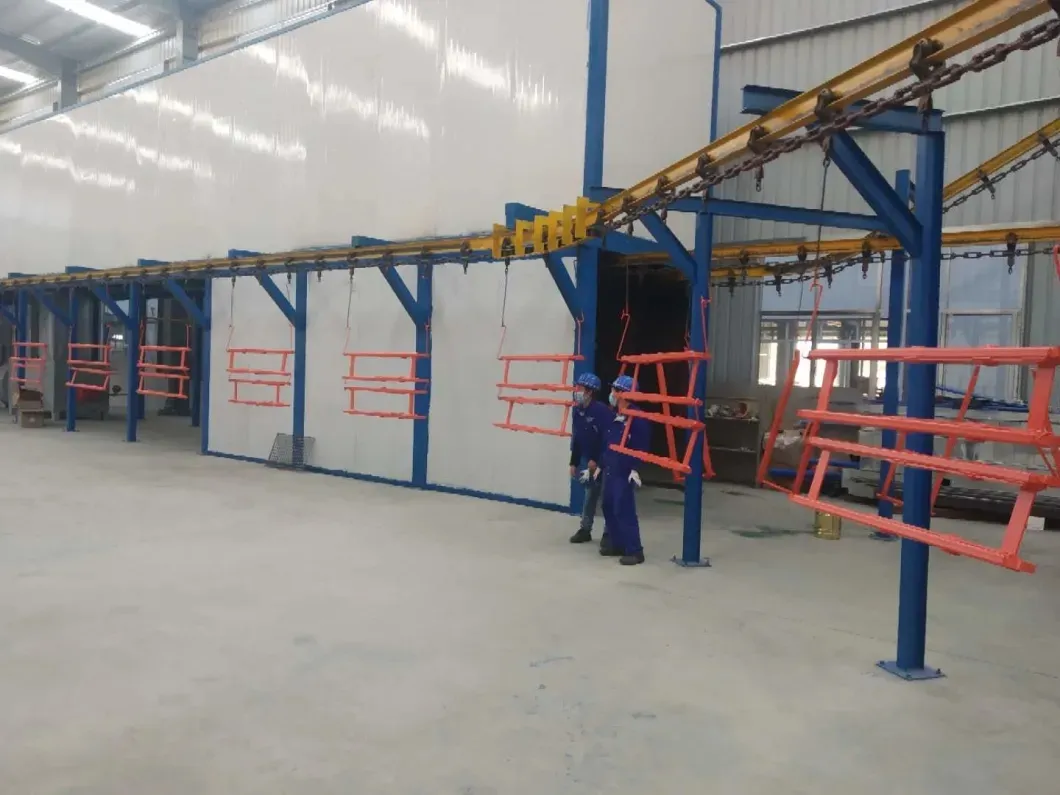

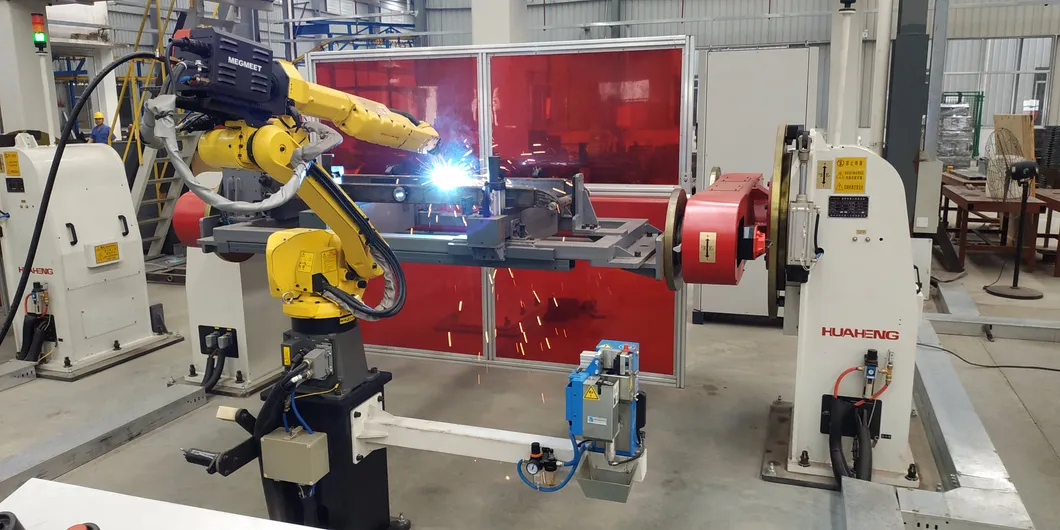

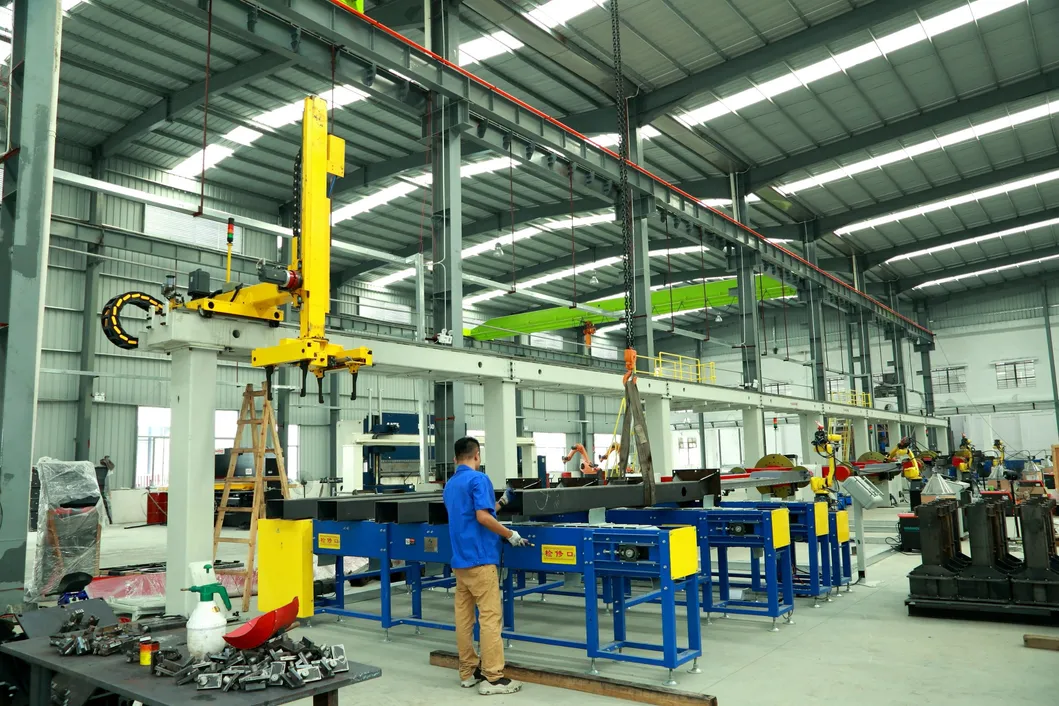

Robotic Welding & Powder Coating

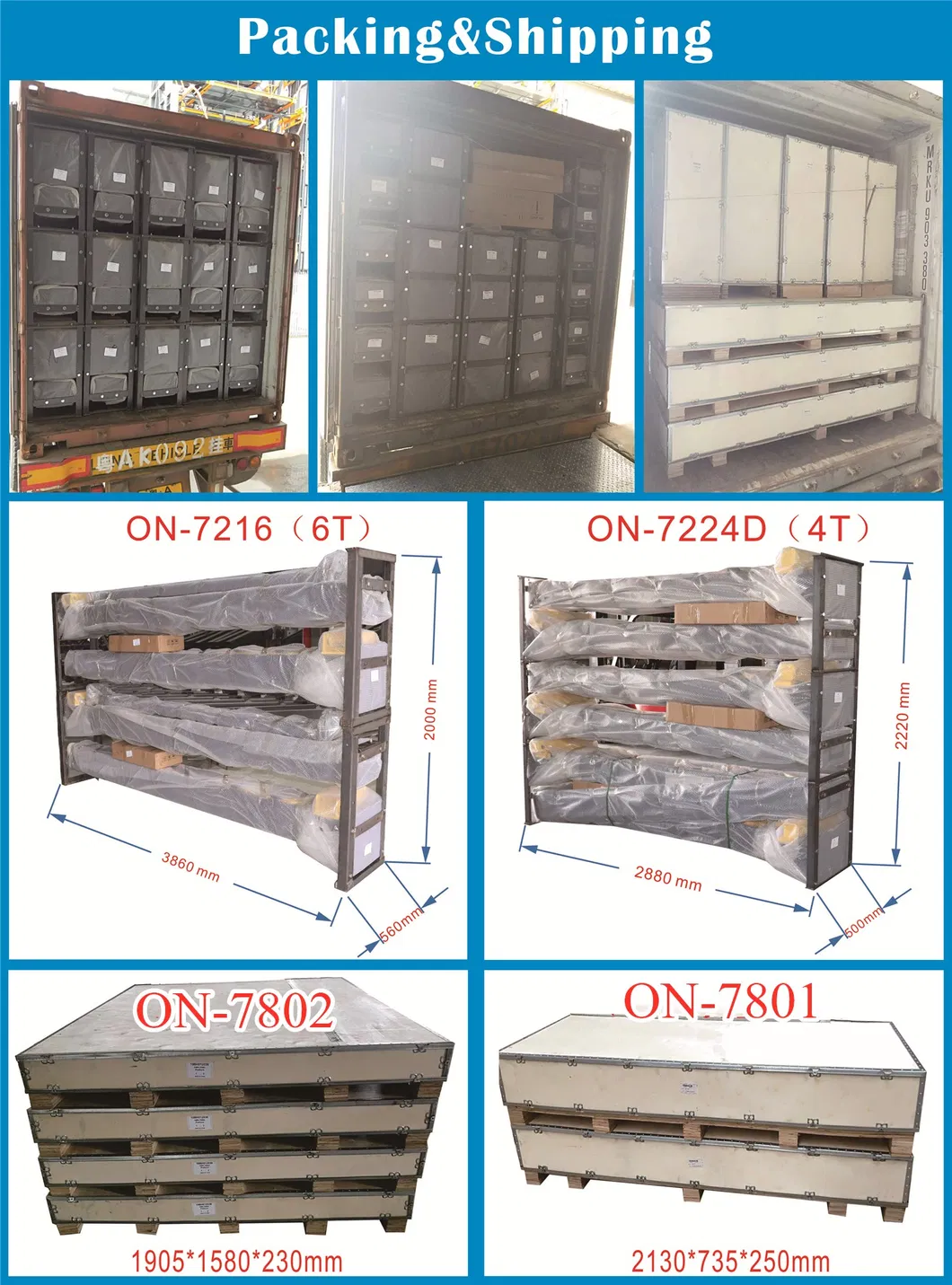

Logistics & Standards

Our lifts are steel frame packed (2-post/4-post) or ply-wood boxed (scissor lifts) to guarantee delivery in perfect condition.

Certified Quality

Frequently Asked Questions

Why should I choose your car lifts?

We offer over 20 years of research techniques combined with TUV, CE, ISO9001, and CCPC certifications. Our 60,000m² plant utilizes 50+ automatic machines to ensure high-quality production at competitive prices.

Are the car lifts safe to use?

Yes, our car lifts are rigorously tested and CE certified. They are designed to meet American and Australian safety standards, featuring reliable mechanical self-lock systems.

Can these lifts be used for commercial applications?

Absolutely. All of our lifts are designed and built to handle the demands of commercial environments without any problems.

What is the typical delivery time?

Generally, it takes between 10 to 20 days after receiving your advance payment. The specific timeframe depends on the model and the quantity of your order.

Are mounting hardware and anchor bolts included?

Yes, all our lifts are shipped with the necessary anchor bolts and hardware required to securely mount the unit to your floor.

Do the lifts require regular maintenance?

A simple monthly checklist for visual inspection of cables and hydraulic systems is recommended. This ensures long-term reliability and safety for your vehicle lifting operations.
