📋 Basic Specifications
Type
Four Cylinder Hydraulic Lift
Lift Type
Parking Lift Type
Specification
4650*550*770mm
🚗 Product Overview

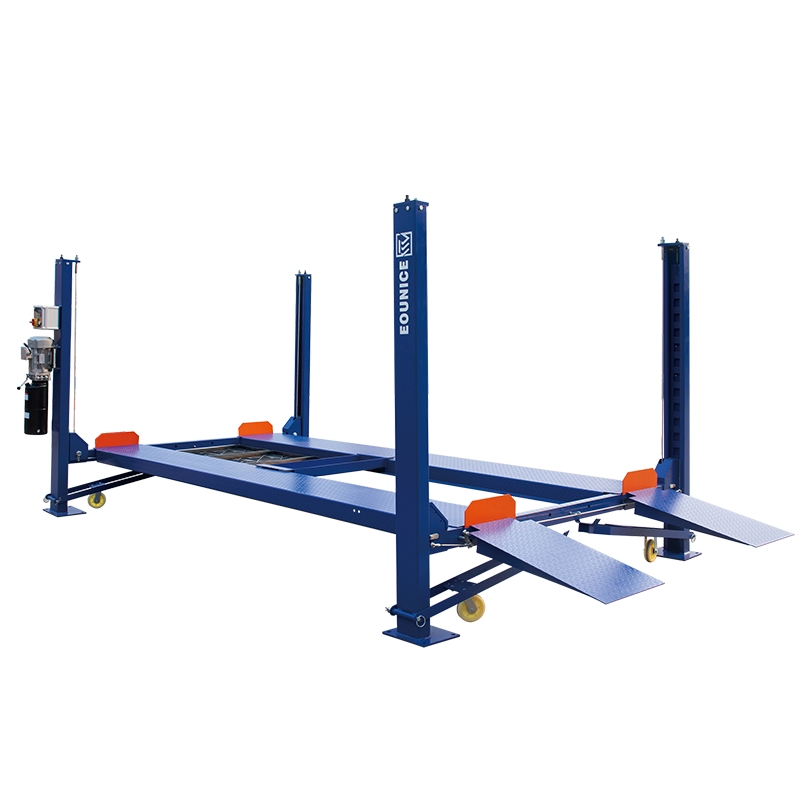

Model: ON-7436PL
Manual safety lock release, longer and wider 4 post parking lift.
Overall Height: 2330mm
- 3,600Kg (8,000LBS.) lifting capacity.
- Single-point safety lock release by manual.
- Mechanical locks automatically engaged during the ascending process.
- Out of level protection for safe and reliable operation.

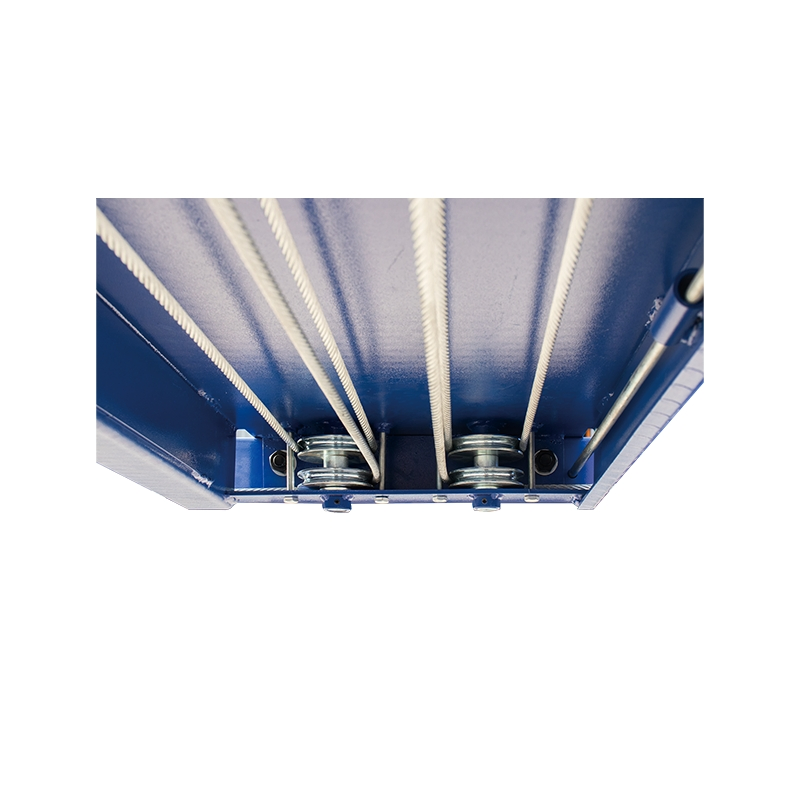

- Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
- Skid-proof diamond platform for maximum grip.

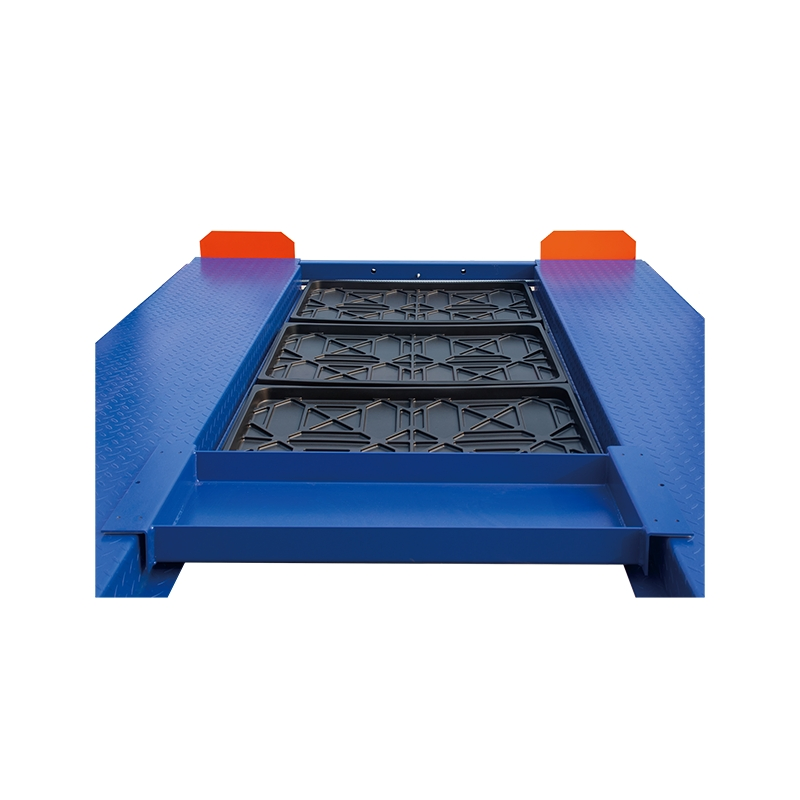

- Standard drip pan (3pcs) and jack pan (1pc) included.

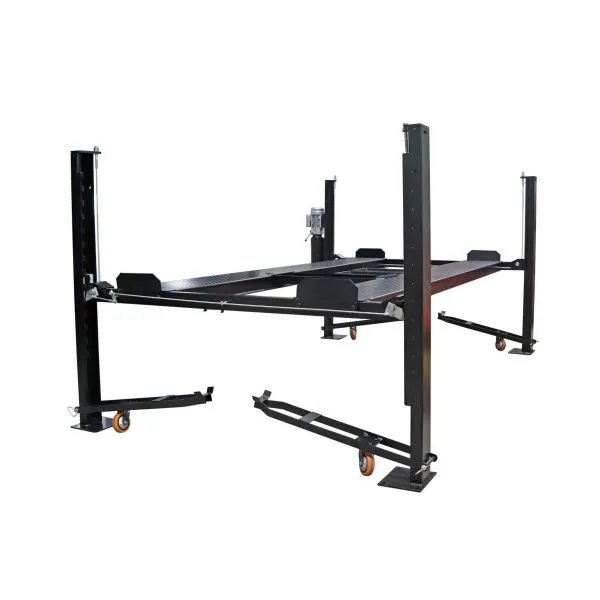

- Mobile kit (4pcs) available as an OPTION.

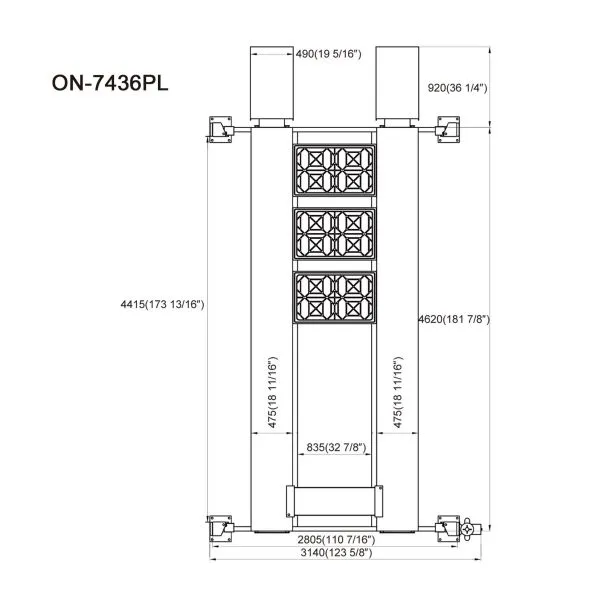

📊 Technical Data Comparison
| Model |
7436P |
7436PL |
| Lifting Capacity | 3,600kgs (8,000LBS) | 3,600kgs (8,000LBS) |
| Lifting Time | ≤50S | ≤50S |
| Overall Height | 2076mm (81 3/4") | 2330mm (91 3/4") |
| Lifting Height | 1845mm (72 5/8") | 2100mm (82 11/16") |
| Overall Length (Inc. Ramps) | 5120mm (201 9/16") | 5540mm (218 1/8") |
| Overall Length (No Ramps) | 4200mm (165 3/8") | 4620mm (181 7/8") |
| Overall Width | 2890mm (113 3/4") | 3140mm (123 5/8") |
| Width inside Columns | 2385mm (93 7/8") | 2635mm (103 3/4") |
| Shipping Weight | 688kgs (1,517LBS) | 745kgs (1,642LBS) |
💪 Key Strengths
- Low Chassis Friendly: Minimum ground height of 180mm (7 1/16") effectively prevents damage to low chassis vehicles.
- Adjustable Leveling: The lower end of the column is adjustable (40mm range), ensuring level runways even on imperfect ground.
- Double Safety Insurance: Features both manual safety and cable-breaking safety mechanisms with pressure spring reset devices.
- Robot Welding: Main structural parts are welded by precision robots for high strength and beautiful finishing.

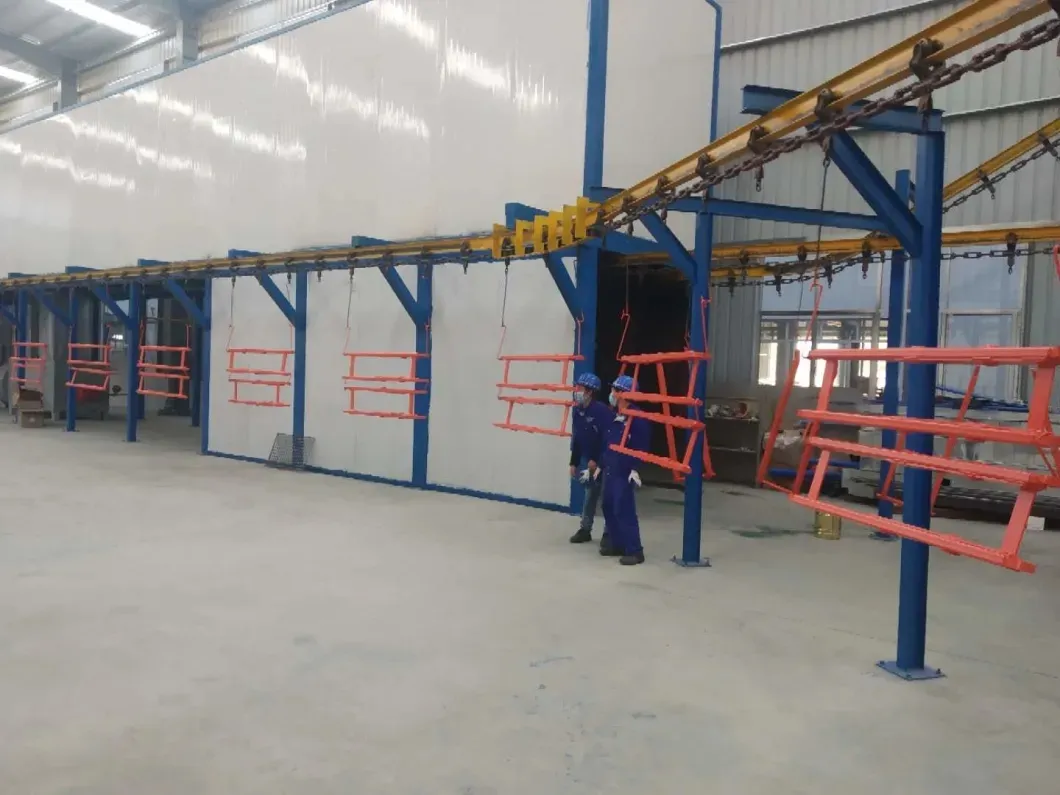

- Premium Powder Coating: High-temperature curing with imported powder ensures strong adhesion and a clear, aesthetic appearance.
🛠️ Manufacturing Technology

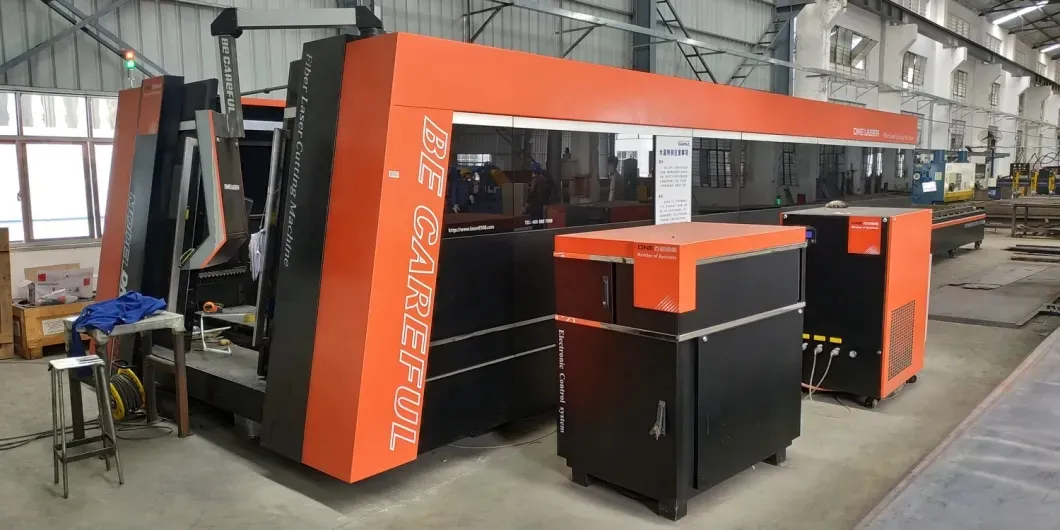

Seamless Laser Cutting
- High Accuracy and Precision Cuts
- No Damage or Warping
- Low Power Consumption

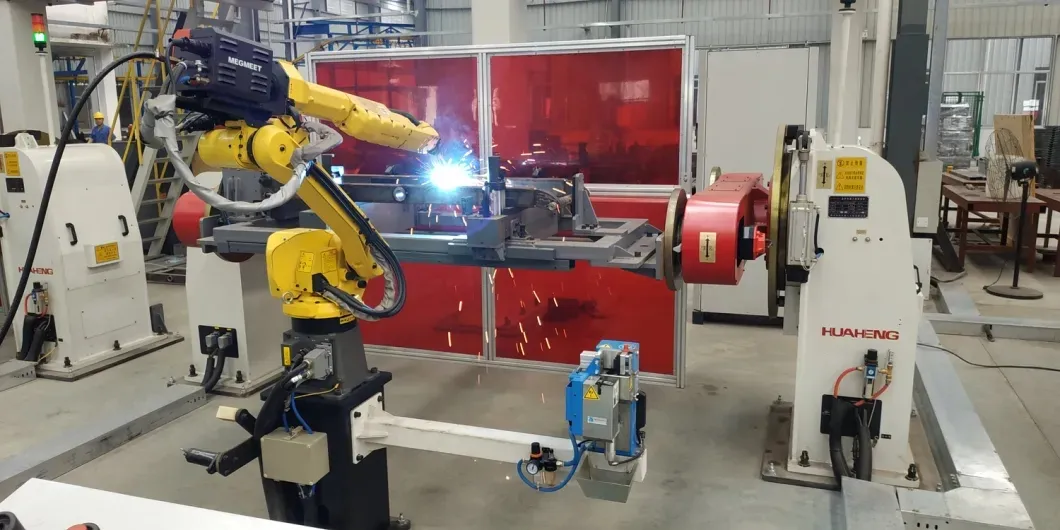

Robotic Welding Technology
- Seamless Appearance
- Consistent High Strength
📦 Packing & Certification

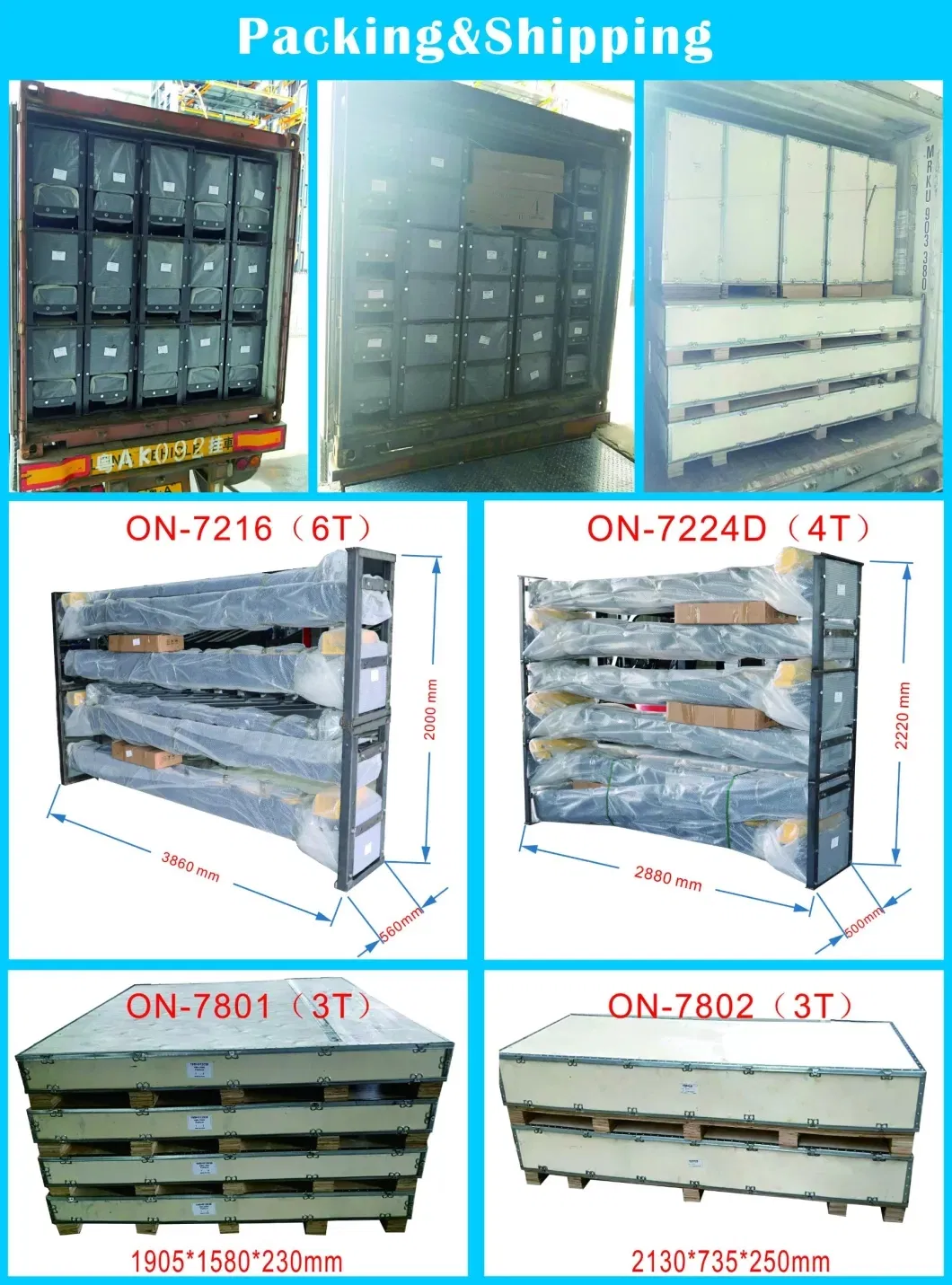

Standardized Packing
Shipping Examples
Global Certifications
❓ Frequently Asked Questions
1. Why should I choose this car lift for my garage or shop?
With 20 years of technique research and certifications including TUV, CE, ISO9001, and CCPC, these lifts are built in a 60,000m² plant using over 50 automatic production lines to ensure top-quality raw materials and competitive pricing.
2. How safe are these 4-post car lifts?
The lifts have been rigorously tested and are CE certified for safety. They also meet stringent American and Australian standards, featuring redundant safety locks and out-of-level protection.
3. Are these lifts designed for commercial applications?
Yes, all of our lift models are designed to handle the heavy-duty requirements of commercial applications as well as residential use without any problems.
4. What is the typical delivery time for an order?
Generally, it takes between 10 to 20 days after receiving your advance payment. The specific timeframe depends on the specific models and the quantity of your order.
5. Does the lift come with floor mounting hardware?
Yes, all lifts are shipped with the necessary anchor bolts and hardware required to securely mount the unit to your concrete floor.
6. What maintenance is required for these hydraulic lifts?
Maintenance is simple: a monthly checklist for visual inspection of cables and hydraulic systems is recommended to ensure long-term reliability and safety.
