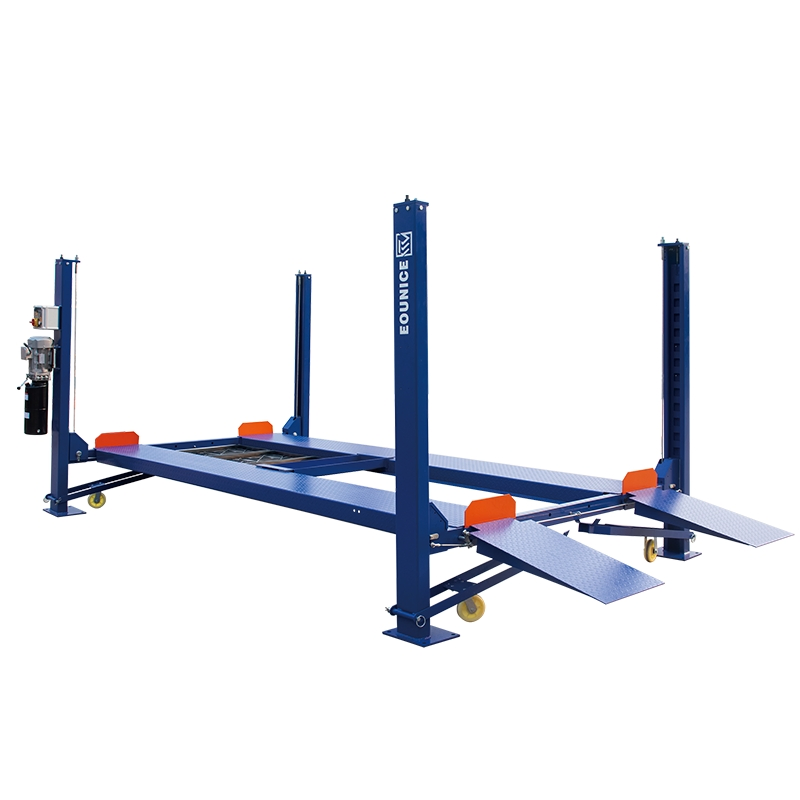

on-7436pl 3.6t Manual Safety Release 4-Post Car Lift External Lock System Longer Parking Service Features for Car Care Equipment

Customization: Available
After-sales Service: 1-5 Years
Warranty: 1-5 Years

Product Description

Basic Information
Model NO.
ON-7436PL
Type
Four Cylinder Hydraulic Lift
Lifting Capacity
3.6t
Driving Type
Hydraulic
Certification
CE, ISO
Design
Four Post
Condition
New
HS Code
8425429000
Product Description

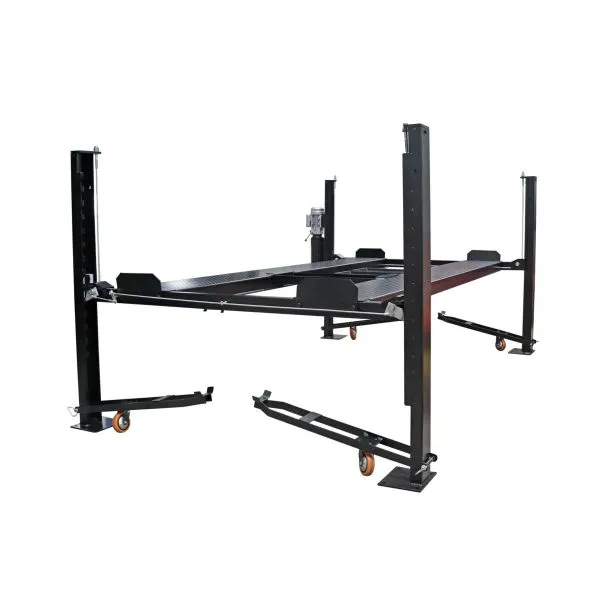

Car Lift Dimension

ON-7436PL Features

Manual safety lock release, longer and wider 4 post parking lift. Overall Height 2330mm.

  • 3,600Kg (8,000LBS.) lifting capacity.
  • Single-point safety lock release by manual.
  • Mechanical locks automatically engaged into position in ascending process.
  • Out of level protection, safe and reliable.
  • Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
  • Skid proof diamond platform.

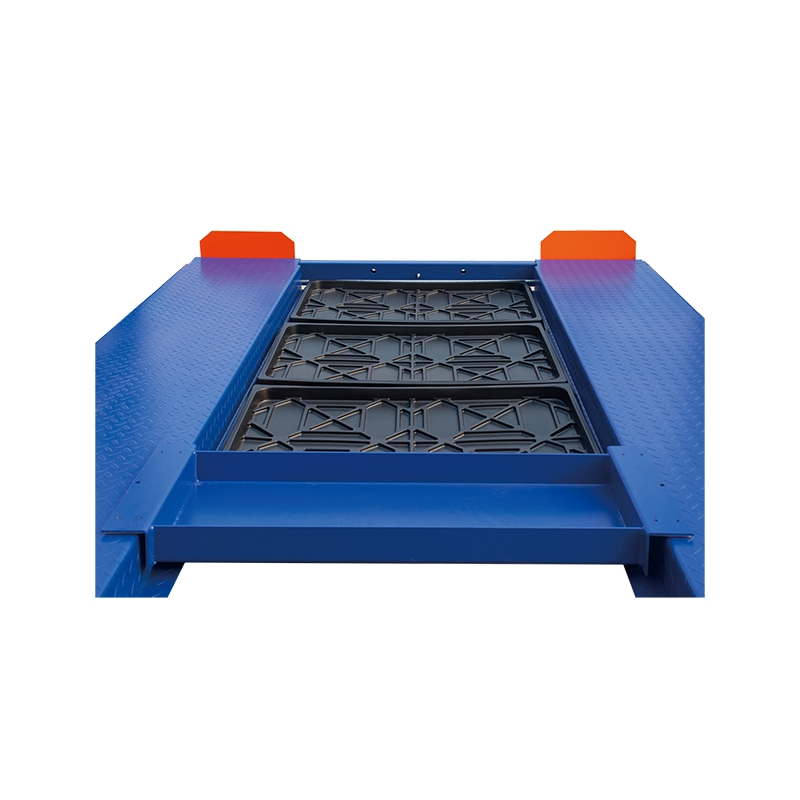

  • Standard drip pan (3pcs), jack pan (1pc).
  • Mobile kit (4pcs) OPTIONAL.

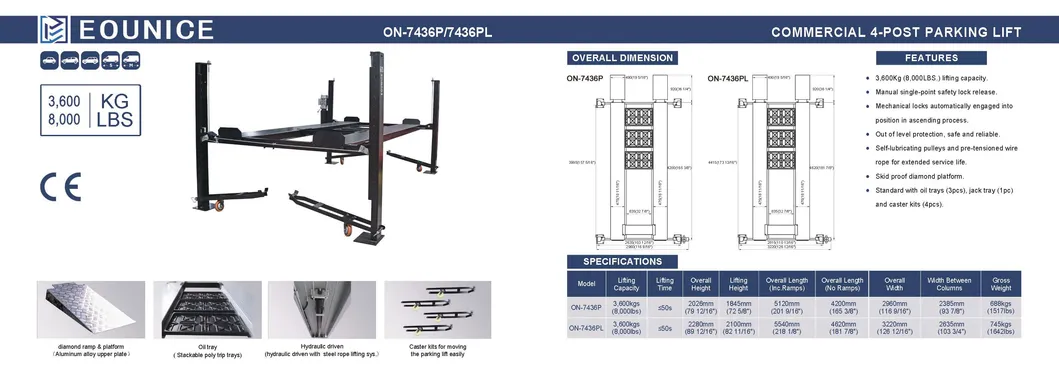

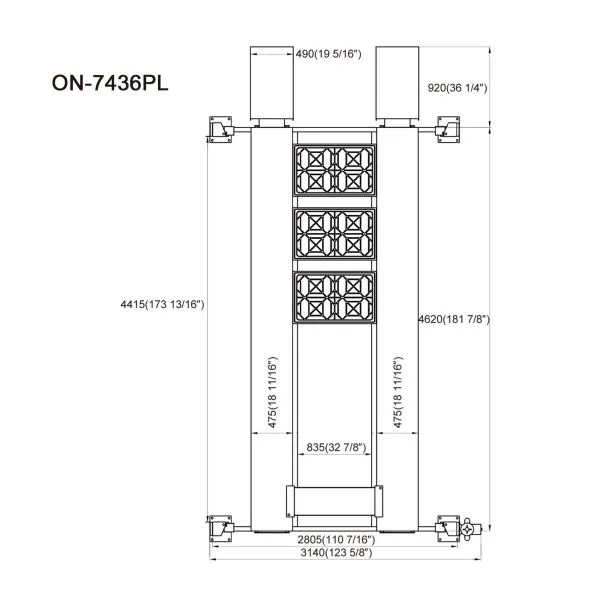

Car Lift Details 1 Car Lift Details 2
Technical Data
Model 7436P 7436PL
Lifting Capacity3,600kgs (8,000LBS)3,600kgs (8,000LBS)
Lifting Time≤50S≤50S
Overall Height2076mm (81 3/4")2330mm (91 3/4")
Lifting Height1845mm (72 5/8")2100mm (82 11/16")
Overall Length (Inc.Ramps)5120mm (201 9/16")5540mm (218 1/8")
Overall Length (No Ramps)4200mm (165 3/8")4620mm (181 7/8")
Overall Width2890mm (113 3/4")3140mm (123 5/8")
Width inside Columns2385mm (93 7/8")2635mm (103 3/4")
Shipping Weight688kgs (1,517LBS)745kgs (1,642LBS)
Core Strengths
  • The minimum ground height is 180mm(7 1/16"), avoiding low chassis car hanging.
  • The upper end of the column is suspended and the lower end is adjustable (range 40mm) to ensure basic leveling.
  • Double insurance of manual safety and cable breaking safety inside the cross beam.
  • Main structural parts are welded by robot for high strength and beautiful welding seams.
  • Structural parts are sprayed with imported powder and high-temperature curing for strong adhesion.
Advanced Manufacturing Technology

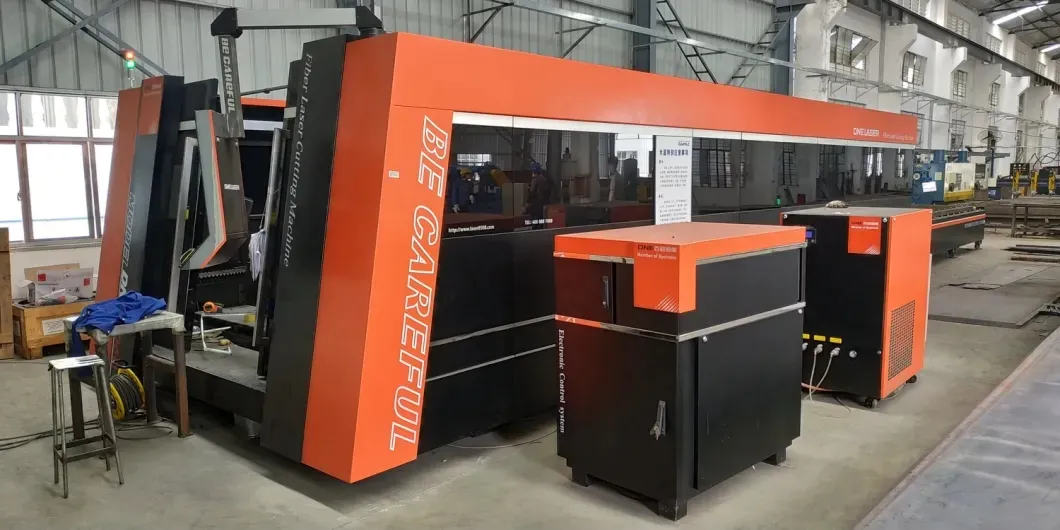

🛠️ Seamless Laser Cutting

High Accuracy and Precision Cuts; Causes No Damage Or Warping; Higher Sheet Utilization with Less Waste.

Laser Cutting

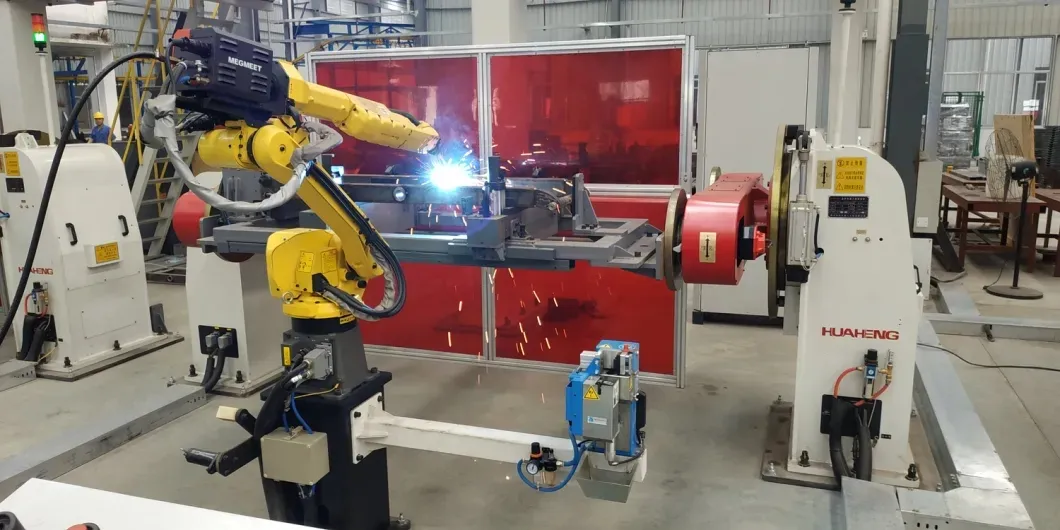

🤖 Robotic Welding Technology

Seamless Appearance and High Structural Strength.

Robotic Welding

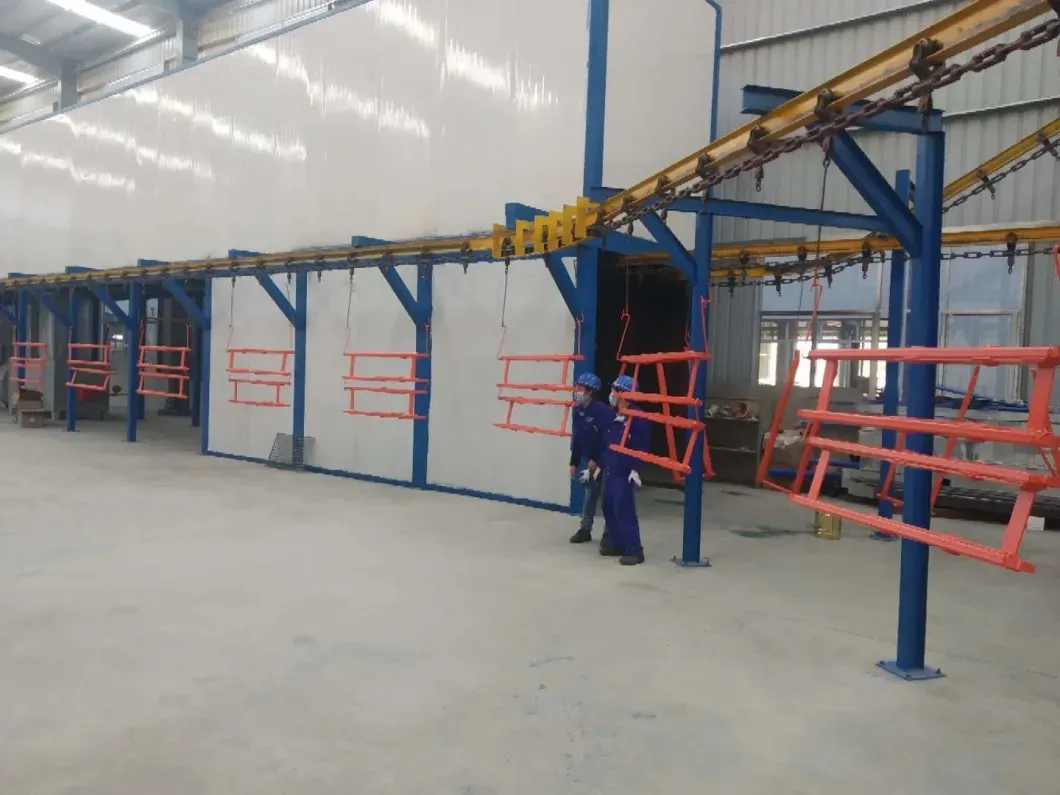

✨ Powder Coating

Imported Powder and Sprayers; High Adhesion; Clear Powdering Effect; Aesthetically Smooth Appearance.

Powder Coating
Packing and Quality Control

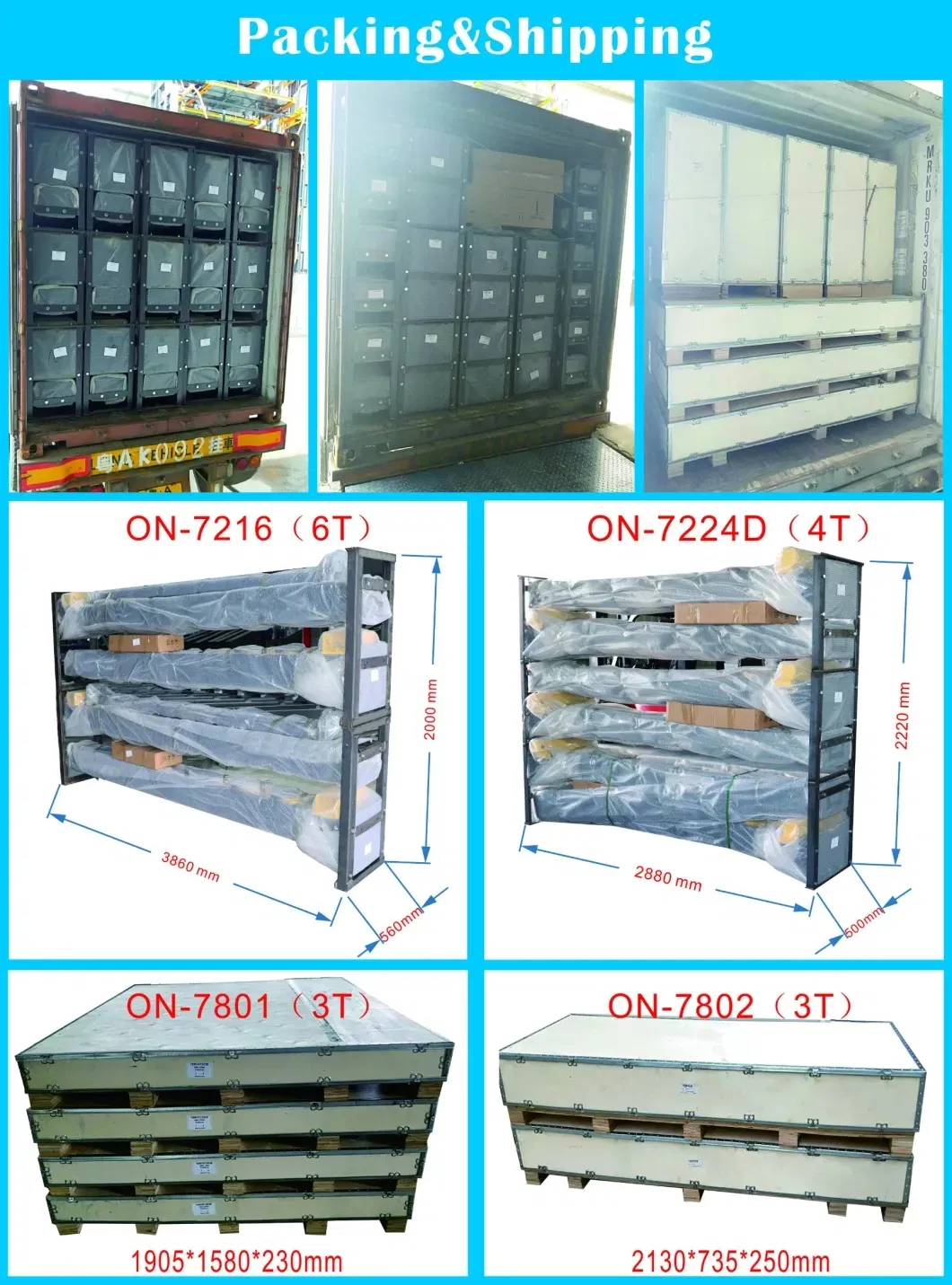

Steel frame packed for 2 post and 4 post lifts; scissor lifts and control consoles in plywood boxes. Guarantees delivery in perfect condition.

Packing Example Certification Showcase
Production Plant
Frequently Asked Questions
1. Are these car lifts safe and certified? Yes, our lifts have been tested and CE certified for safety. They also meet American and Australian Standards for commercial and residential use.
2. What is the typical delivery time after ordering? Generally, it takes 10 to 20 days after receiving your advance payment. The specific time depends on the items and the quantity of your order.
3. Can the lift be used for commercial purposes? Absolutely. All of our lifts are designed for high-durability and can be used in commercial applications without any problems.
4. Does the lift come with installation hardware? Yes, all units are shipped with the necessary anchor bolts and hardware required for mounting the unit securely to your floor.
5. Do these car lifts require regular maintenance? A simple monthly checklist for hydraulic systems and cables is recommended, along with visual inspections before each use to ensure long-term safety.
6. Are different voltage options available? Yes, we can provide different voltage configurations upon request to match your local power supply requirements.
