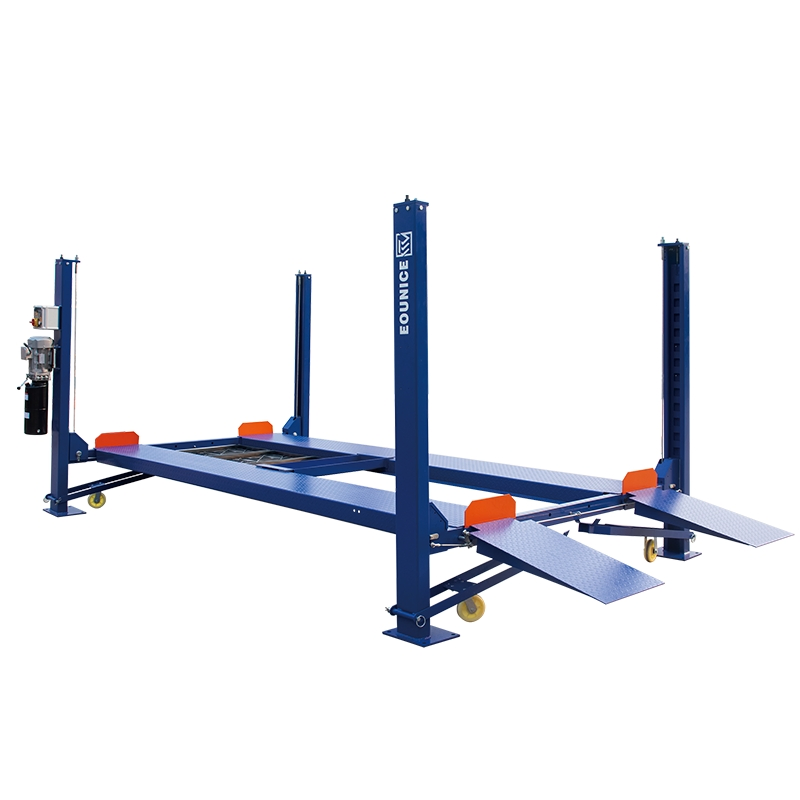

High-Quality Two-Level Car Lifter Parking System on-7436p by Eounice

Customization:	Available
After-sales Service:	1-5 Years
Warranty:	1-5 Years

⚙️ Basic Specifications

Model NO.

ON-7436p

Type

Four Cylinder Hydraulic Lift

Lifting Capacity

3.6t

Driving Type

Hydraulic

Certification

CE, ISO

Condition

New

Design

Four Post

HS Code

8425429000

🚗 Product Overview

📍 Model: ON-7436PL

Manual safety lock release, longer and wider 4 post parking lift. Overall Height 2330mm.

3,600Kg (8,000LBS.) lifting capacity.

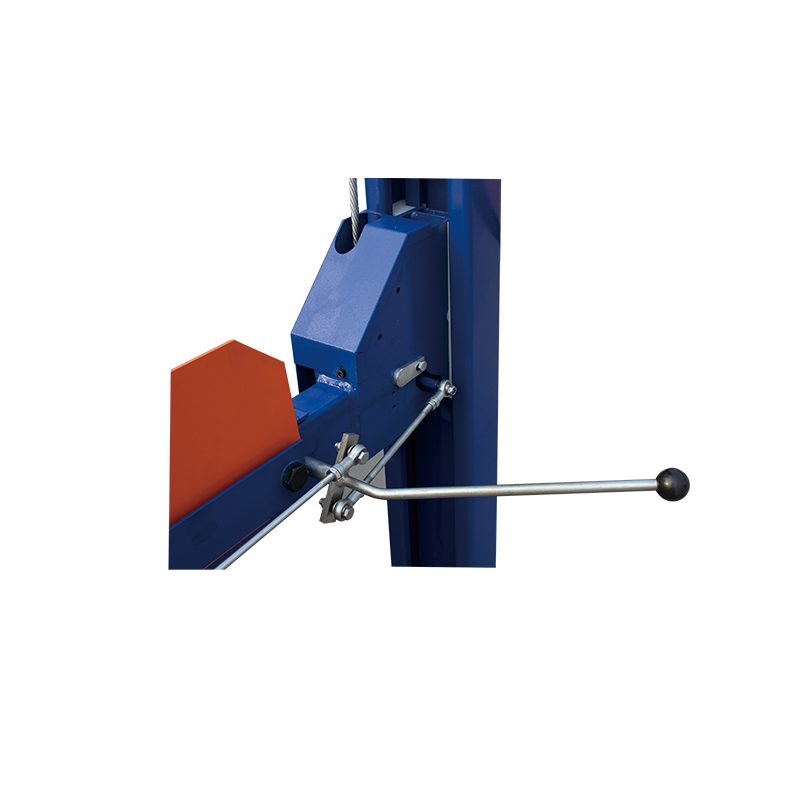

Single-point safety lock release by manual.
Mechanical locks automatically engaged into position in ascending process.
Out of level protection, safe and reliable.
Self-lubricating pulleys and pre-tensioned wire rope for extended service life.

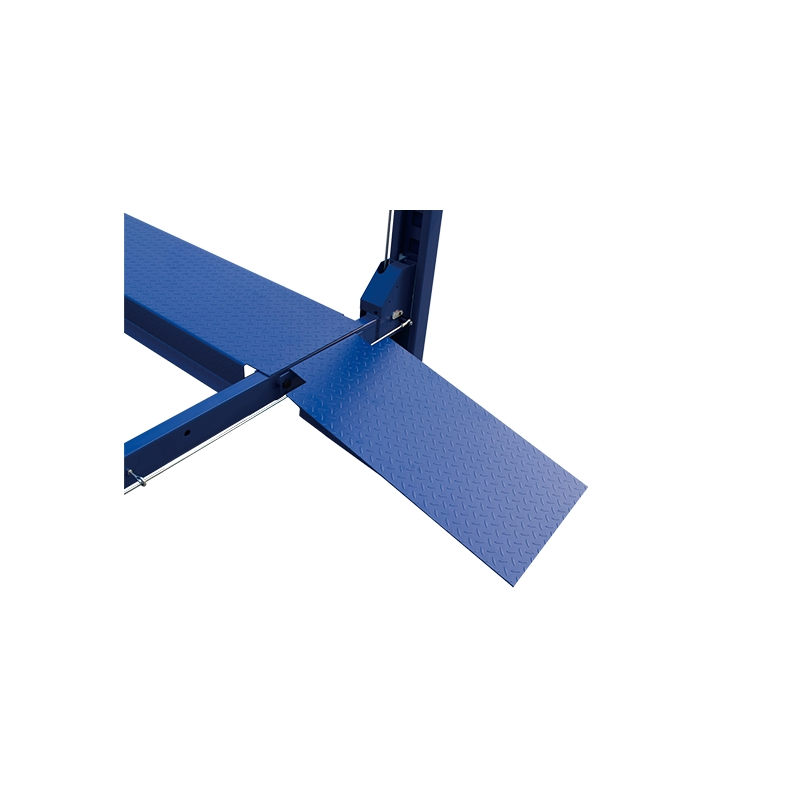

Skid proof diamond platform.
Standard drip pan (3pcs), jack pan (1pc).

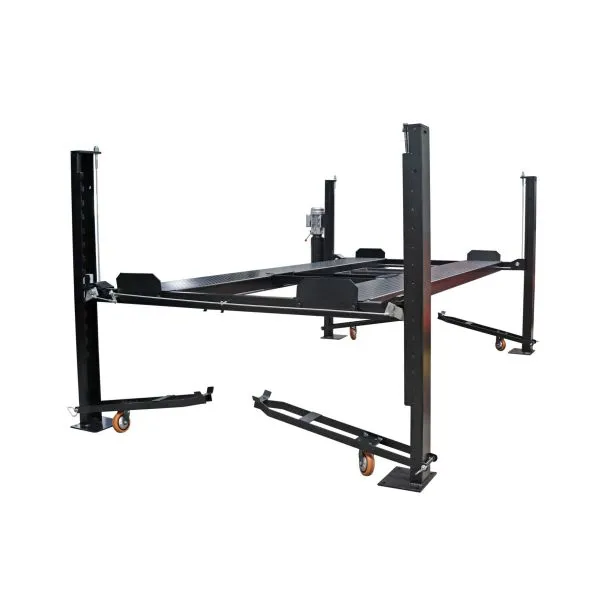

Mobile kit (4pcs) OPTIONAL.

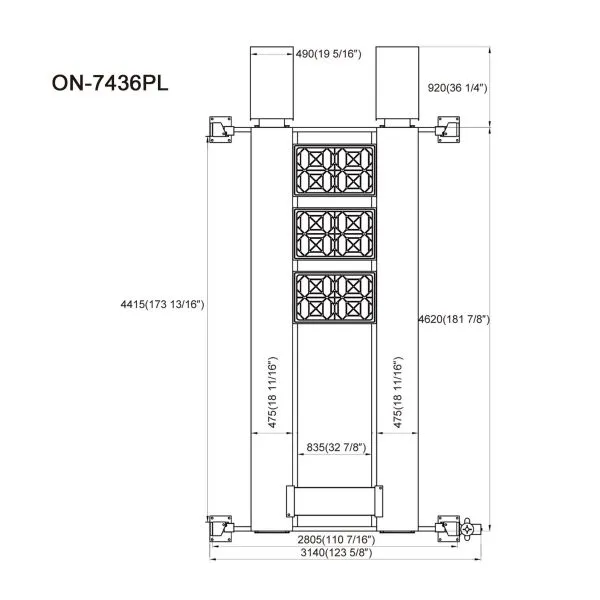

📊 Technical Data

Model	7436P	7436PL
Lifting Capacity	3,600kgs (8,000LBS)	3,600kgs (8,000LBS)
Lifting Time	≤50S	≤50S
Overall Height	2076mm (81 3/4")	2330mm (91 3/4")
Lifting Height	1845mm (72 5/8")	2100mm (82 11/16")
Overall Length (Inc. Ramps)	5120mm (201 9/16")	5540mm (218 1/8")
Overall Length (No Ramps)	4200mm (165 3/8")	4620mm (181 7/8")
Overall Width	2890mm (113 3/4")	3140mm (123 5/8")
Width inside Columns	2385mm (93 7/8")	2635mm (103 3/4")
Shipping Weight	688kgs (1,517LBS)	745kgs (1,642LBS)

💎 Key Strengths

Minimum Height: 180mm (7 1/16"), avoiding chassis hanging issues.
Adjustable Design: Column upper end suspended and lower end adjustable (40mm range) to ensure level runways.
Double Insurance: Manual safety and cable breaking safety inside the cross beam with pressure spring reset devices.

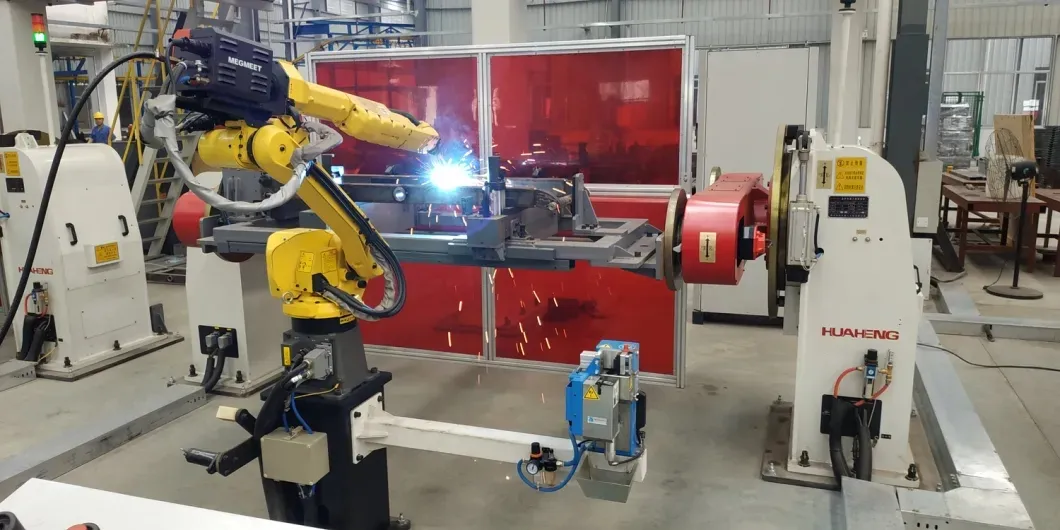

Robot Welding: Main structural parts welded by robots for consistency and high strength.

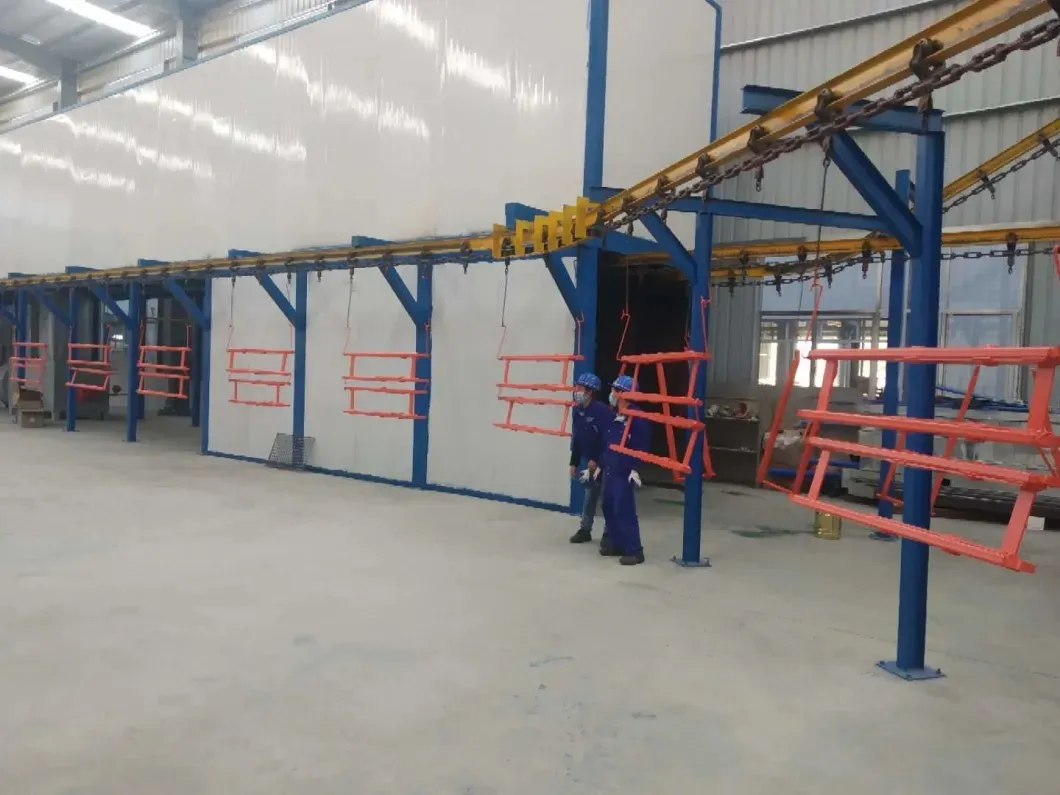

Premium Coating: High-temperature curing powder coating for strong adhesion and aesthetic finish.

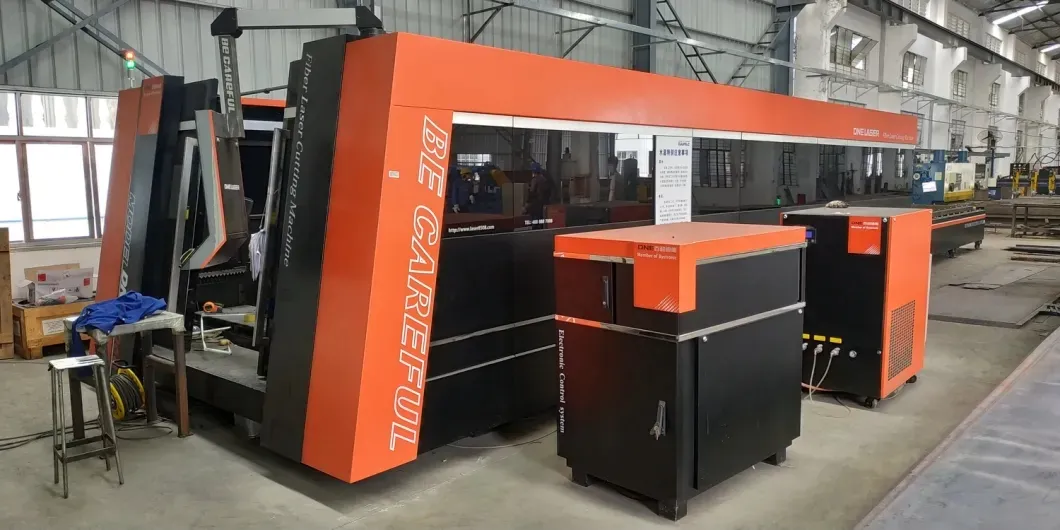

✨ Advanced Manufacturing

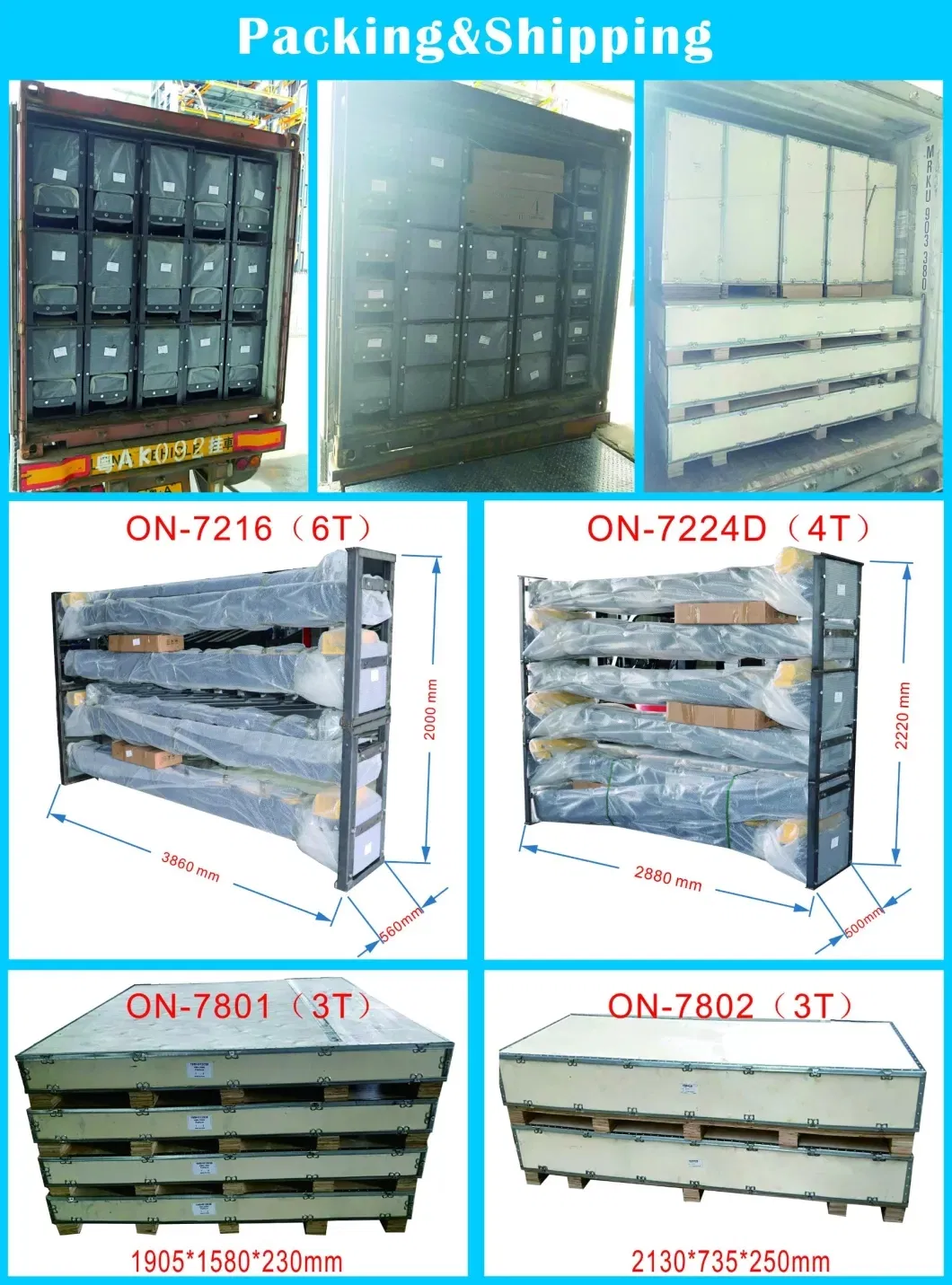

📦 Packing & Standardization

Lifts are packed in steel frames while scissor lifts utilize plywood boxes with steel outlines. Control consoles are safely protected in plywood boxes to guarantee perfect delivery condition.

❓ Frequently Asked Questions

Q1: How safe are these post car lifts?

The lifts have been tested and CE certified for safety. They also meet American and Australian Standards for structural integrity and operational safety.

Q2: Are these car lifts designed for commercial use?

Yes, all of our lifts are engineered to be used in commercial applications as well as residential garages without any performance issues.

Q3: Do you offer any custom designs or colors?

Absolutely. We provide OEM/ODM services and can offer customized lift colors or structural adjustments according to your technical drawings.

Q4: What is the typical delivery time?

Generally, it takes 10 to 20 days after receiving advance payment. The specific time depends on the specific order items and quantities.

Q5: Does the lift come with floor mounting hardware?

Yes, all lifts are shipped with the necessary anchor bolts and hardware required for mounting the unit securely to your floor.

Q6: Do these car lifts require regular maintenance?

A simple monthly checklist is recommended, including visual inspections of cables and hydraulic systems to ensure long-term reliable operation.
