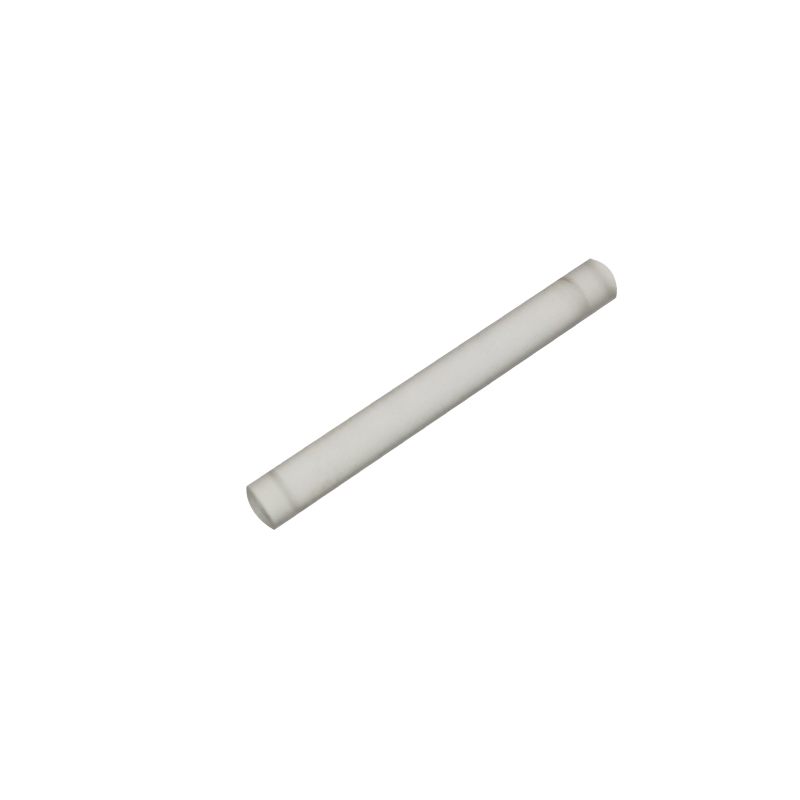

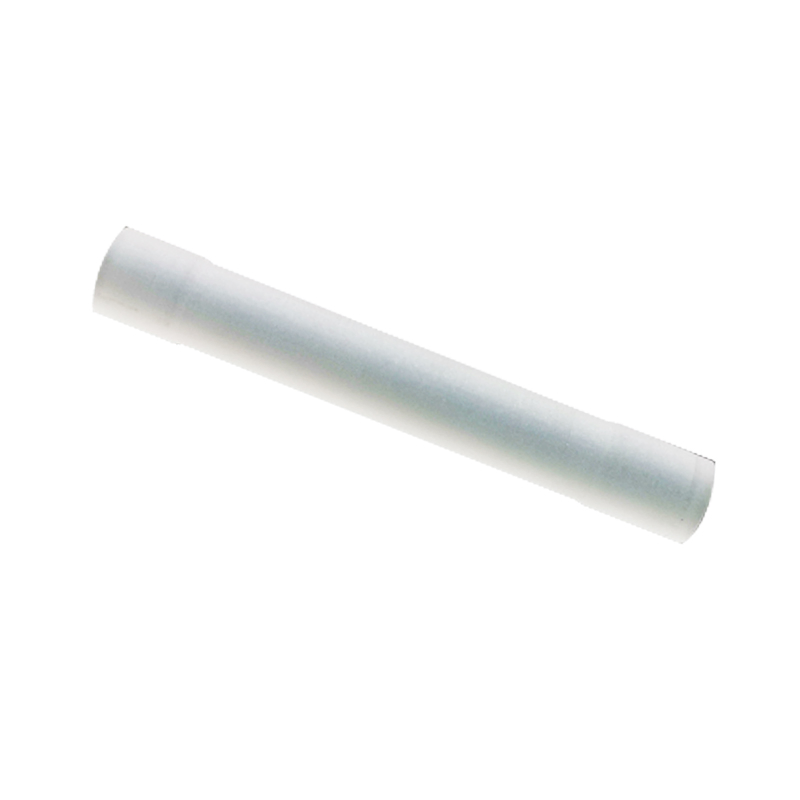

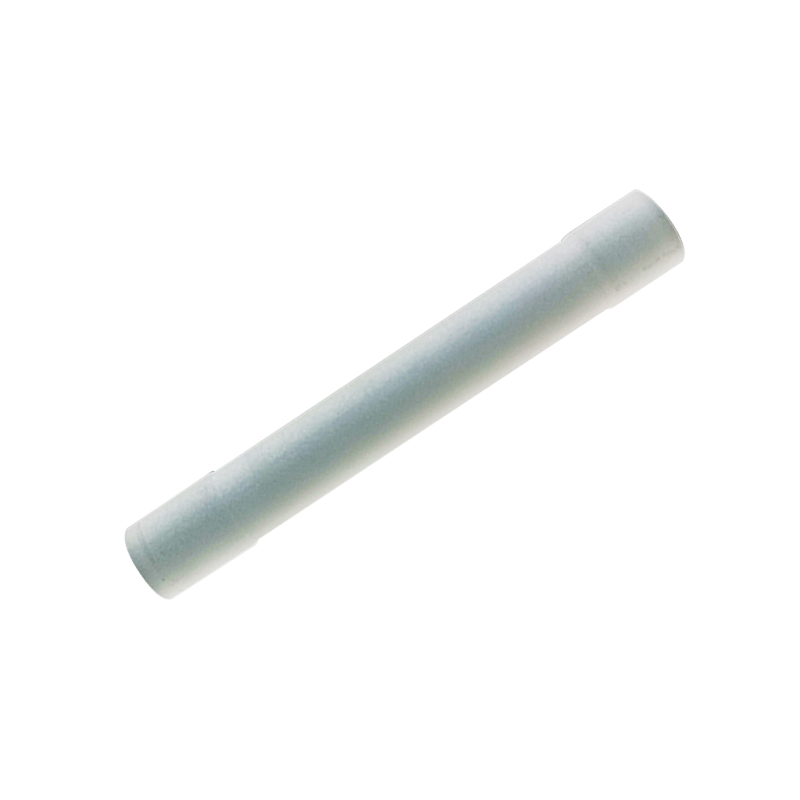

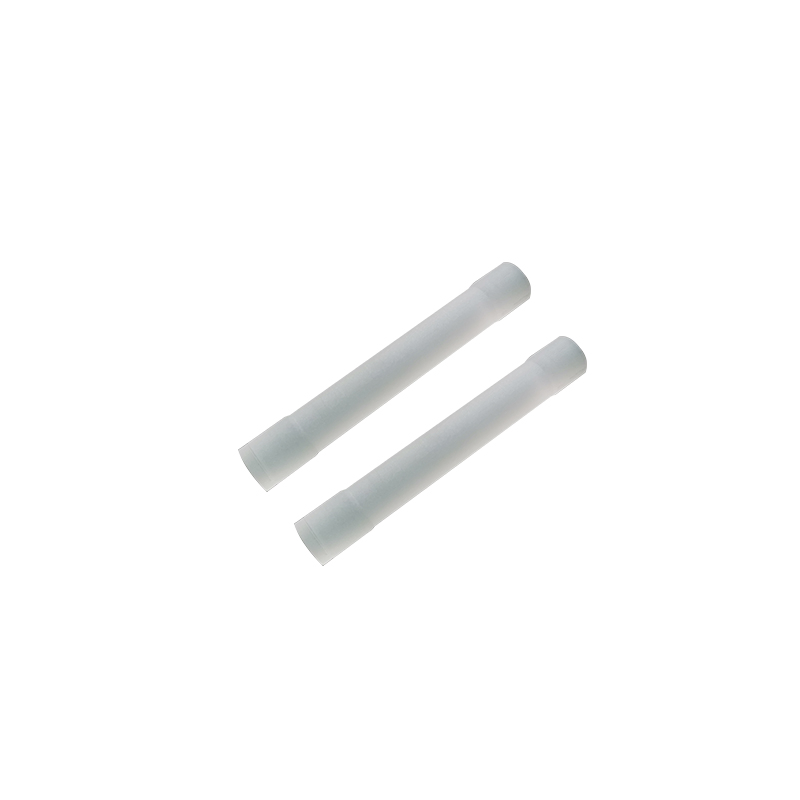

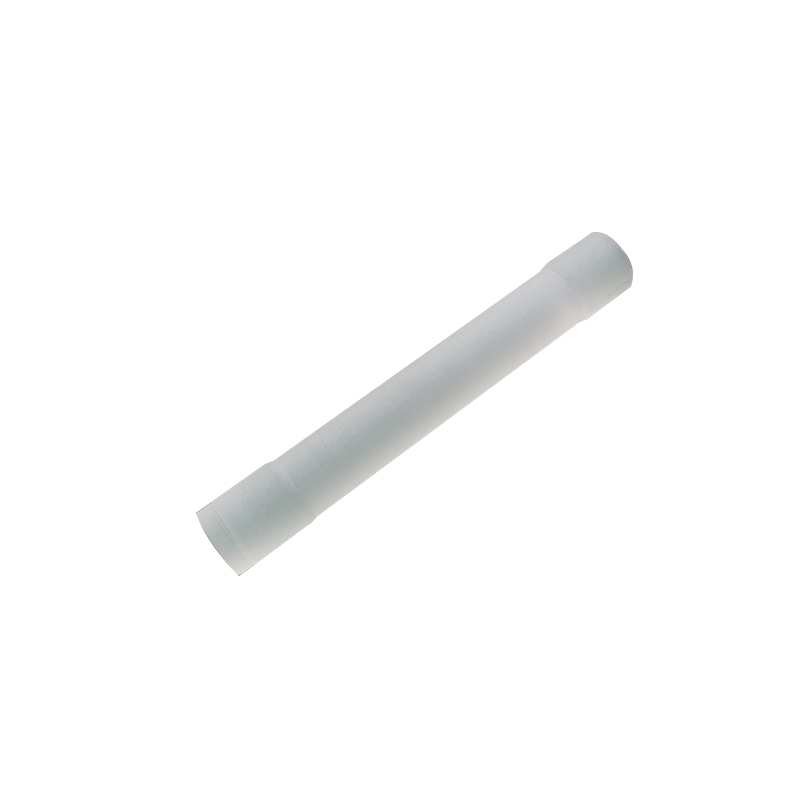

Rod lens systems utilize specialized glass rods with precision-finished optical ends. These systems provide images with significantly higher brightness, contrast, and superior color reproduction compared to conventional lens designs.
Rigid endoscopes typically feature a sequence of high-resolution optical glass rod lenses. These instruments support forward viewing (0 degrees) or angled viewing (10-120 degrees), enabling visualization beyond the telescope's axis and expanding the Field of View (FOV) through instrument rotation. The optical quality achieved by these rod lenses continues to outperform fiber-optic or digital imaging in flexible scope applications.
| Material Options | N-BK7, UVFS, H-K50, H-F4, H-BAK7, H-LAF10L, N-SK15, H-ZK21, H-F1, H-ZF4 |
| Diameter | Ø0.6mm or customized requirements |

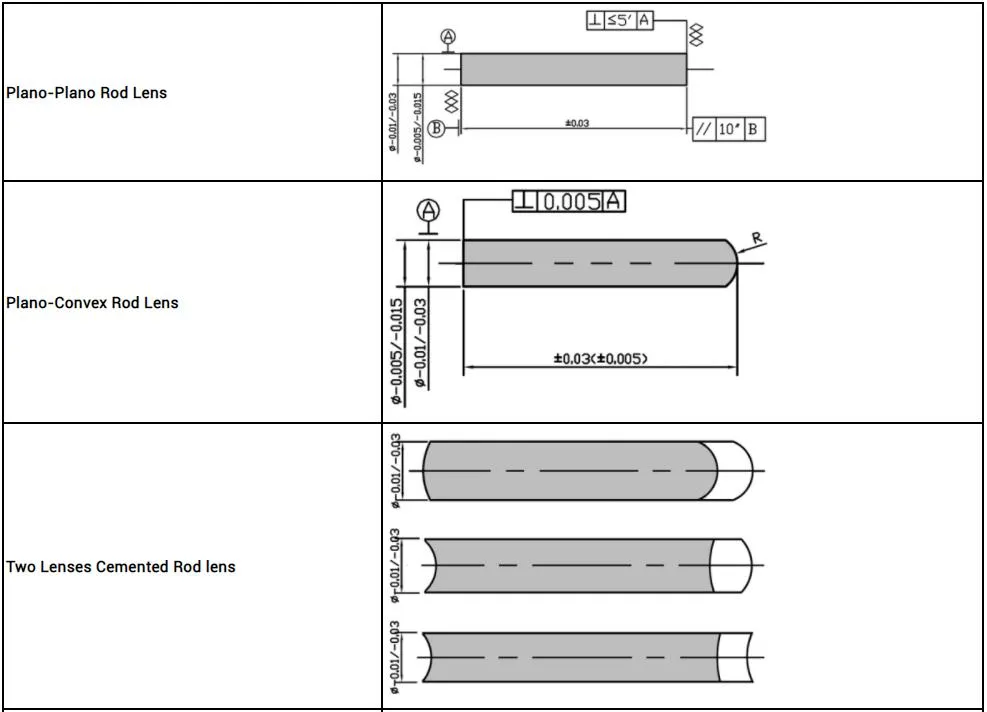

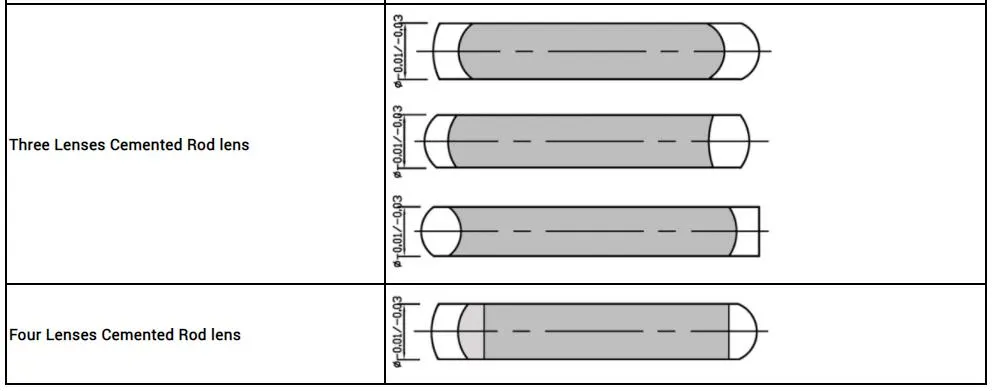

| Available Types | Flat/Flat, Plano-Convex, Plano-Concave, Cemented |
| Flatness | N < 3, ΔN < 0.5 (Spherical); N λ/4~λ/8 (Flat surface) |
| Surface Quality | 20/10 ~ 60/40 |
| Clear Aperture | > 90% |
| Coating | Uncoated or customized AR coating |
| Material Group | Length (mm) | Dia 1 | Dia 2 | Dia 3 | Dia 4 | Dia 5 |
|---|---|---|---|---|---|---|
| N-BK7, UVFS, H-K50, H-BAK7, etc. | 11.4 | 2.1 | 2.0 | 1.9 | 1.8 | 1.7 |
| 17.6 | 2.2 | 2.1 | 2.0 | 1.9 | 1.8 | |
| 22.9 | 2.8 | 2.7 | 2.2 | 2.1 | 2.0 | |
| 29.5 | 3.5 | 3.2 | 3.0 | 2.8 | 2.7 | |
| 46.0 | 6.6 | 6.5 | 6.0 | 5.5 | - |
