📋 Basic Information
Certification
RoHS, ISO9001, CE
Transport Package
Foam Carton Inner, Protective Cartons
Production Capacity
2000 Units
🔬 Product Description

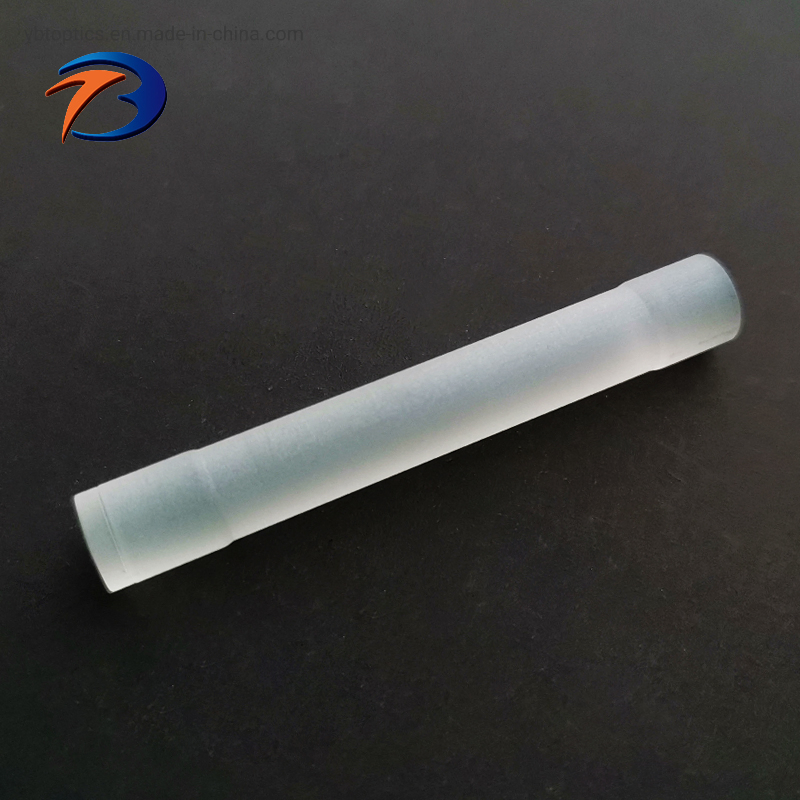

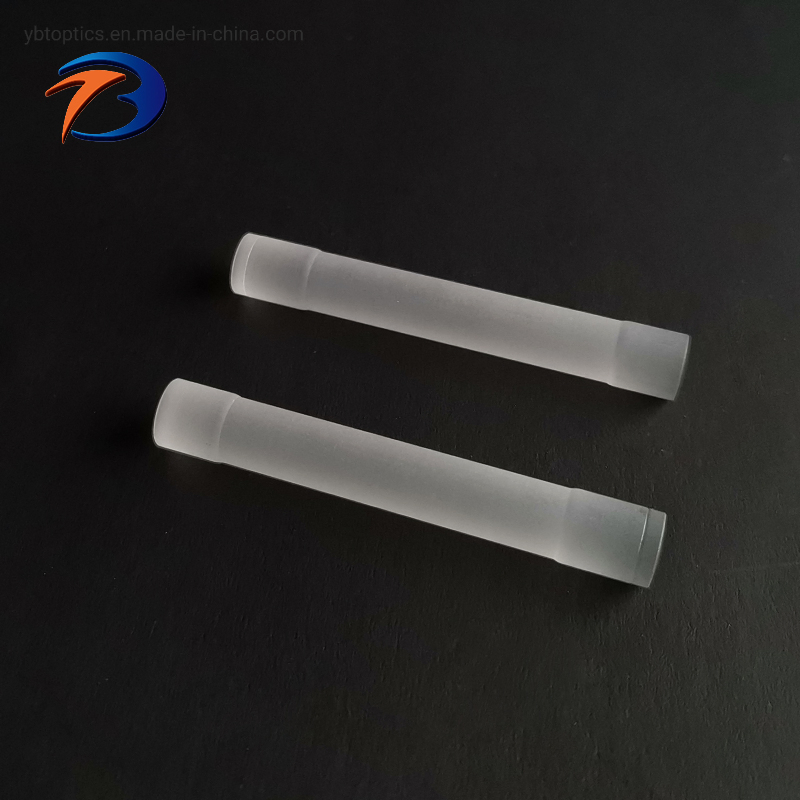

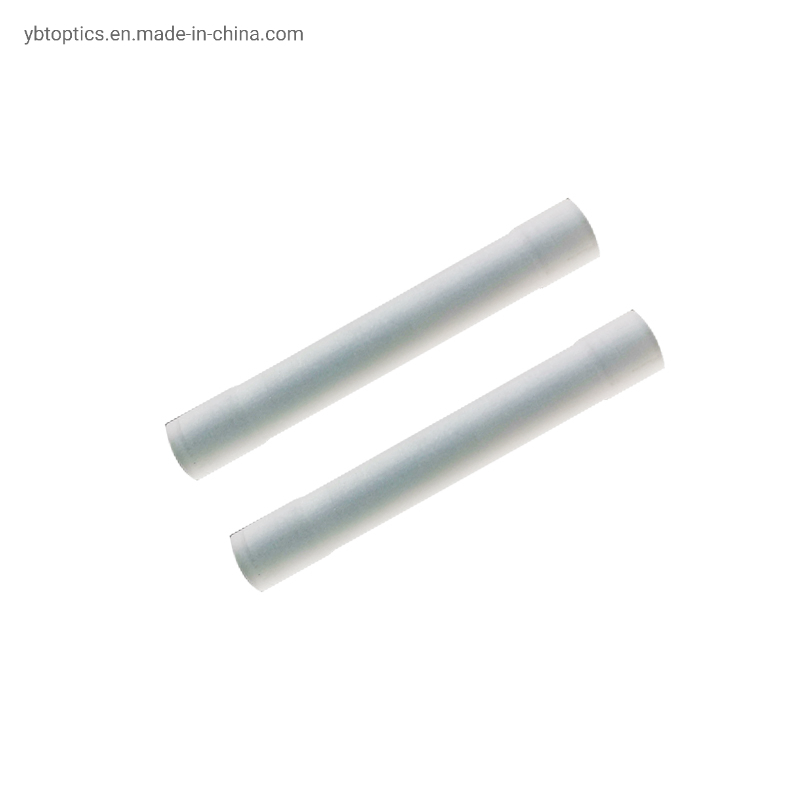

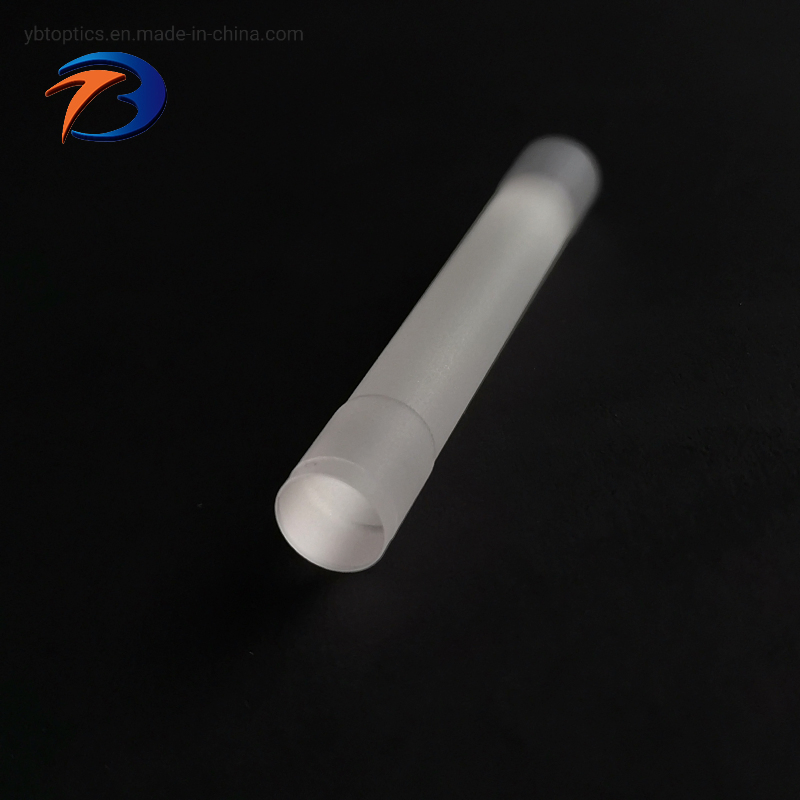

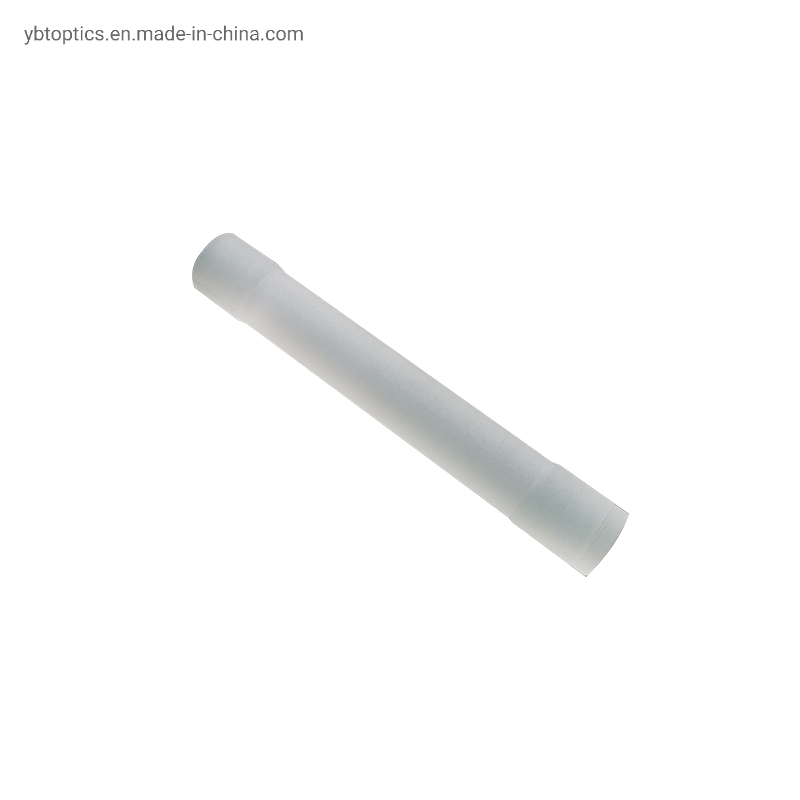

Rod Lenses for Rigid Endoscopes:
Rod lens systems use special glass rods with optically finished ends, providing images with higher brightness, contrast and colour reproduction than conventional lenses.
Commonly, rigid endoscopes have a series of high-resolution optical glass rod lenses. The endoscopes can be forward viewing (0 degrees) or angled (10-120 degrees) to allow visualization out of the axis of the telescope and increase the FOV by rotating the instrument. The optical quality of lens-generated images of rigid endoscopes still surpasses that of the fiber-optic or digital images produced by flexible scopes.
| Technical Specifications |
| Material |
N-BK7, UVFS, H-K50, H-F4, H-BAK7, H-LAF10L, N-SK15, H-ZK21, H-F1, H-ZF4 |
| Diameter |
Ø0.6mm or customization |
| Type |

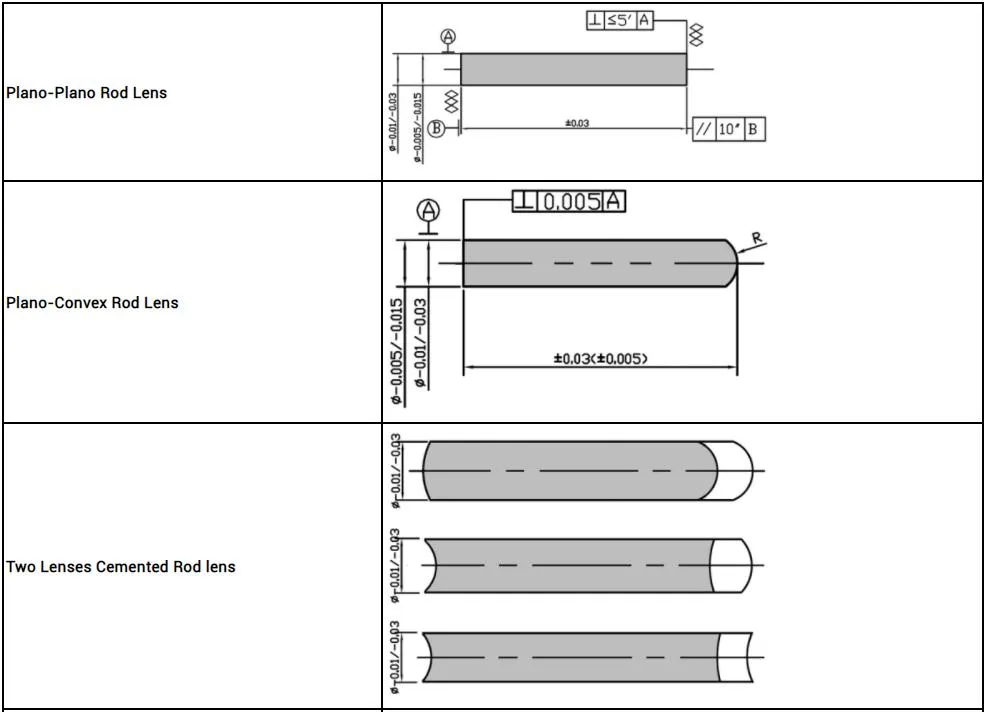

Flat/Flat, Plano-Convex, Plano-Concave, Cemented |
| Flatness |
N<3, ΔN<0.5 (spherical); N λ/4~λ/8 (flat) |
| Centering |
<5' |
| Surface Quality |
20/10~60/40 |
| Clear Aperture |
90% |
| Coating |
Uncoated, or customized |

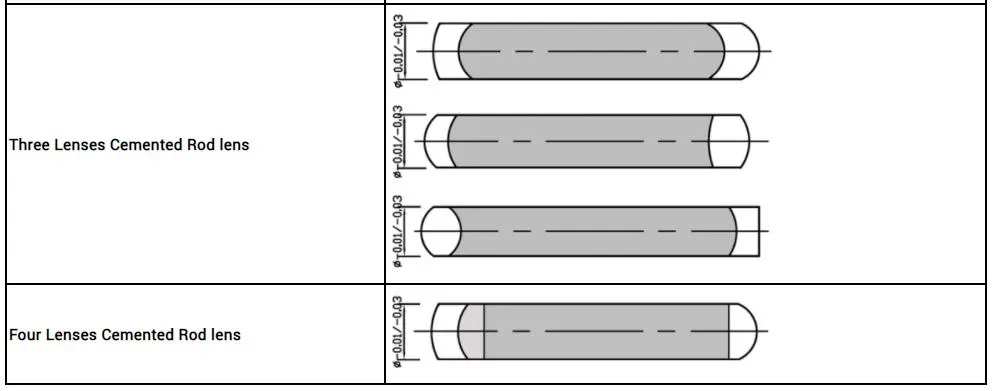

Micro Rod Lenses are available with various configurations including flat, plano-convex, plano-concave, and cemented designs specifically applied in medical endoscopes.
📏 Dimensions & Parameters
| Material |
Length (mm) |
Dia (Options) |
| N-BK7, UVFS, H-K50, H-F4, H-BAK7, H-LAF10L, N-SK15, H-ZK21, H-F1, H-ZF4 |
11.4 / 14.7 / 15 |
2.1, 2.0, 1.9, 1.8, 1.7 |
| 17.6 / 19.4 / 20.2 |
2.2, 2.1, 2.0, 1.9, 1.8 |
| 22.9 / 23 / 24 |
2.8, 2.77, 2.2, 2.1, 2.0, 1.9, 1.8 |
| 29 |
3.5, 3.2, 2.77, 3.0, 2.8, 2.7 |
| 29.5 / 29.8 |
3.5, 3.2, 3.0, 2.8, 2.7 |
| 46 |
6.6, 6.5, 6.0, 5.5 |
❓ Frequently Asked Questions
What is the primary advantage of rod lenses in endoscopes?
Rod lenses provide significantly higher brightness, contrast, and superior color reproduction compared to standard fiber-optic imaging systems.
What materials are available for these lenses?
We utilize high-quality optical glasses including N-BK7, UVFS, H-K50, N-SK15, and various other specialized optical glass types based on application needs.
Can the dimensions of the rod lenses be customized?
Yes, we support customization for diameter (starting from Ø0.6mm), length, and specific optical shapes such as plano-convex or cemented types.
What are the available viewing angles?
Rigid endoscopes using these lenses can support forward viewing at 0 degrees or angled viewing ranging from 10 to 120 degrees.
What surface quality standards do you maintain?
We offer surface quality grades ranging from 20/10 to 60/40 to ensure precision imaging for medical and industrial use.
Do these lenses come with anti-reflective coatings?
Lenses can be supplied uncoated or with customized optical coatings depending on your specific transmission requirements.
