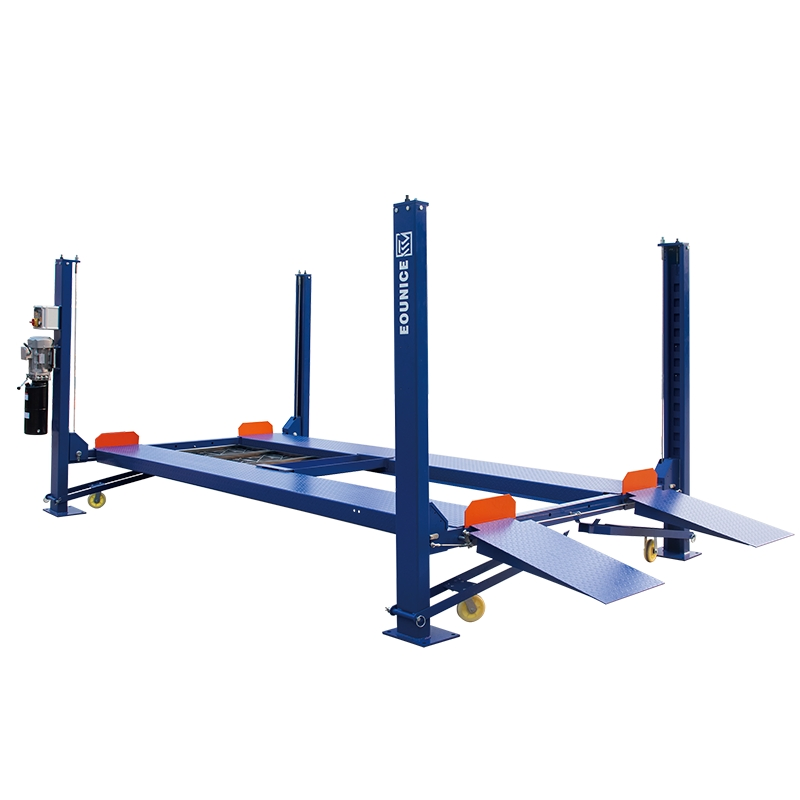

Guangzhou China 4-Post Car Lift External Lock System Car

Customization:	Available
After-sales Service:	1-5 Years
Warranty:	1-5 Years

i

Basic Specifications

Model NO.

ON-7436pl

Type

Four Cylinder Hydraulic Lift

Lifting Capacity

3.6t

Driving Type

Hydraulic

Certification

CE, ISO

Design

Four Post

Transport Package

745kgs

Specification

4650*550*770mm

HS Code

8425429000

Capacity

10000 Units

★

Product Description & Features

Manual safety lock release, longer and wider 4 post parking lift. Overall Height 2330mm.

3,600Kg (8,000LBS.) lifting capacity.
Single-point safety lock release by manual.
Mechanical locks automatically engaged into position in ascending process.
Out of level protection, safe and reliable.

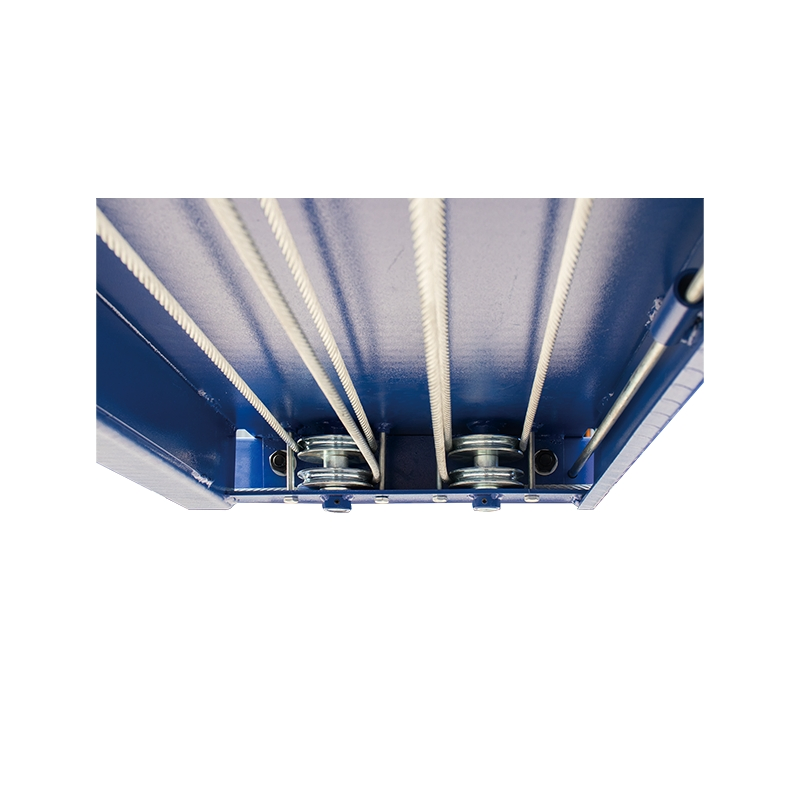

Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
Skid proof diamond platform.
Standard drip pan (3pcs), jack pan (1pc).

📊

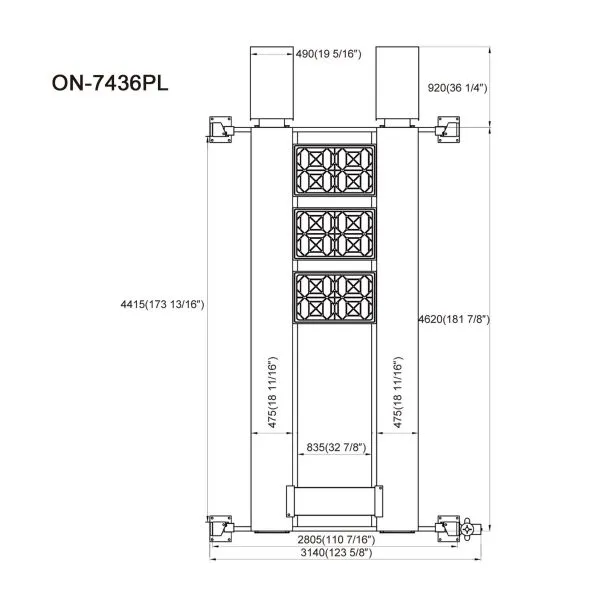

Technical Data Comparison

Specifications	Model 7436P	Model 7436PL
Lifting Capacity	3,600kgs (8,000LBS)	3,600kgs (8,000LBS)
Lifting Time	≤50S	≤50S
Overall Height	2076mm (81 3/4")	2330mm (91 3/4")
Lifting Height	1845mm (72 5/8")	2100mm (82 11/16")
Overall Length (Inc. Ramps)	5120mm (201 9/16")	5540mm (218 1/8")
Overall Width	2890mm (113 3/4")	3140mm (123 5/8")
Shipping Weight	688kgs (1,517LBS)	745kgs (1,642LBS)

✔

Core Strengths

1. Minimum ground height is 180mm, avoiding low chassis hanging issues.

2. Column ends are adjustable (40mm range) to ensure level runways on uneven ground.

3. Double insurance: Manual safety and cable breaking safety inside the cross beam.

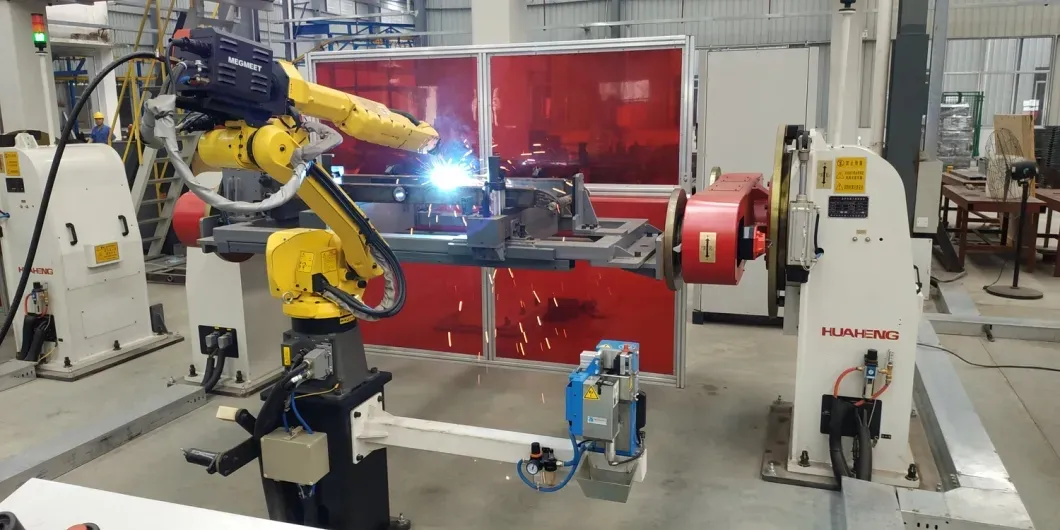

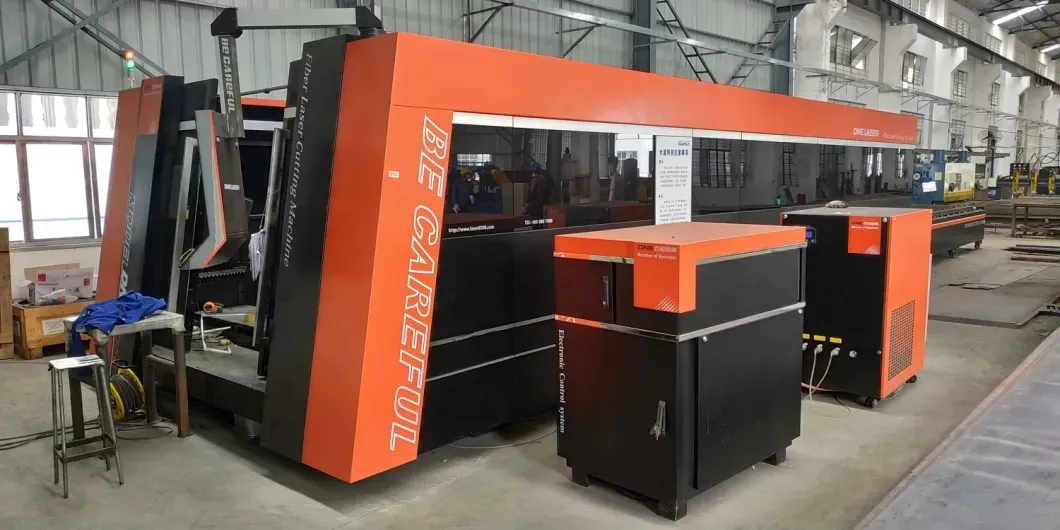

4. Main structural parts are welded by robotic arms for high strength and beautiful seams.

📦

Packing & Shipping

Lifts are steel frame packed while scissor lifts use plywood boxes with steel outlines. Strong packing guarantees the delivery in perfect condition.

?

Frequently Asked Questions

How safe are these car lifts?

Our lifts have been tested and CE certified for safety. They meet the American and Australian Standards, ensuring high reliability for users.

Are these lifts designed for commercial use?

Yes, all of our lifts can be used in commercial applications as well as residential garages without any problems.

What is the typical delivery time?

Generally, it takes 10 to 20 days after receiving your advance payment. The specific time depends on the items and quantity of your order.

Do the lifts come with mounting hardware?

All units are shipped with the necessary anchors and hardware required for mounting the unit to your floor.

What ceiling height is required for installation?

The required height depends on the specific model and the vehicle intended to be lifted. Please refer to the technical specifications or contact our team for advice.

Do the lifts require regular maintenance?

A simple monthly checklist is recommended. Cables and hydraulic systems should be inspected visually every time you operate the lift to ensure long-term safety.
