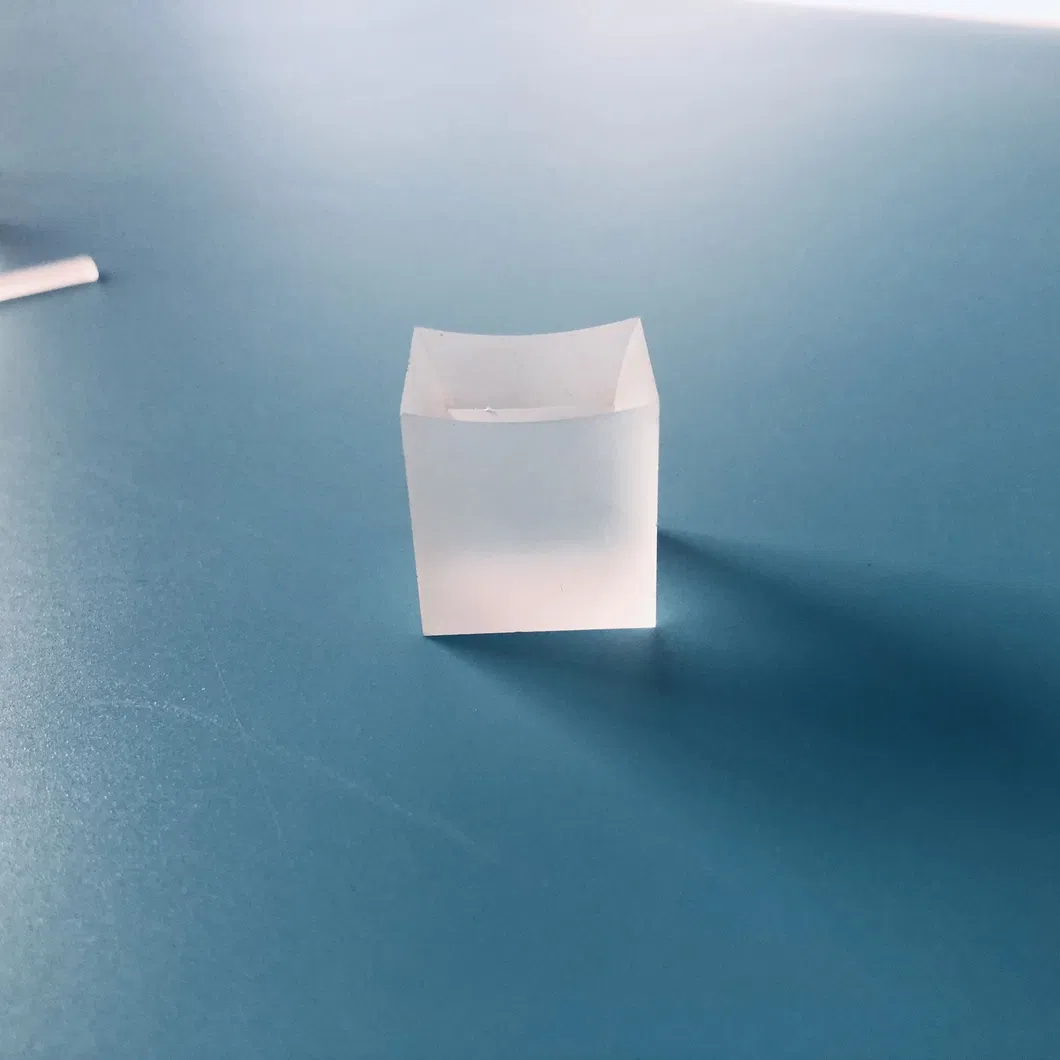

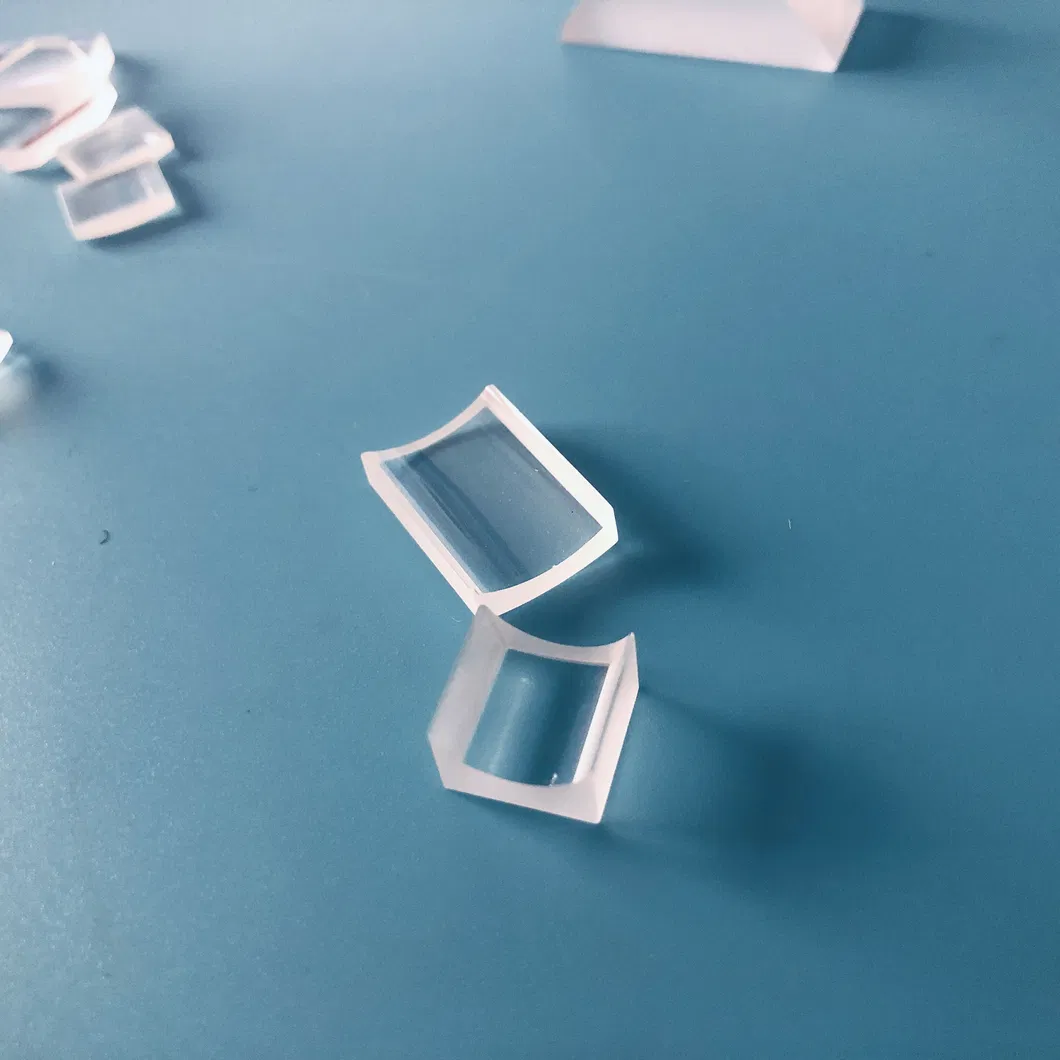

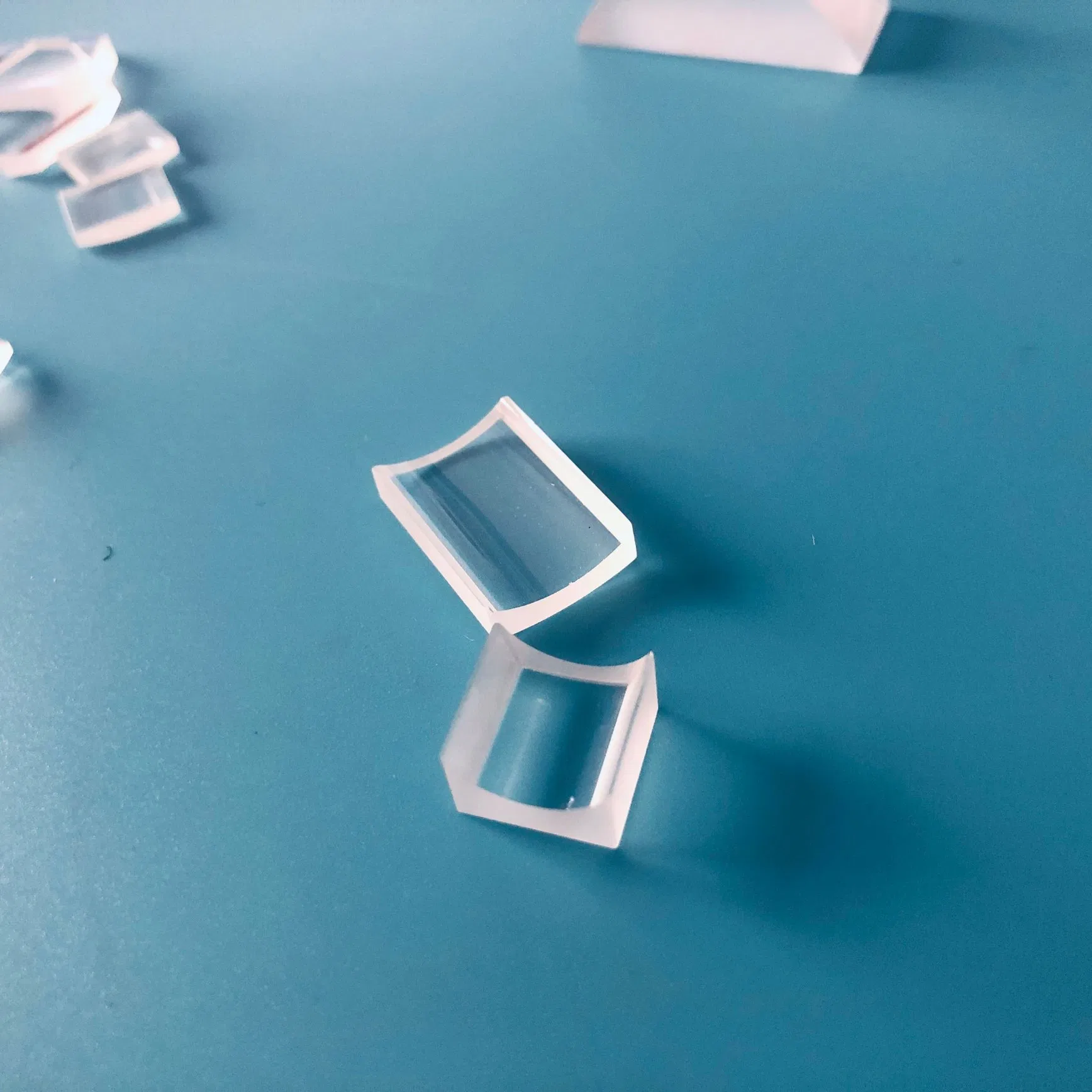

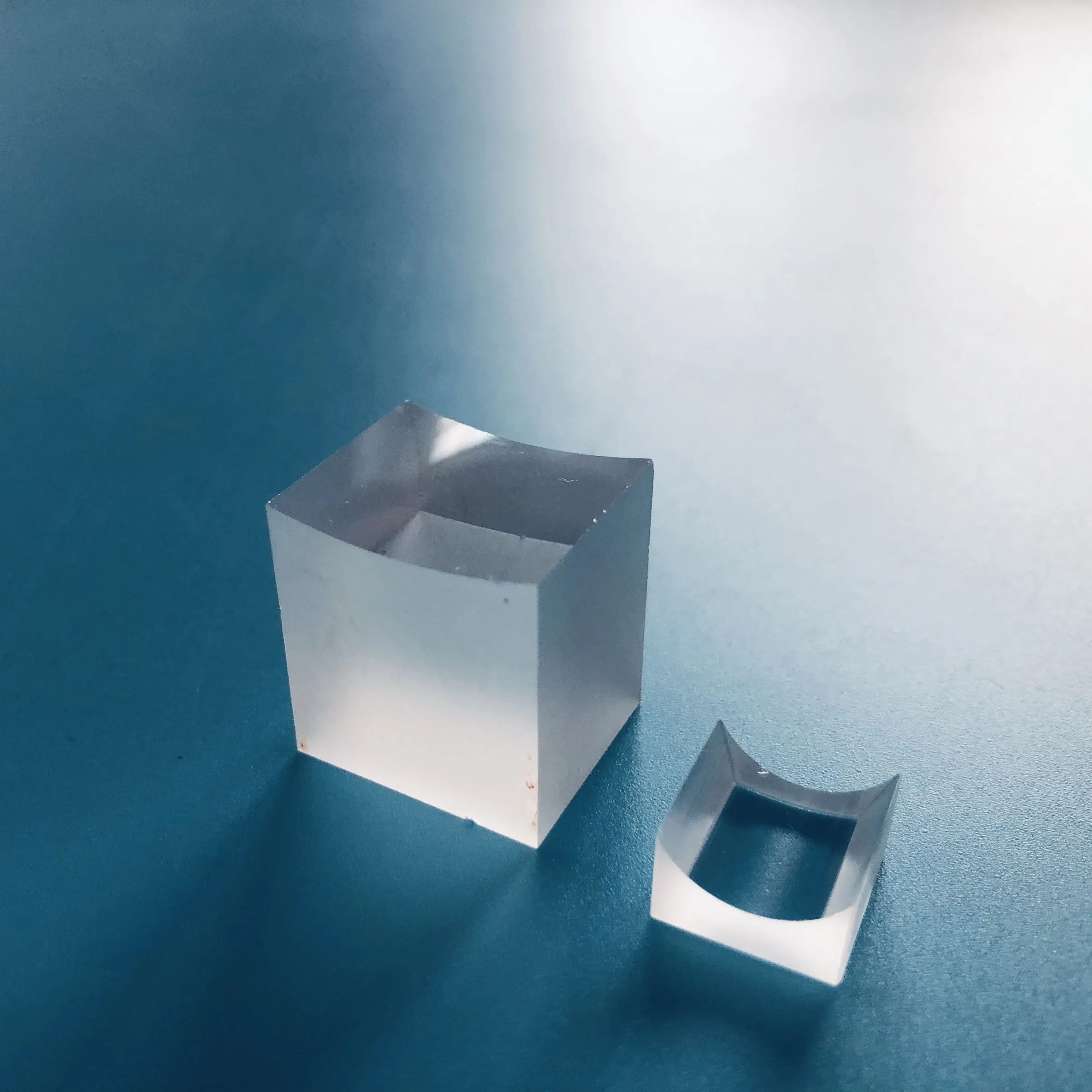

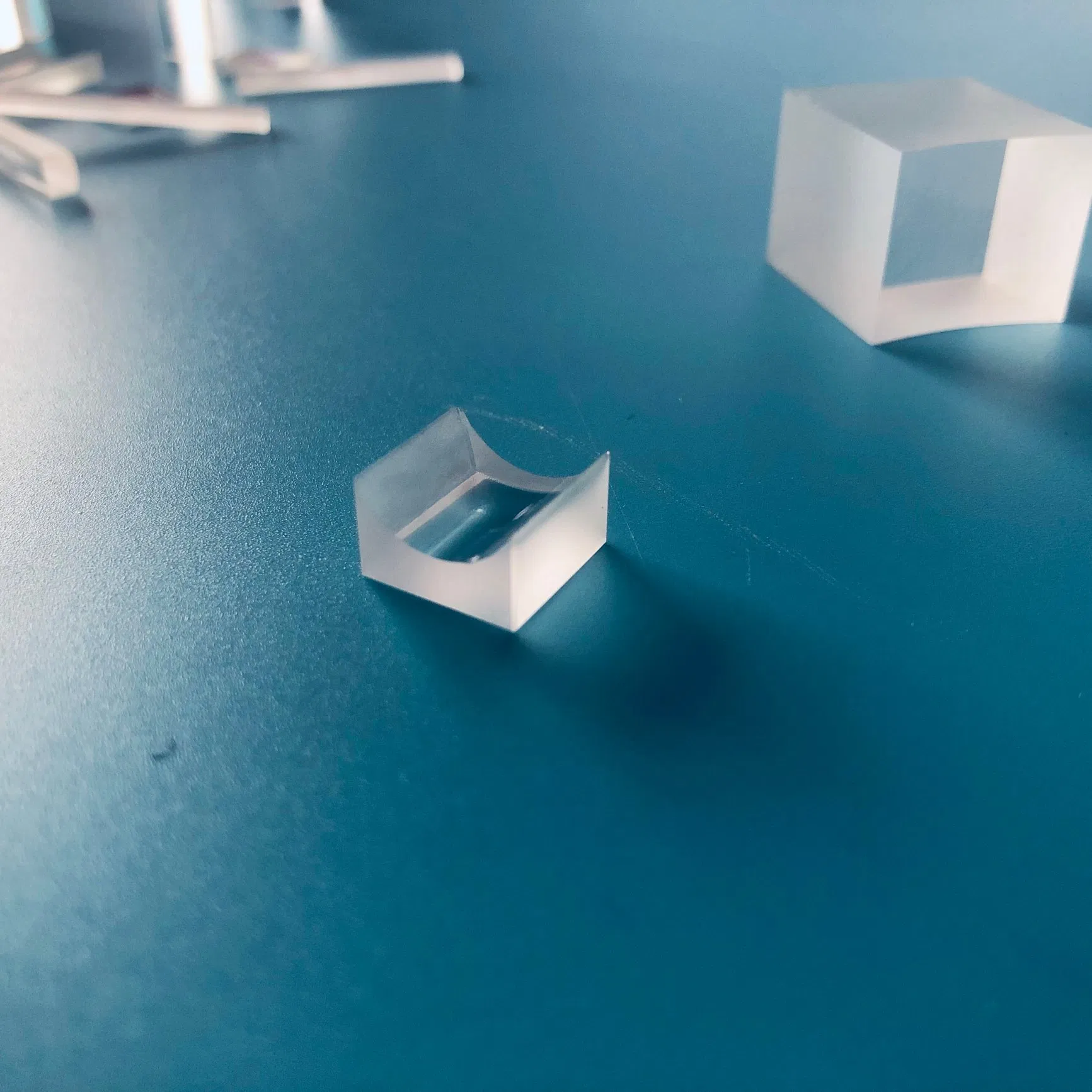

Cylindrical Lenses: High-performance lenses crafted from various optical crystals and glasses.

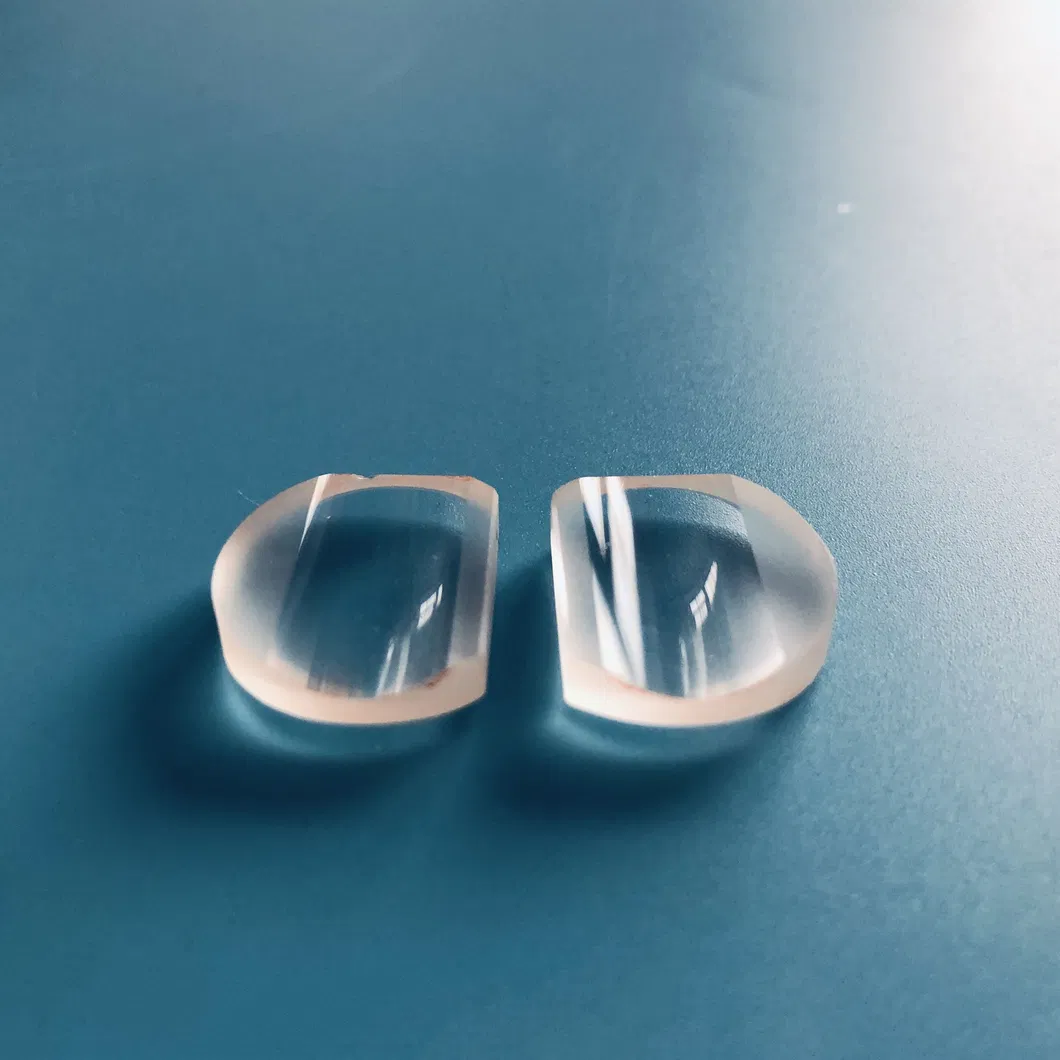

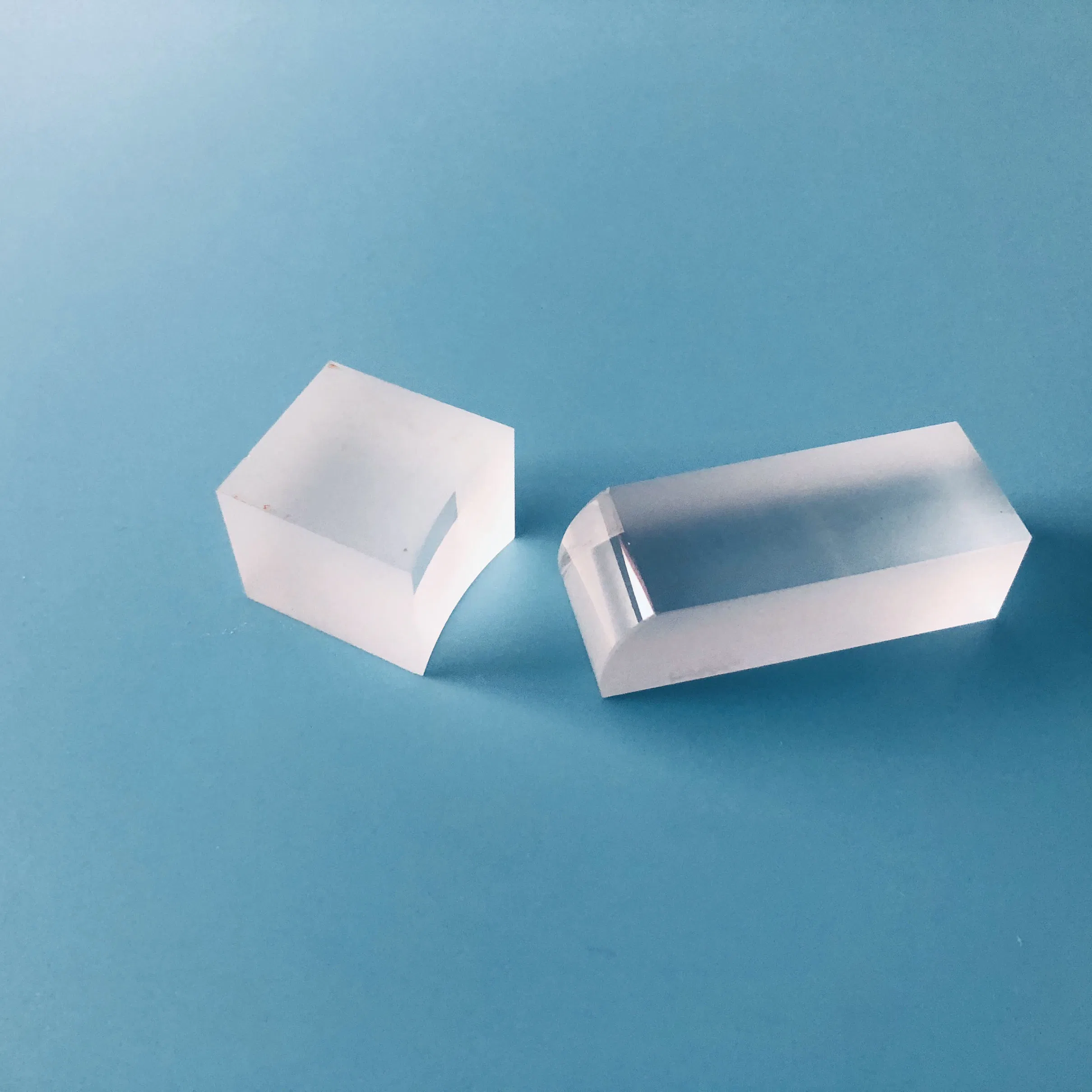

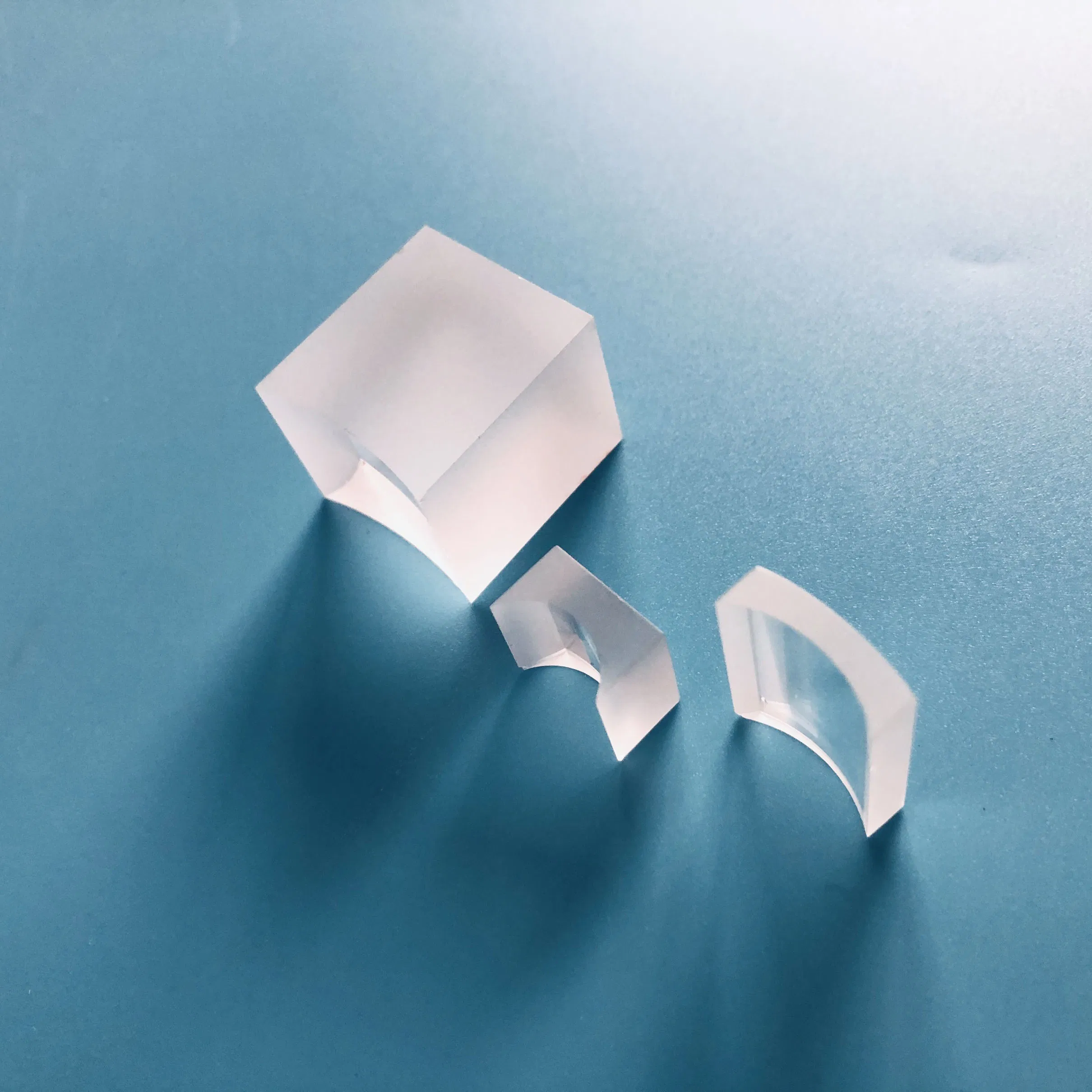

Design options include convex, concave, round, and rectangular configurations tailored to specific requirements. Cylindrical lenses serve as critical transfer and output optics, effectively minimizing spherical aberrations in optical systems.
| Material | Fused Silica or other optical glass |
| Diameter | Custom Requirements |
| Thickness | 0.5-50mm |
| Height Tolerance | +0.0 / -0.1 mm |
| Focal Length Tolerance | +/-1% |
| Centration | 1 Arc Min |
| Surface Flatness | L/4 |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |
| Coating | Uncoated / Customized |

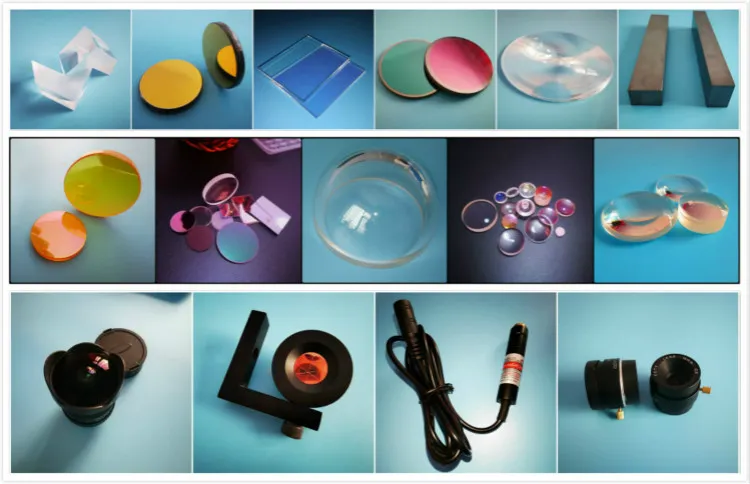

Specializing in the design and volume manufacturing of high-performance optical components including lenses, prisms, windows, filters, and mirrors. Materials range from standard optical glass to specialized IR and UV glass, serving industries such as telecommunications, medical, and environmental monitoring.

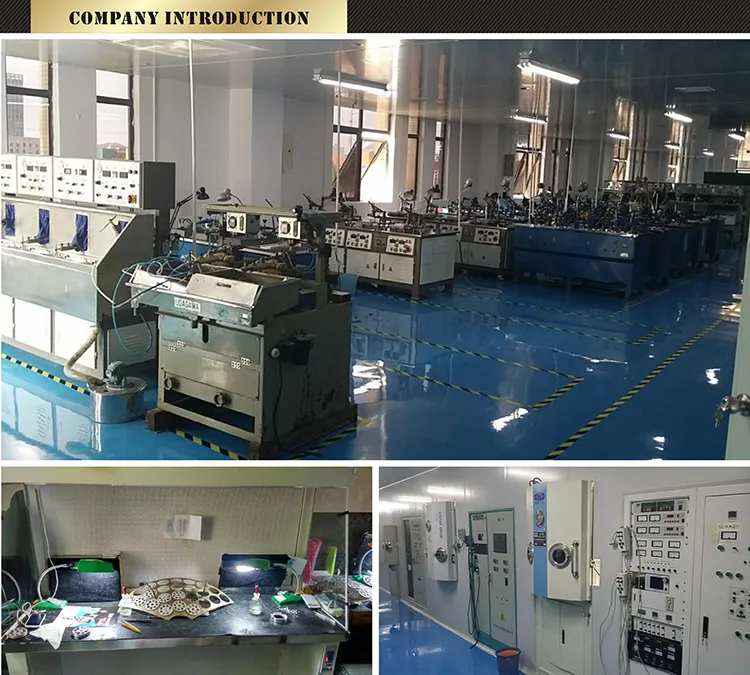

Utilizing state-of-the-art machinery: Ring polishing machines, Single/Two/Four axis machines, Centering edging machines, Mechanical milling, and Nanotech 250upl.
Inspection utilizes ZYGO, Stereo interferometers, and Horizontal interferometers. Detailed testing reports are provided for every batch.
