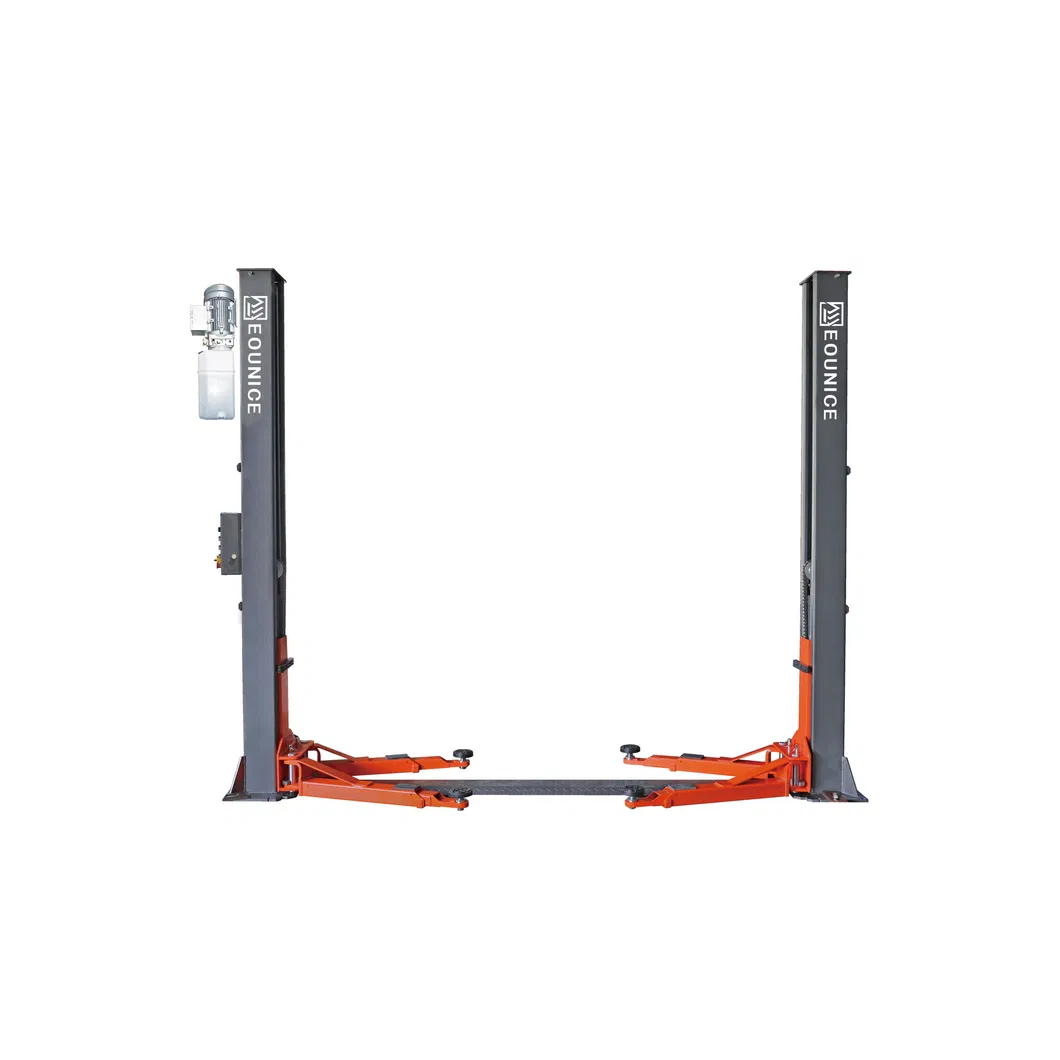

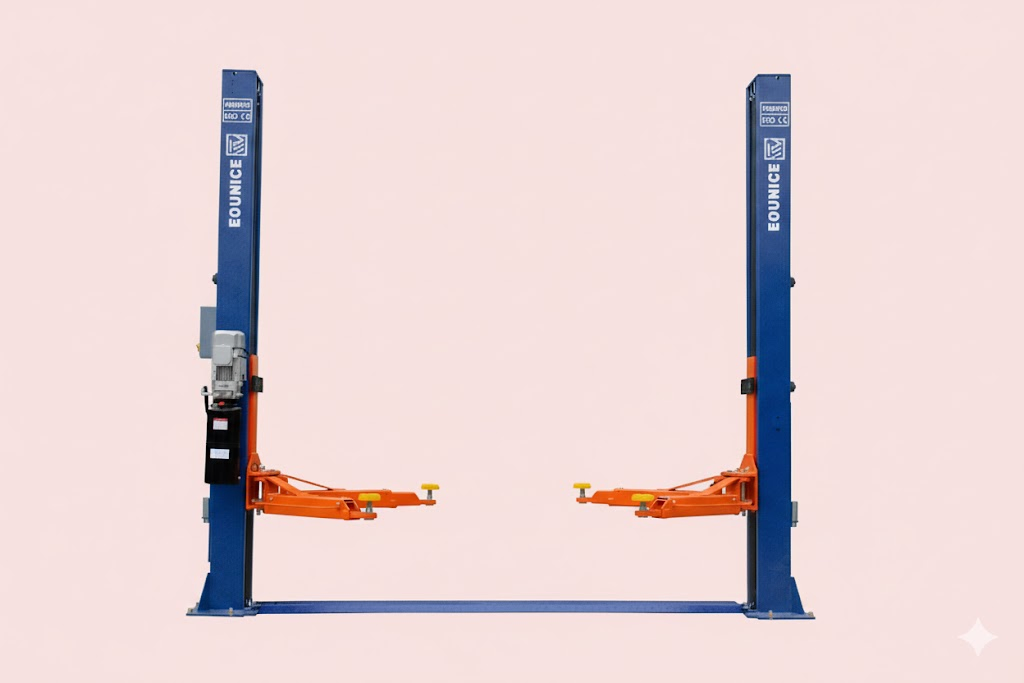

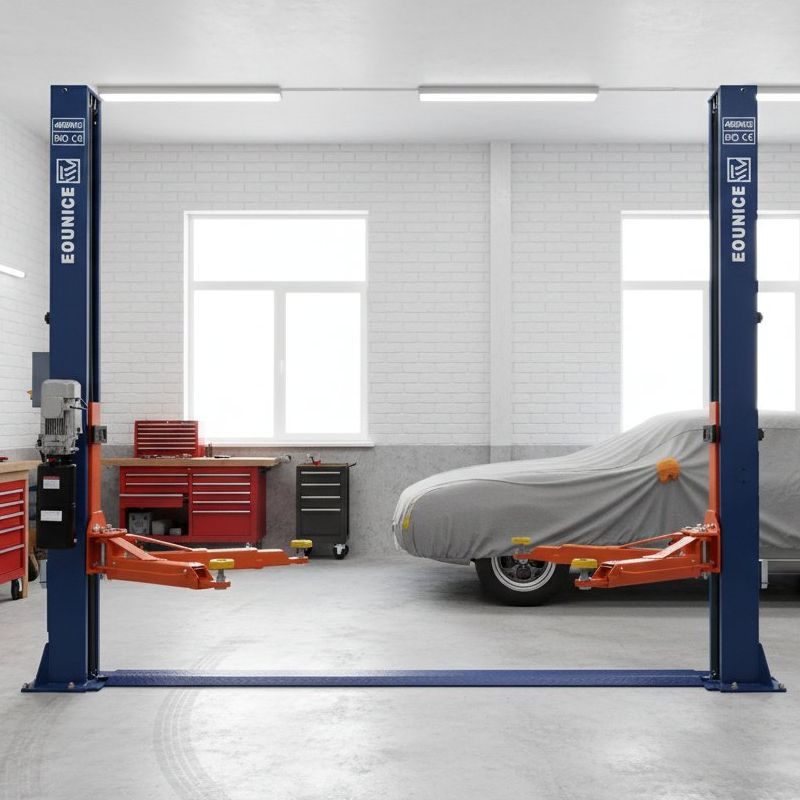

Floor Plate Chain Drive Two Post Vehicle Lift System

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

📊

Basic Information

Model NO.

ON-7224E

Type

Double Cylinder Hydraulic Lift

Lifting Capacity

4200kgs

Driving Type

Hydraulic

Certification

CE, ISO

Lifting Height

1920mm (75 9/16")

Overall Height

3892mm (153 1/4'')

Min Height

95mm (3 3/4'')

Lifting Time

≤ 55s

Faling Time

≤ 35s

⚙️

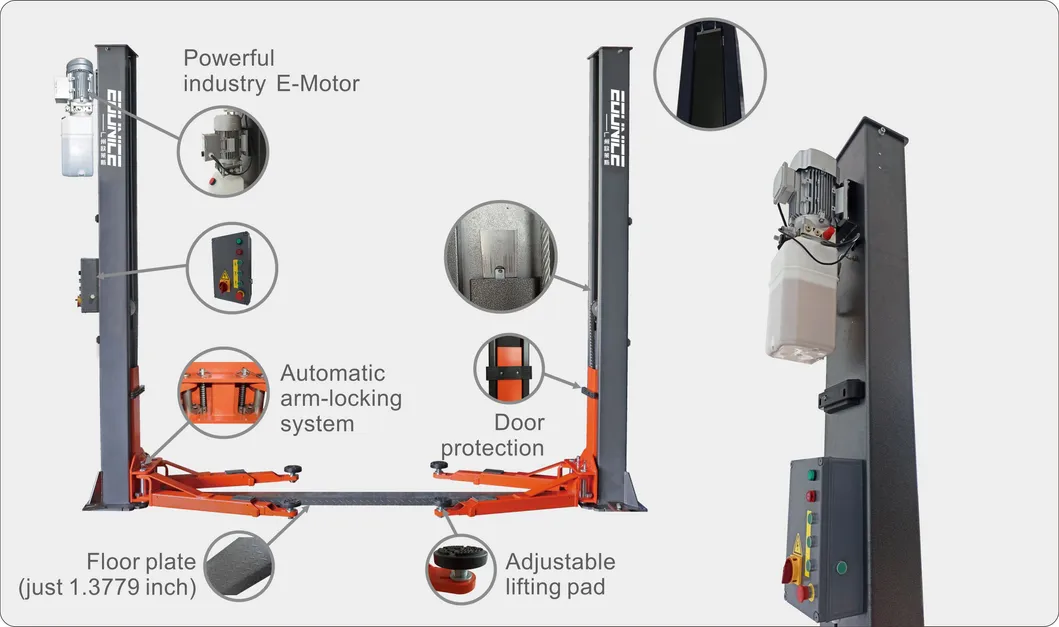

Product Features

4.2 Ton lifting capacity, passed 120% dynamic and 150% static load test.
2574mm drive through width, suitable for most vehicles.
500mm wide column base plate making the lift more stable and reliable.

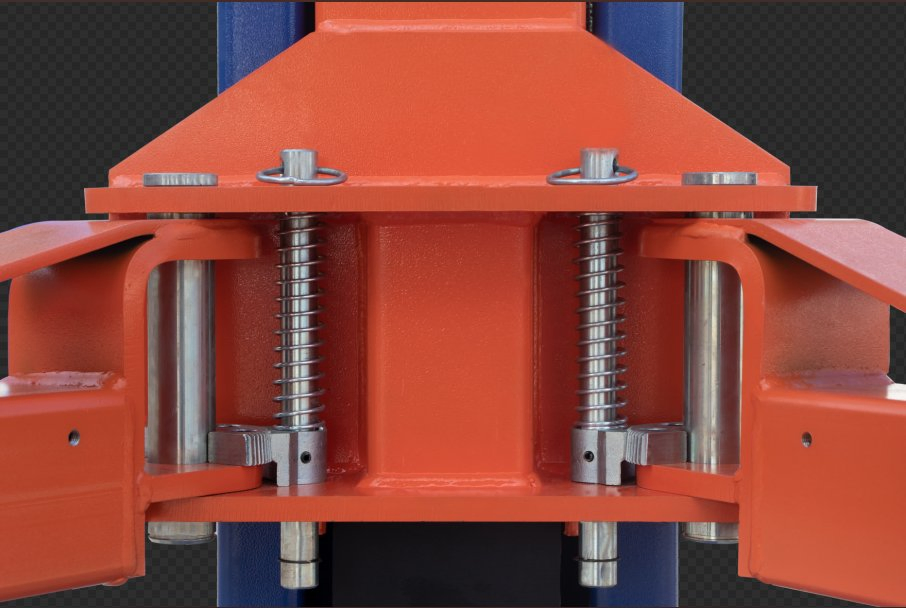

Standard with 4 two-stage lifting arms, suitable for different chassis vehicles.

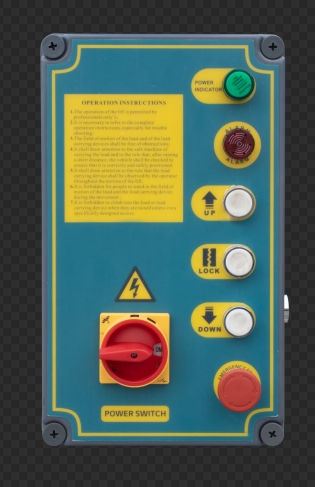

24V low-voltage operation electric lock release device.

📋

Technical Data

Model	Lifting Capacity	Lifting Time	Lifting Height	Min Height	Overall Height	Between Columns	Motor Power
ON-7224E	4200kg (9300LBS)	≤55S	1920mm	95mm	2824mm	2850mm	2.2kw

💎

Manufacturing Excellence

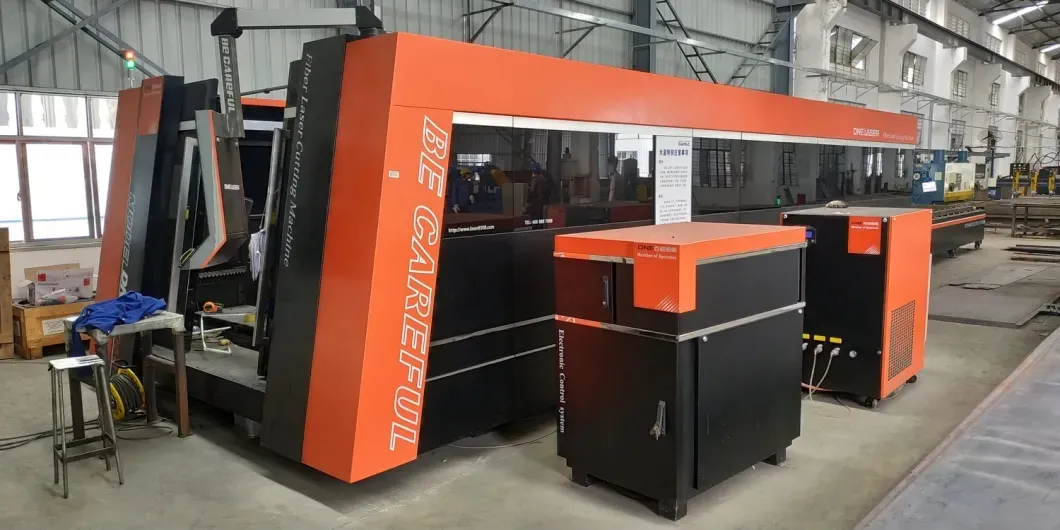

Seamless Laser Cutting

Achieve high accuracy and precision cuts while preventing any damage or warping, even with thin materials. Higher sheet utilization minimizes waste reflects our commitment to efficiency.

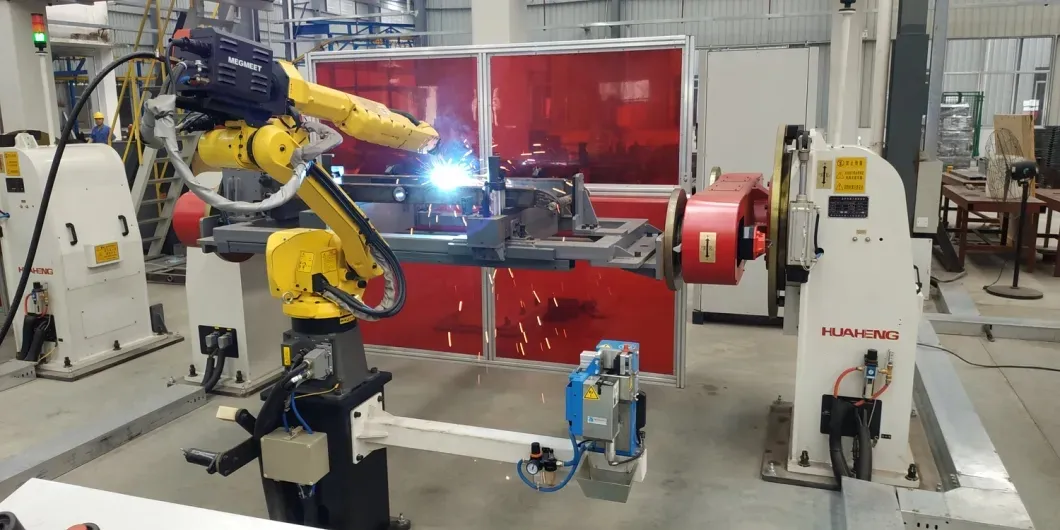

Robotic Welding Technology

Provides a seamless appearance that is not only visually appealing but also enhances overall structural strength.

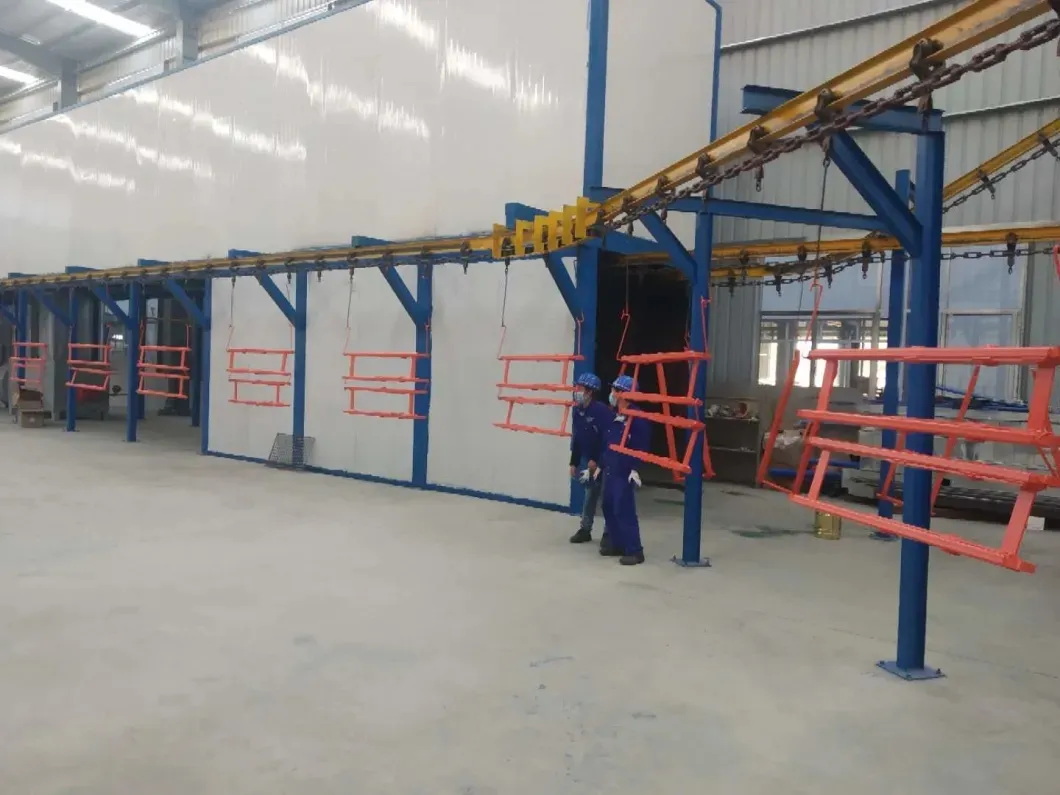

Powder Coating

Utilizing imported powder and sprayers to achieve high adhesion, clear powdering effects, and an aesthetically smooth appearance.

📦

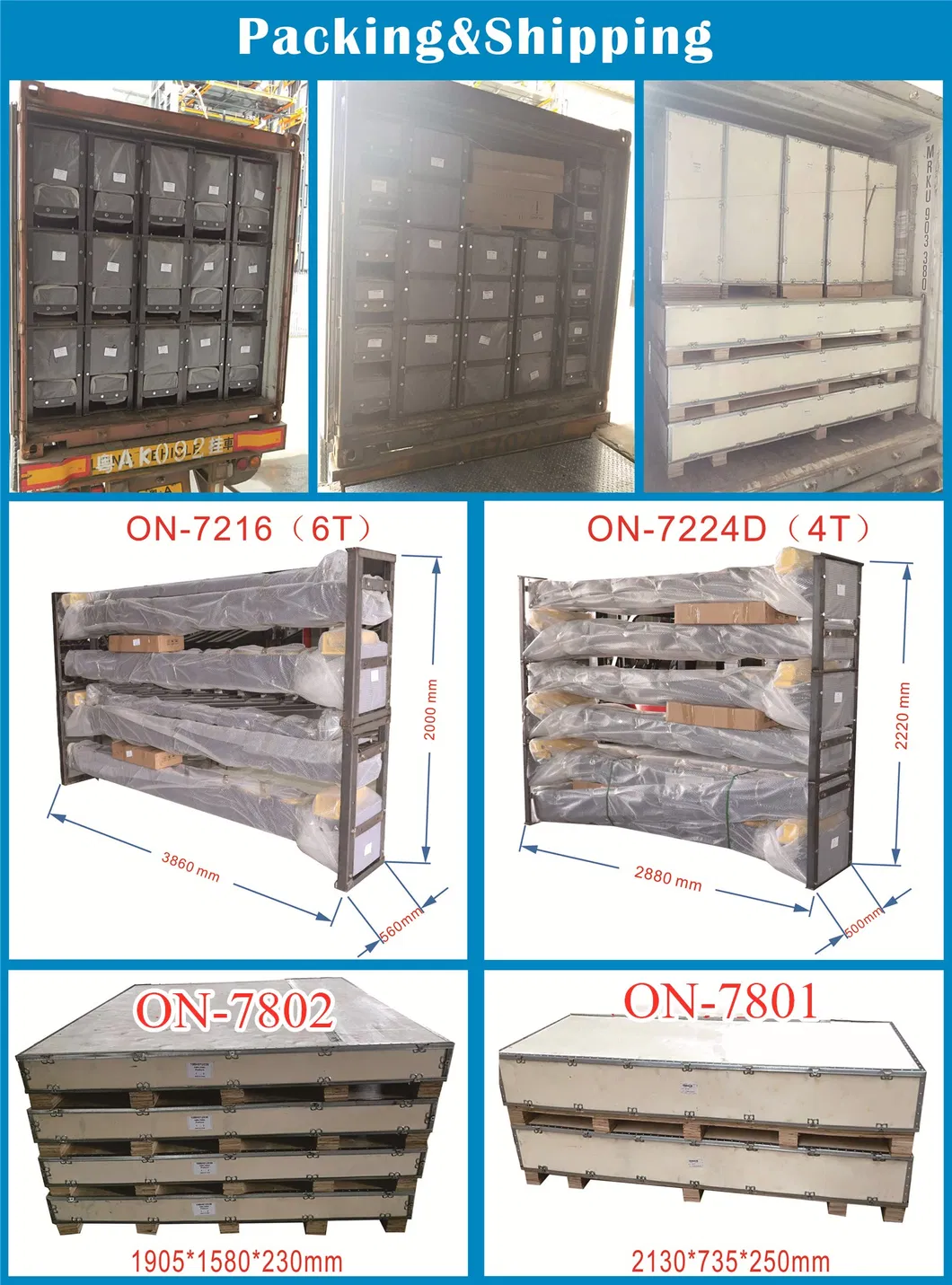

Packaging & Shipping

For utmost protection, lifts are expertly packed in sturdy steel frames, while control consoles are housed in robust plywood boxes to guarantee they reach you in impeccable condition.

❓

Frequently Asked Questions

How safe are these post car lifts?

The car lifts undergo rigorous testing and are CE certified for unmatched safety standards, complying with international requirements for peace of mind.

Are the lifts designed for commercial use?

Yes, all of our lifts are seamlessly suited for commercial applications, delivering consistent performance in professional environments.

Do you offer any custom designs?

Absolutely. Customized OEM/ODM services are available. We can craft molds and fixtures to produce products according to your precise samples or technical drawings.

What is the typical delivery time?

Typically, delivery takes a swift 10 to 20 days post-advance payment, depending on the specific items and order volumes.

Does the lift come with necessary anchor bolts?

Yes, the lifts are supplied with all the necessary anchors and hardware required for secure floor mounting.

What is the required ceiling height?

The requirement varies by model. It is crucial to consider both the lift's overall height and the type of vehicle you intend to hoist. Please refer to specific model data for details.
