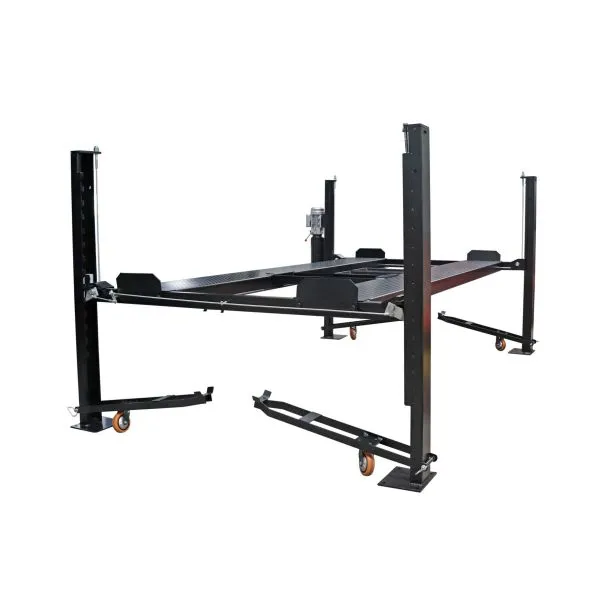

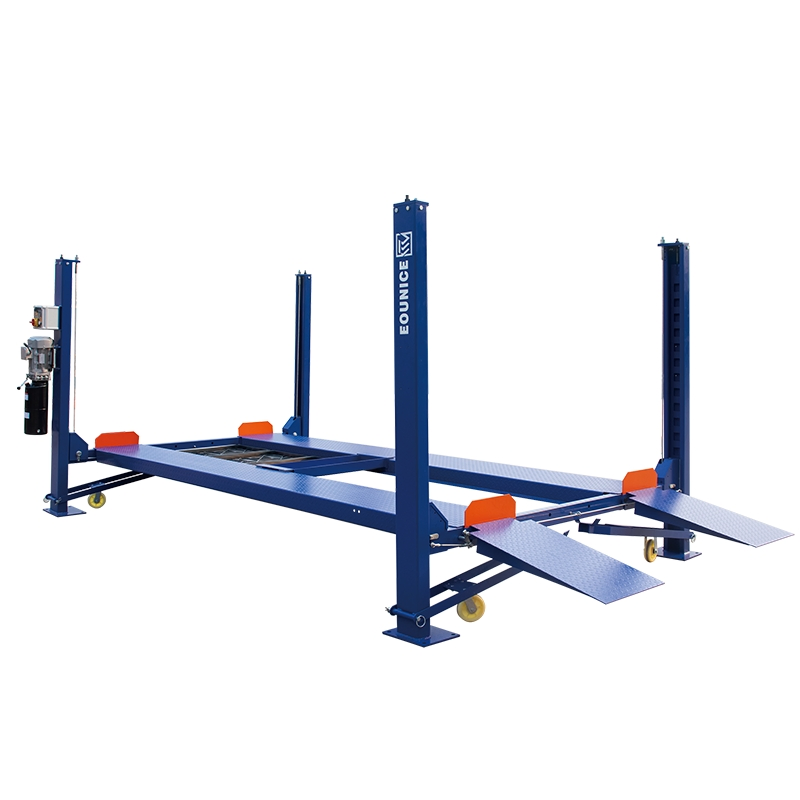

Manual safety lock release, longer and wider 4 post parking lift. Overall Height 2330mm.
3,600Kg (8,000LBS.) lifting capacity.

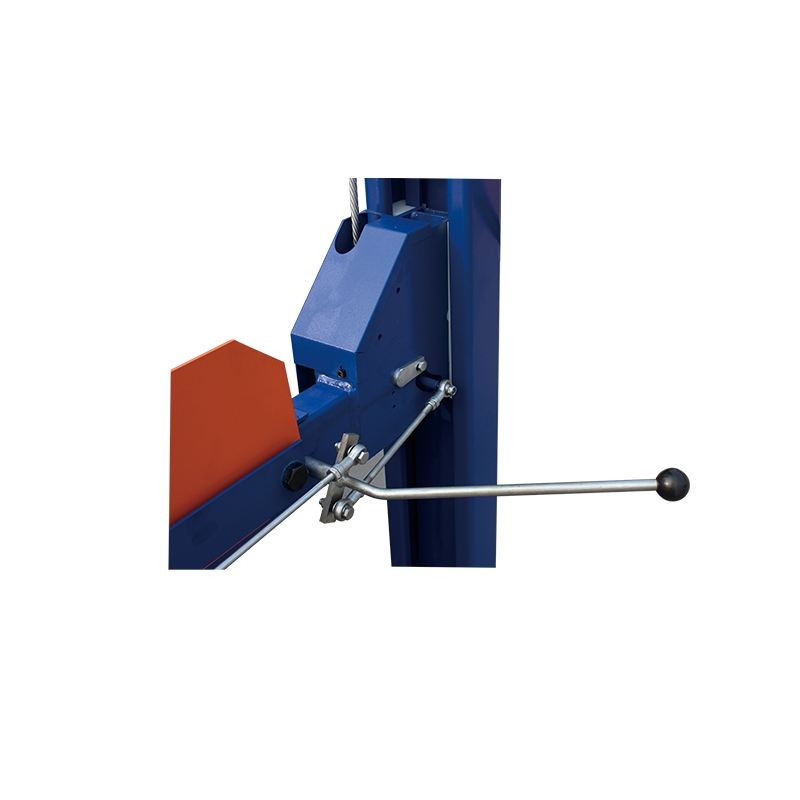

Single-point safety lock release by manual.
Mechanical locks automatically engaged into position in ascending process.
Out of level protection, safe and reliable.

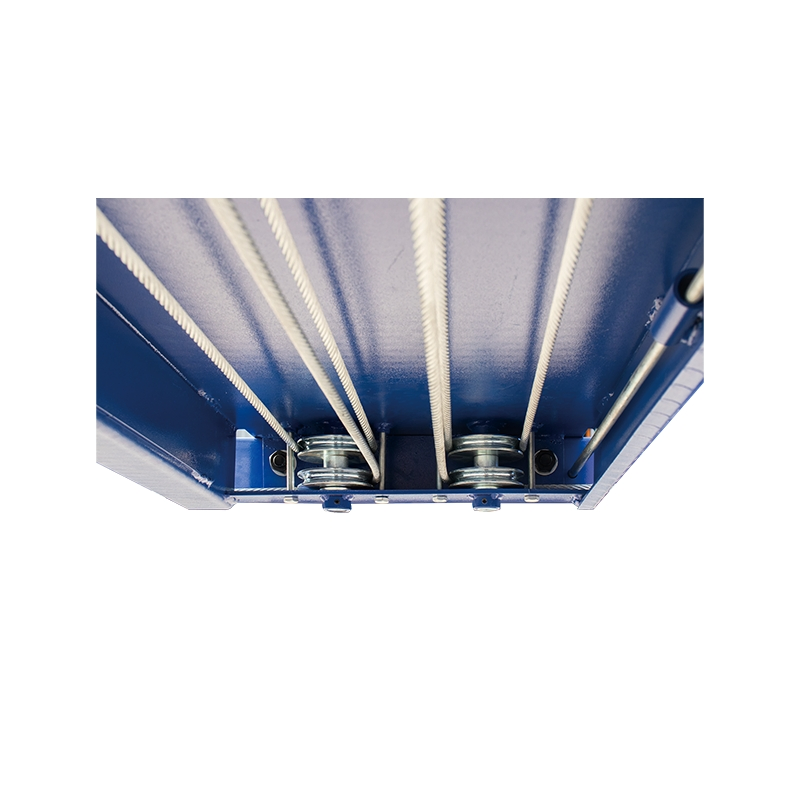

Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
Skid proof diamond platform.
Standard drip pan (3pcs), jack pan (1pc).
Mobile kit (4pcs) OPTIONAL.

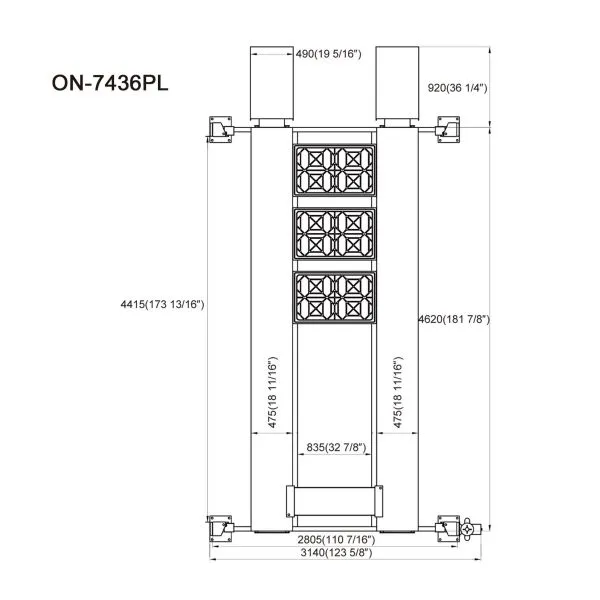

Technical Data
Model
7436P
7436PL
Lifting Capacity
3,600kgs (8,000LBS)
3,600kgs (8,000LBS)
Lifting Time
≤50S
≤50S
Overall Height
2076mm (81 3/4")
2330mm (91 3/4")
Lifting Height
1845mm (72 5/8")
2100mm (82 11/16")
Overall Length (Inc. Ramps)
5120mm (201 9/16")
5540mm (218 1/8")
Overall Length (No Ramps)
4200mm (165 3/8")
4620mm (181 7/8")
Overall Width
2890mm (113 3/4")
3140mm (123 5/8")
Width inside Columns
2385mm (93 7/8")
2635mm (103 3/4")
Shipping Weight
688kgs (1,517LBS)
745kgs (1,642LBS)
Key Strengths
The minimum ground height is 180mm, effectively avoiding low chassis car hanging issues.
Suspended column tops with adjustable lower ends (40mm range) ensure level runways regardless of ground factors.

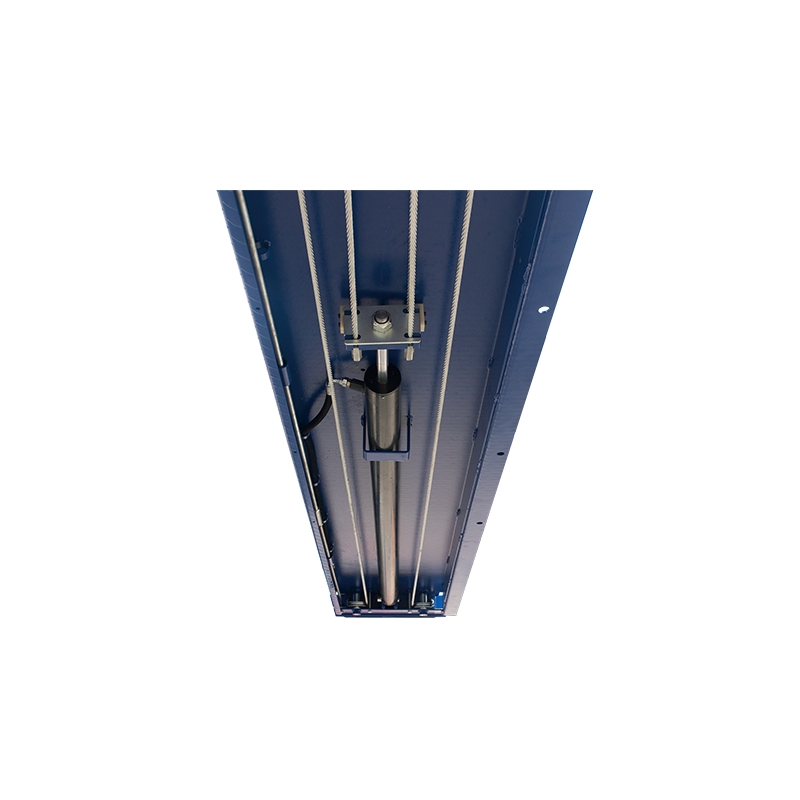

Double insurance with manual safety and cable-breaking safety mechanisms inside the cross beam.
Main structural parts are welded by high-precision robots for consistency and strength.
Imported powder coating with high-temperature curing for strong adhesion and vibrant finish.
Available Options
OEM/ODM services available.
Customized lift colors according to client requests.
Optional manual or pneumatic rolling jack.
Manufacturing Excellence

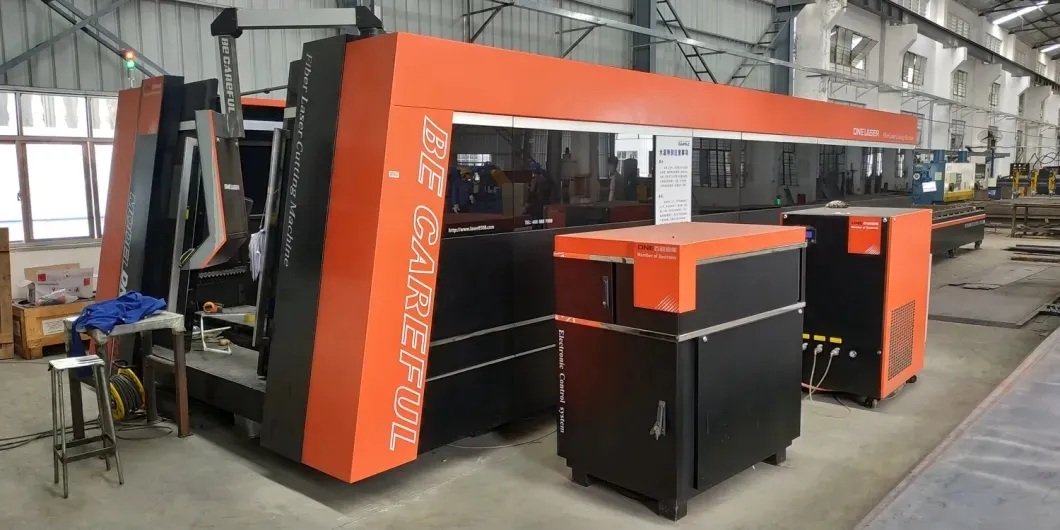

Seamless Laser Cutting
Achieves high accuracy and precision cuts without damage or warping, ensuring higher sheet utilization and low power consumption.

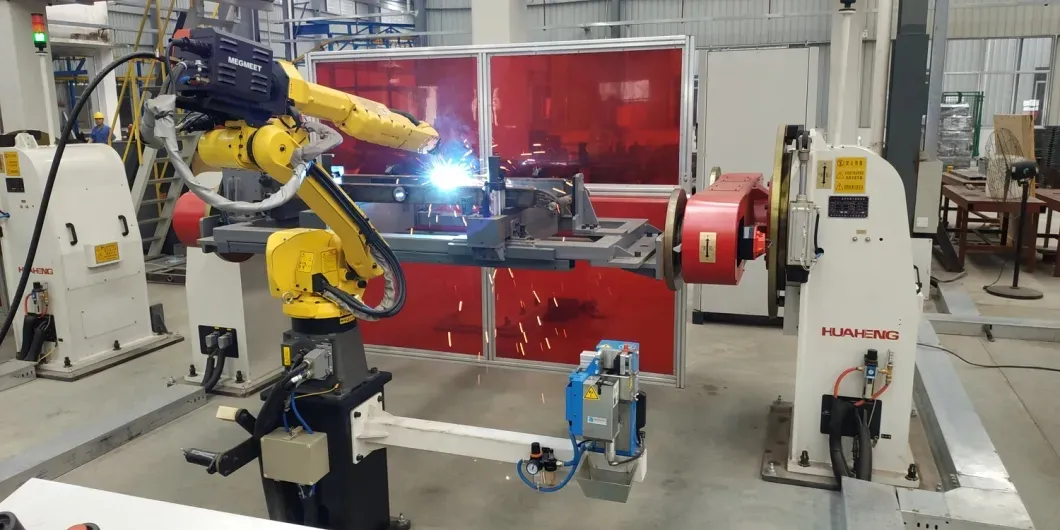

Robotic Welding Technology
Guarantees a seamless appearance and superior structural strength through automated precision.

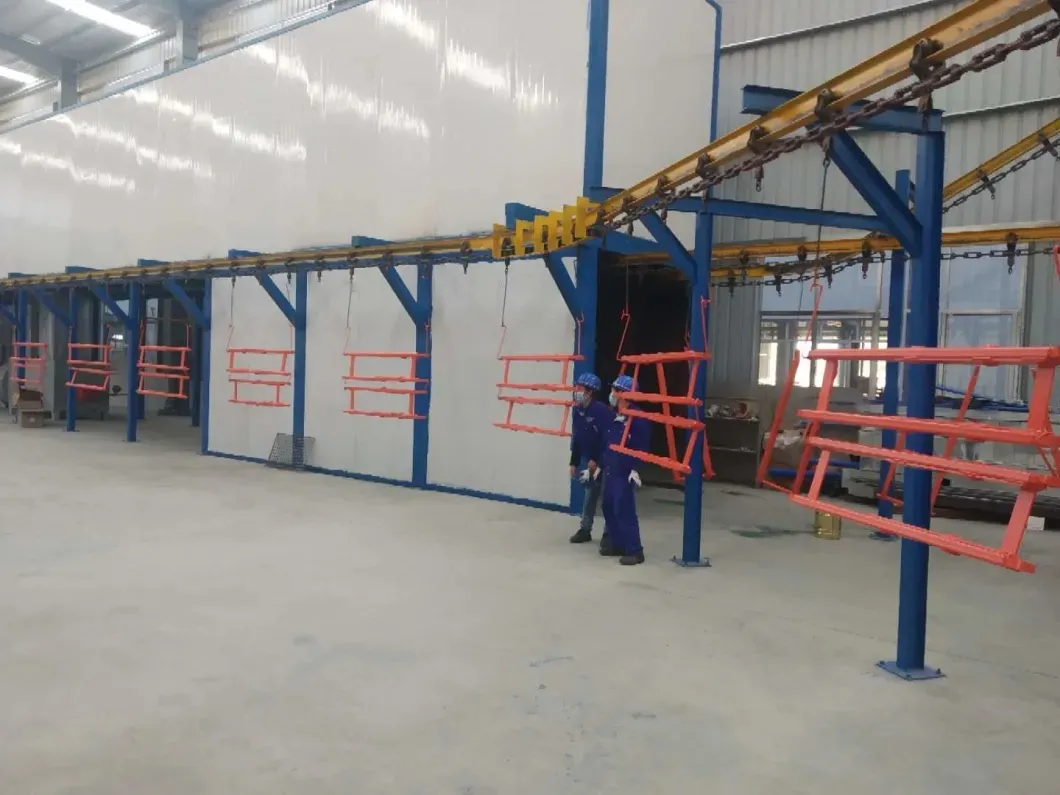

Professional Powder Coating
Using imported powders and sprayers for high adhesion and an aesthetically smooth, durable appearance.
Packing & Shipping
2-post and 4-post lifts are steel frame packed, while scissor lifts are secured in plywood boxes with steel outlines. Strong packing guarantees delivery in perfect condition.
Frequently Asked Questions
Why should I choose this car lift?
With over 20 years of research and certifications including TUV, CE, and ISO9001, our lifts are produced in a 60,000m² plant using top-quality raw materials and 50+ automatic production lines to ensure competitive prices and high stability.
How safe are these car lifts?
All car lifts have been rigorously tested and are CE certified. They also meet American and Australian safety standards, featuring mechanical locks and out-of-level protection.
Are these lifts designed for commercial use?
Yes, all of our lift models are engineered to handle commercial applications and heavy-duty environments without any problems.
Do you offer custom designs or OEM services?
Absolutely. we provide comprehensive OEM/ODM services, including building custom molds and producing equipment according to your specific samples or technical drawings.
What is the required ceiling height for installation?
The required height depends on the specific lift model and the vehicle you intend to park. Please refer to the technical data table or contact our technical team for advice based on your dimensions.
Do car lifts require regular maintenance?
Yes, a simple monthly checklist is recommended, including visual inspections of cables and hydraulic systems to ensure long-term reliability and safety.
