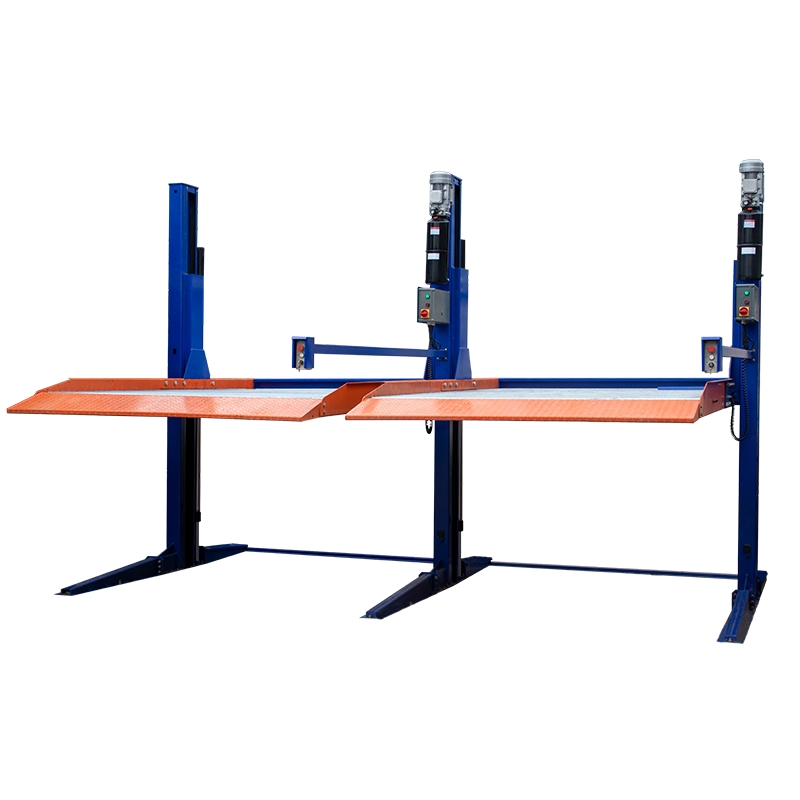

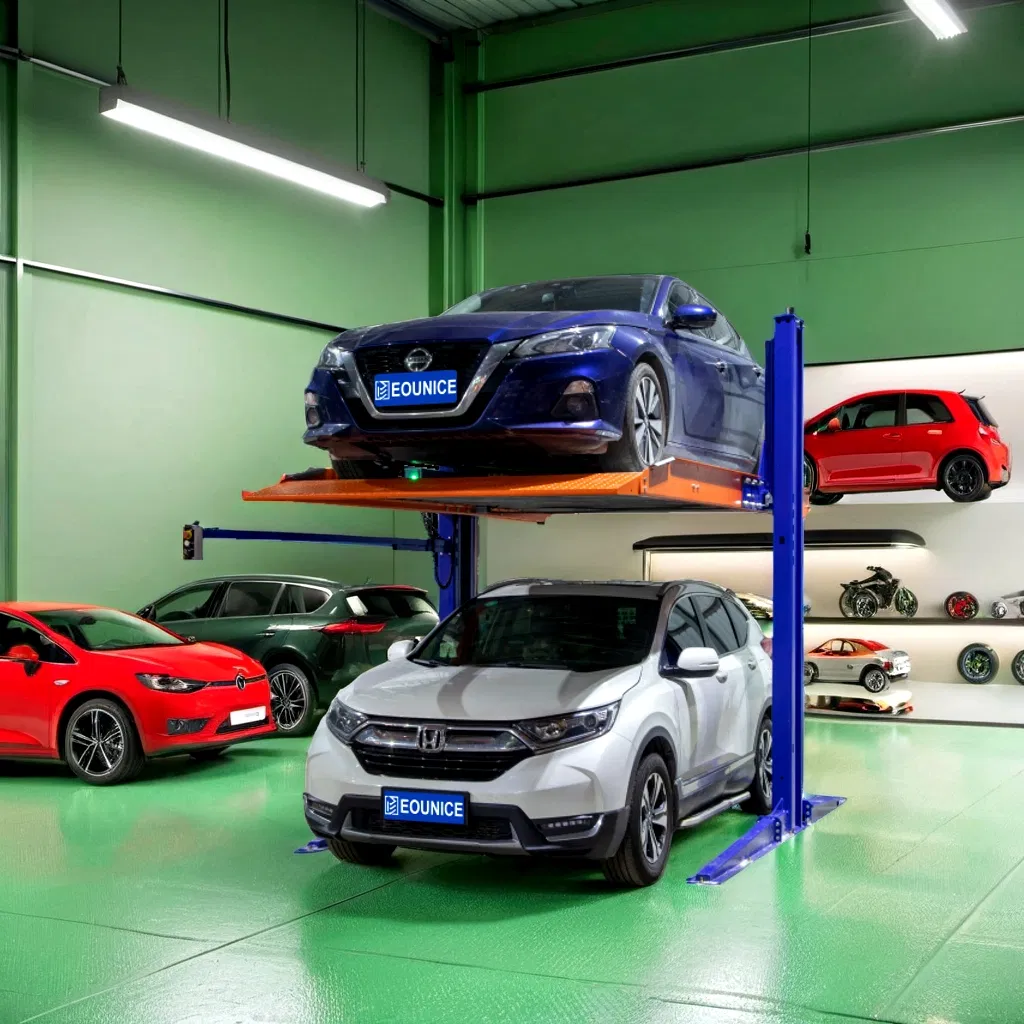

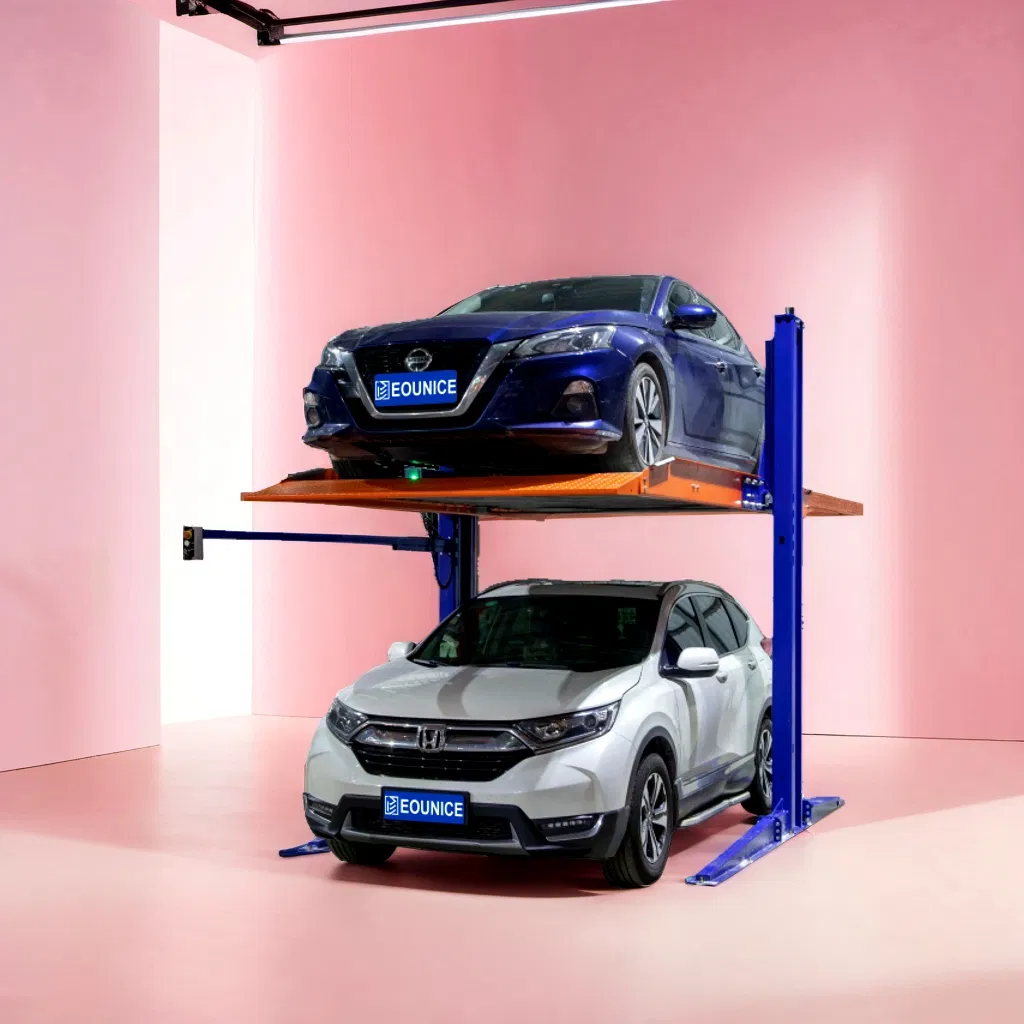

Eounice Hydraulic Car Lift Parking System for Garage Maintenance

i

Basic Specifications

Model NO.ON-7227p

TypeDouble Cylinder Hydraulic Lift

Lifting Capacity2700kg

Driving TypeHydraulic

CertificationCE, ISO

Driving Motor1 Unit

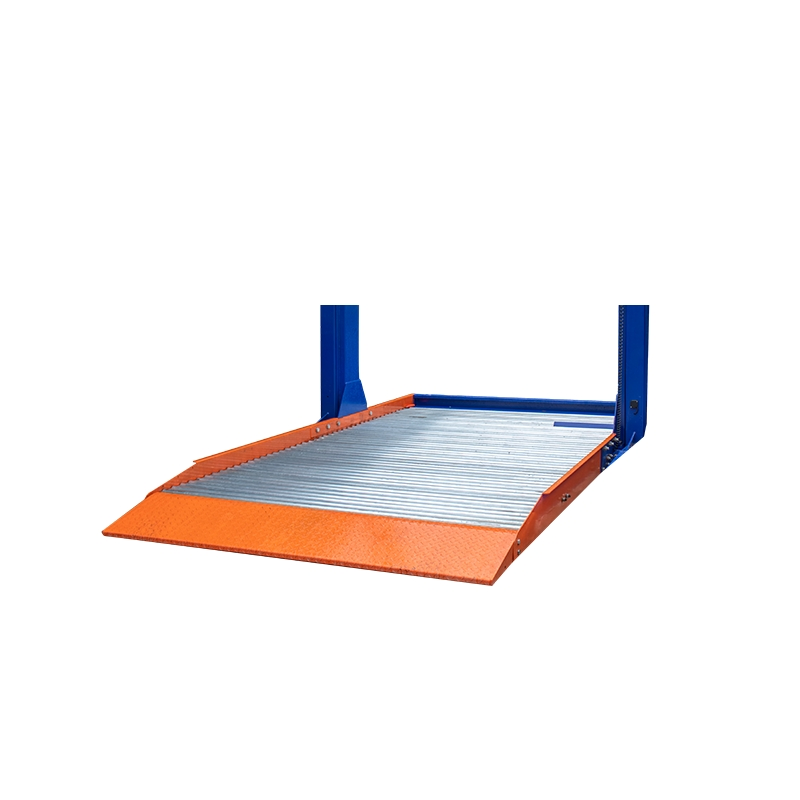

Lift TypeThin Plate Type

ConditionNew

DesignTwo Post

Transport Package3860*1100*580mm

HS Code8425429000

Production Capacity10000 Units

★

Key Features

012700kg load capacity, passed 120% dynamic and 150% static load professional test standards.
022100mm car width, suitable for most vehicles.

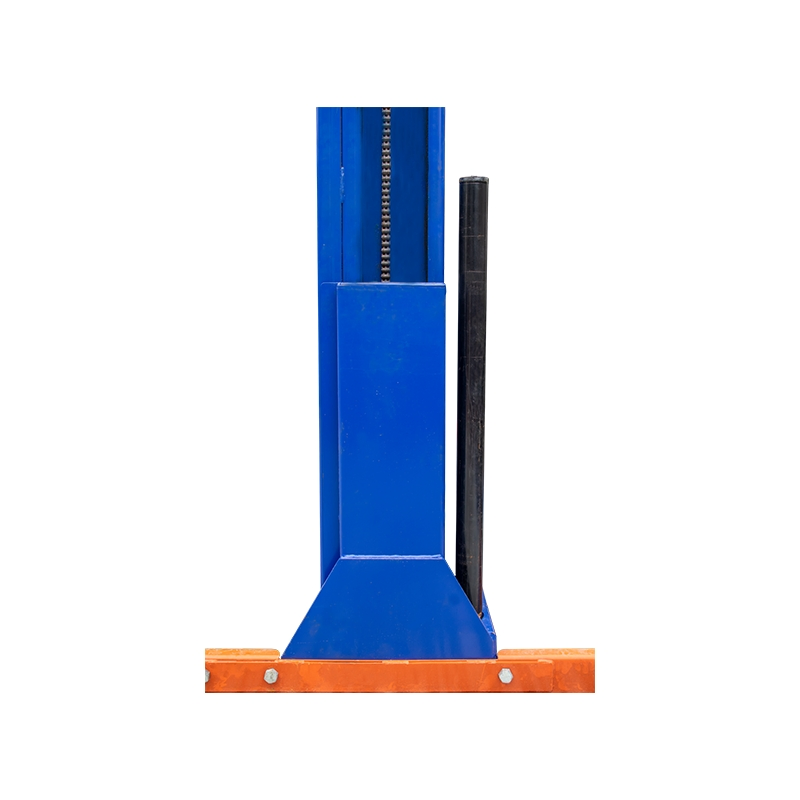

033165mm column bottom plate for large ground contact area, ensuring stability.
04Series connectivity allowed to save space and reduce budget.

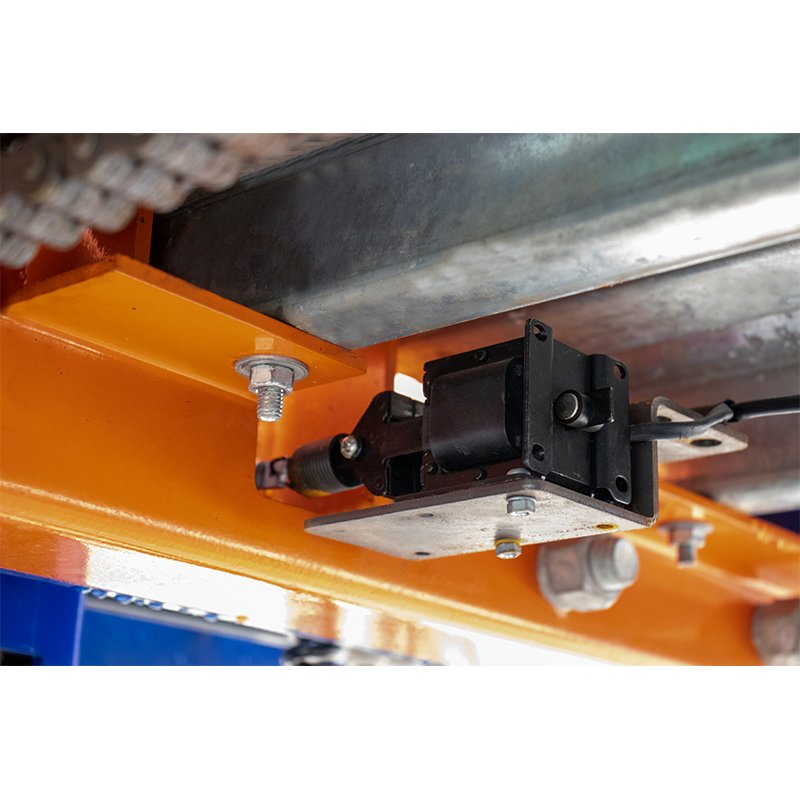

05Mechanical anti-fall lock design for enhanced safety and reduced failure rates.
06Oil cylinder installation designed for convenient maintenance.
07Upgraded power unit with 24V low voltage control box for simple, safe operation.
08Thick steel construction with robot welding for high strength and long service life.

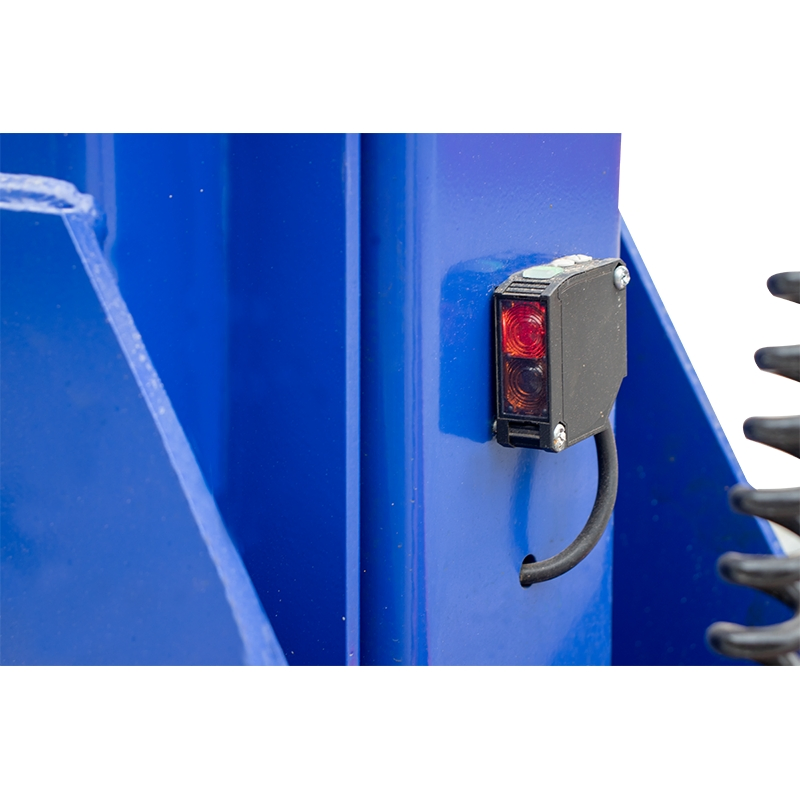

09Photoelectric sensor ensures synchronization of slides on both sides.
10High-quality imported chain driver system.

📋

Technical Data

Model	Lifting Capacity	Lifting Time	Lifting Height	Board Width	Total Width	Gross Weight	Motor Power
ON-7227p	2700kg (6000LBS)	≤55S	2100mm	2100mm	3410mm	1050kgs	2.2KW (3HP)

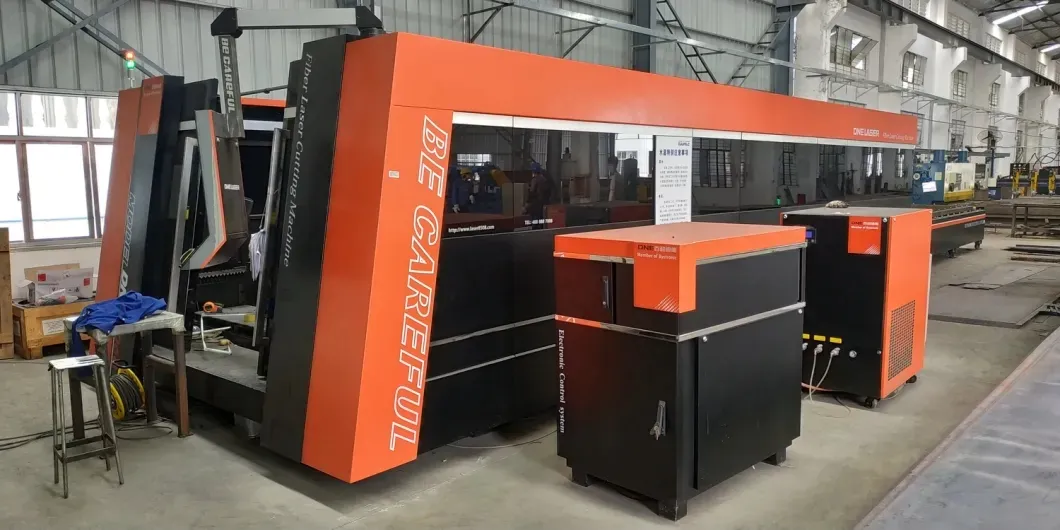

Seamless Laser Cutting

High Accuracy and Precision Cuts
No damage or warping to materials
Higher utilization with less waste

Robotic Welding Technology

Seamless appearance and high strength
Consistent welding quality

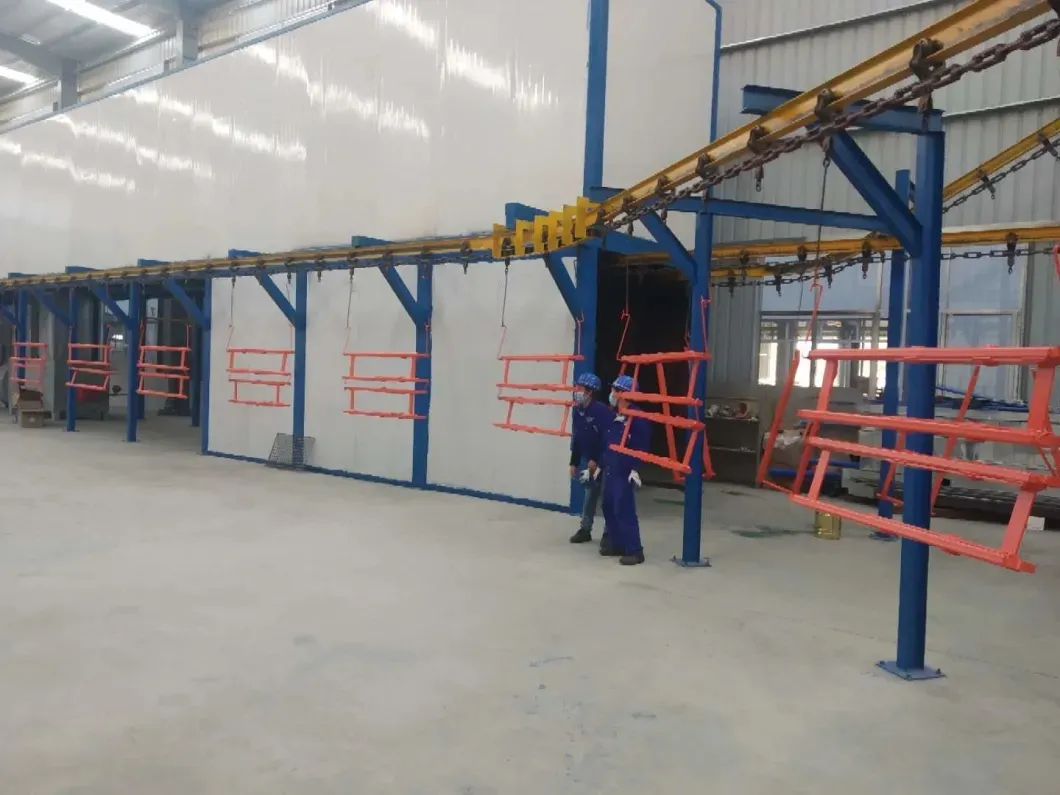

Powder Coating

Imported powder and sprayers
High adhesion and clear effect
Aesthetically smooth appearance

📦

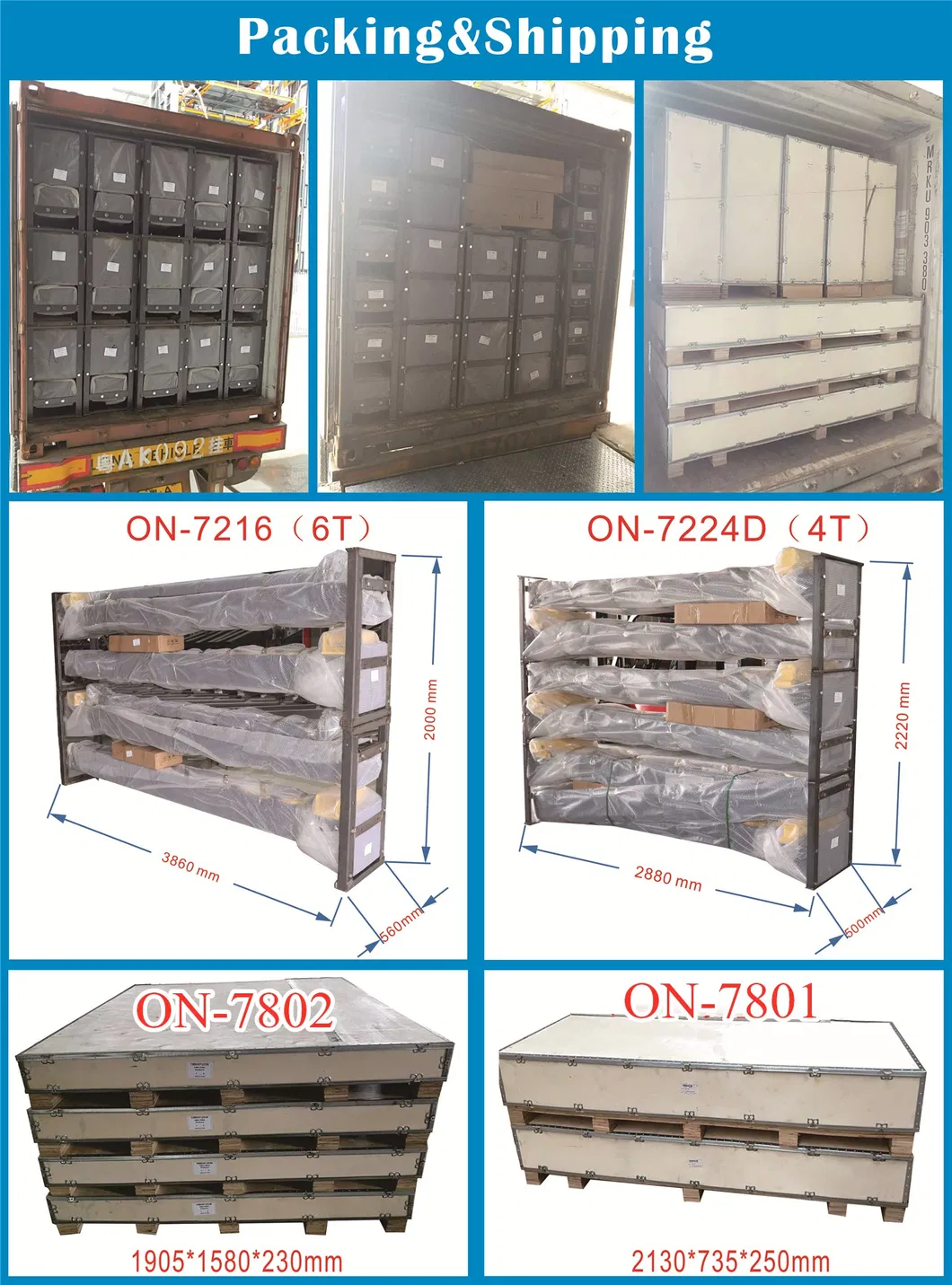

Packing & Shipping

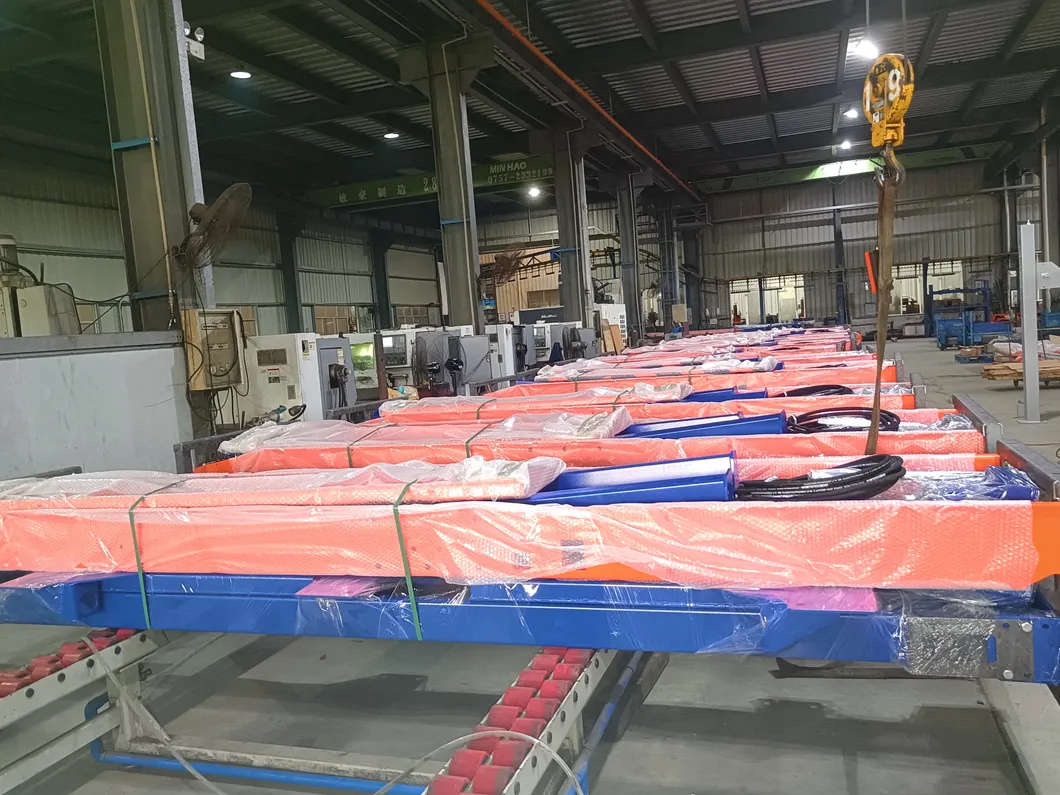

Lifts are steel frame packed while control consoles are packed in ply-wood boxes. Strong packing guarantees the delivery in perfect condition.

?

Frequently Asked Questions

Why should I choose this car lift?

With 20 years of research and certifications like TUV, CE, and ISO9001, our products utilize 60,000m² production plants and 50+ automatic machines to ensure professional, cost-effective, and top-quality results.

How safe are these post car lifts?

Our car lifts have been tested and CE certified for safety. They also meet American and Australian Standards for rigorous operation.

Are these lifts designed for commercial use?

Yes, all of our lifts can be used in commercial applications without any problems, thanks to their robust steel structure and reliable hydraulic systems.

What is the delivery time for an order?

Generally, it will take 10 to 20 days after receiving your advance payment. The specific time depends on the items and the quantity of your order.

What ceiling height is required for installation?

The required ceiling height depends on the specific lift model and the intended vehicle. Please refer to the product specification or contact our experts for detailed advice.

Do car lifts require regular maintenance?

A simple monthly checklist for visual inspections is recommended. Cables and hydraulic systems should be maintained regularly to ensure smooth operation.
