Eounice Garage Essential Hydraulic Lift Two-Post Parking System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
ON-7227p
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
2700kg
Driving Type
Hydraulic
Certification
CE, ISO
Condition
New
Design
Two Post
HS Code
8425429000

Product Overview

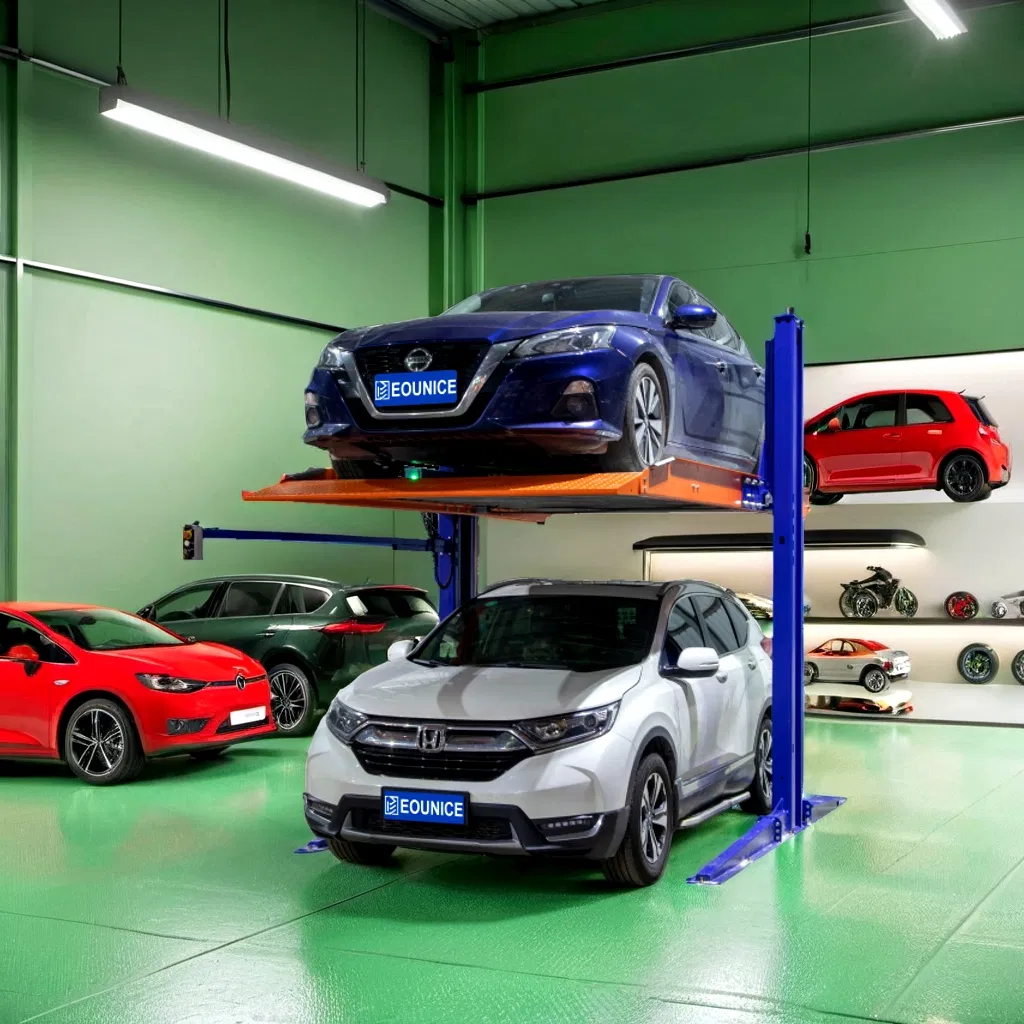

Hydraulic Lift Two-Post Parking System

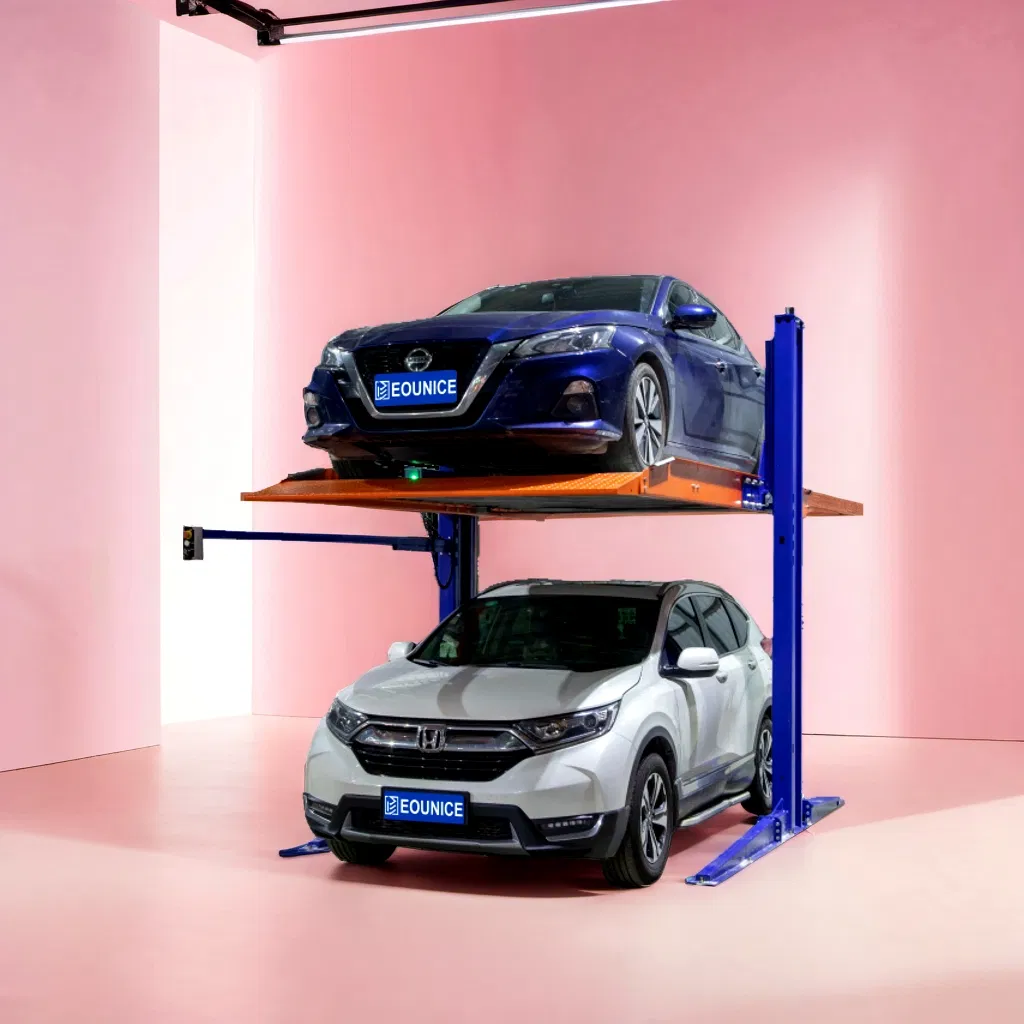

Parking System View

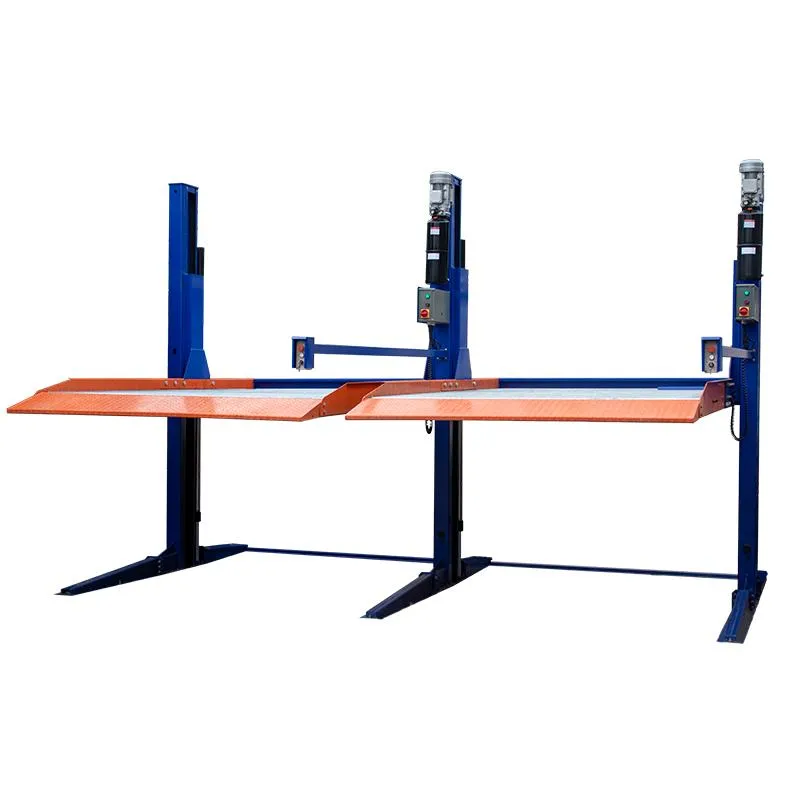

Detail 1
Detail 2
Detail 3

Key Features

  • 2700kg load capacity, passing 120% dynamic and 150% static load professional tests.
  • 2100mm car width suitability, accommodating most standard vehicles.
  • Large ground contact area (3165mm column bottom plate) for superior stability.
  • Series installation capability to reduce budget and save space.
  • Mechanical anti-fall lock design for maximum safety and reduced failure rates.
  • Optimized oil cylinder installation for convenient maintenance.
  • Upgraded power unit with 24V low voltage control box and simple key operation.
  • Robot-welded structural parts for high strength and consistent quality.
  • Photoelectric sensors ensure perfect synchronization of both slides.
  • High-quality imported chain driver system.

Technical Data

Model Lifting Capacity Lifting Time Lifting Height Car Board Width Car Board Length Total Width Gross Weight Motor Power
ON-7227p 2700kg (6000LBS) ≤55S 2100mm (82 11/12") 2100mm (82 11/12") 4166mm (164") 2566mm (101") 1050kgs (2520LBS) 2.2KW (3HP)

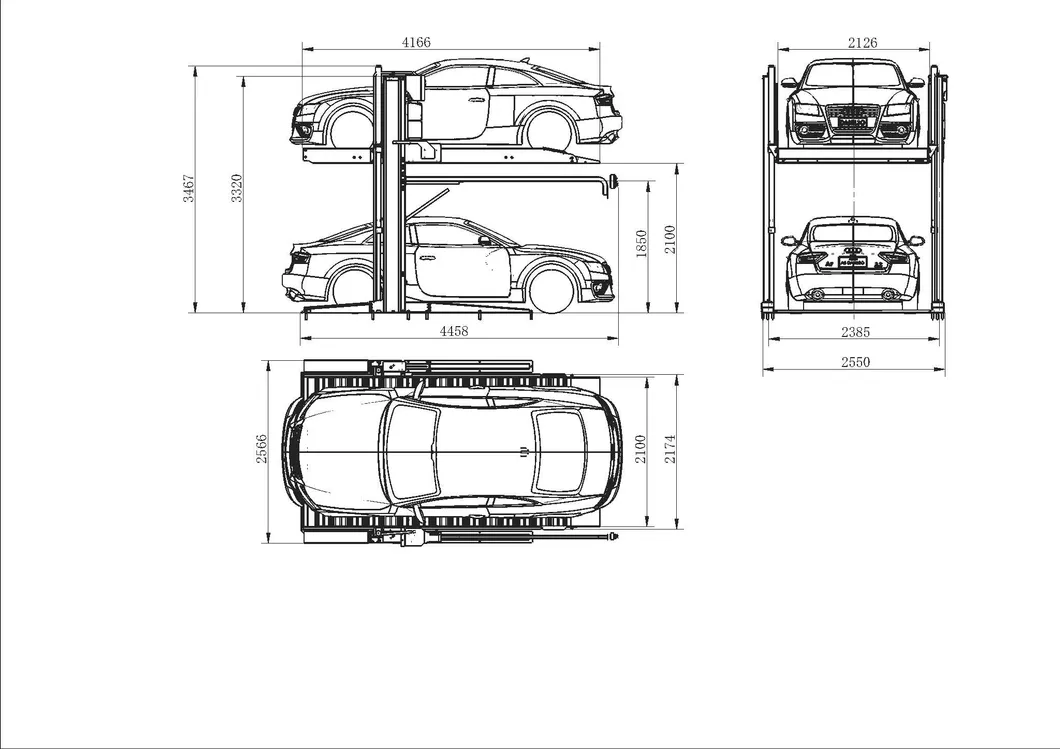

Dimensions Diagram

Advanced Manufacturing Technology

Seamless Laser Cutting

  • High accuracy and precision cuts for superior fit.
  • Zero damage or warping, even on thin materials.
  • Optimized sheet utilization with minimal waste and low power consumption.

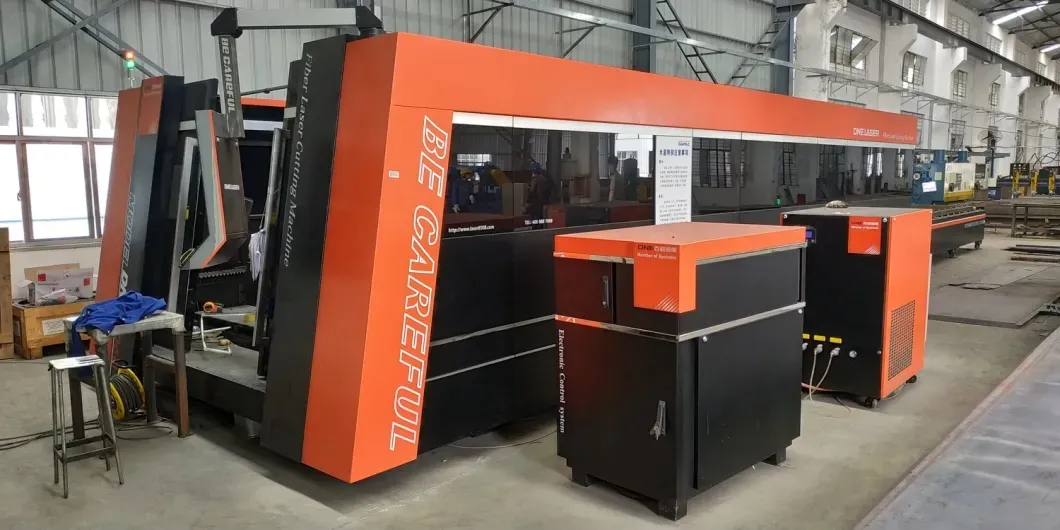

Laser Cutting Process

Robotic Welding Technology

  • Seamless joint appearance.
  • Exceptional structural strength and integrity.

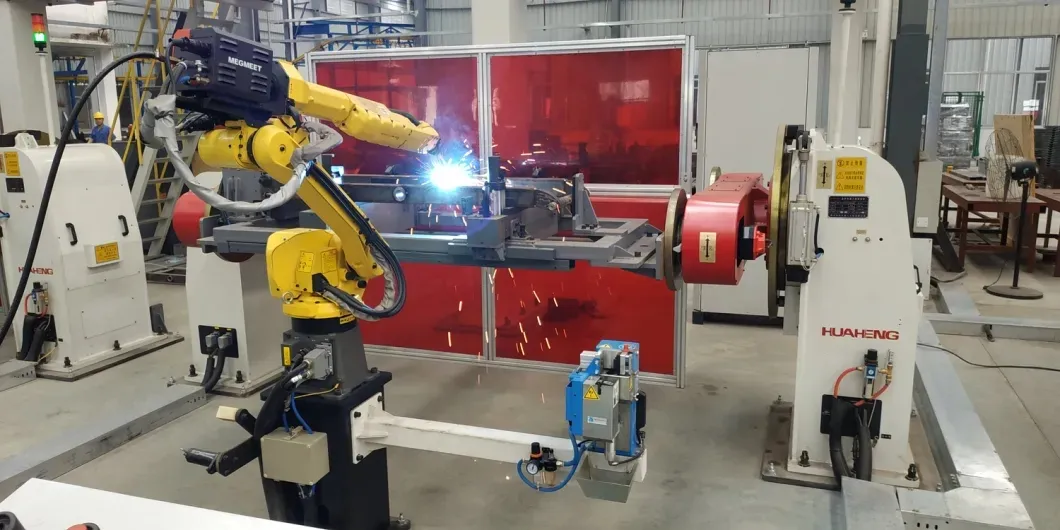

Robotic Welding

Premium Powder Coating

  • Imported powder and sprayers for high-end finish.
  • Superior adhesion and long-term durability.
  • Aesthetically smooth and clear powdering effect.

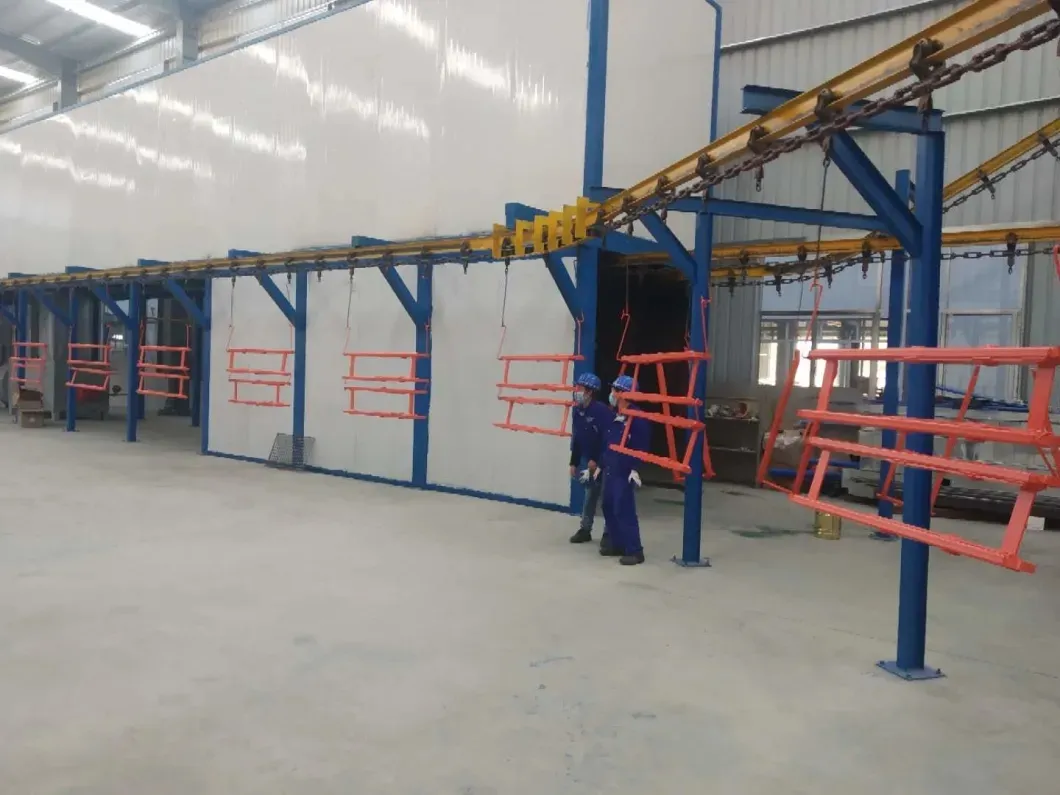

Powder Coating

Logistics & Quality Assurance

Our lifts are packed in robust steel frames, while control consoles and scissor lifts are secured in plywood boxes with steel outlines. This standardized packing ensures the equipment reaches you in perfect condition.

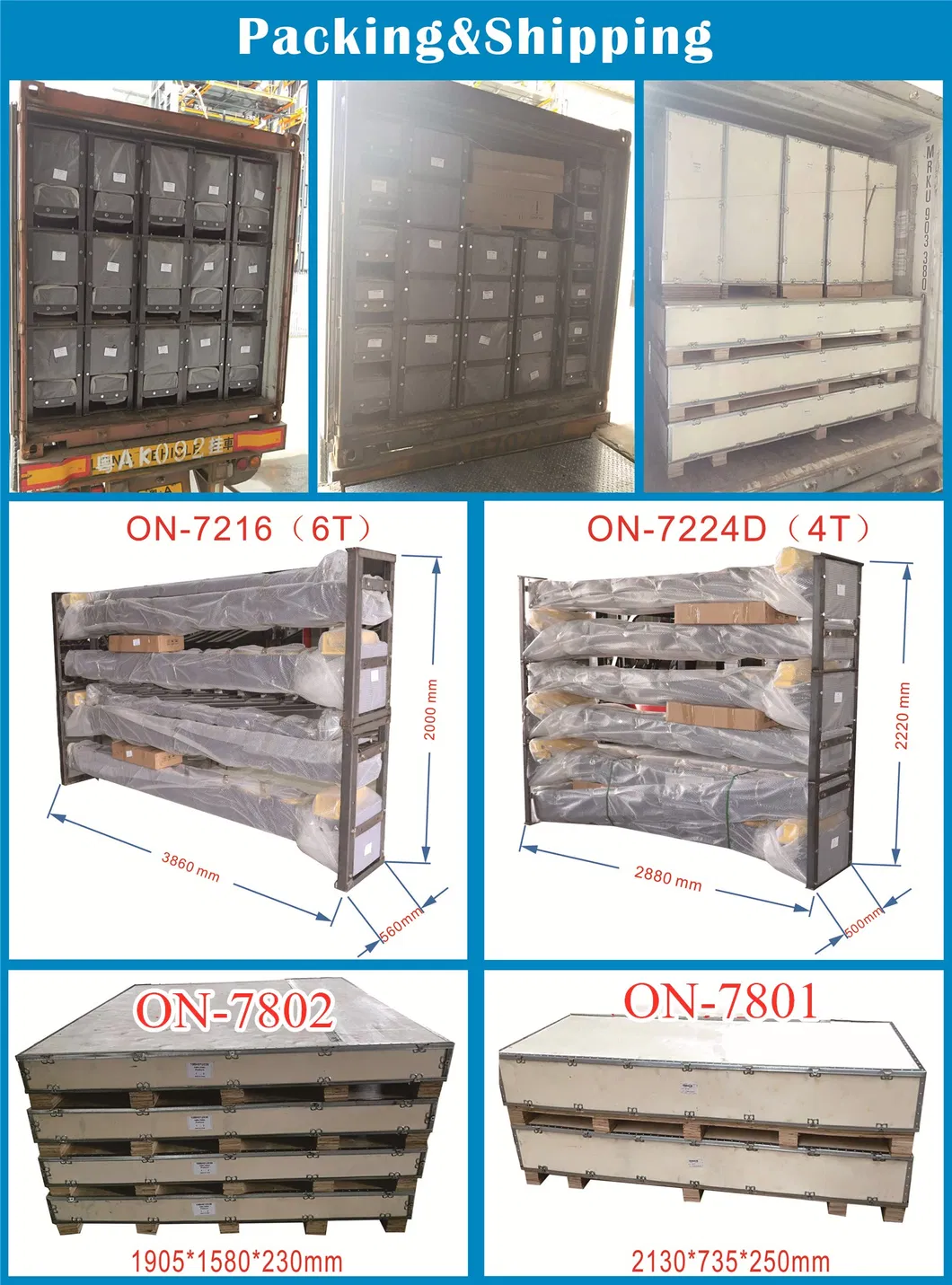

Packing Example
Certifications
Installation Example

Frequently Asked Questions

How safe are these post car lifts?
The car lifts have been rigorously tested and are CE certified for safety. They also meet American and Australian standard requirements for mechanical lifting equipment.
Are the lifts designed for commercial use?
Yes, all of our lifts are engineered to withstand the demands of commercial applications without any performance issues.
Do you offer any custom designs or OEM services?
Certainly. We provide comprehensive OEM/ODM services. We can build specific molds and fixtures to produce lifts based on your samples or technical drawings.
What is the typical delivery time?
Generally, it takes 10 to 20 days after receiving your advance payment. The specific timeframe depends on the model and the quantity of your order.
Does the lift come with necessary mounting hardware?
Yes, all units are shipped with the necessary anchor bolts and hardware required for mounting the unit securely to your floor.
Do these car lifts require regular maintenance?
A simple monthly checklist is recommended. This involves visual inspections, checking cables, and monitoring hydraulic systems to ensure long-term reliability.
