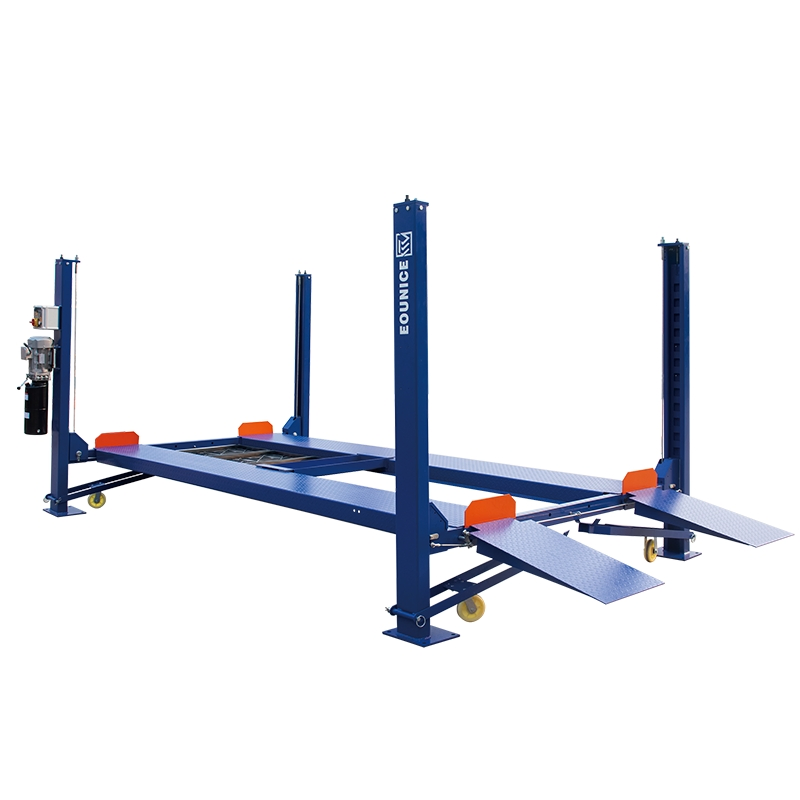

Eounice Electro-Hydraulic Parking System for Two-Level Home Garage

Customization:	Available
After-sales Service:	1-5 Years
Warranty:	1-5 Years

Basic Specifications

Model NO.:ON-7436p

Type:Four Cylinder Hydraulic Lift

Lifting Capacity:3.6t

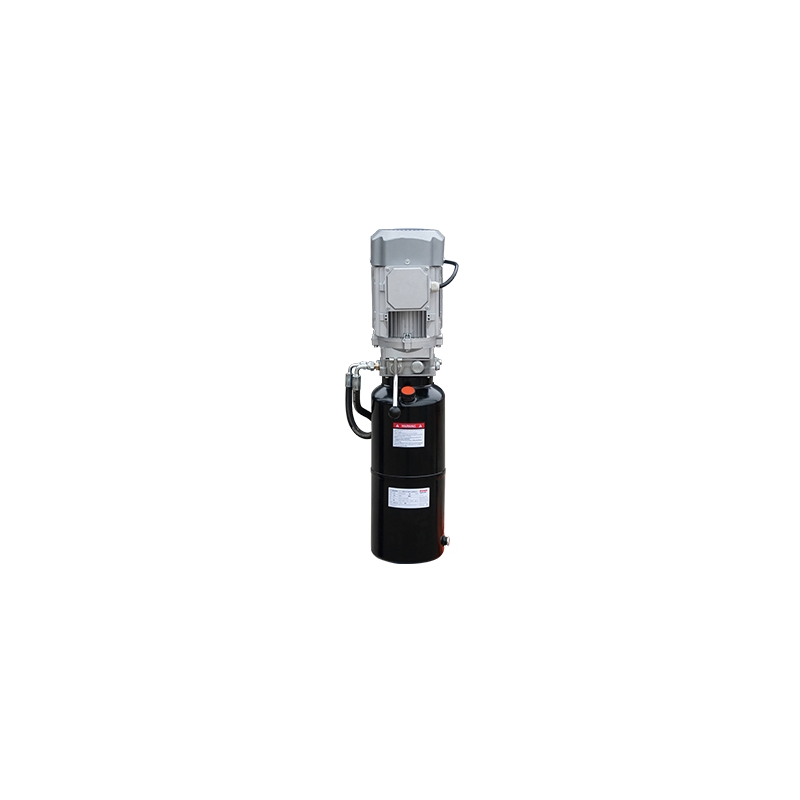

Driving Type:Hydraulic

Certification:CE, ISO

Design:Four Post

Condition:New

HS Code:8425429000

Product Overview

Manual safety lock release, longer and wider 4 post parking lift. Overall Height 2330mm.

3,600Kg (8,000LBS.) lifting capacity.

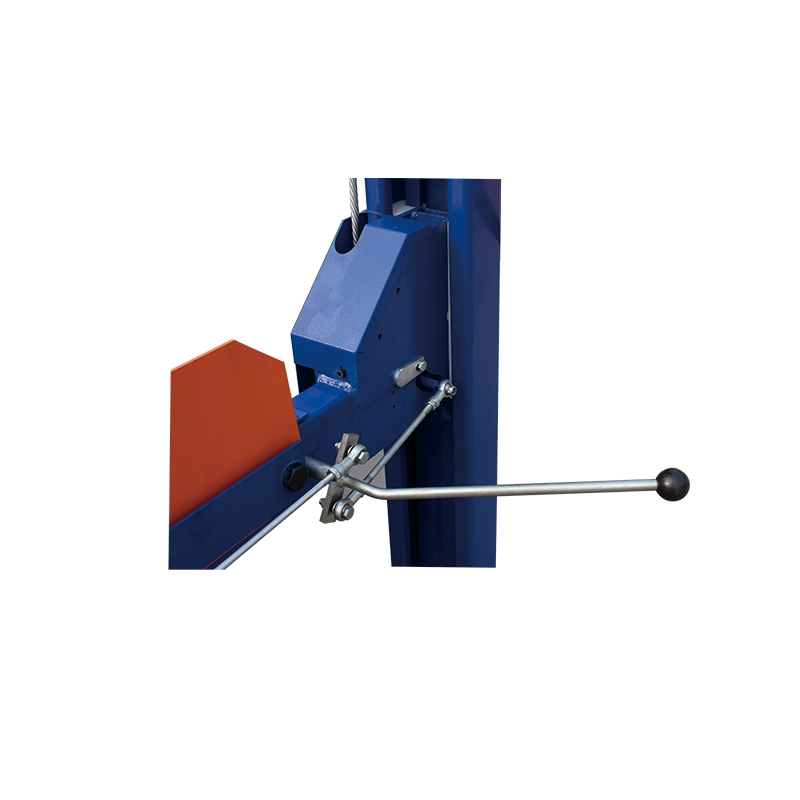

Single-point manual safety lock release.
Mechanical locks automatically engaged during the ascending process.
Out of level protection for enhanced safety and reliability.
Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
Skid-proof diamond platform for secure parking.
Standard accessories include 3 drip pans and 1 jack pan.

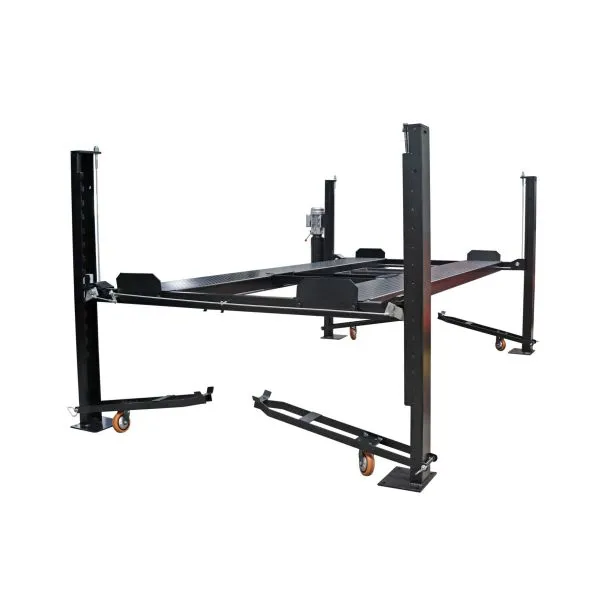

Optional mobile kit (4pcs) available.

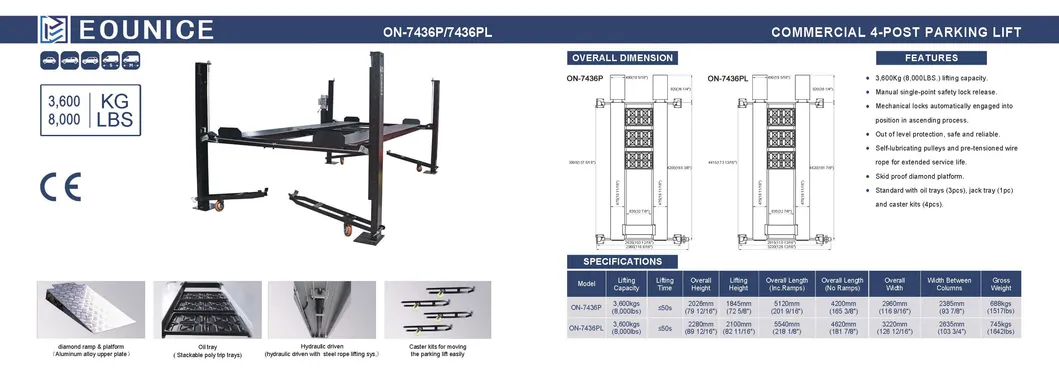

Technical Data

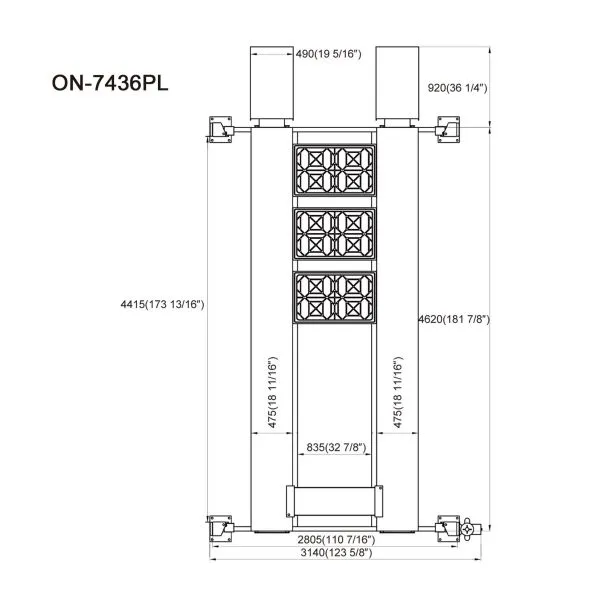

Model	7436P	7436PL
Lifting Capacity	3,600kgs (8,000LBS)	3,600kgs (8,000LBS)
Lifting Time	≤50S	≤50S
Overall Height	2076mm (81 3/4")	2330mm (91 3/4")
Lifting Height	1845mm (72 5/8")	2100mm (82 11/16")
Overall Length (Inc. Ramps)	5120mm (201 9/16")	5540mm (218 1/8")
Overall Width	2890mm (113 3/4")	3140mm (123 5/8")
Width inside Columns	2385mm (93 7/8")	2635mm (103 3/4")
Shipping Weight	688kgs (1,517LBS)	745kgs (1,642LBS)

Key Strengths

Low Profile Design: Minimum ground height of 180mm effectively avoids low chassis vehicle interference.
Adjustable Stability: Column lower ends are adjustable (40mm range) to ensure level runways even on uneven ground.

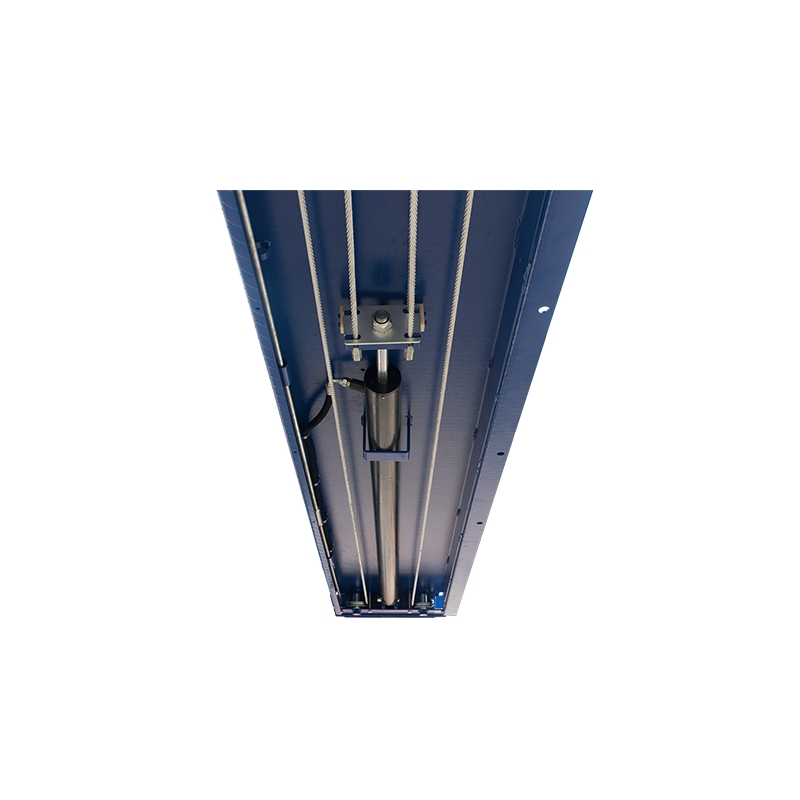

Dual Insurance: Manual safety and cable-breaking safety mechanisms within the cross beam for maximum protection.

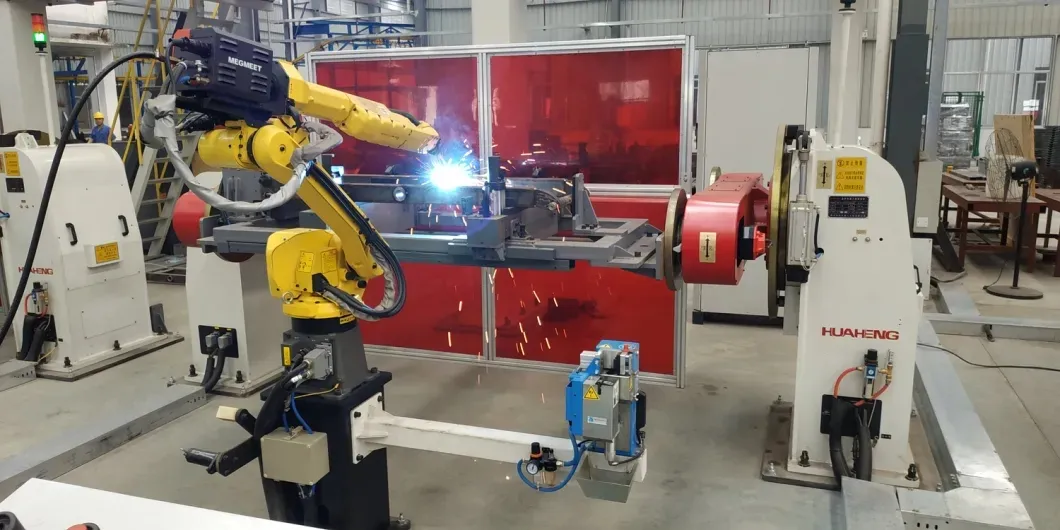

Robotic Welding: Main structural parts are welded by robots for consistency, high strength, and aesthetic finish.

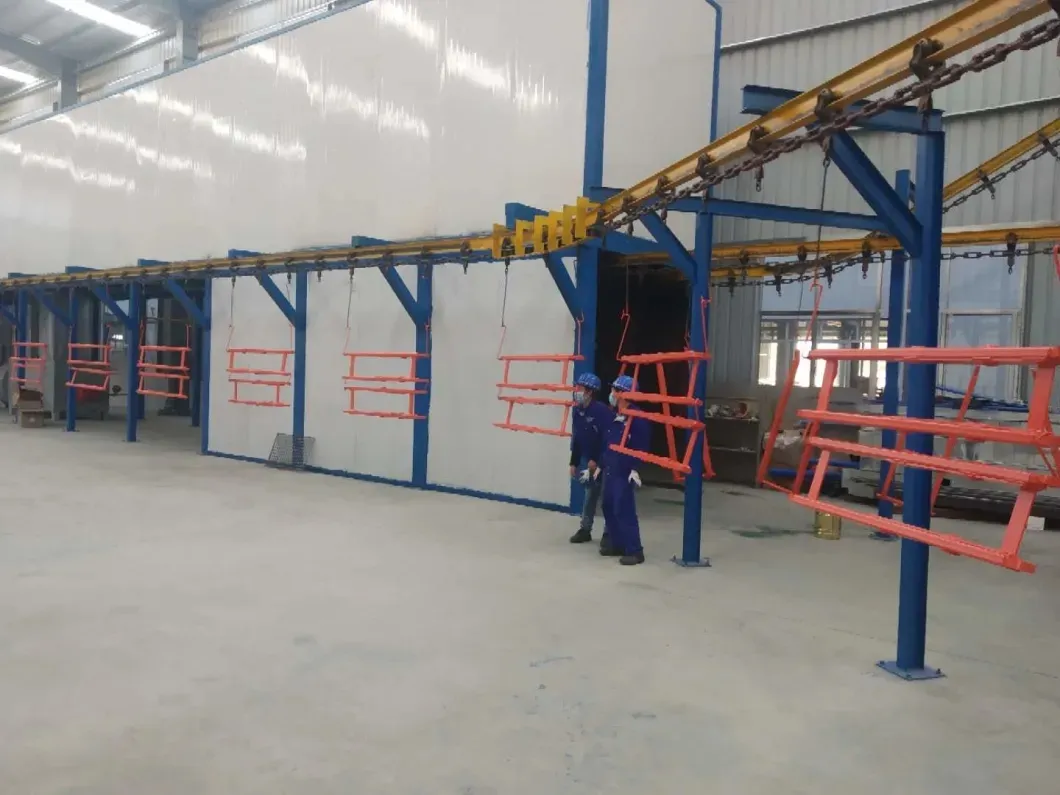

Advanced Coating: High-temperature cured powder coating ensures strong adhesion and long-lasting color.

Manufacturing & Packing

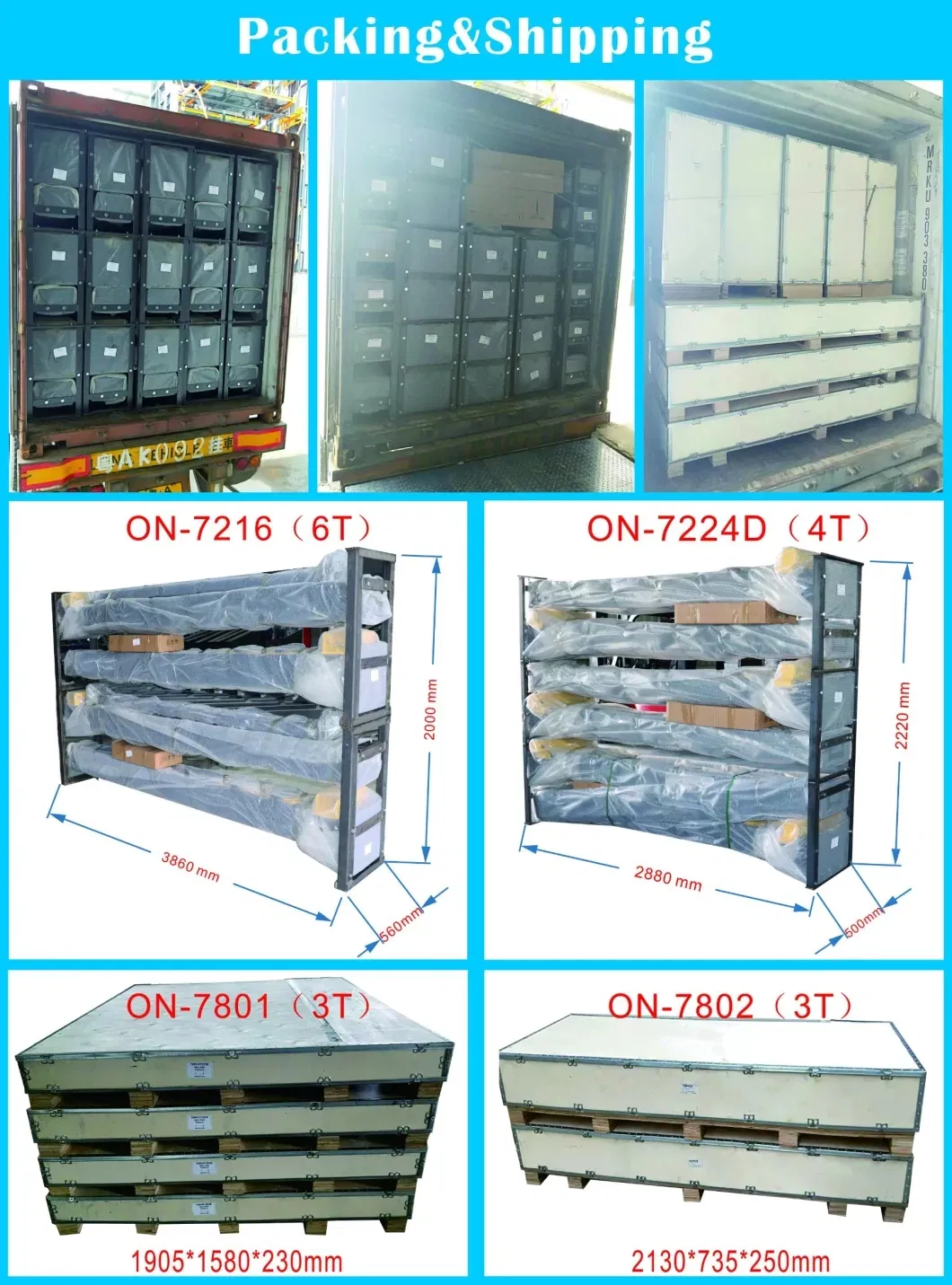

Standardization is at our heart. Our 2-post and 4-post lifts are packed in steel frames, while scissor lifts are secured in plywood boxes with steel outlines. Strong packing guarantees perfect delivery condition.

Frequently Asked Questions

How safe are these car lifts?

All lifts have been tested and CE certified for safety. They meet rigorous international standards for mechanical and hydraulic safety.

Are they designed for commercial use?

Yes, all of our lift models are built with high-strength materials suitable for both home garages and commercial applications.

Do you offer custom designs?

We provide full OEM/ODM services and can customize colors or structural specifications based on your technical drawings or samples.

What is the typical delivery time?

Generally, it takes 10 to 20 days after receiving payment. The exact time depends on the specific items and order quantity.

What ceiling height is required?

The required height depends on the specific lift model and the height of the vehicle being lifted. Please refer to the technical specifications for details.

Do the lifts require regular maintenance?

A simple monthly checklist including visual inspections of cables and hydraulic systems is recommended to ensure long-term performance.
