Eounice Deluxe Electro-Hydraulic Car Lifter Parking System on-7436p

Customization: Available
After-sales Service: 1-5 Years
Warranty: 1-5 Years

Product Description

i

Basic Information

Model NO.
ON-7436P
Type
Four Cylinder Hydraulic Lift
Lifting Capacity
3.6t
Driving Type
Hydraulic
Certification
CE, ISO
Design
Four Post
Condition
New
Specification
4650*550*770mm

Product Overview

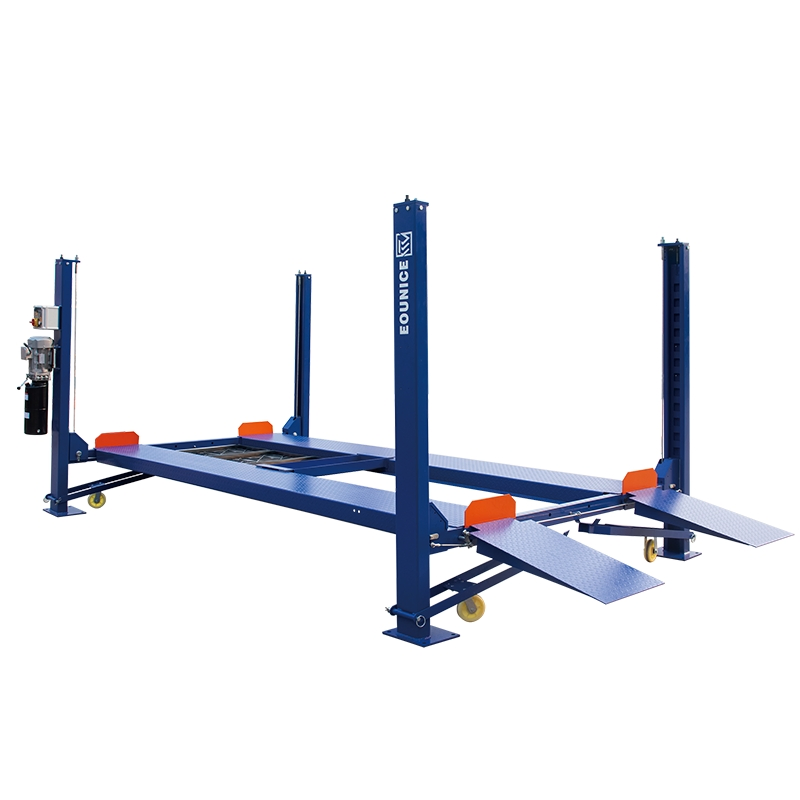

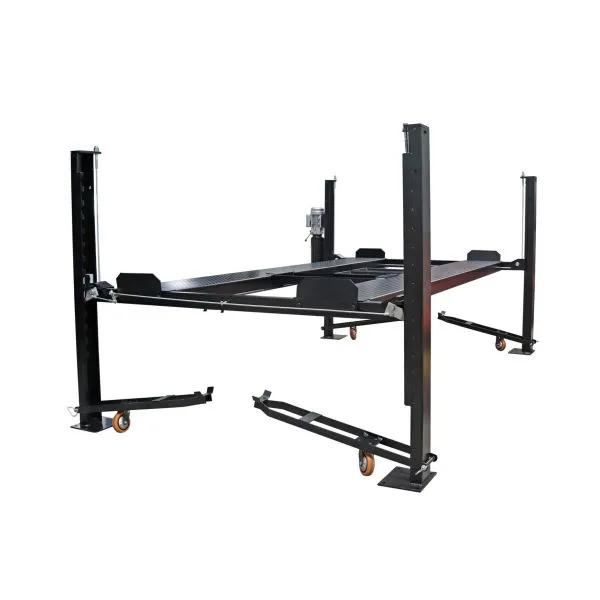

Car Lifter Parking System

ON-7436PL High Performance Lift

Manual safety lock release, longer and wider 4 post parking lift. Overall Height 2330mm.

  • 3,600Kg (8,000LBS.) lifting capacity.

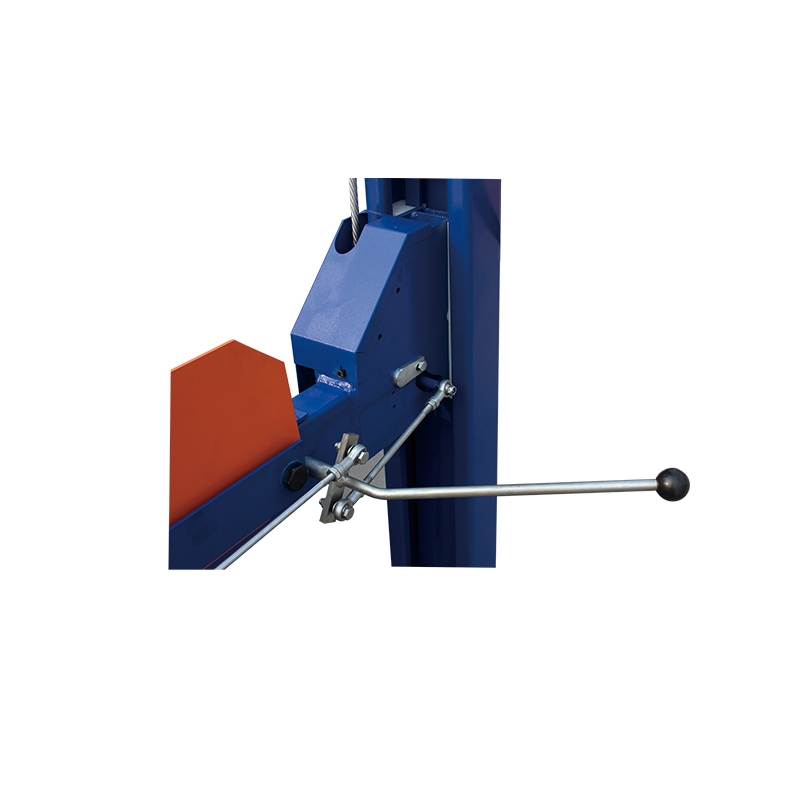

  • Single-point safety lock release by manual.
  • Mechanical locks automatically engaged into position in ascending process.
  • Out of level protection, safe and reliable.
  • Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
  • Skid proof diamond platform.

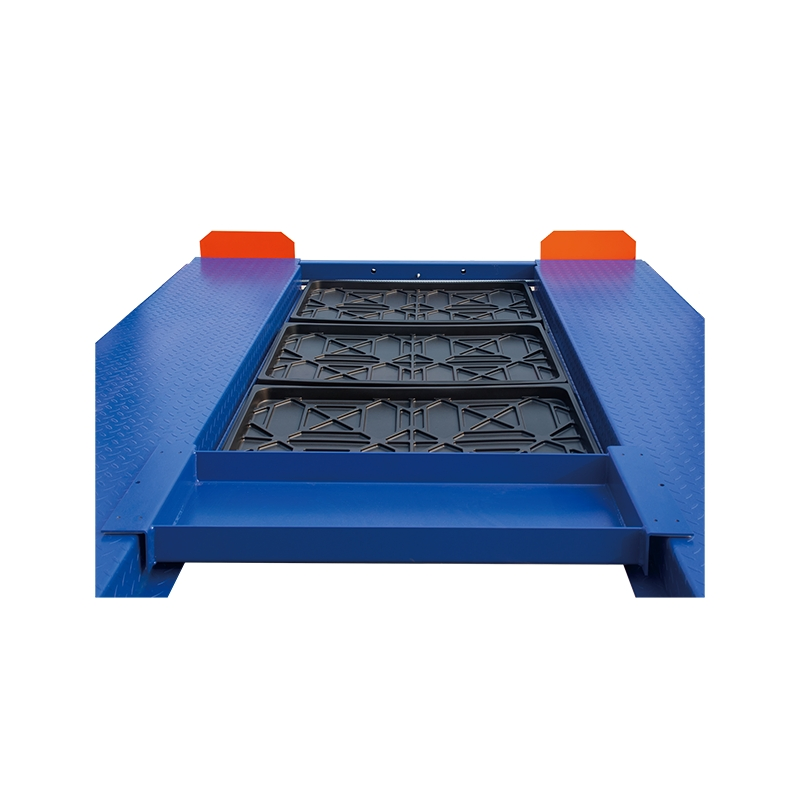

  • Standard drip pan (3pcs), jack pan (1pc).
T

Technical Data

Model 7436P 7436PL
Lifting Capacity3,600kgs (8,000LBS)3,600kgs (8,000LBS)
Lifting Time≤50S≤50S
Overall Height2076mm (81 3/4")2330mm (91 3/4")
Lifting Height1845mm (72 5/8")2100mm (82 11/16")
Overall Length (Inc.Ramps)5120mm (201 9/16")5540mm (218 1/8")
Overall Width2890mm (113 3/4")3140mm (123 5/8")
Shipping Weight688kgs (1,517LBS)745kgs (1,642LBS)
S

Key Strengths & Technology

  • Minimal Ground Height: 180mm (7 1/16"), effectively avoiding chassis scraping for low vehicles.
  • Adjustable Column: Lower end is adjustable by 40mm to ensure level runways on uneven ground.
  • Double Insurance: Manual safety and cable breaking safety inside the cross beam.
  • Robotic Welding: High consistency, high strength, and beautiful welding seams.
  • Powder Coating: High-temperature curing for strong adhesion and aesthetic finish.

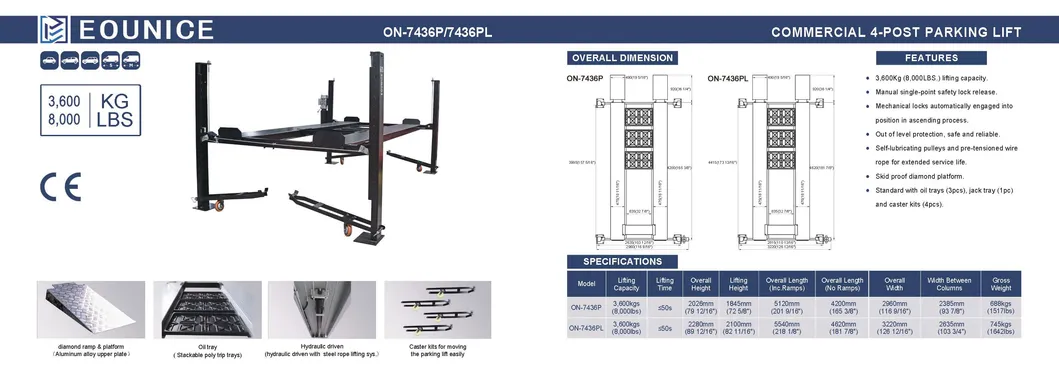

Technical Drawing

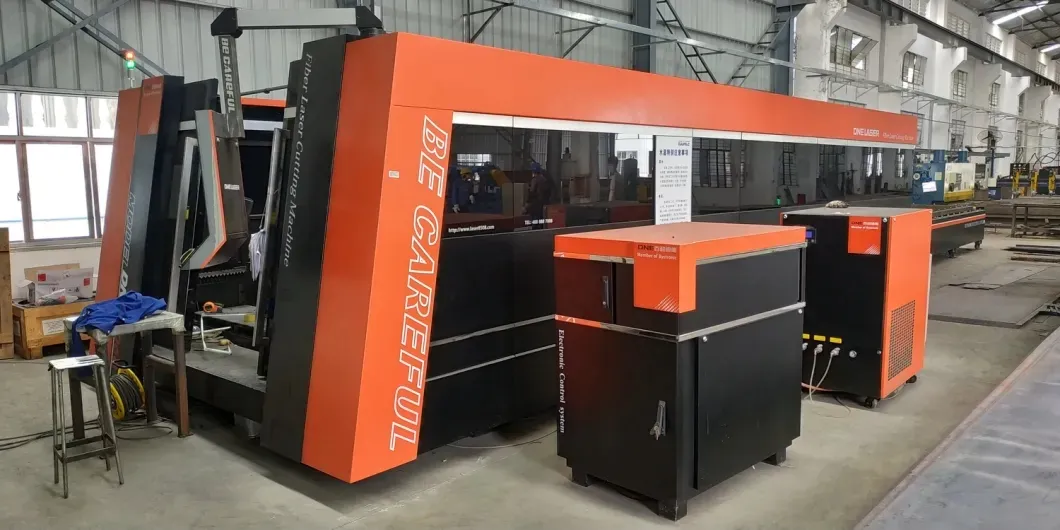

Laser Cutting

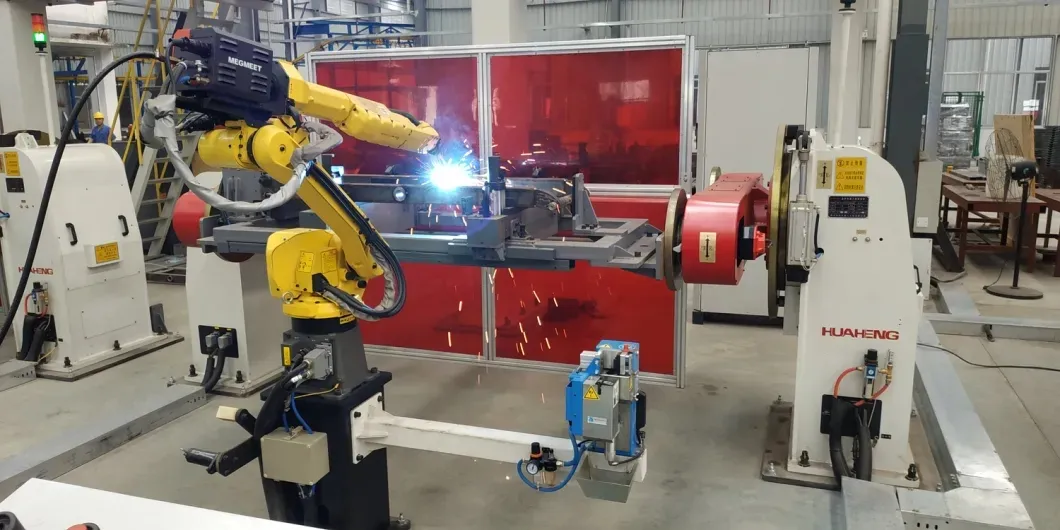

Robotic Welding
P

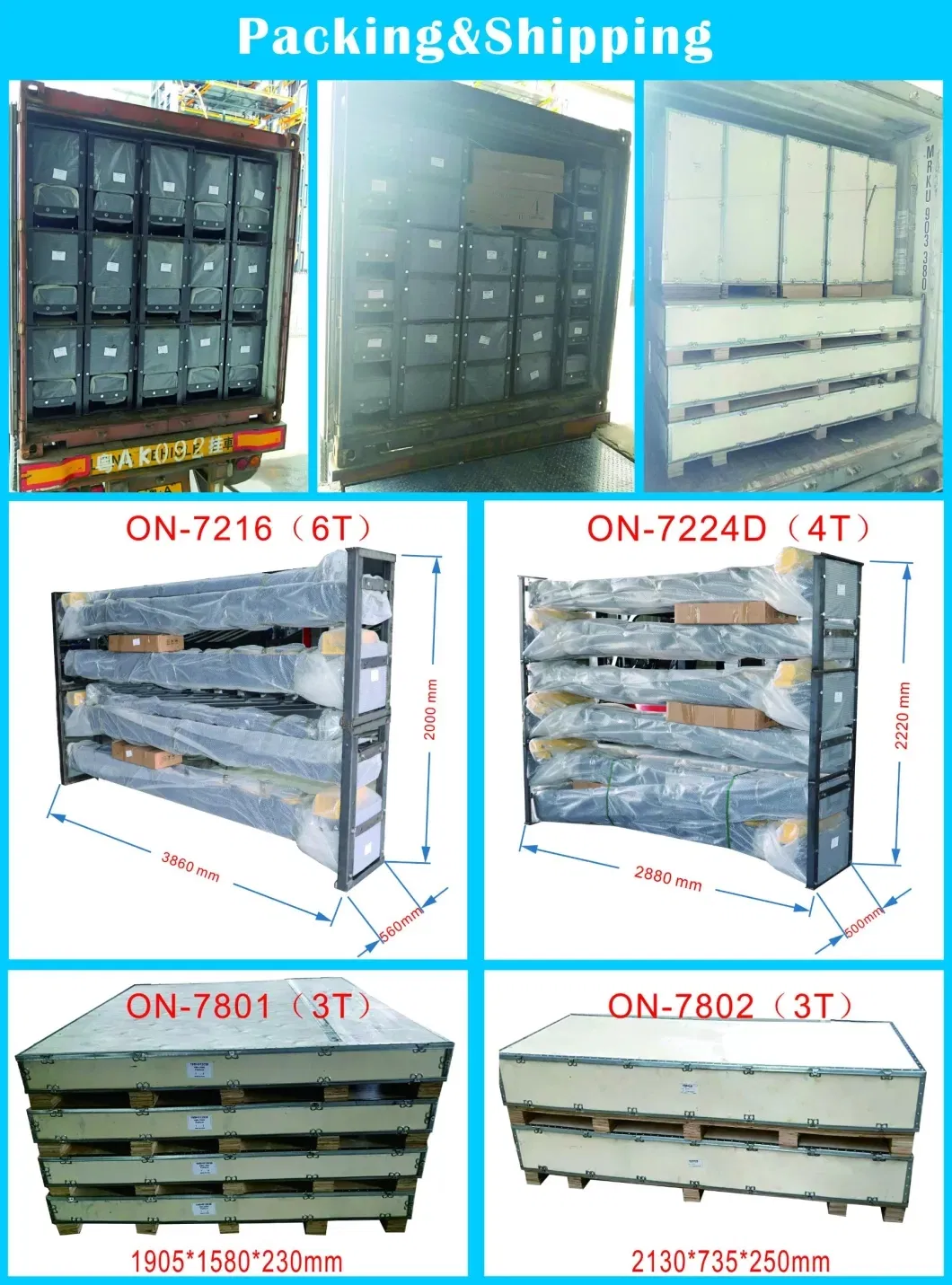

Packing and Shipping

Lifts are steel frame packed while scissor lifts use ply-wood boxes with steel outlines. Strong packing guarantees delivery in perfect condition.

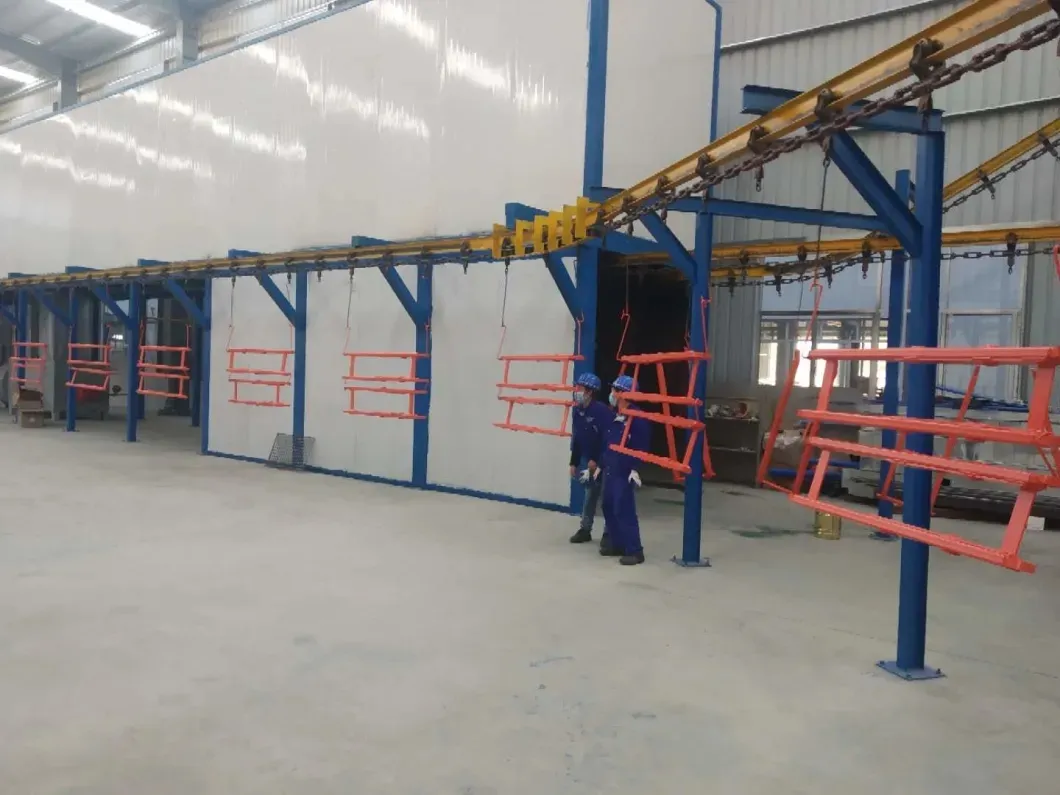

Powder Coating Effect
Packing Example
Certification
?

Frequently Asked Questions

Why should I choose this car lift?
With 20 years of research and certifications like TUV, CE, and ISO9001, we offer high-quality lifts produced in a 60,000m² plant using 50+ automatic machines.
How safe are these car lifts?
Our lifts have been tested and CE certified for safety. They also meet rigorous American and Australian Standards.
Are the lifts designed for commercial use?
Yes, all of our lifts are built to professional standards and can be used in commercial applications without any problems.
How about the delivery time?
Generally, it takes 10 to 20 days after receiving your advance payment. The specific time depends on the items and order quantity.
What ceiling height is required?
The required ceiling height depends on the lift model and the intended vehicle. Please refer to the specific product data or contact us for professional advice.
Do car lifts require regular maintenance?
Yes, a simple monthly checklist and visual inspections are recommended. Cables and hydraulic systems need regular checks to ensure long-term reliability.
