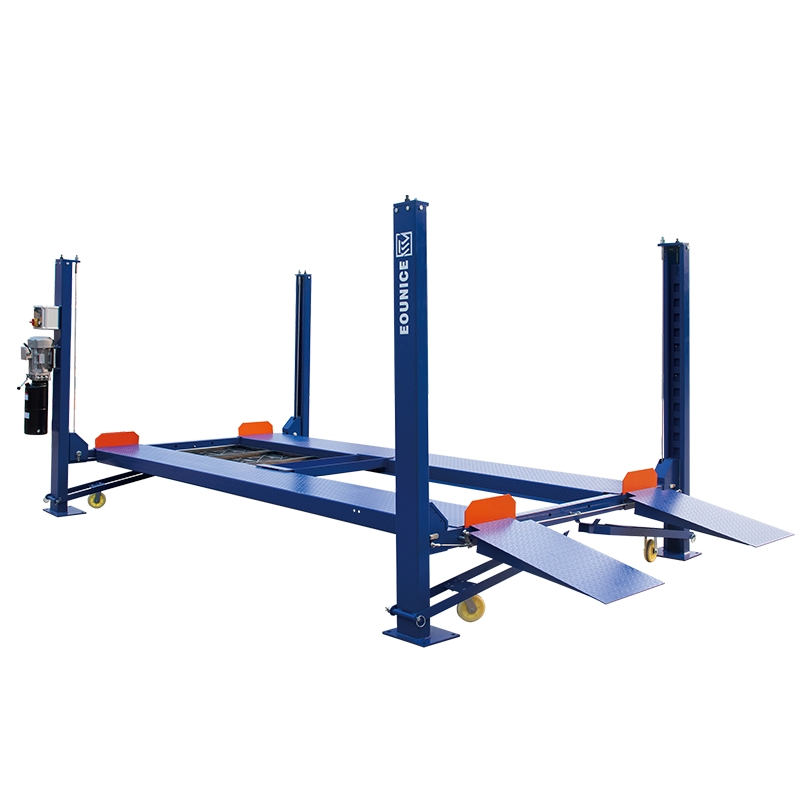

Eounice 4-Post Car Lift External Lock System Car Care

Customization:	Available
After-sales Service:	1-5 Years
Warranty:	1-5 Years

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.ON-7436PL

TypeFour Cylinder Hydraulic Lift

Lifting Capacity3.6t

Driving TypeHydraulic

CertificationCE, ISO

DesignFour Post

ConditionNew

HS Code8425429000

Capacity10000 units

Specification4650*550*770mm

⚙️

Product Description

Features & Highlights

Manual safety lock release, longer and wider 4 post parking lift. Overall Height 2330mm.

3,600Kg (8,000LBS.) lifting capacity.

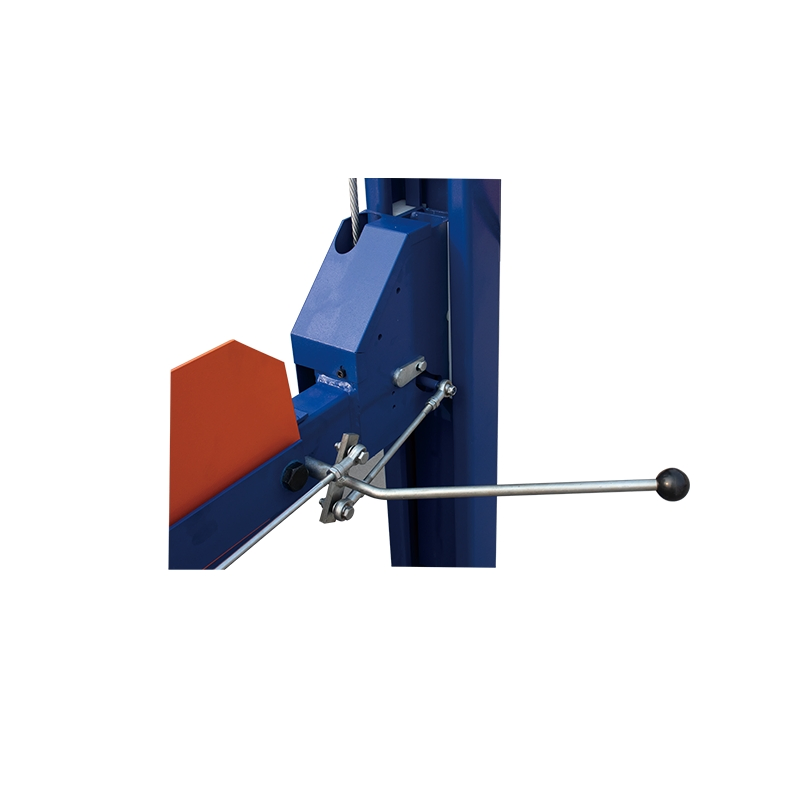

Single-point safety lock release by manual.
Mechanical locks automatically engaged into position in ascending process.
Out of level protection, safe and reliable.

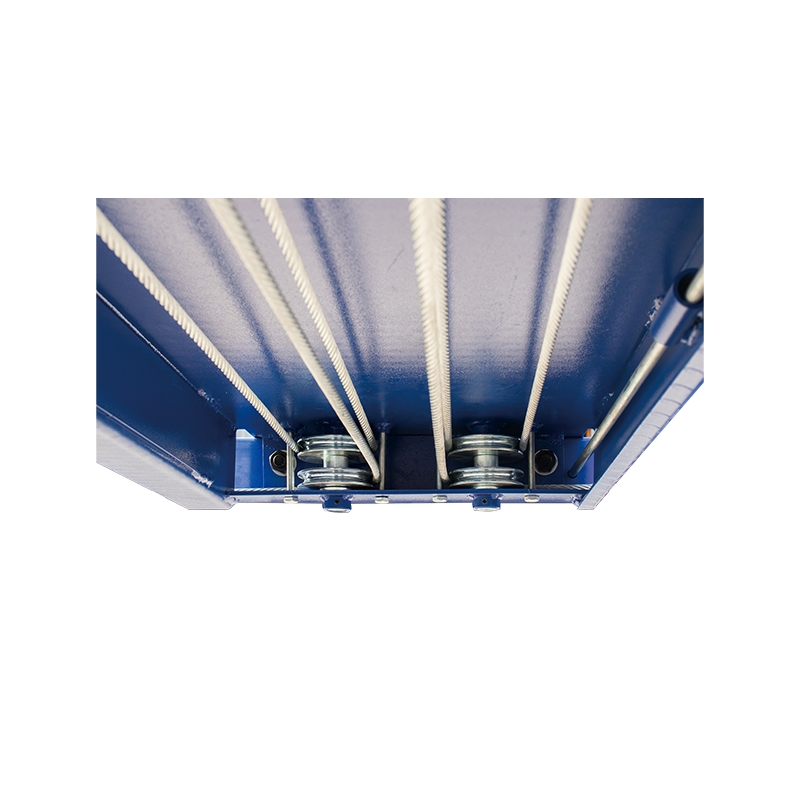

Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
Skid proof diamond platform.

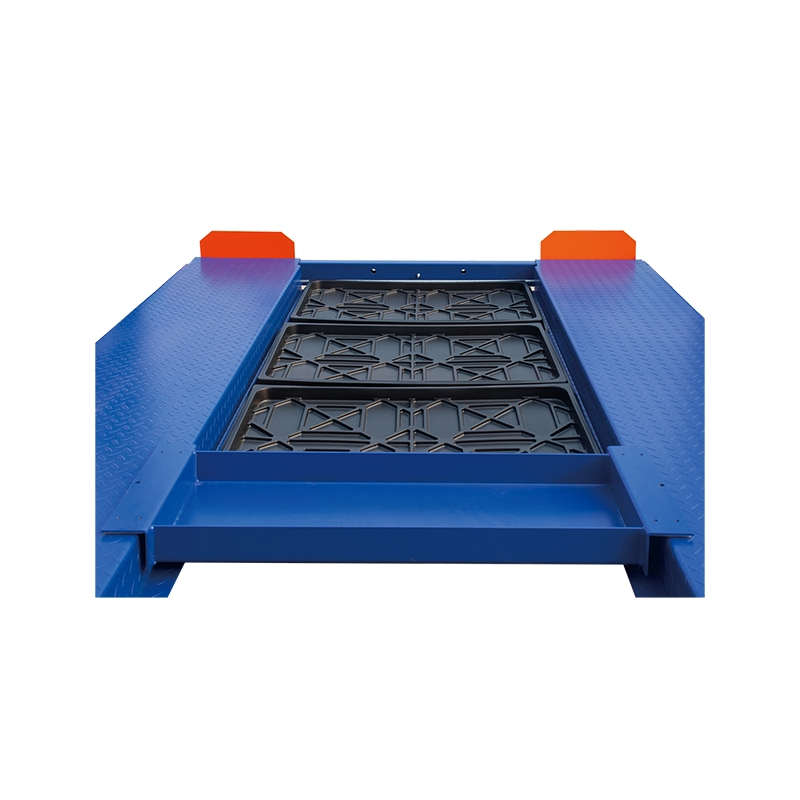

Standard drip pan (3pcs), jack pan (1pc).
Mobile kit (4pcs) OPTIONAL.

📋

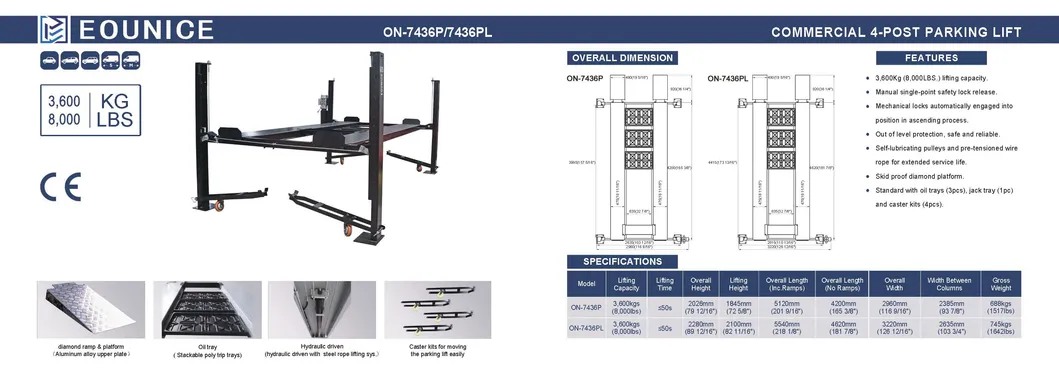

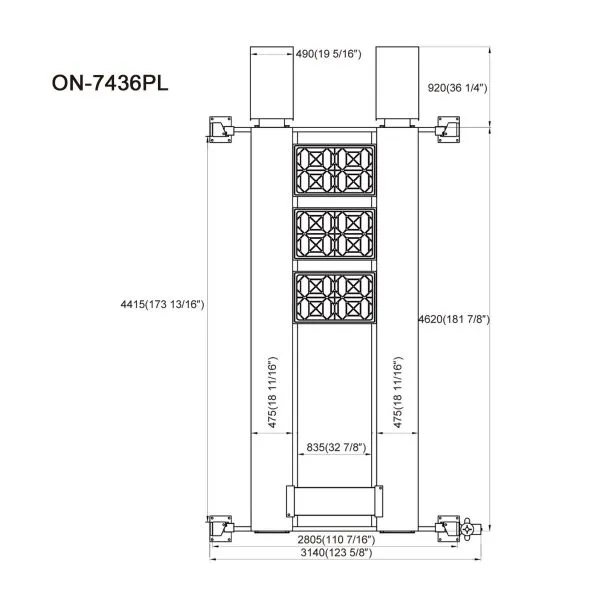

Technical Data

Model	7436P	7436PL
Lifting Capacity	3,600kgs (8,000LBS)	3,600kgs (8,000LBS)
Lifting Time	≤50S	≤50S
Overall Height	2076mm (81 3/4")	2330mm (91 3/4")
Lifting Height	1845mm (72 5/8")	2100mm (82 11/16")
Length (Inc. Ramps)	5120mm (201 9/16")	5540mm (218 1/8")
Width inside Columns	2385mm (93 7/8")	2635mm (103 3/4")
Shipping Weight	688kgs (1,517LBS)	745kgs (1,642LBS)

💎

Our Strengths

Chassis Protection: Minimum ground height is 180mm to avoid low chassis hanging.
Adjustable Design: Column upper end suspended and lower end adjustable (40mm range) for level runways.
Double Insurance: Manual safety and cable breaking safety inside cross beams with pressure spring reset.

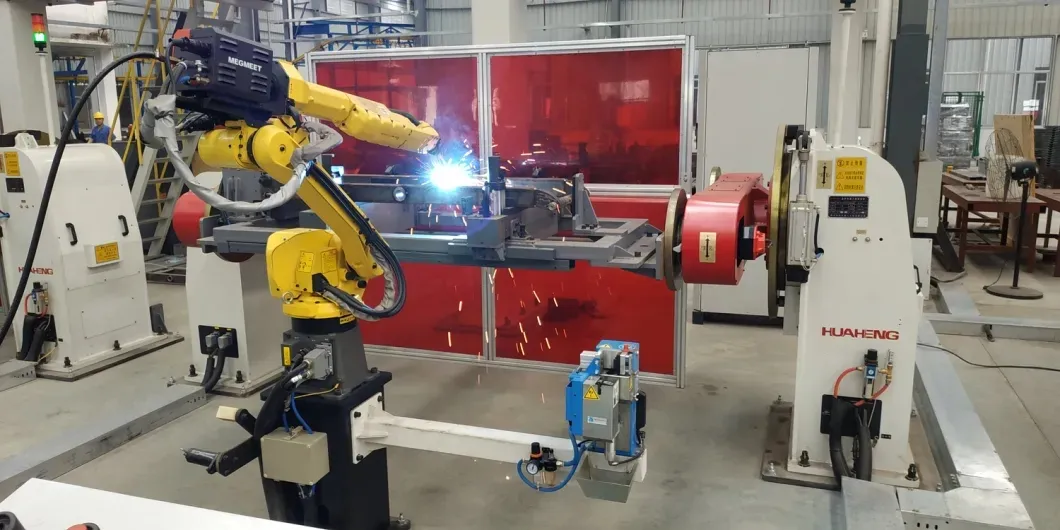

Robot Welding: Main structural parts welded by robots for high strength and beautiful seams.

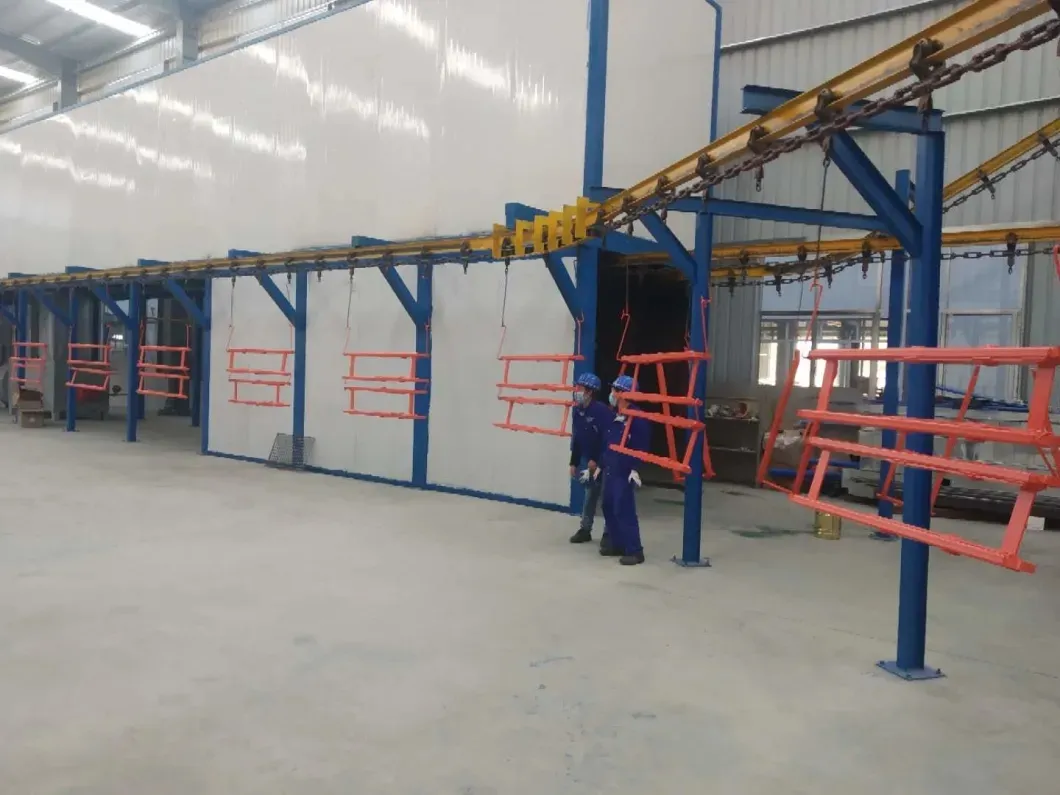

Powder Coating: Imported powder used with high-temperature curing for strong adhesion and bright color.

Advanced Manufacturing Technology

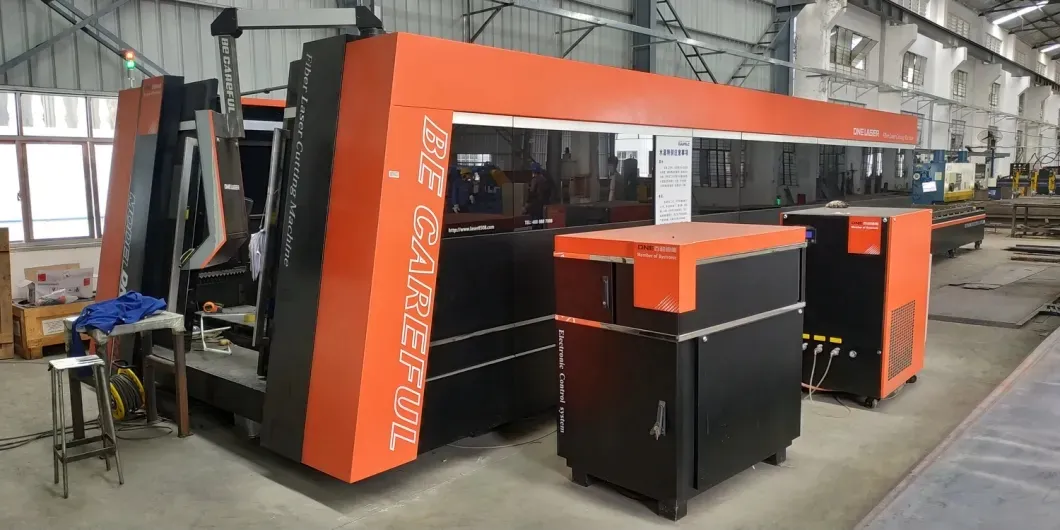

Seamless Laser Cutting

High accuracy and precision cuts.
No damage or warping to materials.
Higher sheet utilization and low power consumption.

Robotic Welding & Powder Coating

📦

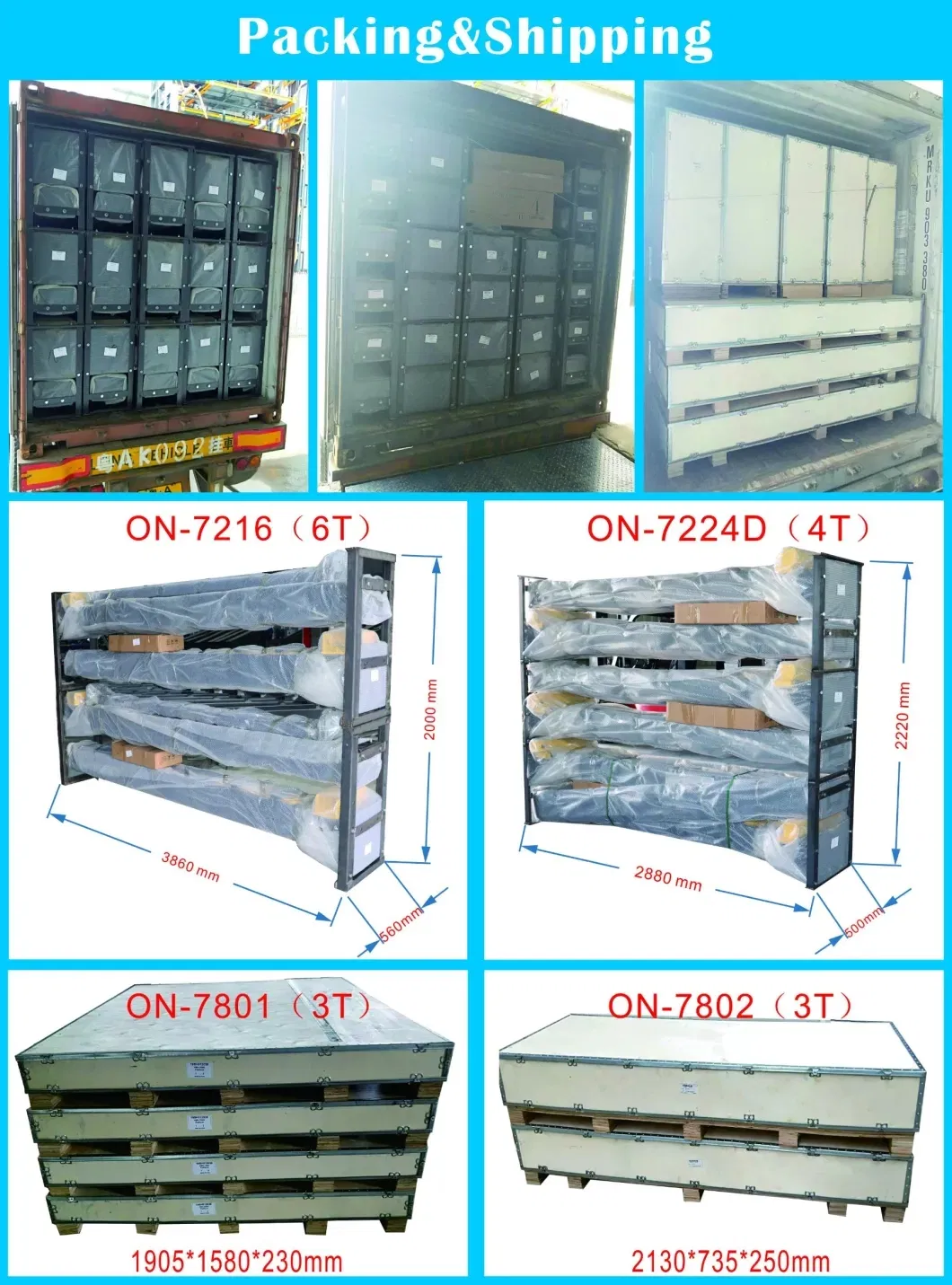

Packing & Quality Control

Lifts are steel frame packed while scissor lifts use plywood boxes with steel outlines. Strong packing guarantees delivery in perfect condition.

❓

Frequently Asked Questions

1. Why should I choose this car lift? We offer 20 years of technique research combined with TUV, CE, ISO9001, and CCPC certifications. Our 60,000m² plant utilizes over 50 automatic production lines to ensure top-quality raw materials and competitive prices.

2. How safe are these post car lifts? Our car lifts have been rigorously tested and are CE certified for safety. They also meet American and Australian Standards to ensure maximum operator and vehicle protection.

3. Are these lifts designed for commercial use? Yes, all of our lifts are designed for durability and can be used in commercial applications such as professional repair shops or parking facilities without any problems.

4. Do you offer custom designs (OEM/ODM)? Certainly. We provide comprehensive OEM/ODM services. We can build custom molds and fixtures to produce lifts according to your specific samples or technical drawings.

5. What is the typical delivery time? Generally, it takes 10 to 20 days after receiving your advance payment. The specific timeframe depends on the specific models and the total quantity of your order.

6. Do the car lifts require regular maintenance? A simple monthly checklist for visual inspections is recommended. It is important to maintain the cables and hydraulic systems regularly to ensure long-term reliability and safety.
