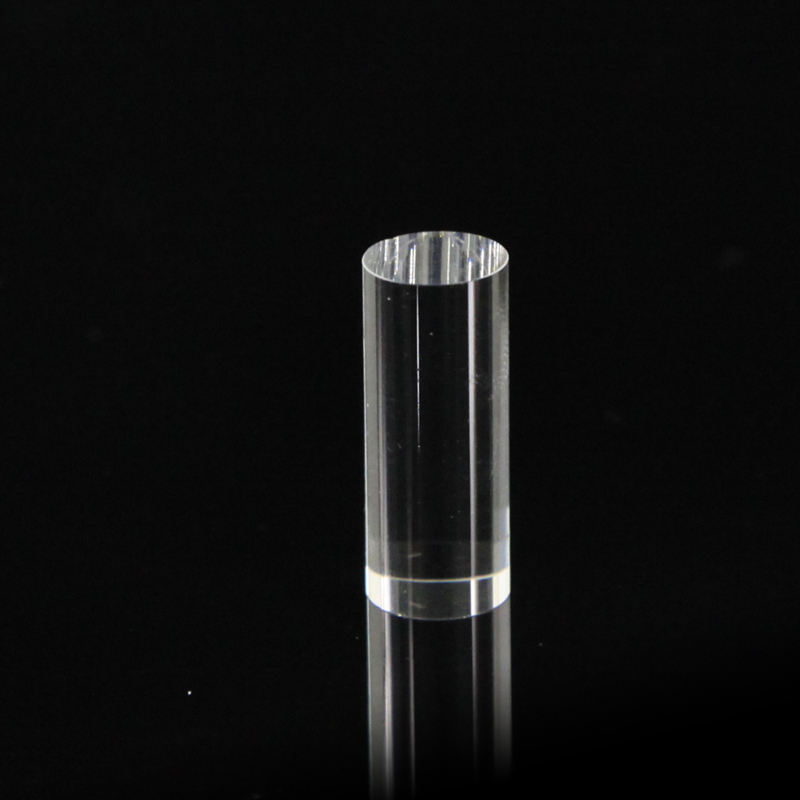

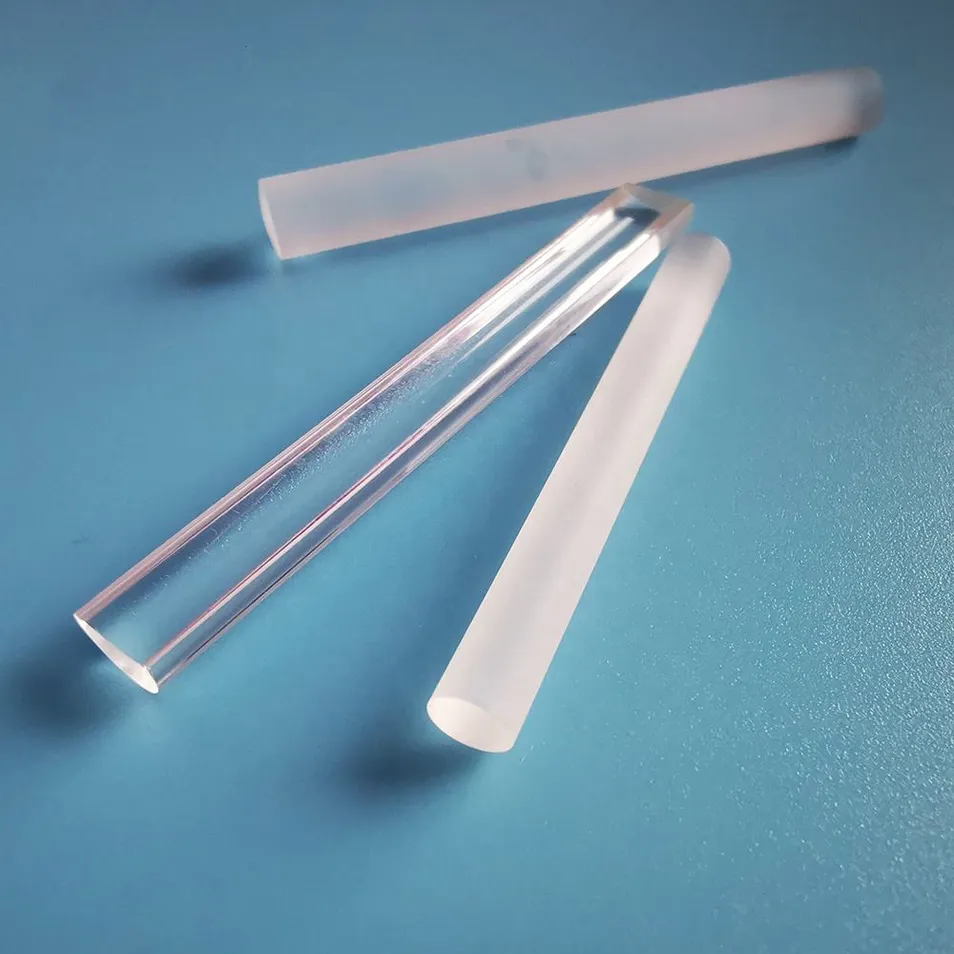

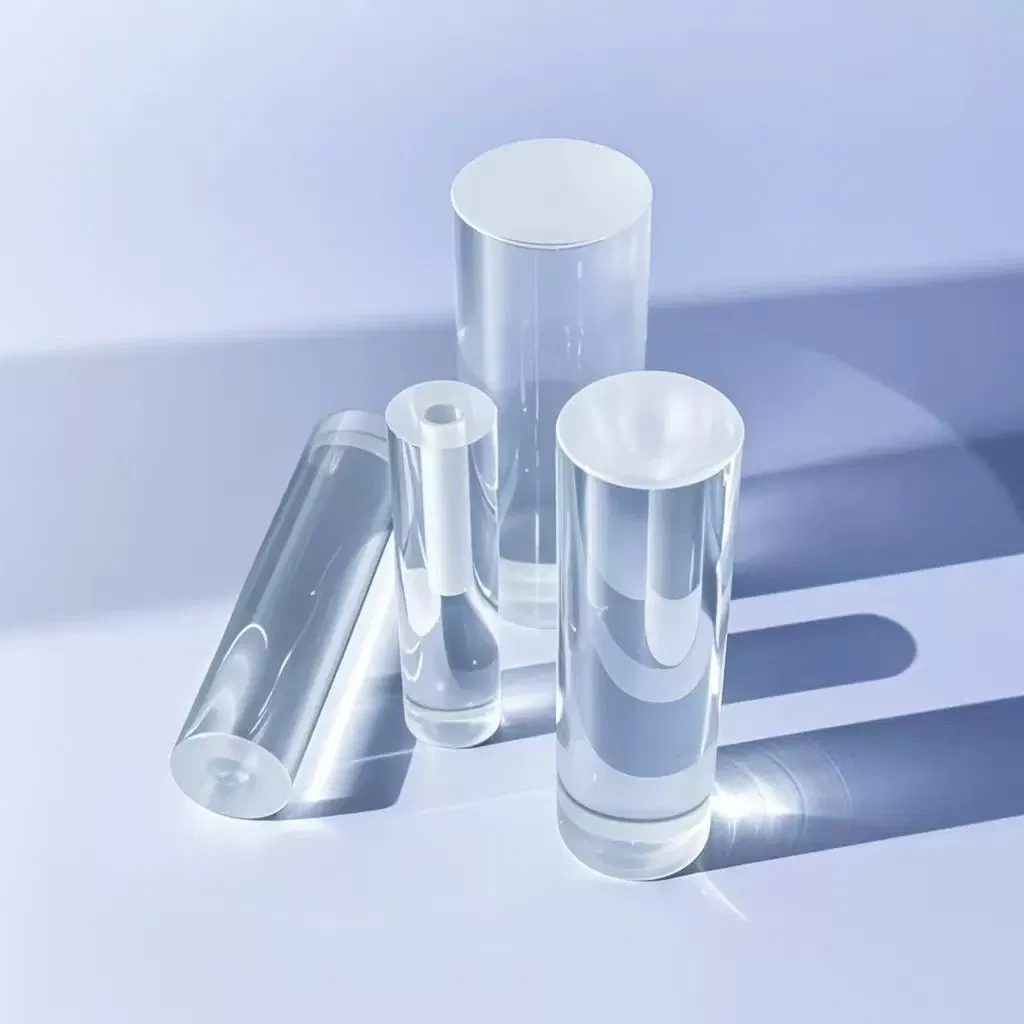

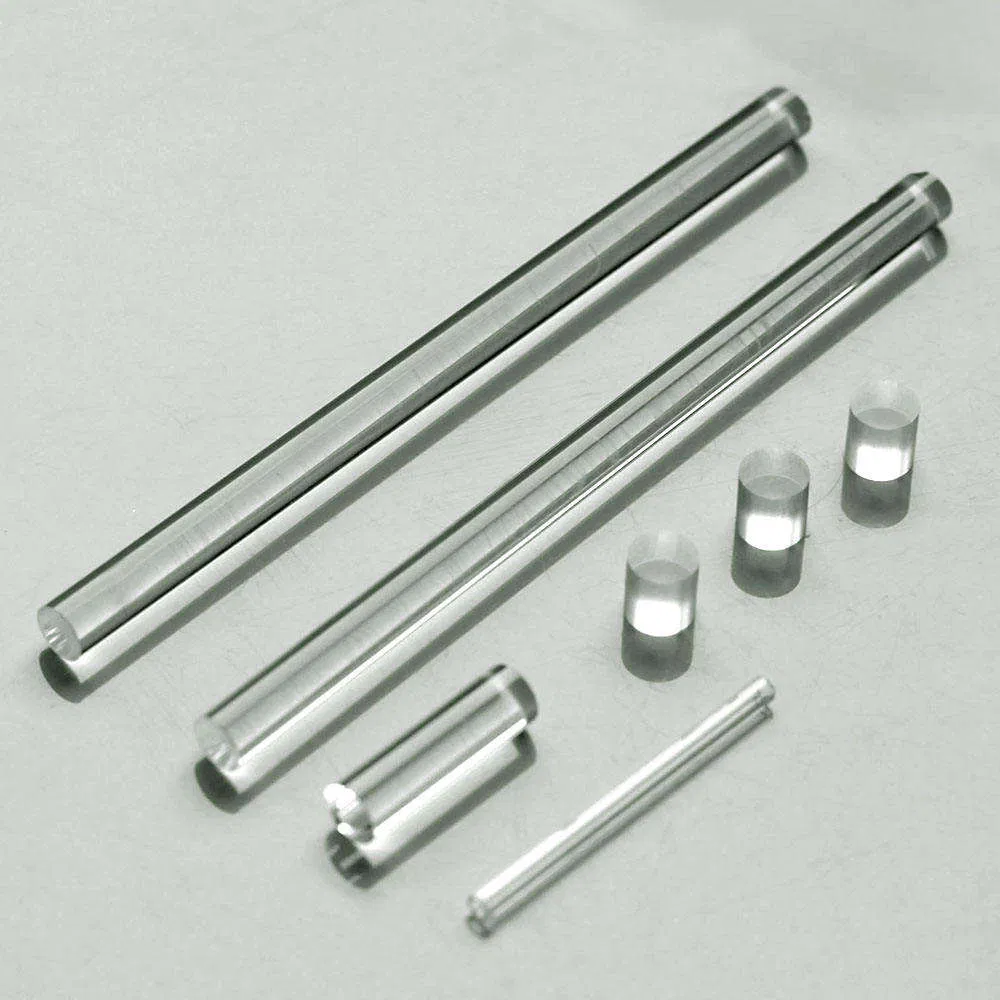

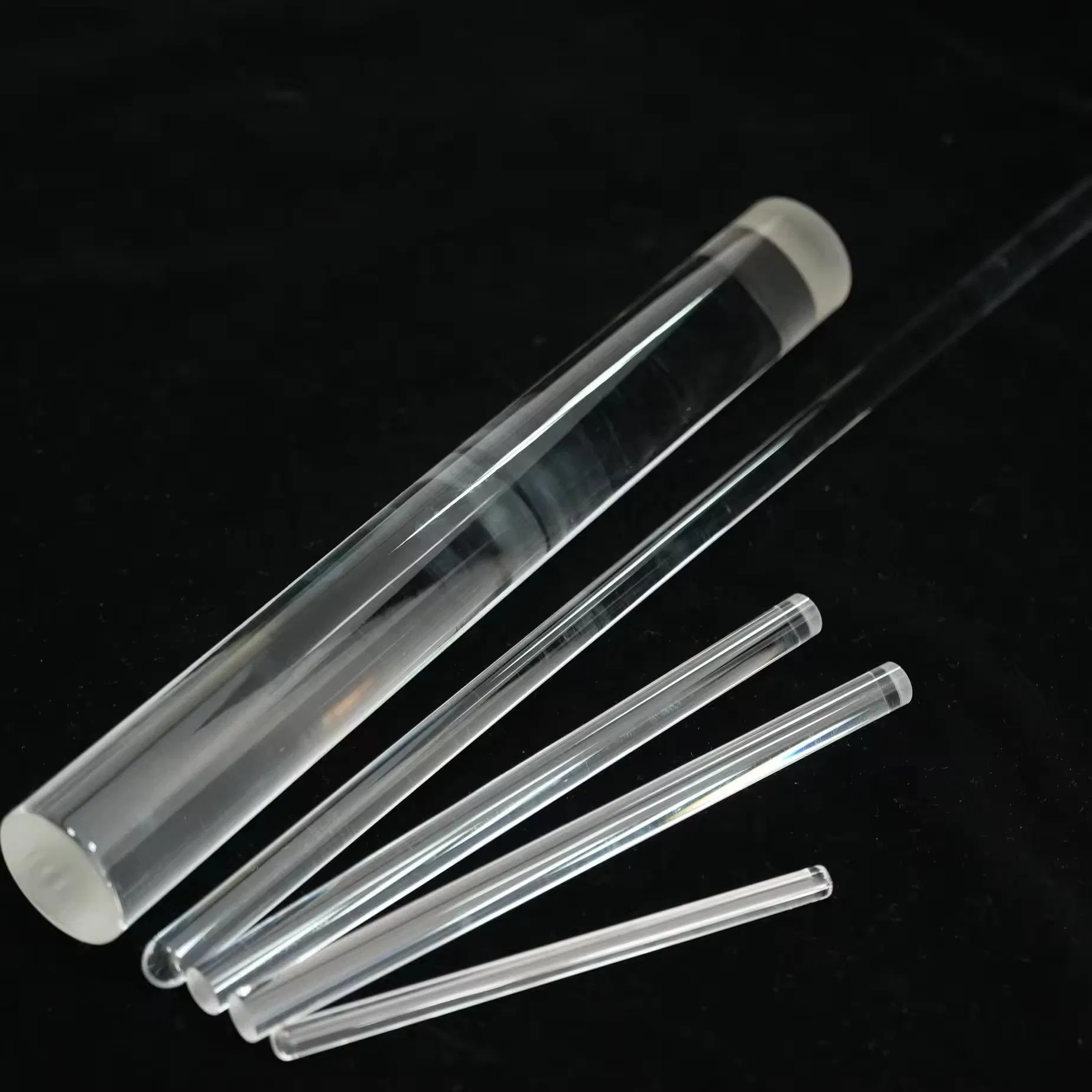

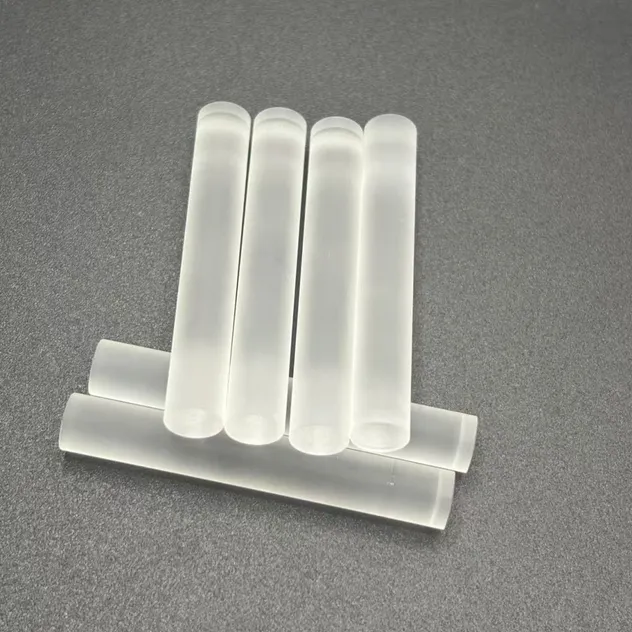

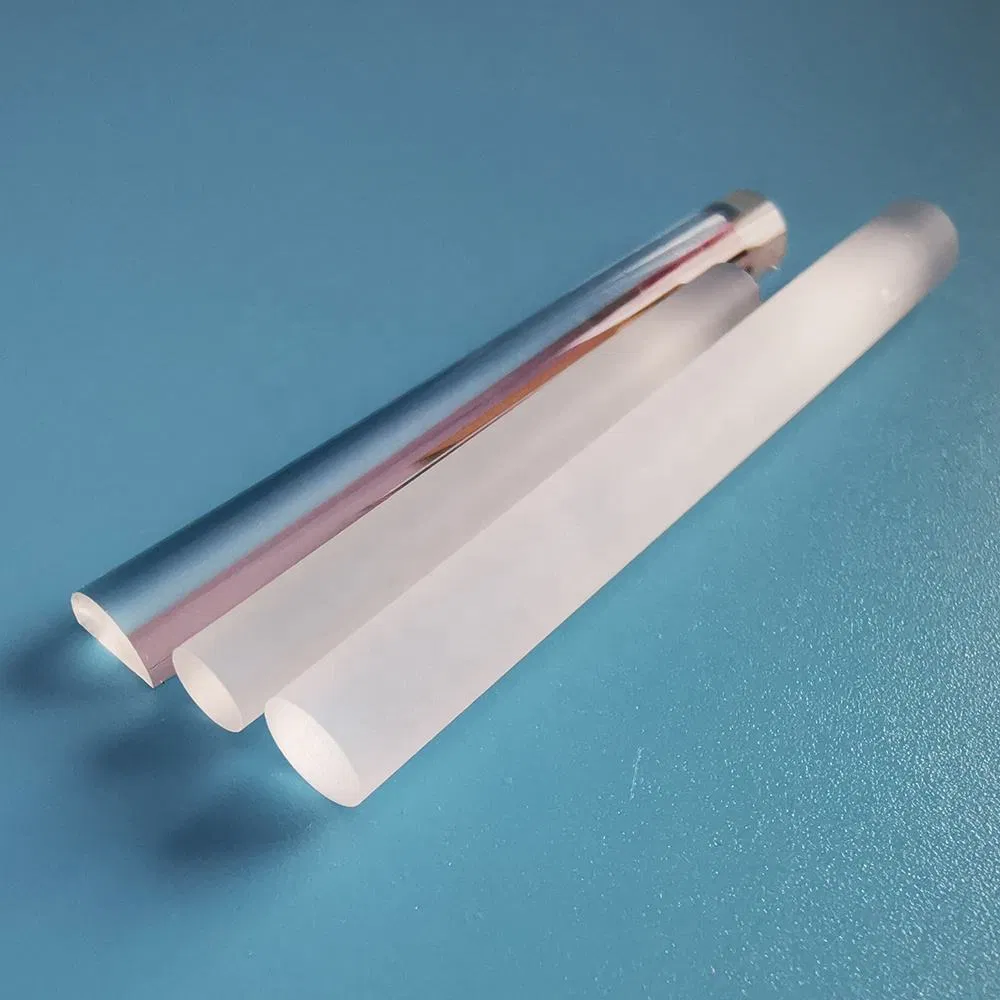

Custom Optical BK7 K9 Glass Quartz Micro Fiber Laser Rod Lens Endoscope Lens

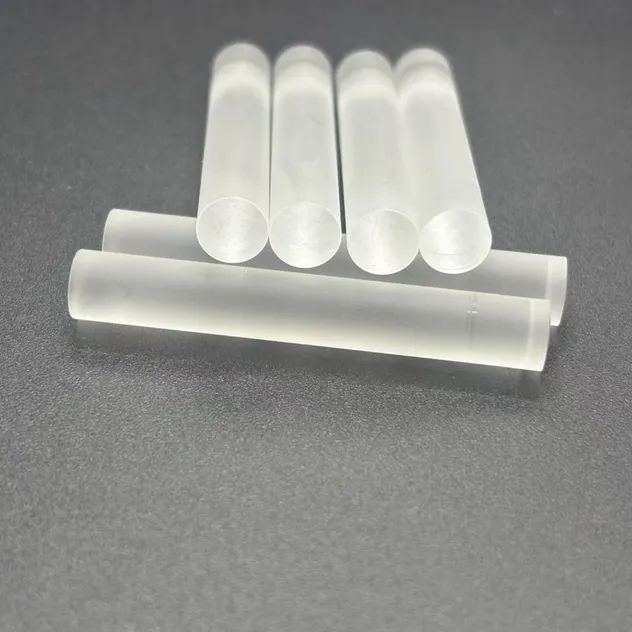

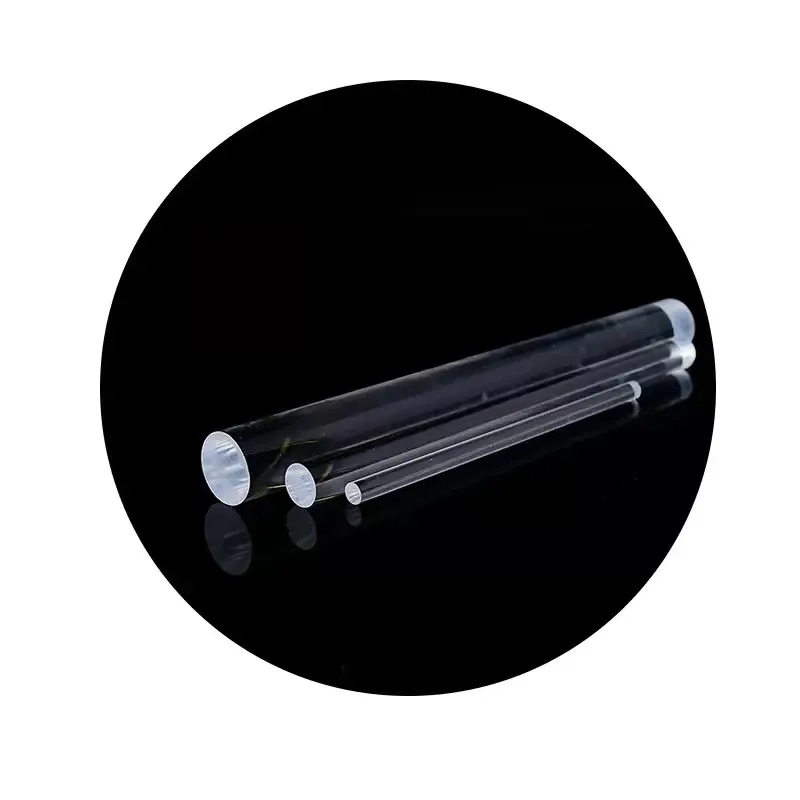

Our Endoscope Rod Lenses are high-precision cylindrical optical components designed for specialized applications in beam shaping and medical imaging. These lenses feature a highly polished circumferential surface and precisely ground ends, making them ideal for transforming collimated light into a focused line and for critical use in rigid endoscopes.
Key Features
✔️Dual Functionality: Functions as a standard cylindrical lens for beam shaping or as a circular lens with ends polished.
✔️Beam Shaping: Efficiently focuses collimated light into a thin, precise line for various optical systems.
✔️Medical Grade Precision: Exact surface curvature and precision cutting essential for medical endoscopy.
✔️Self-Aligning Design: Naturally aligns within tube diameters, simplifying assembly and alignment.
✔️Superior Surface Quality: Highly polished surfaces for optimal performance and minimal light scattering.
Applications
- 🔹 Rigid Endoscopes & Medical Imaging
- 🔹 Industrial Borescopes
- 🔹 Laser Beam Shaping
- 🔹 Line Generation Systems
- 🔹 Precision Optical Instrumentation
Technical Specifications
| Production Name | Rod Lens |
| Material | Optical Glass |
| Surface Quality | 40/20 |
| Dimension Tolerance | +/-0.01 |
| Inverted Side | <0.2*45° |
| Eccentricity | 30 - 5 Seconds |
| Polished | All surfaces polished |
| Design Wavelength | 400nm - 1100nm |
Our Services
We are a professional manufacturer specializing in high-performance laser optical components. We deliver reliable, precision-engineered accessories that meet strict industrial and medical standards. With advanced production technology and strict quality control, we ensure optimal safety and performance.
Related Optical Products
Optical Lenses: Concave, Plano-convex, Achromatic, Aspheric
Optical Prisms: Right-angle, Equilateral, Dove, Porro
Optical Filters: UV, IR, Bandpass, Neutral Density
Optical Windows: Sapphire, Quartz, Optical Glass
Optical Mirrors: Reflective, Dielectric, Metal, Concave/Convex
Production Advantages
⭐ High Precision: Equipped with CNC optical grinding and polishing machines.
⭐ Quality Assurance: 100% inspection before delivery (Interferometer & Spectrophotometer).
⭐ Efficient Service: Quick response and reliable lead times for global logistics.
Frequently Asked Questions
What are the primary applications of rod lenses?
Rod lenses are primarily used for medical endoscopes, industrial borescopes, and laser beam shaping where a circular or cylindrical lens is required to transform collimated light into a line.
Can I order custom sizes and coatings?
Yes, we provide full customization for dimensions (diameter 1.5-300mm), materials, and optical coatings to meet your specific project requirements.
What materials are available for your rod lenses?
We offer a wide range of materials including BK7 (K9), Quartz, Infrared materials, Sapphire, Si, ZnSe, and CaF2, depending on the thermal and optical needs of the application.
How do you ensure the precision and quality of the lenses?
Our manufacturing process includes CNC grinding and polishing, followed by 100% inspection using professional instruments like interferometers and spectrophotometers to ensure compliance with ISO standards.
What is the standard lead time for a small order?
For quantities between 1 and 10 pieces, the typical lead time is approximately 7 days. For larger bulk orders, the timeline can be negotiated based on production capacity.
Are these lenses suitable for medical-grade devices?
Yes, our rod lenses are designed with the high surface quality and dimensional tolerance necessary for medical imaging systems and rigid endoscope assemblies.
