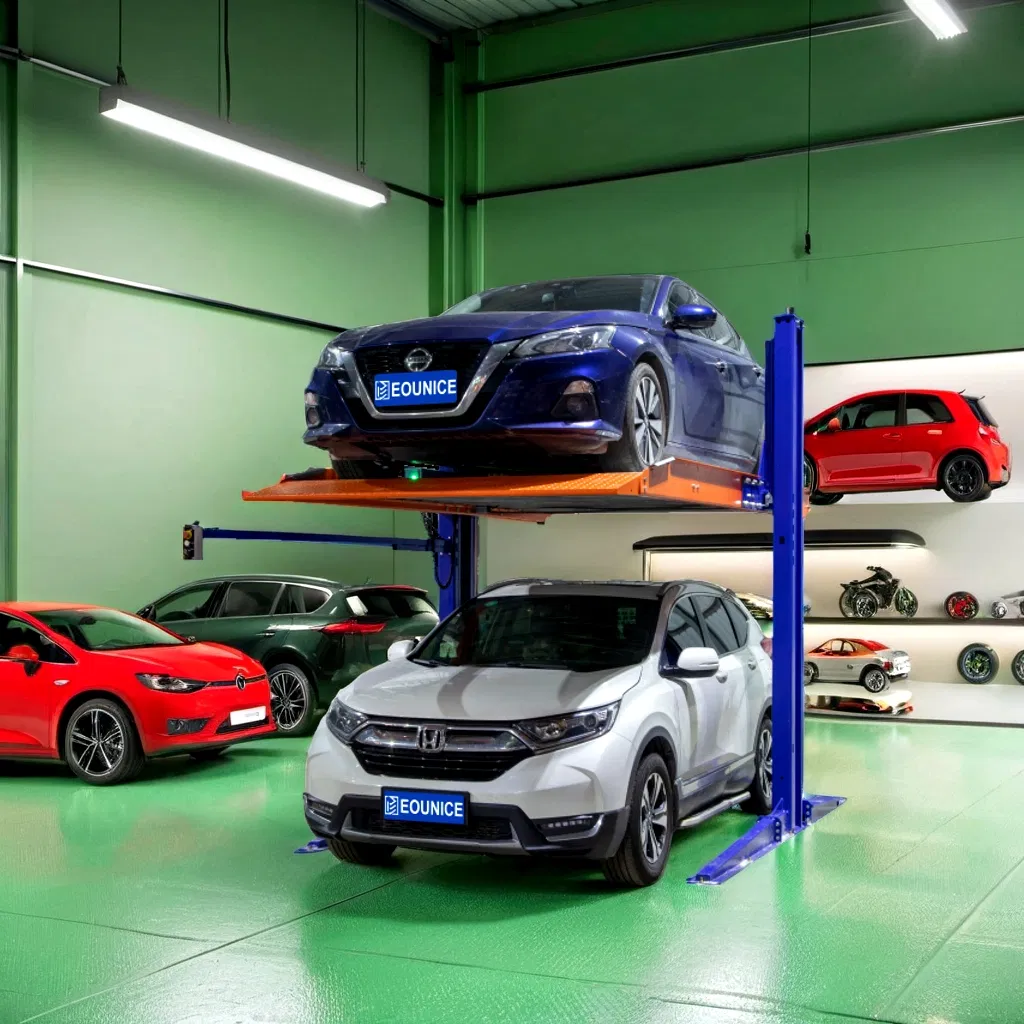

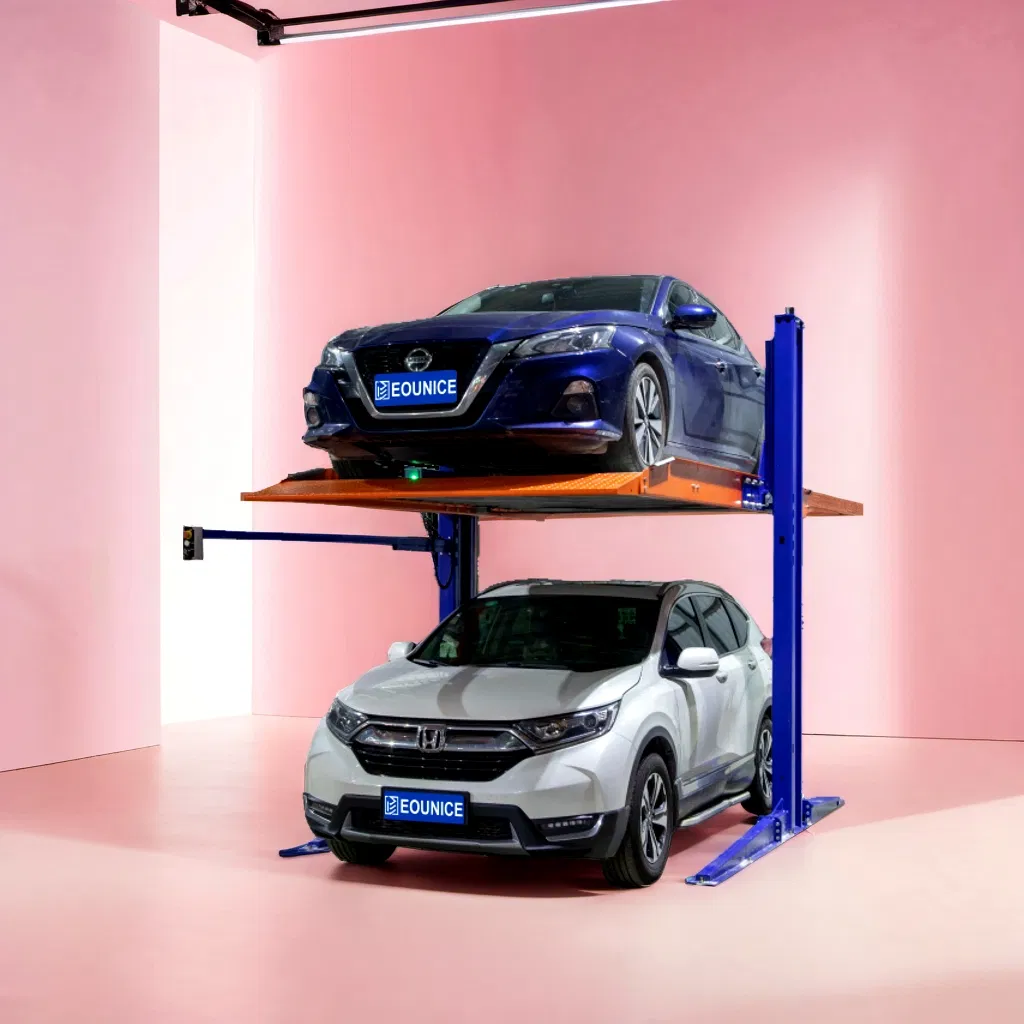

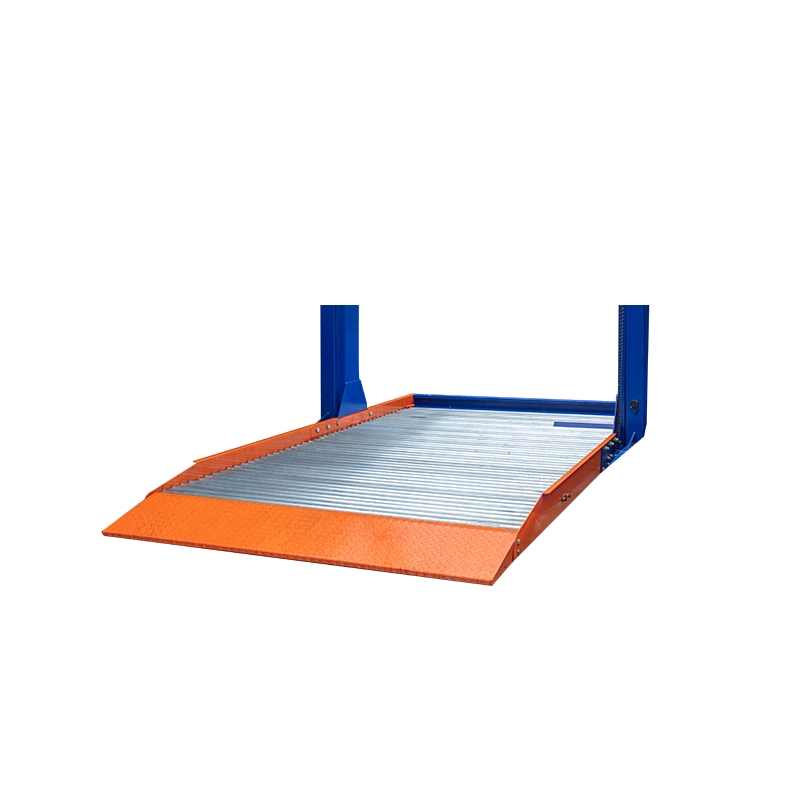

Auto Two-Post Parking System with Hydraulic Vehicle Lift Essential Car Care Equipment for Garages

Basic Specifications

Model NO.

on-7227p

Type

Double Cylinder Hydraulic Lift

Lifting Capacity

2700kg

Driving Type

Hydraulic

Certification

CE, ISO

Condition

New

Design

Two Post

HS Code

8425429000

Key Features

2700kg load capacity (passed 120% dynamic/150% static tests)
2100mm car width suitable for most vehicles
3165mm column bottom plate for maximum stability
Can be used in series to save space and budget

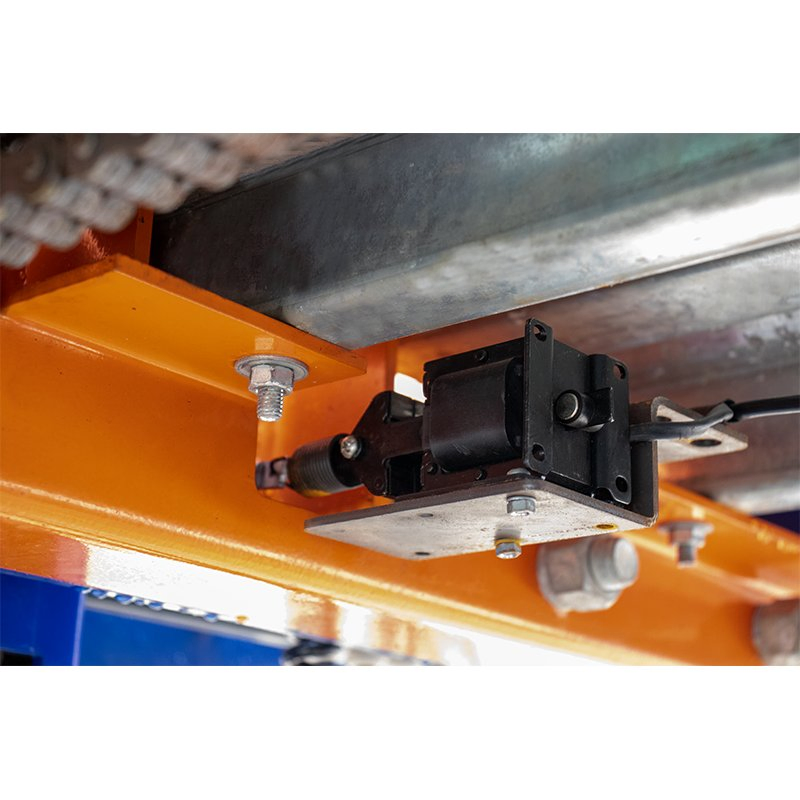

Mechanical anti-fall lock for enhanced safety
Convenient oil cylinder installation for easy maintenance

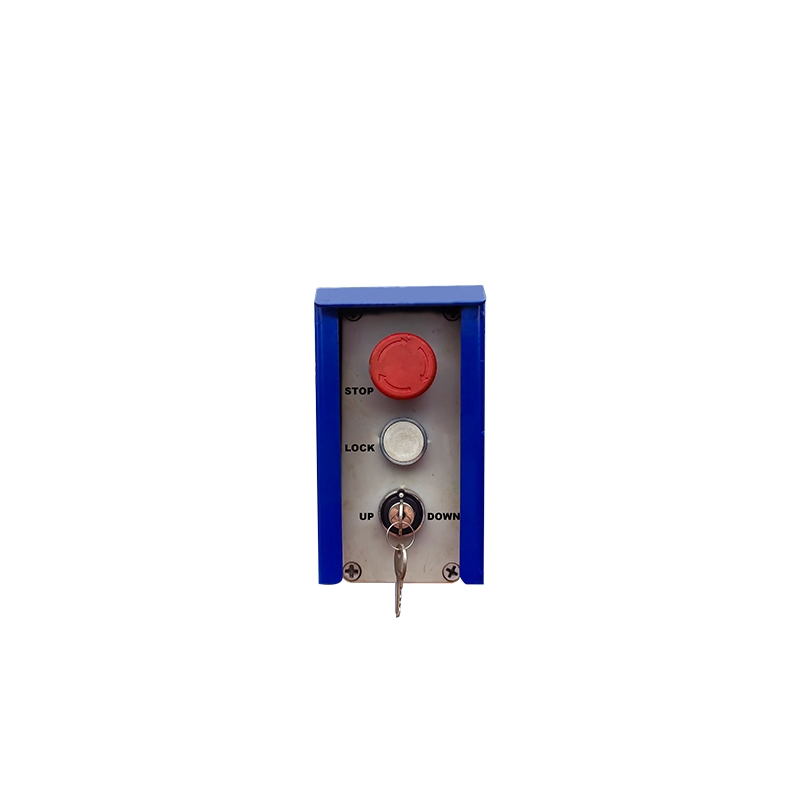

24V low voltage control box with simple key operation
Upgraded thick steel structure for long service life
Photoelectric sensor ensures synchronization on both sides

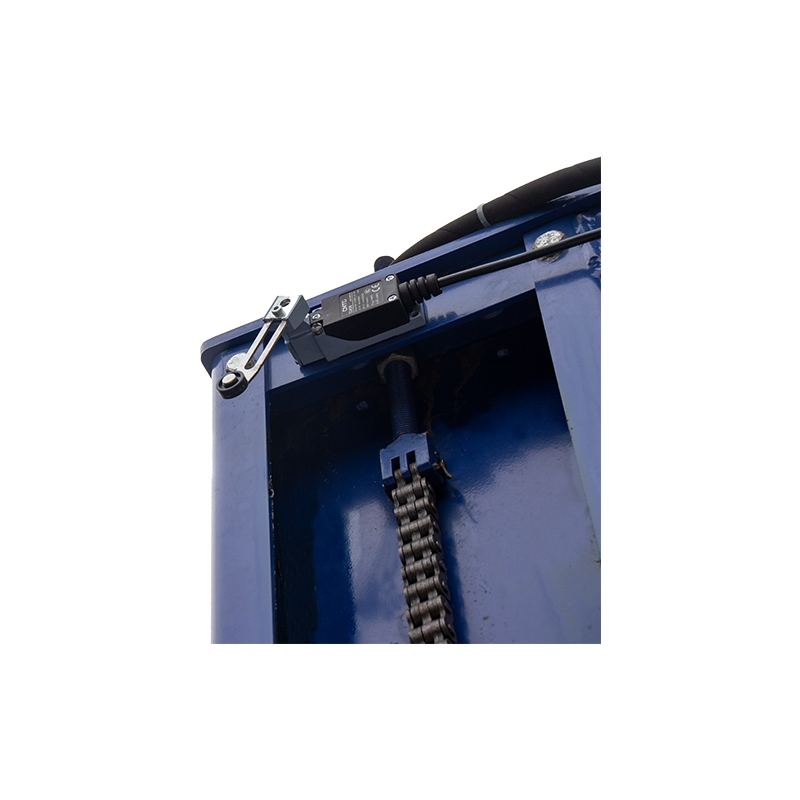

High-quality imported chain driver
Precision robot welding for consistent strength

Technical Data

Model	Lifting Capacity	Lifting Time	Lifting Height	Board Width	Board Length	Total Width	Gross Weight	Motor Power
ON-7227p	2700kg (6000LBS)	≤55S	2100mm	2100mm	4166mm	2566mm / 3410mm	1050kgs	2.2KW (3HP)

⚙️

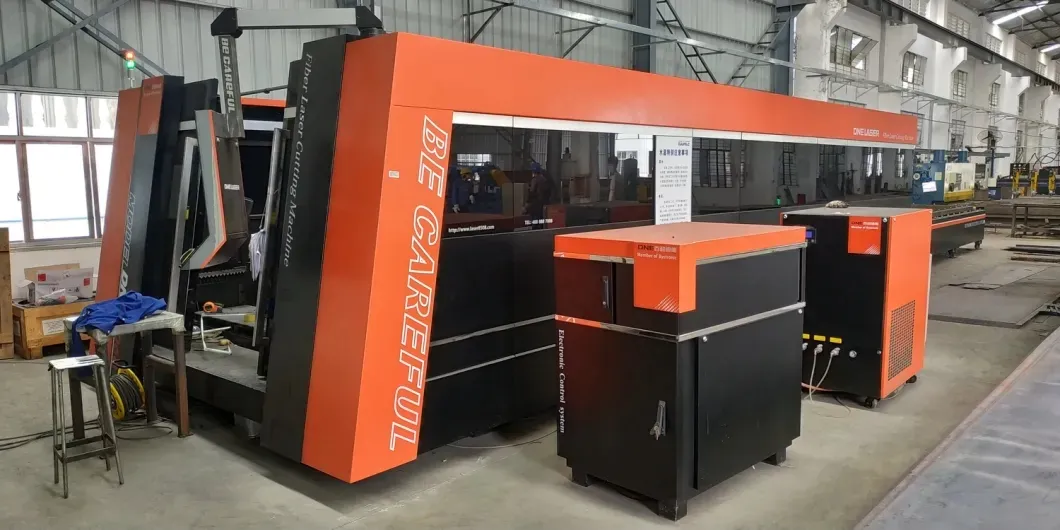

Seamless Laser Cutting

High accuracy and precision cuts with no damage or warping even to thin materials. Higher sheet utilization with low power consumption.

🤖

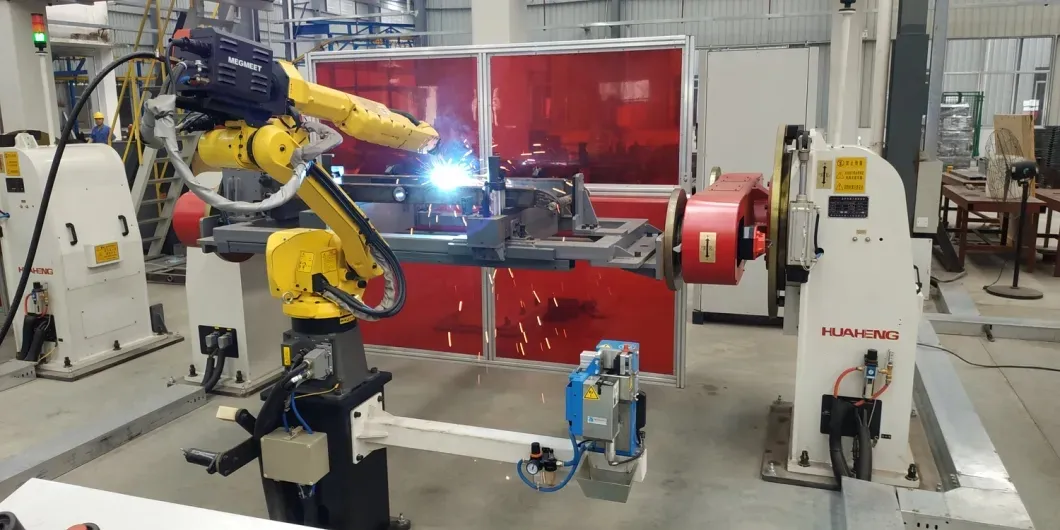

Robotic Welding Technology

Seamless appearance and high strength. Robot welding ensures perfect consistency and beautiful weld beads.

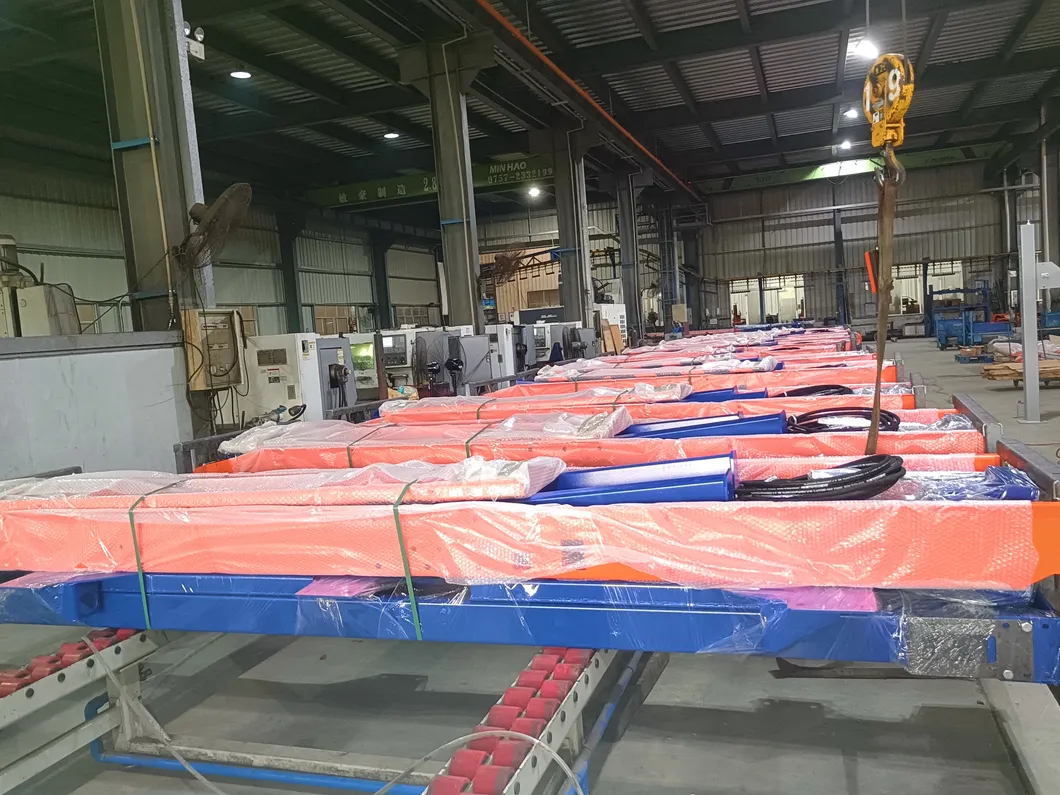

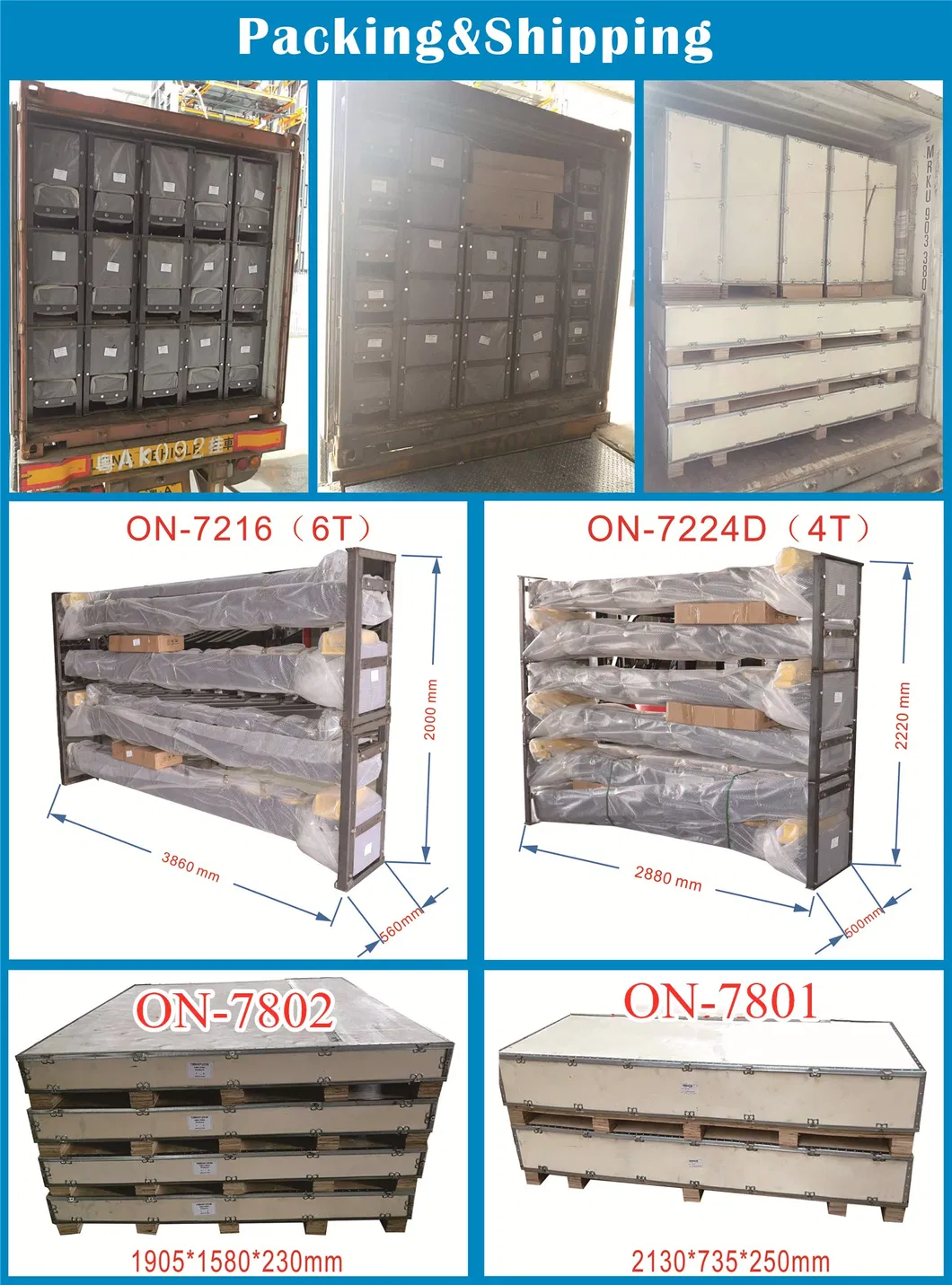

Packing & Shipping

2 post and 4 post lifts are steel frame packed to guarantee perfect delivery condition. Control consoles are packed in ply-wood boxes. Standardization and certifications ensure the highest quality control.

Frequently Asked Questions

How safe are these post car lifts?

The car lifts have been tested and CE certified for safety. They meet both American and Australian Standards, ensuring professional-grade reliability.

Are these lifts designed for commercial use?

Yes, all of our lifts are built to handle commercial applications without any problems, featuring heavy-duty steel and robust hydraulic systems.

What is the required delivery time?

Generally, it takes 10 to 20 days after receiving your advance payment. The specific time depends on the items and the quantity of your order.

Does the lift include mounting hardware?

Yes, all lifts are shipped with the necessary anchor bolts and hardware required for mounting the unit securely to your floor.

What ceiling height is required?

The required height depends on the specific lift model and the vehicle intended for lifting. Please refer to the technical specification table or contact us for advice.

Do the car lifts require regular maintenance?

A simple monthly checklist for hydraulic systems and cables is recommended, along with basic visual inspections during every operation to ensure long-term performance.
