Versatile Surgical Handle Components for Integrated Instrument Solutions

Customization:	Available
Material:	Medical Grade Plastics, Engineering Plastics
Application:	Medical Devices, Electronics, Precision Instrument

📋

Basic Information

Model NO.

sh-micro-013

Certification

TS16949, ISO, ISO 13485:2016, IATF 16949:2016, ISO 9001:2027

Processing Method

Micro Injection Molding

Tolerance

±0.005mm

Lead Time

4-8 Weeks

MOQ

500 Pieces

Package

PE Bag

Specification

PEEK plastic injection

Origin

China

Capacity

60 Mould Per Month

📦

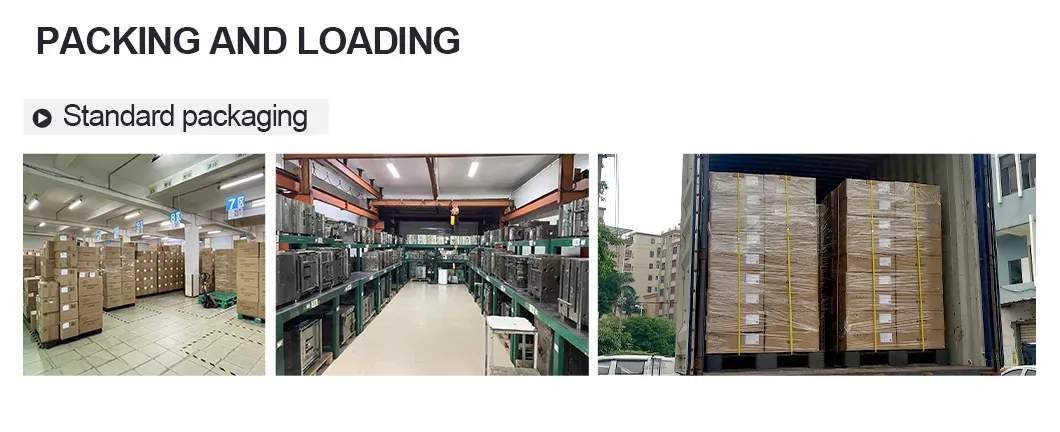

Packaging & Delivery

Package Size

20.00cm * 25.00cm * 20.00cm

Gross Weight

10.000kg

🔍

Product Description

Manufacturing Capabilities
Specialized in micro-molding technology with advanced capabilities for ultra-small, precision components. The facility features specialized micro-injection molding equipment capable of producing parts with features as small as 0.1mm with tolerances of ±0.005mm. Micro-molding expertise includes advanced tooling design, specialized materials processing, and comprehensive quality control systems optimized for miniaturized components. With over 100 technical personnel experienced in precision manufacturing, the service caters to medical device, electronics, and precision instrument industries.

Product Specific Details
Micro-molded components achieve exceptional precision and surface quality for applications requiring miniaturization and tight tolerances. Advanced micro-molding techniques enable complex geometries, thin walls, and integrated features in ultra-small components. Specialized capabilities include micro-features, ultra-thin walls, and precision assembly features. Components undergo comprehensive inspection using advanced metrology equipment including optical measurement systems. Applications include medical device components, electronic connectors, precision instruments, and miniaturized assemblies.

📷

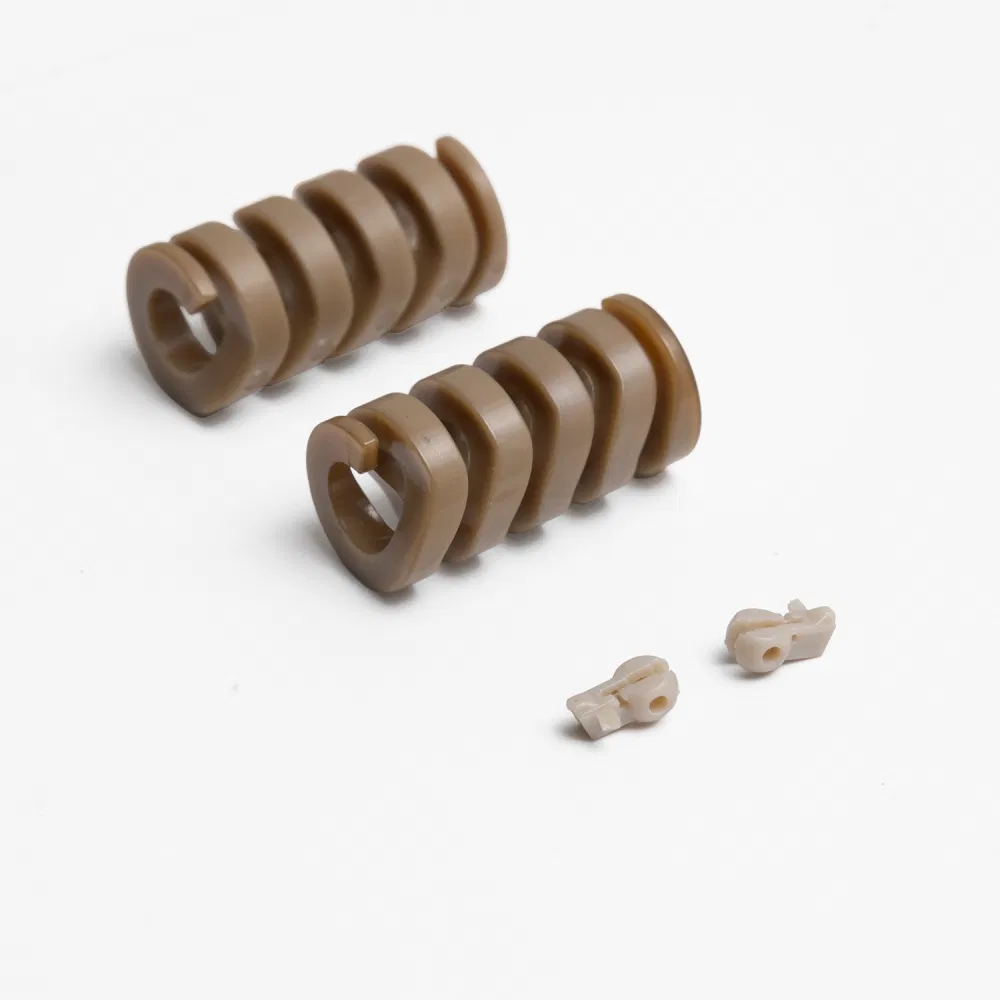

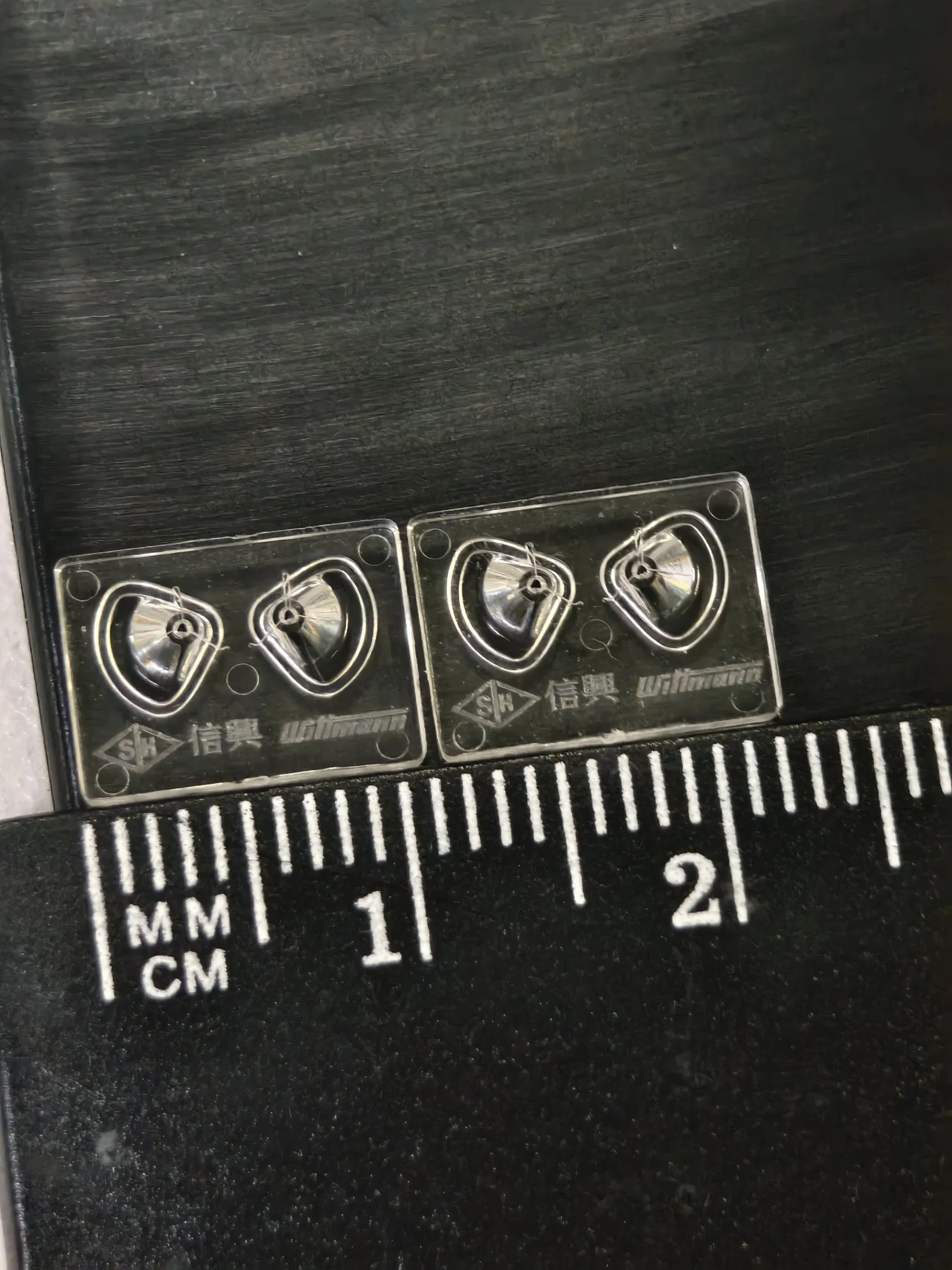

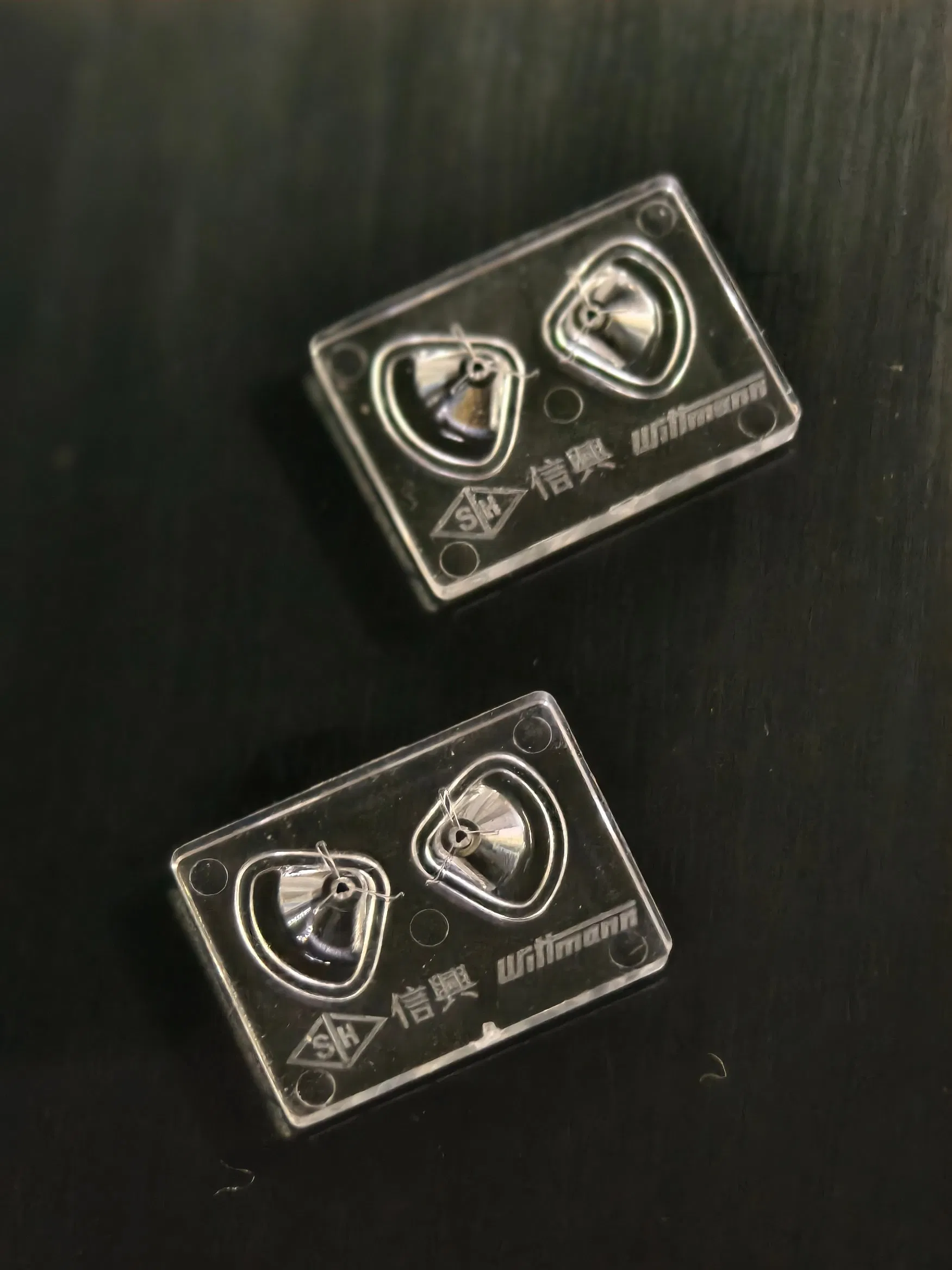

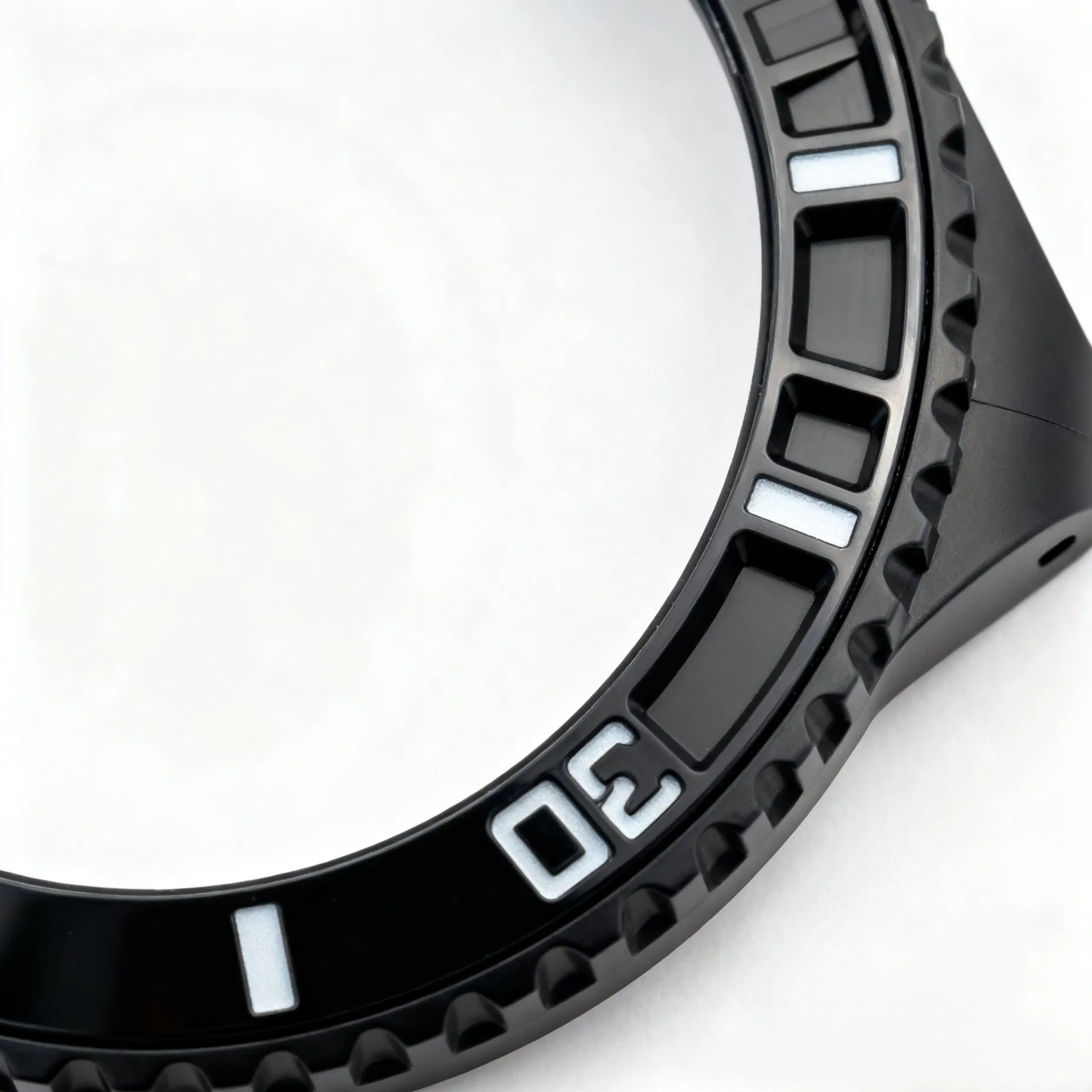

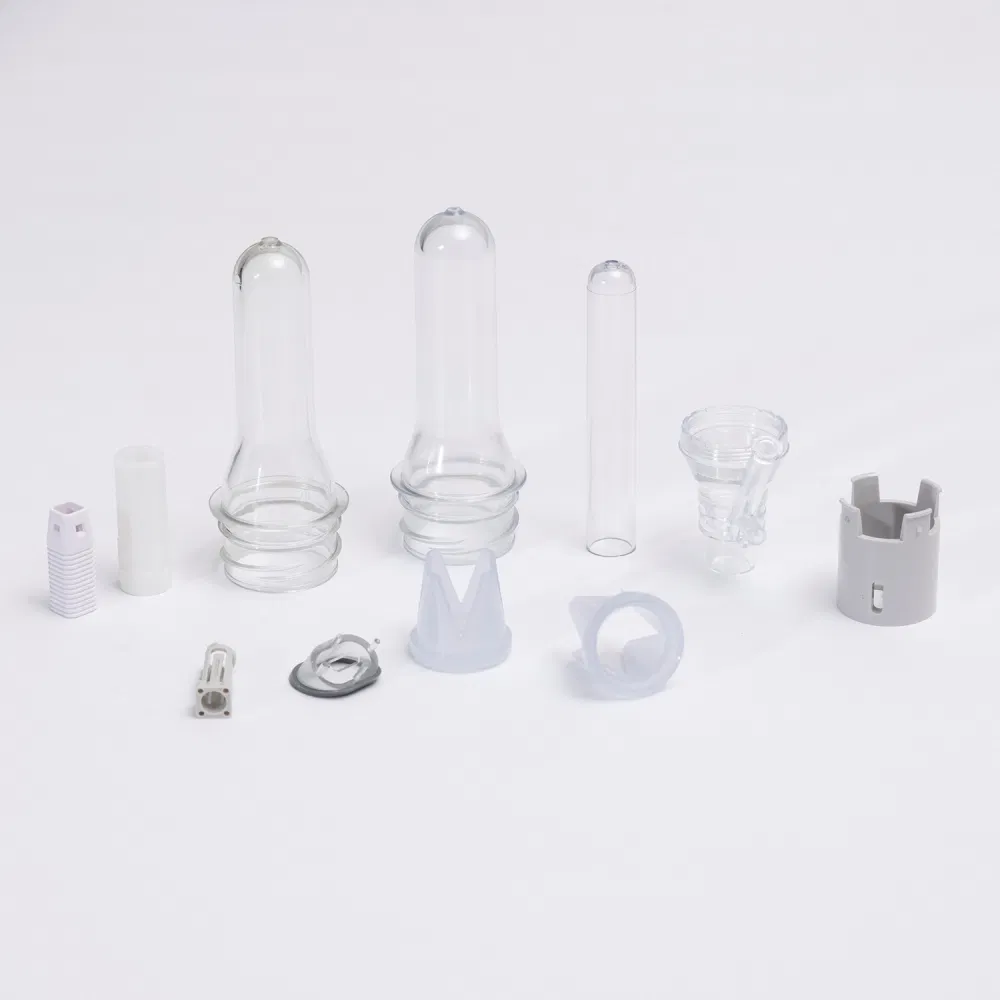

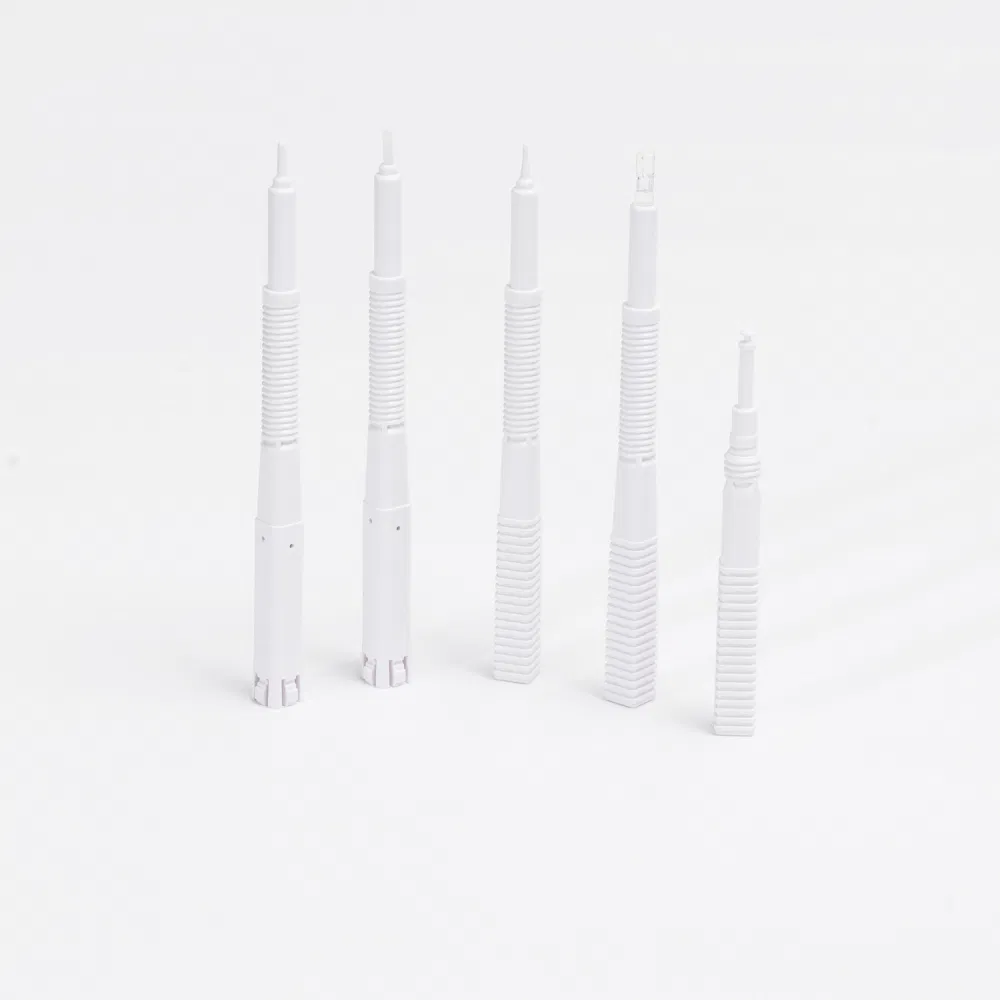

Detailed Photos

📊

Product Parameters

Product Name	Material	Processing Method	Tolerance	Certification	Applications	Lead Time	MOQ
PEEK Parts for Surgery	Medical Grade PEEK	CNC, Injection	±0.005mm	ISO 13485	Spinal Implants	3-6 weeks	500 Pcs
COC Parts for Testing	Medical Grade COC	Injection, CNC	±0.01mm	ISO 13485	Diagnostic Eqp.	2-4 weeks	500 Pcs
Heart Surgery Parts	PEEK, POM, Silicone	Injection, Insert	±0.01mm	IATF 16949	Heart Valves	4-8 weeks	500 Pcs
Eye Pressure Parts	PMMA, PC, COC	Precision Injection	±0.005mm	ISO 13485	Tonometers	3-6 weeks	500 Pcs
Oral Care Parts	ABS, PP, Silicone	Injection, Overmolding	±0.02mm	ISO 13485	Electric Toothbrush	2-4 weeks	500 Pcs
Micro-Molded Components	Specialty Polymers	Micro Injection	±0.005mm	ISO 13485	Precision Instruments	4-8 weeks	500 Pcs

🏢

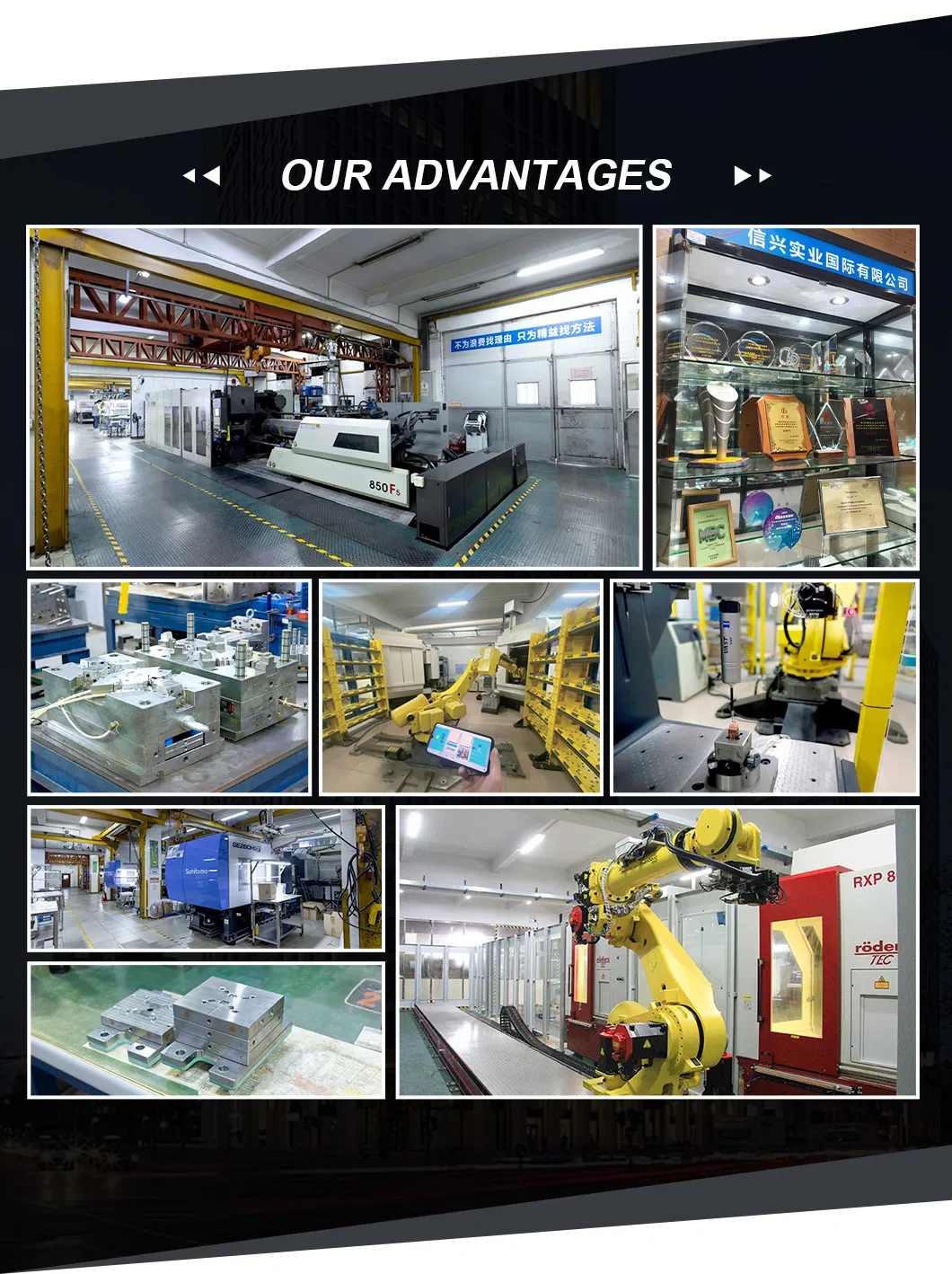

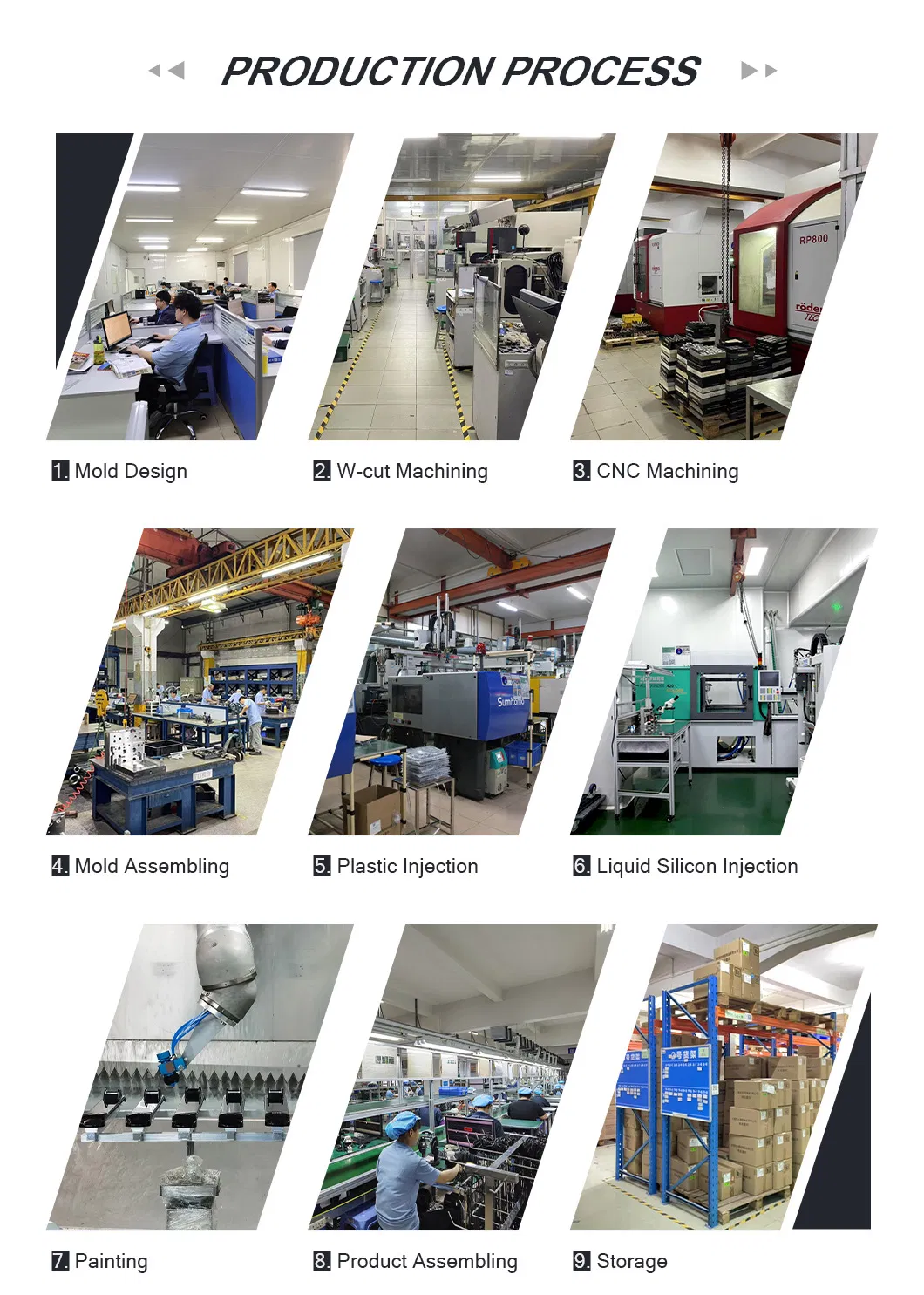

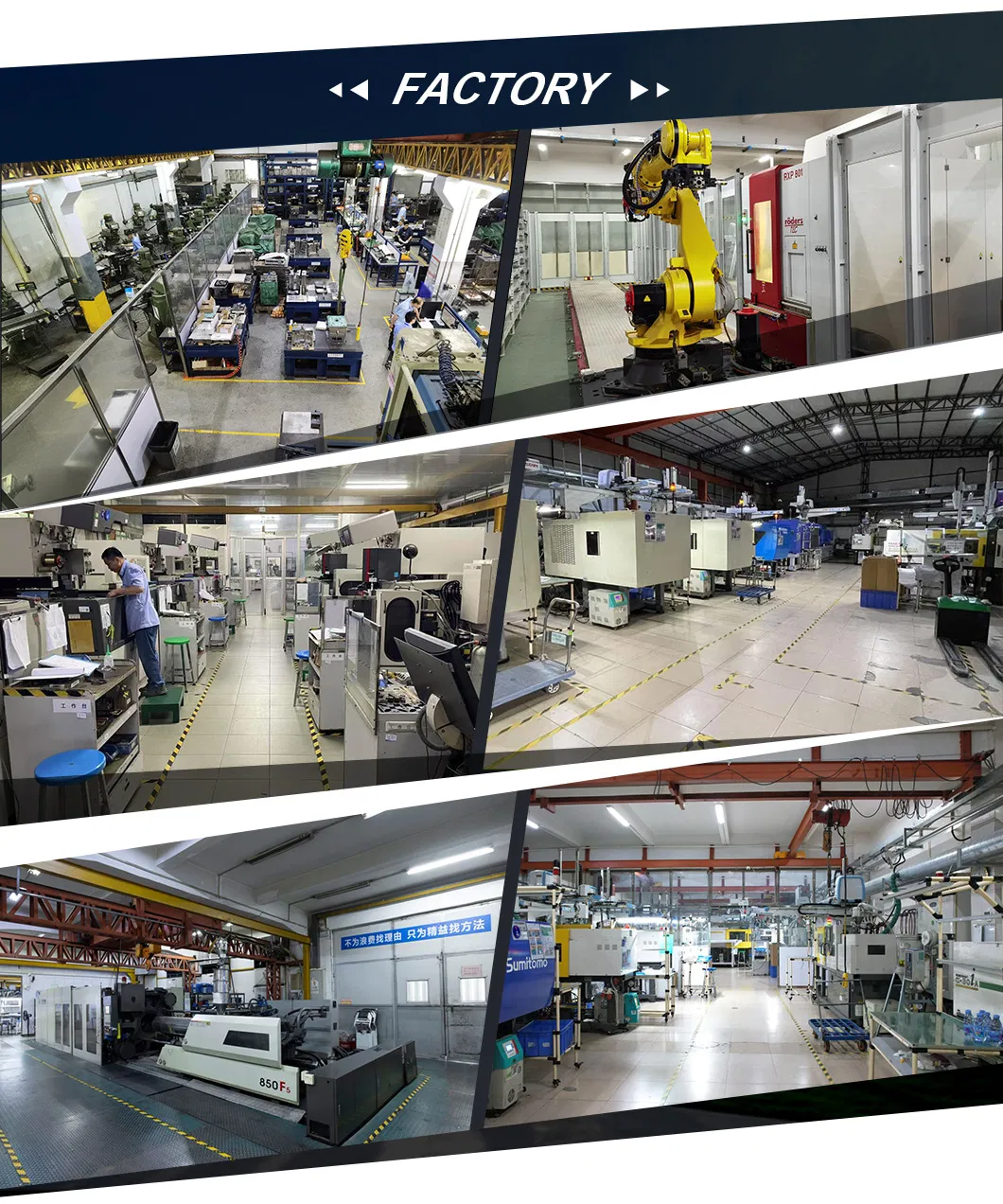

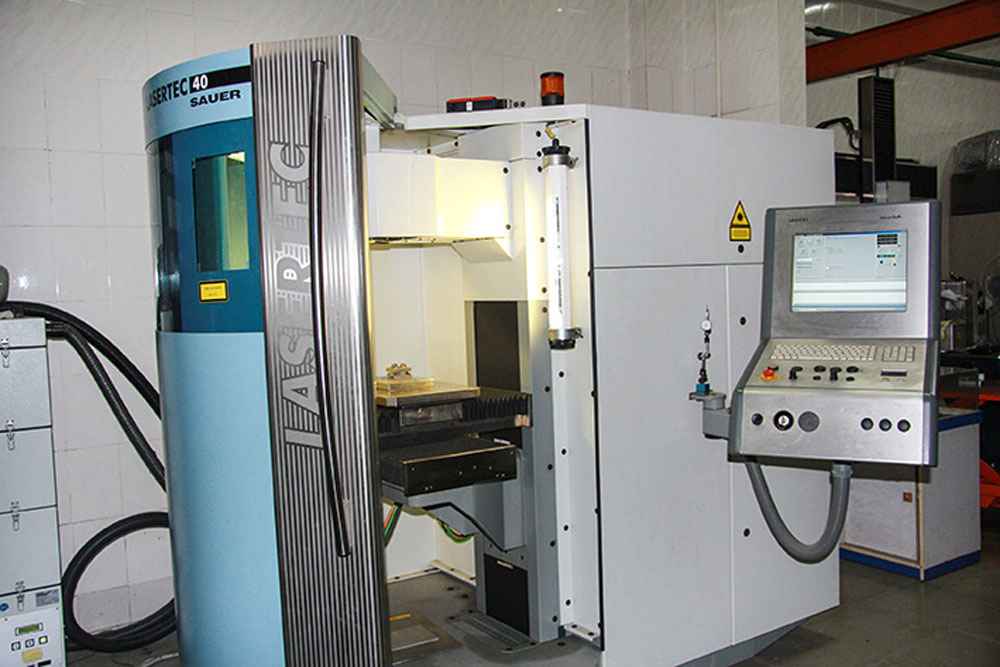

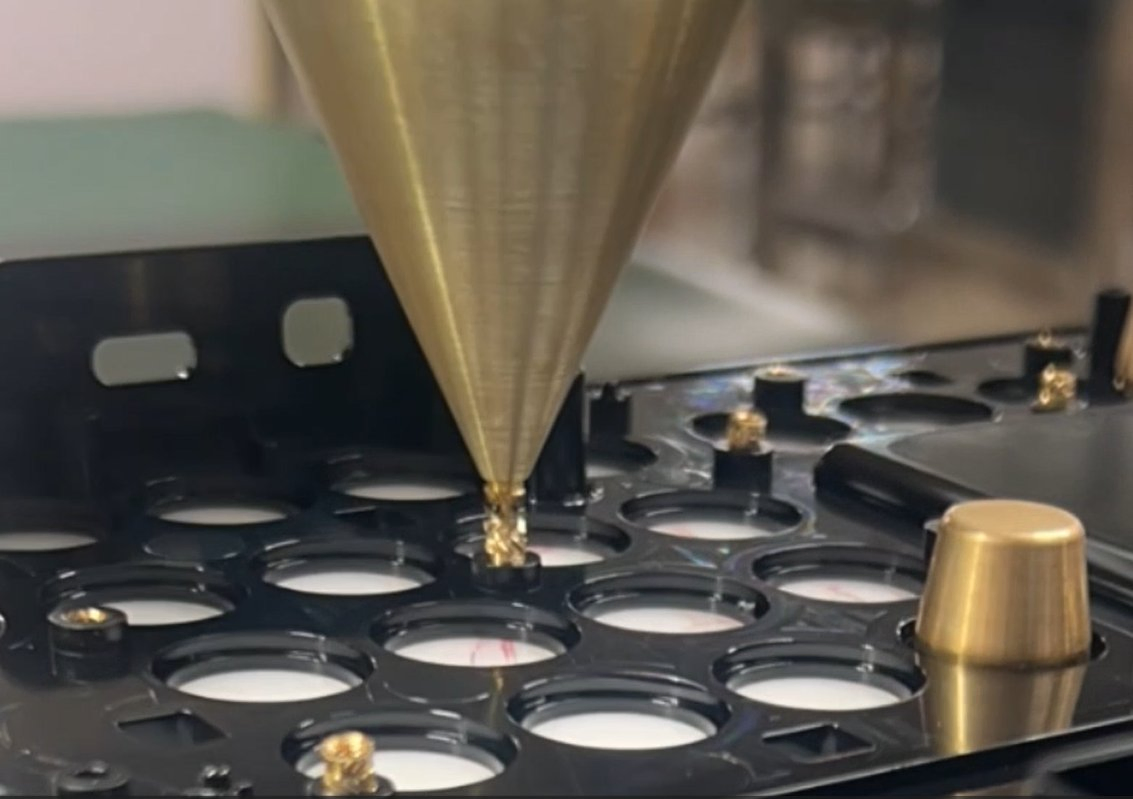

Production Environment

❓

Frequently Asked Questions

What manufacturing services are provided?

We offer comprehensive services including precision tooling, plastic injection molding, machining parts, product assembly, surface treatment, and complete project management from design to delivery.

What is your tooling precision capability?

Our tooling achieves 0.01mm accuracy using five-axis CNC machining centers and advanced positioning systems, ensuring tolerances within 2μm for specialized machine interfaces.

Which industries do you serve?

We specialize in healthcare products, medical devices (ISO 13485 certified), automotive components (IATF 16949 certified), electronics, and precision industrial components.

How is consistent quality ensured?

Consistency is maintained through Full Automatic CMM measurement, RFID tracking, and all-servo motor injection machines imported from Japan, achieving 0.01mm stroke accuracy.

What materials can you work with?

We work with a wide range of plastics including ABS, PC, PA, POM, TPU, and high-performance engineering plastics like PESU, COC, PEEK, and medical-grade materials.

What is the typical lead time for production?

Standard production lead time is 2-3 weeks for injection molded parts after tooling completion, and 3-4 weeks for complete assembly projects.
