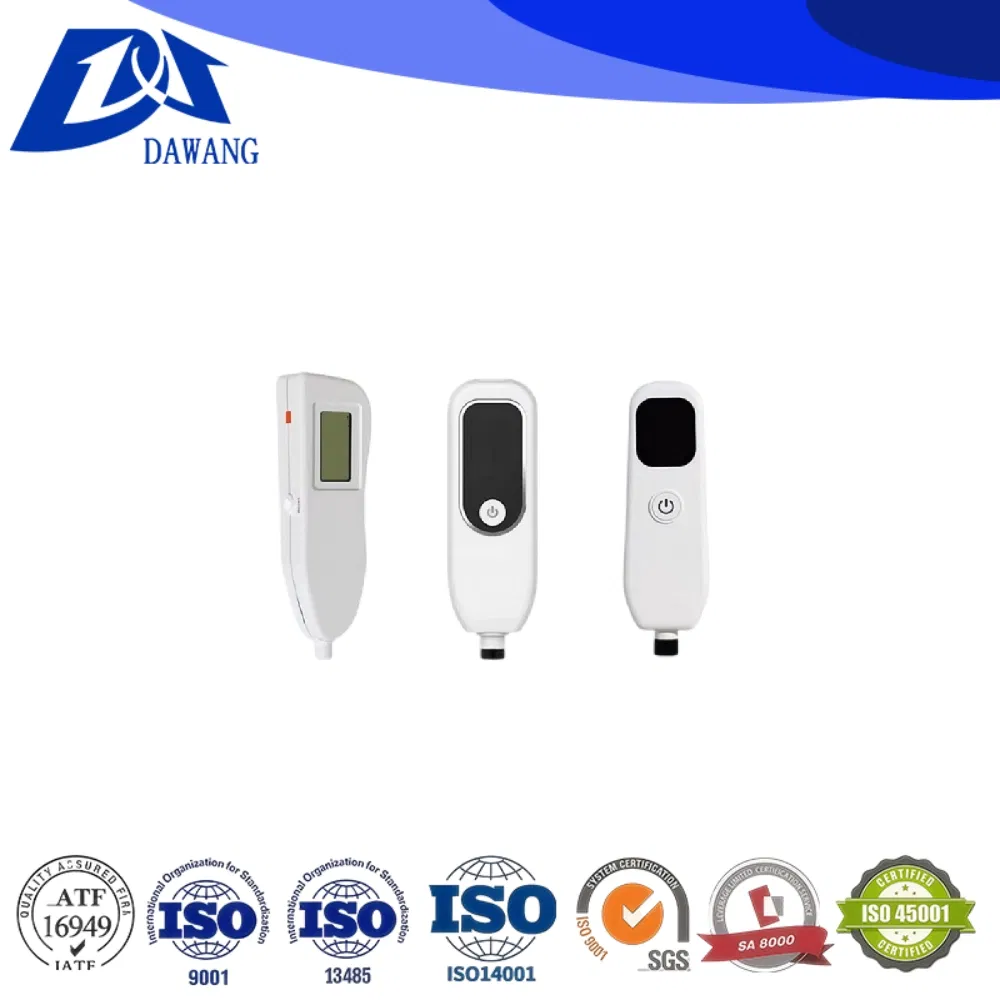

High Precision Injection Mold for Micro Surgical Instrument Components and Handles

1 / 5

High Precision Injection Mold for Micro Surgical Instrument Components and Handles

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

OEM

Mould Cavity

Multi Cavity

Plastic Material

ABS

Process

Compound Die / CNC

Application

Car, Household, Medical, Electronic

Runner

Hot Runner

Design Software

AutoCAD / UG

Certification

SGS / ISO

Material Capabilities

Aluminum, Brass, Steel, Plastic

Drawing Format

2D (PDF/CAD), 3D (IGES/STEP)

Product Description

High Precision Injection Mold for Micro Surgical Instrument Components and Handles

Service Item	Details & Capabilities
Business Type	CNC turning/ CNC lathing/ CNC milling/ CNC drilling/ CNC grinding/ EDM
Standard	ASTM / ASME / DIN / JIS / ISO / BS / EN / GB
Tolerance	+/-0.01mm ~ +/-0.001mm
Material Range	Stainless Steel, Carbon Steel, Brass, Bronze, Aluminum, Magnesium Alloy, PEEK, POM, NYLON, ABS, Titanium
Surface Treatment	Polishing, Deburring, Chrome/Ni/Zinc Plating, Anodizing, Heat Treatment, PVD
Inspection	CMM, Micrometer, Optical Comparator, Caliper Vernier, X-ray, RoHS Spectrometer
Lead Time	Samples: 3-7 days; Mass Production: 7-45 days

Manufacturing Capabilities

Our facility covers 21,600 square meters, specializing in mold development, precision parts manufacturing, and OEM injection molding. We serve industries including 3C, New Energy, Semiconductors, Aviation, and Medical Devices.

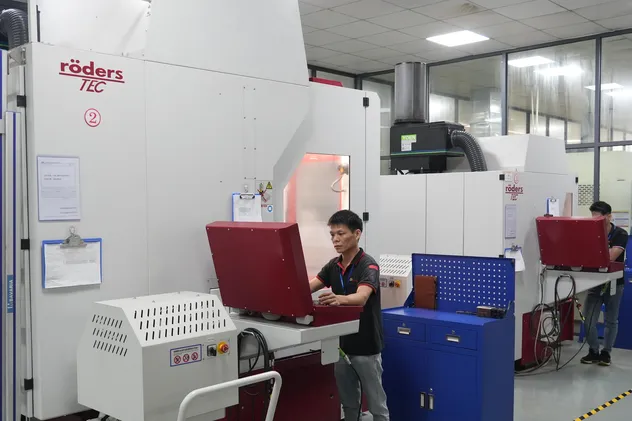

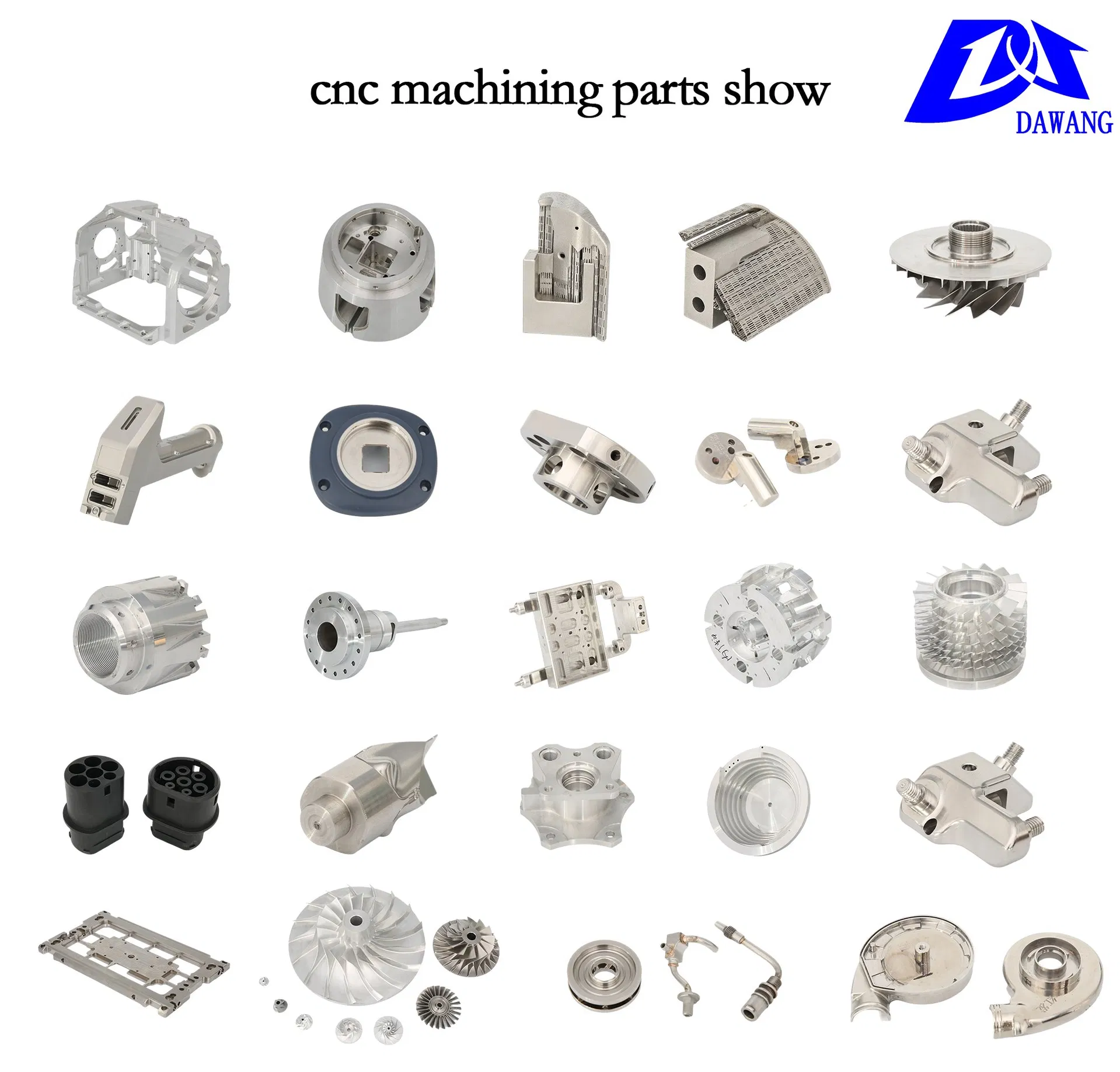

Precision CNC Machining: 3/4/5-axis milling, slow wire cutting, mirror EDM.
Mold Making: Injection Molds, Two-Color Molds, Over-mold, Silicone Molds.
Cleanroom Injection: Class 8 cleanroom workshop with daily capacity of 250,000 pieces.

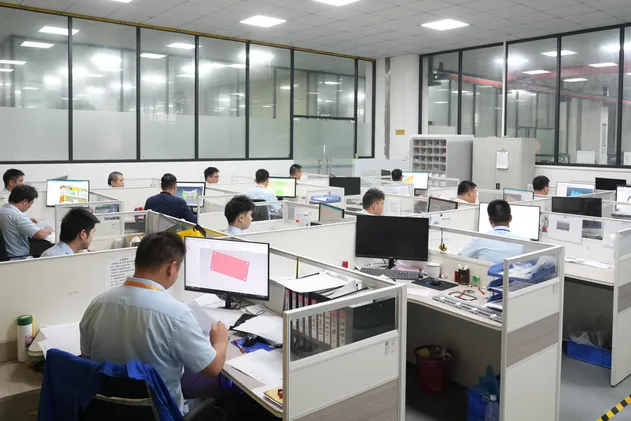

1. Personalized Design

2. Manufacturing

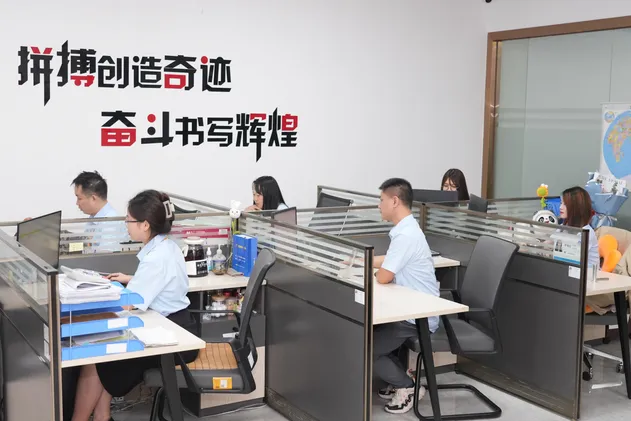

3. Cost Optimization

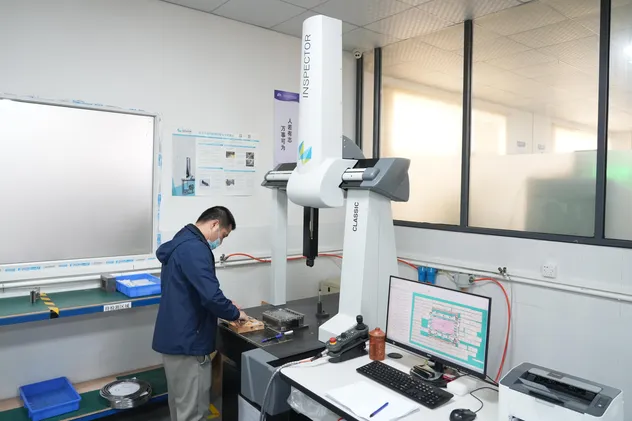

4. Parts Testing

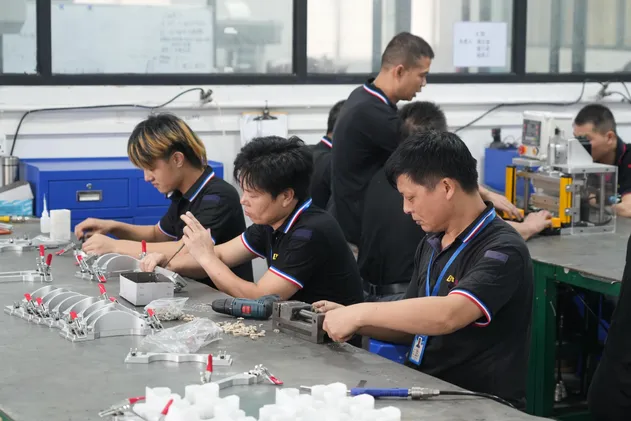

5. Parts Assemble

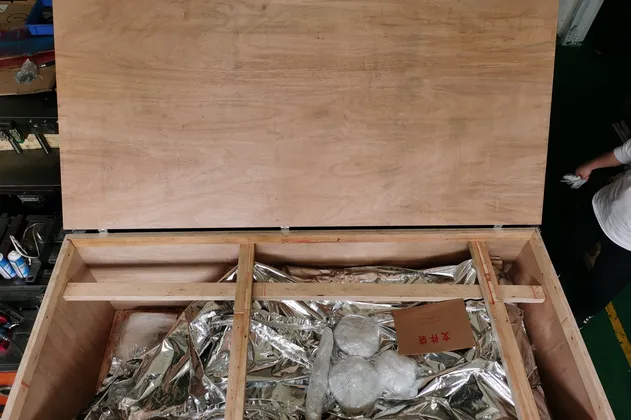

6. Logistics

Quality Certifications

ISO 9001:2015 Quality Management System

ISO 13485:2016 Medical Device Quality Management

IATF 16949:2016 Automotive Parts Standard

ISO 14001:2015 Environmental Management

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a direct factory with experienced engineers and a well-organized workshop, providing integrated manufacturing services.

How long does it take to get samples?

Depending on the part geometry, samples are typically delivered within 3 to 7 working days.

What information is required for a quotation?

Please provide 2D drawings (PDF or DWG format) and 3D drawings (STEP, IGS, or X_T format), along with requirements for material, surface treatment, and quantity.

How do you ensure the quality of mass production?

We follow a strict standard PO flow: Prototyping → FA Approval → Quality Control Plan → Manufacturing Process Instruction → Batch Production → Final Inspection.

Will my drawings be safe after I send them?

Yes, we can sign an NDA before receiving your drawings and will not release your proprietary information to any third party without your permission.

Can I monitor production progress without visiting?

Yes, we offer a detailed production schedule and send weekly reports with digital pictures and videos showing the current machining progress.
