Product Description

Product Overview

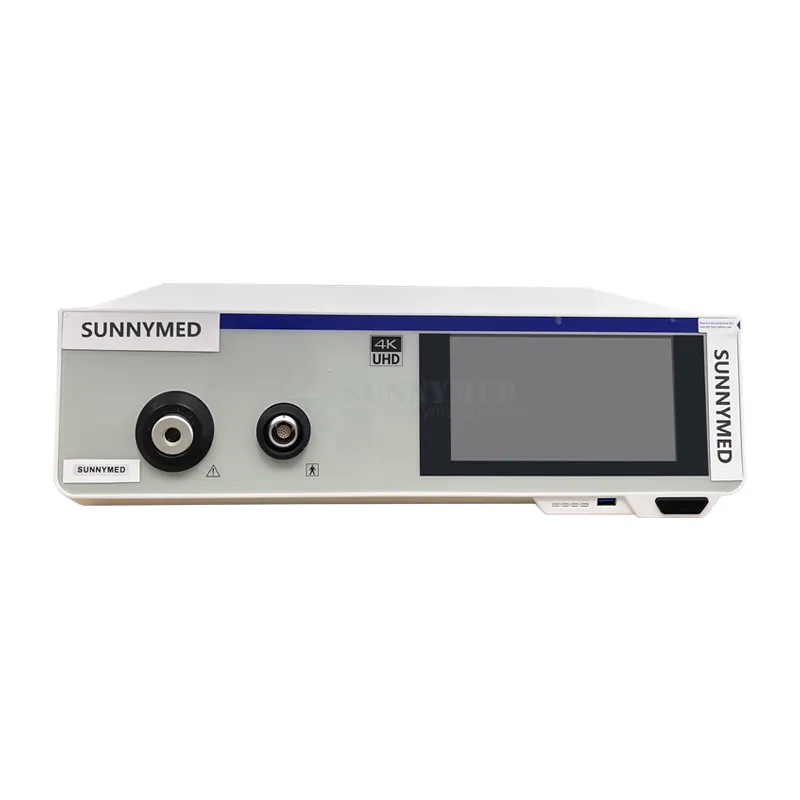

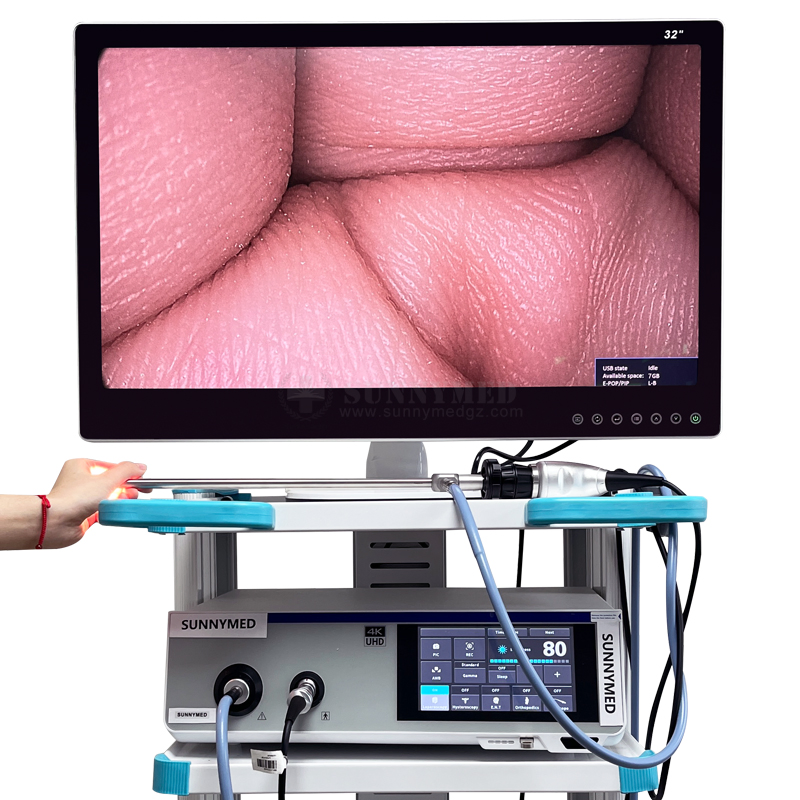

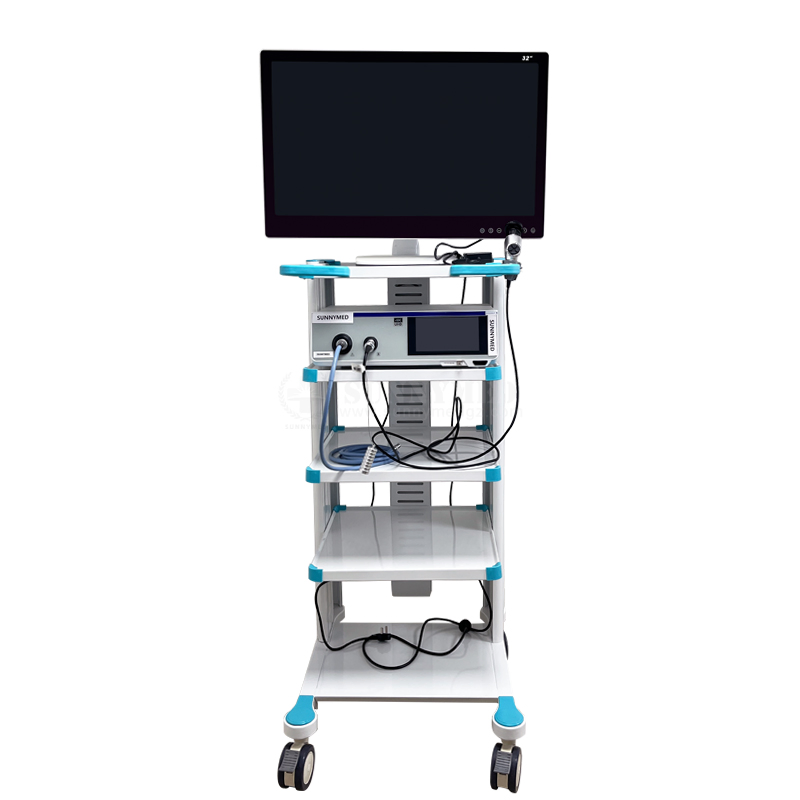

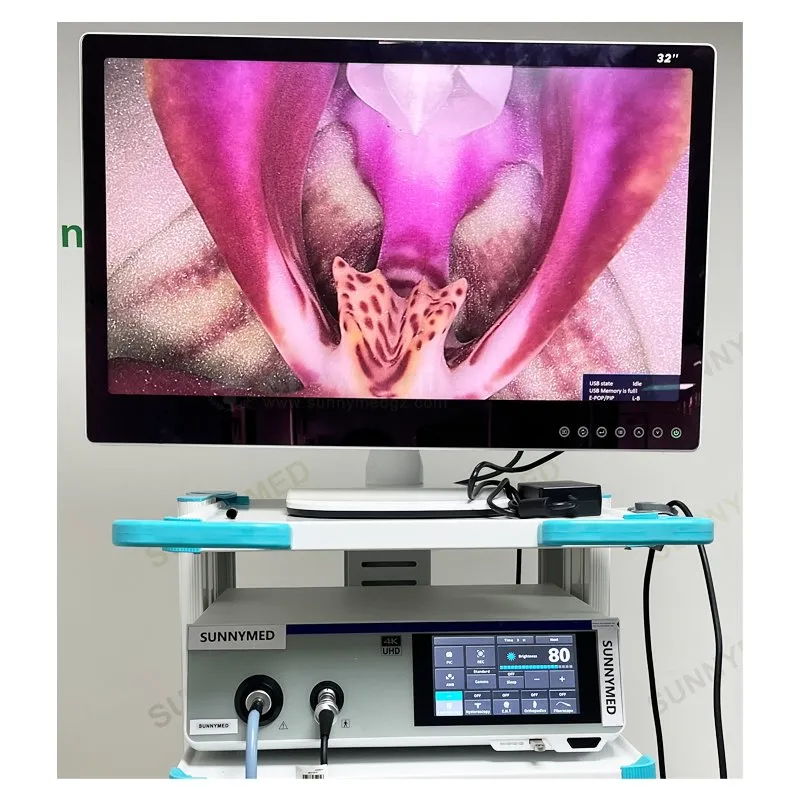

The 4K endoscopic camera system delivers 4 times the resolution of Full HD. This advanced medical imaging solution integrates a 4K VIDEO processor, a high-precision camera head, an LED cold light source, and a professional medical monitor to ensure unparalleled clarity during surgical procedures.

Camera Head 2.1 Megapixels 1/2.5 CMOS, IPX8 Waterproof

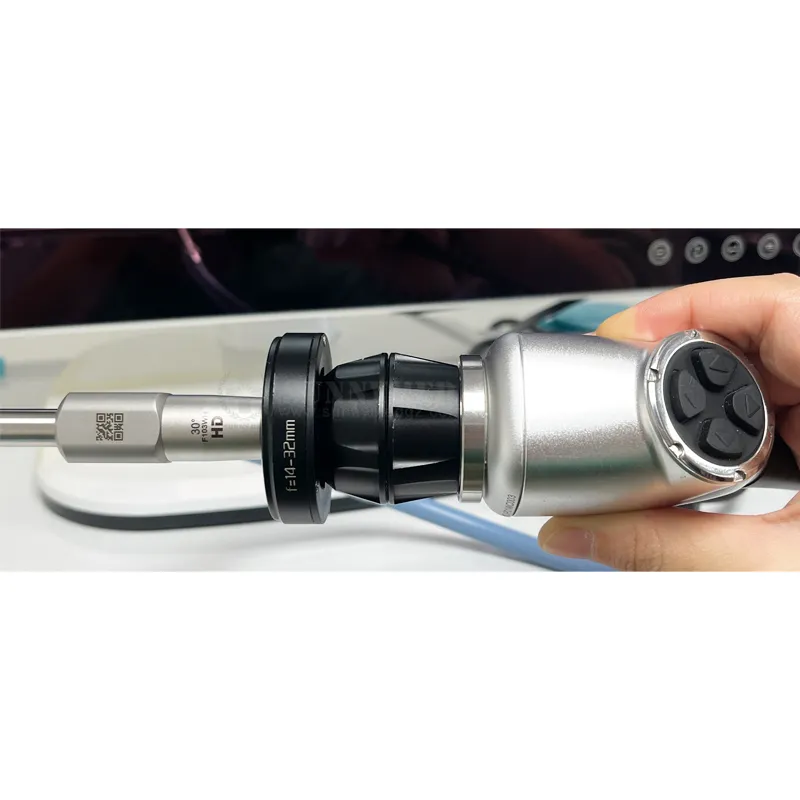

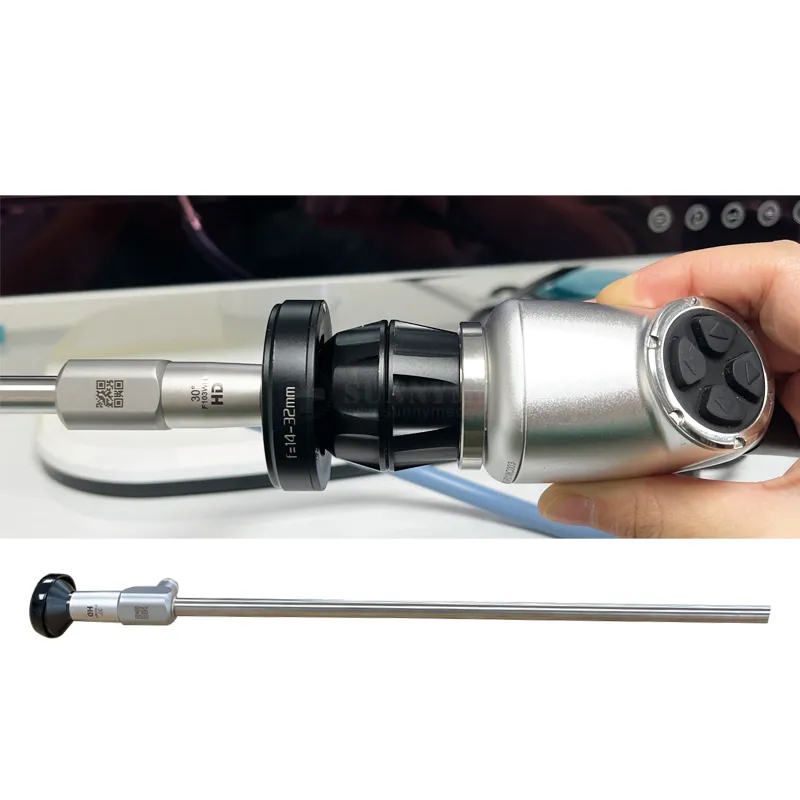

Optics 4K Optical C-mount Zoom Coupler
Video System UHD 3840*2160 with Auto White Balance
Monitor 32 Inch Medical Grade Display

Product Features

  • Innovative integrated design of light source and camera, saving user space
  • 4K UHD imaging (3840x2160, 50/60fps)
  • 8.4 megapixel Sony CMOS sensor for superior detail
  • 7-inch touch screen control with 4K and HD video output
  • Built-in LED cold light source (20 levels adjustable) with >50,000 hours service life
  • White balance correction technology for vivid, true-to-life colors
  • Advanced details enhancement effect for clearer tissue visualization
  • One-button video recording and image capture via USB media
  • IPX8 waterproof rated camera head

Technical Specifications

ModelSY-PS048T_4K
Sensor1/2.5inch Sony CMOS
Effective Pixels8,400,000 Pixels
Resolution3840 * 2160 (4K UHD)
Scanning SystemProgressive Scanning 60p
Horizontal Resolution1800 TVL
Signal-to-Noise Ratio50dB
Video OutputHDMI 2.0 * 1, DVI * 1, 3G-SDI * 1
Light SourceBuilt-in 1500lm LED
Brightness Adjustment25% - 100% (20 Levels)
Image CaptureJPEG (1920 x 1080) via USB
Video CaptureMP4 (1920 x 1080 50/60p) via USB
Input Voltage100 – 240V (AC), 50/60 Hz
Camera Head ControlsPhoto Capture / Auto White Balance

Product Gallery

4K Endoscope system Endoscope camera unit Camera interface Integrated light source Touch screen control Rear panel ports Medical display Surgical application Camera head detail Fiber optic connection Full kit view System setup
System workflow Technical diagram

Frequently Asked Questions

What is the advantage of a 4K endoscope system over Full HD?
The 4K system provides 3840x2160 resolution, which is four times the pixel count of standard 1080p Full HD, offering much finer detail and better color depth for precision surgery.
Is the camera head suitable for sterilization?
Yes, the camera head features an IPX8 waterproof rating, making it suitable for standard medical disinfection and liquid immersion protocols.
Does the system support recording during surgery?
Yes, the system includes built-in video recording and image capture functions. You can save 1080p MP4 videos and JPEG images directly to a USB media device.
What is the expected lifespan of the built-in light source?
The integrated LED cold light source is designed for longevity, with a service life exceeding 50,000 hours of operation.
What types of surgical procedures is this system designed for?
This ultra 4K system is ideal for a wide range of endoscopic procedures, including Arthroscopy, ENT, PTED, Cystoscopy, and Percutaneous Nephroscopy.
