Basic Information
Model NO.
HD960
Origin
China
HS Code
3203964268

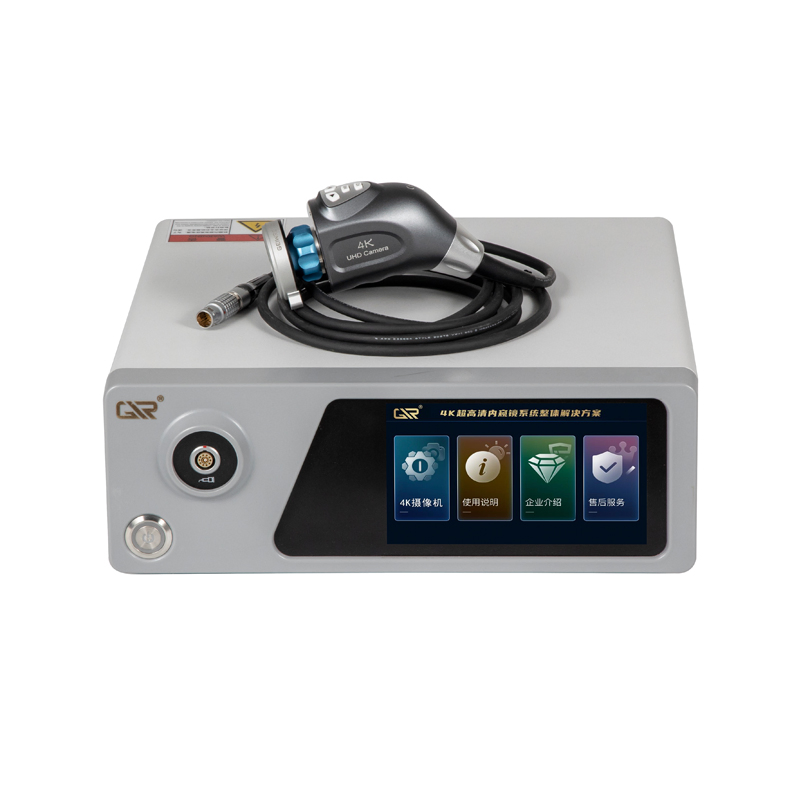

Medical Camera Parameters
| Model | HD960 |
| Camera | 1/1.8" CMOS |
| Image size | 3840(H)*2160(V) |
| Resolution | 2100 Lines |

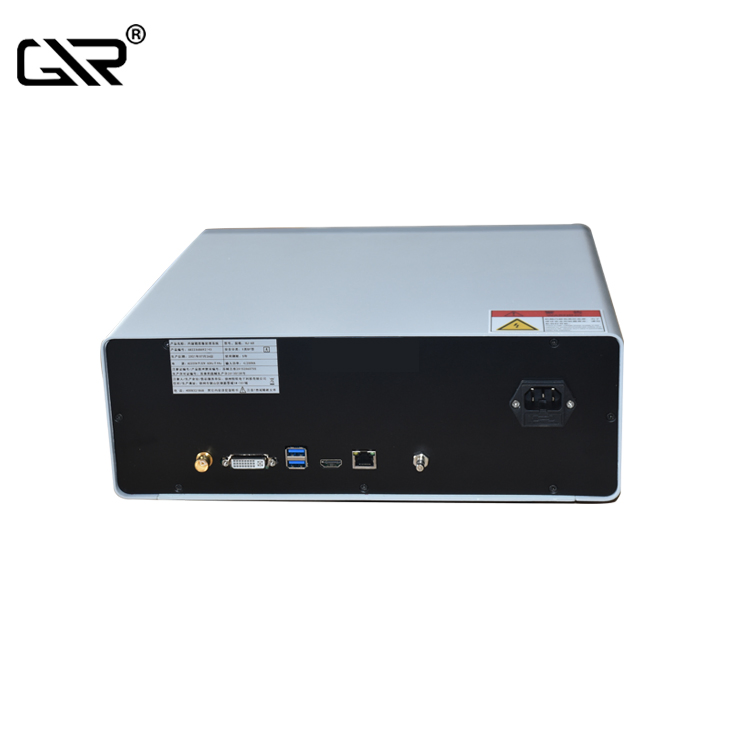

| Video Output | HDMI2.0 / 3G-SDI (4K Ultra HD), DVI, USB3.0*2, LAN |
| Handle cable | WB & Image Freeze |
| Scanning system | Progressive scanning |
| Color Temperature | 3000K-7000K |
| Language | Chinese, English, Russian, Spanish |
| SNR | More than 50db |
| Power Supply | AC220/110V±10% |

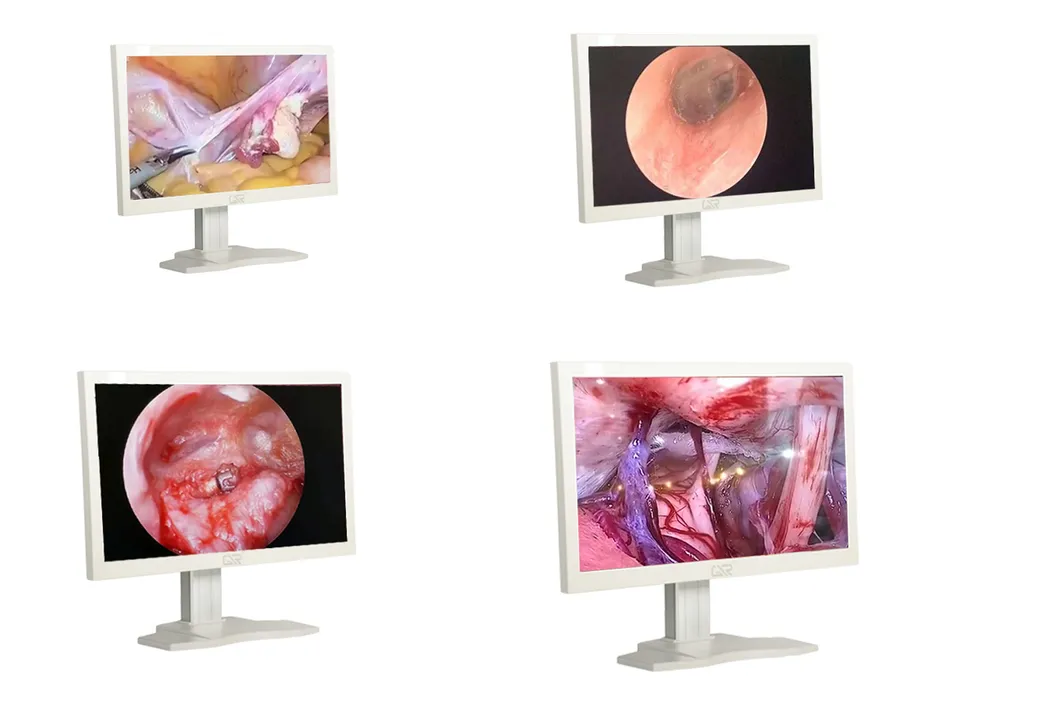

Medical Monitor Parameters
| Model | 3210 / 5510 |
| Screen Size | 32 Inches / 55 Inches |
| Resolution | 3840*2160 |
| Brightness | 950cd/m2 |
| View Angle | 178H / 178V |
| Response Time | 1ms |
| Interface | VGA, DVI, DC, SDI*2, HDMI |
| Applications | Laparoscope, Hysteroscope, Arthroscope, ENT, Urology etc |

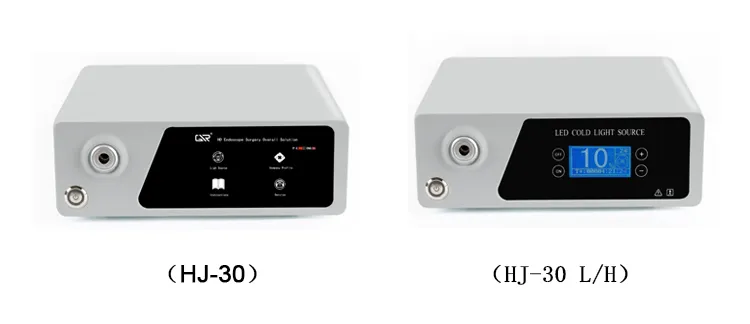

Medical Light Source Parameters
| LED lamp power | 60W / 80W / 100W / 120W |
| Lamp life | ≥40000h |
| Color temperature | 3000K~7000K |
| Brilliance control | 0-100 continuously adjustable |
| External dimension | 310×300×130mm |
Packaging & Delivery
Packaging Details: Wooden or carton package
Port: Shanghai
| Quantity (Units) | 1 - 5 | >5 |
| Est. Time (days) | 7 | To be negotiated |

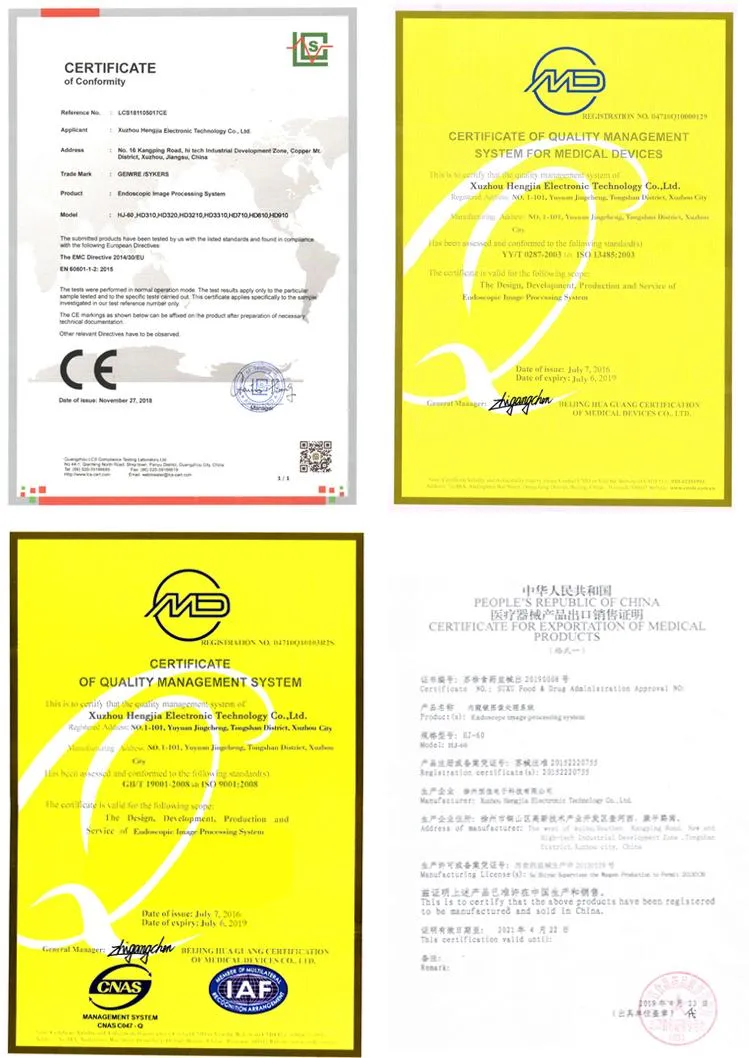

Certifications
Frequently Asked Questions
What is the resolution of the HD960 Endoscope Camera?
The system provides 4K Ultra HD output with an image size of 3840(H)*2160(V) and a resolution of 2100 lines.
Which medical departments can use this system?
It is highly versatile and suitable for Laparoscopy, Hysteroscopy, Arthroscopy, ENT, Urology, and other endoscopic procedures.
How long does the LED light source last?
The high-efficiency LED lamp has a lifespan of ≥40,000 hours, ensuring long-term reliability and low maintenance.
Does the system support different monitor sizes?
Yes, we offer professional medical monitors in 32-inch and 55-inch options, both supporting 4K resolution.

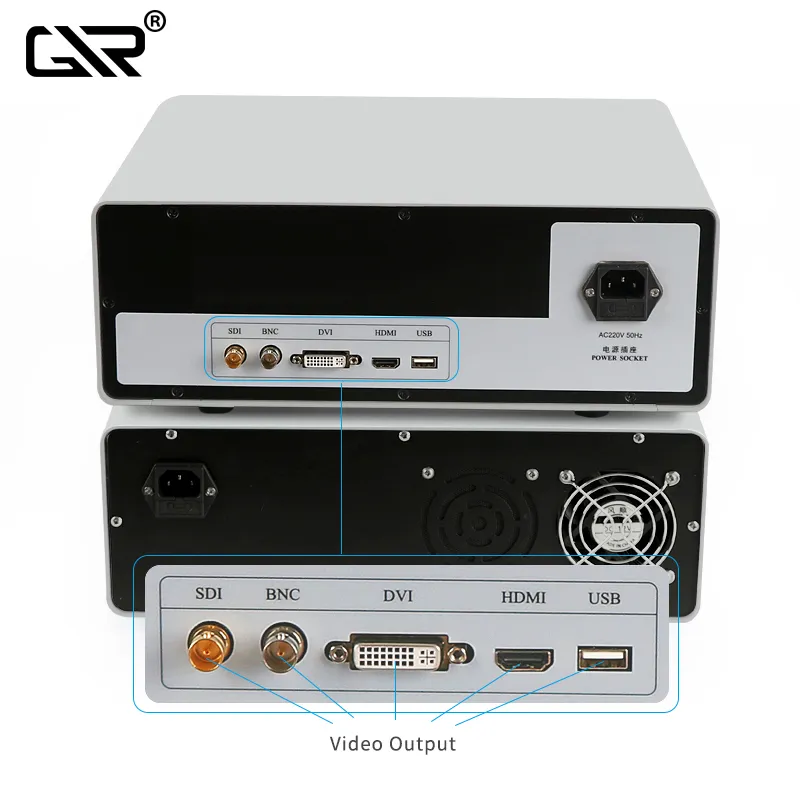

What video output interfaces are available?
The system supports multiple outputs including HDMI 2.0, 3G-SDI, DVI, USB 3.0, and LAN for flexible connectivity.
What is the standard lead time for small orders?
For orders between 1 to 5 units, the estimated lead time is approximately 7 days.
