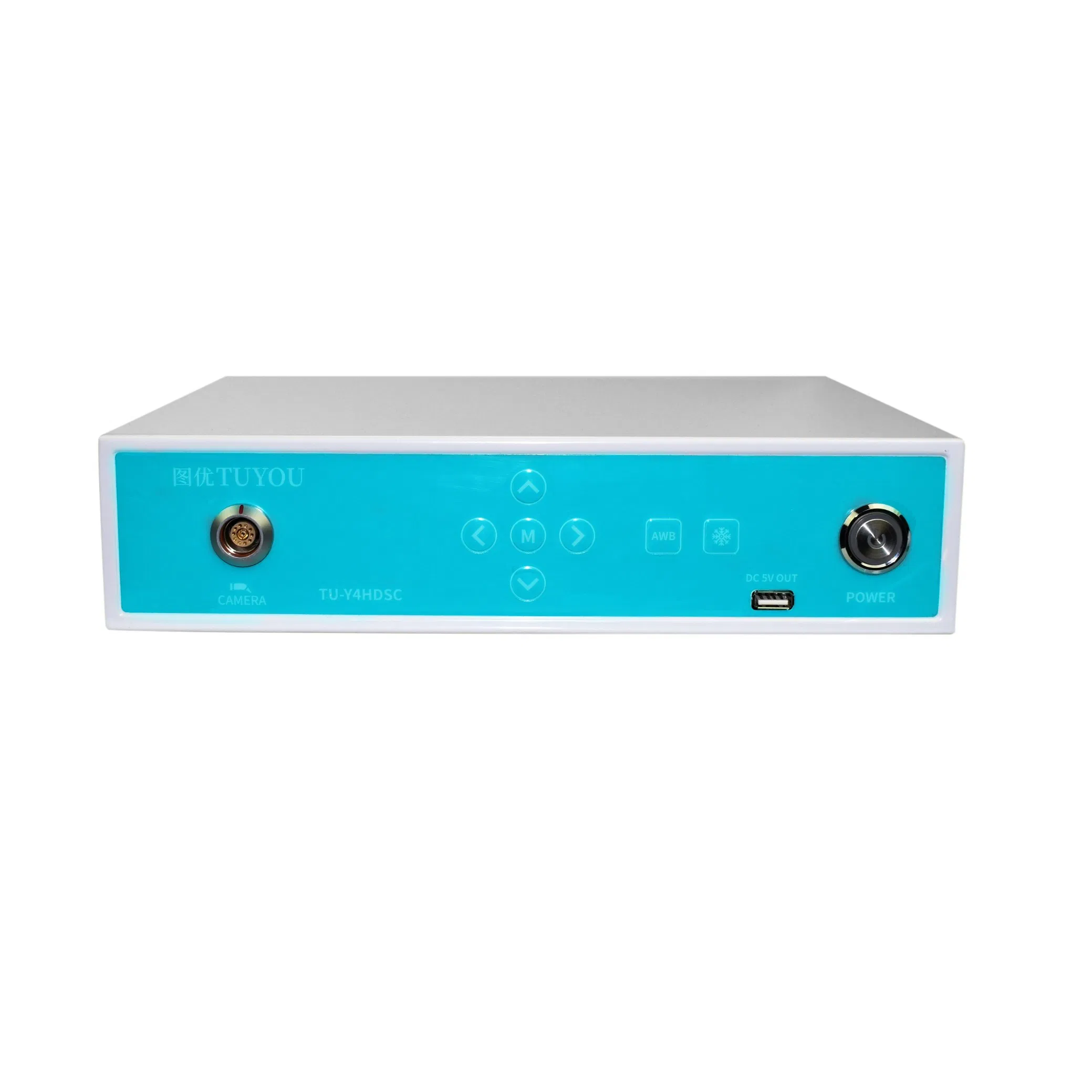

Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
1 / 5
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System
Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System

Tuyou Medical Ent Hysteroscopic Diagnostic Endoscopic Rigid Ent Endoscope Imaging System

Customization: Available
Certification: CE, FCC
SDI: HD-SDI/Ex-SDI Switchable
Send Inquiry

Product Description

Basic Specifications

Model NO.TU-Y4HDSC
Output InterfaceDVI+HDMI+SDI+CVBS
PowerAC110V~240V
Resolution1080P@30fps, 1080P@60fps
Effective Pixels1845(H) × 1097(V) Approx. 2.13M pixels
Image Sensor1/2.8" SONY CMOS (IMX385)
OSD MenuUp/Down/Left/Right/Menu Button
Brightness1-20 Steps
Lens ModePTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope
OriginChina
Production Capacity1000 Units Per Month

Product Description

System Composition:

The Endoscope camera system is a fully functional endoscopy solution specifically designed for industrial and medical applications. It features 1080P resolution with multiple outputs (DVI+HDMI+SDI+CVBS) and includes a control menu with shortcut key functions.

  • 1/2.8" SONY CMOS with high-definition 1080p resolution.
  • Advanced adjustments: 1-20 steps brightness, 1-20 steps sharpness, and 1-10x digital zoom.
  • Functional features: FREEZE, AWB (Auto White Balance), and multi-language support.
  • Wide clinical application: Suitable for Arthroscopy, ENT, PTED, Cystoscopy, Laparoscopy, Hysteroscopy, and various fiber-optic scopes.

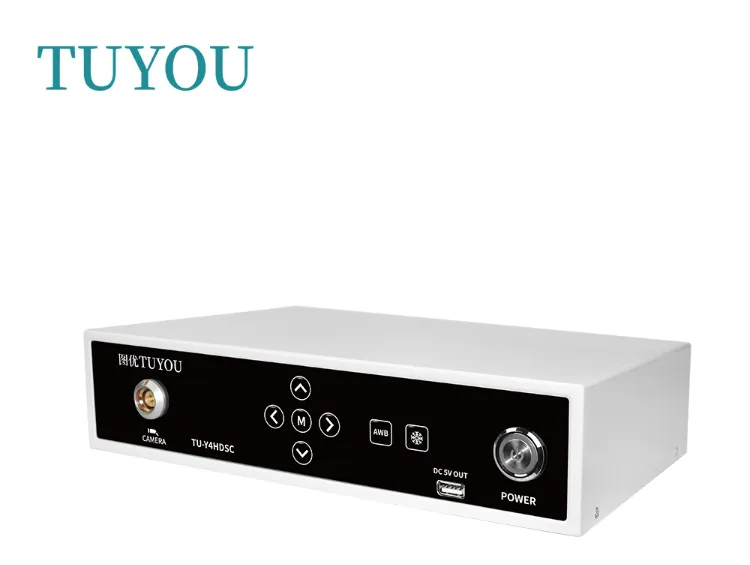

Endoscope Imaging System 1

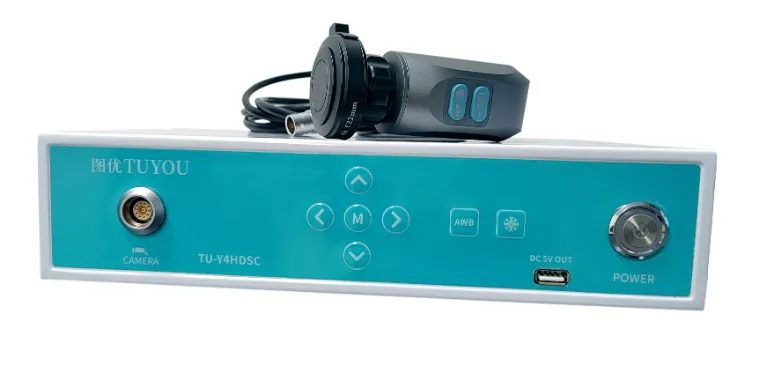

Endoscope Imaging System 2

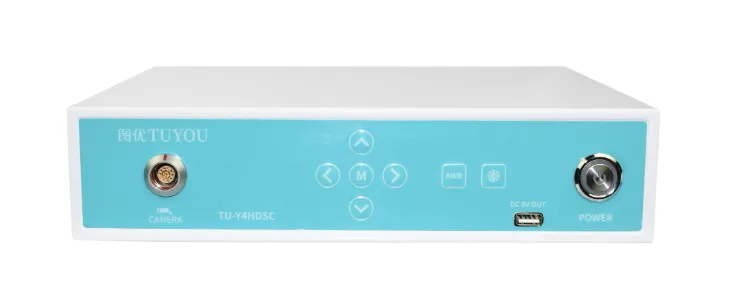

Endoscope Imaging System 3

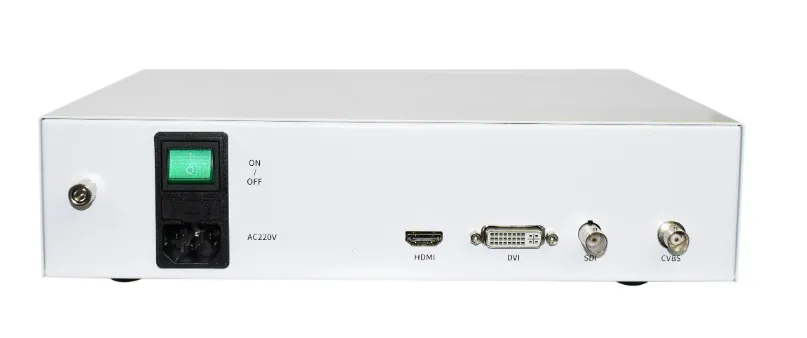

Endoscope Imaging System 4
Endoscope Imaging System 5

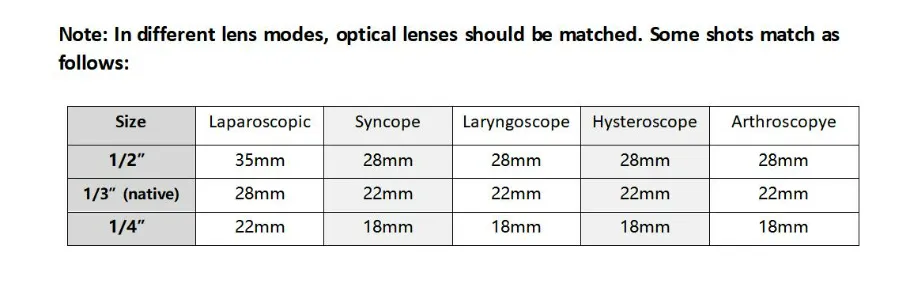

Endoscope Imaging System 6

Technical Parameters

BacklightOFF/BLC/HLC/WDR
Color AdjustmentUser Defined: Red, Green, Blue, Yellow (Gain and Hue 1-250)
Working Temperature-10ºC to +75ºC
Power Consumption1.2 W (≤100mA)
Processor Size2000x1700x170mm
NoteThe camera coupler is an OPTIONAL part.

Product Showcase & Feedback

Customer Feedback
Factory Environment

Certifications & Delivery

Certifications
Packaging 1
Packaging 2
Packaging 3

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a professional medical imaging instruments manufacturer based in China. All our products are developed and produced in-house by our dedicated team.
Do you provide OEM/ODM services?
Yes, we provide comprehensive OEM and ODM services. We can customize products according to your specific requirements and branding needs.
What is the typical delivery timeframe?
Standard orders are typically delivered within 7 working days after payment is confirmed. Samples are usually ready-made and can be shipped quickly.
What are the warranty terms for the endoscope system?
We offer a free two-year warranty. During this period, if any faults occur, we will repair the product or replace the faulty assembly free of charge.
What payment methods do you accept?
We accept a wide range of payment methods including T/T Bank Transfer, Western Union, Money Gram, PayPal, L/C, and Cash.
Can this system be used for different types of surgeries?
Yes, the system features multiple modes specifically tuned for Arthroscopy, ENT, PTED, Cystoscopy, Laparoscopy, and Hysteroscopy, ensuring optimal image quality for each procedure.
