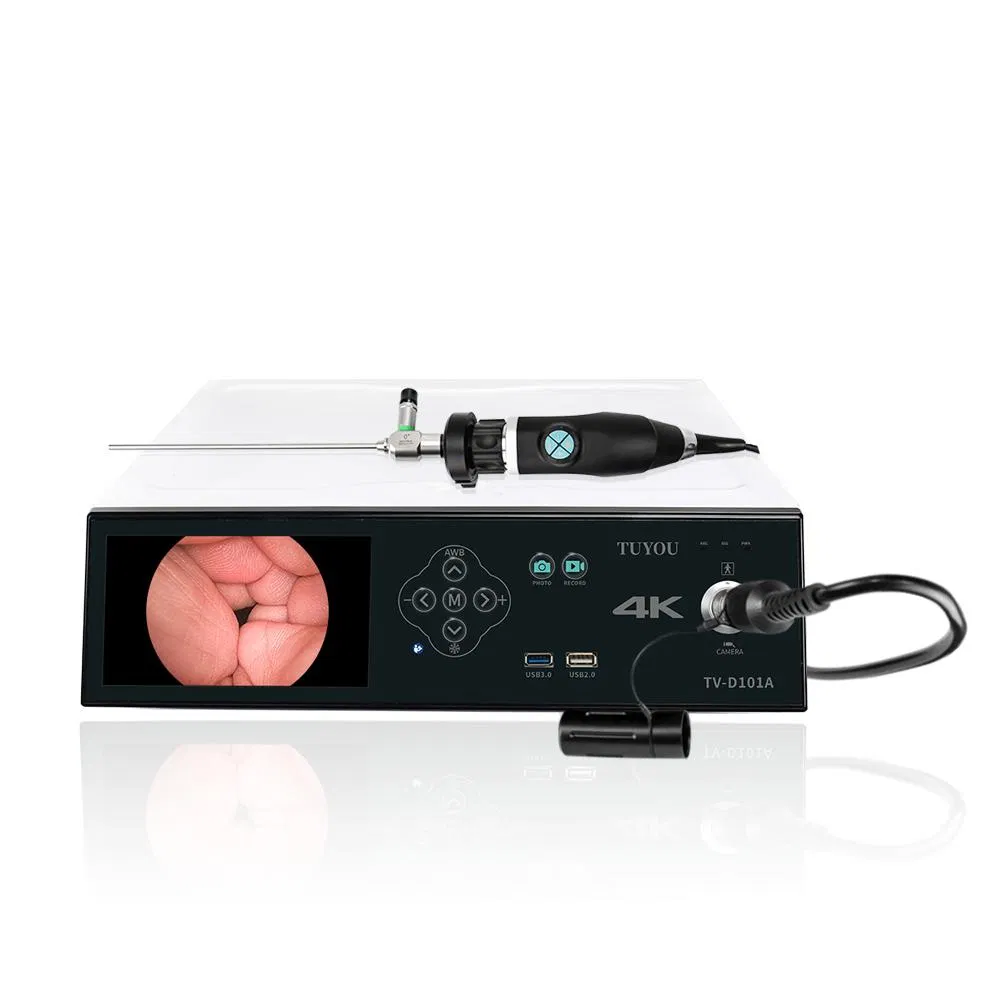

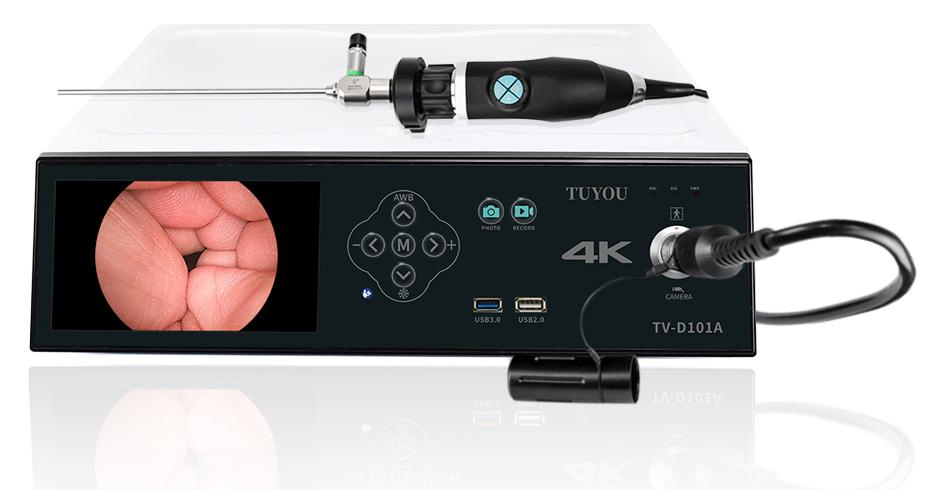

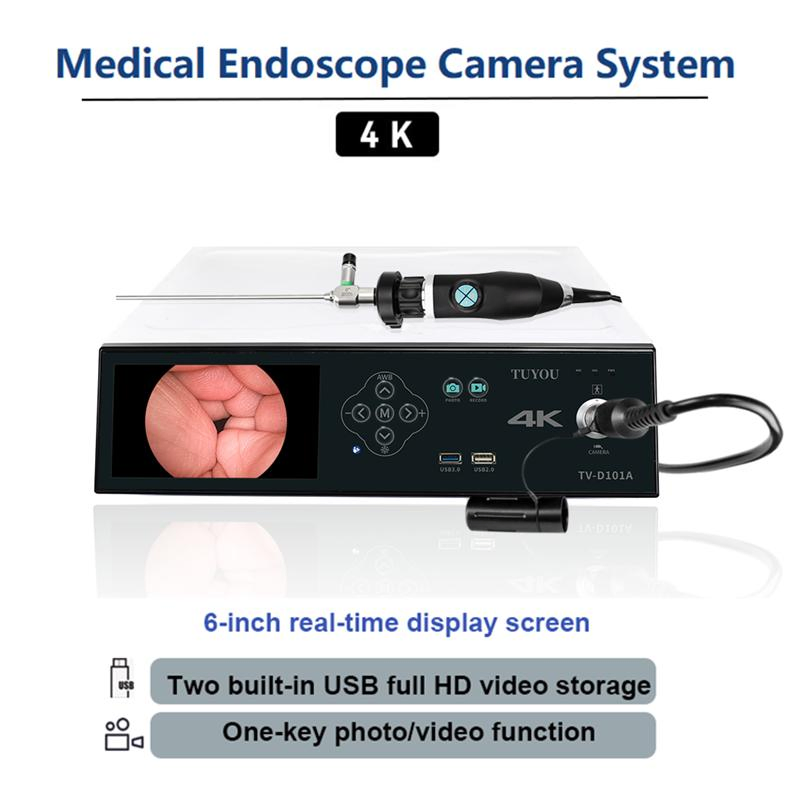

| Model NO. | TV-D101A |
| Certification | CE, ISO13485, FCC |

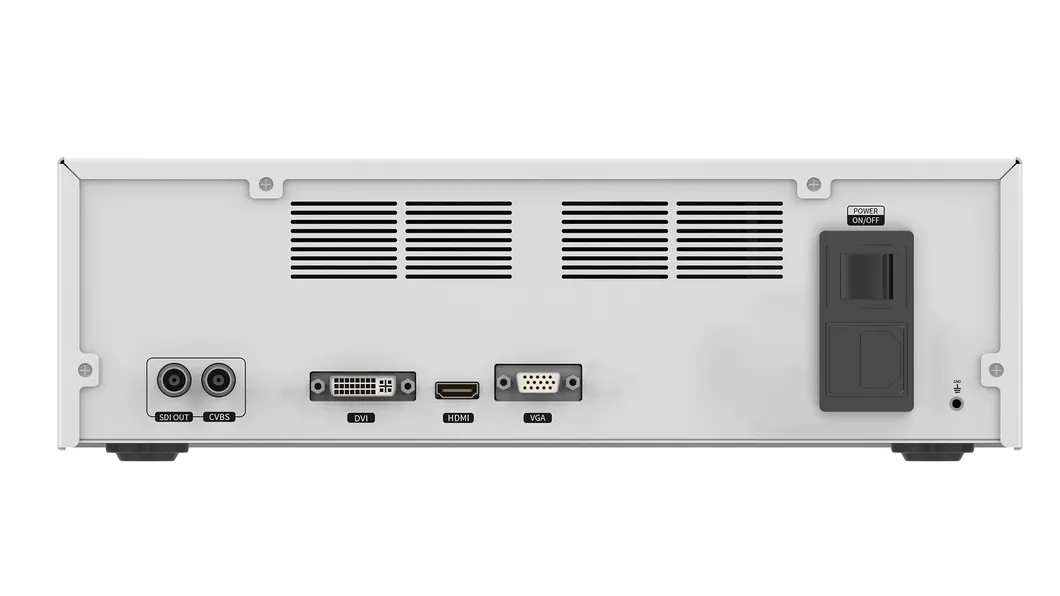

| Output Interface | HDMI/SDI/CVBS |
| Power | AC110V~240V |
| Resolution | SDI 4K |
| Signal Noise Ratio | <45dB |
| Production Capacity | 500 Units Per Month |
| System Parameters | |
| U Disk Support | USB2.0/USB3.0 (up to 32GB) |

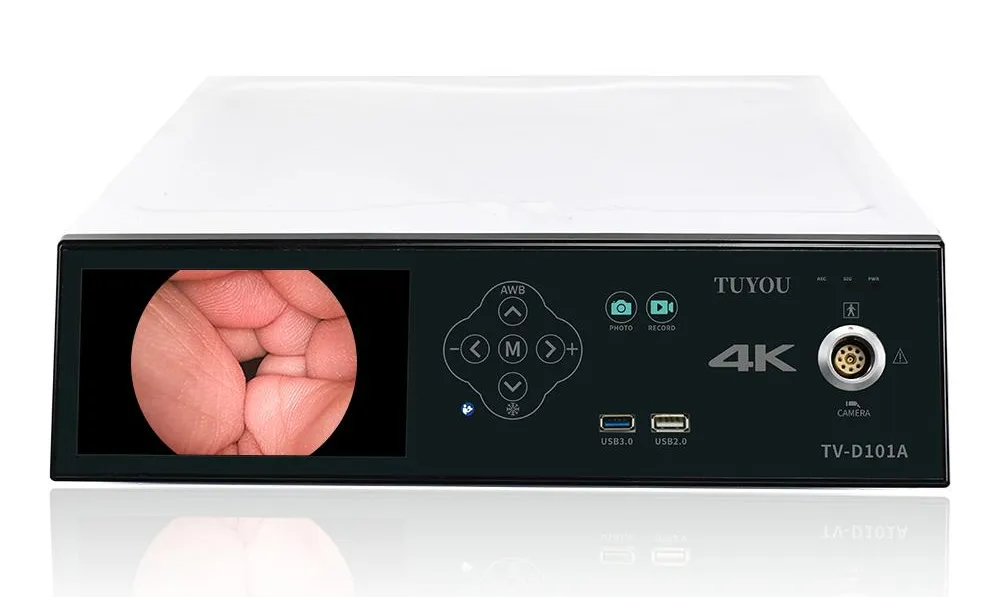

| Shortcut Keys | Freeze/WB/Video/Photograph/Digital Zoom |
| Environment | -10ºC ~ 60ºC |
| Net Weight | 3.9KG |
| Camera Parameters | |
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | 3864(H) × 2192(V) Approx. 8.46M |

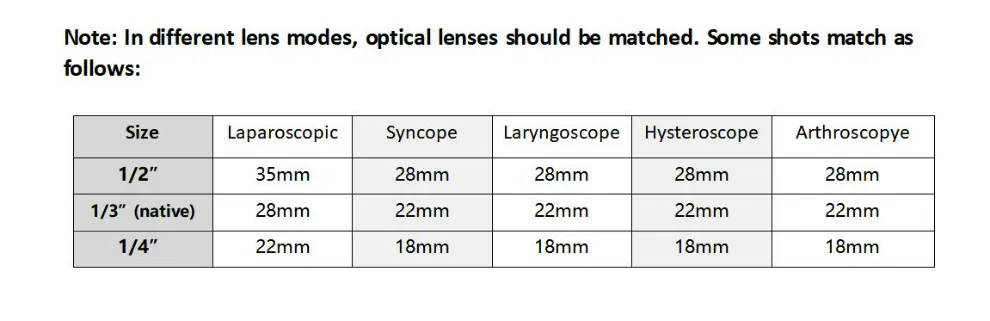

| Lens Modes | Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope |
| Digital Zoom | 0-8X |
A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.
Featuring an advanced medical-grade environmental protection plant of more than 2,000 square meters, the facility has won a number of national product R&D patents and passed international quality systems including CE, FCC, and ROSH. We provide OEM/ODM services for numerous well-known enterprises globally.
