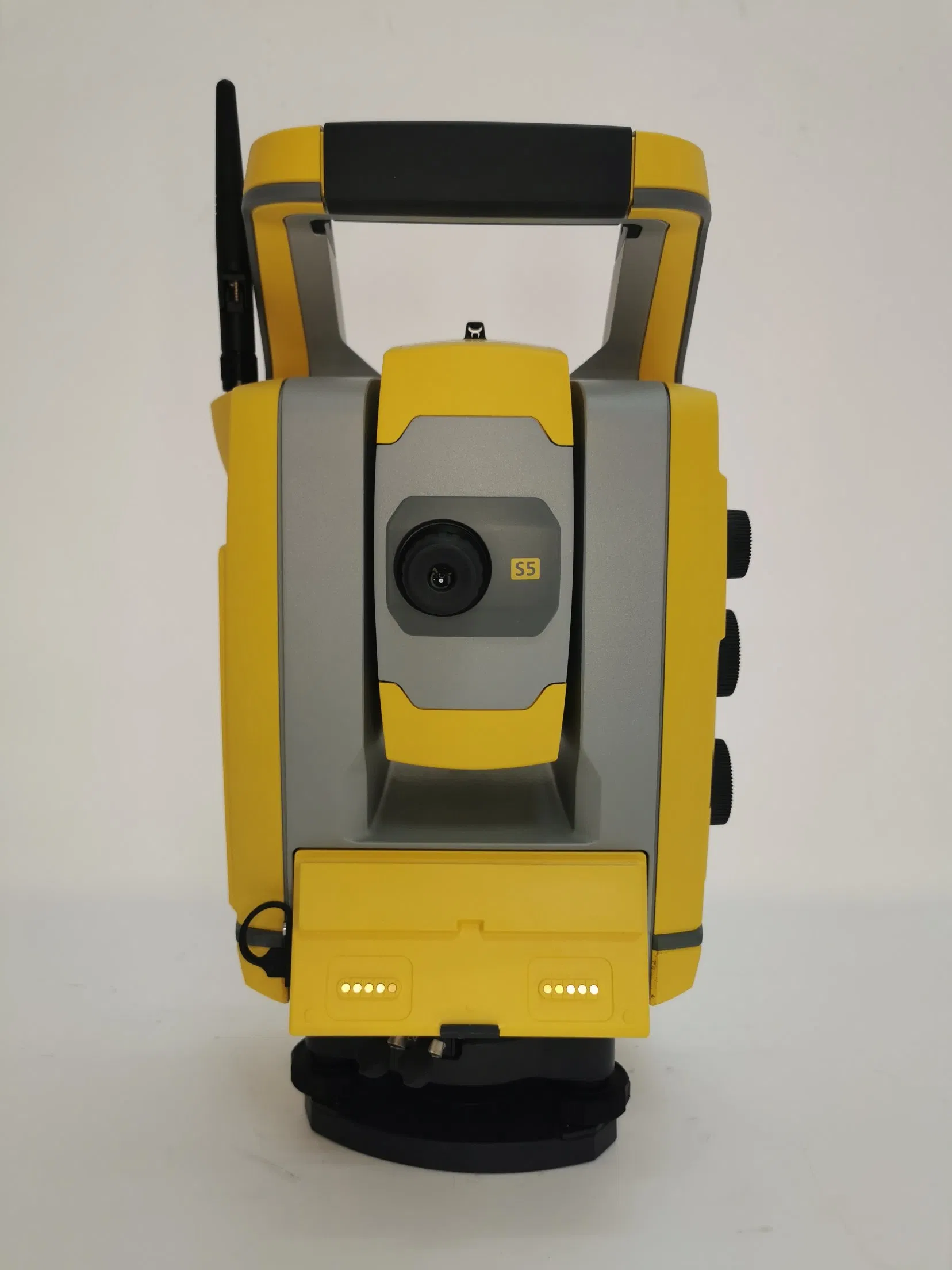

Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
1 / 5
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument
Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument

Excellent High Accuracy Trimble S5 2″ Robotic Total Station Geographic Surveying Instrument

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

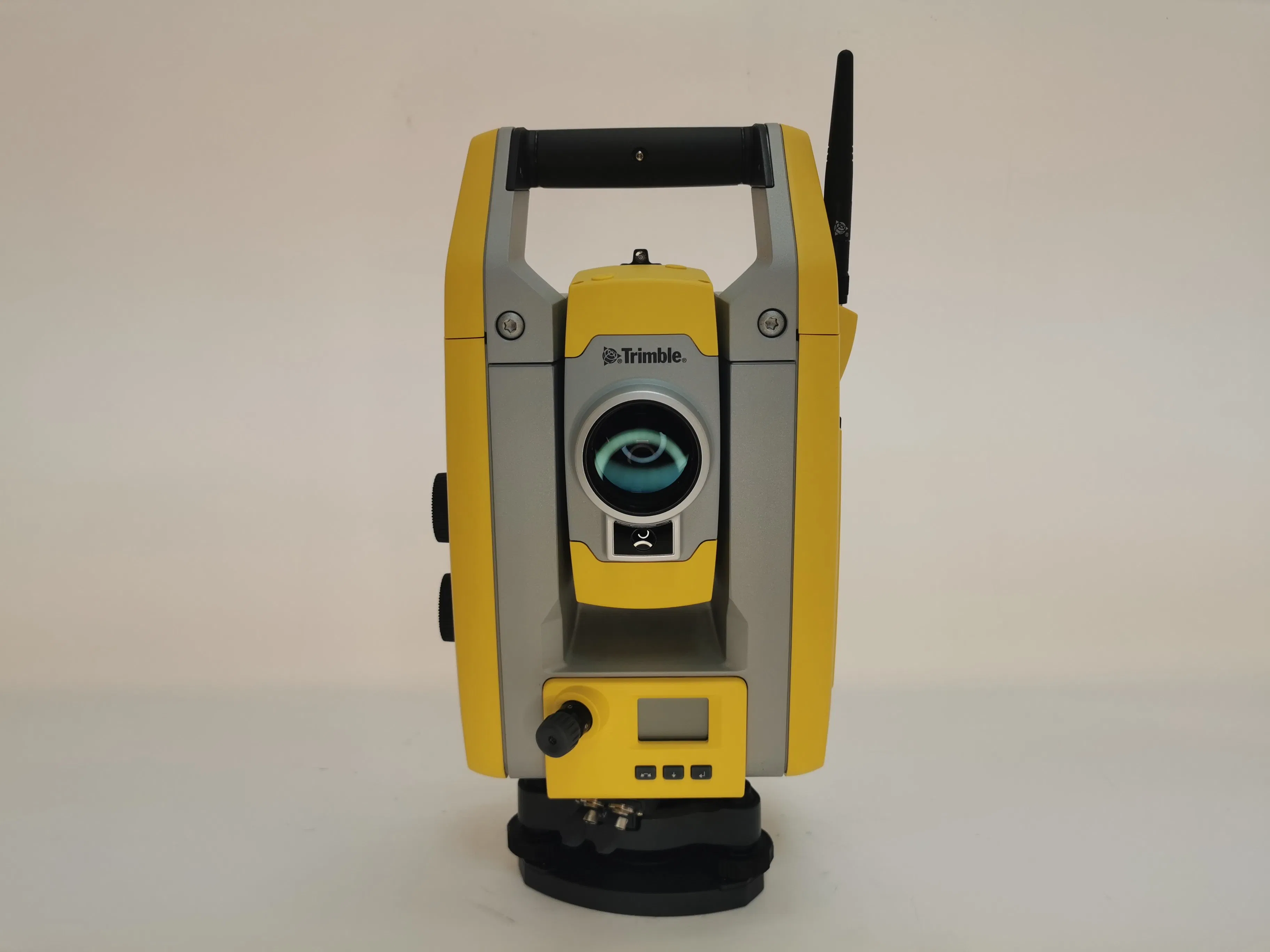

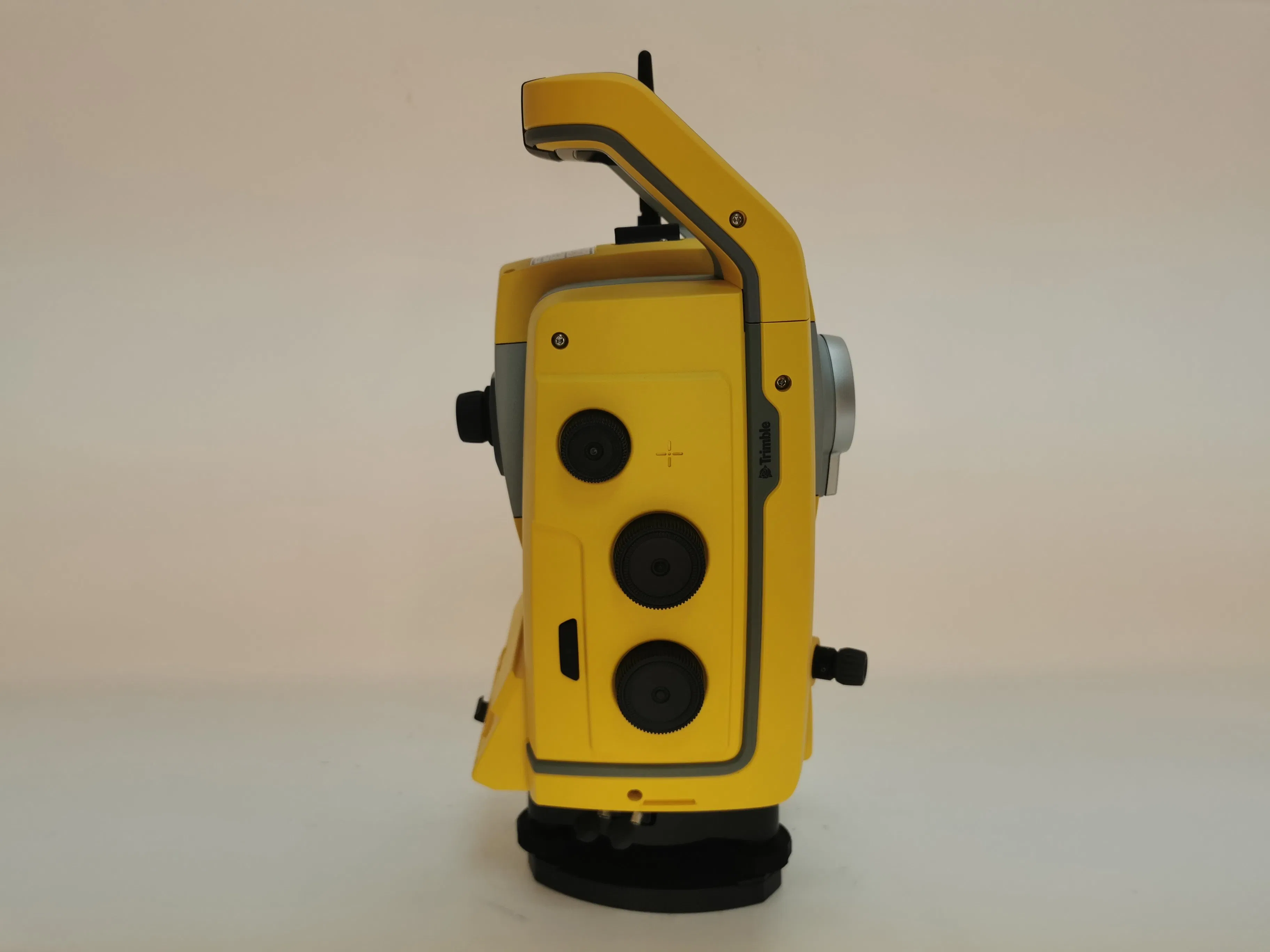

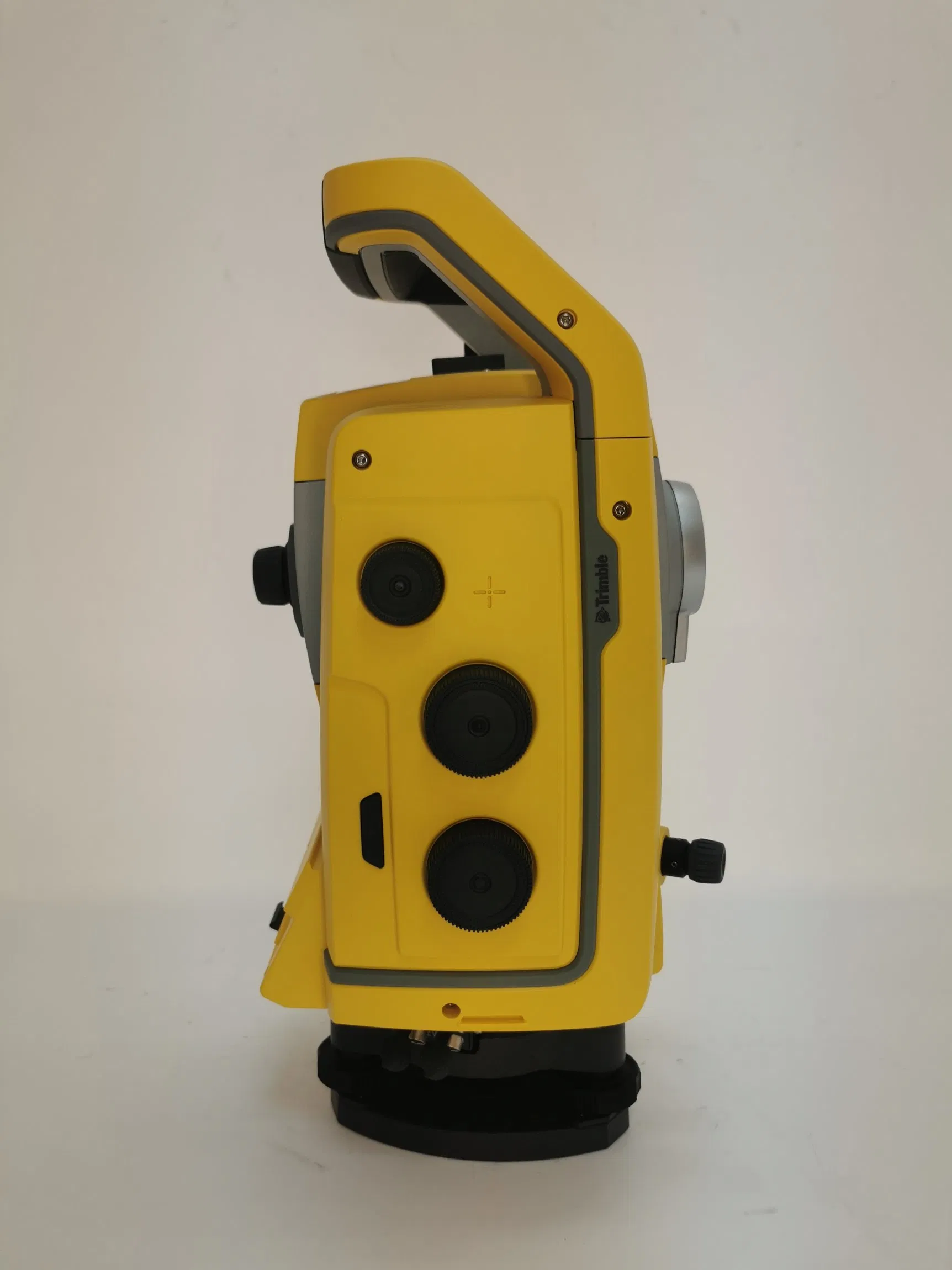

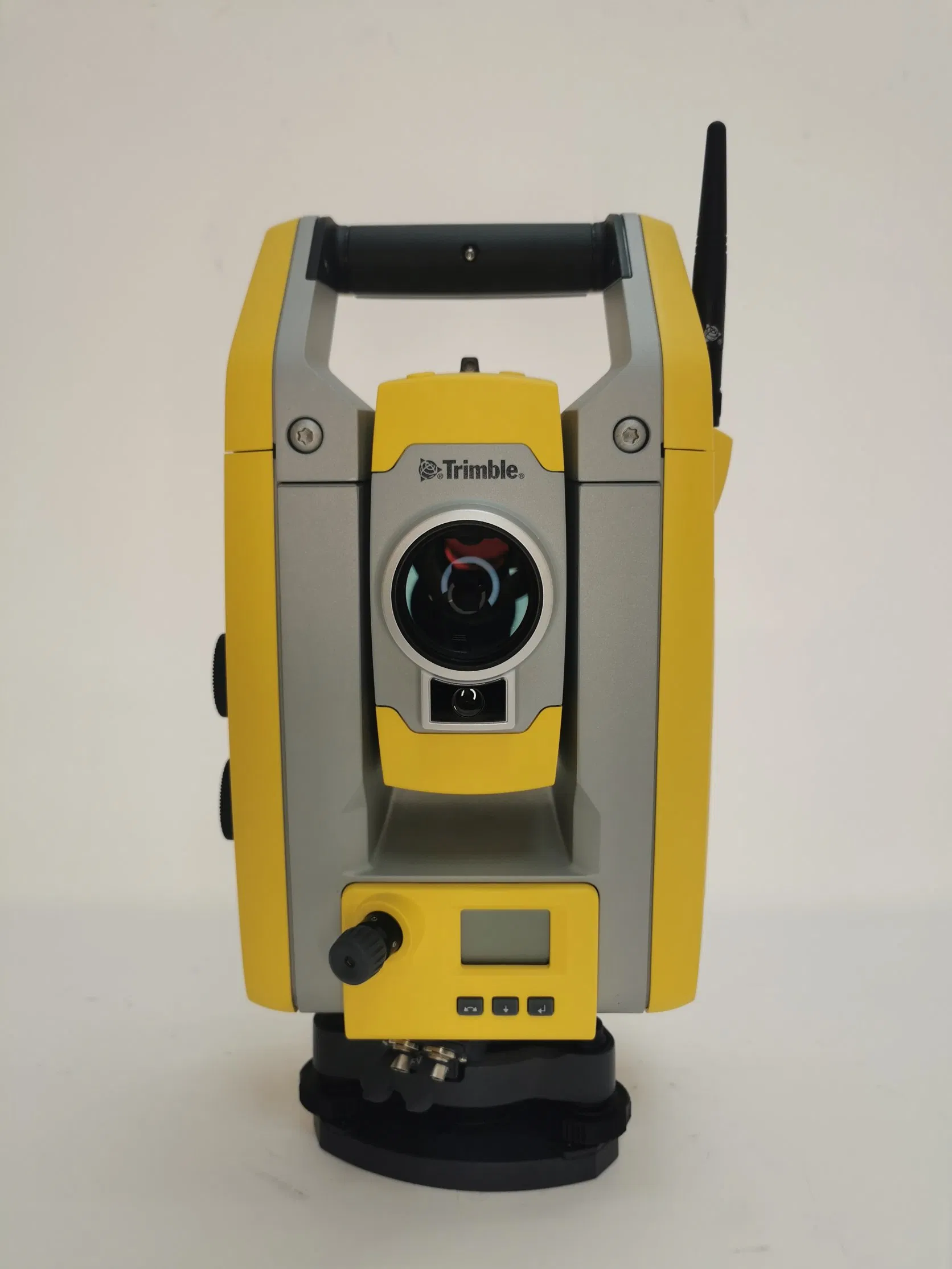

Trimble S5 Robotic Total Station
iBasic Info.
Model NO.
Trimble S5 Robotic (2 second)
Range Finding
3-15km
After-Sales Service
Professional Guidance
Warranty
1 Year
Sensor Type
Absolute Encoder with Diametrical Reading
Type
Centered Dual-Axis
EDM
Laser Class 1
Rotation Speed
115degrees/Sec (128 Gon/Sec)
Magnification
30X
Trademark
Trimble
Origin
Sweden
HS Code
9015800090
📦Packaging & Delivery
Package Size
50.00cm * 40.00cm * 30.00cm
Gross Weight
15.000kg
Lead Time
15 days (1 - 1 Sets)
📝Product Description

Built on proven Trimble technologies—including Trimble SurePoint and MagDrive™ technology, and our DR Plus EDM—this is the no nonsense workhorse that works efficiently and dependably while maintaining the highest possible accuracy.

  • Everything you need to perform survey campaigns
  • Measure further and faster with the Trimble DR Plus EDM
  • Complete field-to-office solution for quick data capture and processing
  • Seamless integrated surveying with the Trimble GNSS receivers
  • Optional Trimble Sentinel device tracking solution

Compatible Software

Choose from a variety of Trimble controllers operating the feature rich, intuitive Trimble Access field software. Streamlined workflows guide crews through common project types, helping to get the job done faster with less distractions.

  • Trust Trimble Business Center software to check, process and adjust optical, leveling, and GNSS data.
  • Generate industry-leading deliverables regardless of field instruments used.

Optional Instrument Tracking

Trimble Sentinel puts an instrument tracking module and powerful software in your palm. Simply open the mobile app on any compatible device to track instruments anywhere.

📷Detailed Photos

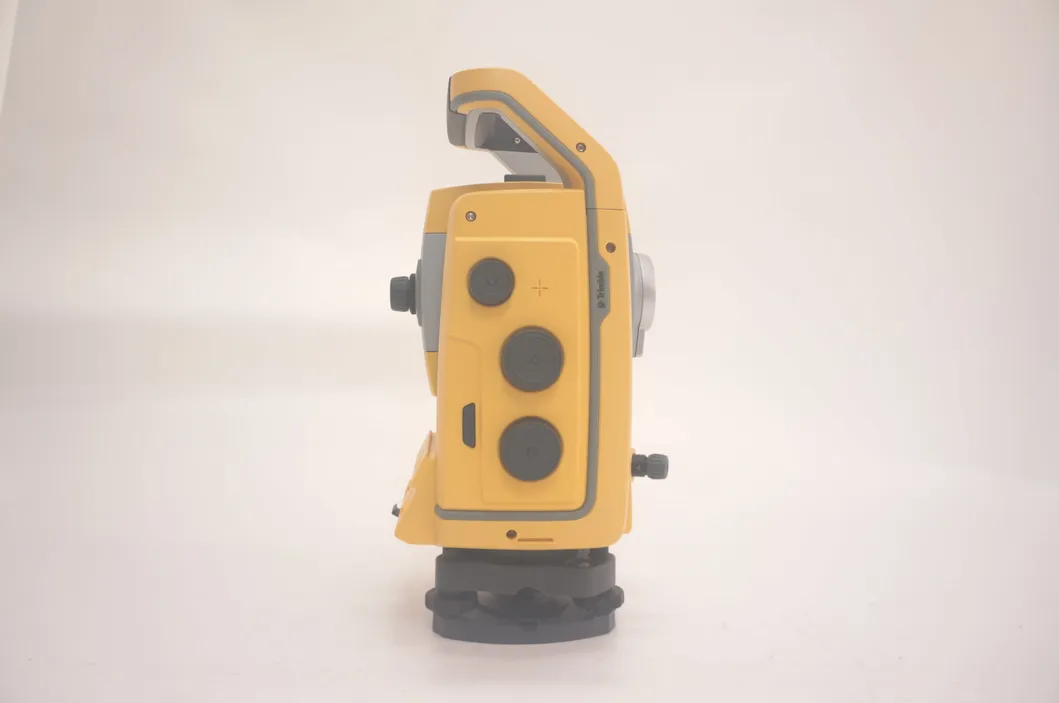

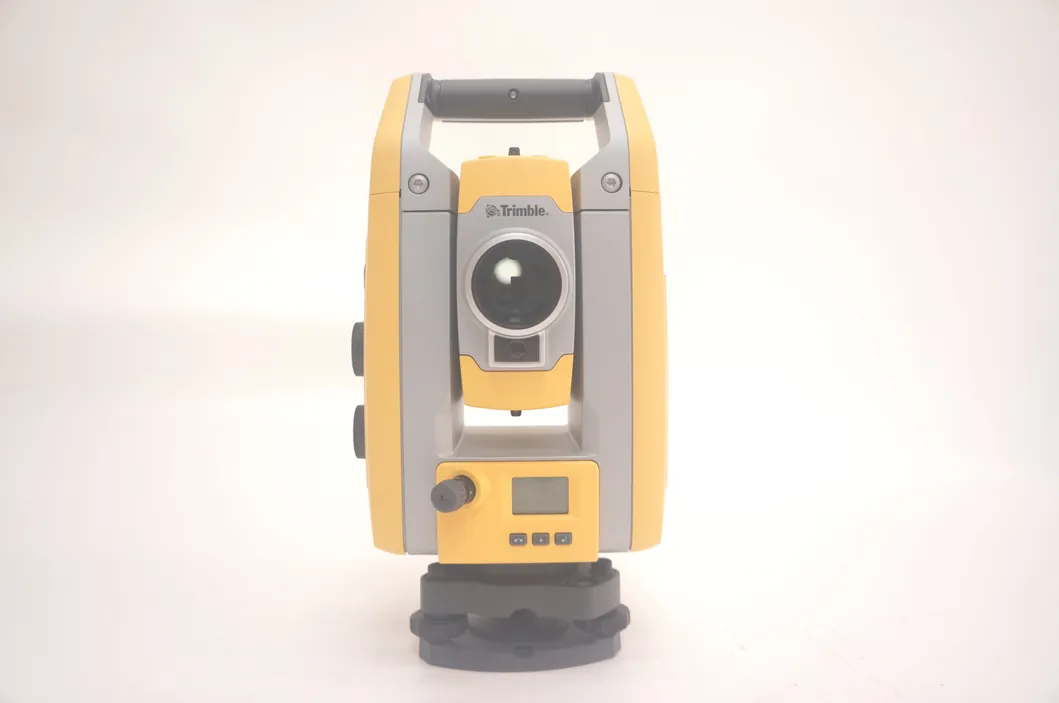

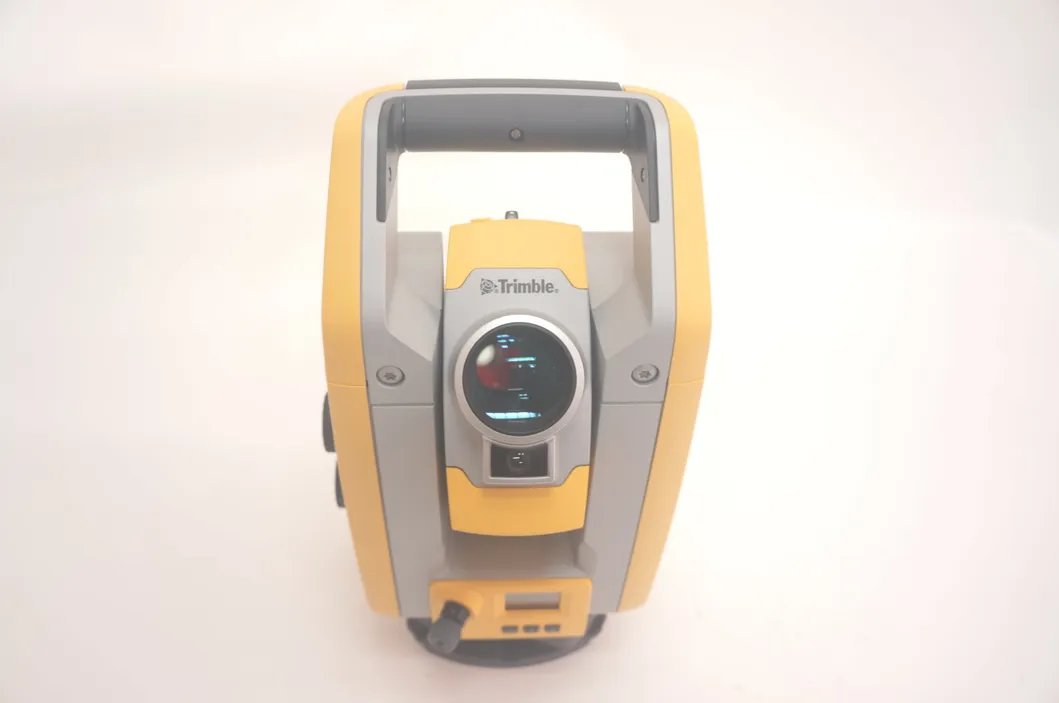

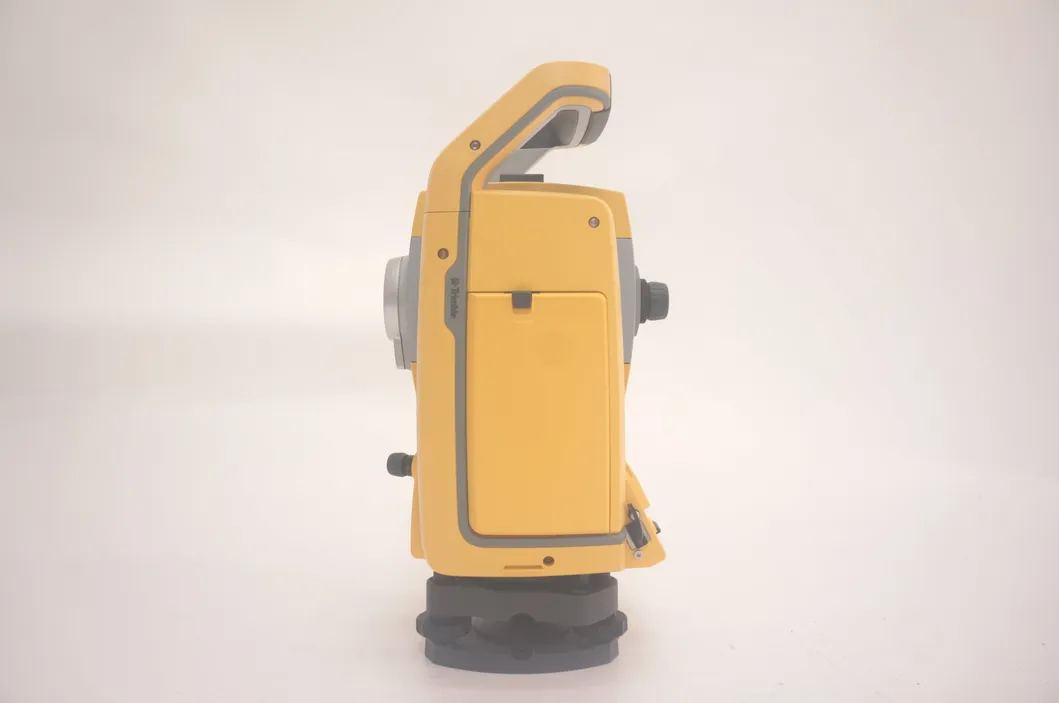

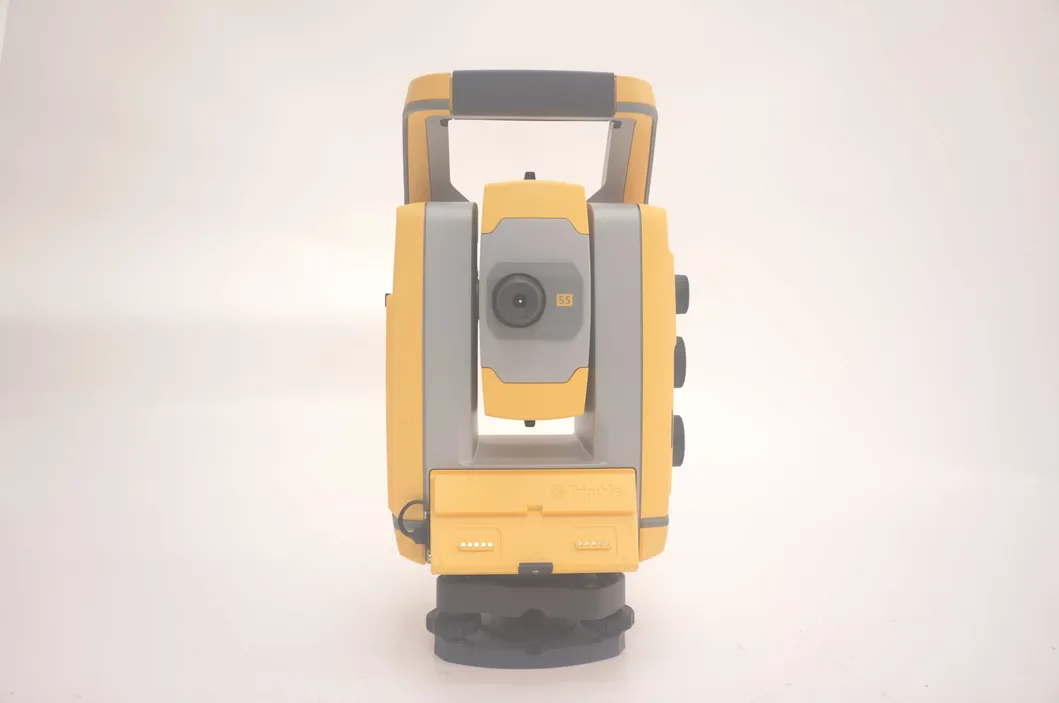

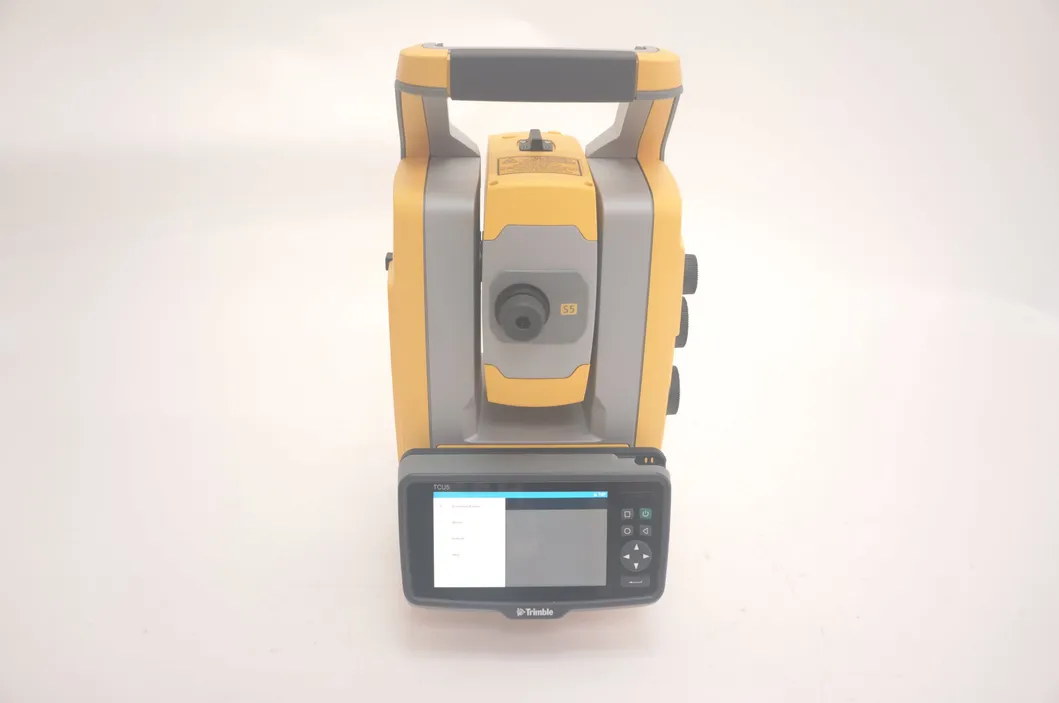

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6

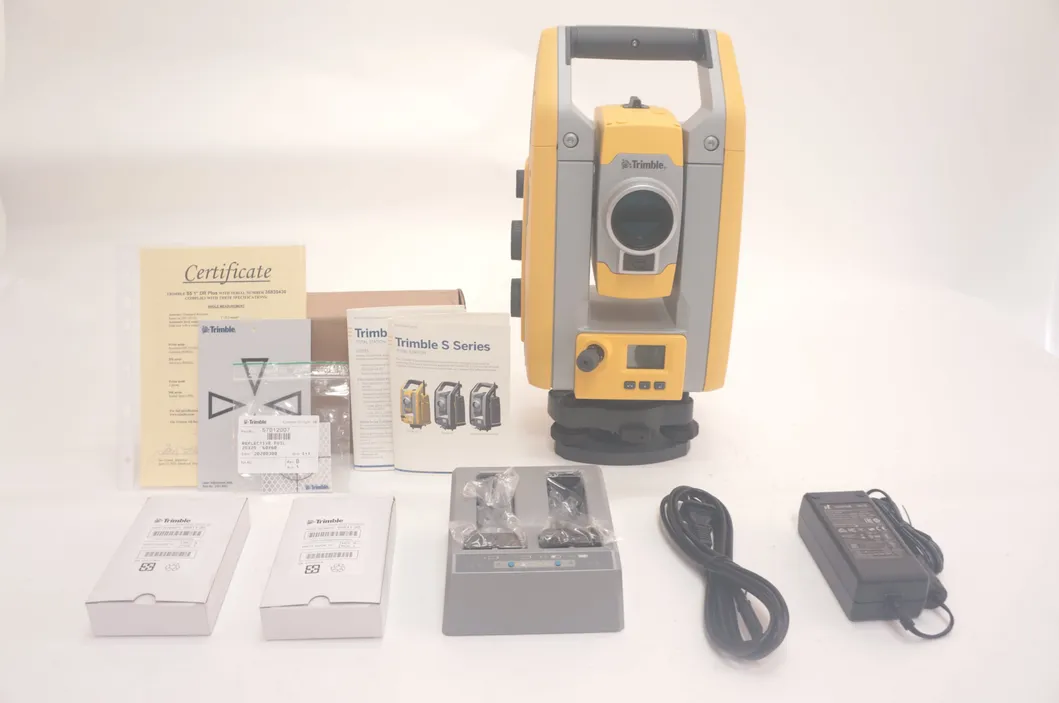

Measurement Showcase
📊Product Parameters
Category Feature Parameter Specification
Angle Measurement Sensor Type Absolute encoder with diametrical reading
Accuracy 1″(0.3 mgon), 2″(0.6 mgon) or 5″(1.5 mgon)
Display 0.1″(0.01 mgon)
Compensator Type Centered dual-axis
Accuracy 0.5″(0.15 mgon)
Range ±5.4′(±100 mgon)
Distance (EDM) Prism Mode Accuracy Standard 1mm+2ppm
DR Mode Accuracy Standard 2mm+2ppm
Tracking Accuracy Prism/DR 4mm+2ppm
Extended Range DR Mode 10mm+2ppm
📜Certifications & Factory
Certification

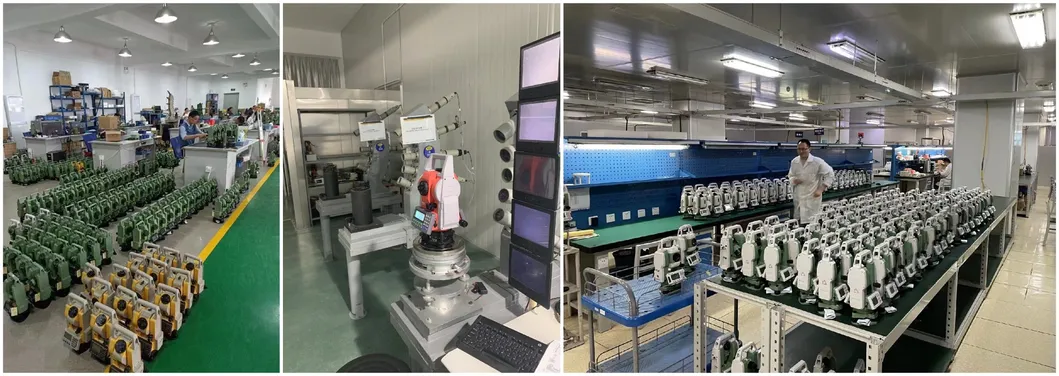

Factory Overview
Our Product Range
?Frequently Asked Questions
1. What are the core technologies used in the Trimble S5?
The Trimble S5 is built on MagDrive™ technology, Trimble SurePoint, and the DR Plus EDM for high efficiency and accuracy.
2. What is the angular accuracy of this instrument?
It is available in 1″ (0.3 mgon), 2″ (0.6 mgon), or 5″ (1.5 mgon) accuracy models.
3. Can the instrument be tracked if lost or stolen?
Yes, the Trimble S5 supports an optional Trimble Sentinel device tracking solution that can be accessed via a mobile app.
4. What kind of software is recommended for data processing?
Trimble Access field software is used for data capture, while Trimble Business Center is recommended for office processing and adjustment.
5. What is the measurement range of the Trimble S5?
The instrument has a range finding capability of 3km to 15km depending on the mode and conditions.
6. Is the Trimble S5 compatible with GNSS receivers?
Yes, it features seamless integrated surveying capabilities with Trimble GNSS receivers for comprehensive field data collection.
