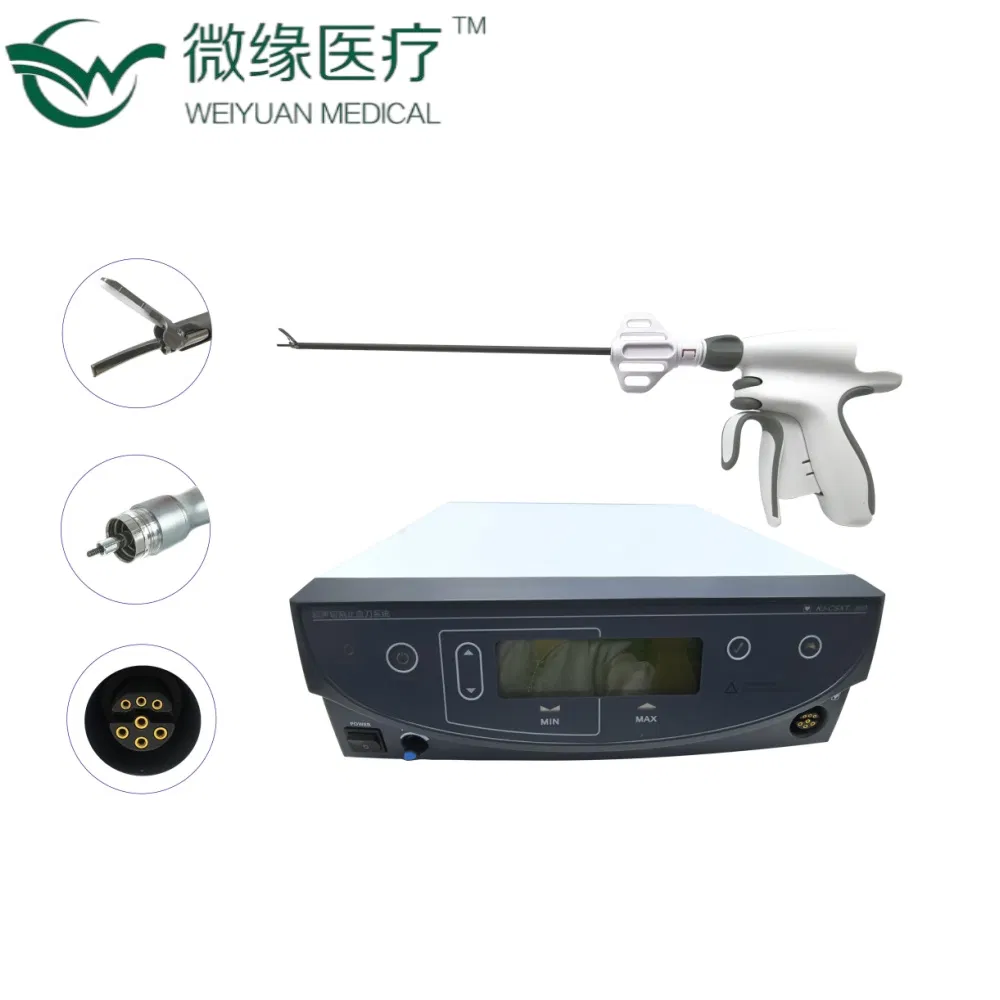

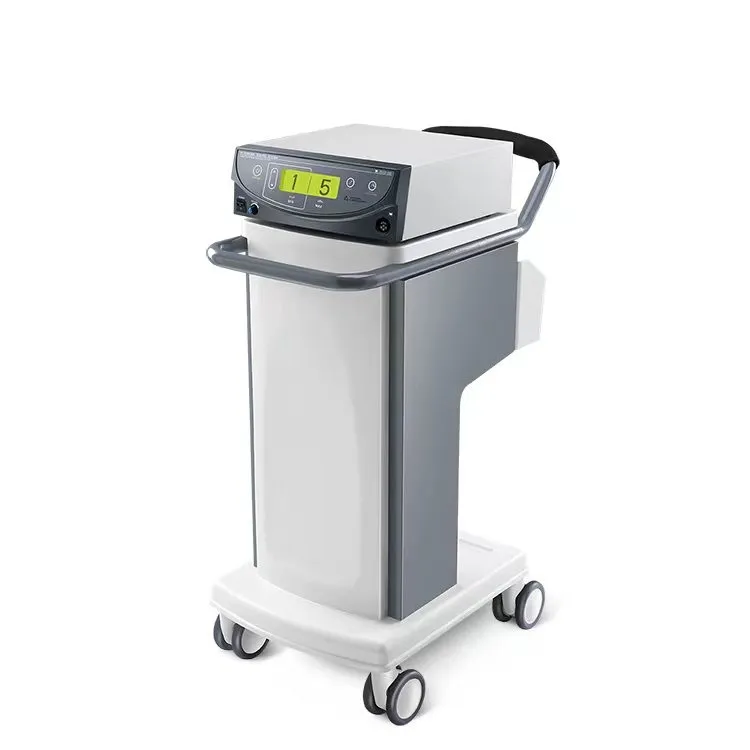

Ultrasonic Scalpel System

The host generator is a device used to provide electrical energy and output control to the ultrasonic driver handle. Power output is activated via a foot switch or manual switch adapter. The signals are transmitted to the drive handle, converting electrical signals into ultrasonic mechanical motion.

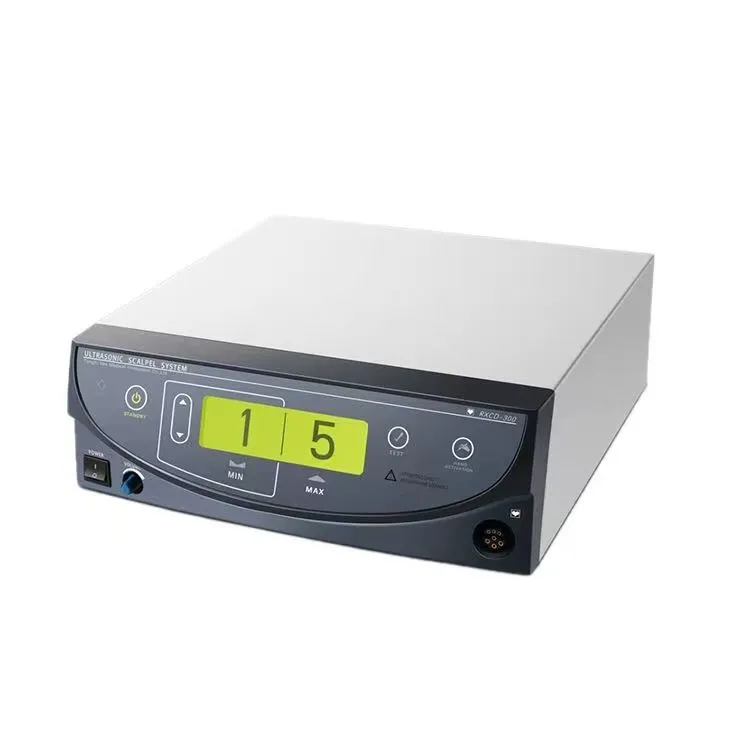

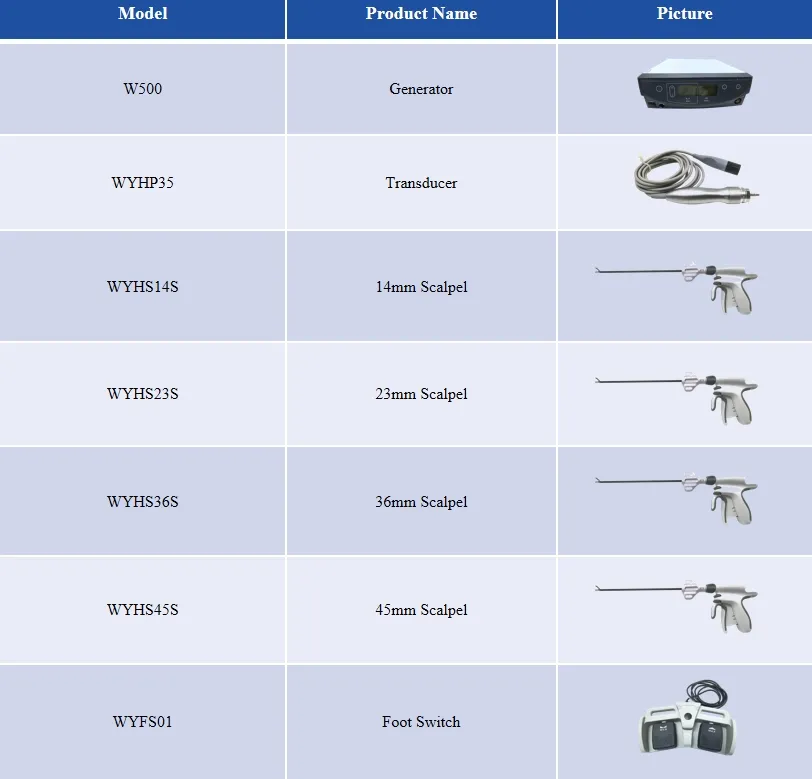

Generator Technical Specs

• Input Voltage: AC 90V to 240V
• Input Frequency: 50 / 60Hz
• Driving Frequency: 55.5KHz
• Power Consumption: Max 300VA
• Interface Compatibility: Standard foot switches and transducers

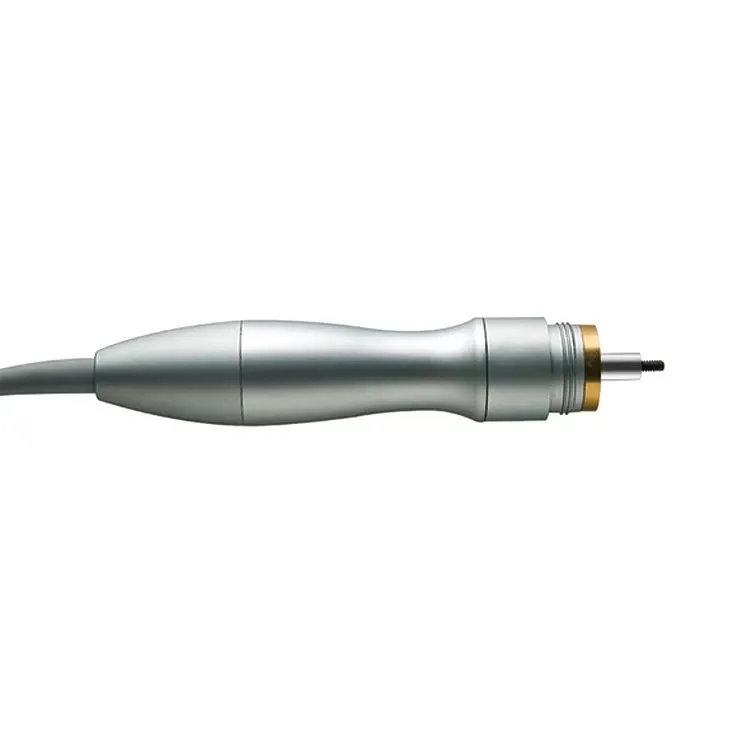

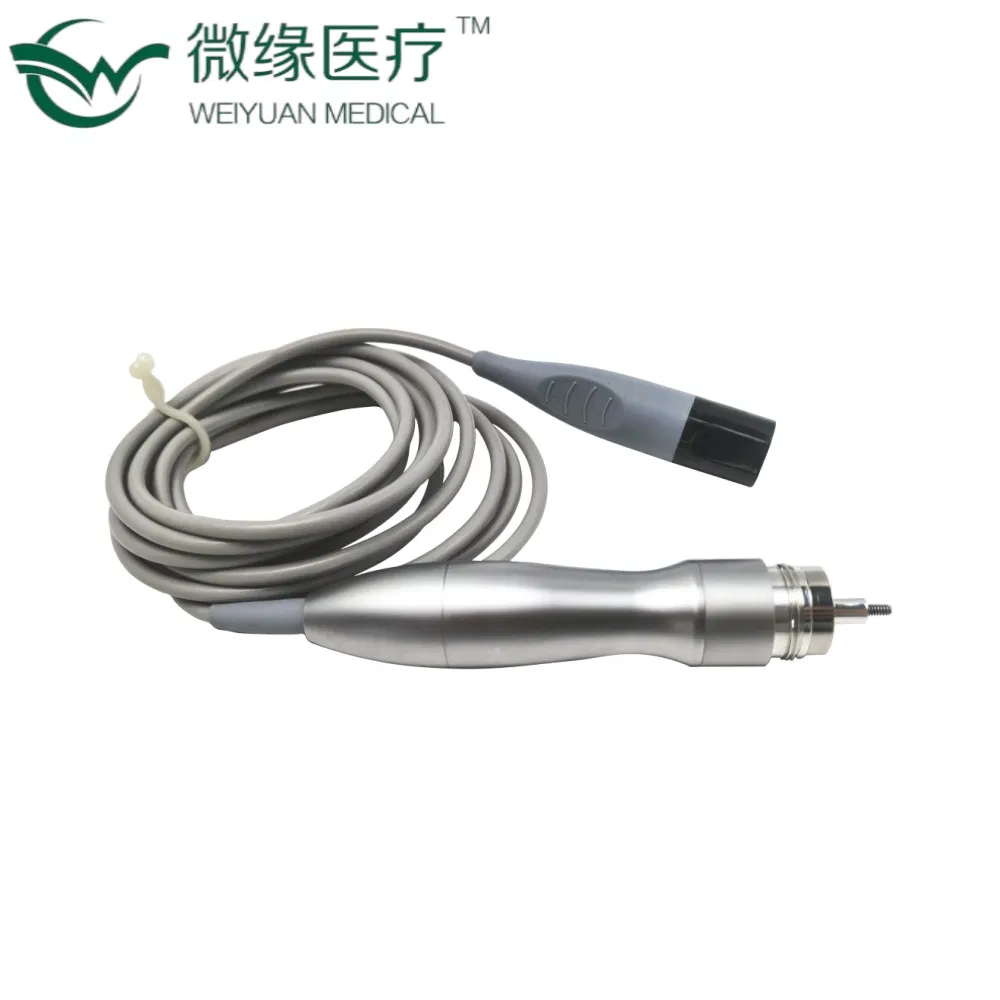

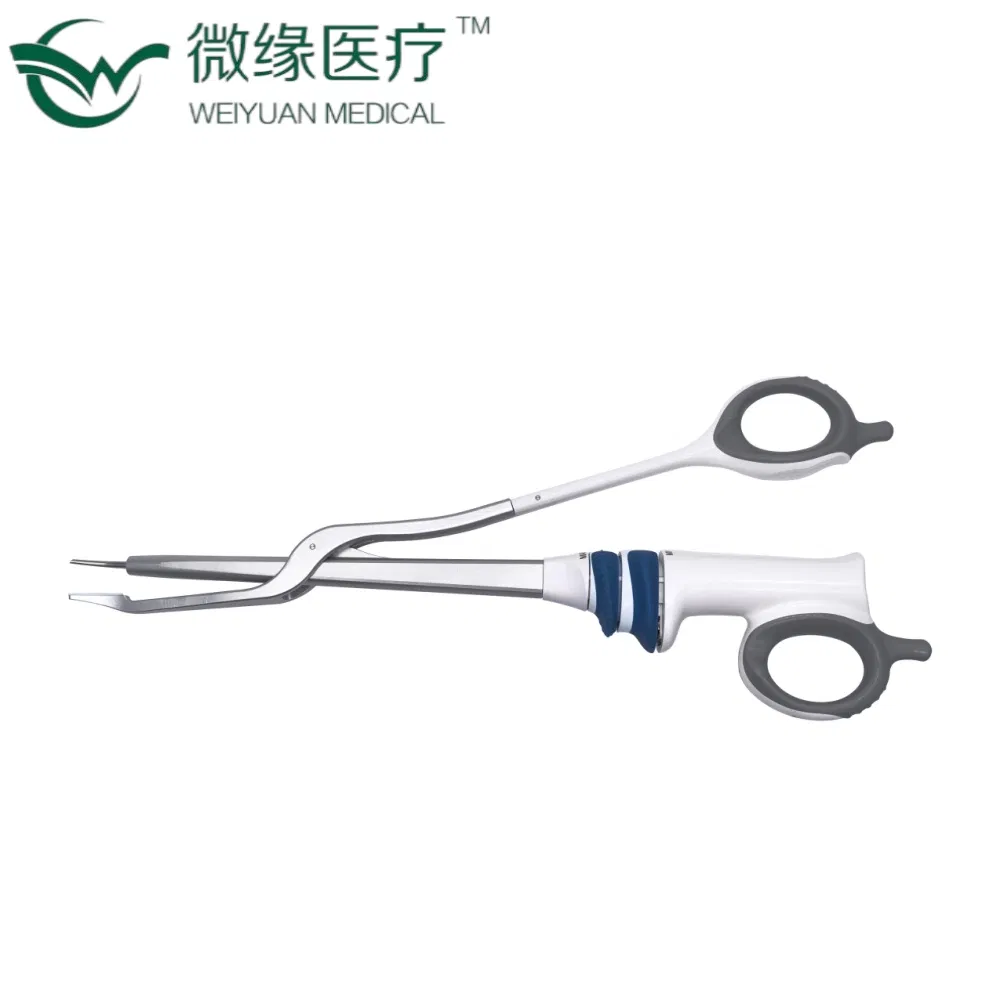

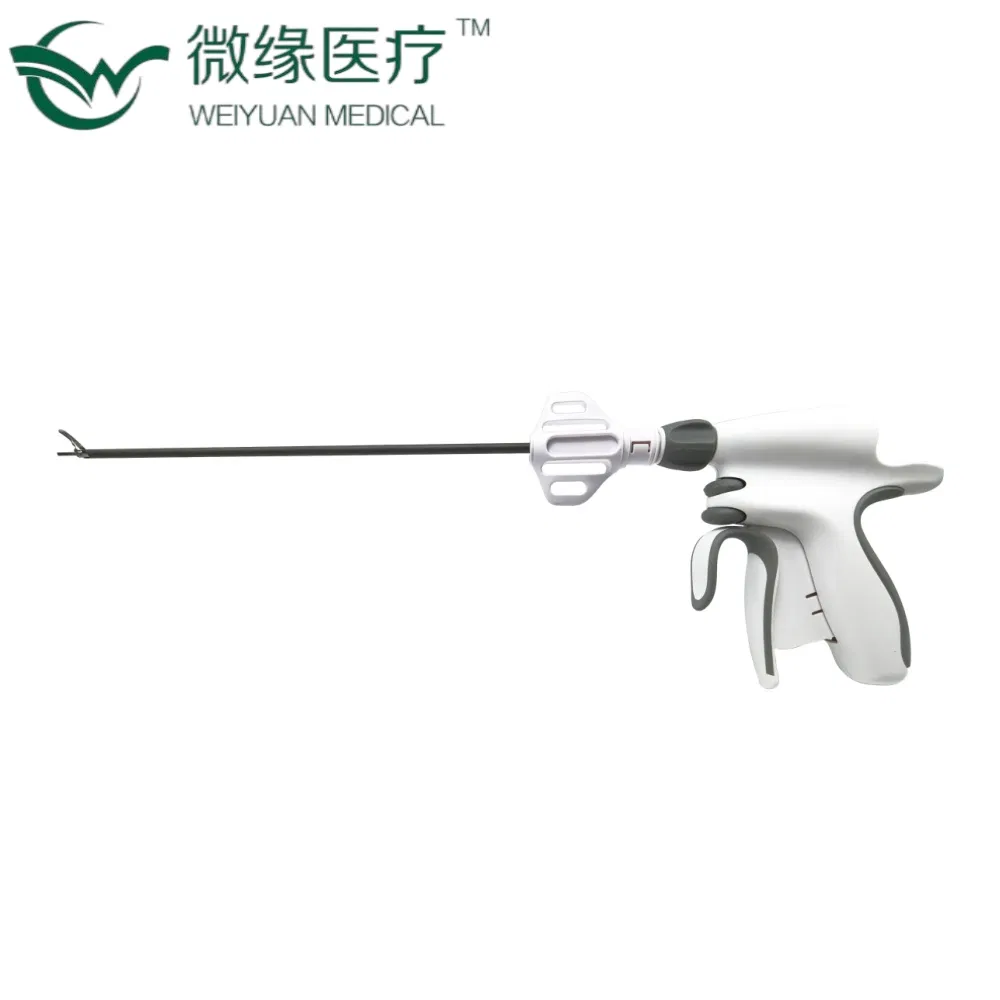

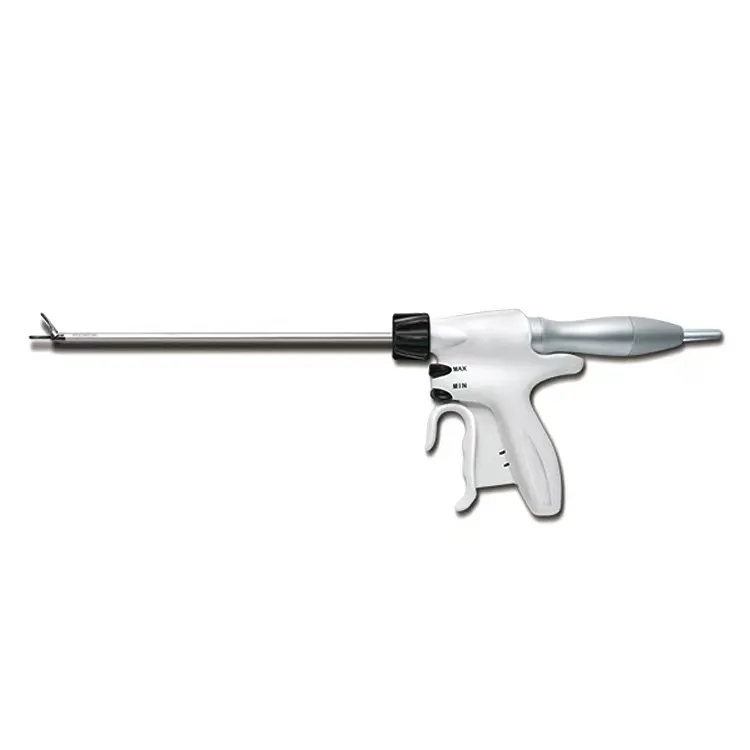

Hand Piece & Scalpel Components

The tool heads feature manual buttons and integrated rotary knobs. Three main lengths are available for different surgical needs:

• 14mm: Suitable for superficial surgery.
• 23mm: Suitable for open surgery.
• 36mm: Suitable for laparoscopic surgery.
• Disinfection: Supports 134°C high-temperature sterilization.

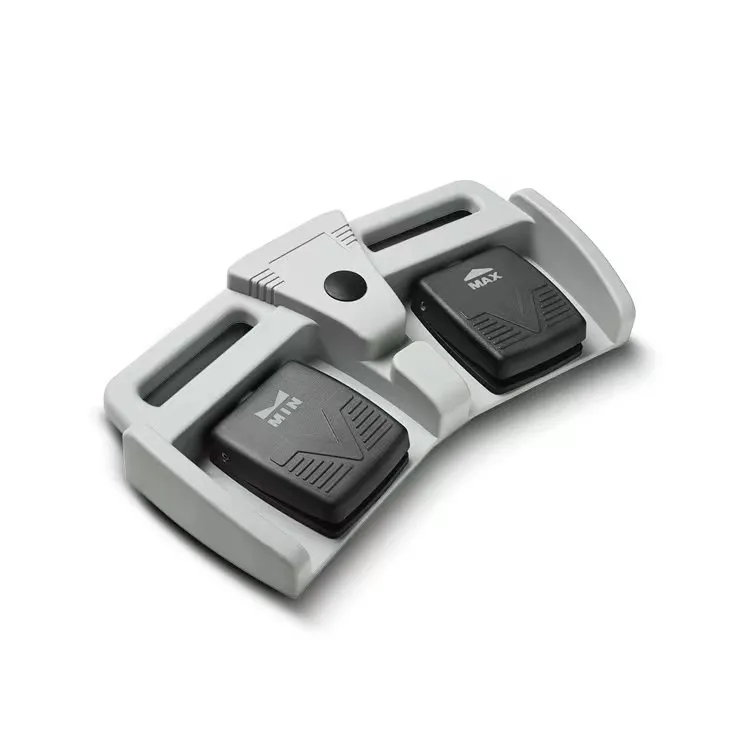

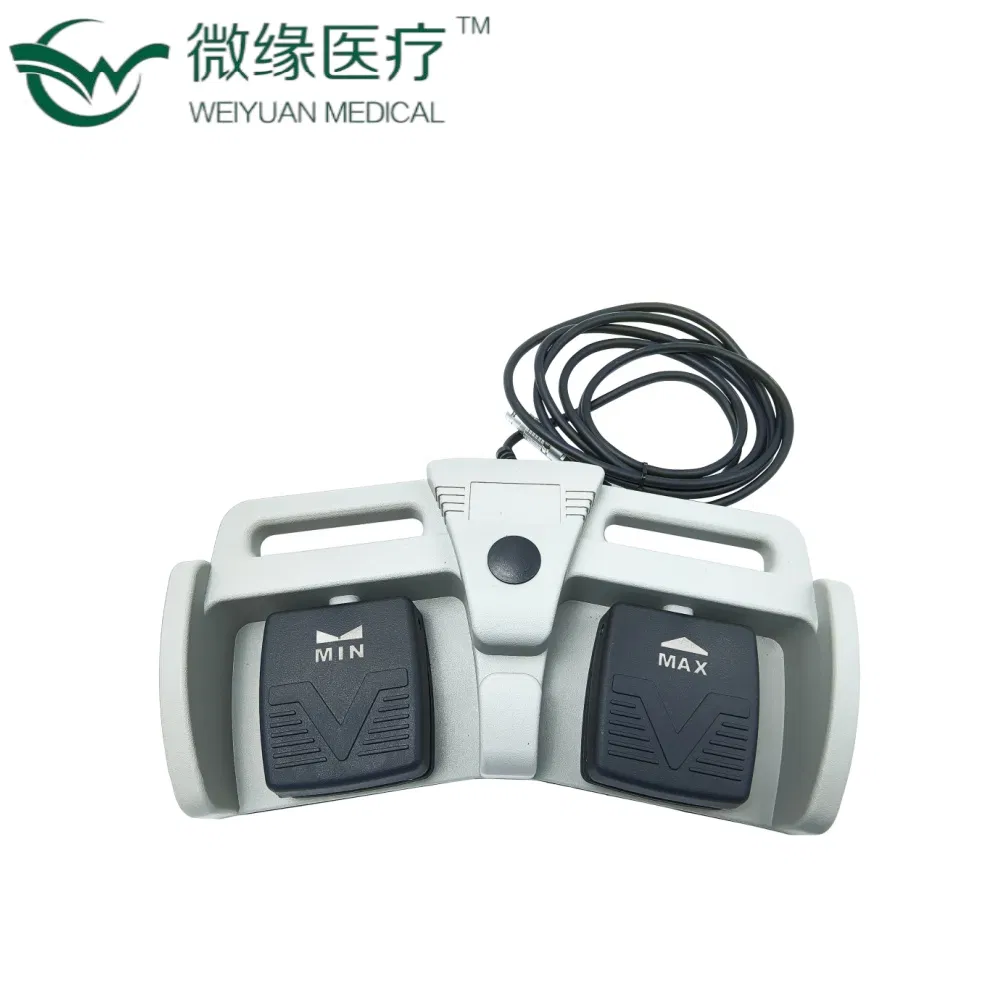

Foot Switch Operation

Activates and transmits information to the main generator switch carrier in both MIN and MAX modes. The pedal ensures immediate signal transmission upon activation.
