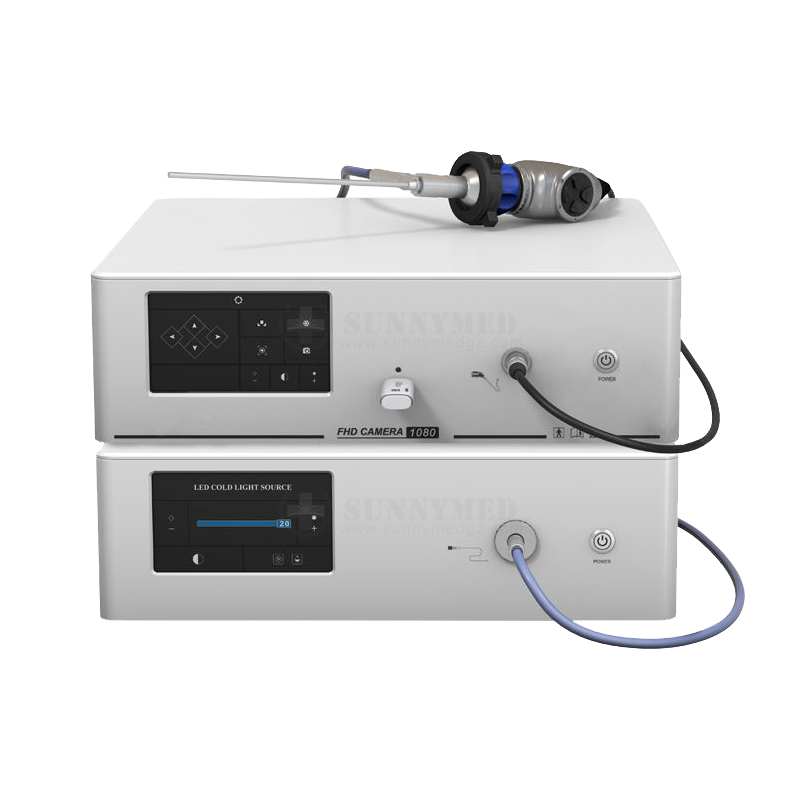

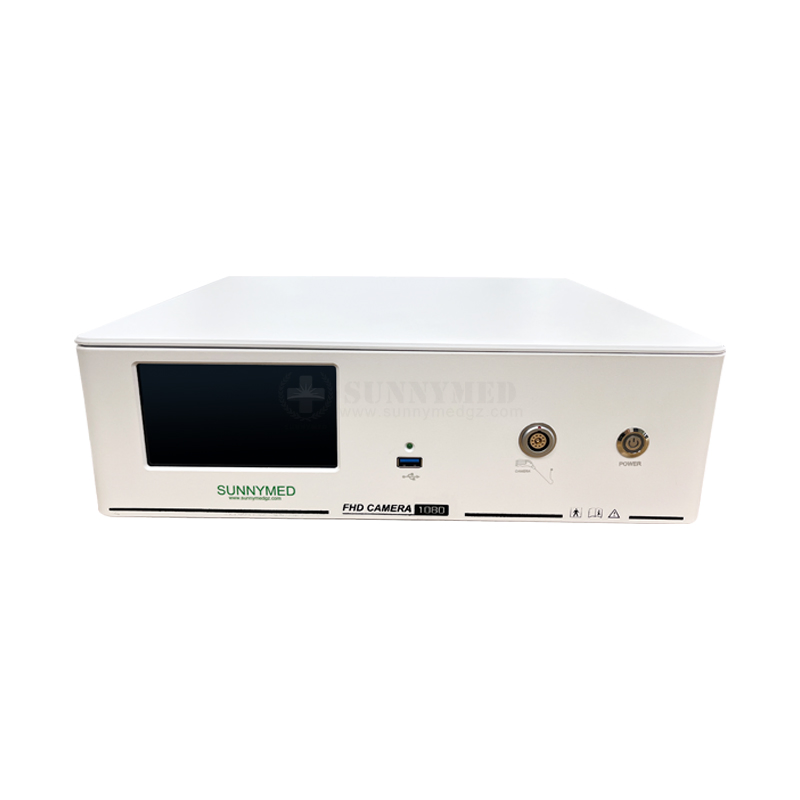

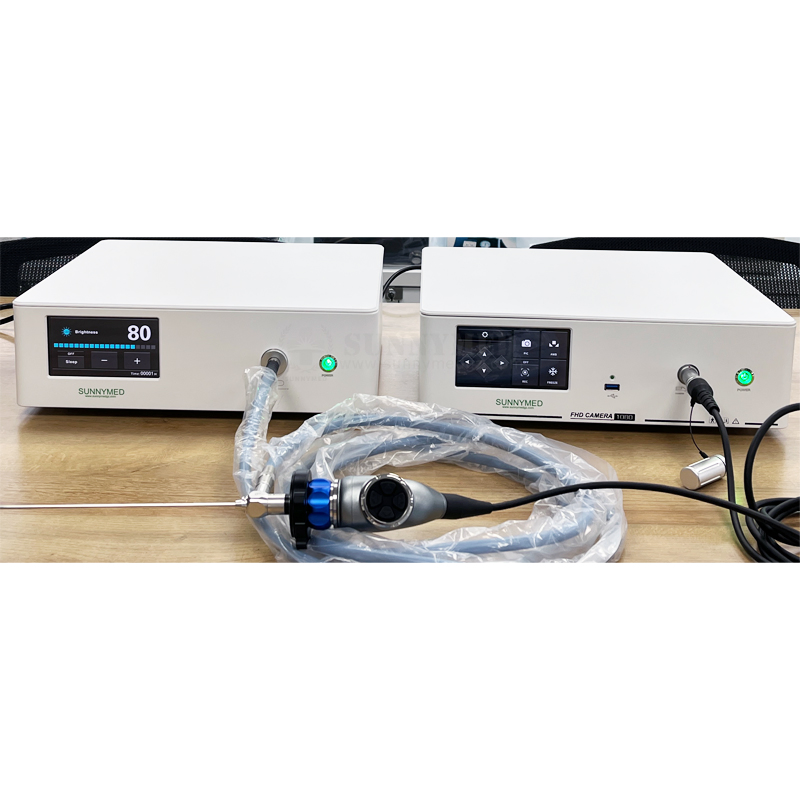

Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
1 / 5
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System
Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System

Sy-PS048t_P Medical Sinuscope Rigid Endoscope Ent Video Endoscopy System

Customization: Available
Classification: Imaging Diagnostic Equipment
Certification: CE
Send Inquiry

Product Description

i

Basic Information

Model NO.
SY-PS048T_P
Warranty
1 Year
Material
Metal
Product Name
Medical Camera Video Processor
Function
1/2.8 CMOS HD Camera
Total Pixels
2,100,000 pixels
Resolution
1920X1080
Scanning System
Progressive Scanning
TV System
NTSC/PAL
Production Capacity
200 Set/Month
★

Product Description

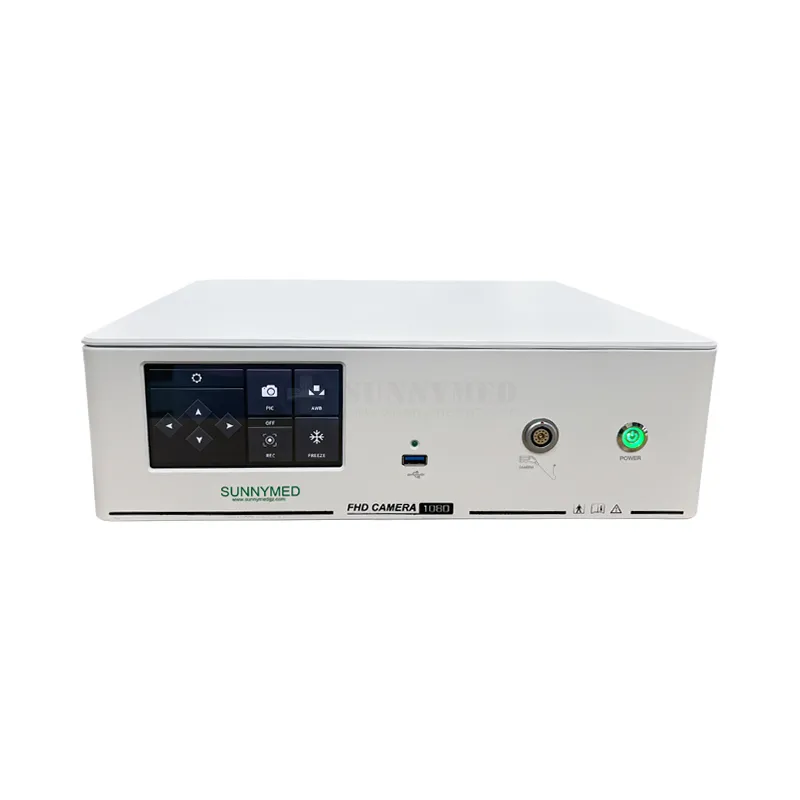

Medical Sinuscope Rigid Endoscope ENT Video Endoscopy System Medical Endoscopy System

This video system center integrates a LED light source, HD camera, and processor into a single compact unit, significantly simplifying OR setup. The intuitive touch panel allows for rapid, seamless control during surgical procedures.

  • 3-in-1 Design: Integrates 2.1MP Camera, 80W LED light source, and HD recorder.
  • FHD Storage: Built-in USB port for direct imaging and video storage.
  • Waterproof Protection: IPX8 waterproof camera head ensures durability and easy sterilization.
  • Precision Control: Adjustable settings for white balance, hue, noise reduction, brightness, sharpness, and more.
  • Versatile Compatibility: Compatible with both rigid and flexible fiberscopes.
⚙

Technical Specifications

Camera Sensor 1/2.8 inch Full HD SONY CMOS Image Size 1920x1080P
Frame Rate 60fps Scanning System Progressive scanning
Total Pixels 2,100,000 Pixels Resolution 1080 Lines
LED Light Source 80W Cold Light Video Output DVI, HDMI, CVBS
Color Temperature 5100-7000K CRI ≥90
White Balance AWB & MWB Weight 5.05kg
🖼

Detailed Photos

Endoscopy System Detail 1

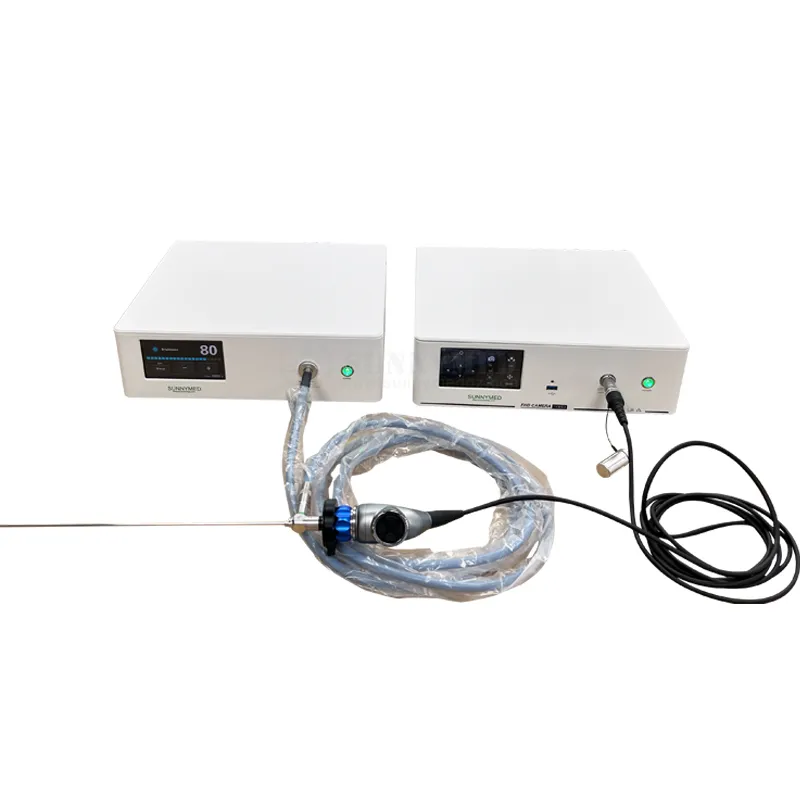

Endoscopy System Detail 2
Endoscopy System Detail 3

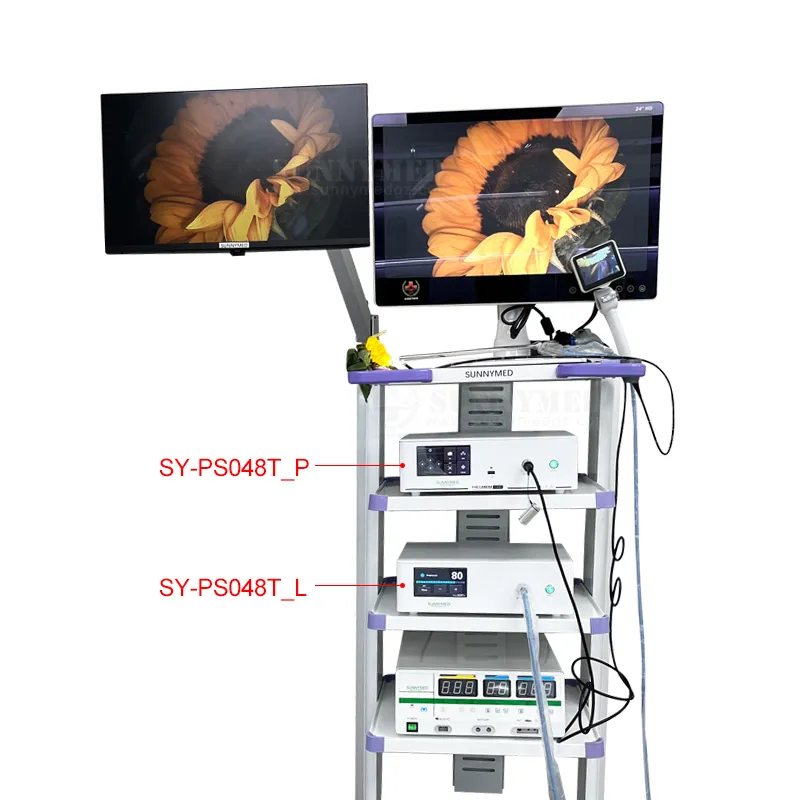

Endoscopy System Detail 4

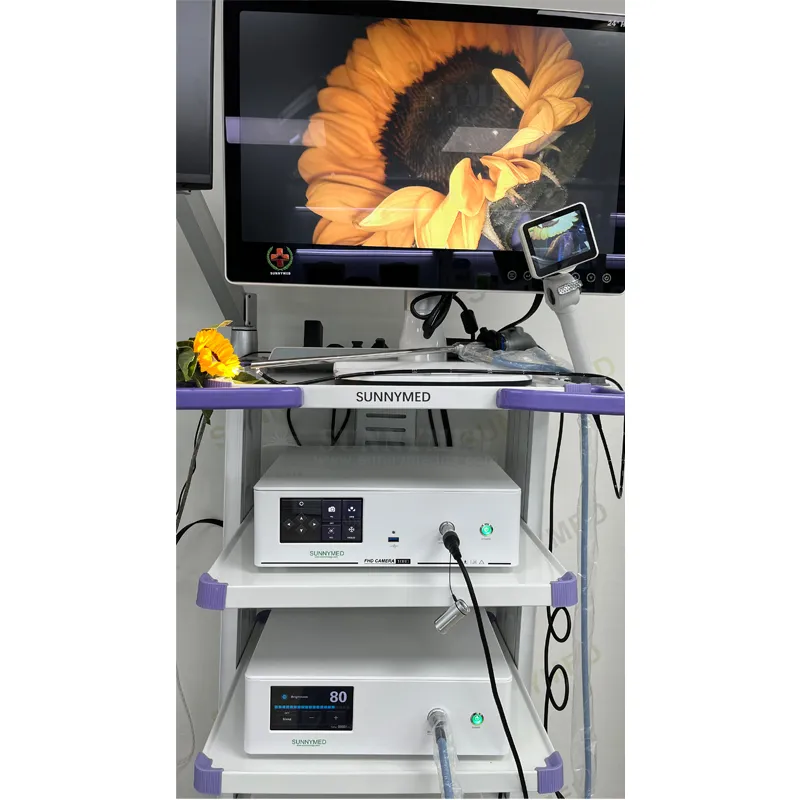

Endoscopy System Detail 5
✚

Clinical Applications

This imaging system is designed for a wide range of medical fields and clinical procedures, including:

  • Arthroscopy & ENT
  • Laparoscopy & Thoracoscopy
  • Cystoscopy & Urology
  • Hysteroscopy
  • Proctoscopy & Sigmoidoscopy
  • Fiber Bronchoscopy
  • Plastic Surgery
  • Percutaneous Nephroscopy
📋

Workflow & Standards

Production Workflow

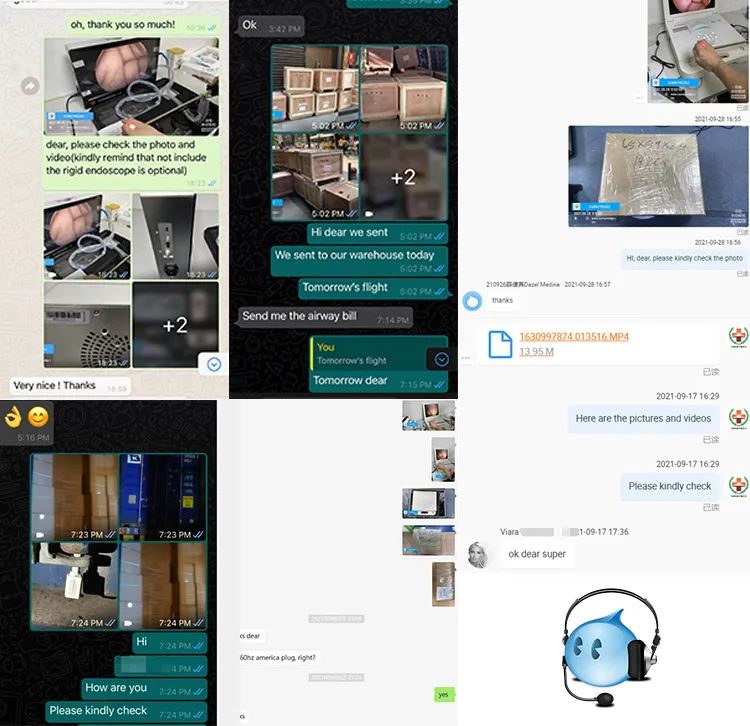

Standard 1
Standard 2
Frequently Asked Questions
What are the main components of the SY-PS048T_P system?
The system is a 3-in-1 integrated solution that includes a 2.1 Megapixel HD camera, an 80W LED cold light source, and a built-in HD video recording processor.
Does this system support video and image recording?
Yes, it features a built-in USB port for FHD imaging and video storage, allowing doctors to save procedures directly to a flash drive.
Is the camera head waterproof?
Yes, the camera head is IPX8 waterproof, making it safe for high-standard disinfection and durable in surgical environments.
What is the output resolution of the system?
The system provides Full HD resolution of 1920x1080P at 60fps, ensuring smooth and clear visual output for precise diagnosis.
Can this system be used with different types of endoscopes?
Absolutely. It is compatible with a wide range of both rigid and flexible endoscopes, including sinuscopes, otoscopes, cystoscopes, and laparoscopes.
What video output interfaces are available?
The processor supports multiple high-definition outputs, including DVI and HDMI, as well as standard CVBS video outputs.
