📊 Basic Info.
Rotation Speed
0.05-0.5rpm
Welding Tilter Type
Traditional Special
Production Capacity
100 Sets/Month
⚙️ Product Introduction
The Welding Positioner is a precision-engineered rotating workholding device designed to optimize welding efficiency and quality across industrial applications. This robust equipment securely holds and automatically rotates workpieces at adjustable speeds (typically 0.1-1.2 RPM), enabling welders to maintain ideal torch angles in flat/horizontal positions for consistent, high-strength joins.
🛡️

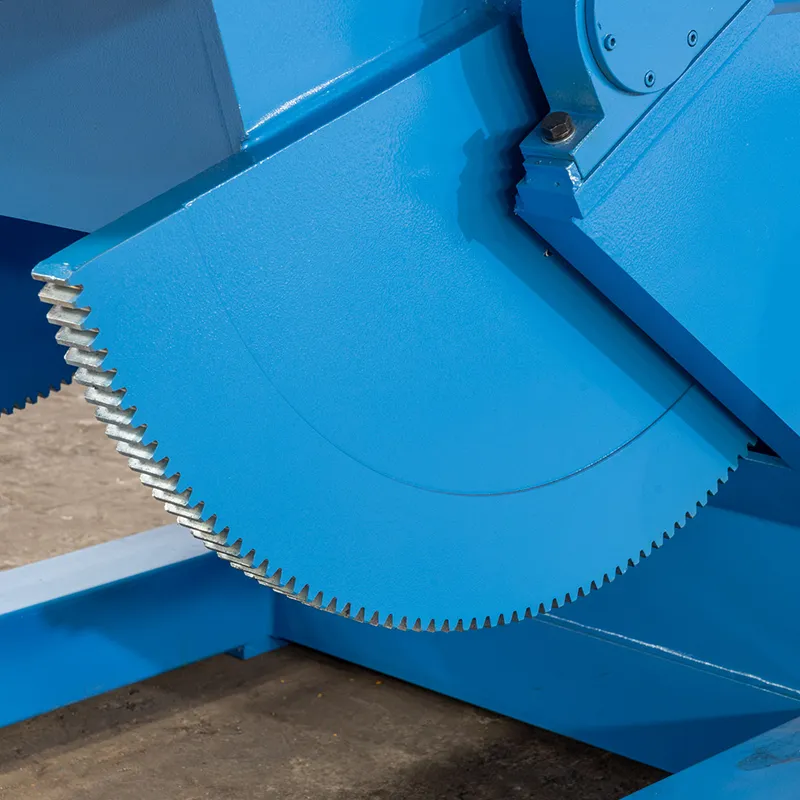

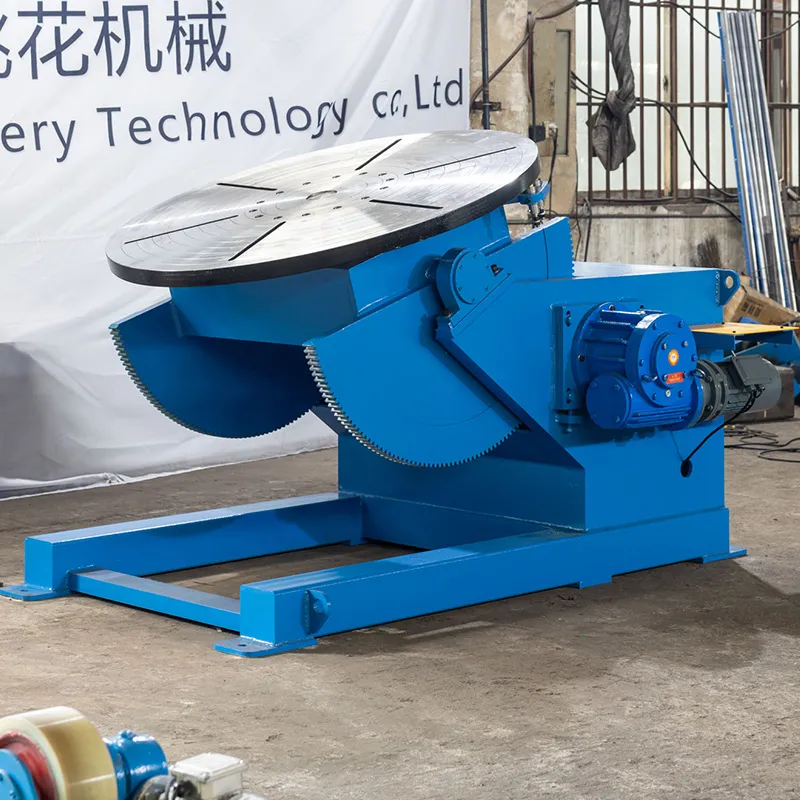

Stable and Secure Hold
The toothed structure provides a stable and secure hold on the workpiece during welding. Once the workpiece is positioned, the interlocking of the teeth prevents any unwanted movement or slippage. This is crucial in welding operations, as even a slight movement can lead to poor-quality welds.
📋 Technical Specifications
| Type |
HB-1 |
HB-3 |
HB-6 |
HB-12 |
HB-30 |
HB-50 |
HB-100 |
| Load(kg) |
100 |
300 |
600 |
1200 |
3000 |
5000 |
10000 |
| Table rotating speed(rpm) |
0.1~1 |
0.05~0.5 |
0.05~0.5 |
0.05~0.5 |
0.05~0.5 |
0.05~0.5 |
0.02~0.2 |
| Table diameter(mm) |
φ400 |
φ600 |
φ1000 |
φ1200 |
φ1400 |
φ1500 |
φ2000 |
| Table turning angle(°) |
0-90 |
0-105 |
0-120 |
🎯
Precise Control
The electrical control cabinet houses high-quality inverters. It enables precise adjustment of the welding positioner's speed, rotation angle, and movement. This allows operators to set and maintain exact parameters, ensuring high-quality welds for complex tasks.

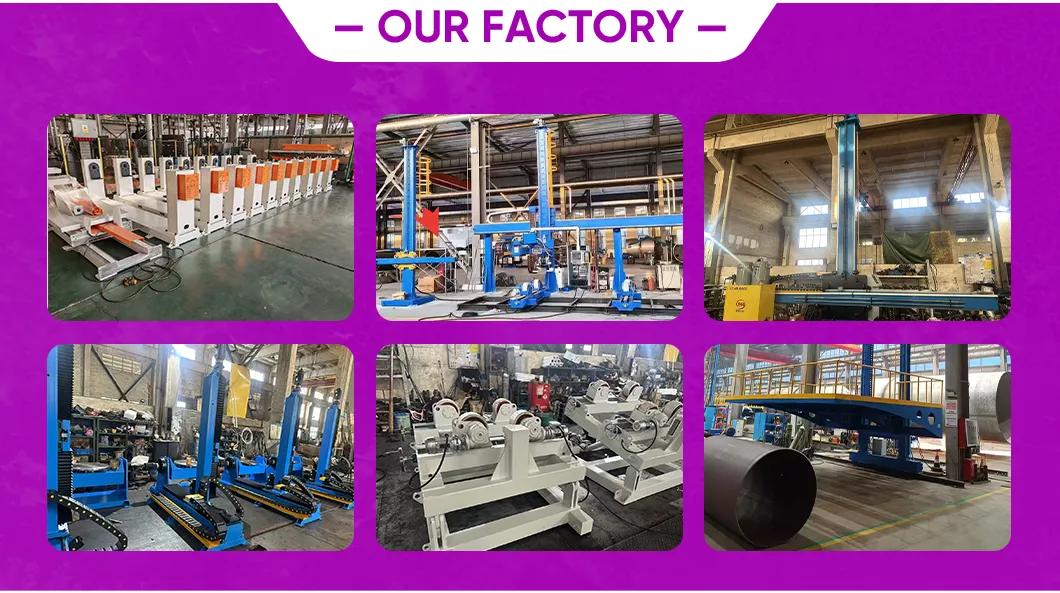

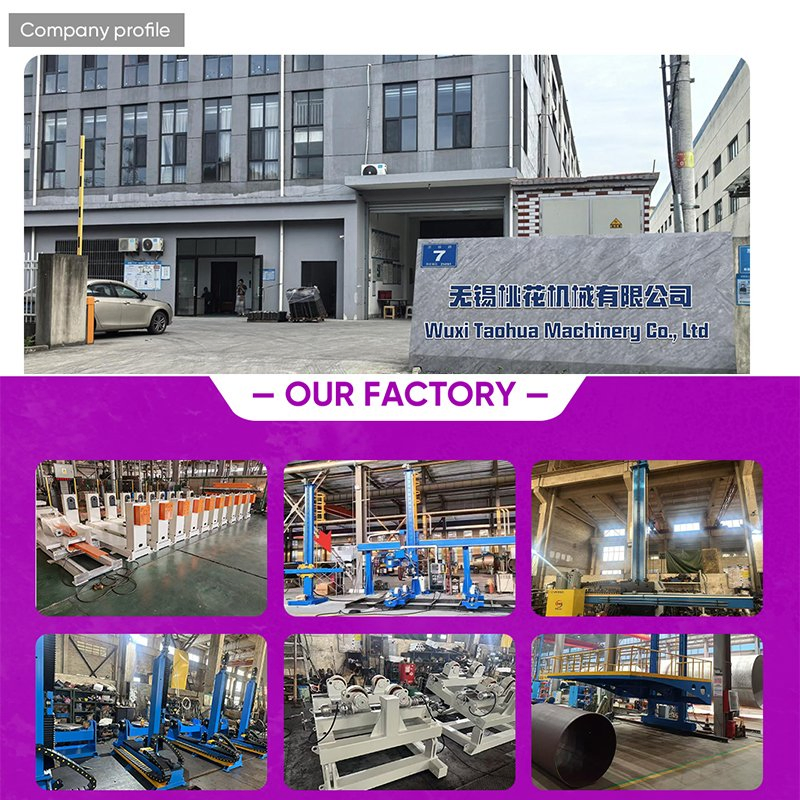

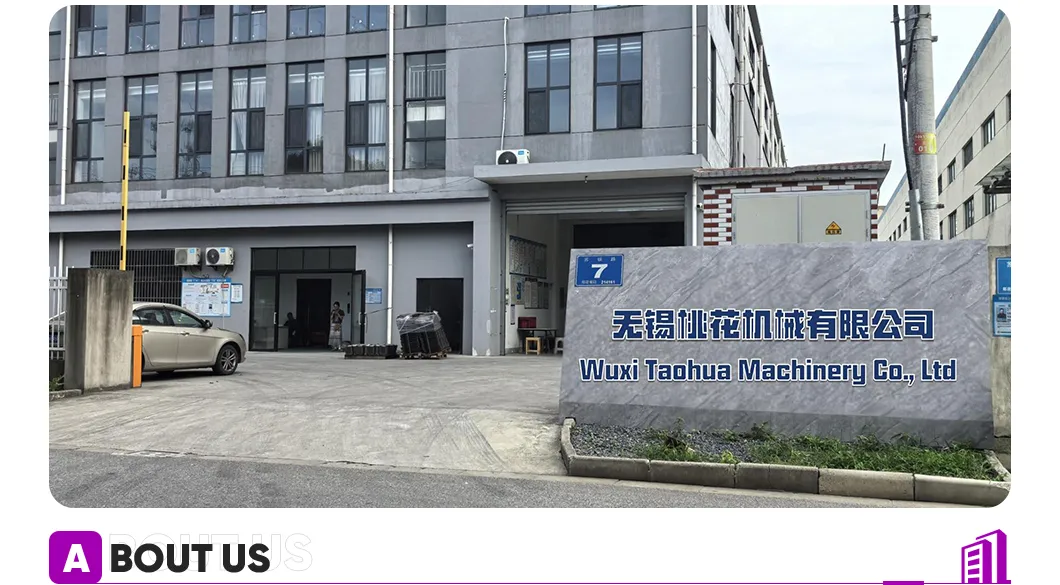

🏭 Factory Profile

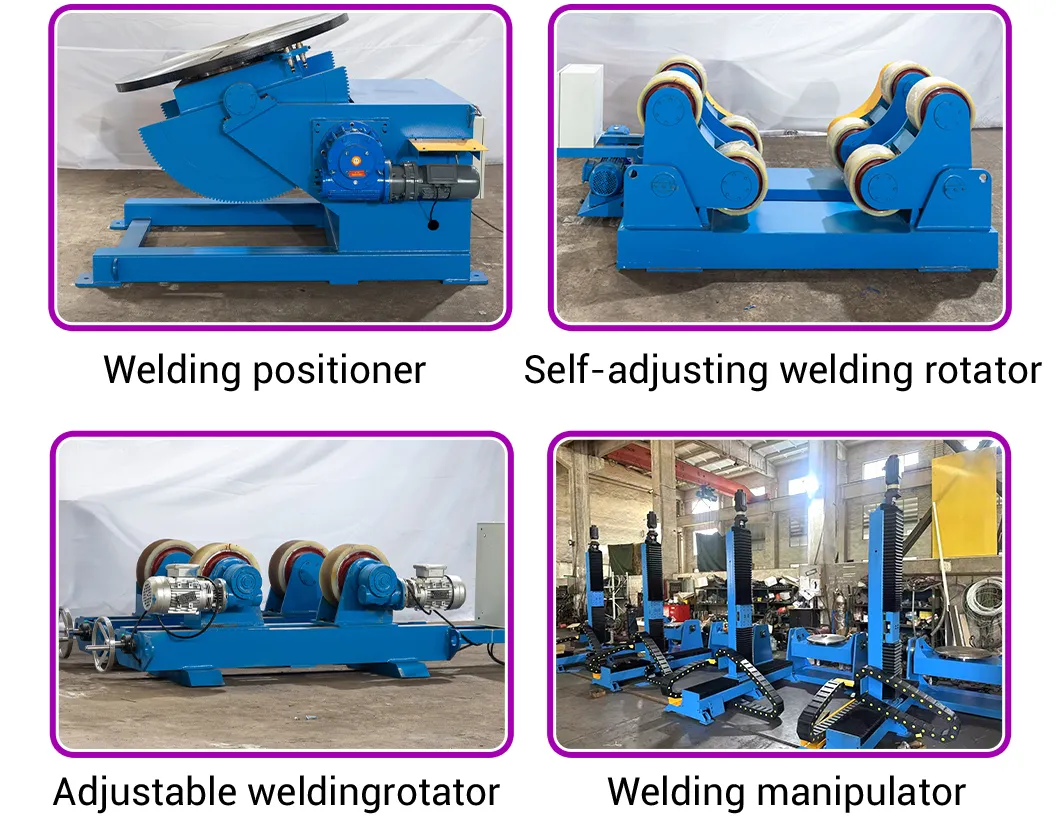

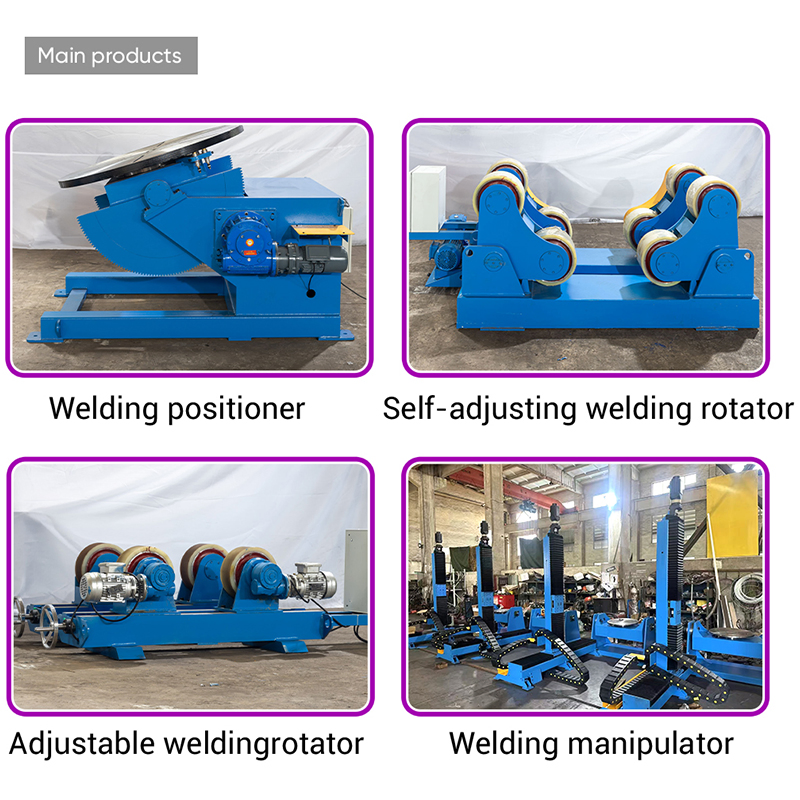

Our factory specializes in the production of professional welding equipment, including welding wheel frames, positioners, and operation machines. We integrate R&D, production, and sales to meet global demands for high-quality industrial solutions. We provide customization and OEM services to tailor products to specific customer needs.
❓ Frequently Asked Questions
Q1: What is the primary benefit of using a welding positioner?
It allows for the rotation and tilting of workpieces to maintain ideal torch angles, reducing operator fatigue by 60% and increasing throughput by up to 40%.
Q2: What load capacities do you offer?
Our standard range covers loads from 100kg (HB-1) up to 10,000kg (HB-100), with custom heavy-duty solutions available up to 20+ tons.
Q3: Is the rotation speed adjustable?
Yes, the positioners feature VPD control or variable frequency drives for smooth, jerk-free rotation speed adjustment, typically ranging from 0.05 to 1.0 RPM.
Q4: What types of welding is this equipment compatible with?
The equipment is fully compatible with MIG, TIG, Submerged Arc, and manual arc welding systems, supporting both manual and automated welding cells.
Q5: Do you provide custom design or OEM services?
Yes, we integrate R&D and production, allowing us to design and customize welding equipment based on specific customer requirements and technical needs.
Q6: What is the warranty period for your equipment?
All our standard welding equipment comes with a one-year warranty, ensuring reliable after-sales support and peace of mind for our clients.
