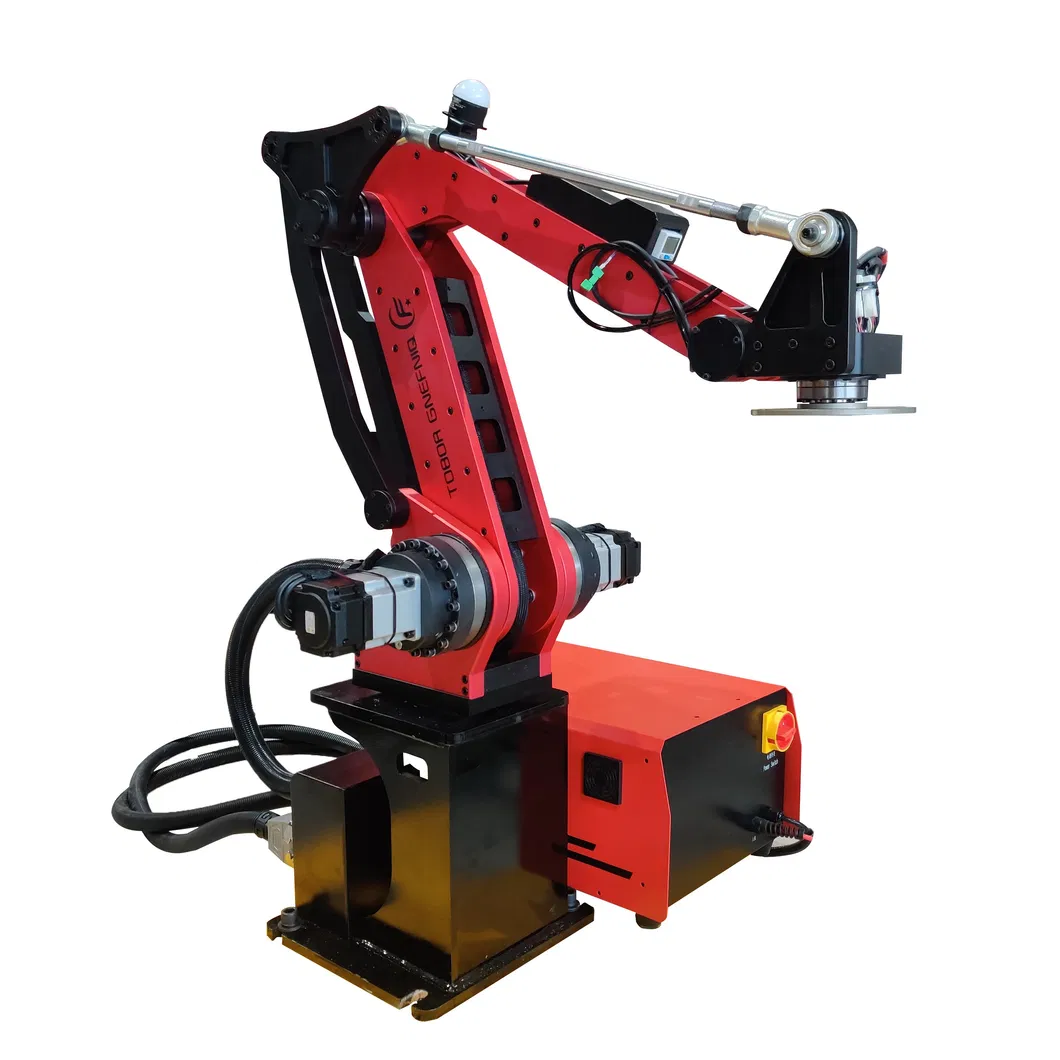

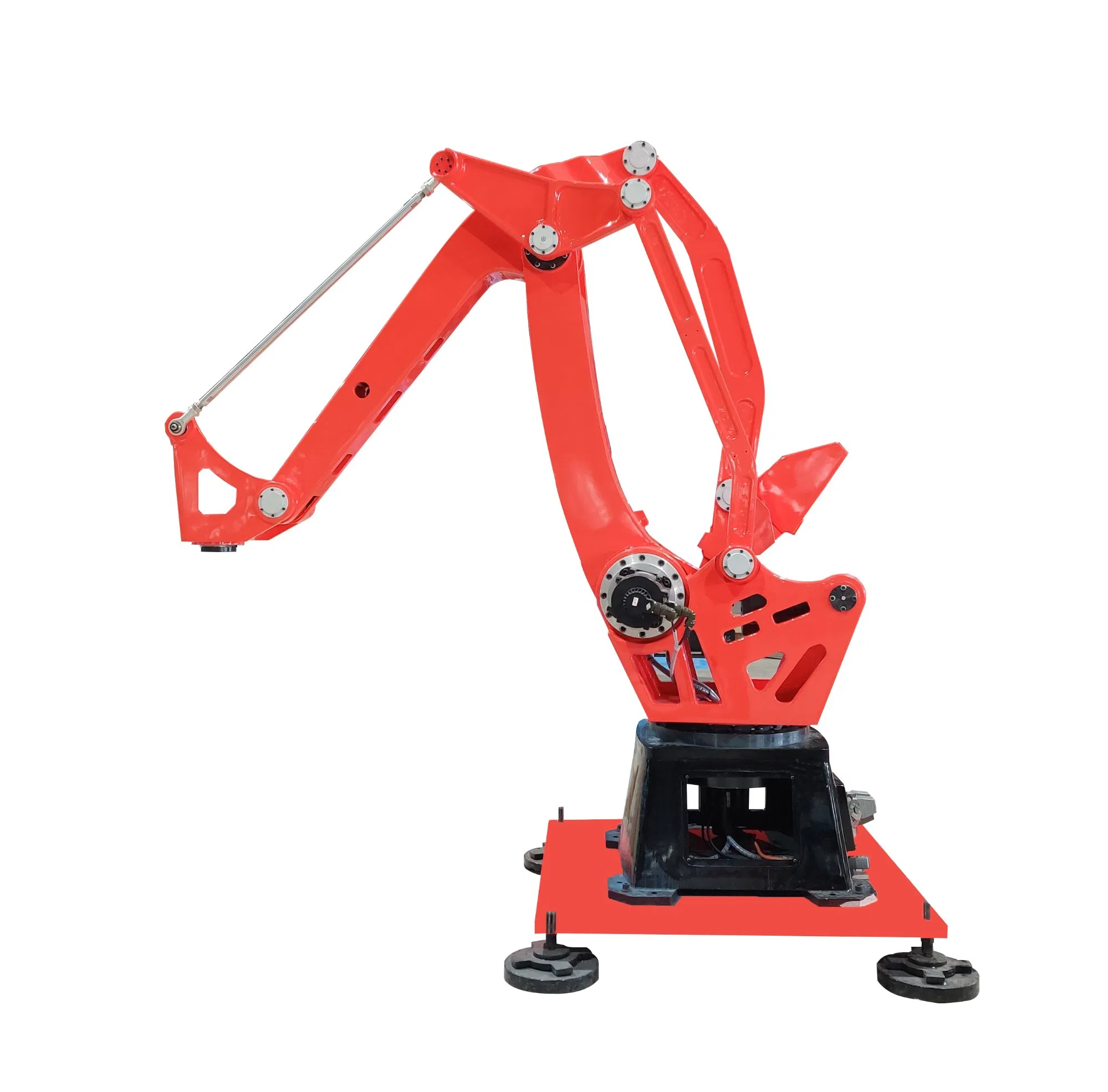

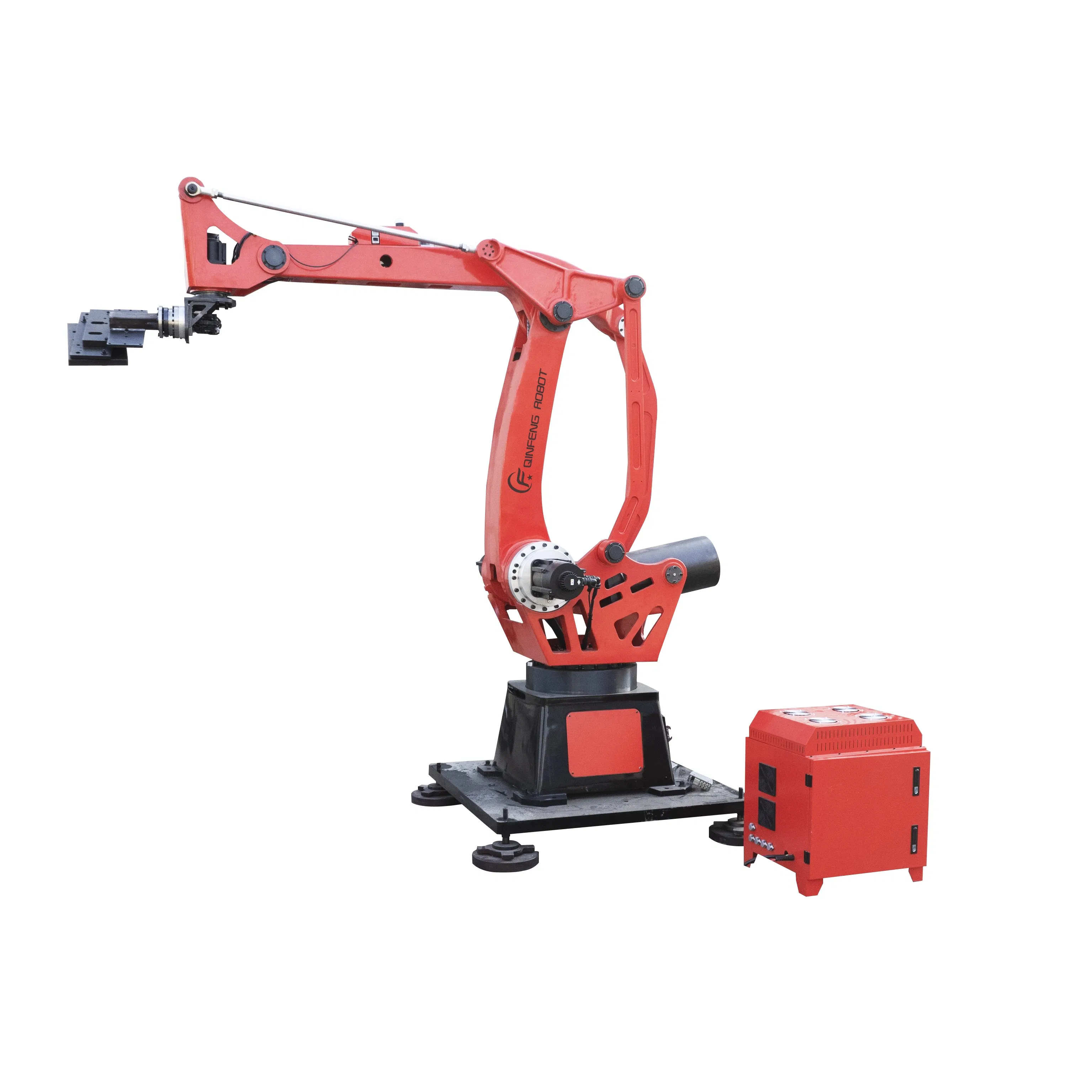

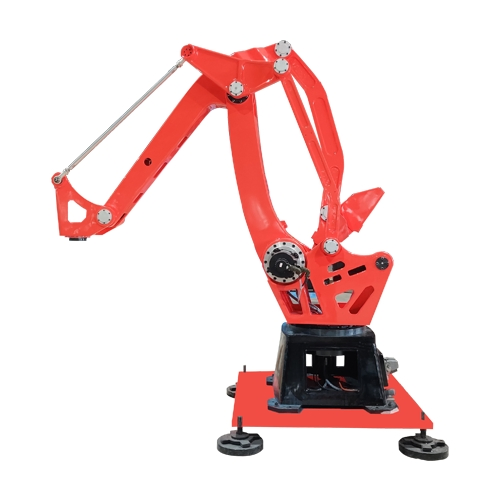

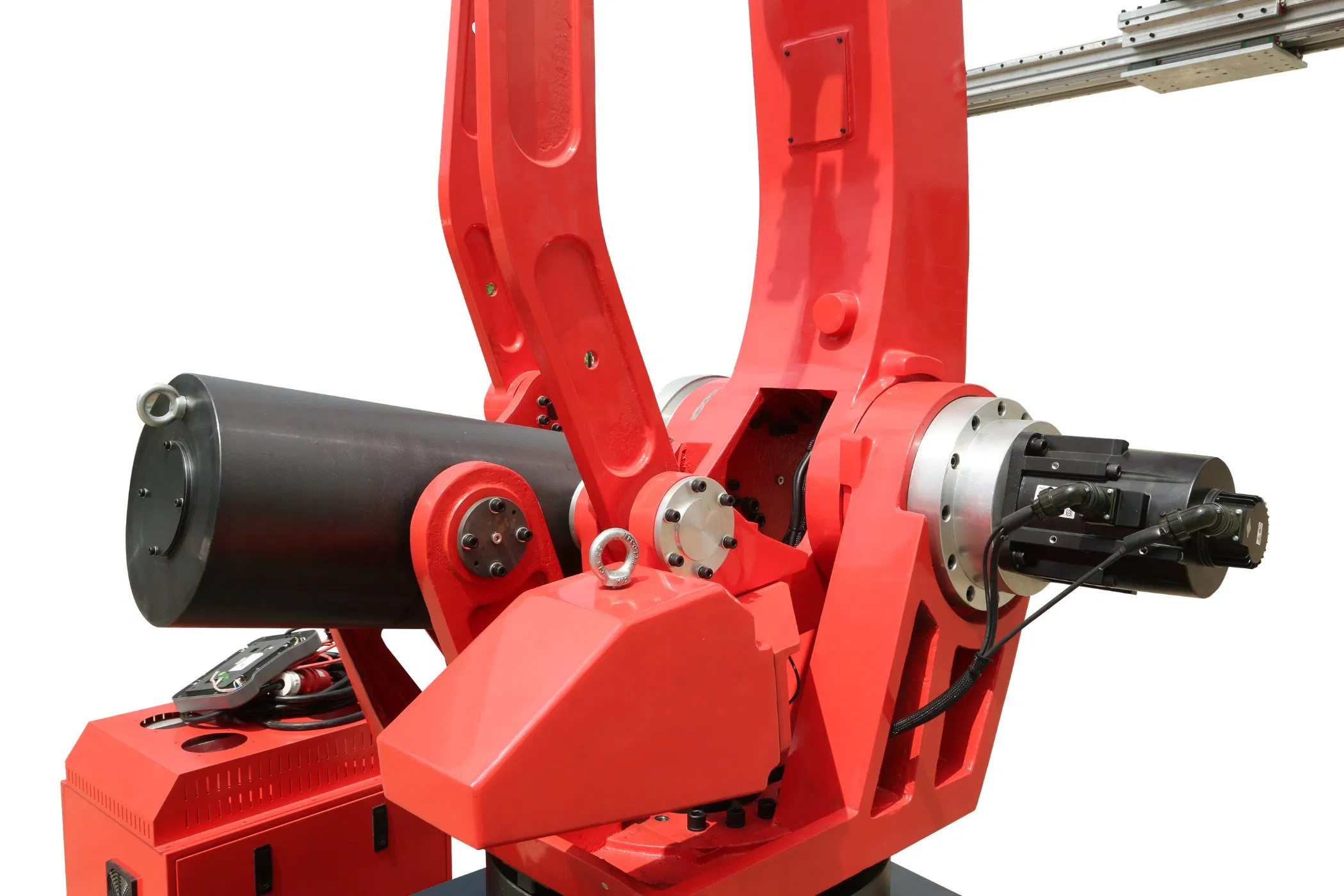

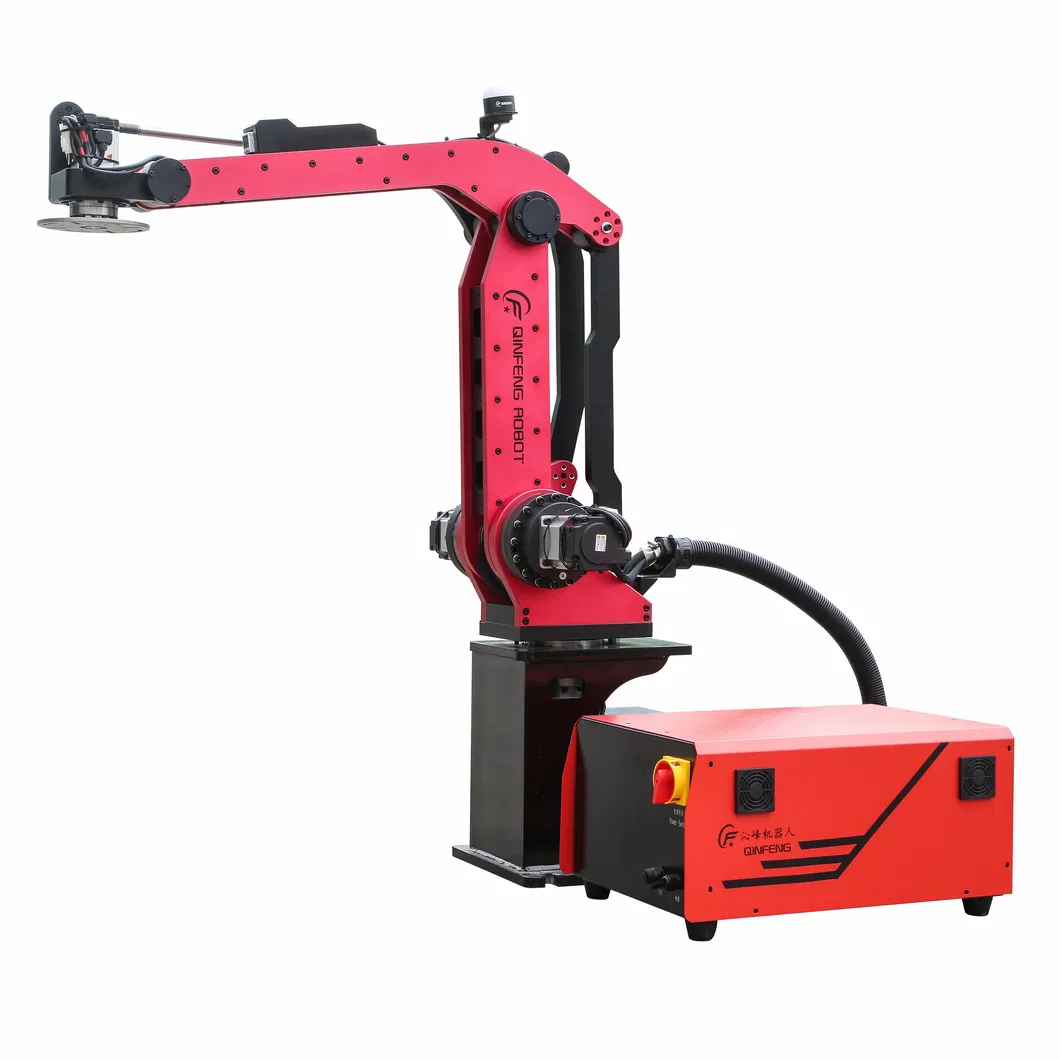

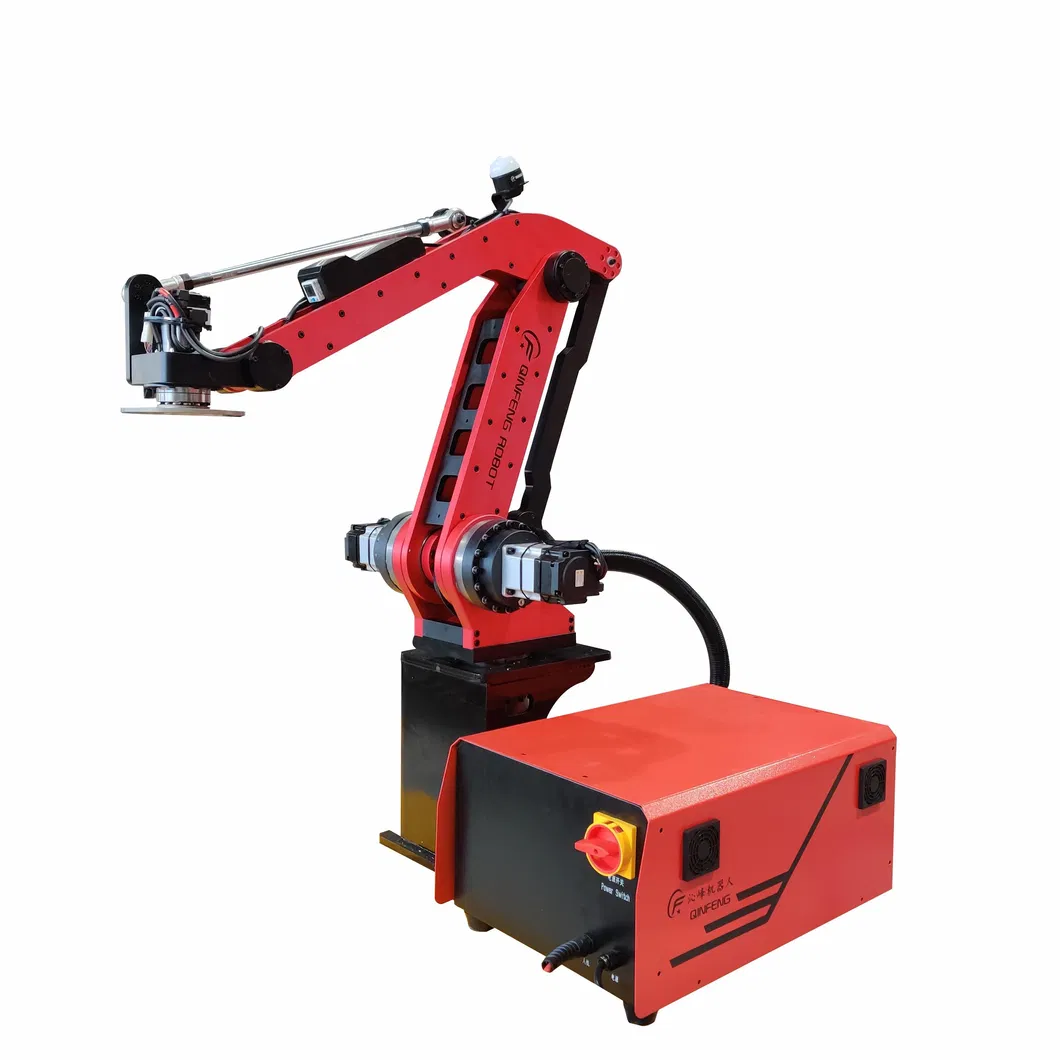

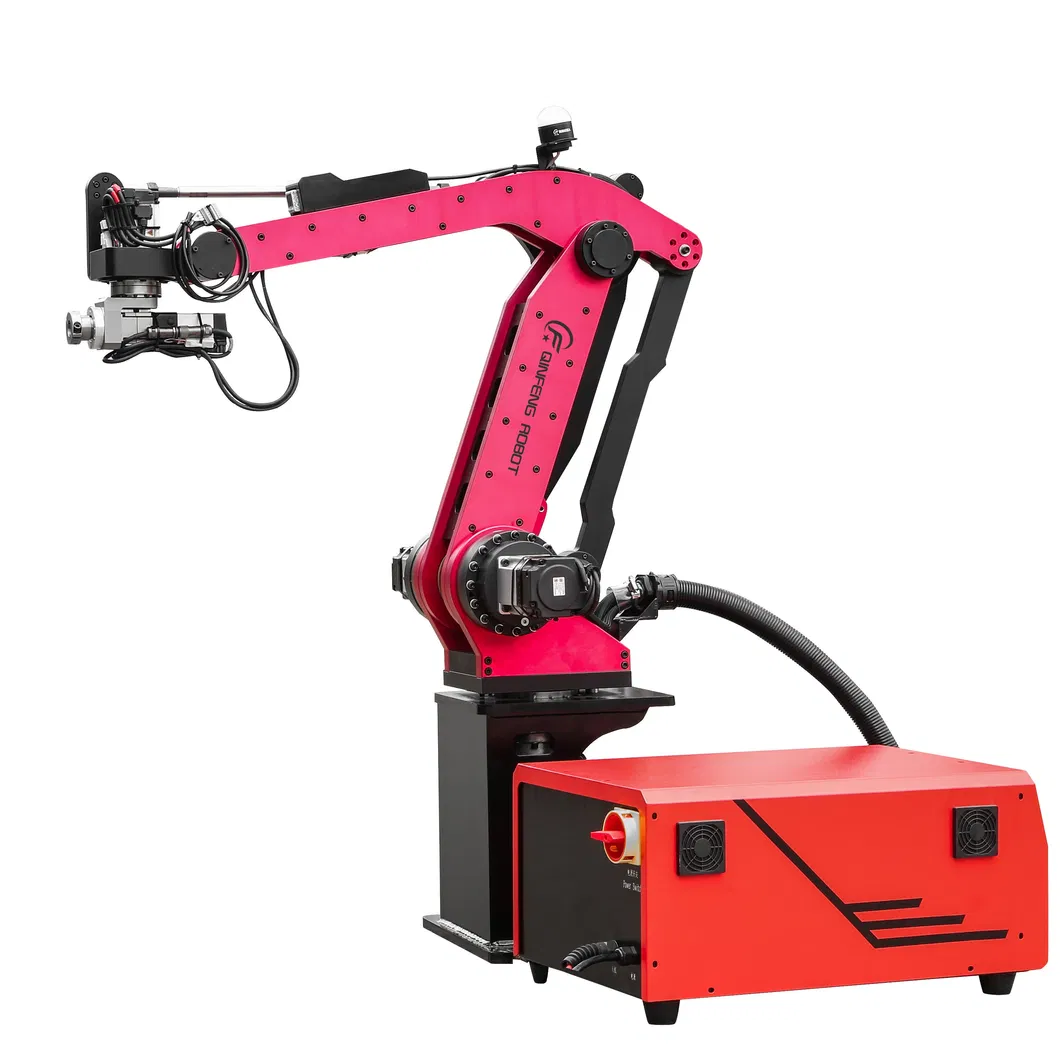

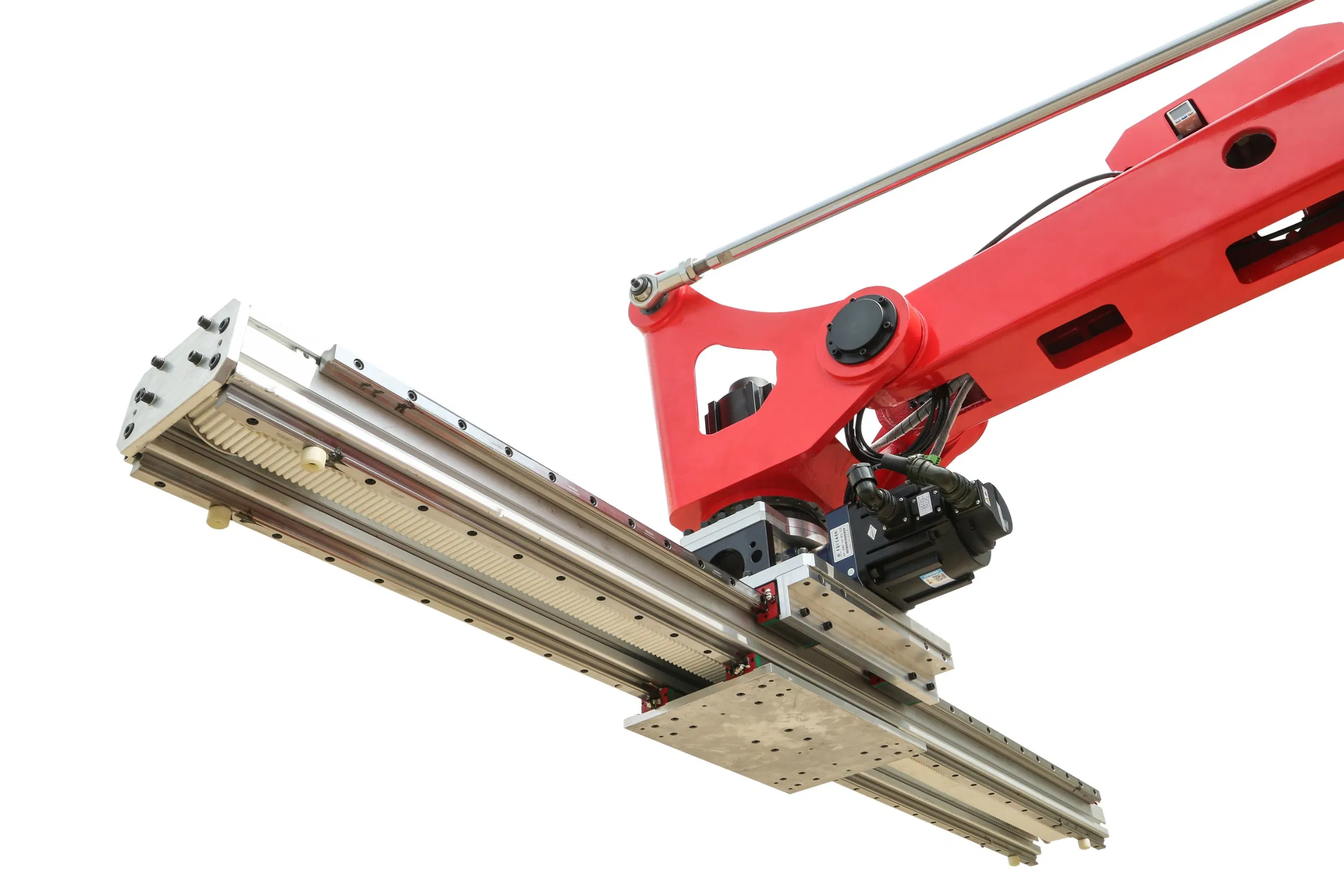

QF-MD-3100 3.1m Intelligent Joint Stamping Manipulator
All axes adopt a high-performance absolute servo system with power-off position memory, avoiding origin return issues. The system supports open programmable technology and motion track editing, allowing for flexible control and long-term storage of product information.
| Parameter | Unit | Index |
|---|---|---|
| Voltage | V | AC 380 |
| Power | KW | 8.5 |
| Working Temperature | ºC | -20 ~ 45 |
| Max. Working Radius | mm | 3100 |
| Max. Precision Repeatability | mm | ±0.1 |
| Payload | kg | ≤100 |
| Joint Movement J1 | degree | ±160° |
| Joint Movement J2 | degree | +75, -40° |
| Joint Movement J3 | degree | +75, -52° |
| Joint Movement J4 | degree | ±300° |
| Robot Weight | kg | ≈1500 |
Our solutions include Stamping Manipulators, 3-in-1 Decoiler-Straightener-Feeders, Destackers, and Transfer Manipulators. We provide high-quality stamped components and state-of-the-art equipment tailored to diverse manufacturing needs.
