X5-HT pipeline CCTV Inspection robot is a professional tool designed on the basis of industrial personal computer (IPC) system, using a laptop as the primary controller. During operation, high-resolution defect images are captured, and testing reports can be generated immediately. The system also provides real-time pipeline gradient curves to determine sediment conditions. Equipped with a fish-eye lens and specialized analysis software, it creates panoramic images of the internal pipe walls for precise measurement of cracks and diameters.
| Main Controller | Compatible with notebooks/tablets via wireless control; real-time display of date, travel distance, and crawling attitude; supports front/rear sight simultaneous display. |
| Electric Cable Reel | Standard 120M/150M cable length; two-core design to reduce failure rates; automatic retractable cord functionality. |

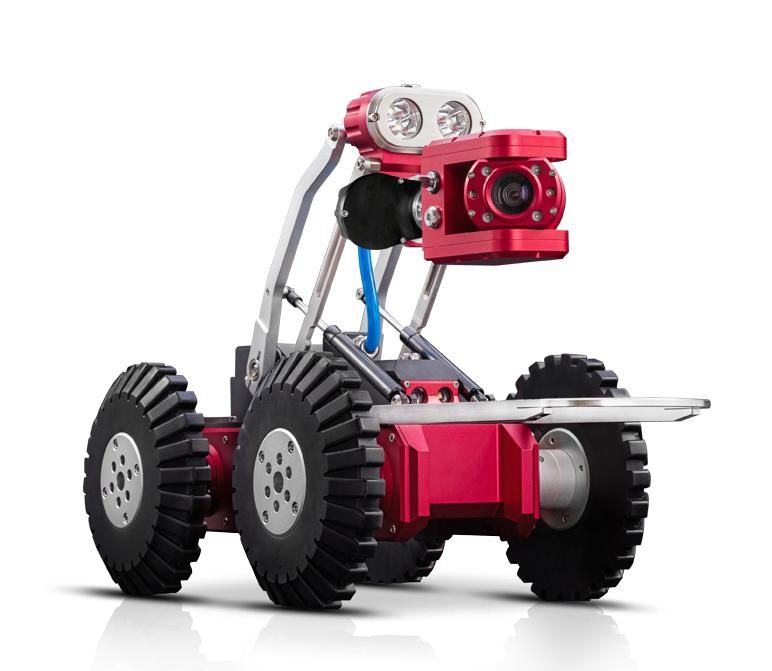

| Crawler | IP68 rated (up to 10m depth); suitable for DN250mm-DN650mm pipes; made of brass, stainless steel, and aluminum alloy; features electric lift frame and adjustable LED lights. |
| Camera | IP68 rated; high resolution (2592*1520); 360° radial limitless rotation with one-click reset; 0.1Lux sensitivity. |

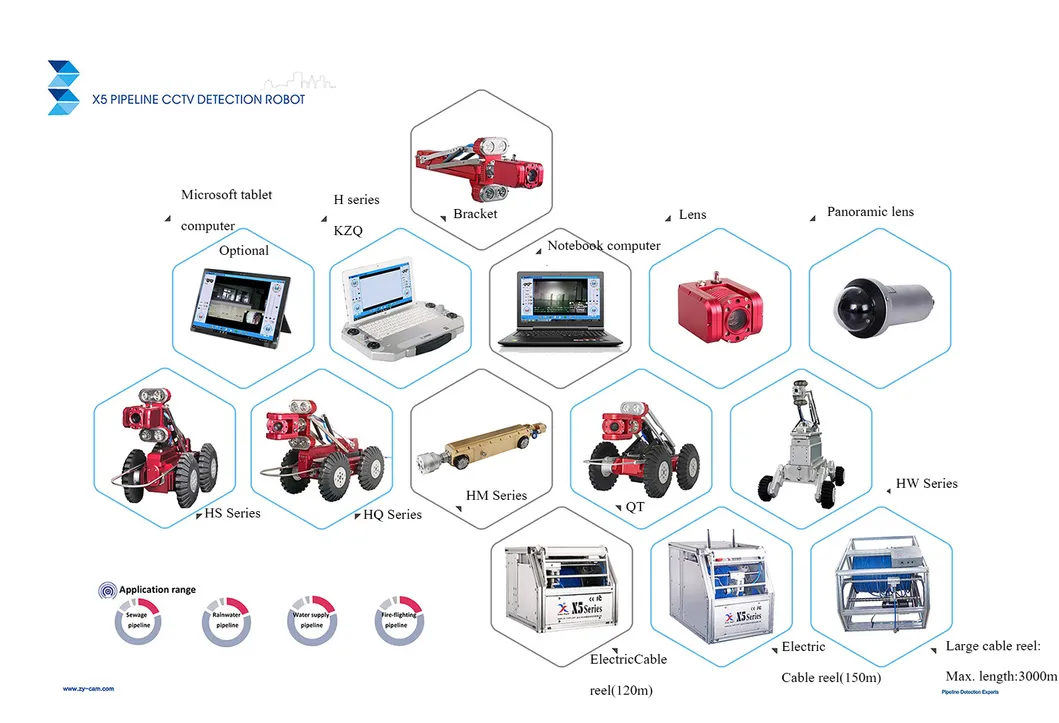

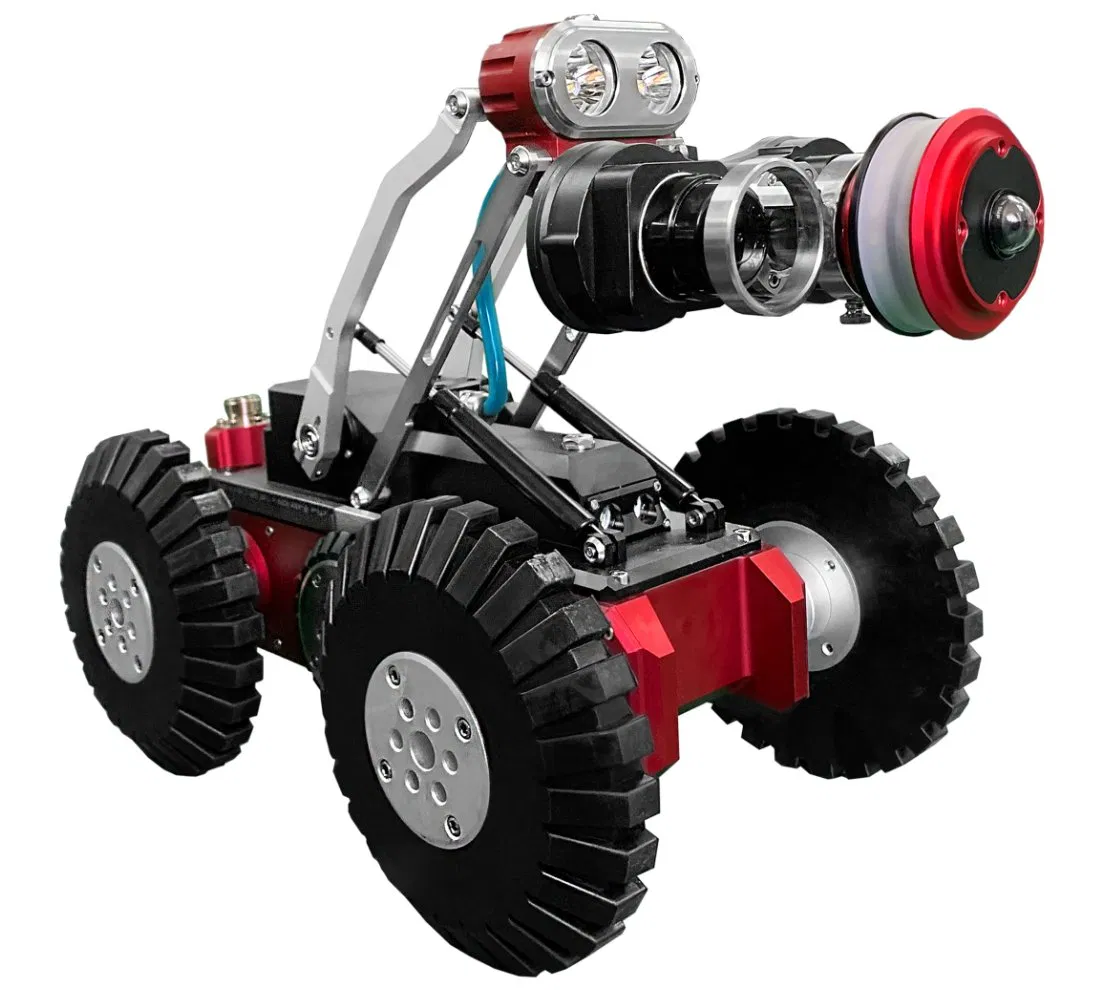

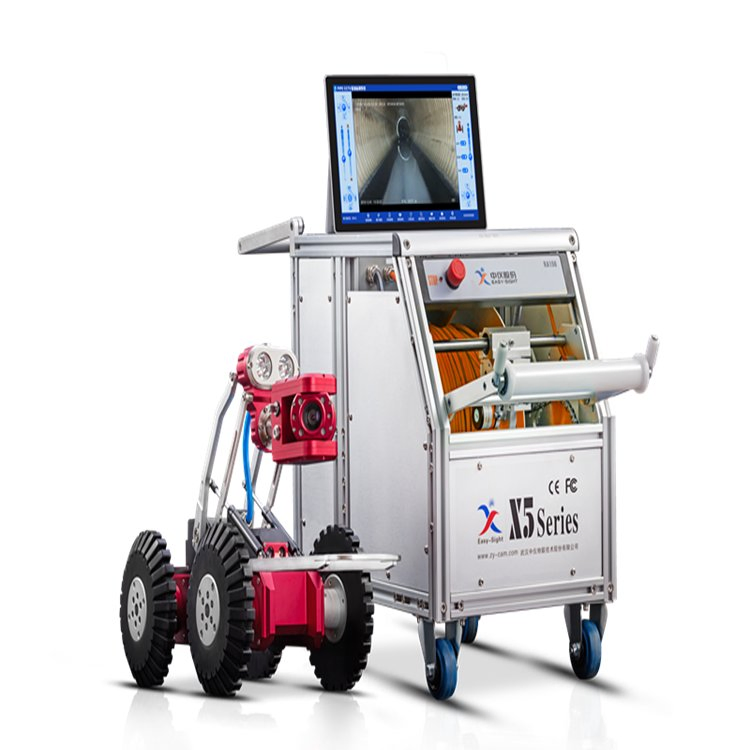

The X5-HT system is composed of the crawler, high-performance lens, cable reel, and main controller. The crawler can be outfitted with various lenses (rotary, direct-view, or fish-eye) to respond to movement orders including advance, reverse, turning, and speed adjustment. The main controller records real-time state information and allows for manual annotations on the touch interface.
Our products are widely applied in geophysical prospecting, municipal construction, national defense, and water conservancy. Due to rigorous quality control, the equipment has received various international certifications for industrial use.
