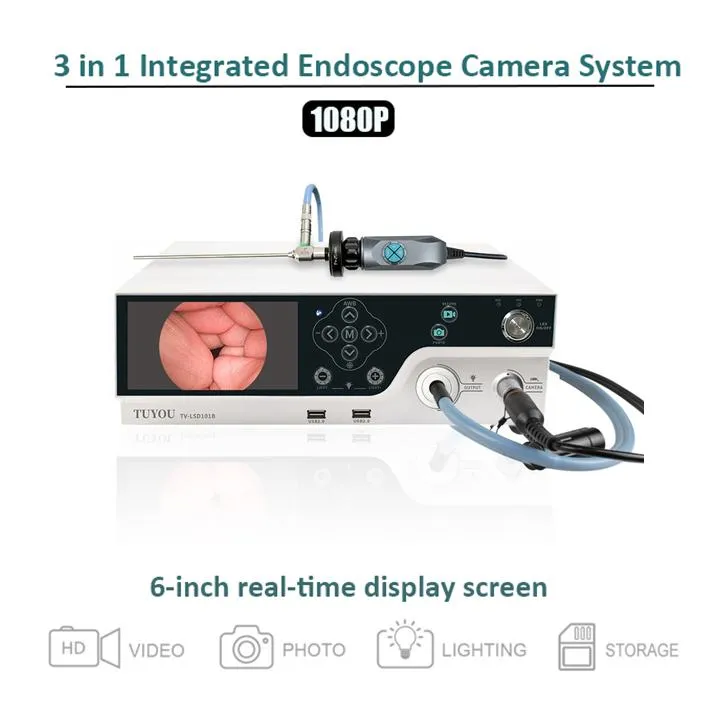

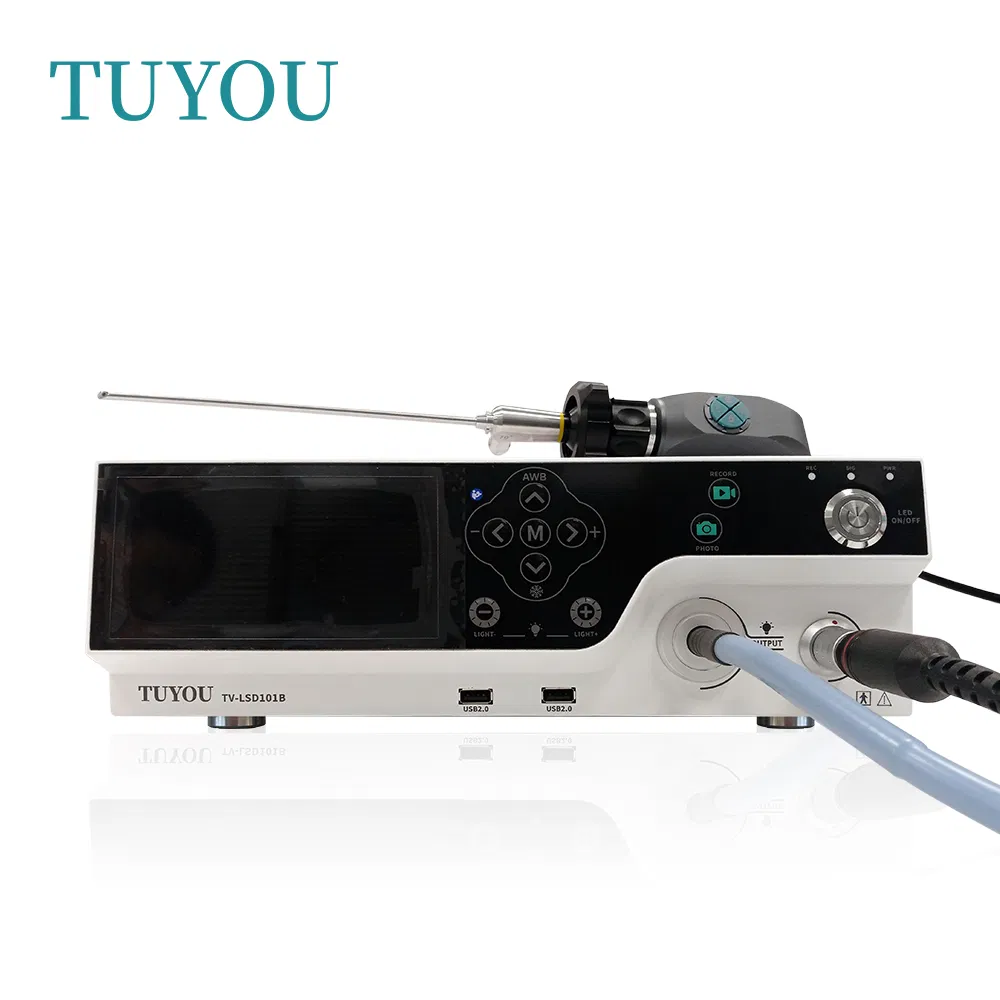

The Full HD 3-in-1 Medical Endoscope Camera System is a sophisticated imaging solution designed for rigid surgery including Hysteroscopy, Laparoscopy, and ENT procedures. This all-in-one system integrates a high-definition camera control system, handle camera, and a powerful LED light source.

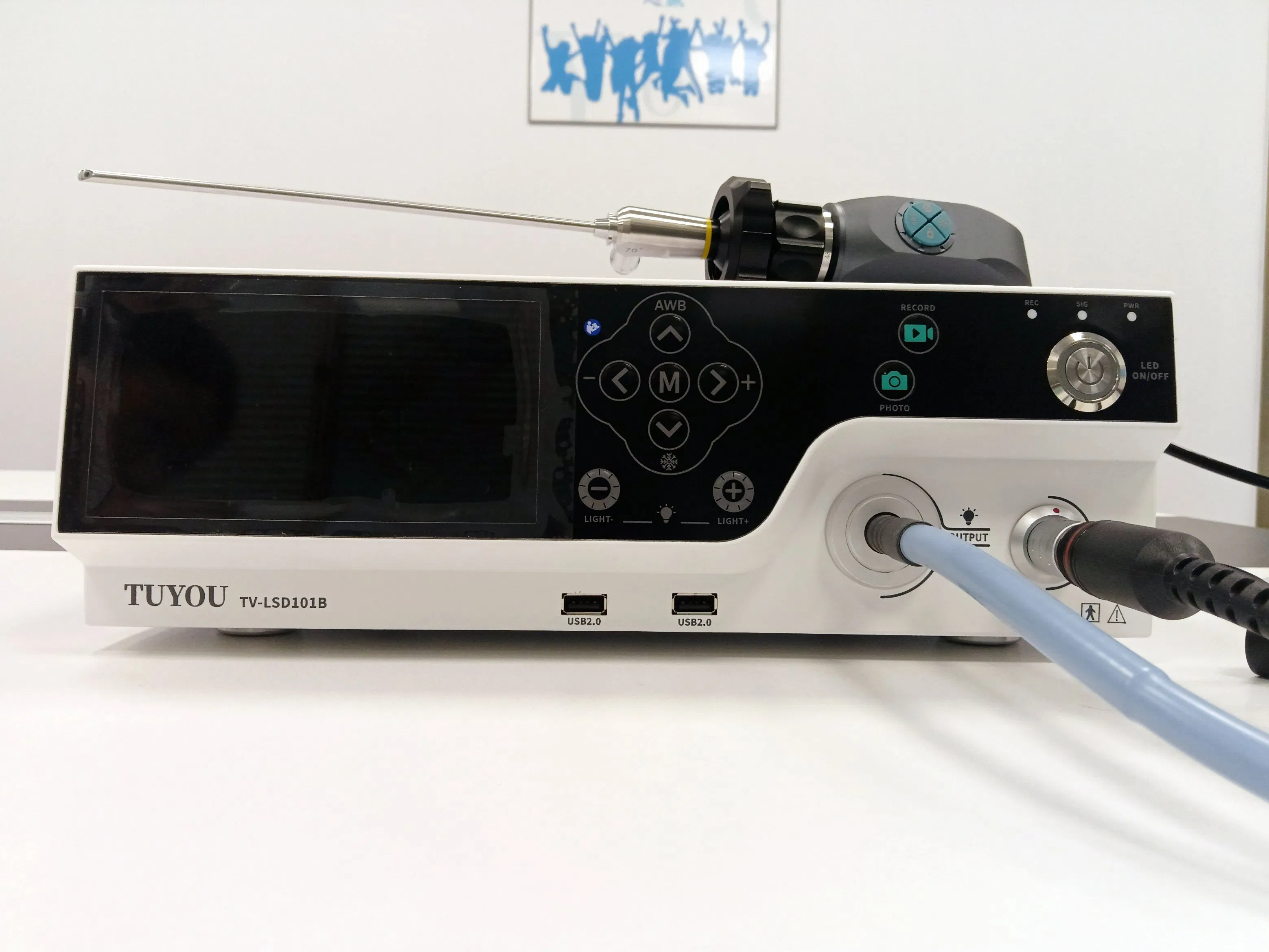

Self-contained video recording, light source, and 6-inch display screen in one unit.
Two built-in USB ports for Full HD image and video storage directly from the device.

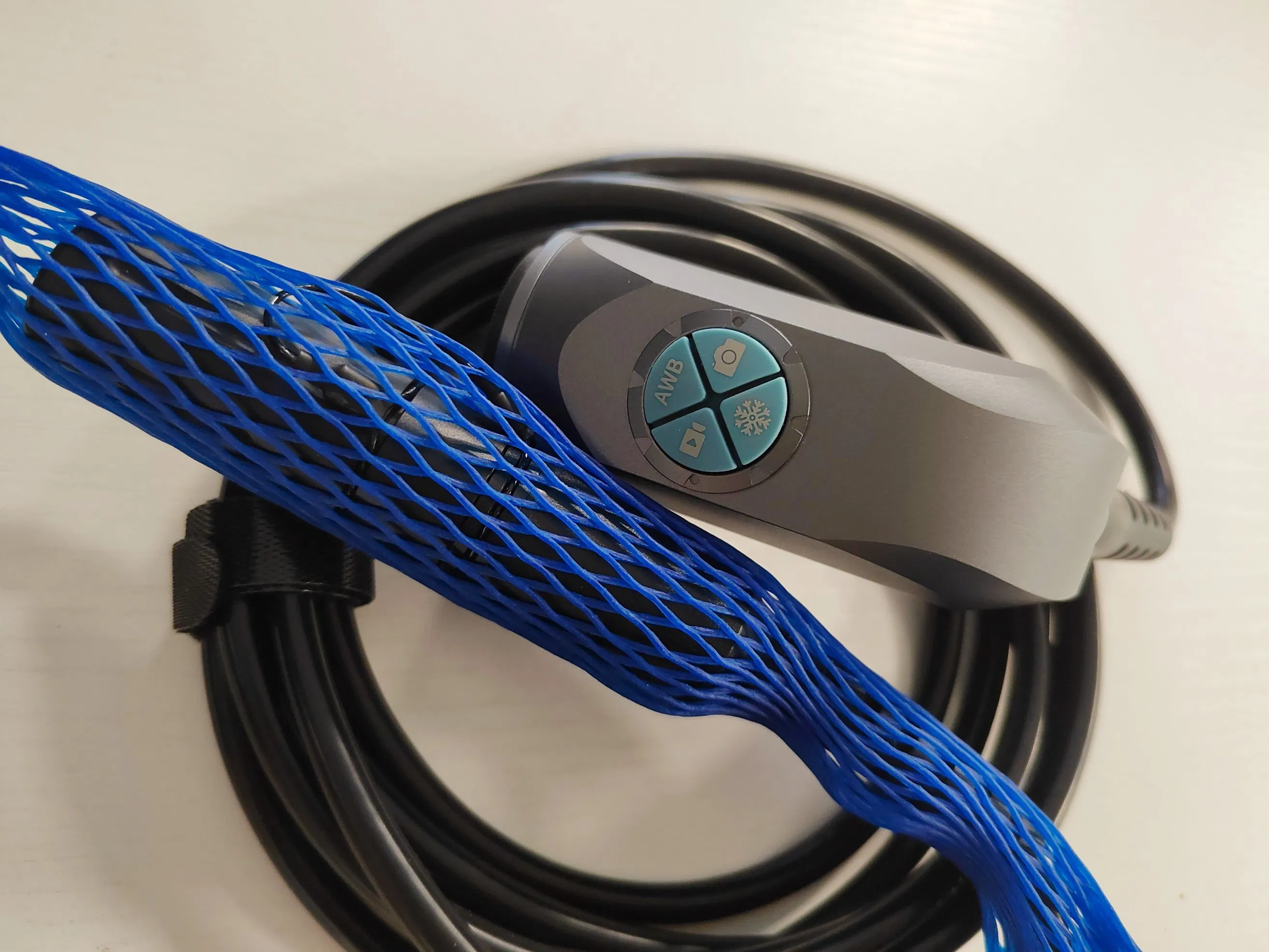

Quick access to white balance, freezing, zooming, and recording via handle or front panel.
Smart memory function automatically restores the last brightness setting after startup.
| System Parameters | |
|---|---|
| Input Interface | SDI 1080P 60FPS |

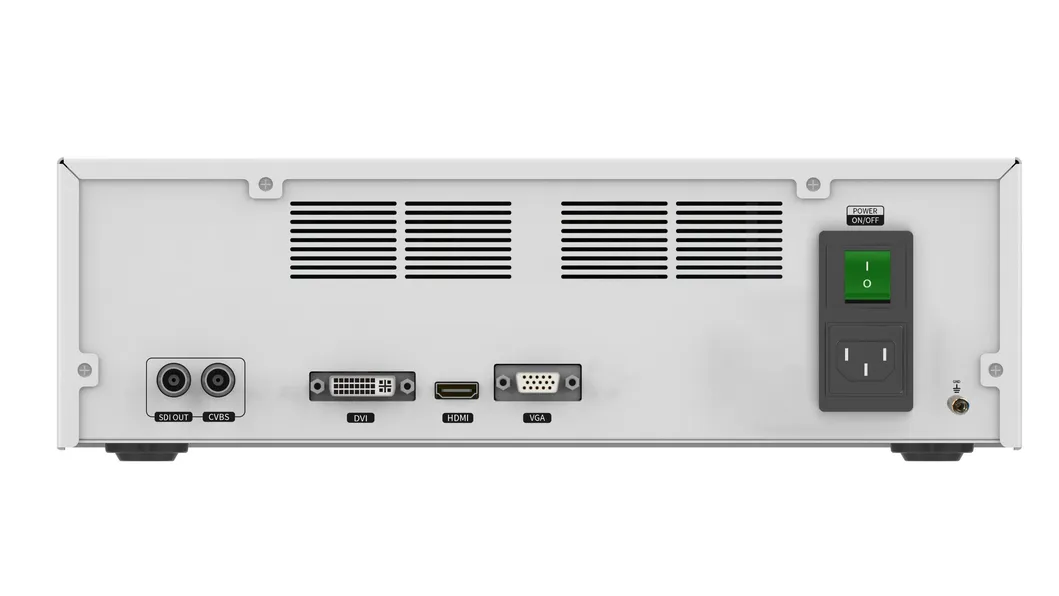

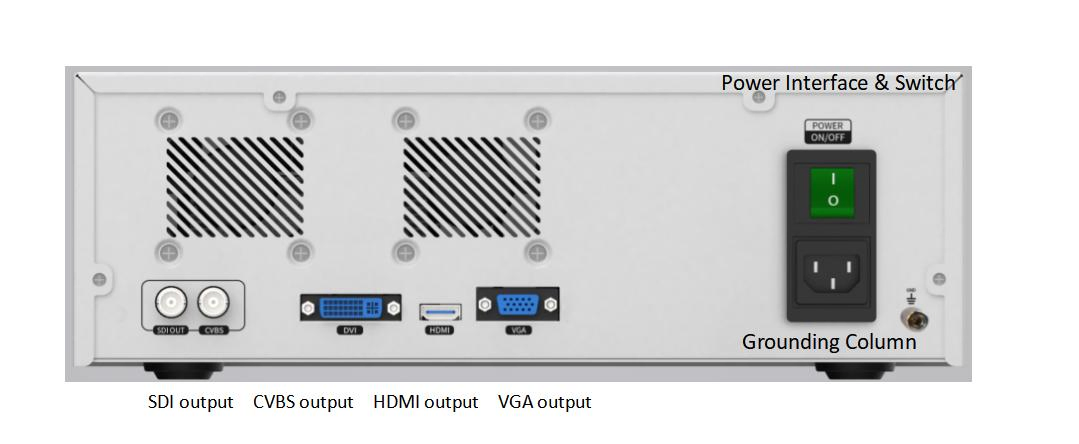

| Output Interface | HDMI/DVI/VGA/LVDS/SDI/CVBS |
| Control | Keypad and RX/TX shortcut support |
| U Disk Support | USB 2.0/3.0 (up to 32GB) |
| Noise Level | < 45db |
| Dimensions | L336 * W330 * H116mm |
| Camera Parameters | |
|---|---|
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | 1845(H) × 1097(V) approx. 2.13M pixels |
| Resolution | SDI 1080P 60fps |
| Min-illumination | Color: 0.017 LUX / BW: 0.008 LUX |
| Digital Zoom | 1-8X Image Zoom |

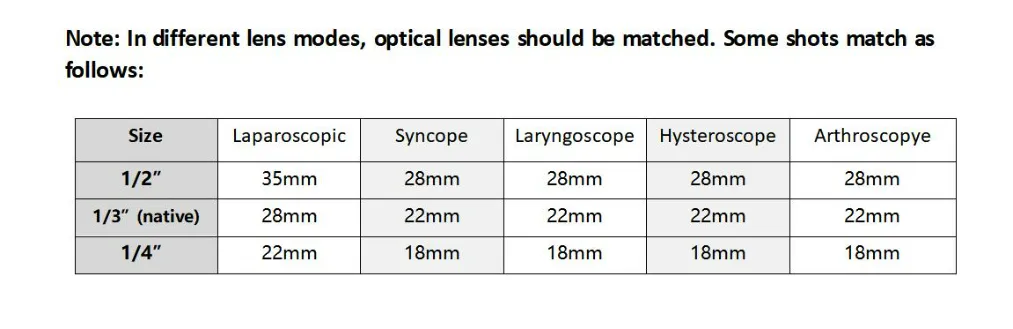

| Lens Modes | ENT/Abdominal/Bladder/Uterine/Joint/Fiber/Custom |
| Light Source Parameters | |
|---|---|
| Light Type | Medical Grade LED |
| Effective Power | 100W |
| Illuminance | 400W LUX |
| Color Temp | 5800K - 6500K |
| Adjustment | Manual Brightness Support |
