Product Description

SC-6331

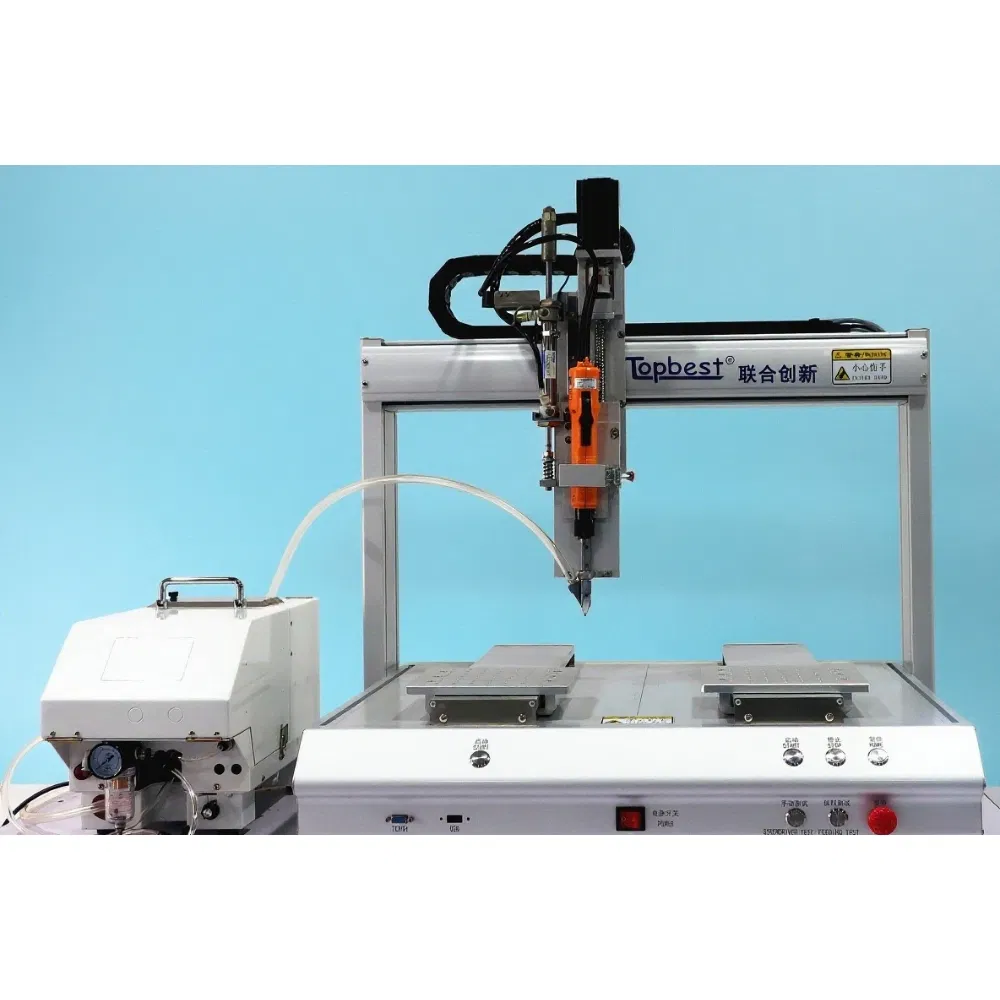

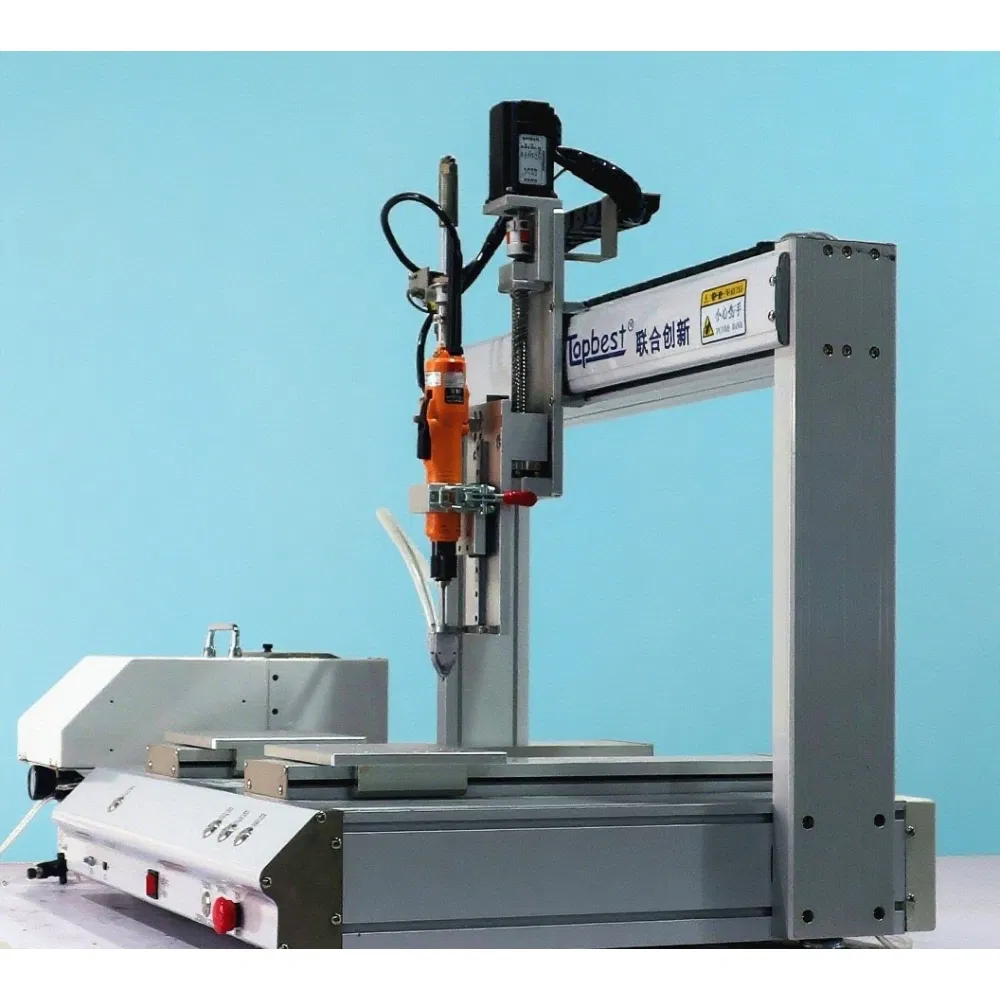

Desktop Screw Blowing Feeding Single Head Dual Rail Robotic Fastening Machine

The robotic screw driving machine is designed for screw fastening with high precision automatically.

📋 Basic Info
Model NO.
SC-6331
Type
Automatic
Voltage
AC High Voltage
Power Supply
200V / 110V
Automation
Fully Automatic
Power Source
Electricity + Pneumatic
Condition
New
Position Accuracy
+/-0.02mm
Net Weight
76 Kg
Air Pressure
0.4-0.6 MPa
Robotic Fastening Machine

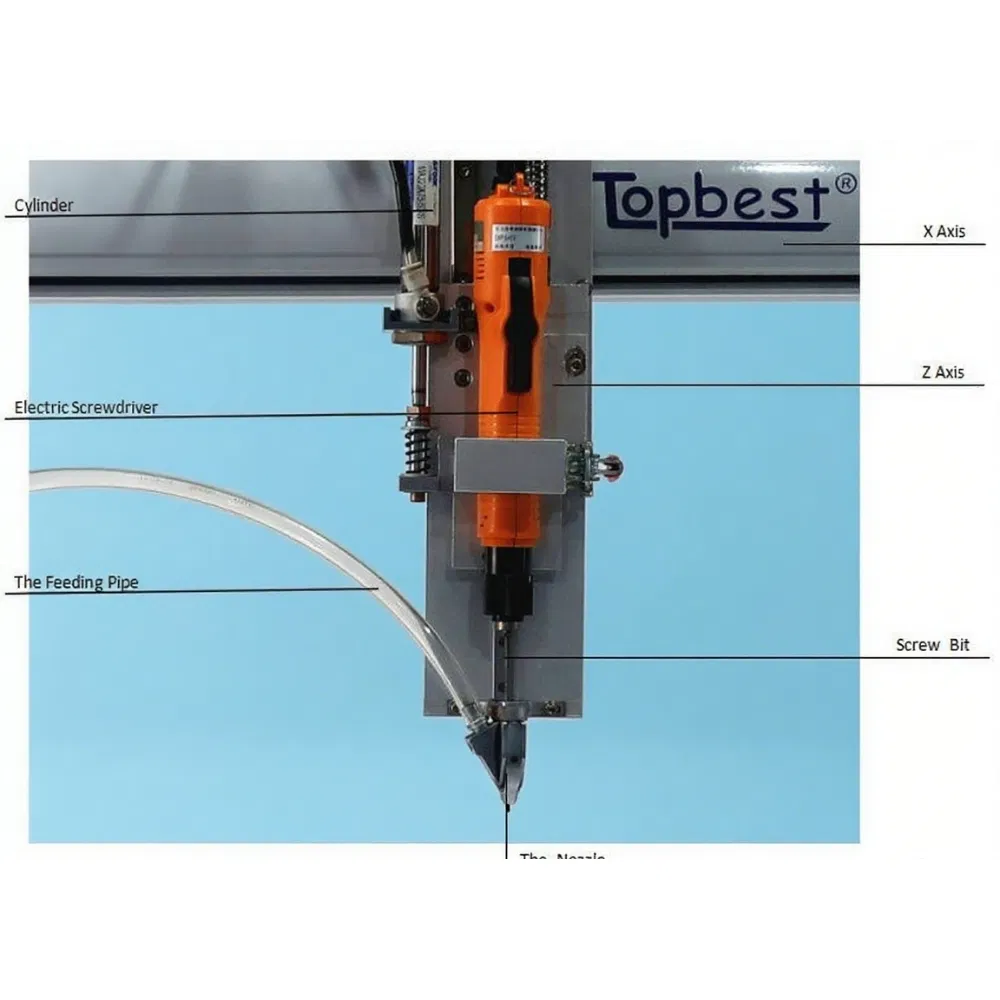

Screwing Machine Detail

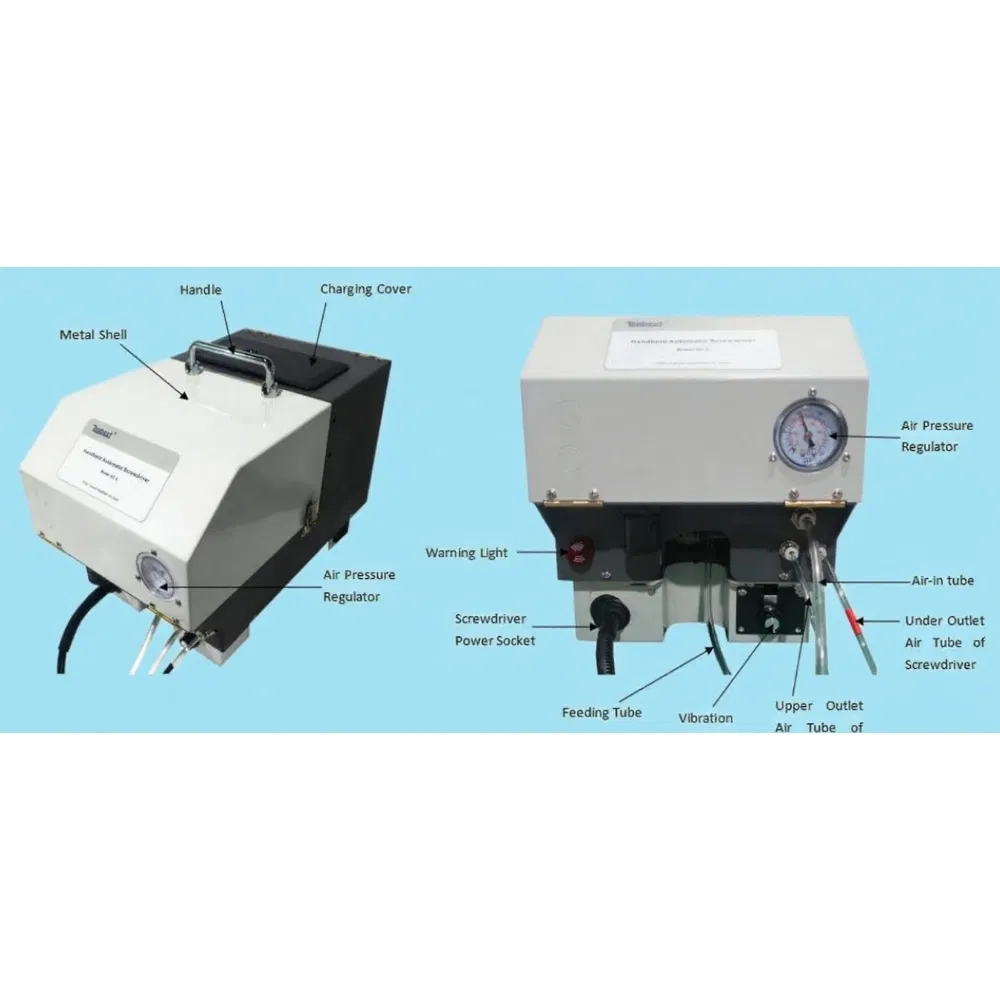

Industrial Power Tool
⚙️ Technical Parameters
Model SC-6331
Feeder mode Blowing Type
Dimension (L*W*H) 800*630*780mm
Driving mode Closed-loop Motor + Synchronous belt
Operation Range (mm) X Axis 580mm
Y1/Y2 Axis 280mm / 280mm
Z Axis 100mm
Maximum Speed X/Y Axis 600mm/S
Z Axis 400mm/S
Repeated Precision ±0.02mm
Memory 1000 files
Voltage AC 110V/220V, 50Hz/60Hz
🚀 Key Features
  • Automatic screw feeding: Streamlines the assembly process without manual intervention.
  • Screw Versatility: Available for M1-M4 screw sizes.
  • Dual Stations: Maximizes efficiency by allowing simultaneous loading and fastening.
  • Smart Screwdriver: Optional recording of torque for each screw to ensure quality control.
⚠️ Screw Requirements

The screws used must meet the following criteria:

  • Total length (H) must be more than 1.2 times the diameter (D) of the screw head.
  • Suitable for M1-M4 screw sizes.
  • Total screw length (H) ≤ 30mm.
  • Screw cap's diameter (D) between 2mm and 8mm.
Screw Specification

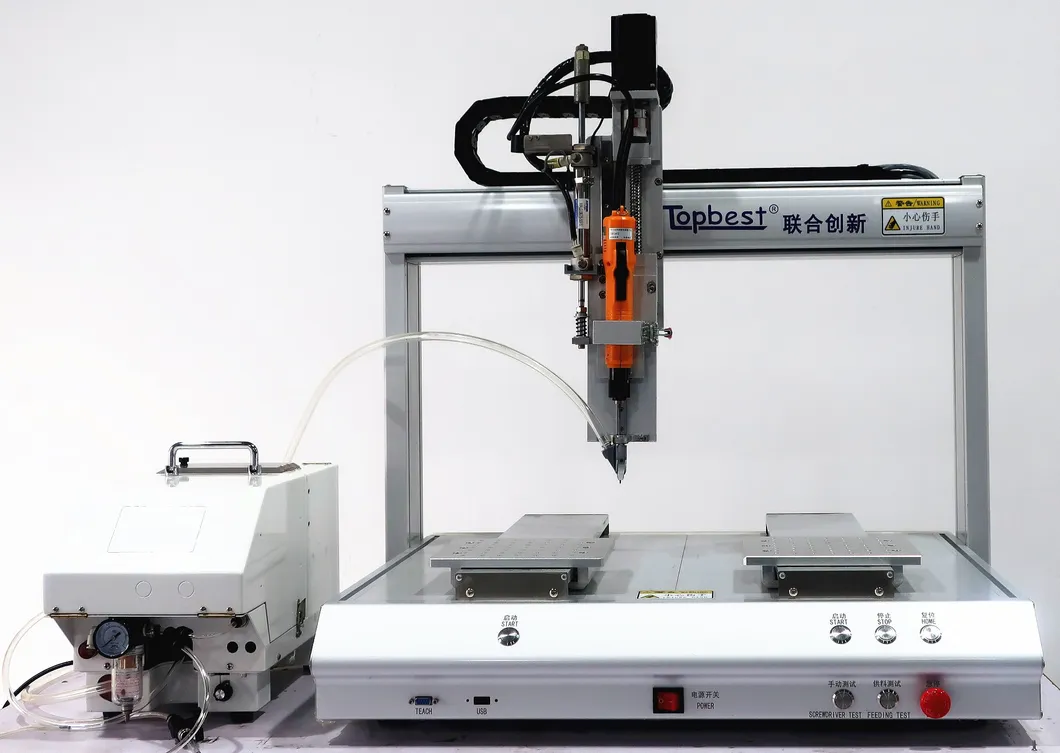

Machine Overview

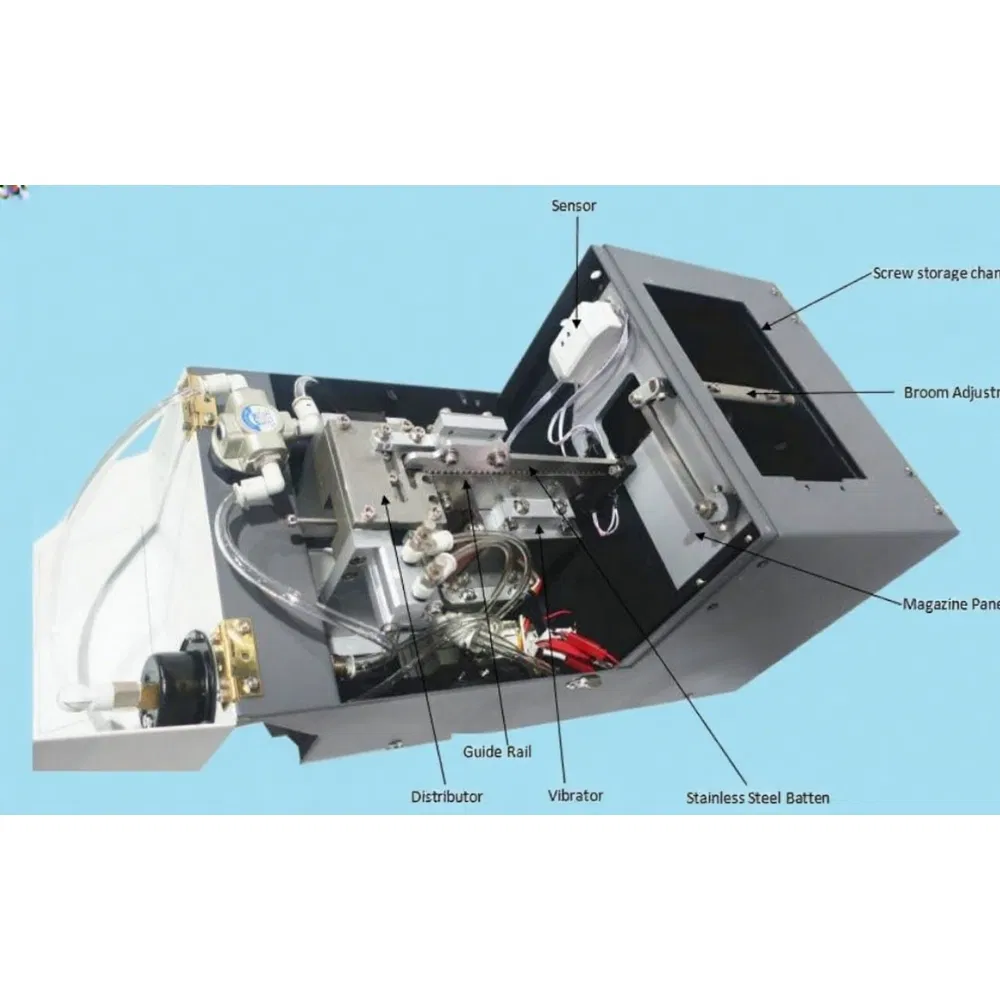

Internal Components
❓ Frequently Asked Questions
1. Why use a Robotic Screw driving machine?
It provides better quality through consistent torque readouts for every production point and increases efficiency by reducing manpower requirements by one to three people.
2. What are the feeding types for the system?
We offer three main types: vibrator sorting based on screw type/size, pick and place via a screw presenter, and direct air blowing feeding to the screwdriver.
3. What kind of screws are fit for the air blowing type machine?
Models M1.4 to M4 are suitable. The screw length should be less than 16mm (customizable if longer) and must be over 1.2 times the diameter to prevent flipping inside the tube.
4. How does the dual rail system work?
The dual rail system allows for loading/unloading products on the second rail simultaneously while the first rail is actively undergoing the fastening process, minimizing downtime.
5. What are the safety features of the machine?
All machines come with an accessible emergency stop button. A safety enclosure or safety door is available as an optional feature.
6. Is the screw driving system compatible with other robots?
Yes, our screw driving system is fully compatible with various robotic platforms, including SCARA robots and 6-axis industrial robots.
