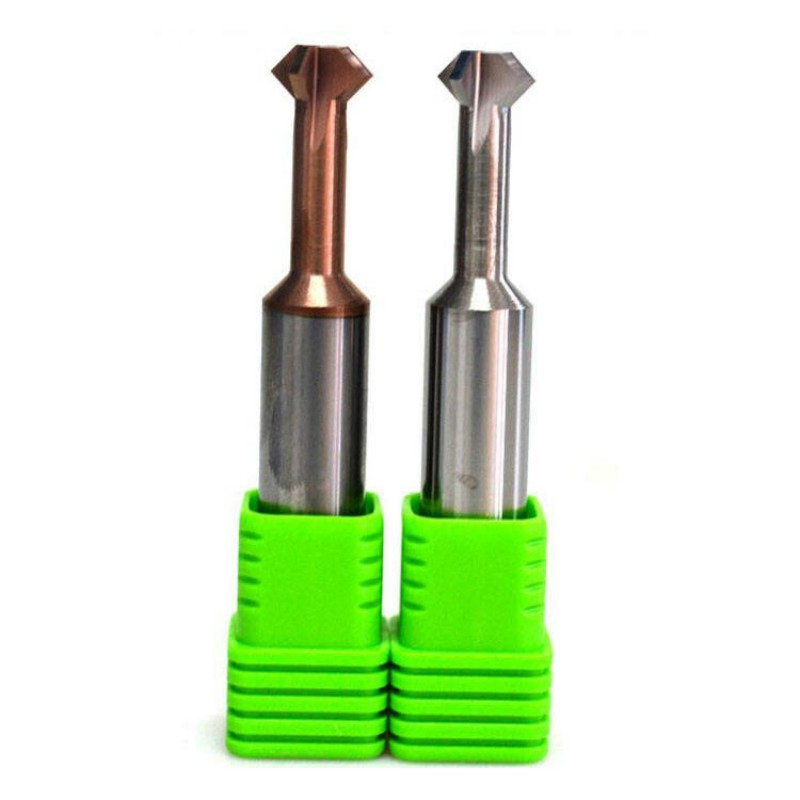

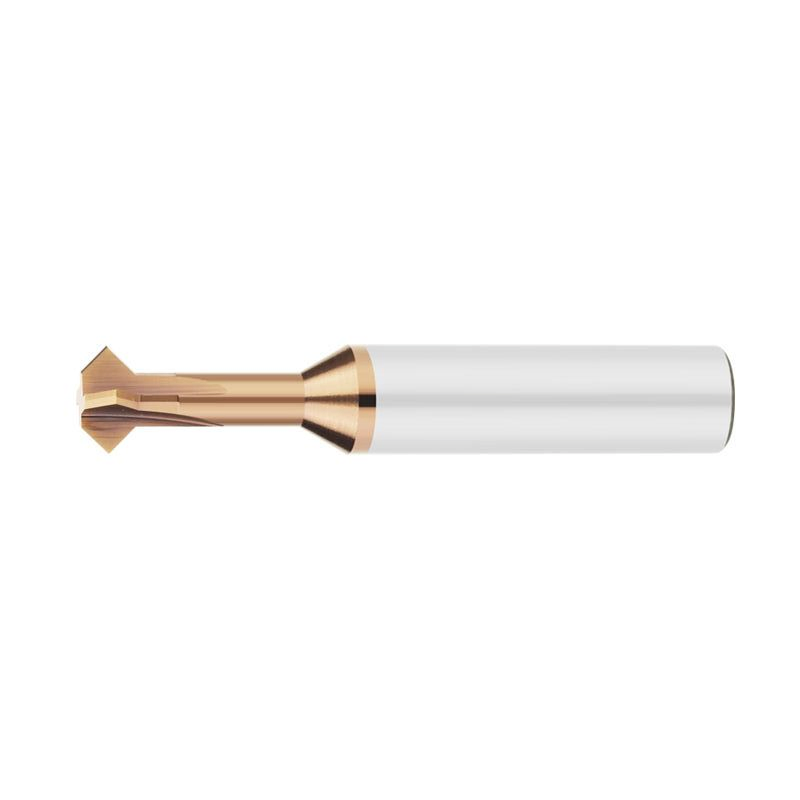

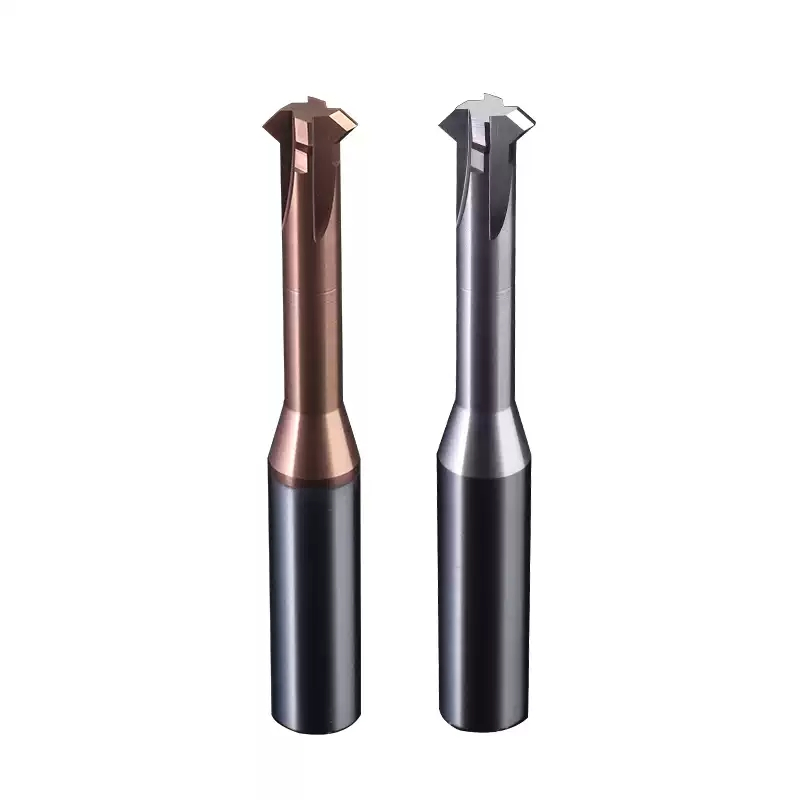

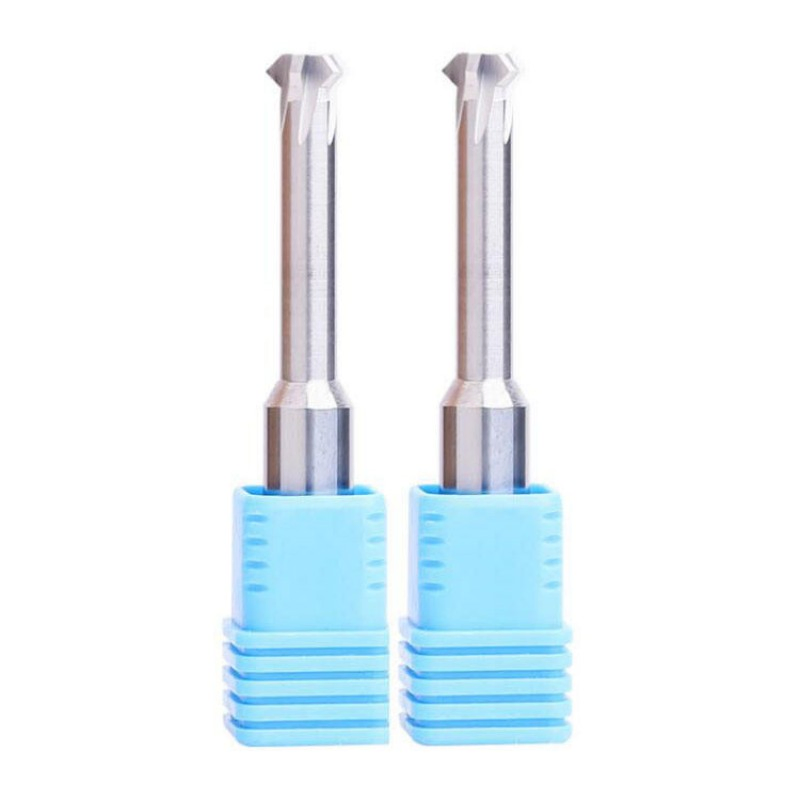

CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
1 / 5
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems
CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems

CNC High-Speed Bidirectional Chamfer Mill Tool Compatible with Automatic Tool Changers and Robotic Milling Systems

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Chamfer Mill Tool Banner
i

Basic Information

Product Name
Chamfer Cutter, Deburring Tool
Flute Number
4T
Diameter
φ10mm, 1/2 Inch
Material
Solid Carbide (Tungsten Carbide)
Coating
TiAlN, TiCN, TiN, Uncoated
Application
Steel, Cast Iron, Stainless Steel
Usage
Chamfering, Deburring, Countersinking
Total Length
38~330mm
P

Product Description

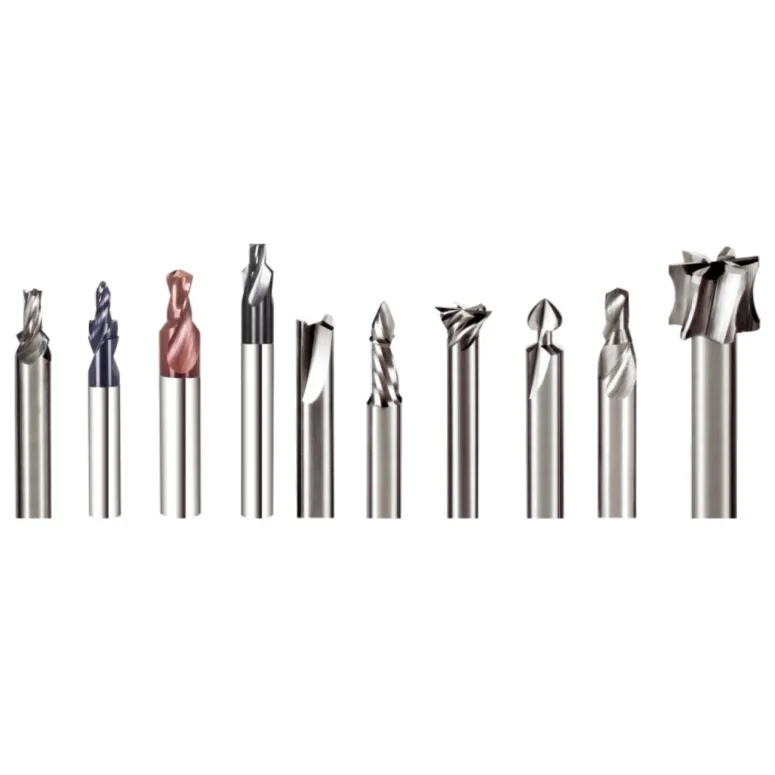

Solid Carbide Chamfering Tool
Solid Carbide Chamfer Mill for CNC Machining
Our solid carbide chamfering tool is engineered for high-precision deburring and chamfering operations. Crafted from premium tungsten carbide with optional TiAlN coating, it delivers exceptional wear resistance and heat dissipation. Each tool undergoes 5-axis CNC grinding and precision inspection (≤2μm concentricity) to ensure consistent performance.
D

Detailed Photos

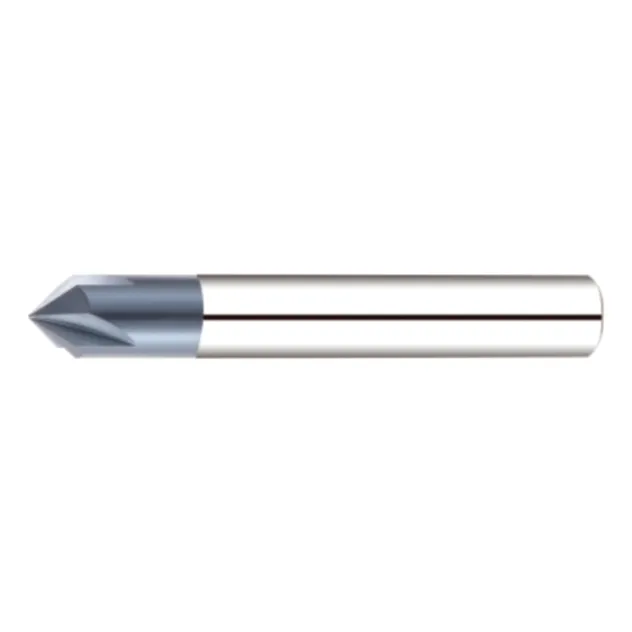

Detail 1

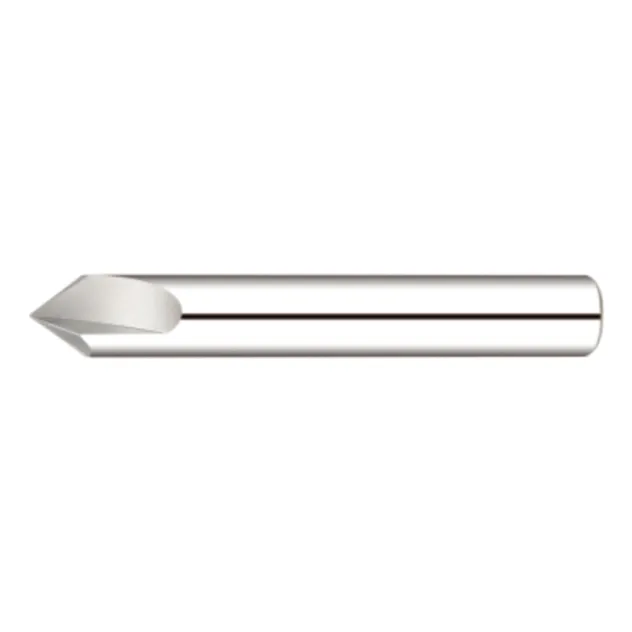

Detail 2

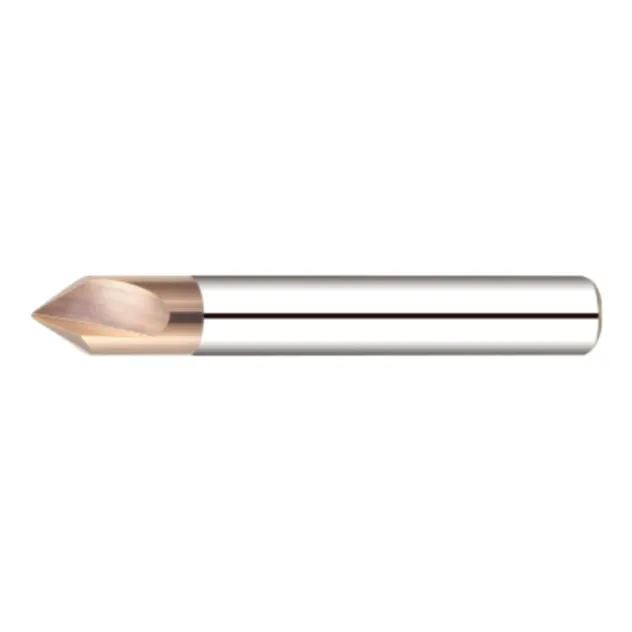

Detail 3

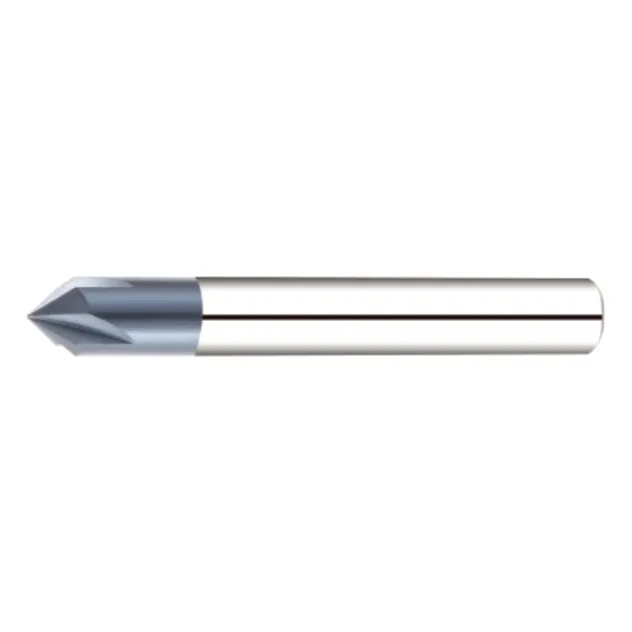

Detail 4

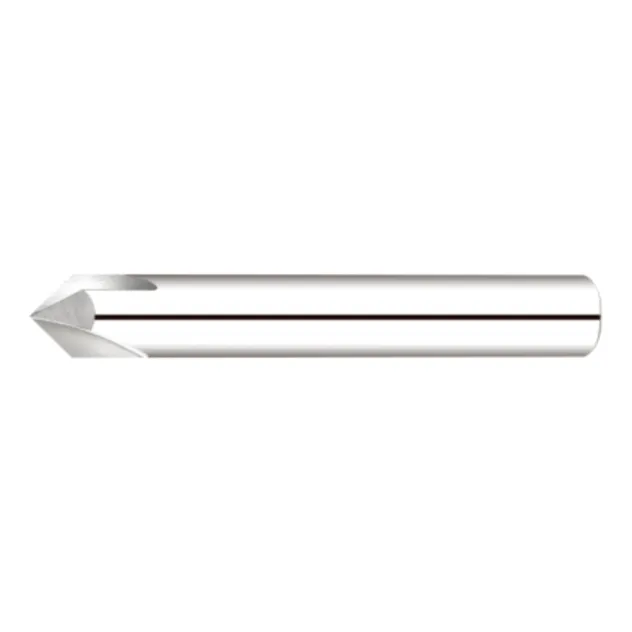

Detail 5

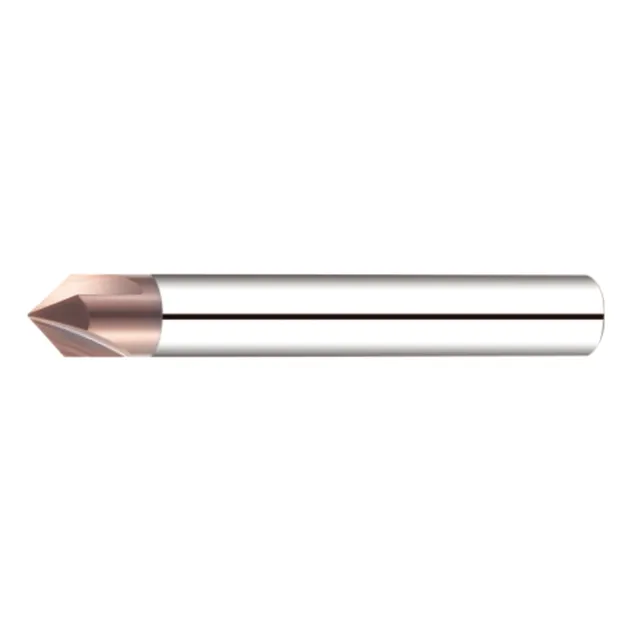

Detail 6
F

Functional Highlights

  • Precision Chamfering: Creates clean, consistent 90-degree angles and removes sharp burrs.
  • Spiral Flute Design: Ensures smooth cutting action and effective chip evacuation to prevent re-cutting.
  • Bidirectional Operation: Chamfer both entry (front) and exit (back) sides of a hole in a single operation.
  • Heat Resistance: Micro-grain tungsten carbide with optional TiAlN coating drastically extends tool life.
  • Universal Compatibility: Seamlessly integrates with CNC machining centers, lathes, and automated equipment.
S

Technical Specifications

Parameter Specifications
Tool TypeSingle/Double-End Chamfer Mill, Countersink
Chamfer Angle30°, 45°, 60°, 90°, Custom
Cutting Diameter1mm ~ 50mm (Metric); 0.04" ~ 2" (Imperial)
Number of Flutes2-Flute, 3-Flute, 4-Flute, 6-Flute
Helix Angle0° (Straight), 15° ~ 45° (Spiral)
ToleranceISO H7, H8, H9; ±0.01mm ~ ±0.05mm
Applicable MaterialsSteel, Stainless, Aluminum, Copper, Plastic, Cast Iron
T

Main Technical Parameters

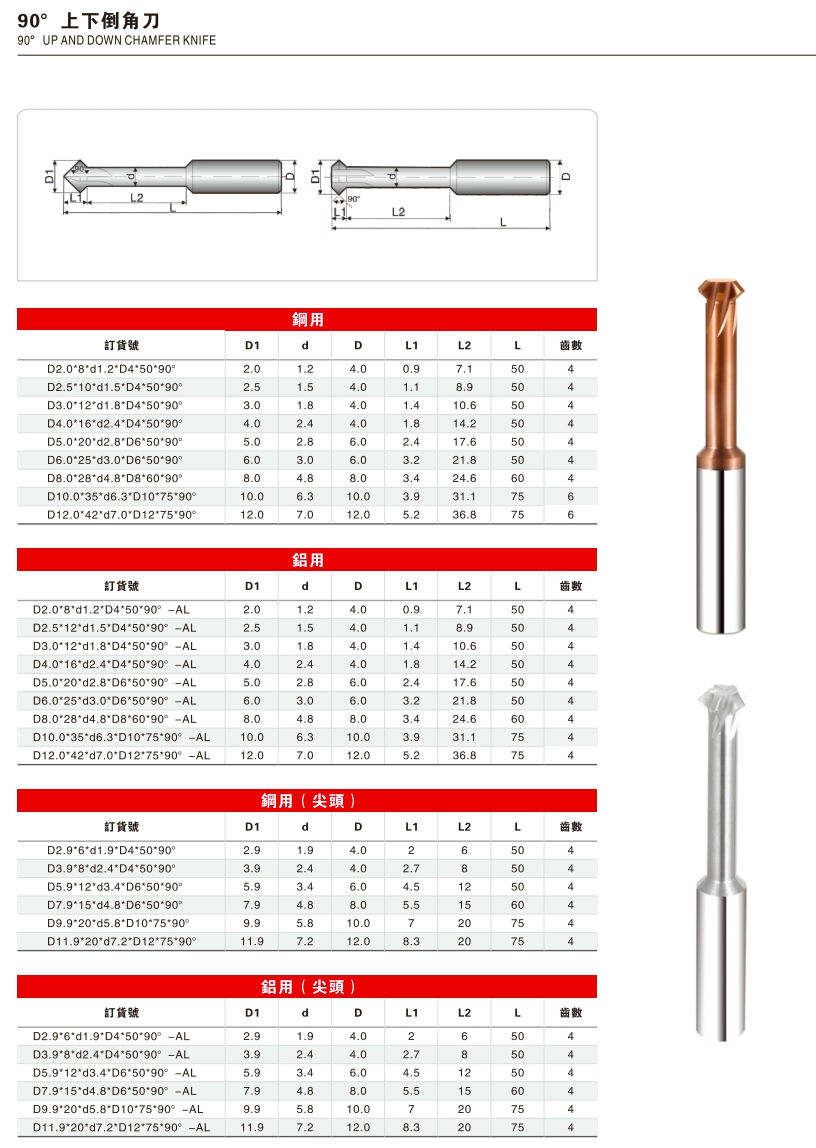

Tech Drawing 1

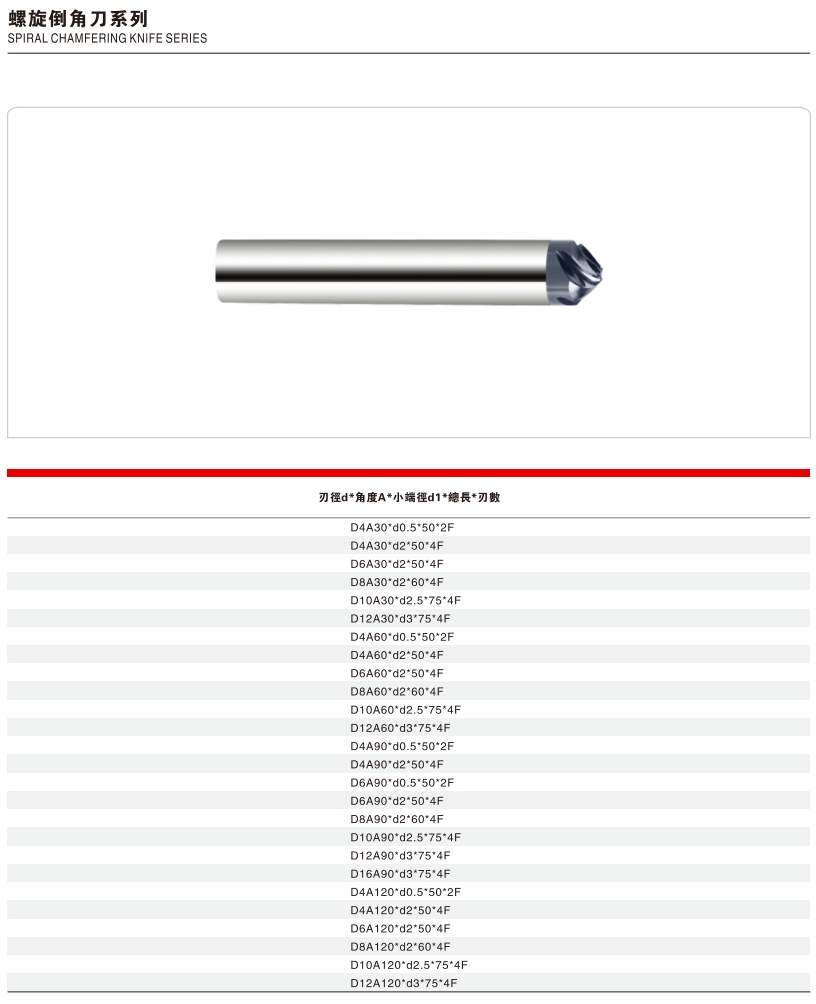

Tech Drawing 2

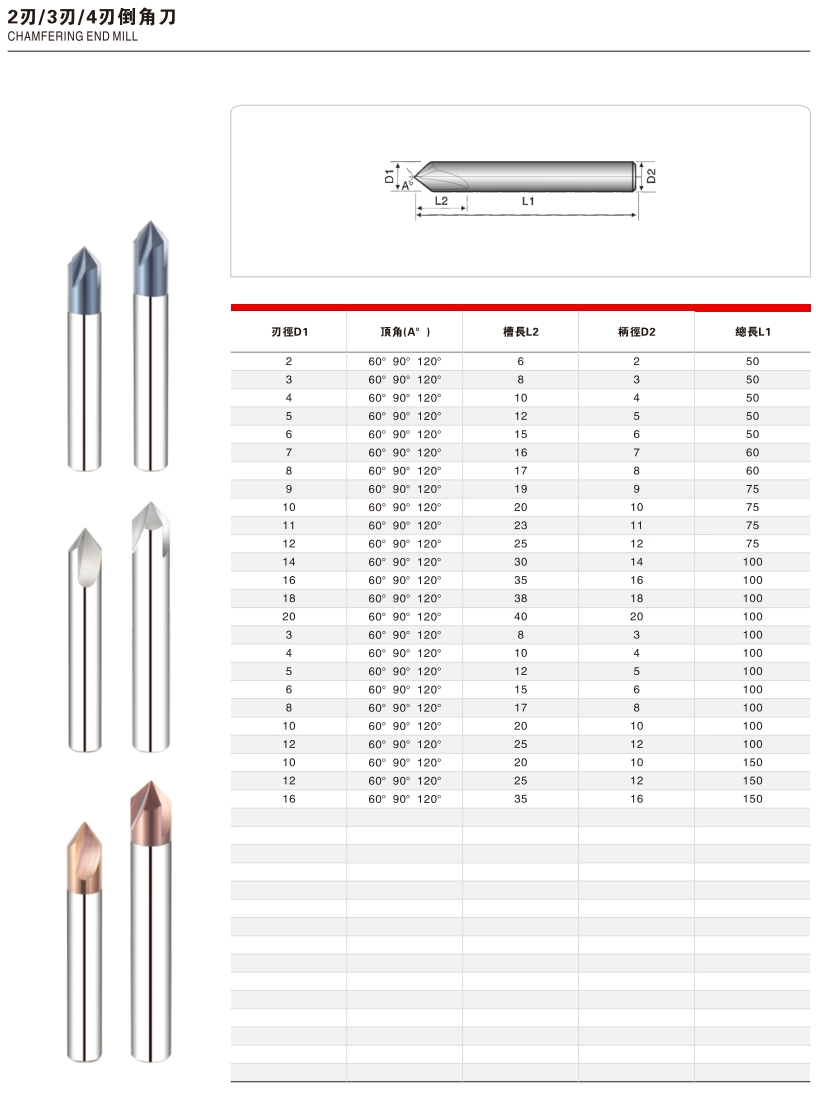

Tech Drawing 3
M

Manufacturing & Packing

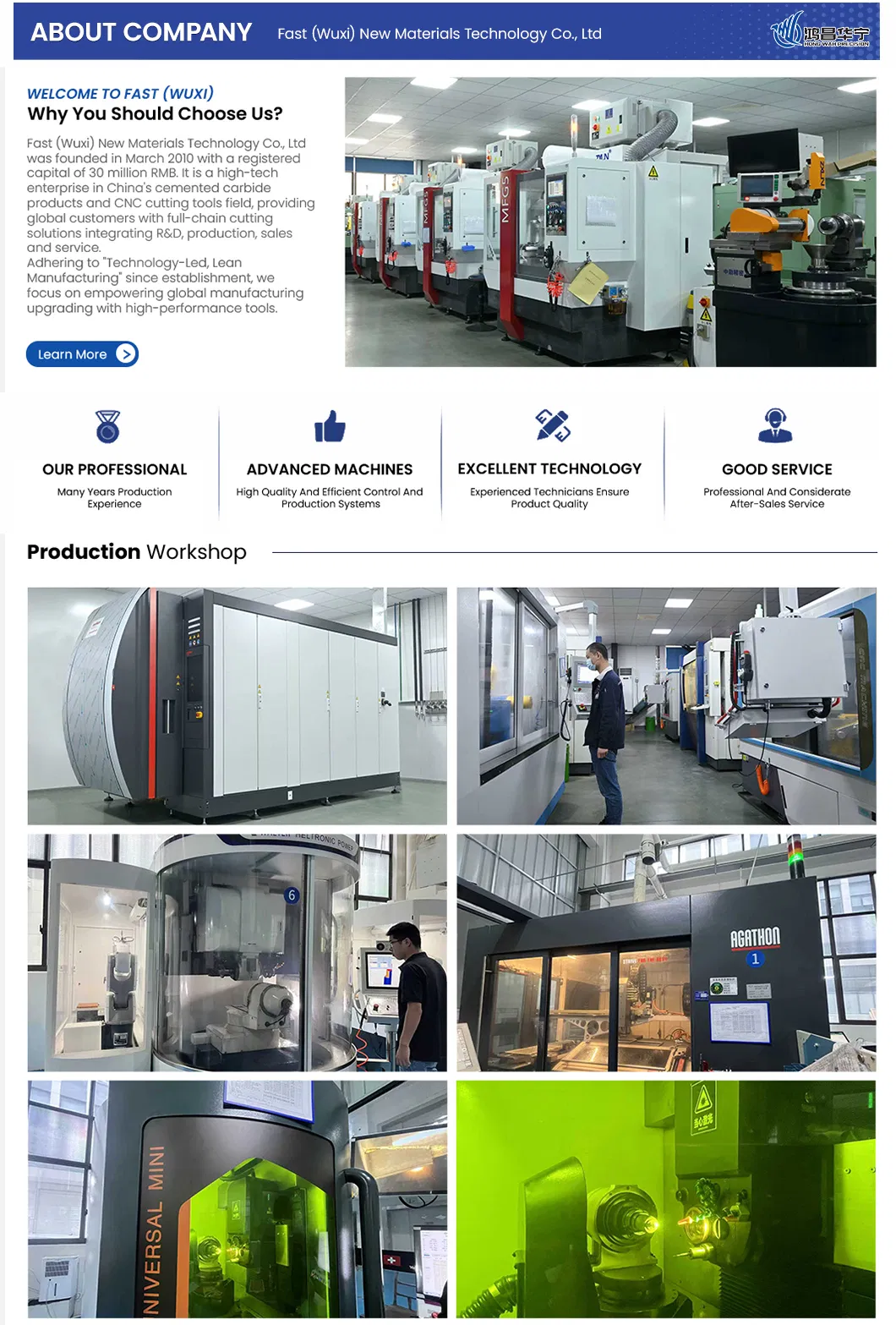

Facility
Packing 1
Packing 2
Packing 3
?

Frequently Asked Questions

Q1: Are you a factory or a trading company?
We are a factory with over 15 years of manufacturing experience, ensuring strict quality control and competitive pricing.
Q2: Can we use our own logo or design?
Yes, we provide comprehensive OEM and ODM services. We can customize products according to your specifications, including logos and packaging.
Q3: What is your Minimum Order Quantity (MOQ)?
For regular stock products, the MOQ is 10 pieces. For custom non-standard products, the minimum starts at 20 pieces.
Q4: How can I obtain samples?
We provide samples for quality evaluation. A sample fee is required, which can be credited against future bulk orders.
Q5: Do you accept custom orders?
Absolutely. Customization is our specialty. Our engineering team works closely with clients to meet exact technical requirements.
Q6: What is the typical lead time for orders?
For 1-10 pieces, lead time is 2 days. For 11-100 pieces, it is approximately 5 days. Larger orders are negotiable.
