| Model NO. | YNT-A3Z-0805 | Drive Mode | Electric |
| Operation Mode | Automatic | Warranty | 1 Year |
| Safety Features | Collision Detection System, Emergency Stop Button, Safety Light Curtain, Safety Mat | ||
| Arm Length | 800/1200/1400mm | Loading Ability | 3/5/10kg |
| Origin | China | HS Code | 84795000 |

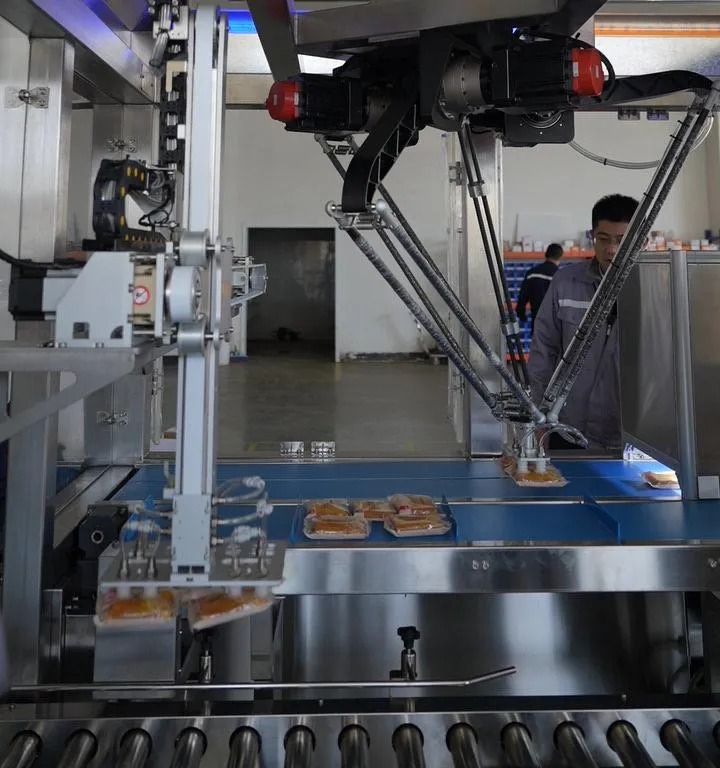

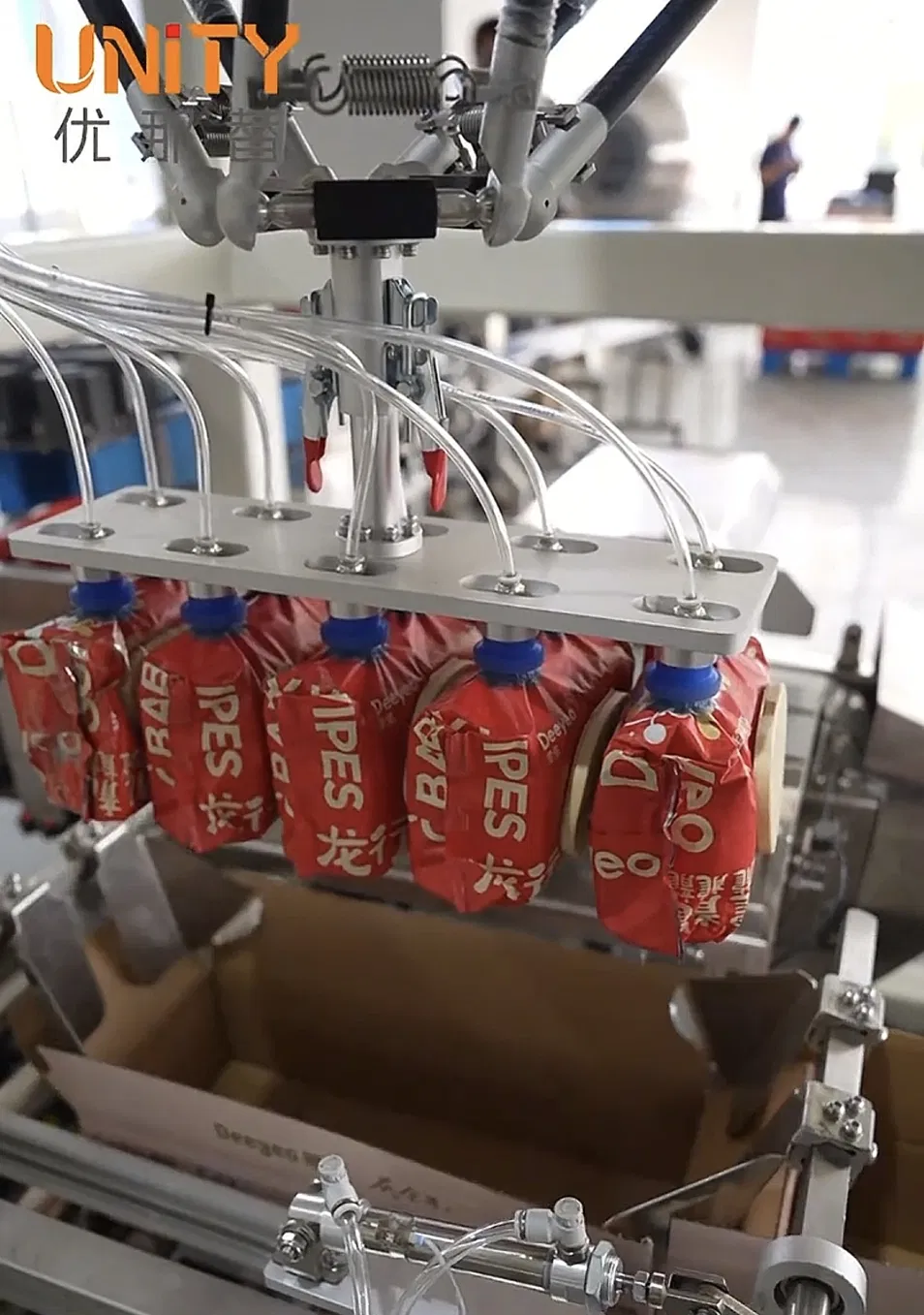

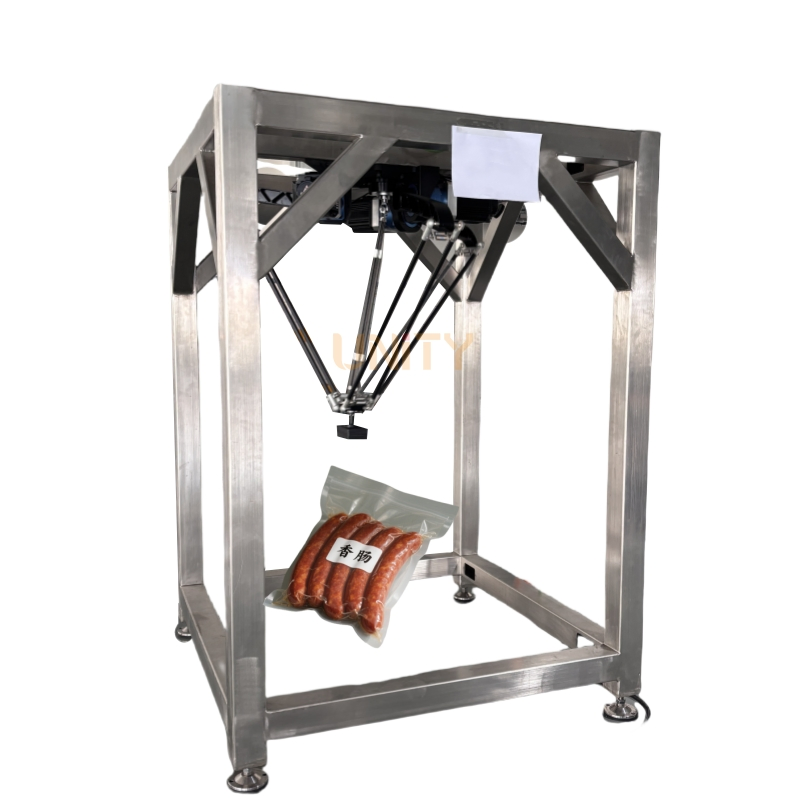

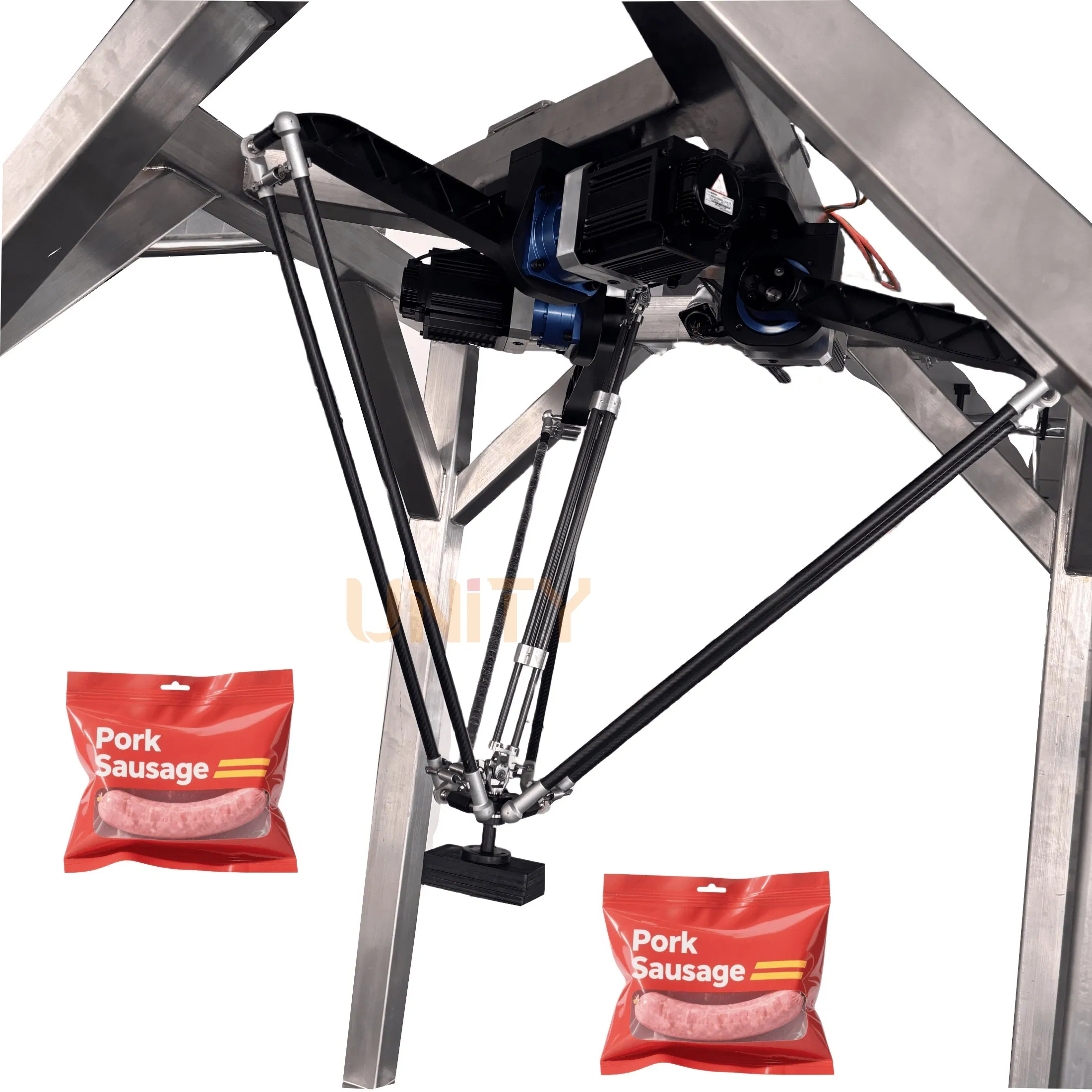

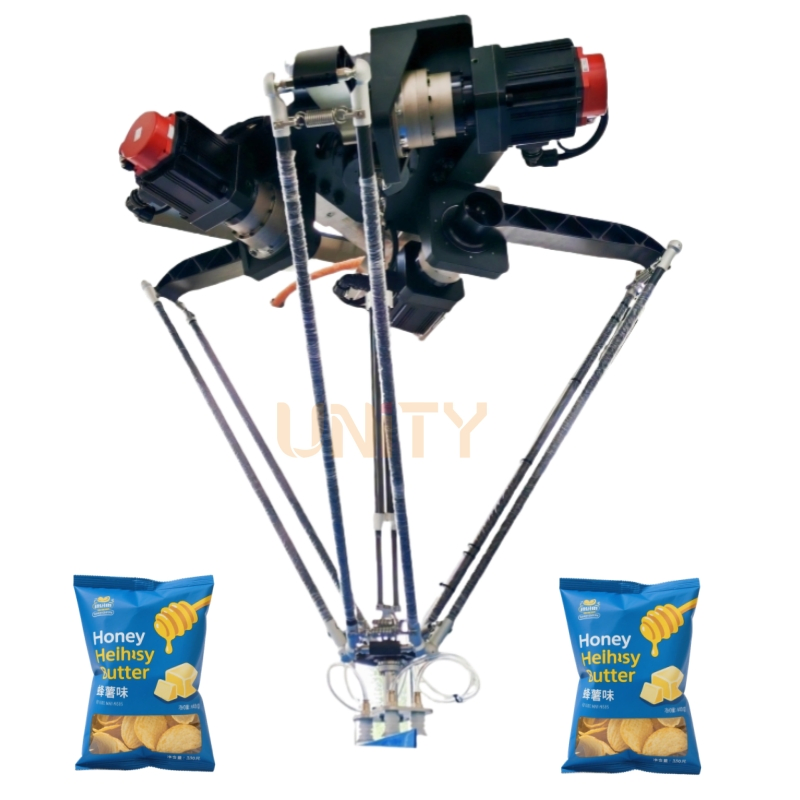

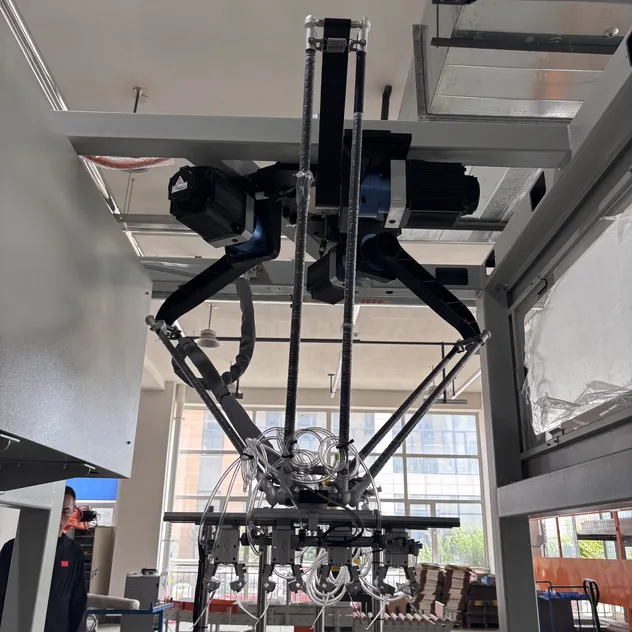

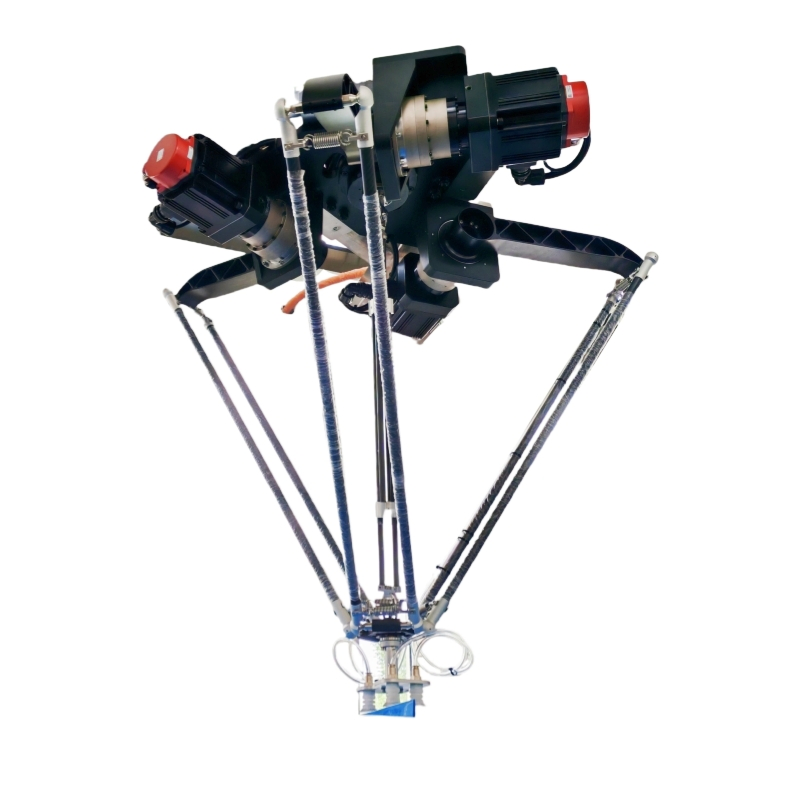

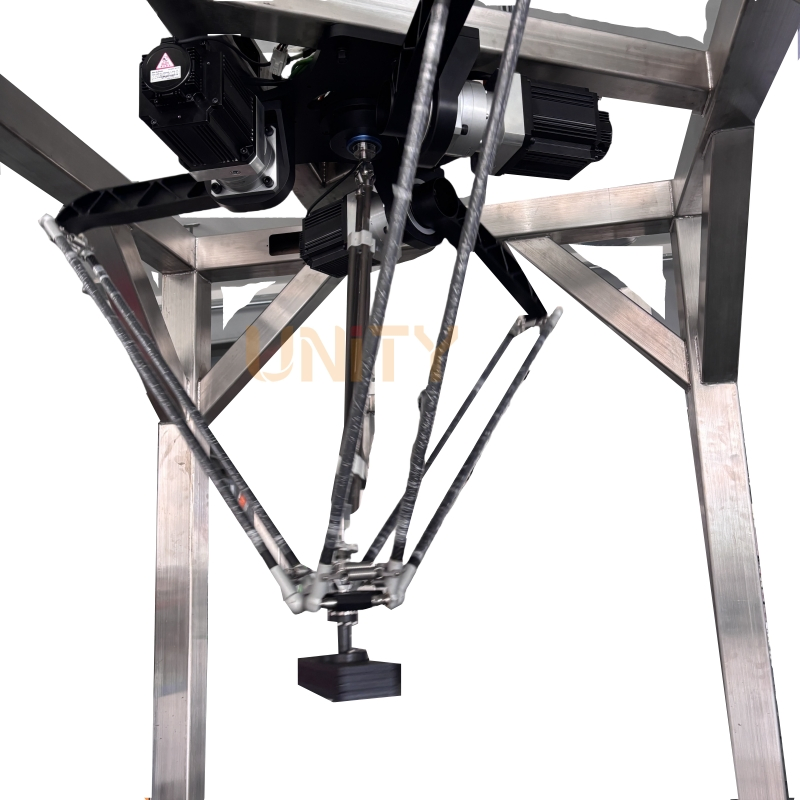

Delta Robot Sorting and Packing Solution

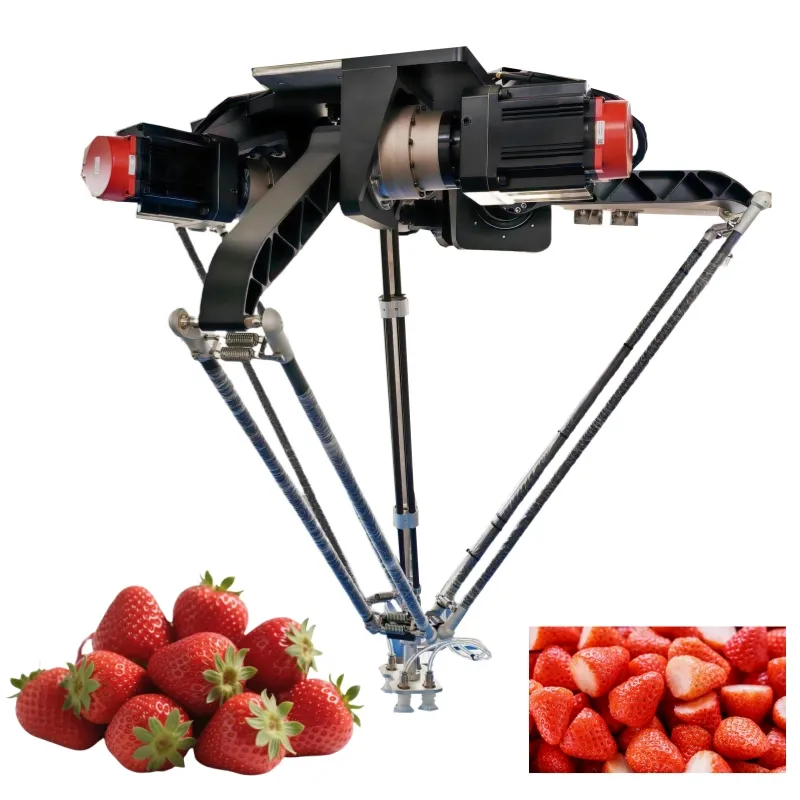

Intellectual Property Project: Automatic strawberry root removal delta robot for food processing industries.
| Model Details | YNT-A3Z-0800 Series | YNT-A3Z-1200 Series | YNT-A3Z-1400 Series | ||||
|---|---|---|---|---|---|---|---|
| 0805 | 0810 | 1205 | 1210 | 1405 | 1410 | ||
| Axes Number | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | |
| Maximum Load | 5kg | 10kg | 5kg | 10kg | 5kg | 10kg | |
| Range of Travel | 800mm | 800mm | 1200mm | 1200mm | 1400mm | 1400mm | |
| Exercise Frequency | 260PP/min | 240PP/min | 240PP/min | 200PP/min | 200PP/min | 180PP/min | |
| Position Accuracy | ±0.02mm | ||||||
| Protection Level | IP54 | ||||||
| Rated Power | 2.35kw | 2.35kw | 4.7kw | 4.7kw | 6.2kw | 6.2kw | |

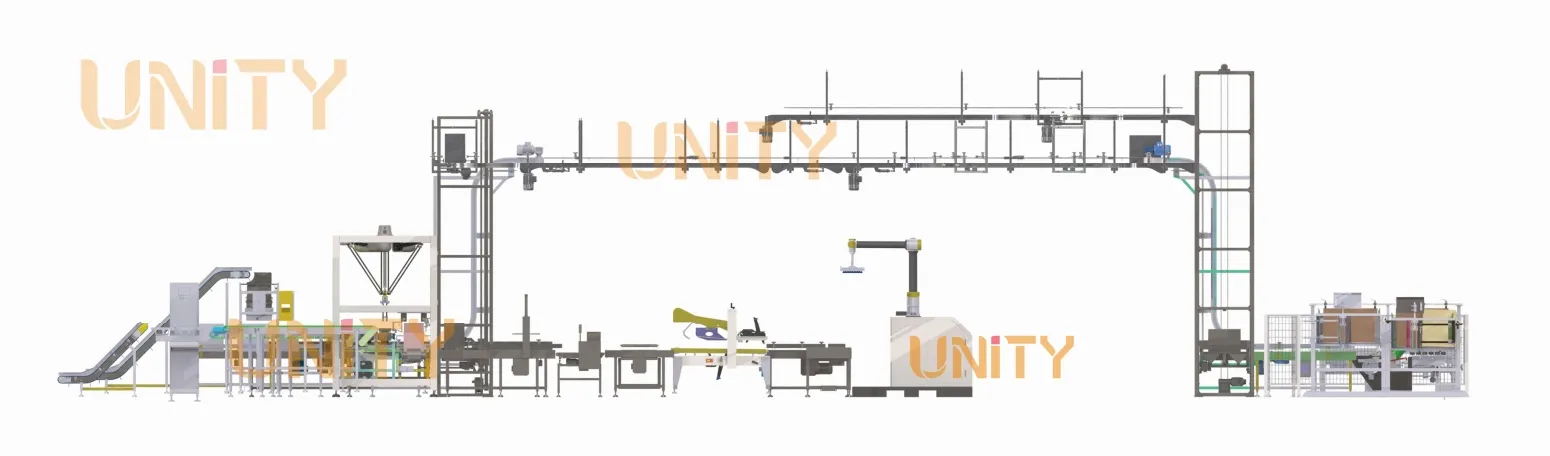

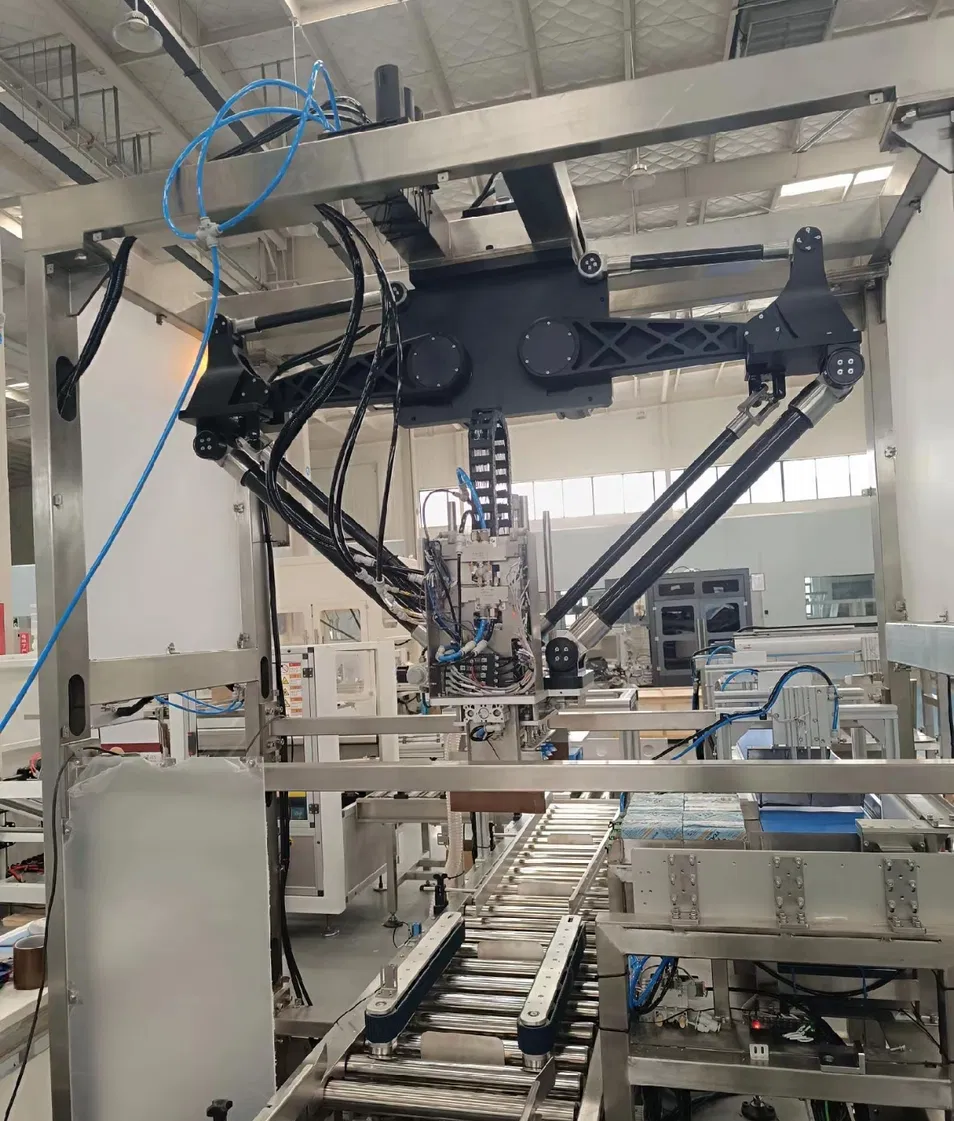

To solve the problem of insufficient space for customers, designers developed a lifting system to complete this intelligent assembly line project.

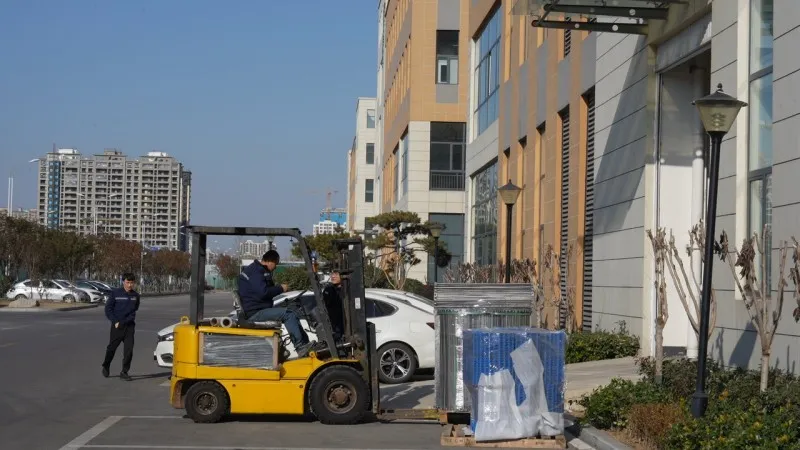

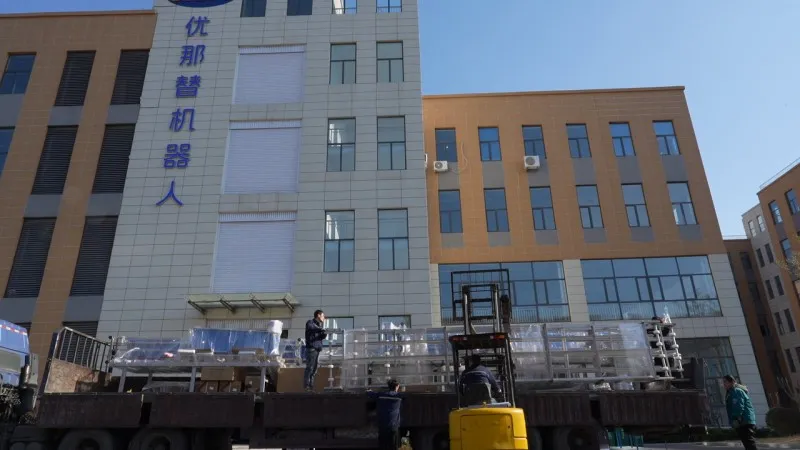

Semi-trailers are fully loaded with industrial robots, stacked tightly for delivery. The bustling shipping activity underscores robust production momentum and operational excellence as robots await delivery to global partners.

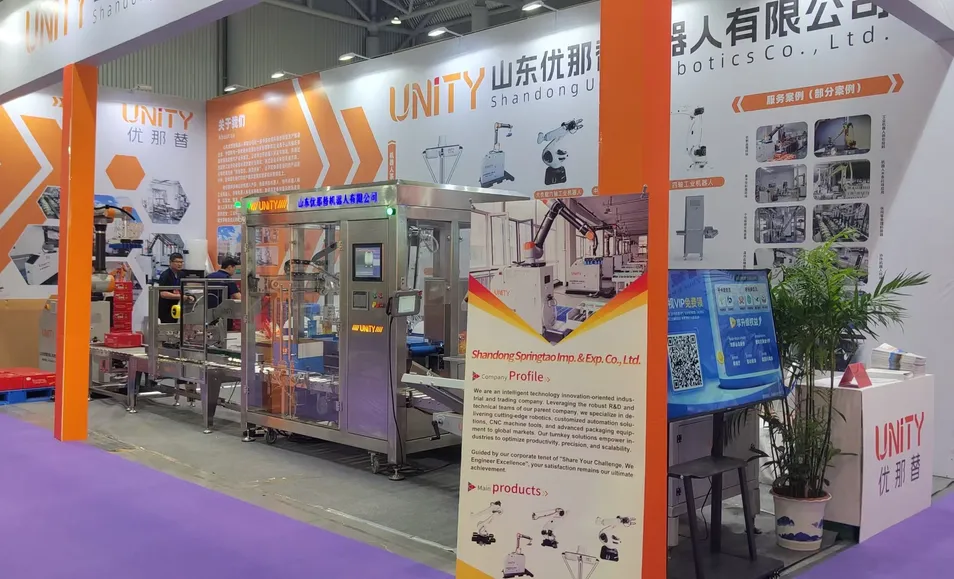

Engineers demonstrated precise grasping, welding, and other operations on site. Significant market interest was reported, with intended orders exceeding one million on the first day.

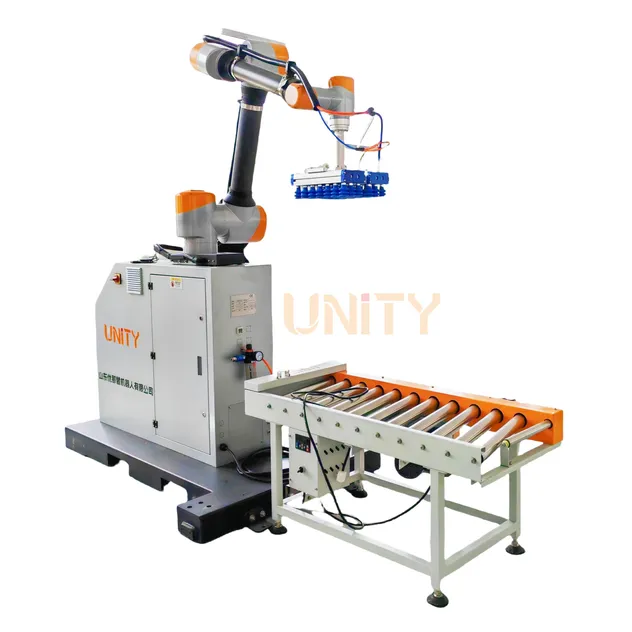

Cobot Palletizing Robot

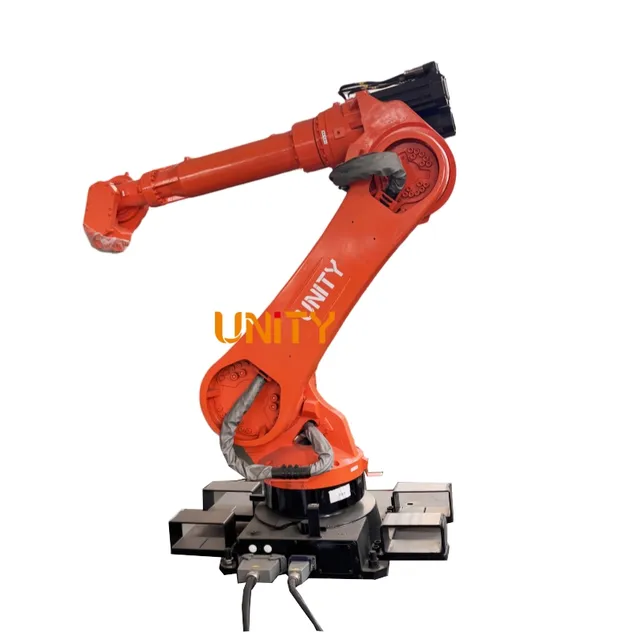

6-Axis Industrial Robot

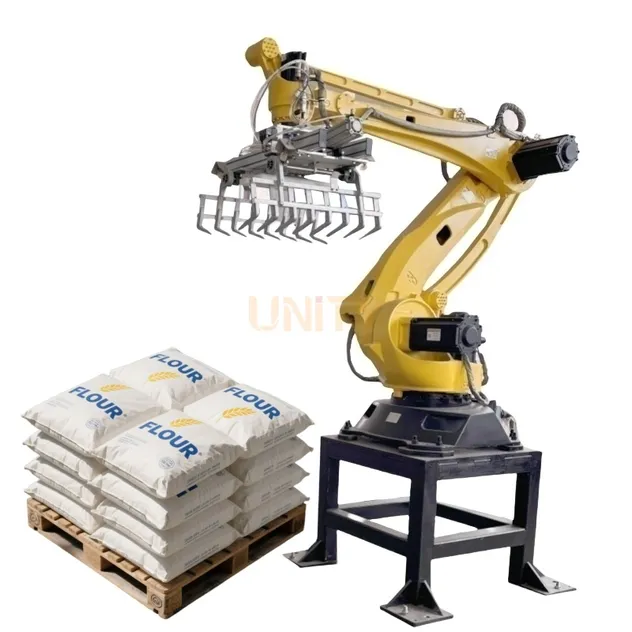

Industrial Palletizer

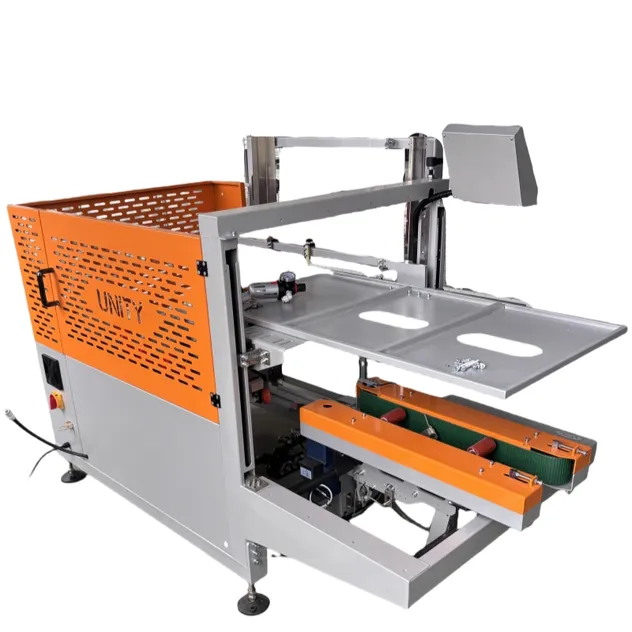

Carton Erector Machine

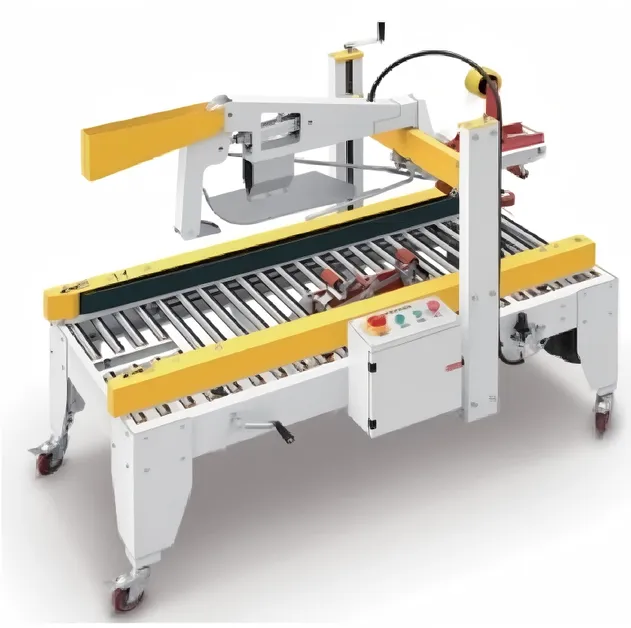

Carton Sealer Machine

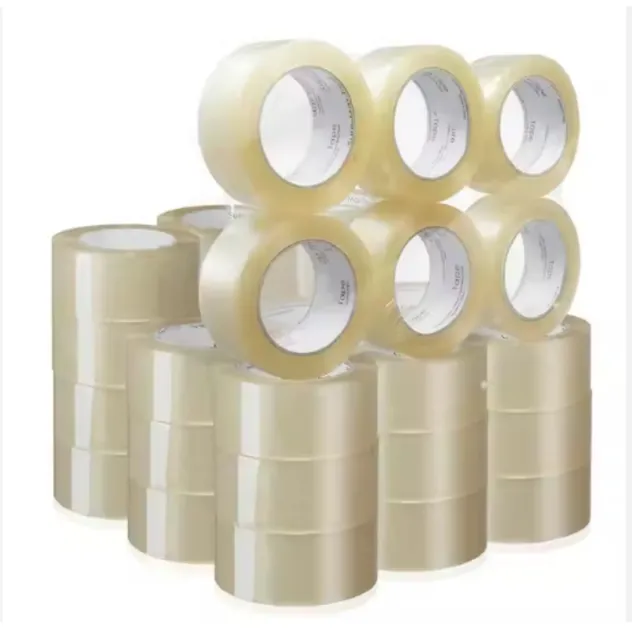

Tape & Packaging Materials
